Accessories included -
Aspect ratio - 16:9
Auto Pivot - Yes
Bluetooth - No
Brand - ASUS
BrandPartCode - 90LM0711-B01I70
Brightness - 450 cd/m²
Category - Computer Monitors
Category_1 - Monitors and TV
Category_2 - LED Monitors up to 19 inches
Certificates - Calman Verified
Certificates - Energy Star
Certificates - Pantone Validated
Certificates - TUV
Color - Black
Depth - 12 mm

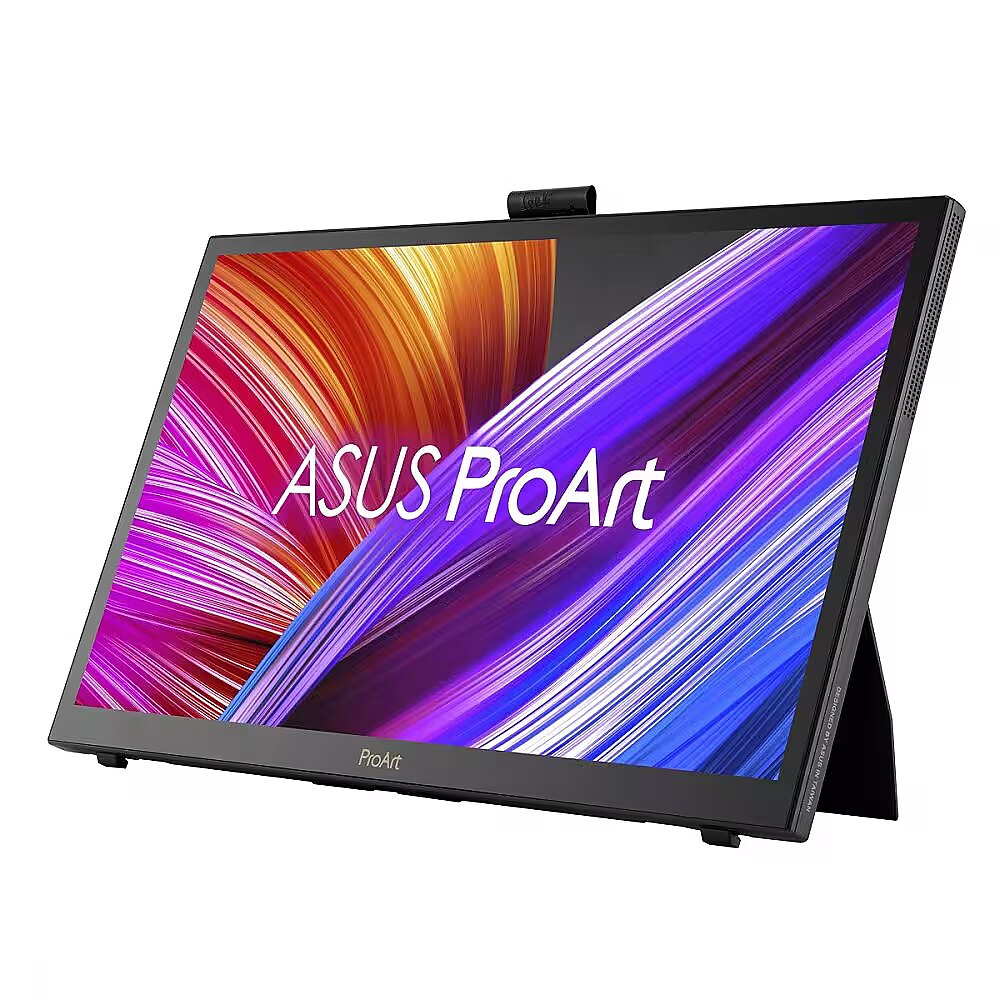

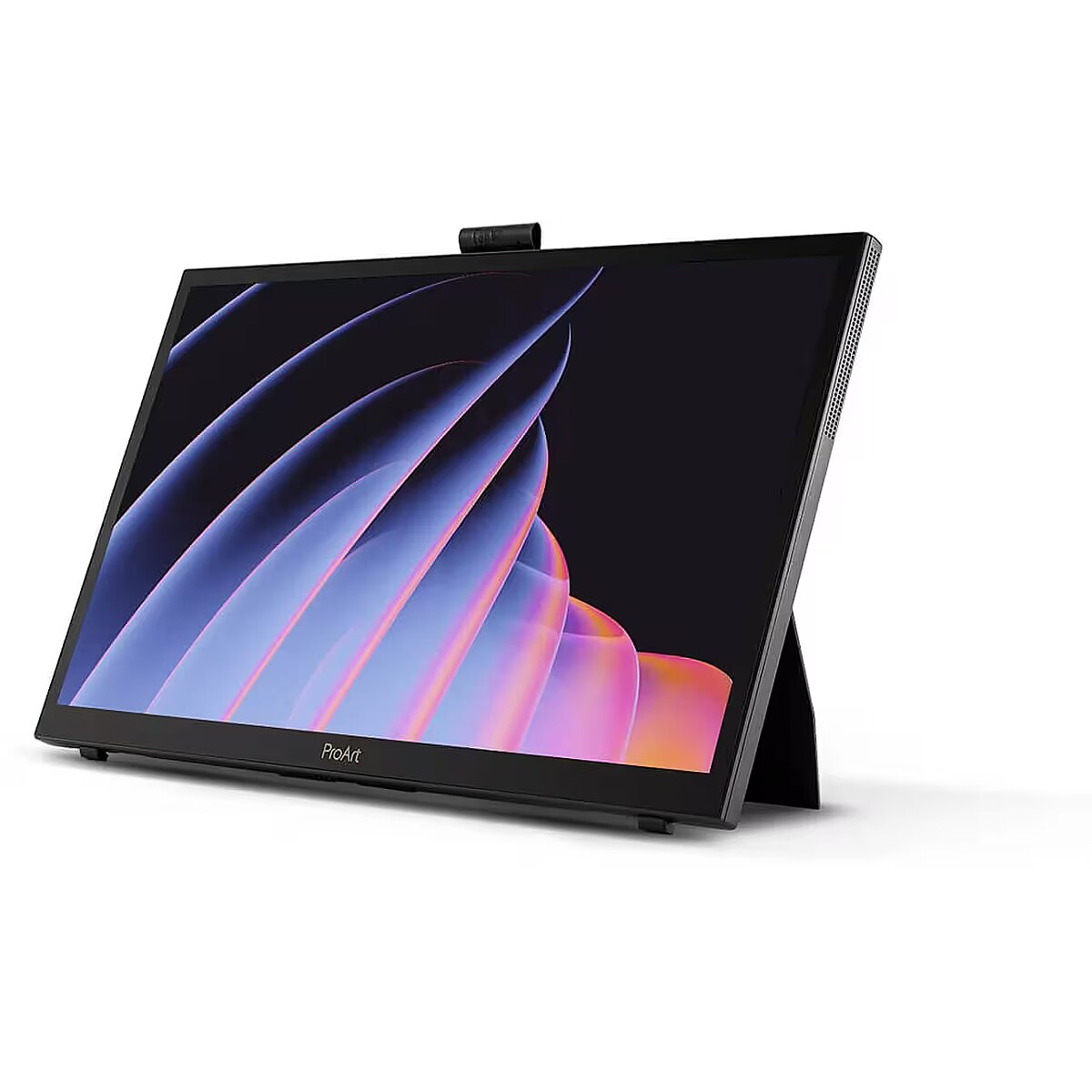

Description - PA169CDV 15.6-inch 4K UHD (3840 x 2160) IPS panel with anti-glare and capacitive 10-point multitouch Bundled ProArt Pen with Wacom EMR technology for pen-on-paper-like writing and drawing experiences 100% sRGB, Calman Verified, and factory pre-calibrated to Delta E < 2 for exceptional color accuracy ASUS Dial and Virtual Control Panel offer productive shortcuts and programmable hotkeys for compatible creative software Two innovative kickstands prop the display up at different angles to suit different needs Extensive I/O connectivity including USB-C (with DP Alt mode) and HDMI for compatibility with various devices TÜV Rheinland-certified Flicker-free and Low Blue Light technologies for comfortable viewing experiences
Design - Product colour - Black
dimension depth - 105 mm
dimension height - 320 mm
dimension weight - 3000 g
dimension width - 540 mm
Display - Anti-glare screen - Yes
Display - Backlight type - LED
Display - Colour depth - 10 bit
Display - Contrast ratio (dynamic) - 15000:1
Display - Contrast ratio (typical) - 1200:1
Display - Digital horizontal frequency - 29 - 160 kHz
Display - Digital vertical frequency - 40 - 60 Hz
Display - Display brightness (peak) - 500 cd/m²
Display - Display brightness (typical) - 450 cd/m²
Display - Display diagonal - 39.6 cm (15.6")
Display - Display number of colours - 1.073 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LCD
Display - HD type - 4K Ultra HD
Display - High Dynamic Range (HDR) supported - No
Display - High Dynamic Range (HDR) technology - High Dynamic Range 10 (HDR10)
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - IPS
Display - Pixel density - 282 ppi
Display - Pixel pitch - 0.09 x 0.09 mm
Display - Response time - 10 ms
Display - Screen shape - Flat
Display - sRGB coverage (typical) - 100%
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touch technology - Multi-touch
Display - Viewable size, horizontal - 34.6 cm
Display - Viewable size, vertical - 19.4 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Matt
Dot pitch - 0.09 mm
ean - 4711081710554
EAN_code - 4711081710554
Energy class - not applicable
Ergonomics - Cable lock slot - No
Ergonomics - Height adjustment - No
Ergonomics - Pivot - Yes
Ergonomics - Pivot angle - 0 - 90°
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 54 - 75°
Ergonomics - VESA mounting - No
Frequency, horizontal max. - 160 kHz
Frequency, horizontal min. - 29 kHz
Frequency, vertical max. - 60 Hz
Frequency, vertical min. - 40 Hz
GTIN - 4711081710554
guarantee - 36
guarantee_type - external
Height - 237 mm
Height adjustment - No

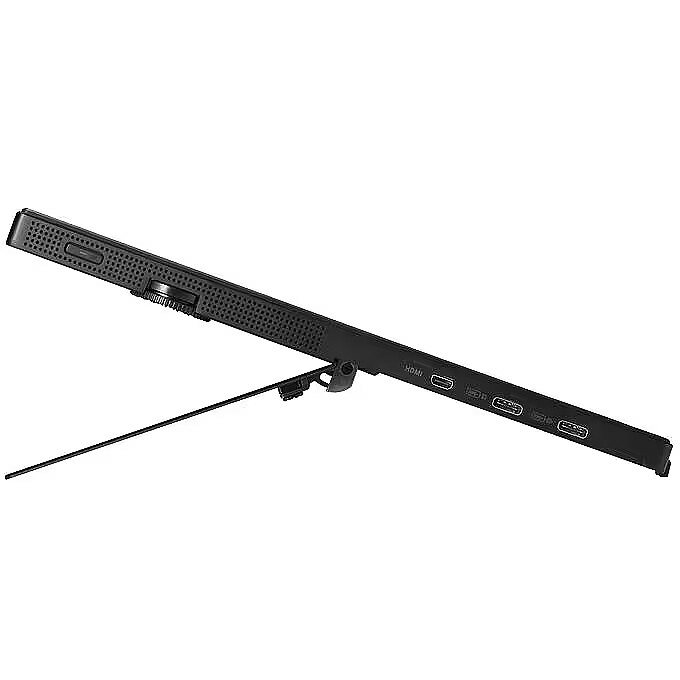

I/O connectors - 1 x HDMI
I/O connectors - 2 x USB (Type C)
LongDesc - Your Canvas for Digital ArtASUS ProArt PA169CDV Pen Display features a 15.6-inch, 10-bit, 4K UHD, IPS panel. It’s bundled with the ProArt Pen featuring Wacom EMR technology for great drawing experiences. PA169CDV is the world’s first portable monitor that’s both PANTONE® Validated and Calman Verified to ensure exceptional color accuracy. The ergonomic PA169CDV includes innovative upper and lower kickstands that allow for different tilt angles, making it easy to switch between daily productivity and creative workflows.Built for CreatorsReady for that Creative SparkWith ProArt Display PA169CDV, you’re ready whenever inspiration strikes comes. Built-in Wacom EMR technology and a bundled ProArt Pen enable a natural and precise drawing feel when creating content or editing artwork.Streamline Your WorkflowThe 4K UHD panel is both PANTONE Validated and Calman Verified to ensure sharper, detailed and more vivid colors, making it the perfect choice for a second display – or even a main screen. Either way, the perfection needed for both creation and color validation is assured.Impeccably-detailed VisualsWith a 4K UHD (3840 x 2160) panel, you’ll enjoy 4X pixel density and up to 300% more on-screen working space than similarly-sized Full HD (FHD) displays. Up to 400 nits of brightness and VESA DisplayHDR 400 certification delivers brighter, more lifelike viewing experiences, so every image is sharp, detailed and a pleasure to view.Create PreciselyLike ProArt Display PA169CDV, the all-new ProArt Pen also implements Wacom EMR technology. It’s battery-free and lightweight to support endless creativity, and it accurately detects every hand movement, even when tilted at up to 40 degrees for angled strokes. So, whether you’re drawing fast or slow, creating thick or thin lines, or finely shading areas, ProArt Pen feels intuitive and precise. Its sensitive to 4096 pressure levels and comes with two interchangeable pen nibs to suit any drawing or writing style. In short, creating with ProArt Pen feels just like using a real pen or brush!ProArt Display PA169CDV has a fully-laminated screen to minimize parallax, offering pixel-precise accuracy so the cursor is exactly where you want it to be, replicating the sensation of pen on paper for natural drawing experiences. It’s also treated with fingerprint-resistant, anti-glare coating – so it fends off fingerprints and distracting reflections.Enjoy True-to-life ColorPhotorealistic ColorProArt Display PA169CDV delivers exceptionally-detailed and realistic visuals, with 10-bit color depth, 100% sRGB, 100% Rec.709, and cinema-grade DCI-P3 color-gamut support. This means that the colors reproduced on the display are richer and more vivid: it’s ideal for color-intensive projects, but also enhances any kind of content.Experience Full ColorRevel in pure, expressive hues — thanks to accurate, true-to-life color reproduction. Delta E < 2 color accuracy means your images are accurately reproduced on screen, so you can see exactly how they’ll turn out.Pre-Calibrated for Out-of-the-Box AccuracyColor professionals rely on color-accurate displays to ensure that their creations render as intended. To ensure precise color accuracy, each PA169CDV is pre-calibrated at the factory. This remarkable display is both PANTONE® Validated and Calman Verified, and has a Delta-E color-accuracy value of less than 2. It also undergoes meticulous testing to ensure smooth color gradation and to guarantee the very best visuals.Create in ConvenienceSlim and LightweightThe thin 12.1 mm profile and overall weight of just 1.07 kg makes ProArt Display PA169CDV incredibly portable. Its frameless design maximizes screen area and screen-to-body ratio for incredible productivity and entertainment, anywhere.Built-in Adjustable KickstandsProArt Display PA169CDV features two built-in ergonomic kickstands. The lower kickstand provides the ideal viewing angle for everyday productivity, while engaging the upper prop tilts the display at a shallow 17° angle for comfortable creativity.Rich ConnectivityPA169CDV offers a host of ports to cater to your creative needs, including a single-cable USB-C solution that supports DisplayPort™ Alt Mode and power input simultaneously. Plus, there’s another USB-C port solely for the power adaptor. There’s additional flexibility in the shape of an HDMI port, making it easy to connect PA169CDV to a wide variety of input sources.*Connected device requires USB Type-C connectivity. (DisplayPort Alt Mode and at least 15 W power output required).*Monitor brightness and speaker sounds will be limited when using the single-cable solution.Harness your creative potential with the ProArt Creator Hub app. The app provides a unified experience across all your connected ProArt Displays to optimize your workflows. There’s also a new Color Control that helps you optimize color tools: we’ve collaborated with Pantone® to provide digital color data that will help you express your wild creativity.Creativity with a SpinDiscover new ways to work with the exclusive ASUS Dial, an intuitive physical controller that provides instant and precise fingertip control over parameters in creative apps. A switch by the dial allows you to select either stepped or stepless mode for intuitive control. Customized shortcuts enable you to zoom in and out of images or adjust brush size by simply turning the ASUS Dial. You can even tailor the default interface to suit your own work style.*ProArt Creator Hub for Microsoft Windows only.Intuitive Control at Your FingertipsASUS Control Panel is an exciting virtual interface designed to give you intuitive, precise control over creative apps such as Adobe software, DaVinci Resolve, Clip Studio Paint, and more. With the fully-customizable dial, slider, button, and scroll touch controls, you can easily assign controls to change brush size or saturation.*ProArt Creator Hub for Microsoft Windows only.**10-point touch function will depend on the operating system.Color ManagementWith the new Color Management feature you can easily capture and analyze any color on your screen with Screen Color Picker, and immediately see all the color data for your reference with Color Analysis. It’s really handy when creating, and you can use the Picture Extractor extract colors from uploaded material to create your own Color Palette to build your personal color preferences. ProArt Creator Hub also provides ASUS Color Trend and ASUS Palette to inspire your creativity.*ProArt Creator Hub for Microsoft Windows only.
LongProductName - ProArt PA169CDV Pen Display – 15.6-inch, IPS, 4K UHD (3840 x 2160), WACOM EMR, 100% sRGB, Color Accuracy ΔE < 2, Calman Verified, PANTONE Validated, USB-C, 10-point Touch, ASUS Dial, Control Panel
LongSummaryDescription - ASUS ProArt PA169CDV. Display diagonal: 39.6 cm (15.6"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 10 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. Product colour: Black
Manufacturer - Asus
Manufacturer_code - 90LM0711-B01I70
Matrix type - TFT IPS
Model - PA169CDV
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 2 W
Name - ASUS ProArt PA169CDV, LED monitor - 16 - black, UltraHD/4K, IPS, USB-C, HDMI
name - Monitor 15,6 inches PA169CDV IPS 4K UHD USB-C 10-point Touch
Number of colors - 1,07 mld
Optional accessory -
Other features - Brightness HDR: 500 cd/m2
Other features - Certification - Energy Star
TÜV Flicker-free
TÜV Low Blue Light
VESA DisplayHDR 400
Calman Verified
Pantone Validated
Packaging data - Package depth - 323 mm
Packaging data - Package height - 107.5 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.95 kg
Packaging data - Package width - 539 mm
Performance - AMD FreeSync - No
Performance - Flicker-free technology - Yes
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Headphone out - No
Ports & interfaces - Number of USB Type-C upstream ports quantity - 1
Ports & interfaces - USB Power Delivery - Yes
Ports & interfaces - USB Power Delivery up to - 15 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - Not available
Power - Power consumption (off) - 0.3 W
Power - Power consumption (PowerSave) - 0.5 W
Power - Power consumption (typical) - 15 W
Power consumption - 15 W
producer - Asus
ProductName - ProArt PA169CDV
Refresh rate - 60 Hz
Resolution - 3840 x 2160
Response time - 10 ms
Screen size (diag.) - 15.6"
ShortSummaryDescription - ASUS ProArt PA169CDV, 39.6 cm (15.6"), 3840 x 2160 pixels, 4K Ultra HD, LCD, 10 ms, Black
Speakers built-in - Yes
Static contrast - 1 200:1
Title - ASUS ProArt PA169CDV computer monitor 39.6 cm (15.6") 3840 x 2160 pixels 4K Ultra HD LCD Touchscreen Black
Touch screen - Yes
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.asus.com/displays-desktops/monitors/proart/proart-display-pa169cdv/
vendpn - PA169CDV
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Visible area, horizontal - 345.6 mm
Visible area, vertical - 194.4 mm
Warranty -
WarrantyInfo -
Web camera - None
Weight - 1.07 kg
Weight - 3,10
Weight & dimensions - Depth (without stand) - 12 mm
Weight & dimensions - Height (without stand) - 237 mm
Weight & dimensions - Weight (without stand) - 1.07 kg
Weight & dimensions - Width (without stand) - 370 mm
Width - 370 mm
WiFi - No
