75 mm x 75 mm VESA mounting interface - Yes
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - DHI-LM32-E230C
Brightness - 300
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category Code - LC3
Contrast - 3000:1
Data Sheet (Link) - https://eprel.ec.europa.eu/api/product/2027449/fiches?language=EN
Depth Unit Dimensions - 120.6 mm
Description - > The 1920*1080 resolution produces clearer and more vivid pictures; > Comfortable 1500R exquisite curvature, close to the natural look and feel of the human eye, bringing immersive visual enjoyment > Wide color gamut, 99% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB. It meets the designer's demand of image texture; > 178°H/178°V extra-wide viewing angle for all-round viewing performance; > Adaptive sync can effectively solve picture lagging and tearing problems; > 1ms fast response time with no image blurring or ghosting;
Design - Detachable stand - Yes
Design - Frameless design - Yes
Design - Market positioning - Gaming
Design - Product colour - Black
Display - Adobe RGB coverage - 85%
Display - Backlight type - Edge LED
Display - Contrast ratio (typical) - 3000:1
Display - Display brightness (typical) - 300 cd/m²
Display - Display diagonal - 80 cm (31.5")
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - Maximum refresh rate - 165 Hz
Display - Native aspect ratio - 16:9
Display - NTSC coverage (typical) - 85%
Display - Panel type - VA
Display - Response time - 1 ms
Display - Screen curvature rating - 1500R
Display - Screen shape - Curved
Display - sRGB coverage (typical) - 99%
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
DisplayPort Input/Output connectors - 1
Eans - 6923172593238
Energy consumption, standard - 26 kWh/1000h
Energy efficiency class - E
EPREL Registration Number - 2.02745e+006
EPREL Version Number - 2
Ergonomics - Height adjustment - No
Ergonomics - Panel mounting interface - 75 x 75 mm
Ergonomics - Pivot - No
Ergonomics - Swivelling - No
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 15°
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Full Description Line - Model LM32-E230C|31.5"|Gaming/Curved|Panel VA|Resolution 1920x1080|Form factor 16:9|Refresh rate 165Hz|Brightness 300|Contrast 3000:1|Response time 1 ms|Horizontal 178 degrees|Vertical 178 degrees|2xHDMI|1xDisplayPort|1xAudio-Out|Tilt|PSU Inbuilt|75 mm x 75 mm
HDMI Input/Output connectors - 2
Height Unit Dimensions - 422.8 mm
LongDesc -
LongProductName - 31.5’’ FHD Monitor, 1500R, 1920 x 1080 VA, 165Hz, 300 cd/m2, 3000:1, 1ms, 1 x DP1.2，2 x HDMI 1.4, Audio out
LongSummaryDescription - Dahua Technology DHI-LM32-E230C. Display diagonal: 80 cm (31.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 1 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Model name - LM32-E230C
Monitor features - Curved/Gaming
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - No
Name - Dahua LM32- E230C - 31,5'' | VA | Full HD | 1ms | 165Hz
Native resolution - 1920x1080
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Cables included - AC, DisplayPort
Packaging content - Power adapter included - Yes
Packaging content - Stand included - Yes
Packaging data - Package depth - 171 mm
Packaging data - Package height - 533 mm
Packaging data - Package weight - 9.04 kg
Packaging data - Package width - 801 mm
Panel type - VA
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Power - AC adapter output voltage - 12 V
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 26 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 1536859
Power - Input current - 1.5 A
Power - Power consumption (max) - 72 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 45 W
Power - Power supply type - Internal
Power supply - Inbuilt
Producer - Dahua Technology
ProducerCode - LM32-E230C
ProductName - DHI-LM32-E230C
Refresh rate - 165Hz
Response time - 1 ms
Screen form factor - 16:9
Screen size - 31.5"
Shipping Box Depth Shipping/Package Box Dimensions - 81 cm
Shipping Box Height Shipping/Package Box Dimensions - 54.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 9.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 18 cm
ShortDescription - 31,5'' | VA | Full HD | 1ms | 165Hz
ShortSummaryDescription - Dahua Technology DHI-LM32-E230C, 80 cm (31.5"), 1920 x 1080 pixels, Full HD, LED, 1 ms, Black
Standby consumption - 0.5 Watts
Tilt Stand - Yes

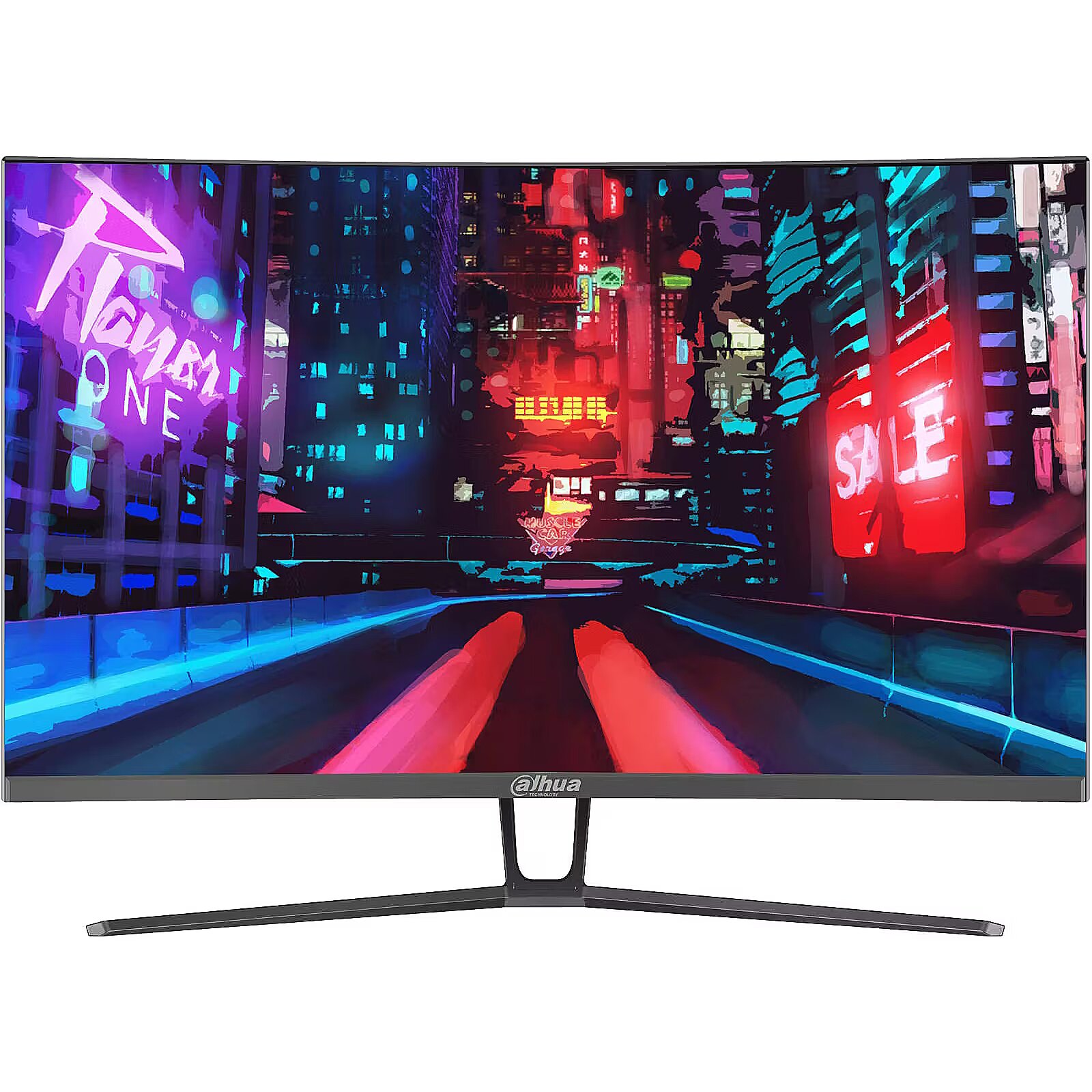

Title - Dahua Technology DHI-LM32-E230C LED display 80 cm (31.5") 1920 x 1080 pixels Full HD Black
Unit Box Height - 0.545
Unit Box Length - 0.81
Unit Box Width - 0.18
Unit Brutto Volume - 0.07946 cubm
Unit Gross Weight - 9.6 kg
Unit Net Weight - 6.99 kg
URL - https://www.dahuasecurity.com/vi/products/All-Products/Display--Control/Monitors/Gaming-Series/LM32-E230C
Vendor Homepage - display.dahuasecurity.com/consumer/en/products/productDetail?product_id=115727
Viewing angle horizontal - 178 degrees
Viewing angle vertical - 178 degrees
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 120.6 mm
Weight & dimensions - Height (without stand) - 422.8 mm
Weight & dimensions - Weight (with stand) - 6.99 kg
Weight & dimensions - Width (without stand) - 712.5 mm
Width Unit Dimensions - 712.5 mm
