Brand - Epson
BrandPartCode - C11CJ82401
Category - Dot Matrix Printers
Code - C11CJ82401
EAN - 8715946695969
Endurance - Mean time between failures (MTBF) - 20000 h
Endurance - Print head - 24-pin
Endurance - Print head life - 400 million characters
Endurance - Ribbon life - 10 million characters
Features - Buffer size - 128 KB
Features - Country of origin - Indonesia
Features - Product colour - Black, White
Features - Sound pressure level (printing) - 59 dB
Gross weight - 8.00 kg
GTIN - 8715946695969

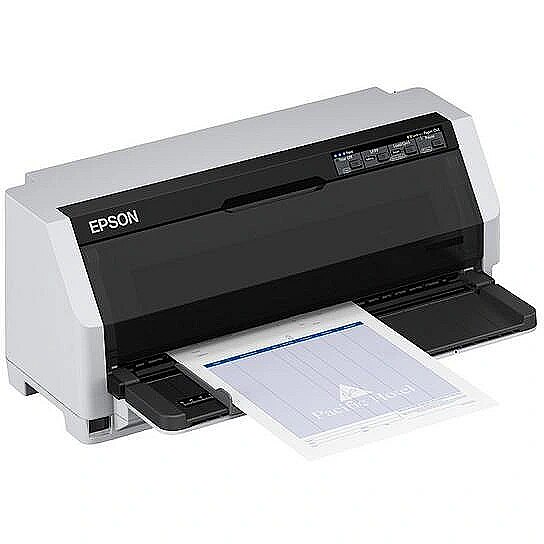

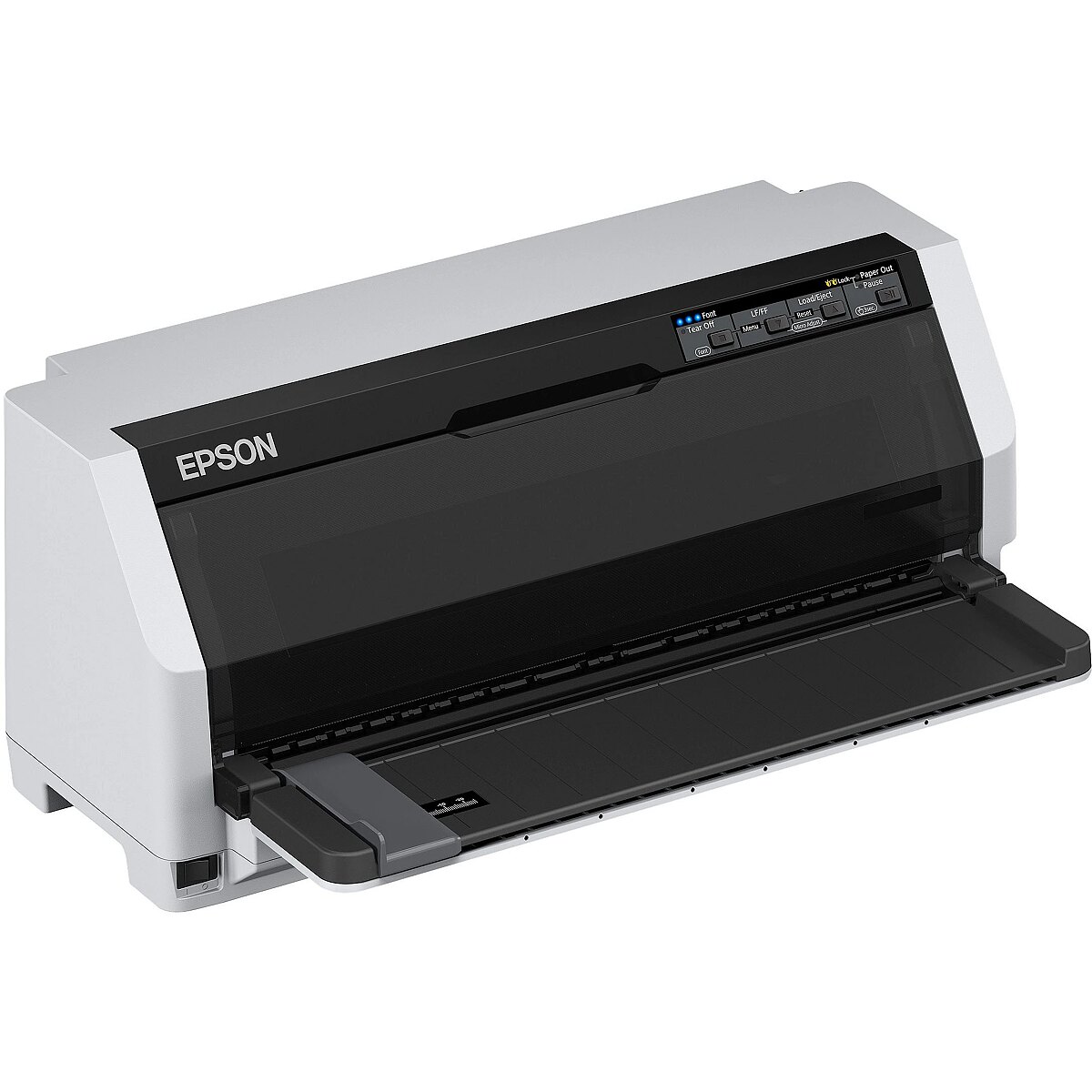

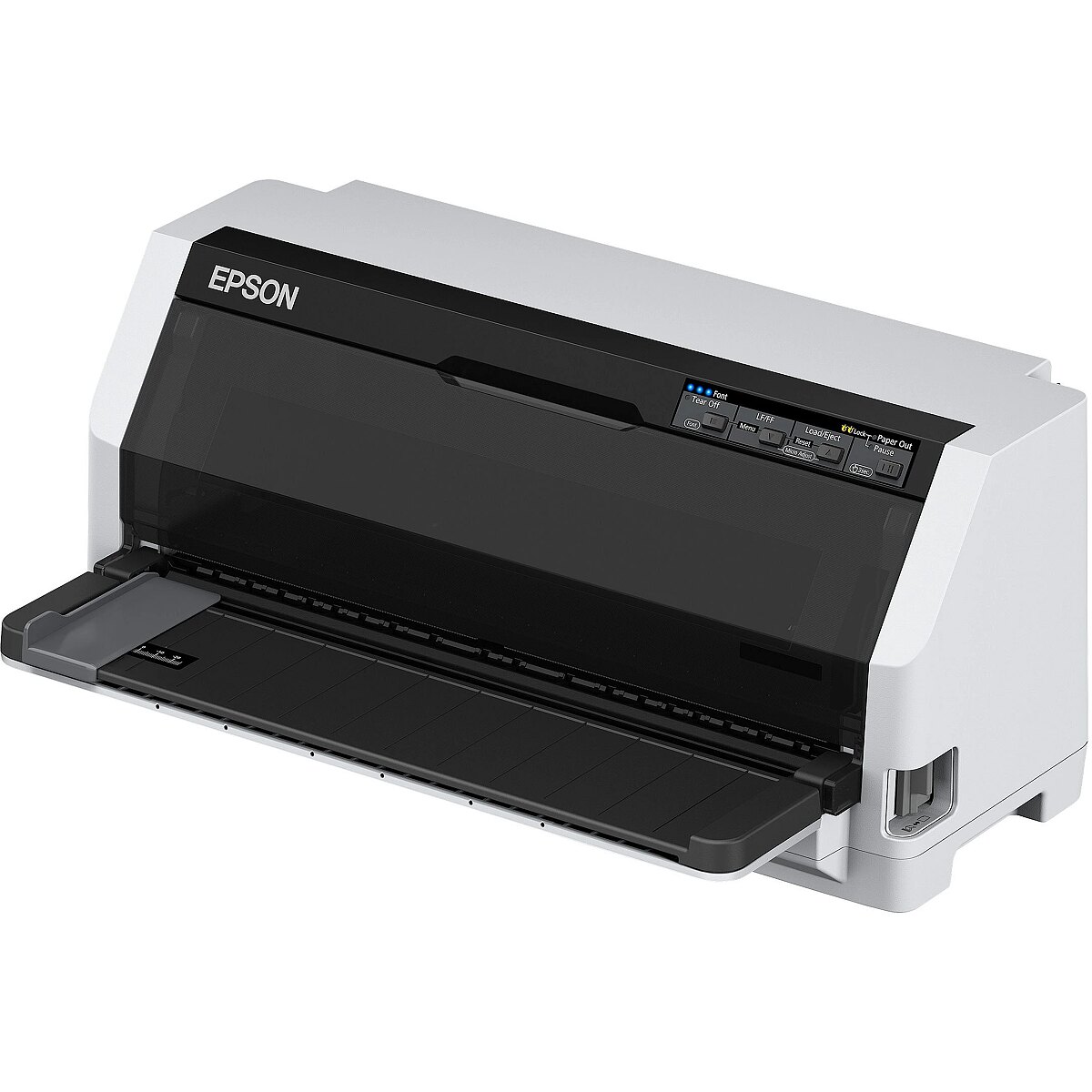

LongDesc - Fast and reliable dot matrix printing with the Epson LQ-690II. Its robust nature and modern design fit comfortably into any environment.Designed with productivity in mind, the LQ-690II is an ultra-reliable dot matrix printer that offers an impressive ribbon yield. It is fast and compact with a robust build. Its modern design allows effortless integration into any work environment, be it an office or a warehouse.Fast printing:Print faster and more productively. The LQ-690II prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.High ribbon yield:In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690II as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste.Dependable:Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, which makes the LQ-690II ideal for any work environment. This results in greater productivity and less maintenance from down time - essential when producing large amounts of documents and data.Smart design:This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.
LongProductName - 24-pin dot matrix printer, 487 cps, 1+6 copies, 106 columns, USB 2.0, Bidirectional parallel
LongSummaryDescription - Epson LQ-690II. Maximum print speed: 487 cps, Maximum resolution: 4800 x 1200 DPI, Maximum print speed (draft): 366 cps. Paper feed: Manual, Pull tractor, Paper tray media types: Envelopes, Labels, Plain paper, Roll, Continuous paper thickness range: 0.065 - 0.49 mm. Product colour: Black, White, Buffer size: 128 KB, Sound pressure level (printing): 59 dB. Standard interfaces: Parallel, USB 2.0. Print head: 24-pin, Print head life: 400 million characters, Ribbon life: 10 million characters
Name - Epson
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 301.00 mm
Package features > Gross height (mm) - 211.00 mm
Package features > Gross width (mm) - 480.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 28 pc(s)
Package features > Paper/Pasteboard - 900.00 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 1.20 kg
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Paper handling - Continuous paper thickness range - 0.065 - 0.49 mm
Paper handling - Label thickness range - 0.16 - 0.19 mm
Paper handling - Multi-part paper thickness range - 0.12 - 0.49 mm
Paper handling - Paper feed - Manual, Pull tractor
Paper handling - Paper tray media types - Envelopes, Labels, Plain paper, Roll
Paper handling - Single sheet thickness range - 0.065 - 0.15 mm
Ports & interfaces - Standard interfaces - Parallel, USB 2.0
Power - Power consumption (standby) - 3 W
Power - Power consumption (typical) - 38 W
Printing - Built-in barcodes - CODABAR (NW-7), Code 39, Code-128 Codabar Library, EAN128, EAN13, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Printing - Character sets - ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8
Printing - Colour - No
Printing - Maximum number of copies - 7 copies
Printing - Maximum printing width (columns) - 106
Printing - Maximum print speed - 487 cps
Printing - Maximum print speed (draft) - 366 cps
Printing - Maximum print speed (LQ) - 121 cps
Printing - Maximum resolution - 4800 x 1200 DPI
ProductName - LQ-690II
ShortSummaryDescription - Epson LQ-690II, 487 cps, 4800 x 1200 DPI, 366 cps, 121 cps, 7 copies, CODABAR (NW-7), Code 39, Code-128 Codabar Library, EAN128, EAN13, Industrial 2/5, Interleaved 2/5,...
System requirements - Bundled software - Epson Status Monitor
System requirements - Windows operating systems supported - Yes
Technical details > Net weight - 6.80 kg
Technical details > Producer - Epson
Title - Epson LQ-690II dot matrix printer 4800 x 1200 DPI 487 cps
URL - https://www.epson.co.za/en_ZA/products/printers/dot-matrix/epson-lq-690ii/p/31995
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo - 12 months Carry in
Weight & dimensions - Depth - 301 mm
Weight & dimensions - Height - 211 mm
Weight & dimensions - Weight - 6.8 kg
Weight & dimensions - Width - 480 mm
