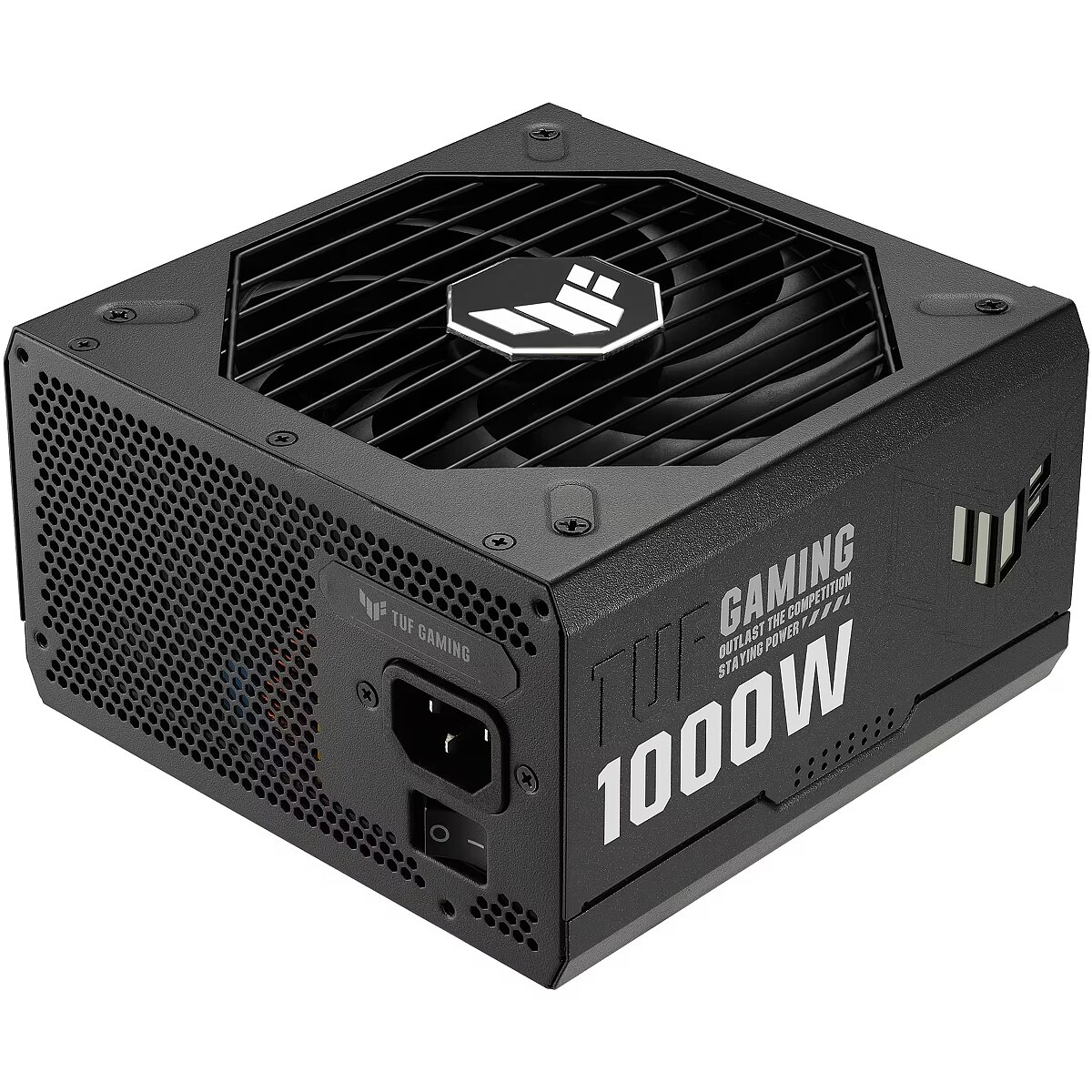

Asus TUF Gaming, 1000W, ATX 3.0, 80PLUS Gold
- Toimitus Smartpost-pakettiautomaattiin 6,99 €: 27.11.2024
- Kuriiritoimitus 11,99 €: 27.11.2024
- Tuottaja: Asus
- Teho: 1000W
- 80 PLUS -sertifiointi: 80 PLUS Gold
- Puhaltimen koko: 135 mm
- Modulaariset kaapelit: Fully-Modular
- Prosessori-liitännäinen: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Tarjoamme ostettavaksi Asus, jossa on 1000W virtalähde, joka on saanut 80 PLUS Gold -energiatehokkuussertifikaatin.
1000W virtalähteellä. Teho riittää vankalle vesijäähdytysjärjestelmälle, useille huippuluokan näytönohjaimille, ylikellotetulle huippuluokan prosessorille ja useille kiintolevyille.

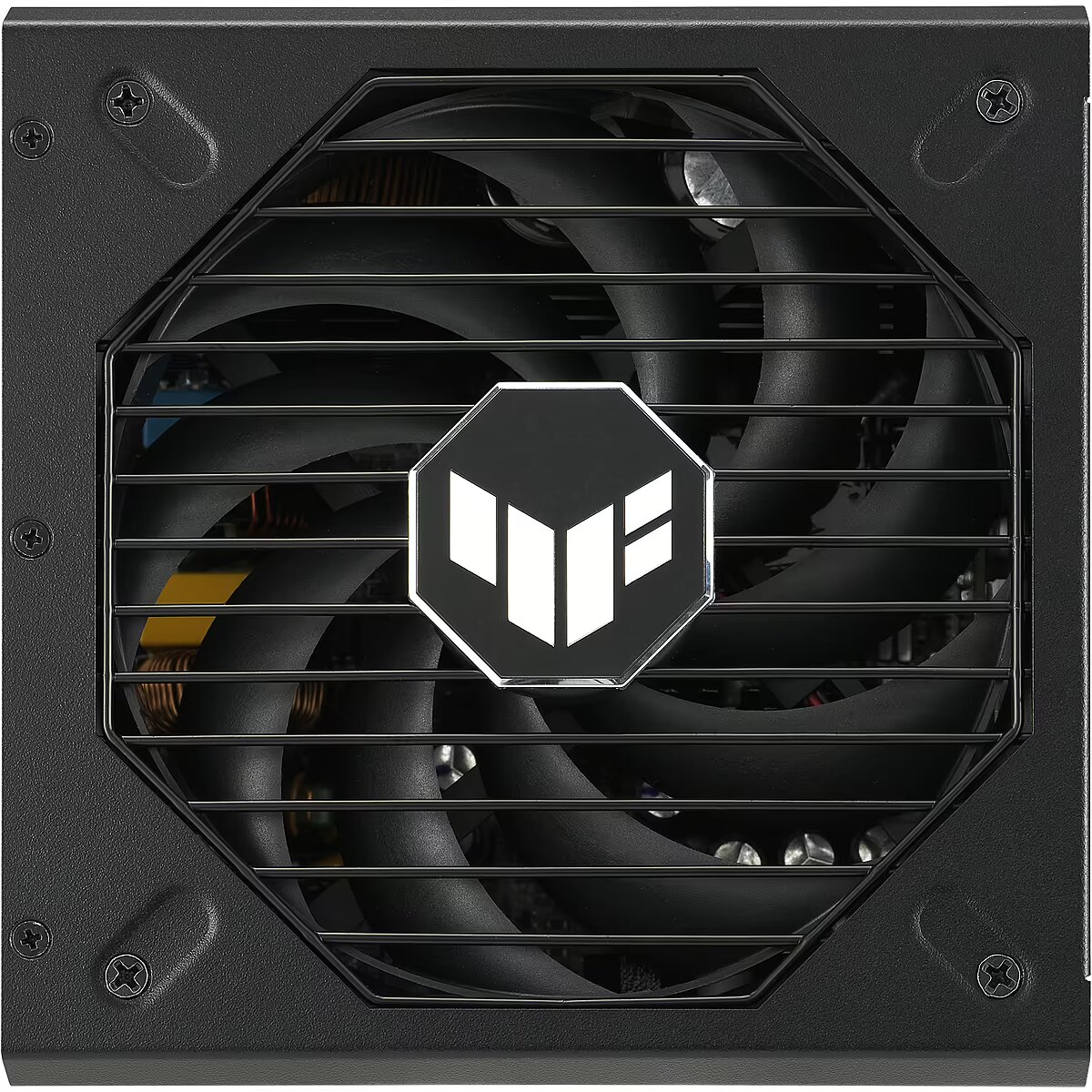

tuulettimen suuri halkaisija tekee tästä virtalähteestä huomattavasti keskimääräistä hiljaisemman. Tuulettimen suuremman siipipinta-alan ansiosta tuuletin tuottaa tarvittavan ilmavirran pienemmillä tuulettimen nopeuksilla, mikä vähentää melua ja tärinää kokonaisuudessaan.
80 PLUS Gold -energiatehokkuussertifikaatti, joka takaa vähintään 90 prosentin hyötysuhteen 50 prosentin kuormituksella. Tämä tarkoittaa, että virtalähteen verkosta saamasta 100 W:n tehosta vähintään 90 W toimitetaan tietokoneen komponentteihin, ja loput 10 W häviää lämpönä.
1 x 600W 12VHPWR käytettäväksi nykyaikaisten näytönohjainten kanssa - Nvidia GeForce RTX 4070 ja sitä ylöspäin. RTX 4060 käyttää tavallista 8-nastaista porttia.
Melna Se on varustettu lattakaapeleilla, joiden väri on MelnaMelna
Tämä virtalähde on ATX 3.0 -standardin mukainen. Tämä tarkoittaa, että virtalähteessä on 16-nastainen (12VHPWR) portti, joka tarjoaa jopa 600 W tehon uusimman sukupolven (RTX 30- ja 40-sarjan) PCIe 5.0 -näytönohjaimille. ATX 3.0 -standardi tukee myös 200 %:n virrankorotusta millisekunnissa, jotta komponenteille saadaan vakaampi virta.

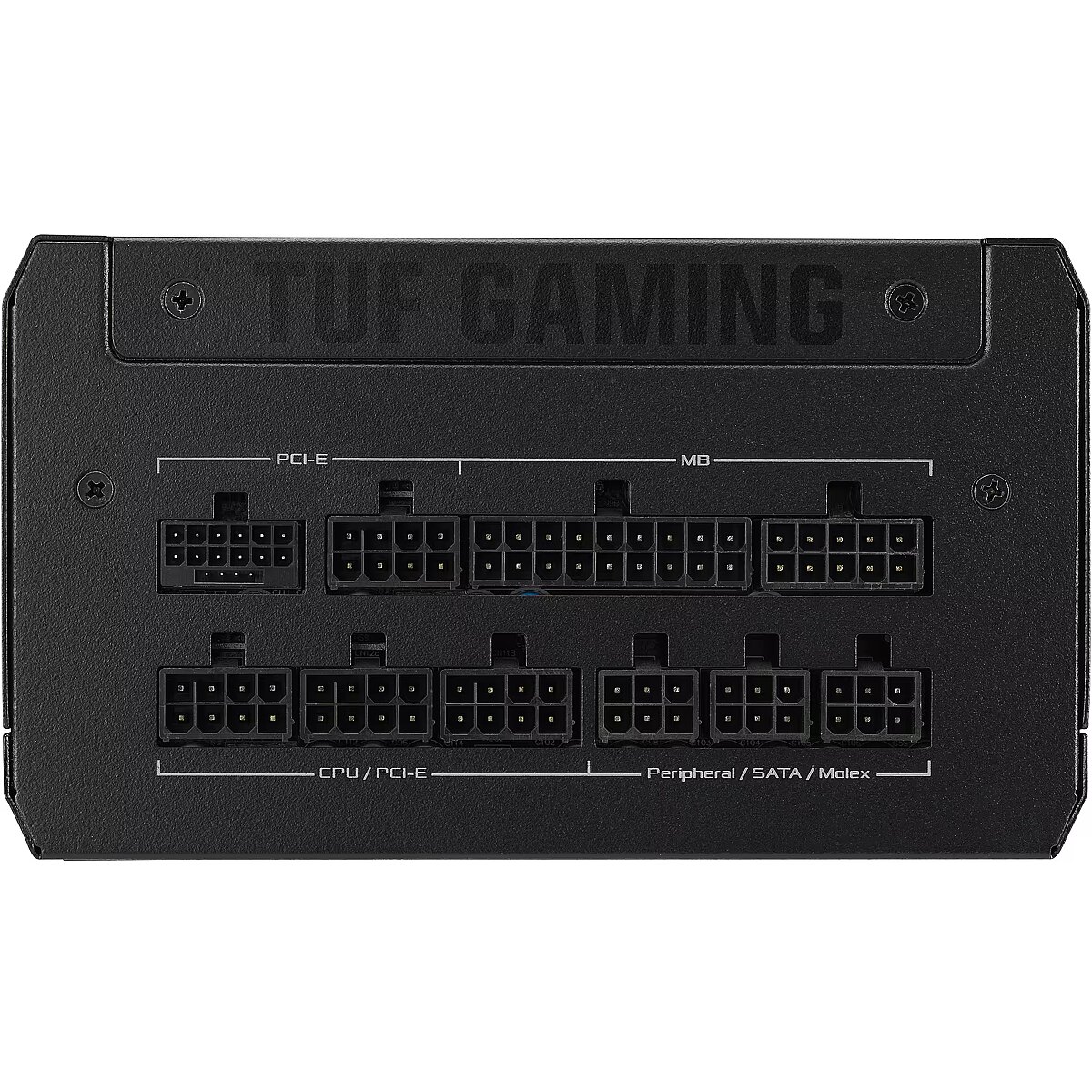

Modulaaristen kaapeleiden ansiosta voit liittää kiintolevyjä, näytönohjaimia ja muita komponentteja tarpeen mukaan mukana tulevien eri kaapeleiden avulla. Tämä tarkoittaa, että tietokoneessa on vähemmän johtoja, mikä parantaa ilmanvaihtoa ja ulkonäköä (erityisen hyödyllistä niille, jotka haluavat puoliksi läpinäkyvän kotelon).
Asus Kaikki Asus valmistamat virtalähteet löydät täältä.
BrandPartCode - 90YE00S1-B0NA00
category - PC Components|Power Supplies|Modular Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
code - 90YE00S1-B0NA00
Colour - Black
Cooling System - 13.5cm fan
Description - The TUF Gaming 1000W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul. - Capacitors and chokes pass demanding tests to achieve Military-grade Certification. - Dual ball fan bearings can last up to twice as long as sleeve bearing designs. - A protective PCB coating protects against moisture, dust, and extreme temperatures. - An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components. - Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. - Fully modular etched cables keep your rig neat and tidy.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Dimensions - 150 x 150 x 86 mm
ean - 4711081786412
Eans - 4711081786412
EAN_code - 4711081786412
Efficiency - 80 PLUS GOLD
Full Description Line - TUF Gaming 1000W Gold|For gaming|ATX 3.0|1000 Watts|Cooling System 13.5cm fan|80 PLUS GOLD|PFC Active|Colour Black
GTIN - 4711081786412
LongDesc - Built For The Long HaulThe ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.DurabilityTUF ComponentsTop marksWith military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence.Dual Ball Fan Bearings2x longer lifespanExemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.Protective PCB CoatingAll wrapped upA protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.ENGINEERING80 Plus Gold CertificationHeart of goldThe TUF Gaming 1000W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.ATX 3.0 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.Axial-tech Fan DesignBetter, faster, strongerAxial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.EXPERIENCE10-year WarrantyA decade of powerWe're so confident about the reliability of the TUF Gaming 1000W Gold that we back it with a 10-year worldwide warranty.Fully Modular Etched CablesSupple plyThe included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.
LongProductName - The TUF Gaming 1000W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.
LongSummaryDescription - ASUS TUF Gaming 1000W Gold. Total power: 1000 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 130 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Asus
Manufacturer_code - 90YE00S1-B0NA00
Model - TUF-GAMING-1000G
Model name - TUF Gaming 1000W Gold
Name - ASUS TUF-GAMING-1000G
Name - ASUS TUF Gaming 1000W Gold, PC power supply (black, 5x PCIe, cable management, 1000 watts)
name - ASUS TUF Gaming 1000W Gold 80 PLUS Gold Netzteil, modular - 1000 Watt
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 200 mm
Packaging data - Package height - 108 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.17 kg
Packaging data - Package width - 310 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 67.5 cm
Ports & interfaces - PCI Express power connectors (8-pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 120,400 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 9.6 W
Power - Efficiency - 92%
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.8 A
Power - Power protection features - Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage
Power - Total power - 1000 W
Producer - Asus
ProducerCode - 90YE00S1-B0NA00
ProductName - TUF Gaming 1000W Gold
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 1000 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 31.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 20 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.236 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
ShortDescription - 1000 | ATX | 135mm | 20 + 4 pin |150 x 150 x 86 | 80 PLUS GOLD |
ShortSummaryDescription - ASUS TUF Gaming 1000W Gold, 1000 W, 100 - 240 V, 130 W, 1000 W, 130 W, 9.6 W
Technical details - Compliance certificates - RoHS
Technical details - Sustainability compliance - Yes
Title - ASUS TUF Gaming 1000W Gold power supply unit 20+4 pin ATX ATX Black
Unit Box Height - 0.2
Unit Box Length - 0.315
Unit Box Width - 0.11
Unit Brutto Volume - 0.00693 cubm
Unit Gross Weight - 3.24 kg
Unit Net Weight - 2.48 kg
URL - https://www.asus.com/Motherboards-Components/Power-Supply-Units/TUF-Gaming/TUF-GAMING-1000G/
Vendor Homepage - www.asus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000g/
Warranty - 36 months
WarrantyInfo - 10 years
Weight - 3,23
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.48 kg
Weight & dimensions - Width - 150 mm
