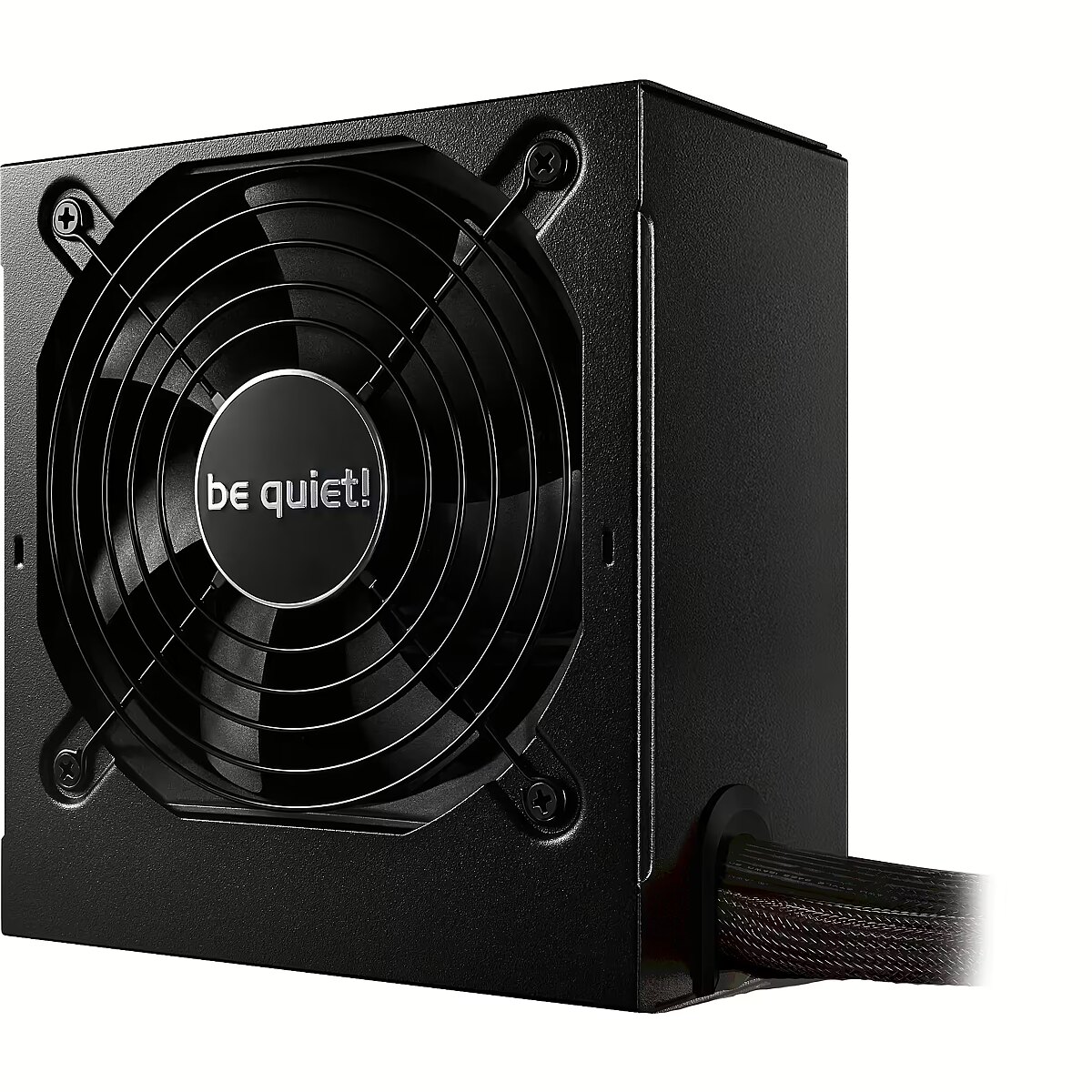

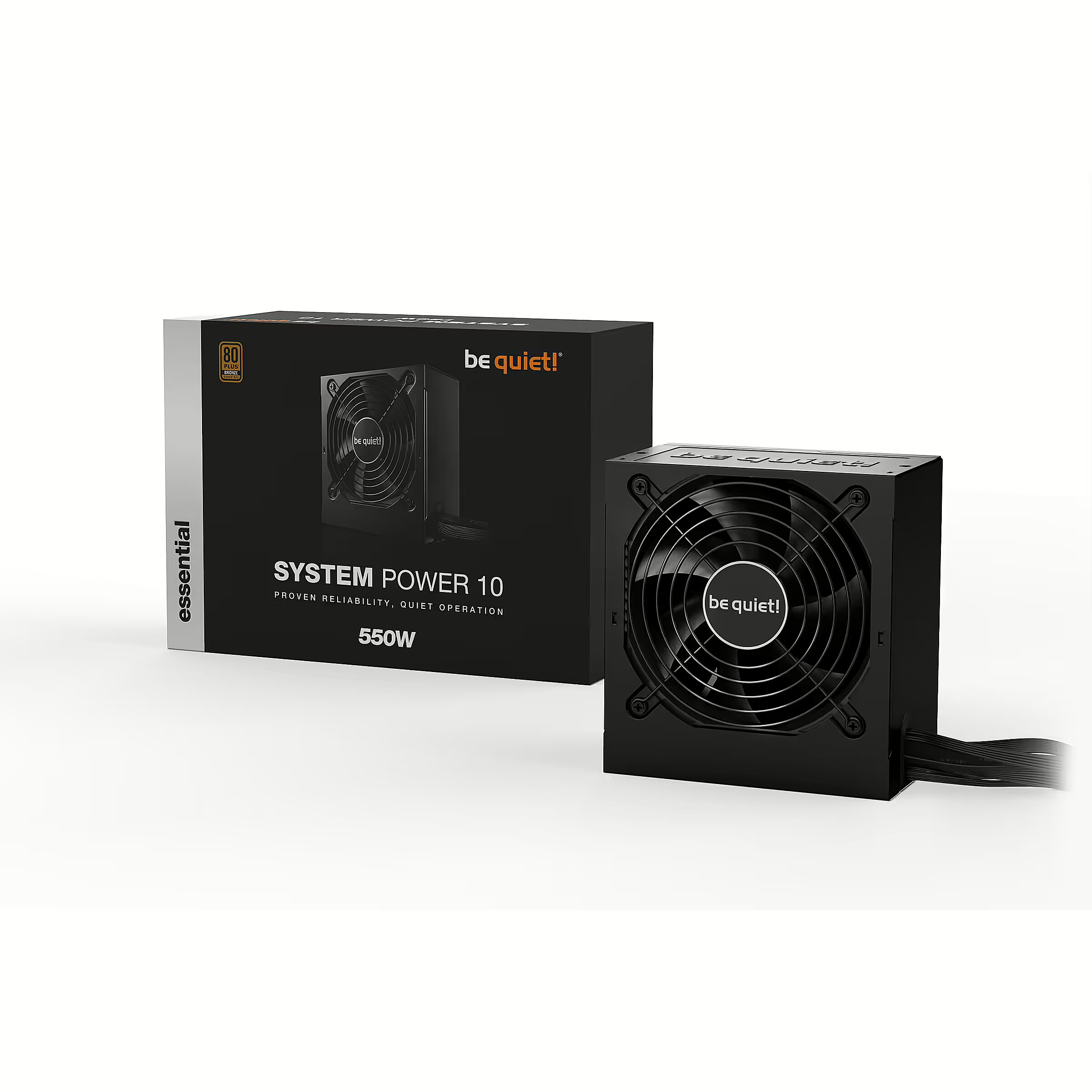

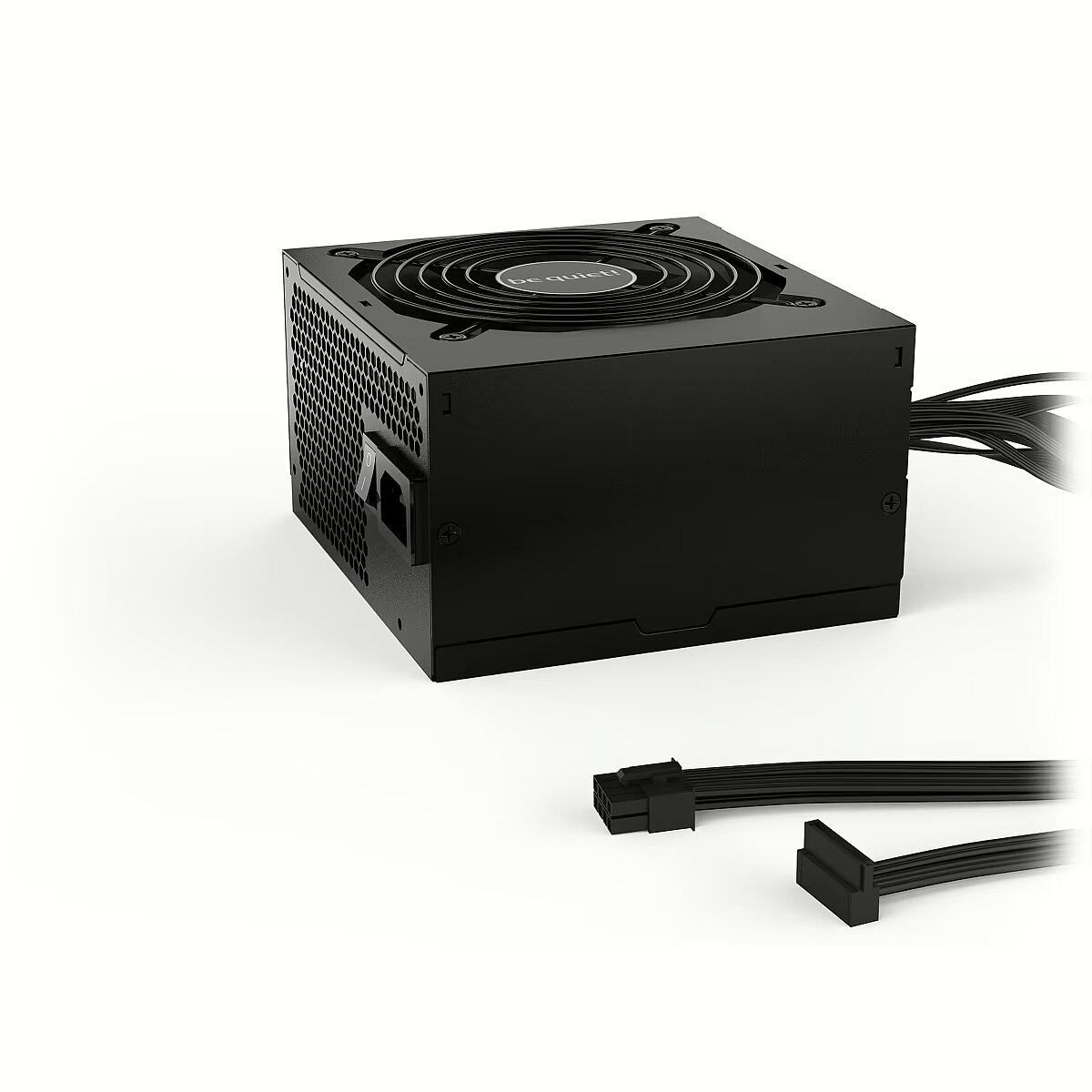

Be Quiet System Power 10, 550W, 80PLUS Bronze

8-pin 12V power connectors - 0
Accessories included -
ARTIKEL1 - SYSTEM POWER 10 550W
ARTIKEL2 - 80 PLUS BRONZE POWER SUPPLY
Brand - be quiet!
BrandPartCode - BN327
Breite - 0.2
category - PC Components|Power Supplies|80 Plus Bronze
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
code - BN327
Colour - Black
Cooling System - 12cm fan
Description - POWER 10 550W SYSTEM - PROVEN RELIABILITY, QUIET OPERATION System Power 10 550W is a power supply chosen by PC configurators, for whom reliability, silence and price of the product are important. Features such as a thermally controlled fan and exceptionally low standby power consumption underline the quality that the System Power 10 550W offers. High quality 120mm fan with thermal control High stability thanks to the use of a powerful 12 V line Tight voltage regulation using DC-DC technology Reliable operation is supported by powerful graphics cards Standby power consumption less than 0.15 watts Efficiency 80 PLUS Bronze (up to 89.1%) Attractive black flat wires The full package of the best security 5-year manufacturer's warranty
Description - PROVEN RELIABILITY, QUIET OPERATION System Power 10 550W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 550W offers even at entry-level. - Temperature-controlled 120mm quality fan reduces system noise - Rock-solid stability with a strong 12V-rail - Tight voltage regulation using DC-to-DC technology - Dependable operation to support powerful GPUs - Stand-by drain of less than 0.15 watts - 80 PLUS® Bronze efficiency (up to 89.1%) - Attractive black flat cables - Complete suite of top safety features
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan speed - 0 - 1800 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1055
dimension depth - 100 mm
dimension height - 200 mm
Dimensions - 140 x 150 x 86mm
Dimensions - 150 x 140 x 86 mm
dimension weight - 2239 g
dimension width - 260 mm
ean - 4260052189078
EAN - 4260052189078
EANCode - 4260052189078
Eans - 4260052189078
EAN_code - 4260052189078
Efficiency - 80 PLUS BRONZE
Fan - 12 cm
Fan speed (max) - 1800 rpm
Floppy power connectors - 0
Full Description Line - System Power 10|ATX 2.52|550 Watts|Cooling System 12cm fan|80 PLUS BRONZE|PFC Active|MTBF 100000 hours|Colour Black
Gewicht - 2.22
GRUPPE1 - Computer Systems
GRUPPE2 - Power Supplies
GTIN - 4260052189078
guarantee - 60
guarantee_type - normal
HERSTELLER - BE QUIET
Hoehe - 0.1
HSTNUMMER - BN327
Laenge - 0.27
LongDesc - PROVEN RELIABILITY, QUIET OPERATIONSystem Power 10 550W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 550W offers even at entry-level. VERY QUIET OPERATIONHigh-quality fan for low noiseSystem Power 10 550W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.HIGH PERFORMANCE FOR YOUR SYSTEMProven reliability for CPU and GPUSystem Power 10 550W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.80 PLUS® BRONZE CERTIFICATIONEfficient operationThe 80 PLUS Bronze certification of System Power 10 550W Bronze with an efficiency rating of up to 89.1% is convincing evidence of this PSU’s power saving operation.STRONG 12V RAILFor a stable PCIe graphics supportSystem Power 10 550W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
LongProductName - 550W, DC/DC, 80 PLUS Bronze, 120 mm, 1800 RPM, 25.7 dB, 20+4-pin, PCI-e 6+2-pin, 5x SATA, 150 x 140 x 86 mm
LongSummaryDescription - be quiet! System Power B10. Total power: 550 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,550,570,670,690 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 86 mm, Height: 150 mm
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN327
MB power connector - 20 + 4 pin
Model - BN327
Model name - System Power 10
Modular power supply - No
MOLEX power connectors - 1
MPN - BN327
MTBF - 100000 hours
Name - 550W be quiet! System Power 10
name - be quiet! System Power 10 80 Plus Bronze Netzteil - 550 Watt
Name - be quiet! System Power 10 550W
Name - be quiet! System Power 10 550W, PC power supply (black, 550 watts)
name - System Power 10 550W BN327 power supply
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 2
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features - dB(A) at 20% load 8.6 dB(A) at 50% load 9.4 dB(A) at 100% load 25.7 Voltage (V) 200 - 240 Frequency (Hz) 50 Safe current (A) 4 Standby power consumption (W) 100,000 Operating temperature up to (°C) 40
Other features - Noise level (full-load mode, 100%) - 25.7 dB
Other features - Noise level (quiet mode, 50%) - 9.4 dB
Other features - Noise level (silent mode, Other features - Screws included - Yes
Packaging data - Manual - Yes
Packaging data - Manual languages - English
Packaging data - Manual languages - French
Packaging data - Manual languages - German
Packaging data - Manual languages - German, English, Spanish, French, Polish, Russian
Packaging data - Manual languages - Polish
Packaging data - Manual languages - Russian
Packaging data - Manual languages - Spanish
Packaging data - Package depth - 268 mm
Packaging data - Package height - 97 mm
Packaging data - Package weight - 2.2 kg
Packaging data - Package width - 195 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.52
Performance - Bearing technology - Sleeve
Performance - Certification - CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia)
Performance - Country of origin - Germany
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 25.7 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 1
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 65 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 790 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 450 mm
Ports & interfaces - SATA power cable length - 450,550,570,670,690 mm
Ports & interfaces - SATA power cable length - 550 mm
Ports & interfaces - SATA power cable length - 570
Ports & interfaces - SATA power cable length - 670
Ports & interfaces - SATA power cable length - 690
Power - AC input frequency - 50 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 550 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 89.1%
Power - Hold time - 17 ms
Power - Input current - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 45.83 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.95
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 550 W
Power supply - 550 W
producer - Be quiet!
Producer - be quiet!
producerCode - BN327
ProducerCode - BN327
productName - be quiet! System Power B10 power supply unit 550 W 20+4 pin ATX ATX Black
ProductName - System Power B10
productSize - Normal
PSU - ATX 2.52
PSU Output Power - 550 Watts
SATA power connectors - 6
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.23 kg
Shipping Box Width Shipping/Package Box Dimensions - 20 cm
ShortDescription - 550 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | 80 PLUS Bronze
ShortSummaryDescription - be quiet! System Power B10, 550 W, 200 - 240 V, 50 Hz, 4 A, Active, 120 W
sizeX - 268
sizeY - 197
sizeZ - 100
Stck_Kart - 6
Stck_Pal - 36
Storno - Y
Technical details - Compliance certificates - CCC
Technical details - Compliance certificates - CCC, CE, Federal Communications Commission (FCC), RoHS, WEEE
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - RoHS
Technical details - Compliance certificates - WEEE
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP
Technical details - Sustainability certificates - ErP
Technical details - Warranty period - 5 year(s)
Title - be quiet! System Power B10 power supply unit 550 W 20+4 pin ATX ATX Black
Unit Box Height - 0.1
Unit Box Length - 0.27
Unit Box Width - 0.2
Unit Brutto Volume - 0.0054 cubm
Unit Gross Weight - 2.23 kg
Unit Net Weight - 1.2 kg
URL - https://www.bequiet.com/en/powersupply/3929
Vendor Homepage - www.bequiet.com/en/powersupply/3929
vendpn - BN327
Warranty - 24 months
WarrantyInfo - 5-year
warrantyLength - 60
warrantyType - G
Weight - 2,23
Weight - 2.22
weight - 2225
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Height - 150 mm
Weight & dimensions - Weight - 1.83 kg
Weight & dimensions - Width - 140 mm
