ID: 887403
Tuotekoodi: R-PK550D-FA0B-EU
Varastossa 2 yksiköt
Takuu: 2 vuotta
Deepcool PK550D, 550W, 80 PLUS Bronze
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Deepcool
- Teho: 550W
- 80 PLUS -sertifiointi: 80 PLUS Bronze

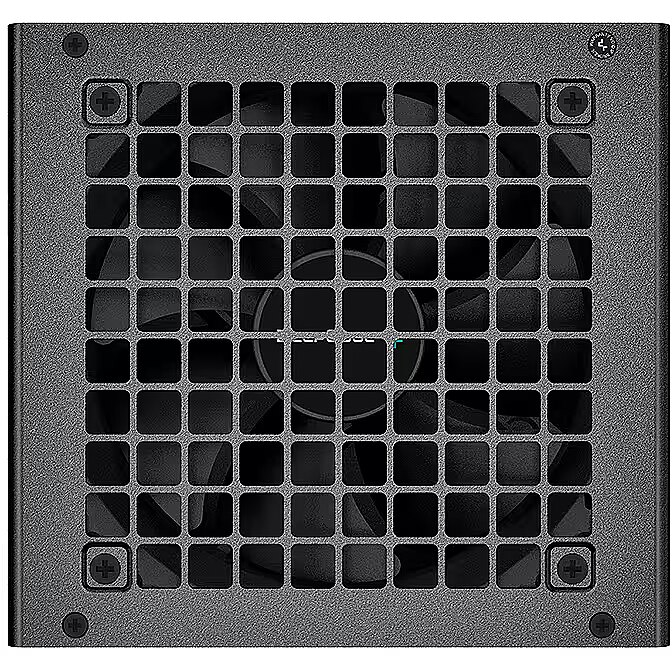

- Puhaltimen koko: 120 mm
- Modulaariset kaapelit: Ei ole
- Prosessori-liitännäinen: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Kuvaus
Tässä Deepcool virtalähteessä on 80 PLUS Bronze -energiatehokkuussertifikaatti ja 550W teho.
550W on enemmän kuin riittävä teho. Se antaa virtaa yksinkertaiselle tietokoneelle, jossa on integroitu näytönohjain, budjettitason prosessori, pieni SSD-levy tai kiintolevy. Jos harkitset tietokoneen päivittämistä tulevaisuudessa, kannattaa ehdottomasti harkita tehokkaampaa virtalähdettä.
120 mm120 mm uuletin, joka on alan standardi hiljaisen toiminnan takaamiseksi keskivertotietokoneissa. Jos haluat erittäin hiljaisen virtalähteen, etsi 135 mm:n tai 140 mm:n tuulettimen halkaisijalla varustettu virtalähde.
Tälle virtalähteelle myönnetty energiatehokkuussertifikaatti takaa vähintään 85 prosentin hyötysuhteen 50 prosentin kuormituksella. Toisin sanoen jokaista 100 W:n tehoa kohden, jonka virtalähde ottaa verkosta, vähintään 85 W menee tietokoneen komponentteihin, ja loput 15 W menee lämmöksi.
Melna Kaapeleiden väri on Melna ja ne ovat litteitä.
Tämä virtalähde on ATX 2.0 -standardin mukainen. Tämä tarkoittaa, että virtalähteessä on vain 6-nastainen ja 8-nastainen portti, jotka tuottavat vastaavasti 75W ja 150W tehoa. ATX 2.0 -virtaportteja ei ole suunniteltu käsittelemään nykyaikaisten näytönohjainten suuria tehovaatimuksia. Jos rakennat järjestelmää, jossa on erittäin tehokas näytönohjain, kuten RTX 4070, tarvitaan ATX 3.* -standardin mukainen virtalähde.
Tässä virtalähteessä ei ole modulaarisia kaapeleita - kaikki sen kaapelit on kiinnitetty virtalähteeseen, eikä niitä voi irrottaa. Yksinkertaisesta rakenteestaan huolimatta se toimii yhtä hyvin kuin modulaarikaapeleilla varustettu virtalähde.
Deepcool Katso kaikki Deepcool virtalähteet täältä.
Perustiedot
Cybenetics Melutason sertifiointi
: Nav
Cybeneticsin tehokkuuden sertifiointi
: Nav
Virtalähteen tyyppi
: ATX
Teho
550W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS Bronze
Kokonaisvirta (+12V)
: 45.5A
Puhaltimen koko
: 120 mm
Toiminnallisuus
Kaapelin väri
: Musta
Valaistus
: Ei ole
Väri
: Musta
Modulaariset kaapelit
: Ei ole
Satamat ja laitteet
PCI-E 5.0
: Nav
Prosessori-liitännäinen
: 2 x 8-pin(4+4) EPS
Emolevyn virta
: 20+4-pin
PCI-E
: 2 X 6+2pin
SATA-liittimet
: 6
4pin Molex
: 3
Tapaus
Yksityiskohtaisempi erittely
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - 80 PLUS Bronze Certified
Code - R-PK550D-FA0B-EU
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design > Colour of product - Black
dimensionalWeight - 1744
EAN - 6933412711957
EAN_code - 6933412711957
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PK550D-80-PLUS-Bronze-Power-Supply/2022/15621.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PK550D-FA0B-EU
Name - DeepCool PK550D 550W, PC power supply (black, 2x PCIe, 550 Watt)
Name - Deepcool | PK550D | 550 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 302.00 mm
Package features > Gross depth master carton - 587 mm
Package features > Gross height (mm) - 129.00 mm
Package features > Gross height master carton - 223 mm
Package features > Gross width (mm) - 214.00 mm
Package features > Gross width master carton - 332 mm
Package features > Net weight master carton - 13.6 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 207 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Tare weight master carton - 0.739 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes

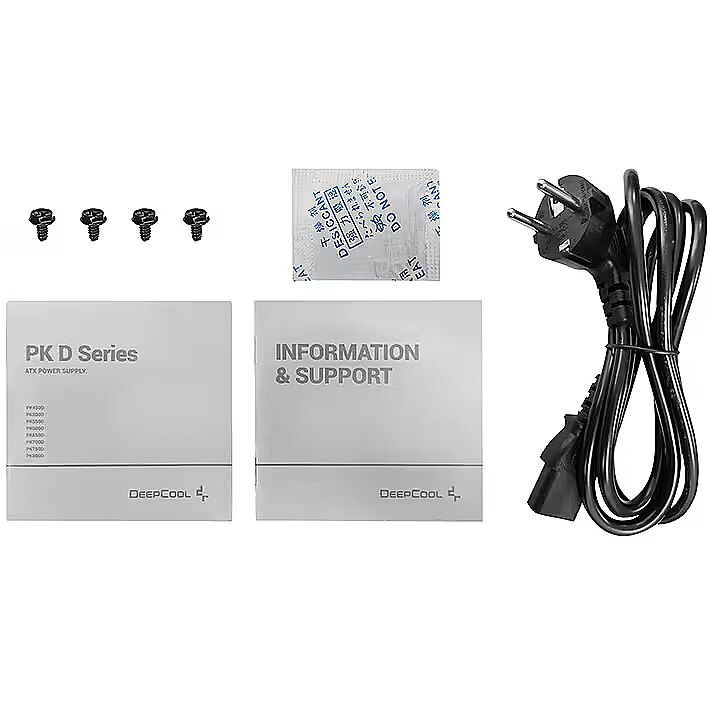

Packaging content - Cables included - AC
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.4
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Purpose - PC
Performance > Bearing technology - Hypro Bearing
Performance > Form factor - ATX12V V2.4
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 2
Ports & interfaces - PCI Express power cable length - 62 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 400 mm
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 400
Ports & interfaces - SATA power cable length - 500
Ports & interfaces - SATA power cable length - 600 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 546 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 16 ms
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 45.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 550 W
Power > Nominal power - 550 W
producerCode - R-PK550D-FA0B-EU
Producer product name - PK550D
productName - DeepCool PK550D power supply unit 550 W 20+4 pin ATX Black
productSize - Normal
sizeX - 270
sizeY - 170
sizeZ - 190
Technical details > Gross weight - 2.30 kg
Technical details > Net weight - 1.80 kg
Technical details > Other features - 120mm Fan Size; Protection: SCP, OPP, OTP, OVP, OCP, UVP
Technical details > Producer - Deepcool
Technical details > Warranty - 60 month(s)
Technical_details - Type: PC power supply Color: Black EAN: 6933412711957 Manufacturer No.: R-PK550D-FA0B-EU Series: PK-D Power: 550W : 546W : 110W : Up to 85% : 100-240 volts Default: ATX12V 2.4 Design: ATX Certification: 80 PLUS Bronze Current: 20A : 20A : 2.5A : 0.3A : 45.5A : 45.5A Power Factor Correction: Active PFC Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 3x 4-pin 5.25", 2x 6+2-pin graphics, 6x 15-pin SATA Cable: 24-pin mainboard main connection: 1x 50 cm, 8-pin additional mainboard connections: 1x 62 cm, 1x 74 cm, 5.25-inch drive connections: 1x 40 cm, 1x 50 cm, 1x 60 cm, SATA drive connections: 2x 40 cm , 2x 50 cm, 2x 60 cm, 6-/8-pin graphics connectors: 1x 50 cm, 1x 62 cm Cooling: 1x 120mm fan Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Warranty - 60
warrantyLength - 24
warrantyType - G
Weight - 2,05
weight - 2053
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
