ID: 824614
Tuotekoodi: R-PQ850M-FA0B-EU
Varastossa 37 yksiköt
Takuu: 2 vuotta

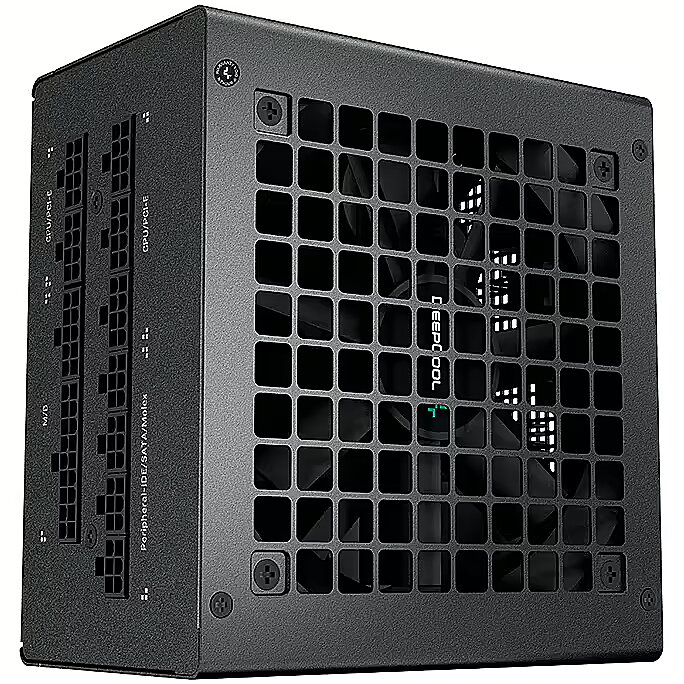

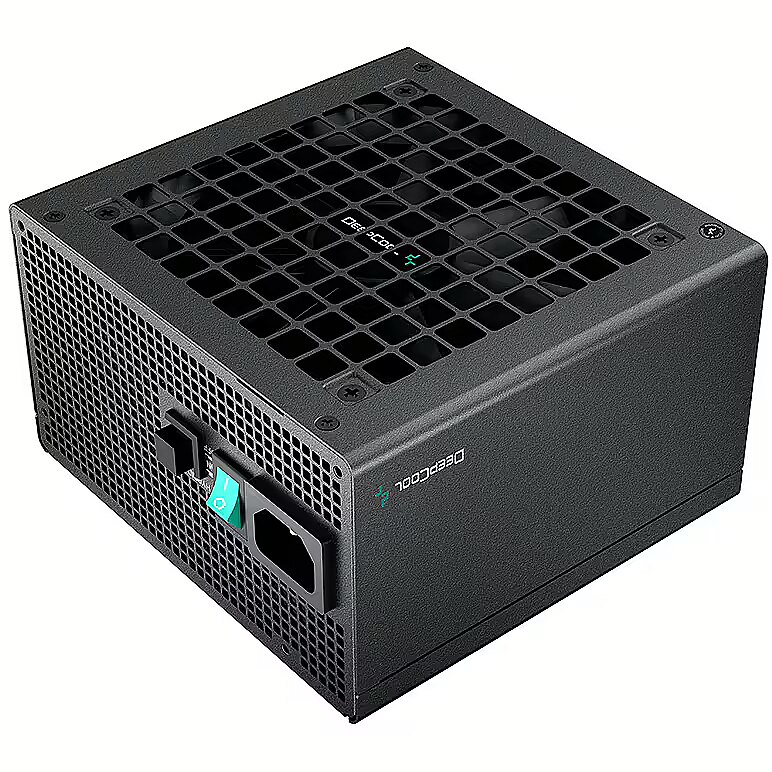

Deepcool PQ850M, 850W, 80PLUS Gold
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpost-pakettiautomaattiin 6,99 €: 02.12.2024
- Kuriiritoimitus 11,99 €: 02.12.2024
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Deepcool
- Teho: 850W
- 80 PLUS -sertifiointi: 80 PLUS Gold
- Puhaltimen koko: 120 mm
- Modulaariset kaapelit: Fully-Modular
- Prosessori-liitännäinen: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Kuvaus
Tässä Deepcool virtalähteessä on 80 PLUS Gold -energiatehokkuussertifikaatti ja 850W teho.
850W virtalähde on suunniteltu korkean suorituskyvyn työasemaan tai pelitietokoneeseen. Se antaa virtaa useille kiintolevyille (SSD/HDD), vesijäähdytykselle, huippuluokan näytönohjaimille (kuten RTX 4070 Ti SUPER) ja huippuluokan prosessorille (mahdollisesti ylikellotettu).

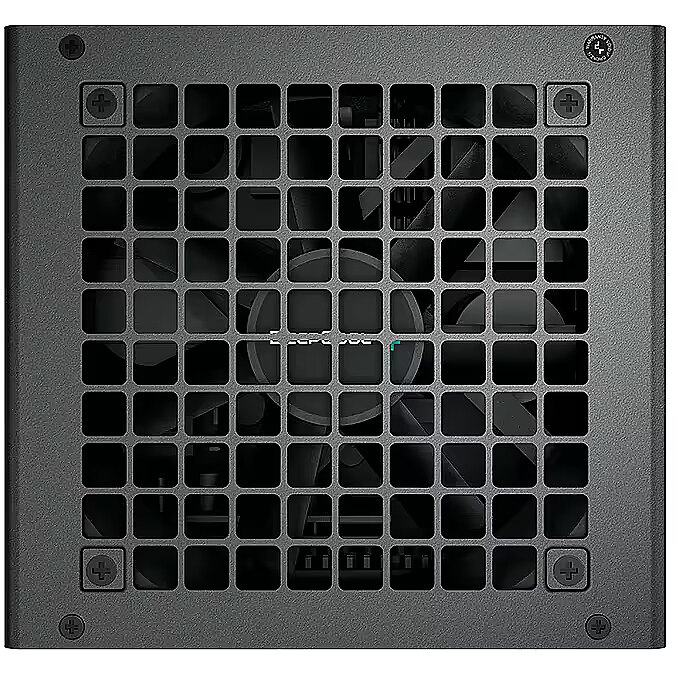

120 mm120 mm uuletin, joka on alan standardi hiljaisen toiminnan takaamiseksi keskivertotietokoneissa. Jos haluat erittäin hiljaisen virtalähteen, etsi 135 mm:n tai 140 mm:n tuulettimen halkaisijalla varustettu virtalähde.
Tälle virtalähteelle myönnetty energiatehokkuussertifikaatti takaa vähintään 90 prosentin hyötysuhteen 50 prosentin kuormituksella. Toisin sanoen jokaista 100 W:n tehoa kohden, jonka virtalähde ottaa verkosta, vähintään 90 W menee tietokoneen komponentteihin, kun taas loput 10 W menevät lämmöksi.
Melna Lohkossa on litteitä kaapeleita, joiden väri on Melna.
Tämä virtalähde on ATX 2.0 -standardin mukainen. Tämä tarkoittaa, että virtalähteessä on vain 6-nastainen ja 8-nastainen portti, jotka tuottavat vastaavasti 75W ja 150W tehoa. ATX 2.0 -virtaportteja ei ole suunniteltu käsittelemään nykyaikaisten näytönohjainten suuria tehovaatimuksia. Jos rakennat järjestelmää, jossa on erittäin tehokas näytönohjain, kuten RTX 4070, tarvitaan ATX 3.* -standardin mukainen virtalähde.
Cybenetics Standard ++.

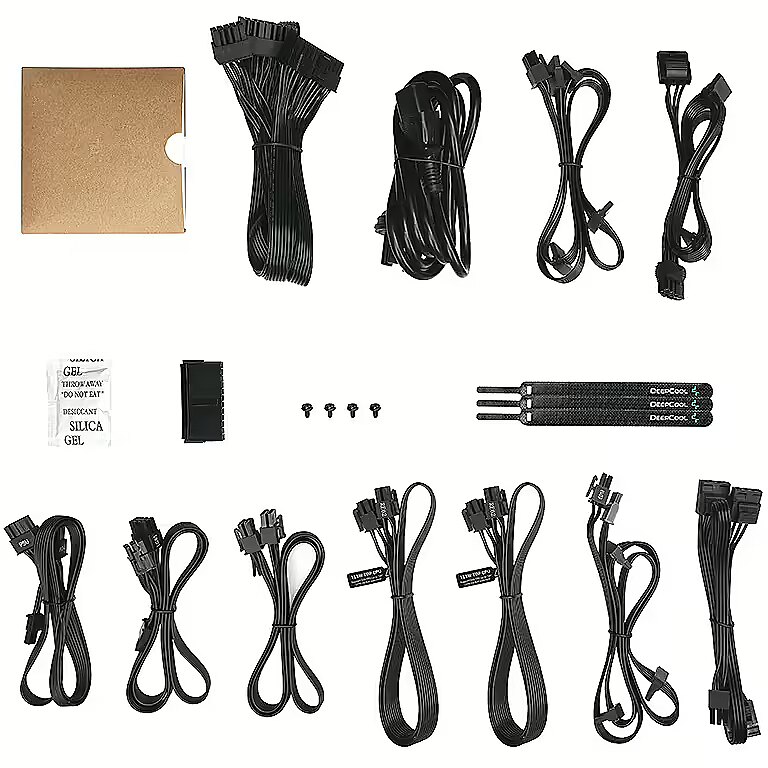

Tässä virtalähteessä on modulaariset kaapelit, joiden avulla voit lisätä näytönohjaimia, kiintolevyjä jne. tarpeen mukaan mukana toimitetuista kaapeleista. Tämä vähentää johdotuksen määrää tietokoneessa, mikä parantaa ilmanvaihtoa ja esteettisyyttä (erityisen tärkeää niille, jotka hankkivat puoliksi läpinäkyvän kotelon).
Deepcool Kaikki Deepcool valmistamat virtalähteet löydät täältä.
Perustiedot
Cybenetics Melutason sertifiointi
: Cybenetics Standard ++
Cybeneticsin tehokkuuden sertifiointi
: Cybenetics Gold
Virtalähteen tyyppi
: ATX
Teho
850W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS Gold
Kokonaisvirta (+12V)
: 70A
Puhaltimen koko
: 120 mm
Toiminnallisuus
Kaapelin väri
: Musta
Valaistus
: Ei ole
Väri
: Musta
Modulaariset kaapelit
: Fully-Modular
Satamat ja laitteet
PCI-E 5.0
: Nav
Prosessori-liitännäinen
: 2 x 8-pin(4+4) EPS
Emolevyn virta
: 20+4-pin
PCI-E
: 3 x 6+2pin
SATA-liittimet
: 10
4pin Molex
: 5
Tapaus
Yksityiskohtaisempi erittely
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - 80 PLUS Gold Certified
Code - R-PQ850M-FA0B-EU
Desc - Jauda: 850W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 10, MOLEX PATA pieslēgumi: 2, PCI-E: 3 x 6 + 2 PIN, Garantija: 2 gadi
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design > Colour of product - Black
dimensionalWeight - 1261
EAN - 6933412701927
EAN_code - 6933412701927
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_103110_1.jpg
LargeDescHTML -
Link - https://global.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PQ850M-80-PLUS-Gold-Modular-Power-Supply/2021/14032.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PQ850M-FA0B-EU
Name - Barošanas bloks Deepcool PQ850M 850W
Name - DeepCool PQ850M EU 12V V2 ATX black
Name - Deepcool | PQ850M | 850 W
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 310 mm
Package features > Gross depth master carton - 590 mm
Package features > Gross height (mm) - 180 mm
Package features > Gross height master carton - 215 mm
Package features > Gross width (mm) - 112 mm
Package features > Gross width master carton - 330 mm
Package features > Net weight master carton - 14.17 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 20 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Tare weight master carton - 0.712 kg
Package features > Volume (m3) - 0.0062496 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.4
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Form factor - ATX12V V2.4

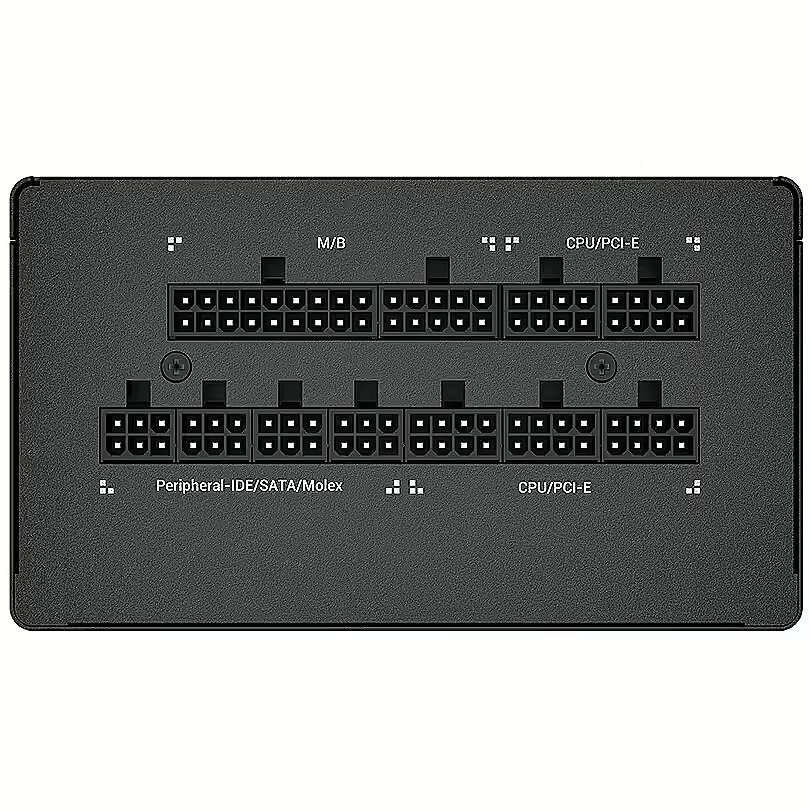

Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 2
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - Peripheral (Molex) power cable length - 450 mm
Ports & interfaces - Peripheral (Molex) power cable length - 570
Ports & interfaces - Peripheral (Molex) power cable length - 690 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 450
Ports & interfaces - SATA power cable length - 570
Ports & interfaces - SATA power cable length - 690
Ports & interfaces - SATA power cable length - 810

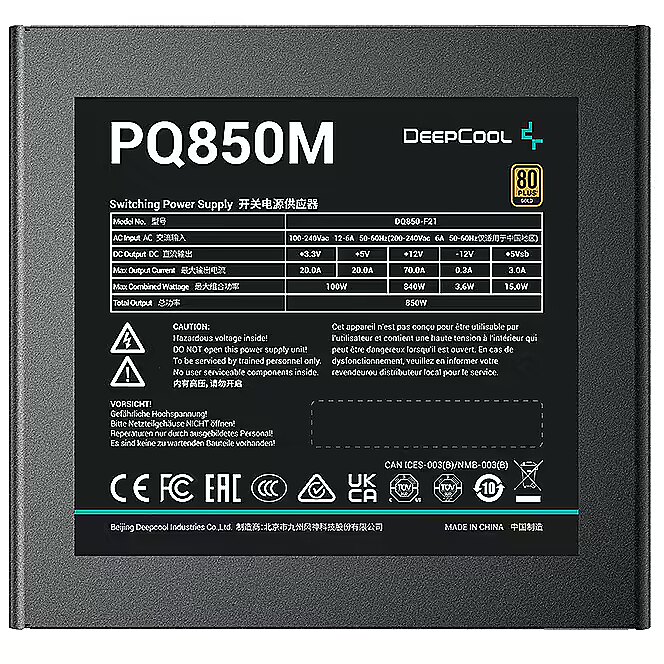

Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 840 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Input current - 6 - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power > Nominal power - 850 W
producerCode - R-PQ850M-FA0B-EU
Producer product name - PQ850M
productName - DeepCool PQ850M power supply unit 850 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 310
sizeY - 185
sizeZ - 110
Technical details - Sustainability certificates - CE
Technical details > Gross weight - 2.834 kg
Technical details > Net weight - 2.334 kg
Technical details > Other features - 120mm Fan Size; OPP/OVP/SCP/OTP/OCP Protections
Technical details > Producer - Deepcool
Technical details > Warranty - 120 month(s)
Technical_details - PQ850M 850W, PC power supply The modular PC power supply of the DeepCool PQ-M series with 80 PLUS Gold represents another generation of power supply and is characterized by quiet operation with high efficiency and stability for powerful PCs. Certified according to 80 PLUS Gold for the generation of environmentally friendly and even power while reducing waste heat and noise. The PQ-M series achieves an efficiency of 90% at 50% system load. Type: PC power supply Color: Black EAN code: 6933412701927 Manufacturer No.: R PQ850M FA0B EU Series: PQ-M Performance: Total | 850W Power: +12V total | 840W Power: +3.3V/+5V total | 100W Performance: Efficiency | up to 90% Performance: input voltage range | 100-240 volts Power: input current | 4.5 A at 230 volts / 50 Hz, 9 A at 110 volts / 60 Hz Default: ATX12V 2.4 Design: ATX Certification: 80 PLUS Gold Amperages: +3.3 V | 20A Amperages: +5 V | 20A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 70A Amperages: +12 V1 | 70A Power Factor Correction: Active PFC Switch: 1x power switch Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 5x 4-pin 5.25", 3x 6+2-pin graphics, 10x 15-pin SATA Cables: Cable Management | Yes Cooling: number of fans | 1x 120mm fan Cooling: Regulation | Temperature controlled Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Overload Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Warranty - 120
warrantyLength - 24
warrantyType - G
Weight - 2,84
weight - 2865
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
