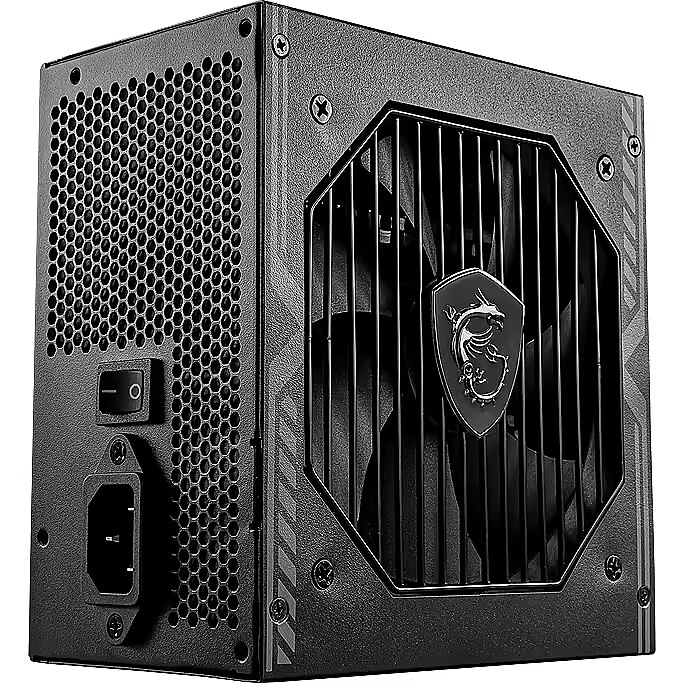

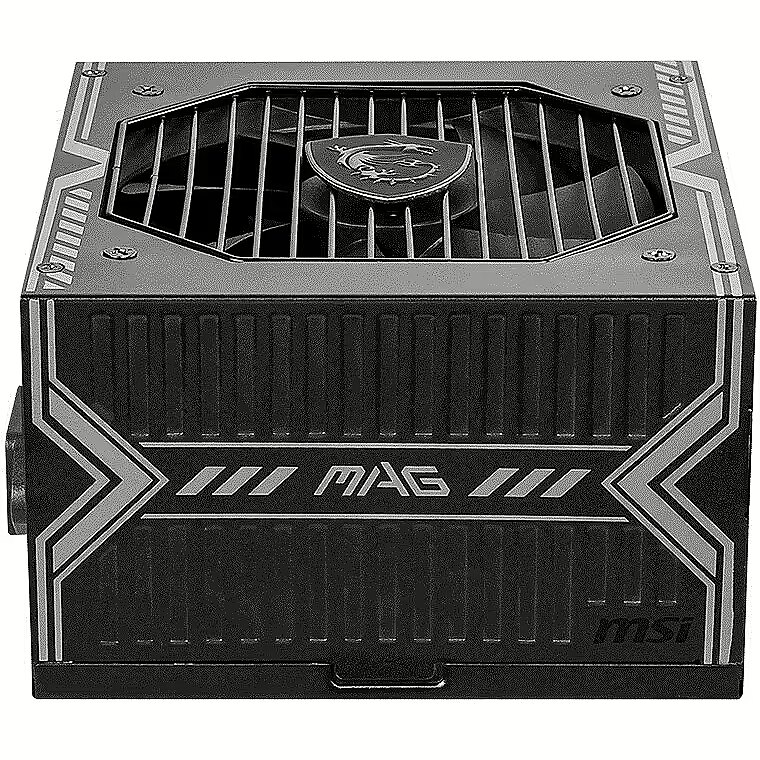

MSI MAG A550BN, 550W, 80PLUS Bronze

8-pin 12V power connectors - 0
Accessories included -
Brand - MSI
BrandPartCode - MAG A550BN
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies|80 Plus Bronze
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Bronze
Certificates > Certification - 80 PLUS Bronze Certified
code - 306-7ZP2A11-CE0
Code - MAG A550BN
Desc - Jauda: 550W, Energoefektivitāte: 80 Plus Bronze, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 5, MOLEX PATA pieslēgumi: 3, PCI-E: 2 x 6 + 2 PIN, Garantija: 2 gadi
Description - MAG A650BN to podstawowej klasy zasilacz, który oferuje graczom bezpieczne, niezawodne i wydajne zasilanie komputera. Jego podstawowe funkcje i cechy obejmują certyfikat 80 PLUS Bronze, konstrukcję obwodów zasilania z przetwornicami prądu stałego (tzw. układ DC to DC), pojedynczą fazę 12V, aktywny PFC oraz cicho pracujący wentylator. MAG A650BN to jeden z najlepszych wyborów dla graczy, którzy dopiero zaczynają swoją przygodę z samodzielnym składaniem komputerów. Po jego zainstalowaniu, użytkownik może od razu cieszyć się niezawodną pracą urządzenia i dużą wydajnością, bez potrzeby jego dodatkowego konfigurowania.
Certyfikat 80 Plus Bronze
Sprawność Twojego zasilacza ma bezpośredni wpływ na wydajność systemu i zużycie energii. 80 PLUS BRONZE to certyfikat gwarantujący niższe zużycie energii i wyższą sprawność.
120-milimetrowy wentylator generujący niewielki hałas
Łożysko tulejowe wentylatora redukuje generowany hałas przy jednoczesnym zachowaniu możliwości doskonałego rozpraszania ciepła.
Konstrukcja obwodu zasilania z przetwornicami prądu stałego
Zastosowanie konstrukcji obwodu zasilania z przetwornicami prądu stałego (DC-to-DC) zmniejsza niestabilność napięcia wyjściowego i zwiększa niezawodność pracy zasilacza.
description_en - Power: 550W
Energy efficiency: 80 Plus Bronze
PFC: Active
Fan: 120mm
SATA connections: 5
MOLEX PATA connections: 3
PCI-E: 2 x 6 + 2 PIN
description_lv - Jauda: 550W
Energoefektivitāte: 80 Plus Bronze
PFC: Aktīvs
Ventilators: 120mm
SATA pieslēgumi: 5
MOLEX PATA pieslēgumi: 3
PCI-E: 2 x 6 + 2 PIN
description_ru - Мощность: 550 Вт
Энергоэффективность: 80 Plus Bronze
PFC: Активный
Вентилятор: 120 мм
SATA-подключения: 5
Соединения MOLEX PATA: 3
PCI-E: 2 х 6 + 2 контакта
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 997
dimension depth - 105 mm
dimension height - 245 mm
Dimensions - 50 x 140 x 86 mm
dimension weight - 2066 g
dimension width - 185 mm
EAN - 4719072849603
ean - 4719072849603
Eans - 4719072849603
Fan - 12 cm
Floppy power connectors - 0
gross_weight - 2.04 kg
GTIN - 4719072849603
GTIN - 4719072870485
guarantee - 60
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_83272_1.png
LargeDescHTML -
Link - https://www.msi.com/Power-Supply/MAG-A550BN/Overview
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - MAG A550BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A550BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.80 PLUS BRONZE CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.120MM LOW NOISE FANThe fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.DC TO DC CIRCUIT DESIGNAdopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.COMPREHENSIVE CIRCUIT PROTECTIONSupports OCP, OVP, SCP, OPP, OTP protectionmechanisms and provides comprehensive protection.5-YEAR LIMITED WARRANTYThe MAG A550BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.
LongProductName - MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
LongSummaryDescription - MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
MB power connector - 20 + 4 pin
Model - MAG A550BN
Modular power supply - No
MOLEX power connectors - 2
name - MAG A550BN 550W 80PLUS BRONZE N.MODULAR
Name - MSI MAG A550BN
name - MSI MAG A550BN Netzteil, 80 PLUS Bronze, ATX 2.4 - 550 Watt
Name - MSI | MAG PSU | A550BN | 550 W
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
Other features > Special features - OCP / OVP / OPP / OTP / SCP Protection
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 245 mm
Package features > Gross height (mm) - 185 mm
Package features > Gross width (mm) - 105 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 363 pc(s)
Package features > Paper/Pasteboard - 203 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.253 kg
Package features > Volume (m3) - 0.004759125 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Max output current (+3.3V) - 20 A
Performance - Max output current (+5V) - 20 A
Performance - Max output current (+12V) - 45,5 A
Performance - Max output current (-12V) - 0.3 A
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Form factor - ATX
PFC - Yes
Ports & interfaces - ATX power connector (20+4 pin) - No
Ports & interfaces - ATX Power connector (24-pin) - No
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 546 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Maximum input current (@110V) - 8 A
Power - Maximum input current (@220V) - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 45.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - OCP
Power - Power protection features - OPP
Power - Power protection features - OTP
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Power protection features - OVP
Power - Power protection features - SCP
Power - Total power - 550 W
Power > AC input frequency - 50-60 Hz
Power > AC input voltage - 1‎00-240 V
Power > Efficiency - 85 %
Power > Input current - 115Vac/8.0A max. 230Vac/4.0A max. A
Power > Nominal power - 550 W
Power supply - 550 W
producer - MSI
Producer - MSI
producerCode - 306-7ZP2A11-CE0
ProducerCode - MAG A550BN
Producer product family - MAG PSU
Producer product name - A550BN
productName - MSI MAG A550BN 550W Power Supply
ProductName - MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
productSize - Normal
SATA power connectors - 5
ShortDescription - 550 | ATX | 140 mm | 20 + 4 pin | 150mm x 86mm x 160mm | 80PLUS BRONZE
ShortSummaryDescription - MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black', 550 W, 100 - 240 V, 50 - 60 Hz, 8 A, 4 A, Active
sizeX - 245
sizeY - 185
sizeZ - 110
Technical details > Fan function - 120 mm Fan Size
Technical details > Gross weight - 2.023 kg
Technical details > Net weight - 1.77 kg
Technical details > Producer - MSI
Technical details > Warranty - 120 month(s)
Title - MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
title_en - MSI MAG A550BN Power supply unit 550W
title_lv - MSI MAG A550BN Barošanas bloks 550W
title_ru - MSI MAG A550BN Блок питания 550W
URL - https://www.msi.com/Power-Supply/MAG-A550BN/Overview
vendpn - MAG A550BN
Warranty - 120
WarrantyInfo - 5 years
warrantyLength - 60
warrantyType - G
weight - 2 kg
weight - 2035
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
