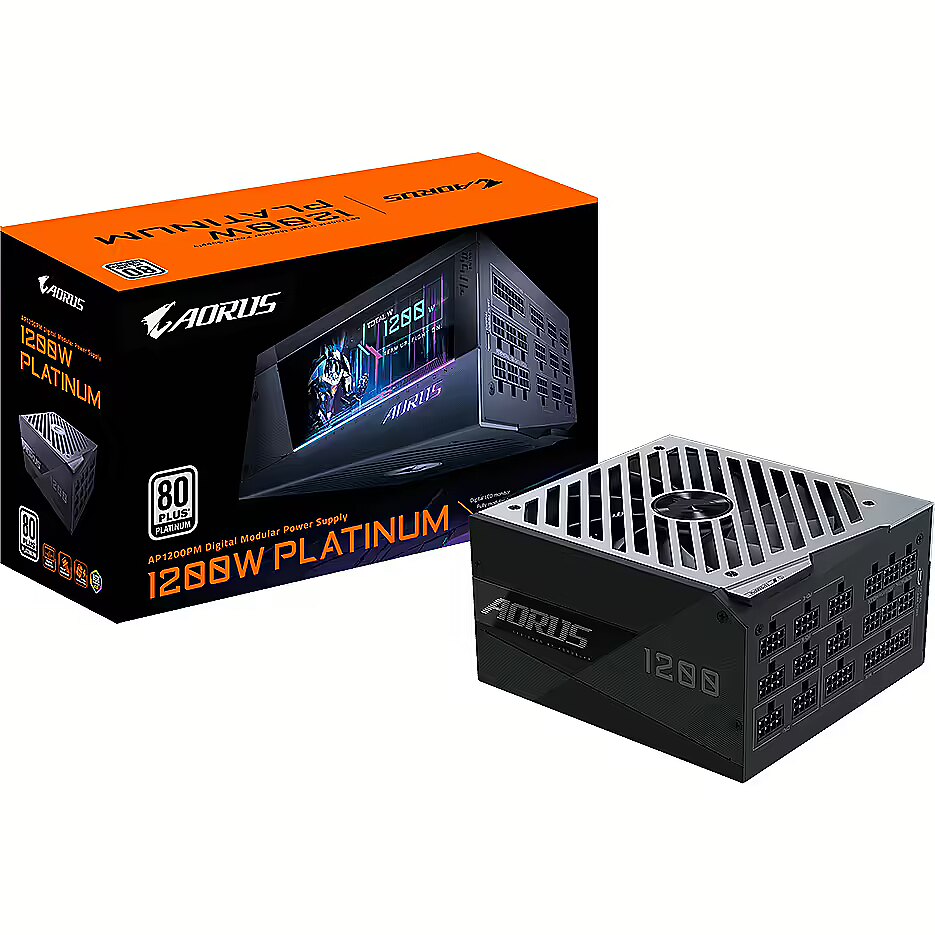

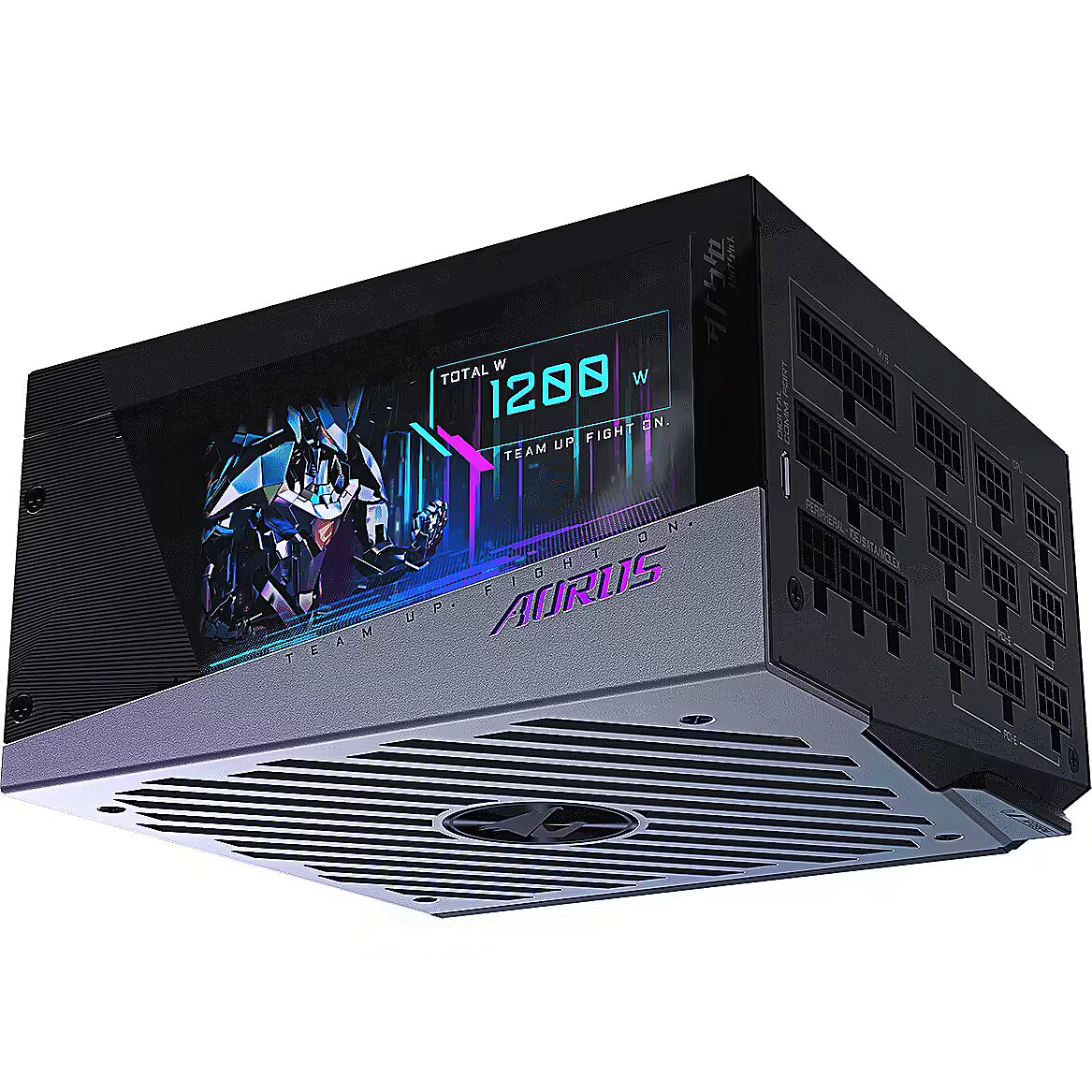

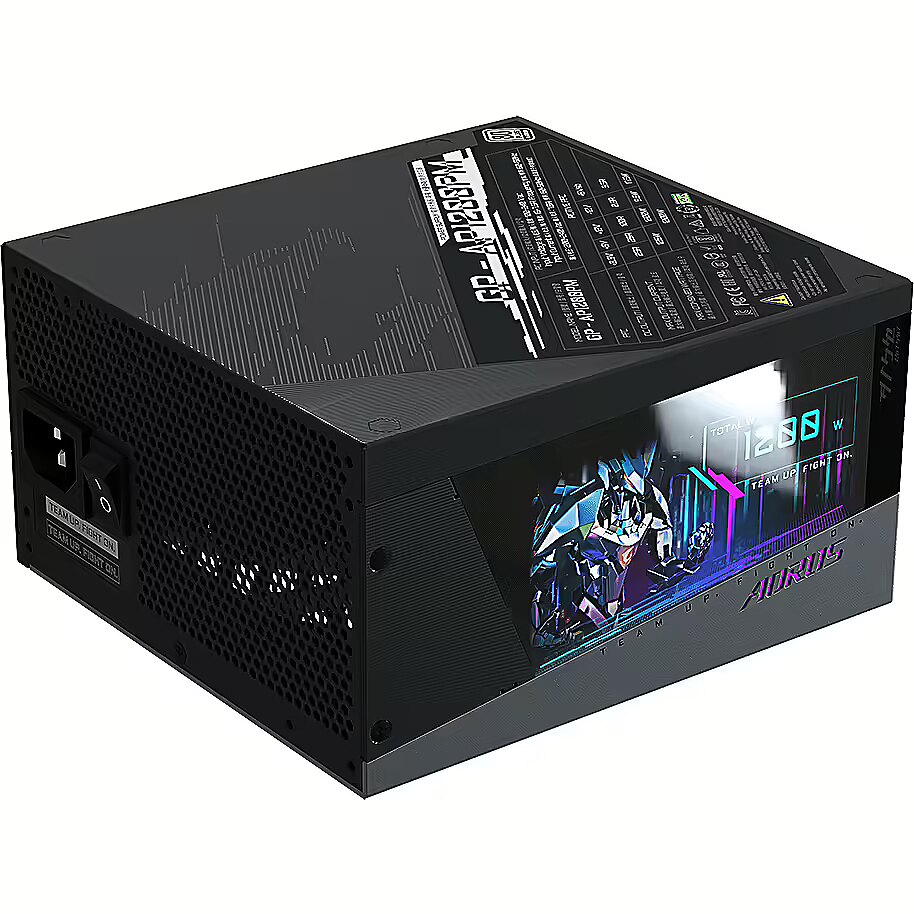

Gigabyte AORUS P1200W, 1200W, 80PLUS Platinum

Accessories included -
Brand - GIGABYTE
BrandPartCode - GP-AP1200PM
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
Description -
Design - Built-in display - LCD
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Fan location - Top
Design - Illumination - RGB
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2201
dimension depth - 145 mm
dimension height - 340 mm
Dimensions - 150 x 160 x 86 mm
dimension weight - 4155 g
dimension width - 220 mm
ean - 4719331552251
Eans - 4719331552251
EAN_code - 4719331552251
Fan - 14 cm
Floppy power connectors - 2
GTIN - 4719331552251
guarantee - 120
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - DESIGN CONCEPTIn the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.Welcome to the Digital Code Era.DIGITAL LCD MONITORThe Digital LCD Monitor can not only display the health status of the power supply in real time, but also display various texts, pictures, GIFs and MP4. You can also adjust the lighting effect through RGB FUSION 2.0 software.FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.QUALITYQuality is the top priority of AORUS design. AORUS ensures that the power supply can continuously supply high-quality power, thereby enhancing the performance of the computer and prolonging its service life.EXCELLENCEAORUS provides a variety of thoughtful designs that make users feel easy to use while enjoying high-quality products.RGB FUSION 2.0With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.COMPACT SIZE DESIGNWith the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, AORUS has reduced the size of a 1200W power supply that is generally designed to be 200 mm long to an amazing 160 mm, so it can be easily installed in any chassis without space constraints.
LongProductName - Aorus P1200w 80+ platinum modular, 100-240 V, 100,000 hours, Active PFC, black
LongSummaryDescription - GIGABYTE AORUS P1200W. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - GigaByte
Manufacturer_code - GP-AP1200PM
MB power connector - 20 + 4 pin
Modular power supply - Yes
Name - GIGABYTE AORUS P1200W 80+ PLATINUM Modular, PC power supply (black, 1200 watts)
Name - Gigabyte GP-AP1200PM
name - P1200PM 1200W PFC AORUS 80PLUS PLATINUM ATX
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 2.31
Performance - Bearing technology - DBB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - Cabling type - Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 15 cm
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 16
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 65 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 10
Ports & interfaces - Peripheral (Molex) power cable length - 120,150,600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,650 mm
Ports & interfaces - SATA power cable length - 650
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 17.5 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Hold time - 16 ms
Power - Input current - 15 - 7.5 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3.5 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 500 ms
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1200 W
Power supply - 1200 W
producer - Gigabyte
Producer - Gigabyte
producerCode - GP-AP1200PM
ProducerCode - GP-AP1200PM
ProductName - AORUS P1200W
productName - Gigabyte Aorus GP-AP1200PM power supply unit 1200 W 20+4 pin ATX ATX Black
productSize - Normal
SATA power connectors - 4
ShortDescription - 1200 | ATX | 140 mm | 20 + 4 pin | 150mm x 86mm x 160mm | modularny | 80 PLUS Platinum
ShortSummaryDescription - GIGABYTE AORUS P1200W, 1200 W, 100 - 240 V, 50 - 60 Hz, 15 - 7.5 A, Active, 16 ms
sizeX - 345
sizeY - 220
sizeZ - 145
Title - GIGABYTE AORUS P1200W power supply unit 1200 W 20+4 pin ATX ATX Black
URL - https://www.gigabyte.com/Power-Supply/GP-AP1200PM#kf
vendpn - GP-AP1200PM
WarrantyInfo - 10 years
warrantyLength - 120
warrantyType - G
Weight - 4,16
weight - 4148
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Height - 160 mm
Weight & dimensions - Width - 150 mm
