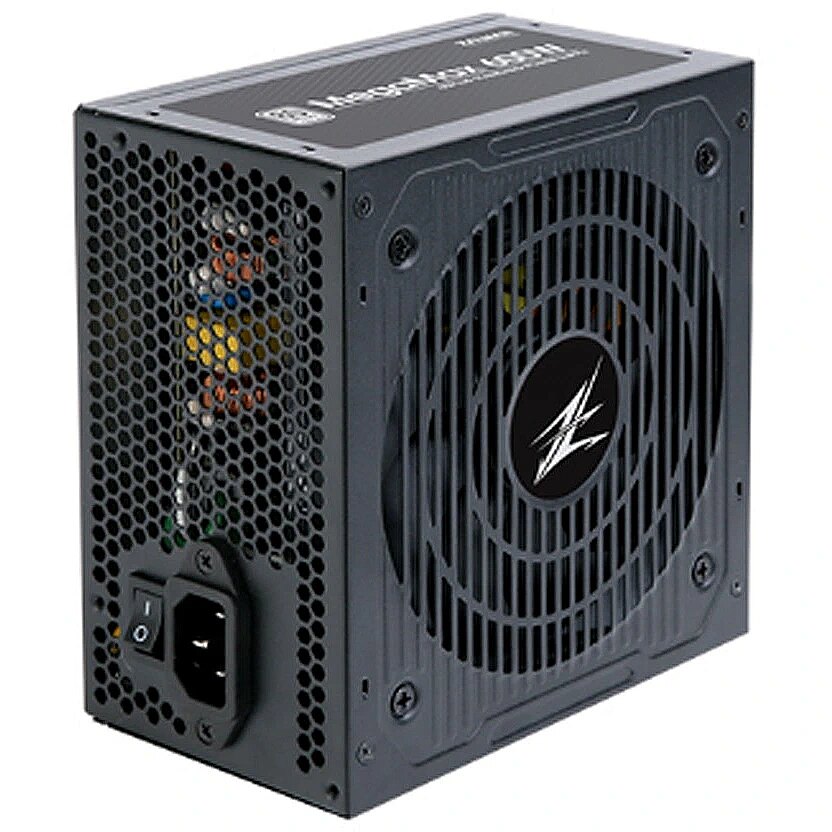

Zalman MegaMax V2, 600W, 80PLUS

- Toimitus Smartpostille 6,99 €: 17.04.2025
- Kuriiritoimitus 11,99 €: 17.04.2025

- Tuottaja: Zalman
- Teho: 600W
- 80 PLUS -sertifiointi: 80 PLUS (White)
- Puhaltimen koko: 120 mm
- Modulaariset kaapelit: Ei ole
- Prosessori-liitännäinen: 1 X 8-pin(4+4) + 4-pin EPS
- PCI-E: 2 X 6+2pin
Tarjoamme ostettavaksi Zalman virtalähteen, jonka teho on 600W ja joka on saanut 80 PLUS (White) energiatehokkuusluokituksen.
600W teho riittää Microsoft Office -ohjelmien käyttöön, verkkoselailuun ja budjettiluokan tietokonepelien pelaamiseen. Tämän virtalähteen avulla voit käyttää tietokonetta, jossa on keskitason prosessori, keskitason näytönohjain (kuten GTX 1650) ja yksi tai kaksi kiintolevyä. Jos aiot pelata pelejä vakavasti, hanki virtalähde, jonka wattiluku on korkeampi.

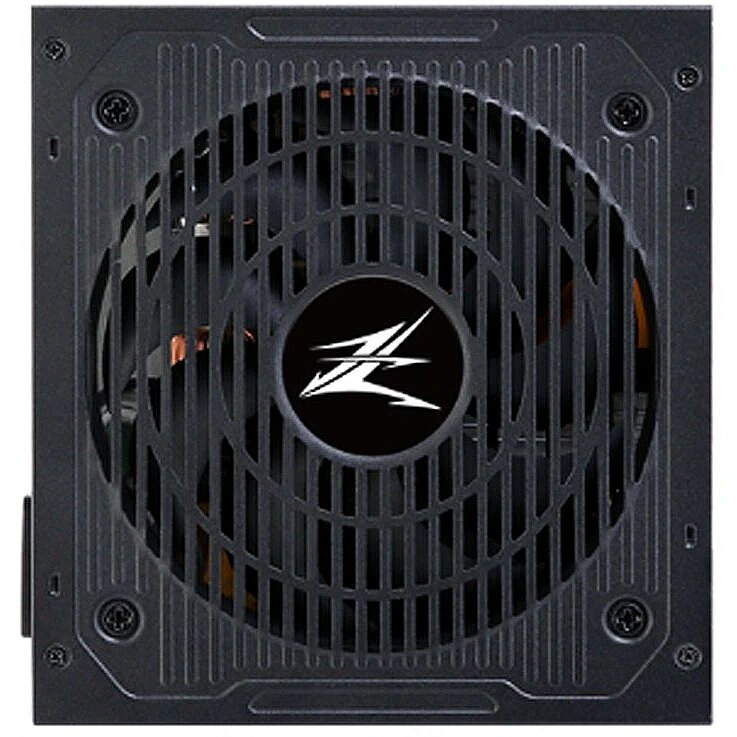

Tämä virtalähde on varustettu 120 mm tuulettimella, joka on teollisuuden standardi keskivertotietokoneiden hiljaisen toiminnan varmistamiseksi. Jos haluat erityisen hiljaisen yksikön, etsi sellainen, jonka tuulettimen halkaisija on 135 mm tai 140 mm.
Virtalähteelle on myönnetty energiatehokkuustodistus 80 PLUS (White), joka takaa vähintään 80 %:n hyötysuhteen. Tämä tarkoittaa, että vähintään 80 W 100 W:sta, jonka virtalähde vastaanottaa sähköverkosta, toimitetaan tietokoneen komponentteihin ja loput 20 W menetetään lämmön muodossa.
Lohkon väri on Melna. Lohkossa on tasaiset kaapelit, joiden väri on Melna.
Tämä on virtalähde, joka täyttää ATX 2.0 -vaatimukset. Virtalähteessä on vain
Virtalähdeyksikkö
Accessories included - Podręcznik użytkownika Opaski zaciskowe do kabli Kabel zasilający Zestaw śrub
Brand - Zalman
BrandPartCode - ZM600-TXII
BrandPartCode - ZM600-TXII V2
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Certificates - Certification - KC, CE, CB, RoHS, EAC
Certificates - Compliance certificates - RoHS
Certificates 80+ - 80 PLUS
Code - ZM600-TXII
Desc - Jauda: 600W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 6, PCI-E: 2 x 6 + 2 Pin, Garantija: 2 gadi
Description - MegaMax 600w
Stabilne zasilanie komputera PC przy równoczesnym zmniejszeniu poboru prądu, dzięki zastosowaniu wysoce wydajnych części, które są także trwałe i niezawodne.
Wbudowany filtr EMI do redukcji hałasu
Filtr EMI tłumi częstotliwości powodujące szumy i zapewnia w ten sposób lepszą pracę
Transformator przełączający
Transformator przełączający zapewnia stabilny prąd bez nadmiernego obciążania prądu wejściowego
Aktywy PFC o maksymalnym współczynniku mocy do 98%
Aktywy system PFC o maksymalnym współczynniku mocy 98% zapewnia spójne i stabilne wyjście oraz wysoką wydajność energetyczną. Wysoka wydajność energetycza zapewnia z kolei stabilną pracę systemu i niskie szumy elementów składowych, niski poziom generowanego ciepła i minimalne wahania napięcia zasilania.
Pojedyńcza szyna 12V przy 90% sprawności
Konstrukcja jednoszynowa zapewnia dostępną moc dla +12V 540W przy sprawności 90% dostarczając stabilne napięcie procesorowi (CPU) i karcie graficznej, które są głównymi elementami składowymi komputera PC
Kondensator 105°C
Zapewnia stabile zasilanie nawet dla wysokich wartości napięcia i temperatury
Wbudowany radiator aluminiowy
Podwójny blok radiatora aluminiowego minimalizuje wytwarzanie ciepła wewnętrznego
Wysoka efektywność energetyczna zasilacza w trybie czuwania (certyfikat ErP lot 6)
Zasilacz ZALMAN charakteryzuje się niezywkle wysoką wydajnością energetyczną zapewniającą, że w trybie czuwania moc zasilania może być utrzymywana poniżej 1W w celu uniknięcia zbyt dużego zużycia energii. Zasilacz uzyskał certyfikat ErP lot 6 ustanawiający europejskie standardy dotyczące oszczędzania energii dla wydajnych energetycznie urządzeń przyjaznych dla środowiska.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Fan speed - 2300 - 2300 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 100 mm
dimension height - 180 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 880 g
dimension width - 280 mm
ean - 8809213765834
EAN - 8809213769801
Fan - 12 cm
Floppy power connectors - 1
GTIN - 8809213765834
GTIN - 8809213769801
guarantee - 36
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_75255_1.jpg
LargeDescHTML -
LongDesc - Efficient 80Plus power supply
LongDesc - Zalman MegaMax [600W] ZM600-TXIIv280PLUS STANDARD Power Supply (2021 MegaMax Renewal Version).80PLUS 230V EU Standard CertifiedThe MegaMax guarantees stable performance and efficiency certified 80 PLUS Standard.Characteristic of low temperatureIt keeps the optimized temperature value in the 100% load.Low ripple and noiseRipple & Noise from MegaMax conforms to Intel Power Supply Design Guide.Active PFC with up to 98% maximum power factorBy applying an active PFC (Power Factor Correction) circuit that maximizes energy efficiency, it ensures electromagnetic wave reduction and energy efficiency while preventing reverse current.HBD (Hydro-Dynamic Bearing) Powerful and safe HDB bearingQuiet and smooth operation with HDB bearings. Durability is improved and life expectancy is extended. It reduces noise and minimizes heat generation.120mm Cooling Fan Low Noise and Powerful Cooling Performance120mm low-noise fan delivers powerful spin even at low rpm to quickly remove heat from the power supply for optimum cooling performance.High-quality, performance-oriented parts used to be durable and reliableIt provides a smooth power supply to the PC and reduces unnecessary power consumption by using quality parts that are durable and reliable.Environmentally friendly products, all materials included are environmentally friendly and harmlessCertified products are environmentally friendly and do not cause any harm to the human body. Certification is received when XRF testing determines that the 10 hazardous substances are below the standard value for the electronic products exported to Europe. Unlike other low-cost products, ZALMAN's products are manufactured with RoHS standards in mind from the start.SpecificationsModel: MegaMax [600W] ZM600-TXII 80PLUS STANDARD Power SupplyEfficiency: Max 86% @ 220 VAC, typical loadDimensions: 140 (L) x 150 (W) x 86 (H) mmMTBF: 100,000 hoursWeight: 1.68 kgOperating temperature: 10 ∼ 45 °CPFC: Active PFC 98%Regulation: KC, CE, CB, RoHS, EACType: Intel ATX 12V Ver2.31Protection: OPP / OVP / UVP / SCPInput voltage: 200-240 VACInput Current: 5AInput Frequency: 50-60 HzFan Size: 120mmRated speed: 2,300 rpmFan Bearing: Hydro-dynamic BearingCables (connector): Motherboard cable, CPU cable (connector 2EA), PCI Express cable (connector 2EA), SATA cable 2EA (connector 3EA), Peripheral IDE + Peripheral IDE (connector 2EA)
LongProductName - Zalman MegaMax 600 Watt (TXII) 80Plus Power Supply
LongProductName - Zalman ZM600-TXII V2 MegaMax, 80PLUS 230V EU STANDARD Certified high efficiency / PCI-E Connectors support up to dual CrossFire & SLI / Compliance with Intel ATX12V Ver2.31 standards. / Interleaved Active PFC
LongSummaryDescription - Zalman ZM600-TXII. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 480 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: KC, CE, CB, RoHS, EAC
LongSummaryDescription - Zalman ZM600-TXII V2 MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
MB power connector - 20 + 4 pin
MOLEX power connectors - 4
name - ZALMAN MegaMax 600W V2 80+ STD EU ZM600-TXII
Name - Zalman MegaMax ZM600-TXII 600W
Number of power supply connector 4+4-pin 12V - 0
Number of power supply connector 4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 2
Operational conditions - Operating temperature (T-T) - 10 - 45 °C
Other features - Waga: 1.68 kg MTBF: 100.000 h Napięcie wejściowe: 200-240 VAC Prąd wejściowy: 5A Częstotliwość wejściowa: 50-60 Hz Prędkość znamionowa wentylatora: 2300 obrotów na minutę
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS
Performance - ATX version - 2.31
Performance - Bearing technology - FDB
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - No
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express power cable length - 73 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 470 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 480 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 540 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 86%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 45 A
Power - Max output current (-12V) - 0.5 A
Power - Power factor - 98
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over voltage, Short circuit, Under voltage
Power - Total power - 600 W
Power supply - 600 W
producer - Zalman
ProductName - ZM600-TXII
ProductName - ZM600-TXII V2 MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E
SATA power connectors - 3
ShortSummaryDescription - Zalman ZM600-TXII, 600 W, 200 - 240 V, 50 - 60 Hz, 5 A, Active, 540 W
ShortSummaryDescription - Zalman ZM600-TXII V2 MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E, 600 W, 200 - 240 V, 50 - 60 Hz, 5 A, Active, 20+4 pin ATX
Title - Zalman ZM600-TXII power supply unit 600 W 20+4 pin ATX ATX Black
Title - Zalman ZM600-TXII V2 MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E power supply unit 600 W 20+4 pin ATX ATX Black
URL -
URL - https://www.zalman.com/EN/Product/ProductDetail.do?pageIndex=1&pageSize=10&pageUnit=12&productSeq=406&searchCategory1=6&searchCategory2=96&searchCategory3=-99&searchKey=&searchWord=#none
vendpn - ZM600-TXII
WarrantyInfo -
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.68 kg
Weight & dimensions - Width - 150 mm
