Cooler Master MWE Bronze V2, 750W, 80PLUS Bronze

8-pin 12V power connectors - 1
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
Certificates > Certification - 80 PLUS Bronze EU 230V
Code - MPE-7501-ACABW-BEU
Colour - Black
Cooling System - 12cm fan
Description - - DC-to-DC + LLC Circuit Design - High Temperature Resistance - Peak Power Tolerance - 80 PLUS Bronze 230V EU Certified - Durable, Reliable, and Safe
Description - POWER UP
The MWE Bronze V2 offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS Bronze efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature sensitive HDB fan offer a power supply unit that stays true to its original purpose. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For a great mid-tier computing experience, you can't go wrong with the MWE Bronze V2.
80 PLUS BRONZE CERTIFIED
It's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.

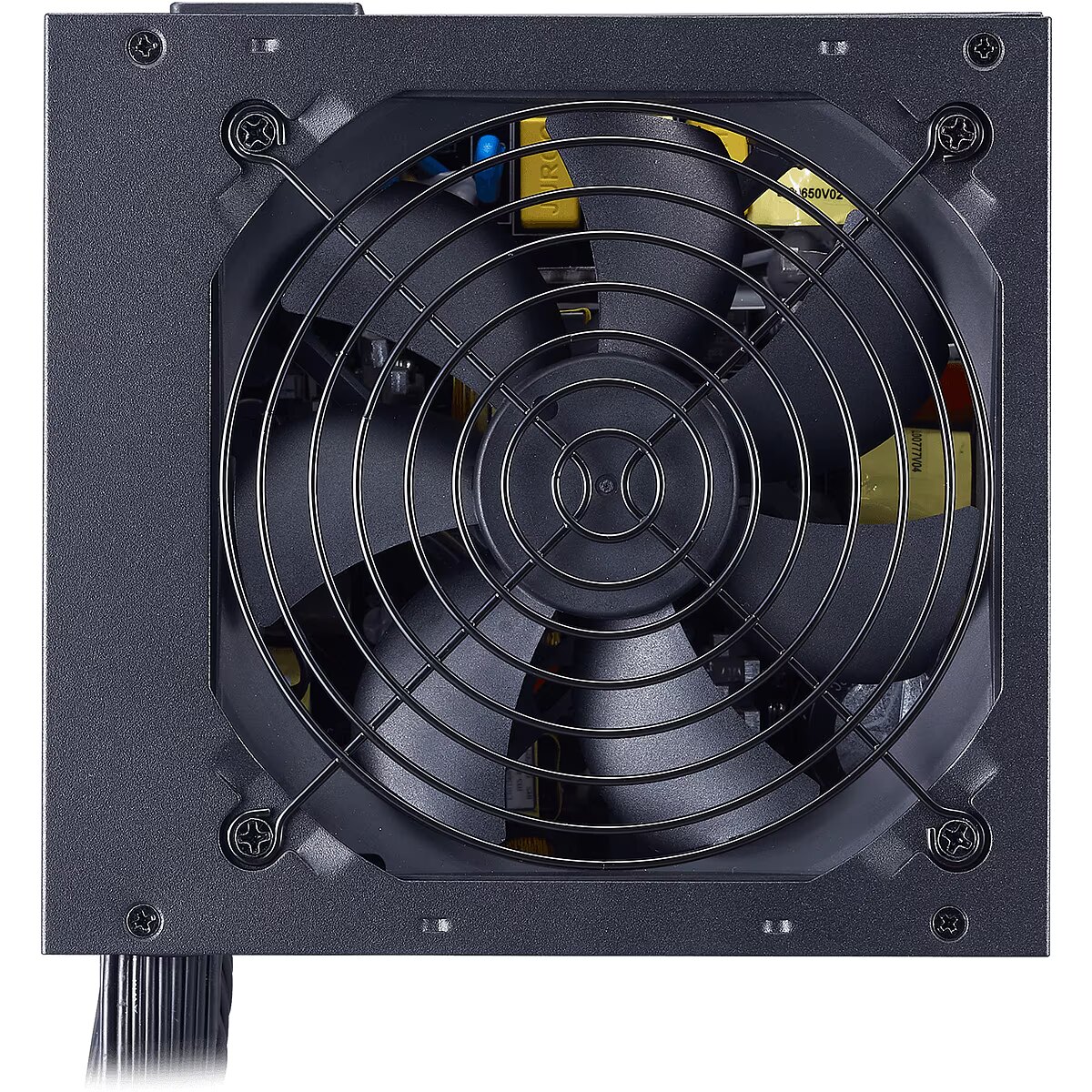

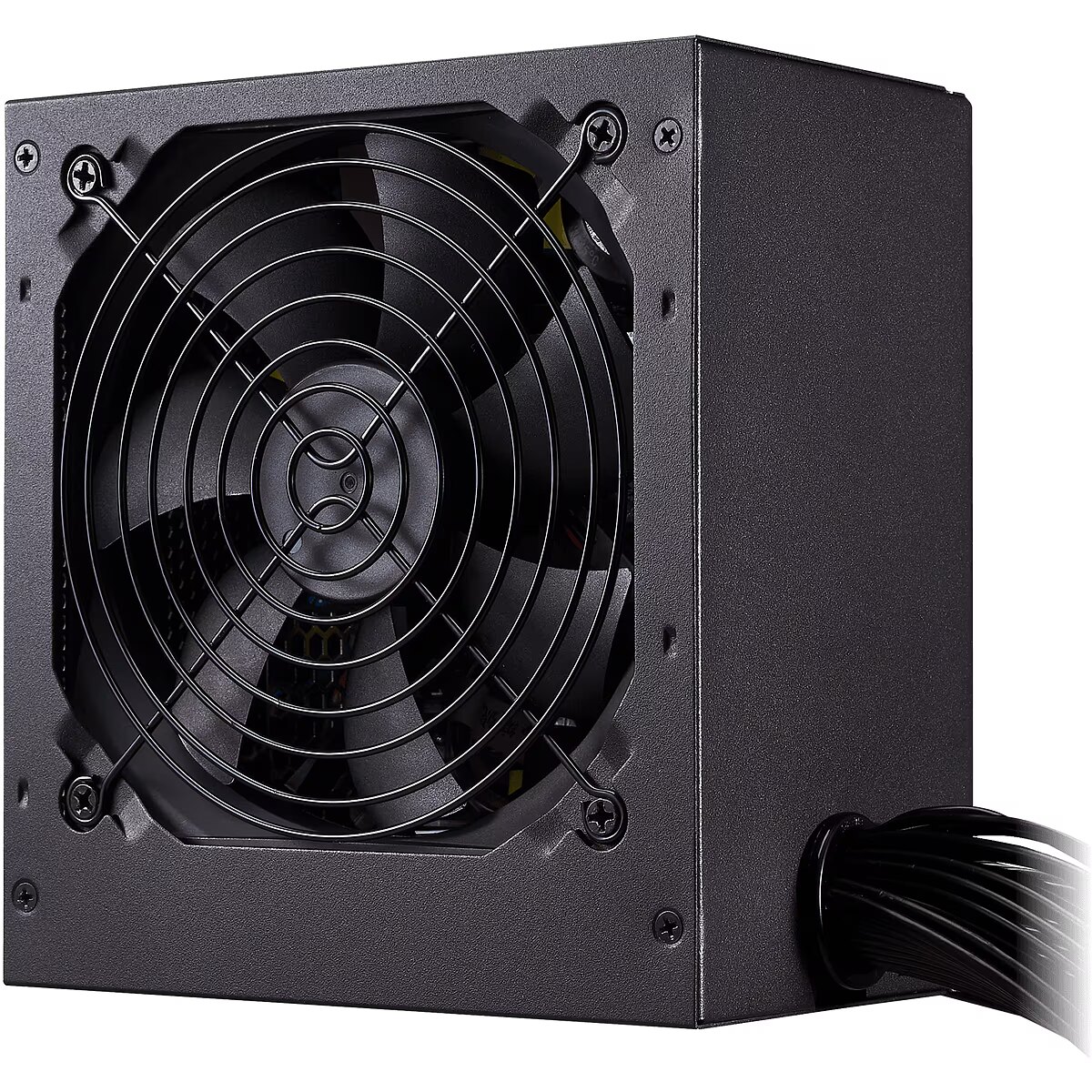

120MM HDB FAN
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Bronze's solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system's temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.
SINGLE +12V RAIL
Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading.
The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system's overall performance. That's why the MWE Bronze only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.

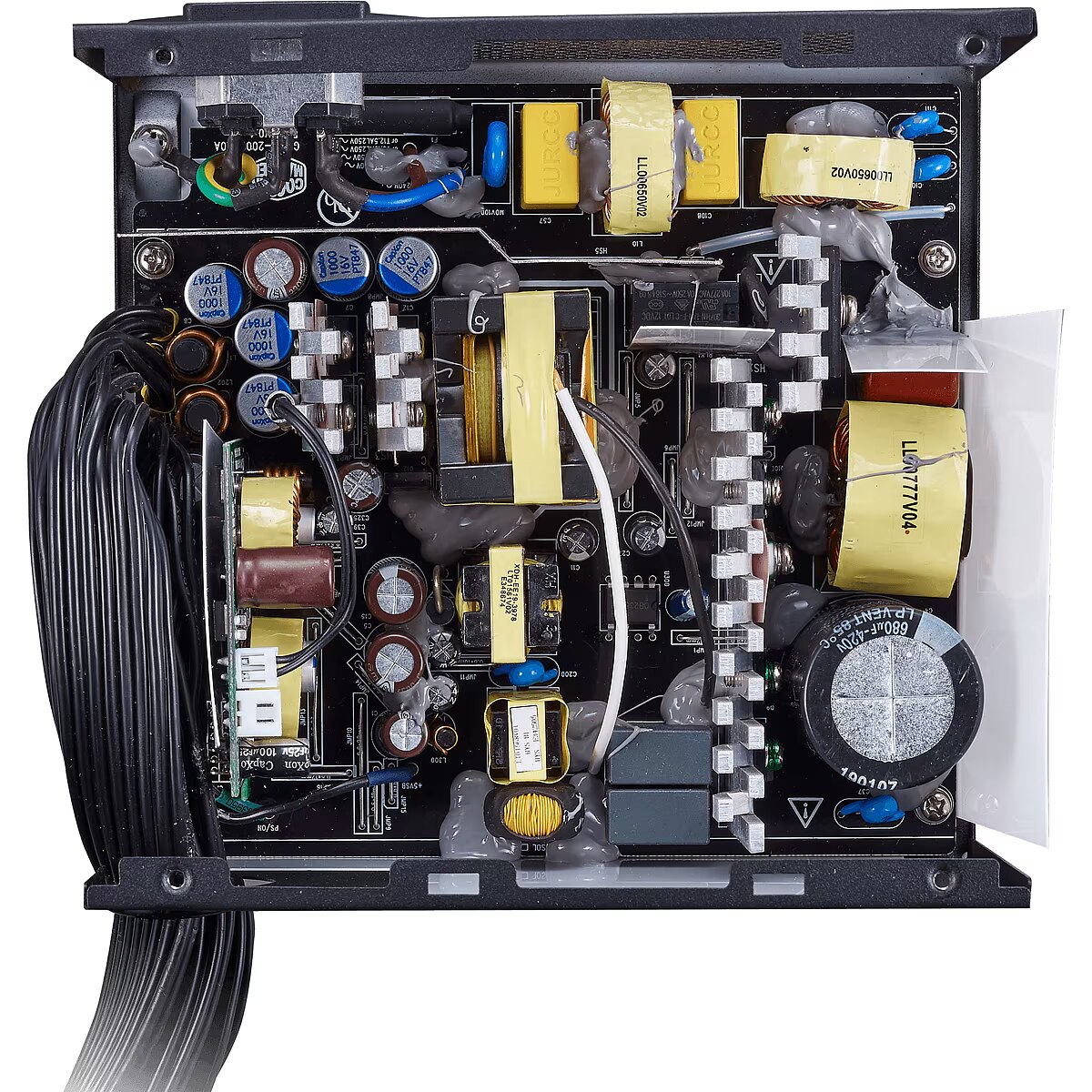

DC-TO-DC CIRCUIT DESIGN
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE White's DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected components.

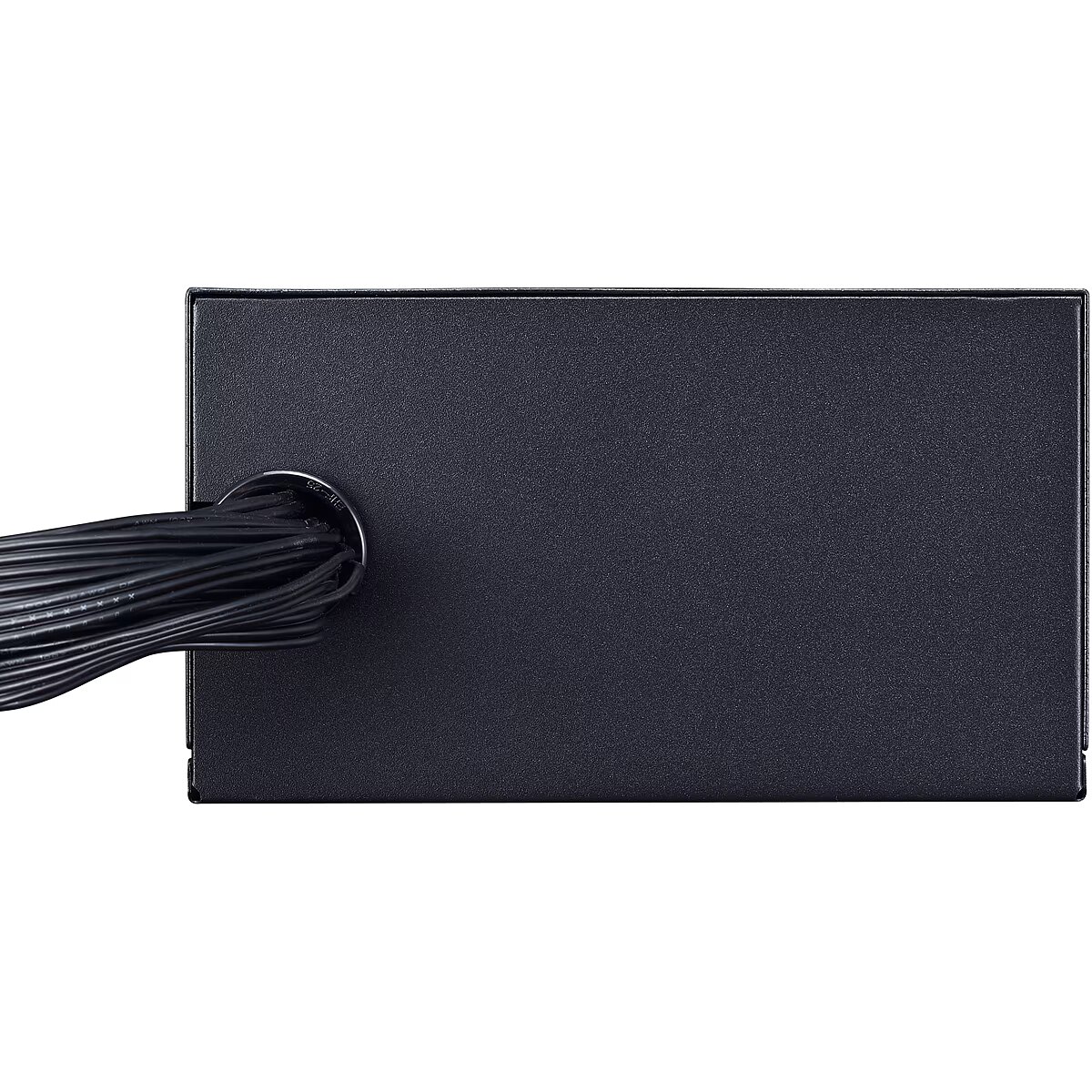

FLAT BLACK CABLES
For many PC Builders with aesthetics in mind, cabling can be one of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE Bronze - V2 uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)

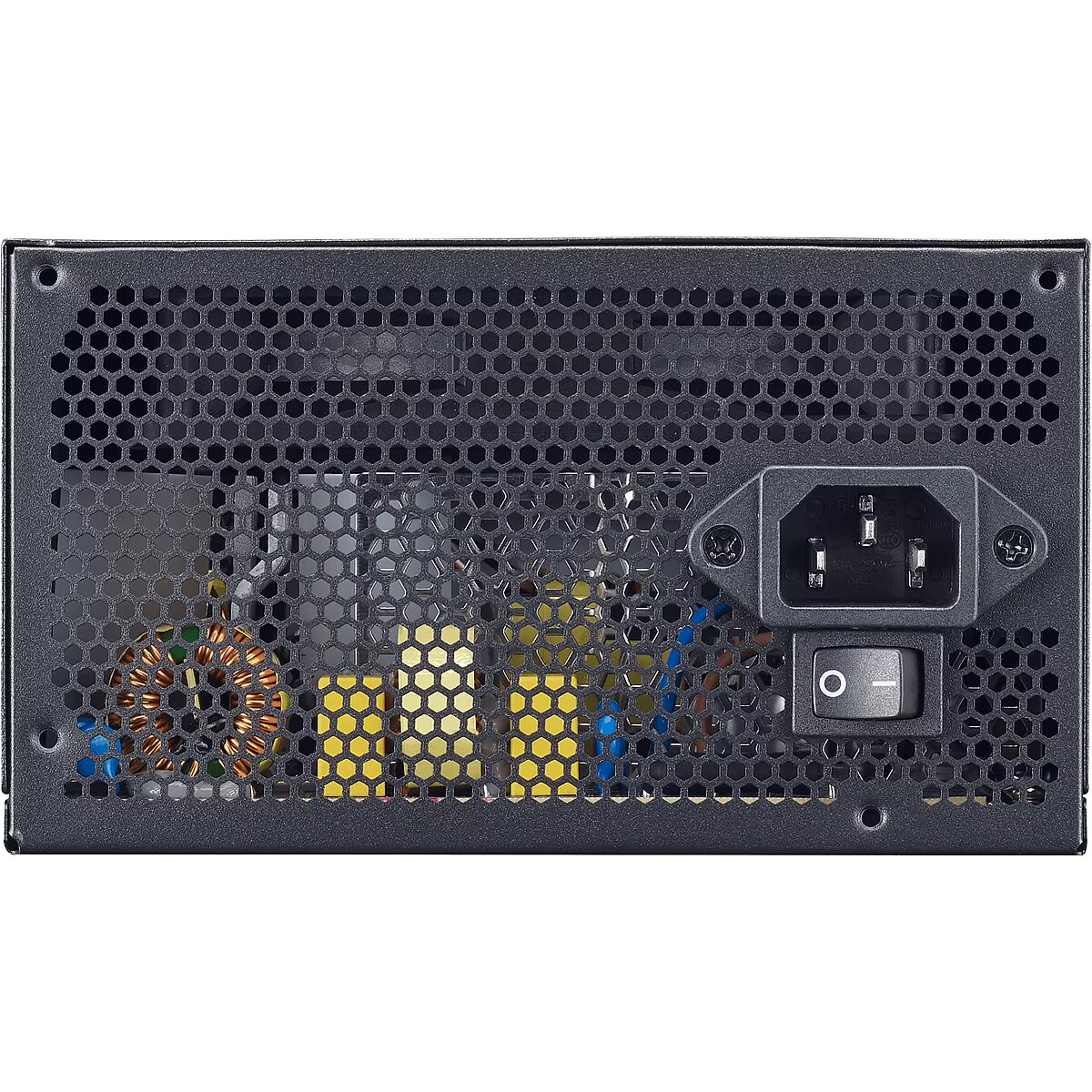

Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1051
dimension depth - 110 mm
dimension height - 190 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 1900 g
dimension width - 245 mm
EAN - 4719512104552
ean - 4719512104552
Eans - 4719512104552
EAN_code - 4719512104552
Efficiency - 80 PLUS BRONZE
Fan - 12 cm
Fan speed (max) - 2400 rpm
Floppy power connectors - 0
Full Description Line - MWE 750 BRONZE - V2 230V|ATX 2.52|750 Watts|Cooling System 12cm fan|80 PLUS BRONZE|PFC Active|MTBF 100000 hours|Colour Black
guarantee - 24
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733020
Manufacturer - Cooler Master
Manufacturer_code - MPE-7501-ACABW-BEU
MB power connector - 24 pin
Model - MPE-7501-ACABW-B
Model name - MWE 750 BRONZE - V2 230V
Modular power supply - No
MOLEX power connectors - 3
MTBF - 100000 hours
Name - Cooler Master MWE 750 Bronze V2 230V, PC power supply (black, 4x PCIe, 750 watts)
Name - Cooler Master MWE Bronze 750W V2 80+ Bronze
Name - Cooler Master | Power Supply | MWE 750 Bronze V2 230V | 750 W
name - Power Supply MWE Bronze V2 750W 80+ Bronze
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Other features - Noise level (full-load mode, 100%) - 39.5 dB
Other features - Noise level (quiet mode, 50%) - 20.3 dB
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260.00 mm
Package features > Gross height (mm) - 110.00 mm
Package features > Gross width (mm) - 190.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 318 pc(s)
Package features > Paper/Pasteboard - 300.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging data - Package depth - 245 mm
Packaging data - Package height - 110 mm
Packaging data - Package weight - 1.67 kg
Packaging data - Package width - 190 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.52
Performance - Bearing technology - HDB
Performance - Certification - CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3

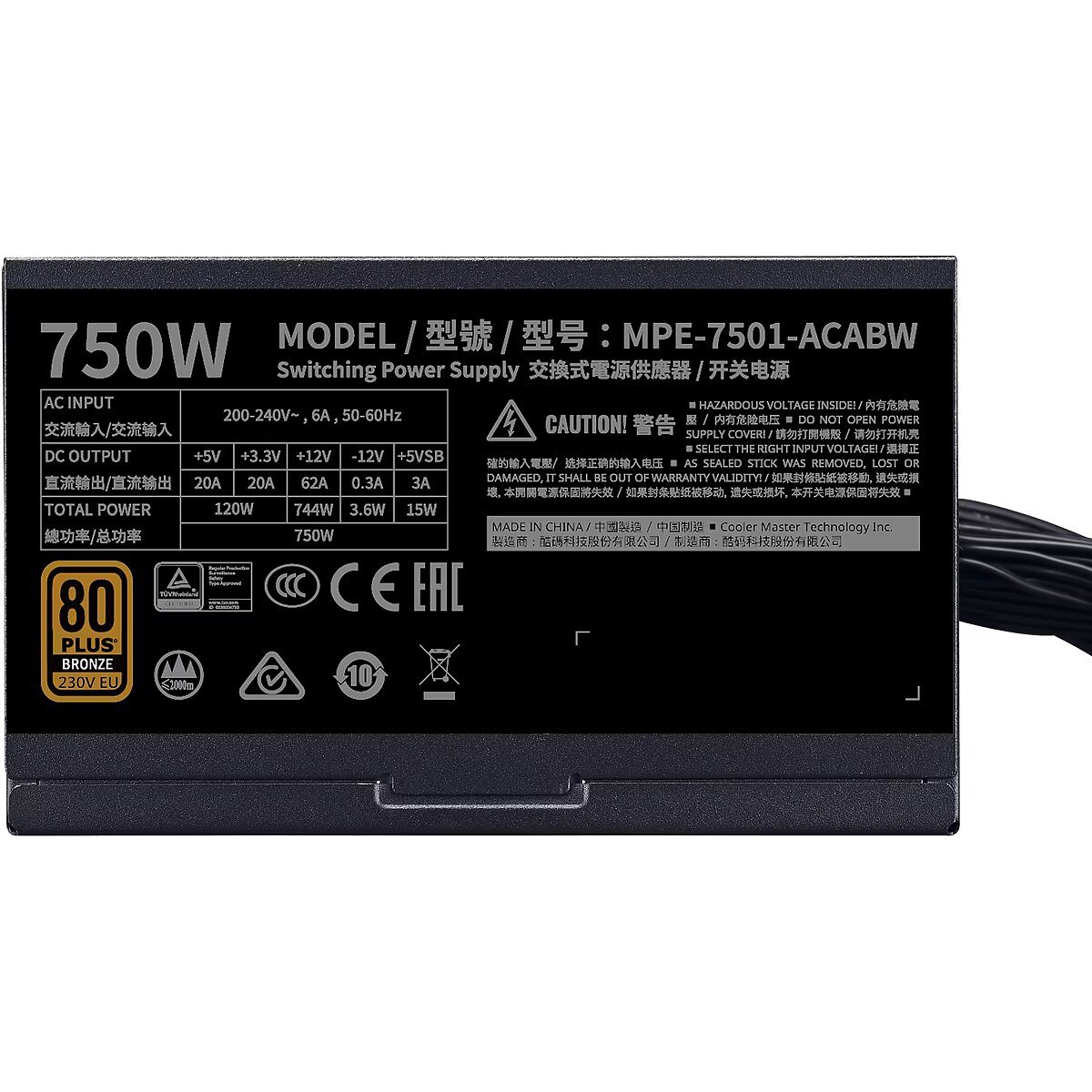

Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Hold time - 14 ms
Power - Input current - 6 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 500 ms
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power > Nominal power - 750 W
Power supply - 750 W
producer - Cooler Master
Producer - CoolerMaster
producerCode - MPE-7501-ACABW-BEU
ProducerCode - MPE-7501-ACABW-BEU
Producer product family - Power Supply
Producer product name - MWE 750 Bronze V2 230V
productName - Cooler Master MWE 750 Bronze 230V V2 power supply unit 750 W 24-pin ATX ATX Black
productSize - Normal
PSU - ATX 2.52
PSU Output Power - 750 Watts
SATA power connectors - 6
Shipping Box Depth Shipping/Package Box Dimensions - 57 cm
Shipping Box Height Shipping/Package Box Dimensions - 22 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
ShortDescription - 750 | ATX | 120mm | 24 pin | 140mm x 150mm x 86mm | 80 Plus Bronze
sizeX - 245
sizeY - 195
sizeZ - 110
Technical details > Gross weight - 1.90 kg
Technical details > Net weight - 1.50 kg
Technical details > Producer - Cooler Master
Unit Box Height - 0.19
Unit Box Length - 0.245
Unit Box Width - 0.11
Unit Brutto Volume - 0.0065208 cubm
Unit Gross Weight - 2.04 kg
Unit Net Weight - 1.272 kg
Vendor Homepage - https://www.coolermaster.com/catalog/power-supplies/mwe-series/mwe-750-bronze-v2-230v/#image-Item9
vendpn - MPE-7501-ACABW-BEU
Warranty - 24
Warranty - 24 month(s)
Warranty - 60 months
warrantyLength - 24
warrantyType - G
Weight - 1,67
weight - 1885
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.27 kg
Weight & dimensions - Width - 150 mm
