ID: 309372
Tuotekoodi: GDP-650C-RGB
Voidaan tilata 4 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 2 vuotta

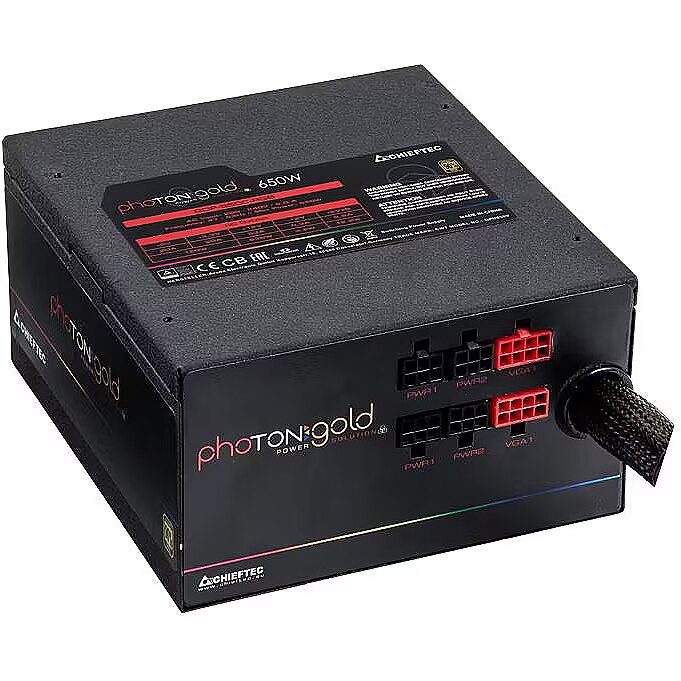

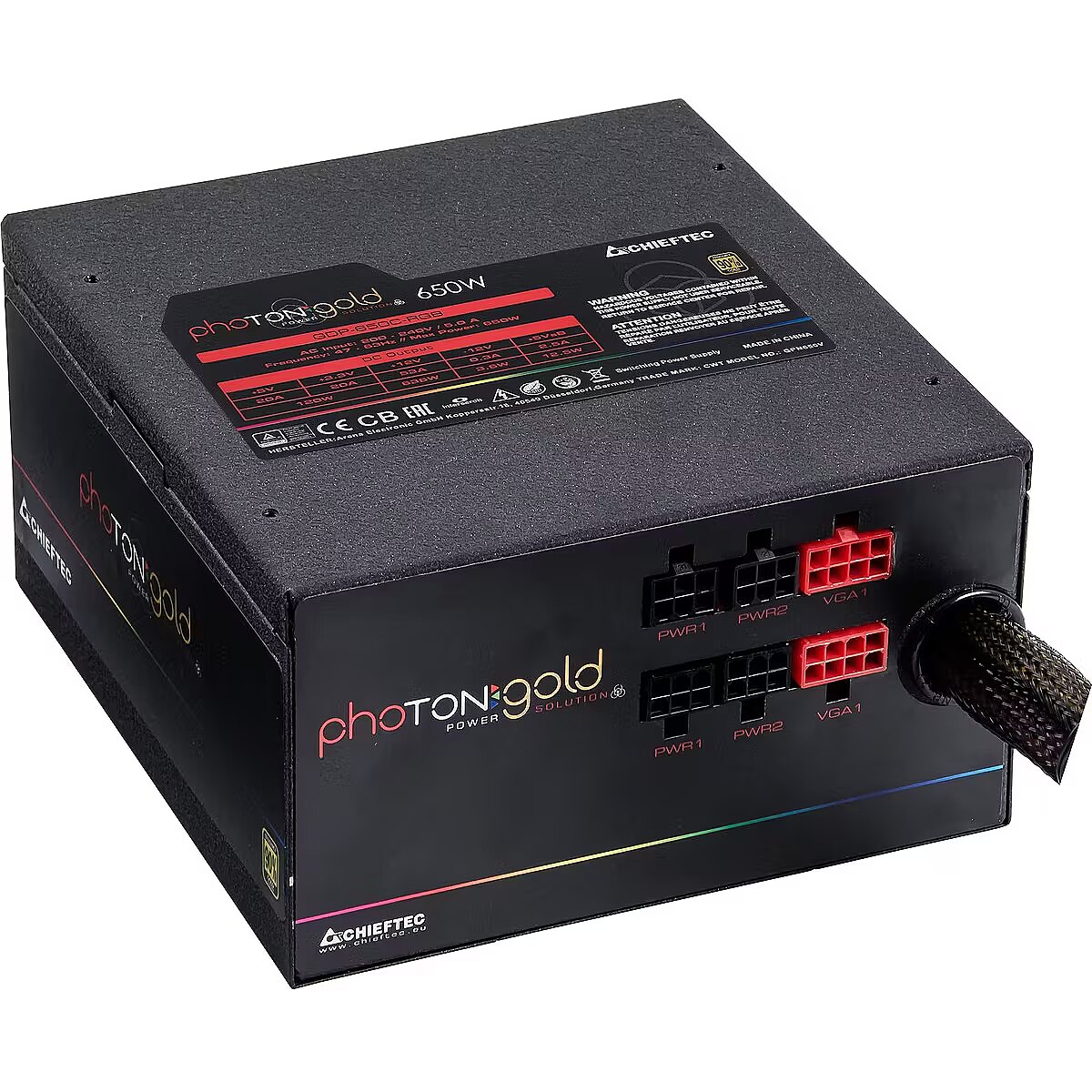

Chieftec Photon Gold Series RGB, 650W, 80PLUS Gold
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpost-pakettiautomaattiin 6,99 €: 11.12.2024
- Kuriiritoimitus 11,99 €: 11.12.2024
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Chieftec
- Teho: 650W
- 80 PLUS -sertifiointi: 80 PLUS Gold
- Puhaltimen koko: 140 mm
- Modulaariset kaapelit: Semi-Modular
- Prosessori-liitännäinen: 1 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Kuvaus
Tarjoamme ostettavaksi Chieftec, jossa on 650W virtalähde, joka on saanut 80 PLUS Gold -energiatehokkuussertifikaatin.
riittää tehoksi verkkoselaamiseen, Microsoft Officeen ja yksinkertaiseen PC-pelaamiseen. Virtalähteestä saa virtaa tietokone, jossa on yksi tai kaksi kiintolevyä, keskitason näytönohjain (esim. GTX 1650) ja keskitason prosessori. Jos olet vakava PC-pelaaja, osta tehokkaampi virtalähde.
asennettu140 mm140 mm uuletin. Se on huomattavasti hiljaisempi kuin perinteinen 120 mm:n tuuletin, ja se jäähdyttää riittävästi pienemmillä nopeuksilla siipien massiivisen koon ansiosta.
Tälle virtalähteelle myönnetty energiatehokkuussertifikaatti takaa vähintään 90 prosentin hyötysuhteen 50 prosentin kuormituksella. Toisin sanoen jokaista 100 W:n tehoa kohden, jonka virtalähde ottaa verkosta, vähintään 90 W menee tietokoneen komponentteihin, kun taas loput 10 W menevät lämmöksi.
Melna Lohkossa on litteitä kaapeleita, joiden väri on Melna.
Tämä virtalähde on ATX 2.0 -standardin mukainen. Tämä tarkoittaa, että virtalähteessä on vain 6-nastainen ja 8-nastainen portti, jotka tuottavat vastaavasti 75W ja 150W tehoa. ATX 2.0 -virtaportteja ei ole suunniteltu käsittelemään nykyaikaisten näytönohjainten suuria tehovaatimuksia. Jos rakennat järjestelmää, jossa on erittäin tehokas näytönohjain, kuten RTX 4070, tarvitaan ATX 3.* -standardin mukainen virtalähde.
Tässä virtalähteessä on puolimodulaariset kaapelit. Osa kaapeleista on kiinteästi kiinnitetty, kun taas osa voidaan lisätä tai poistaa tarpeen mukaan. Virtalähde sopii käyttäjille, jotka haluavat jonkin verran joustavuutta mutta eivät täysin modulaarista järjestelmää.
Tämä virtalähde on saanut RGB-valaistuksen.
Perustiedot
Cybenetics Melutason sertifiointi
: Nav
Cybeneticsin tehokkuuden sertifiointi
: Nav
Virtalähteen tyyppi
: ATX
Teho
650W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS Gold
Kokonaisvirta (+12V)
: 53A
Puhaltimen koko
: 140 mm
Toiminnallisuus
Kaapelin väri
: Musta
Valaistus
: RGB
Väri
: Musta
Modulaariset kaapelit
: Semi-Modular
Satamat ja laitteet
PCI-E 5.0
: Nav
Prosessori-liitännäinen
: 1 x 8-pin(4+4) EPS
Emolevyn virta
: 20+4-pin
PCI-E
: 4 X 6+2pin
SATA-liittimet
: 6
4pin Molex
: 3
Tapaus
Yksityiskohtaisempi erittely
Brand - Chieftec
BrandPartCode - GDP-650C-RGB
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Fan location - Top
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1108
EAN_code - 0753263075895
GTIN - 753263075895
GTIN - 0753263075895
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The highly innovative Photon GOLD series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS AURA SYNC, MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC and GIGABYTE RGB FUSION.Photon GOLD series in addition provide a vast number of predefined and MBindependent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its vast amount of extra-long cables and an efficiency of 90% @230V, the models of the Photon GOLD series stands out as a perfect RGB gaming solutions.
LongProductName - 650W, 200-240V, 5A, 47-63 Hz, ATX, PS II, 20+4-pin, 4+4-pin, 4x 6+2-pin, 6x SATA, 3x Molex, Floppy, RGB
LongSummaryDescription - Chieftec Photon GOLD. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,550 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, Supported motherboard form factors: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 160 mm, Height: 87 mm
Manufacturer - Chieftec
Manufacturer_code - GDP-650C-RGB
Name - Chieftec Photon GDP-650C-RGB 650W ATX23 - Photon gold
Other features - Illumination colour - Blue
Other features - Illumination colour - Blue, Green, Red
Other features - Illumination colour - Green
Other features - Illumination colour - Red
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 55 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,550 mm
Ports & interfaces - Peripheral (Molex) power cable length - 550
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,550 mm
Ports & interfaces - SATA power cable length - 550
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Efficiency - 90%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 53 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 650 W
producerCode - GDP-650C-RGB
productName - Chieftec Photon GOLD power supply unit 650 W 20+4 pin ATX PS/2 Black
ProductName - Photon GOLD
productSize - Normal
ShortSummaryDescription - Chieftec Photon GOLD, 650 W, 200 - 240 V, 47 - 63 Hz, 5 A, 120 W, 120 W
sizeX - 240
sizeY - 220
sizeZ - 105
Title - Chieftec Photon GOLD power supply unit 650 W 20+4 pin ATX PS/2 Black
URL - https://www.chieftec.eu/en/psus/ps-2/photon-gold-series/gdp-650c-rgb.html
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - G
Weight - 2,55
weight - 2490
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 2.12 kg
Weight & dimensions - Width - 150 mm
