Aerocool LUX RGB, 550W, 80PLUS Bronze

8-pin 12V power connectors - 0
Accessories included -
Brand - Aerocool
BrandPartCode - LUXRGB550M
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Bronze
Description - Zasilacz LUX RGB 550W 80+ Bronze Wyposażony w stylową i elegancką konstrukcję RGB LED, LUX RGB poprawia wygląd i styl gry, jednocześnie wydajnie zasilając system. Ożyw swój system dzięki 13 zaprogramowanym efektom świetlnym, którymi można sterować za pomocą przycisku sterowania LED. Kompatybilny z adresowalnymi płytami głównymi RGB za pomocą adresowalnego złącza +5V RGB.
Zbudowany z 30% zwiększoną powierzchnią wentylacyjną w korpusie zasilacza, LUX RGB został zaprojektowany z myślą o zwiększonym przepływie i cyrkulacji powietrza. Kontroluj do 13 efektów świetlnych za pomocą przycisku sterowania LED Kompatybilny z adresowalnym RGB przy użyciu adresowalnego złącza RGB +5 V 30% Zwiększona powierzchnia wentylacyjna w korpusie zasilacza pozwala na większy przepływ powietrza Certyfikat 80Plus 230V EU Bronze dla wydajności do 88%+ Zabezpieczenie elektryczne OPP/OVP/UVP/SCP w zestawie Cichy czarny wentylator 12 cm ze zoptymalizowaną termiczną kontrolą prędkości wentylatora Miękkie, czarne, płaskie kable pozwalają na wygodniejsze zarządzanie kablami
Design - Cooling type - Active
Design - Fan diameter - 12 cm

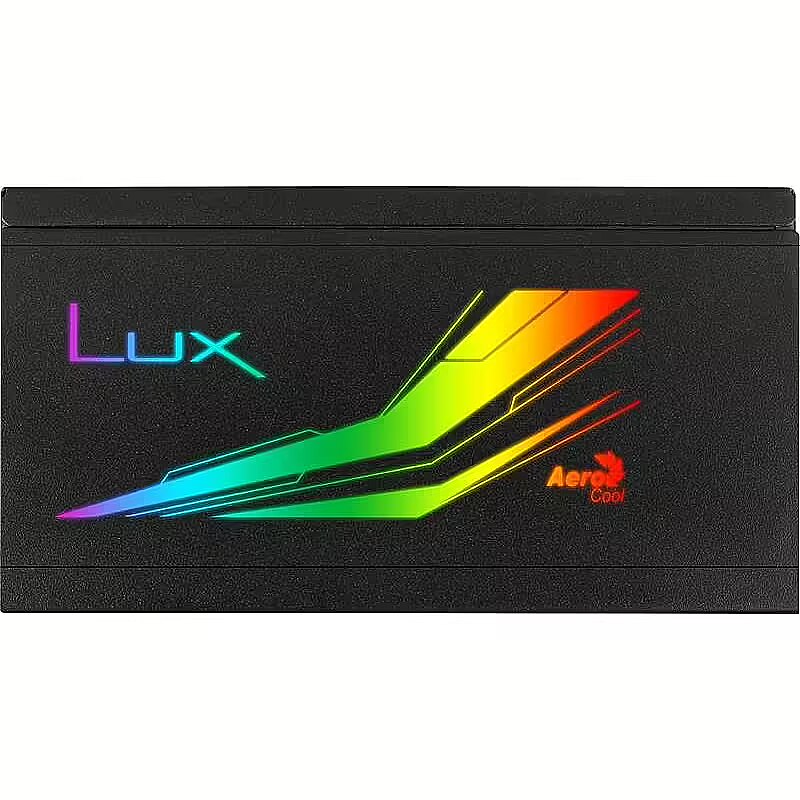

Design - Illumination - Yes
Design - Illumination colour - Red/Green/Blue
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 952
dimension depth - 200 mm
dimension height - 95 mm
Dimensions -
dimension weight - 1480 g
dimension width - 240 mm
ean - 4718009153868
Eans - 4718009153868
Fan - 12 cm
Floppy power connectors - 0
GTIN - 4718009153868
GTIN - 4718009156203
guarantee - 24
guarantee_type - normal
Logistics data - Master (outer) case height - 215 mm
Logistics data - Master (outer) case length - 495 mm
Logistics data - Master (outer) case width - 250 mm
Logistics data - Products per master (outer) case - 5 pc(s)
LongDesc - Featuring a Prism RGB LED design, the LUX RGB PSU powers your system while delivering a vivid stream of colors. Bring your case to life with 13 unique lighting effects that can be controlled via LED control switch. Smart semi-modular design increases ease of installation and offers easier cable management. 80Plus 230V EU Bronze Certified for up to 88%+ efficiency.
LongProductName - 550 W, 200 - 240 C, 50 - 60 Hz, 4 A, 1x 20+4 pin, 1x 12 V 4+4 pin, 4x SATA, 2x PATA, 1x PCIe 6+2 pin, Black
LongSummaryDescription - Aerocool LUXRGB550M RGB Modular PC Power Supply 550W 80Plus Bronze 230V Black. Total power: 550 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 550 mm. Purpose: PC, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Package width: 230 mm, Package depth: 195 mm, Package height: 95 mm
MB power connector - 20 + 4 pin
MOLEX power connectors - 2
Name - AEROCOOL AEROPGSLUXRGB-550 AEROCOOL LUX
name - Poer supply LUX RGB 550W 80+ Bronze
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 1
Other features -
Other features - Illumination colour - Blue, Green, Red
Packaging data - Manual - Yes
Packaging data - Package depth - 195 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package width - 230 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 45 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 550 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 504 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Input current - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 42 A
Power - Max output current (-12V) - 0.3 A
Power - Total power - 550 W
Power supply - 550 W
producer - AeroCool
Producer - AeroCool
producerCode - AEROPGSLUXRGB-550
ProducerCode - AEROPGSLUXRGB-550
ProductName - LUXRGB550M RGB Modular PC Power Supply 550W 80Plus Bronze 230V Black
productName - Power supply Aerocool Lux RGB 550M 550 W Black
productSize - Normal
SATA power connectors - 4
ShortDescription - 550 | ATX | 120 mm | 24 pin | 150 x 85 x 140 mm | 80 Plus Bronze |
ShortSummaryDescription - Aerocool LUXRGB550M RGB Modular PC Power Supply 550W 80Plus Bronze 230V Black, 550 W, 200 - 240 V, 50 - 60 Hz, 4 A, 100 W, 504 W
sizeX - 238
sizeY - 200
sizeZ - 100
Title - Aerocool LUXRGB550M RGB Modular PC Power Supply 550W 80Plus Bronze 230V Black
URL - https://www.aerocool.com.tw/
vendpn - AEROPGSLUXRGB-550
WarrantyInfo - 2 Year Limited Warranty only for PC
warrantyLength - 24
warrantyType - G
weight - 1750
