Akyga AK-T1-300, 300W

- Toimitus Smartpostille 6,99 €: 08.05.2025
- Kuriiritoimitus 11,99 €: 08.05.2025

- Tuottaja: Akyga
- Teho: 300W
- 80 PLUS -sertifiointi: 80 PLUS (White)
- Puhaltimen koko: 80 mm
- Modulaariset kaapelit: Ei ole
- Prosessori-liitännäinen: 1 x 8-pin(4+4) EPS
- PCI-E: Nav
Ostettavissa on Akyga-valmistajan virtalähde, jonka 300W teho. Tuotteelle on myönnetty 80 PLUS (White) -energiatehokkuussertifikaatti.
Virtalähde on saanut 80 PLUS (White) -energiatehokkuustodistuksen, joka takaa vähintään 80% tehokkuuden. Tämä tarkoittaa sitä, että jokaisesta sähköverkosta virtalähteen vastaanottamasta 100W:sta vähintään 80W toimitetaan tietokoneesi komponentteihin, kun taas loput 20W menetetään lämpönä.
Virtalähteen väri on Sudraba. Se on varustettu litteillä kaapeleilla, joiden väri on Raiba.
Tämän virtalähteen standardiksi on määritetty ATX 2.0. Tämä tarkoittaa, että yksikkö on varustettu vain 6- ja 8-pinnisillä liittimillä, jotka tarjoavat vastaavasti 75W ja 150W tehoa. On tärkeää huomata, että tämä yksikkö on yhteensopiva RTX 4070:n ja tehokkaampien korttien kanssa, mutta sinun on käytettävä näytönohjaimen mukana tulevaa 2x8-pin - 16-pin 12VHPWR-adapteria. ATX 2.0 -virtaliittimet eivät ole suunniteltu käsittelemään modernien näytönohjainten suuria tehovaihteluita; tämän vuoksi, jos rakennat järjestelmää tehokkaalla GPU:lla, kuten RTX 4070:llä, suosittelemme valitsemaan virtalähteen, jossa on ATX 3.* -standardi ja 12VHPWR (PCIe 5.0) liitin.
Tämä virtalähde ei sisällä modulaarisia kaapeleita – kaikki sen kaapelit ovat kiinnitetty yksikköön eivätkä ole irrotettavissa. Yksinkertaisesta suunnittelusta huolimatta se täyttää tehtävänsä yhtä hyvin kuin virtalähde, jossa on modulaariset kaapelit.
Accessories included -
Certificates 80+ - 80 PLUS

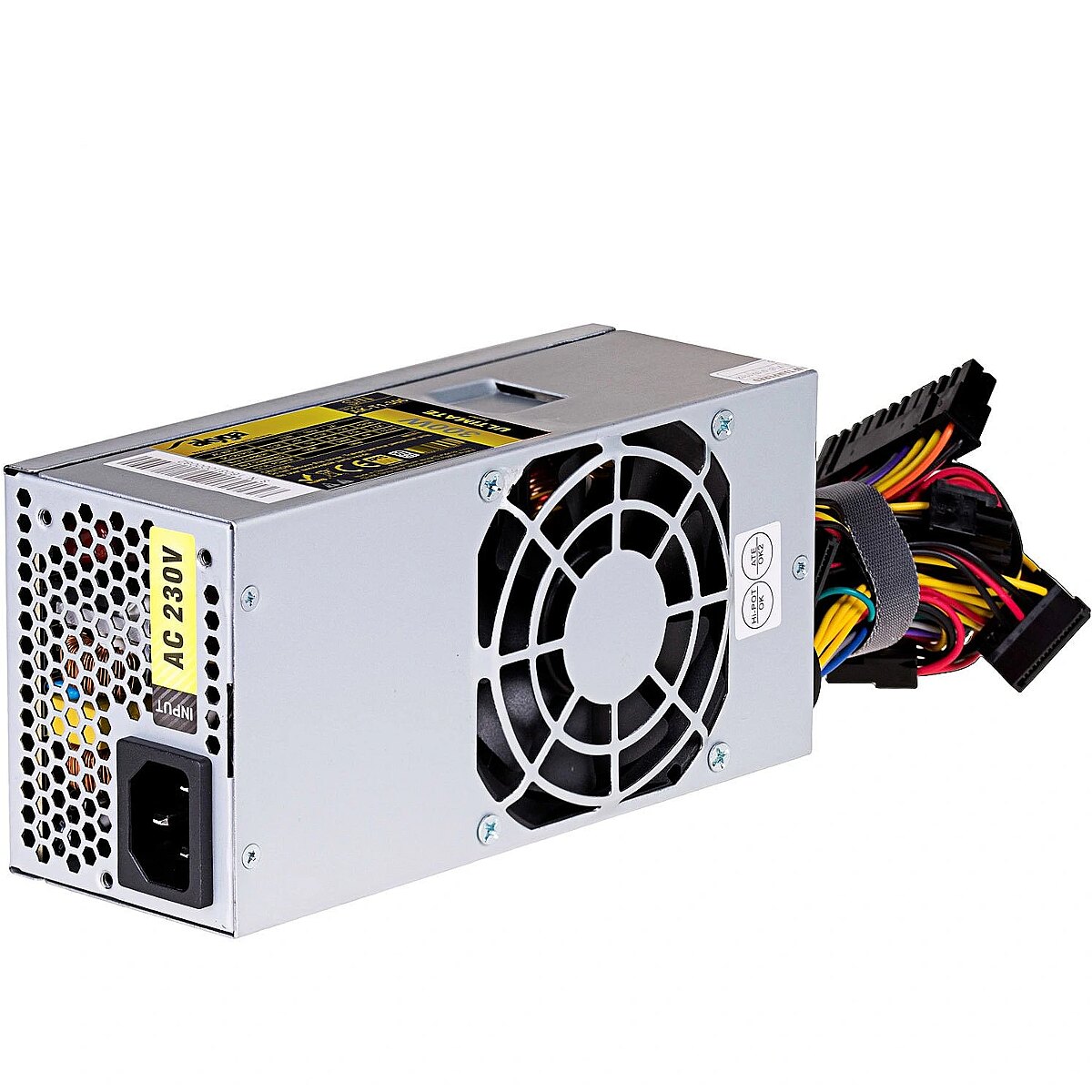

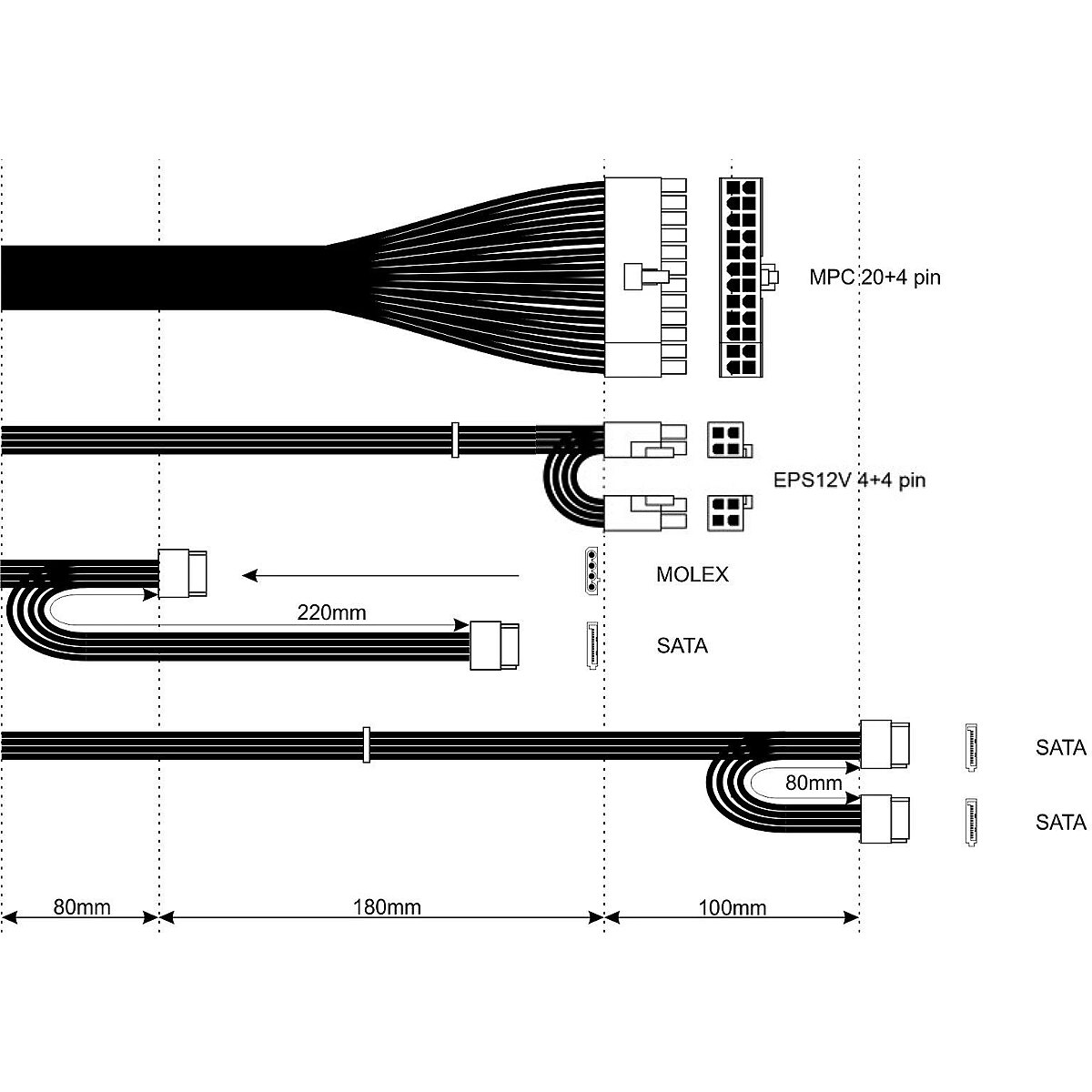

Description - The Akyga TFX power supply 300W is an advanced, compact power adapter dedicated to mini and media PC systems. It supports all the latest construction standards, ensuring high performance and stability. The power supply features a 4-pin connector, MOLEX connector, 3 x SATA connector and universal 24-pin motherboard connector. A guarantee of high efficiency is the 80 PLUS compatibility which ensures that at least 80% of energy provided by the power supply is received by computers components and a maximum of 20% of energy is lost in the form of heat. High efficiency allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer. Effective cooling is provided by efficient, silent fan of 8 cm diameter. The power supply is ideal for small and medium-sized cases thanks to optimized 36 cm long set of cables. Product is made of durable galvanized steel. An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and active PFC filter that protects and prevents motherboard, processor and other parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference. The TFX AK-T1-300 power supply is a high quality product that meets the current requirements and corresponds to modern standards.
Designation - CE+WEEE
dimension depth - 65 mm
dimension height - 240 mm
Dimensions - 175 x 85 x 65 mm
dimension weight - 865 g
dimension width - 85 mm
ean - 5901720132857
Fan - 8 cm
Filters / protection - Automatic fan speed control
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
guarantee - 24
guarantee_type - external
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 1
name - POWER SUPPLY TFX 300W
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 0
Number of USB 10p connectors - 0
Other features - Format TFX Series Ultimate Supply voltage 230 V Power consumption< 3 A Efficiency> 80 % Current on the +3.3V rail15 A Current on the +5V rail15 A Maximum load on +3.3V and +5V line100 W Current on the +12V rail20 A Maximum load on 12V line240 W Power inlet IEC C14 Ground wire Fan adjustments Automatic Cable length 8 -36 cm Material Galvanized steel MTBF 100000 h Temperature 5 - 50 °C Package Foil Package size (L x W x H)252 x 110 x 68 mm Gross weight 846.4 g CE compatibility RoHS compatibility REACH compatibility
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
PFC - Yes
Power supply - 300 W
producer - AKYGA
SATA power connectors - 3
vendpn - AK-T1-300
Weight - 836.4 g
