ID: 1158970
Tuotekoodi: BP001EU
Varastossa 4 yksiköt
Takuu: 2 vuotta
(Yritysten takuu 1 vuosi)

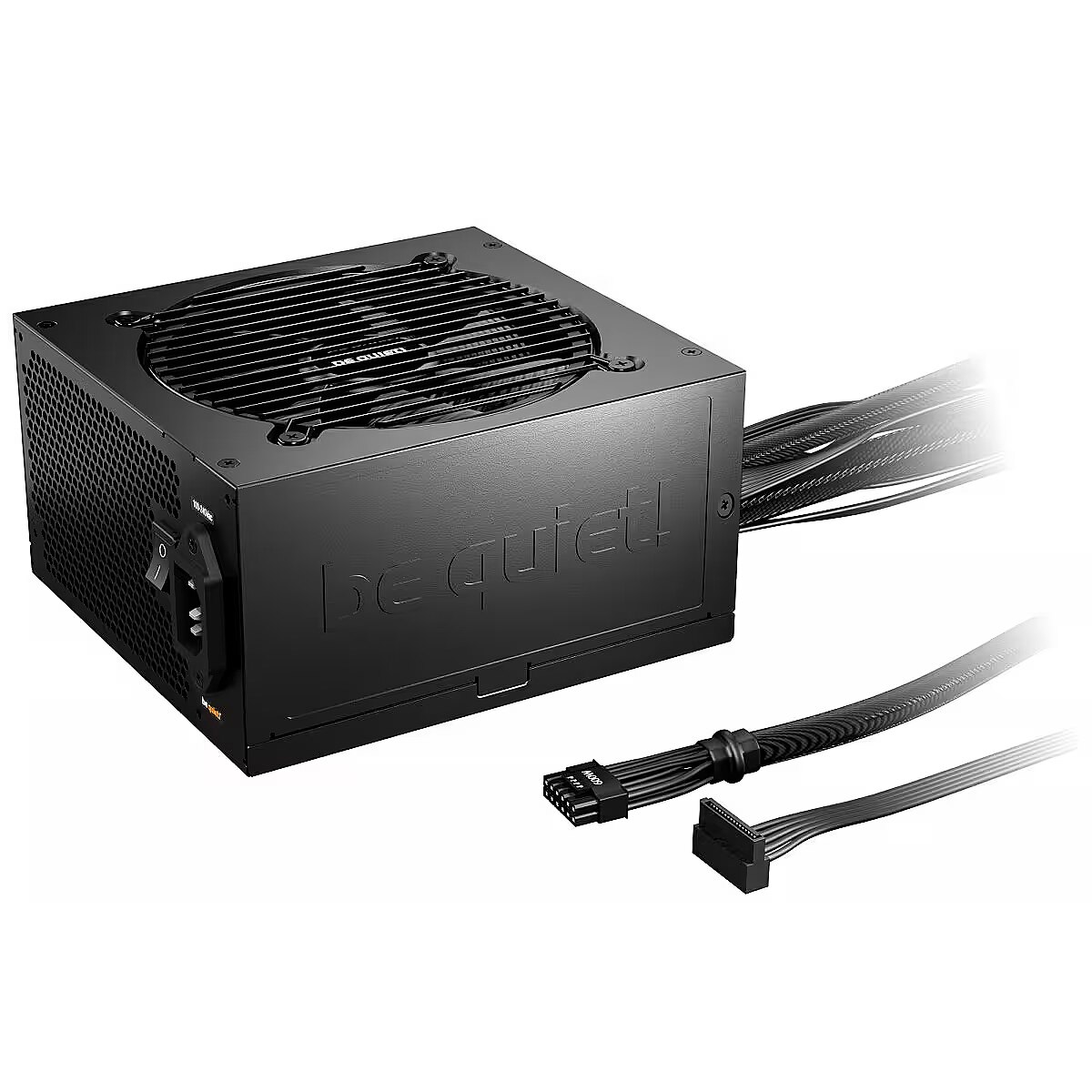

Be Quiet Pure Power 12, 550W, ATX 3.1, 80PLUS Gold, PCIe 5.1
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpostille 6,99 €: 27.01.2025
- Kuriiritoimitus 11,99 €: 27.01.2025
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Be Quiet
- Teho: 550W
- 80 PLUS -sertifiointi: 80 PLUS (White)
- Puhaltimen koko: 120 mm
- Modulaariset kaapelit: Ei ole
- Prosessori-liitännäinen: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Kuvaus
Ostettavissa on Be Quiet-valmistajan virtalähde, jonka 550W teho. Tuotteelle on myönnetty 80 PLUS (White) -energiatehokkuussertifikaatti.
550W:n teho on enemmän kuin riittävä toimisto-ohjelmille, web-selaamiseen ja kevyille tietokonepeleille. Se pystyy pyörittämään peruskonetta, jossa on integroitu näytönohjain, budjettitason prosessori, pieni SSD tai kiintolevy. Jos aiot päivittää tietokoneesi tulevaisuudessa, kannattaa ehdottomasti harkita tehokkaampaa virtalähdettä.

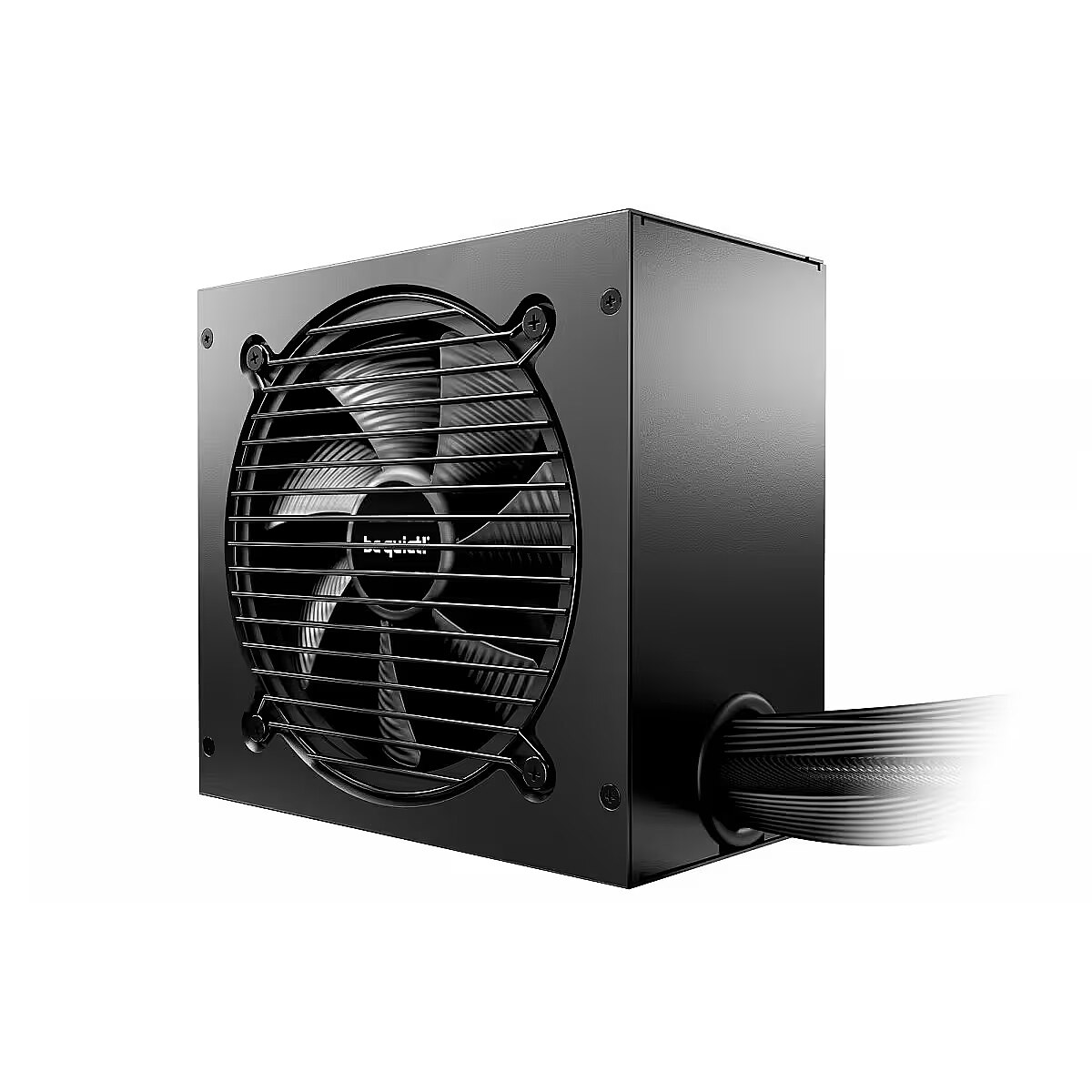

Tämän virtalähteen tuuletin halkaisija on 120 mm, mikä takaa hiljaisen toiminnan keskitason tietokoneissa. Erityisen hiljaista virtalähdetoimintaa varten suosittelemme valitsemaan tuulettimen, jonka halkaisija on 135 mm tai 140 mm.
Virtalähde on saanut 80 PLUS (White) -energiatehokkuustodistuksen, joka takaa vähintään 80% tehokkuuden. Tämä tarkoittaa sitä, että jokaisesta sähköverkosta virtalähteen vastaanottamasta 100W:sta vähintään 80W toimitetaan tietokoneesi komponentteihin, kun taas loput 20W menetetään lämpönä.
1 x 300W 12VHPWR -liitin, jolla tämä virtalähde on varustettu, on tarkoitettu käytettäväksi nykyaikaisten näytönohjainten, kuten Nvidia GeForce RTX 4070 ja sitä uudempien kanssa (RTX 4060 ja sitä vanhemmat käyttävät standardia 8-pinnistä liitintä).
Lohkon väri on Melna. Lohkossa on tasaiset kaapelit, joiden väri on Melna.
Tämä virtalähde on määritetty ATX 3.0 -standardin mukaiseksi. Tämä tarkoittaa, että yksikössä on 16-pinninen (12VHPWR) -liitin, joka antaa jopa 600 W tehoa uusimman sukupolven (RTX 30- ja 40-sarjat) PCIe 5.0 -näytönohjaimille. Lisäksi ATX 3.0 -standardi tukee
Tämä virtalähde
Tämä virtalähde on valmistettu yrityksen Be Quiet toimesta. Voit tarkastella kaikkia Be Quiet virtalähteitä tästä.
Perustiedot
Cybenetics Melutason sertifiointi
: Nav
Cybeneticsin tehokkuuden sertifiointi
: Nav
Virtalähteen tyyppi
: ATX
Teho
550W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS (White)
Kokonaisvirta (+12V)
: 45.8A
Puhaltimen koko
: 120 mm
Toiminnallisuus
Kaapelin väri
: Musta
Valaistus
: Ei ole
Väri
: Musta
Modulaariset kaapelit
: Ei ole
Satamat ja laitteet
PCI-E 5.0
: 1 x 300W 12V-2X6
Prosessori-liitännäinen
: 1 x 8-pin(4+4) EPS
Emolevyn virta
: 20+4-pin
PCI-E
: 2 X 6+2pin
SATA-liittimet
: 5
4pin Molex
: 1
Tapaus
Yksityiskohtaisempi erittely
8-pin 12V power connectors - 0
Accessories included -
Brand - be quiet!
BrandPartCode - BP001EU
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category - Power Supply Units
Category 1 - Netzteile
Certificates 80+ - 80 PLUS
code - BP001EU
Description - PURE POWER 12 550W
Wyjątkowa cisza, najlepsze funkcje
Pure Power 12 550W jest zgodny ze standardem ATX 3.1 i PCIe 5.1 oraz oferuje niezrównaną niezawodność i najlepsze w swojej klasie funkcje. Pure Power 12 550W zapewnia niezwykłą wygodę i najlepsze połączenie funkcji z wyjątkową kompatybilnością. Sprawność 80 PLUS Gold (do 92,4%) Zasilacz ATX 3.1 z pełną obsługą kart graficznych PCIe 5.1 i tych ze złączami 6+2-pin Wyjątkowo cichy wentylator be quiet! 120 mm! Zaawansowana stabilność i regulacja napięć dzięki technologii LLC Jedna masywna, wysokowydajna linia 12 V Jedno złącze PCIe 5.1 12V-2x6 450W i 2 złącza PCIe 6+2 dla podkręconych procesorów graficznych klasy high-end 10-letnia gwarancja producenta
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1879
dimension depth - 140 mm
dimension height - 320 mm
Dimensions - 160 x 86 x 150 mm
dimension weight - 2920 g
dimension width - 200 mm
ean - 4260052191163
EAN - 4260052191163
Fan - 12 cm
Fan speed (max) - 1800 rpm
Filters / protection - No
Floppy power connectors - 0
GTIN - 4260052191163
guarantee - 120
guarantee_type - normal
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case height - 41.8 cm
Logistics data - Shipping (inner) case length - 44 cm
Logistics data - Shipping (inner) case net weight - 17.7 kg
Logistics data - Shipping (inner) case width - 34.5 cm
LongDesc - Exceptional quiet, superior featuresPure Power 12 550W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
LongProductName - 80 PLUS Gold, 550W, ATX 3.1, PCIe 5.1, 160 x 86 x 150mm
LongSummaryDescription - be quiet! PURE POWER 12 550W. Total power: 550 W, AC input voltage: 100 - 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Manufacturer - Be Quiet!
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 0
MPN - BP001EU
Name - 550W be quiet! PURE POWER 12
name - be quiet! Pure Power 12 Netzteil 80 PLUS Gold, ATX 3.1, PCIe 5.1 - 550 Watt
name - Power supply Pure Power 12 550W ATX 3.1 80PLUS GOLD
Number of connectors PATA - 1
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Number of USB 10p connectors - 0
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features -
Other features - Screws included - Yes
Packaging content - Cables included - AC
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 320 mm
Packaging data - Package height - 210 mm
Packaging data - Package weight - 2.8 kg
Packaging data - Package width - 133 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 14.6 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - PCI Express power connectors (12-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 800 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 500,650,800 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 550 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 91.2%
Power - Hold time - 16.64 ms
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 45.8 A
Power - Max output current (-12V) - 0.3 A
Power - Number of +12V rail(s) - 1
Power - Peak power - 600 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Total power - 550 W
Power supply - 550 W
producer - Be quiet!
producerCode - BP001EU
ProductName - PURE POWER 12 550W
productName - ZASILACZ BE QUIET! PURE POWER 12 550W
productSize - Normal
SATA power connectors - 5
ShortSummaryDescription - be quiet! PURE POWER 12 550W, 550 W, 100 - 240 V, 600 W, 50/60 Hz, 10 A, 5 A
sizeX - 138
sizeY - 329
sizeZ - 207
Technical details - Compliance certificates - CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Warranty period - 10 year(s)
Title - be quiet! PURE POWER 12 550W power supply unit 20+4 pin ATX ATX Black
URL - https://www.bequiet.com/en/powersupply/5250
vendpn - BP001EU
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 12
warrantyType - G
Weight - 2.3 kg
Weight - 2.94
weight - 2930
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 150 mm
Weight & dimensions - Weight - 2.3 kg
Weight & dimensions - Width - 86 mm
