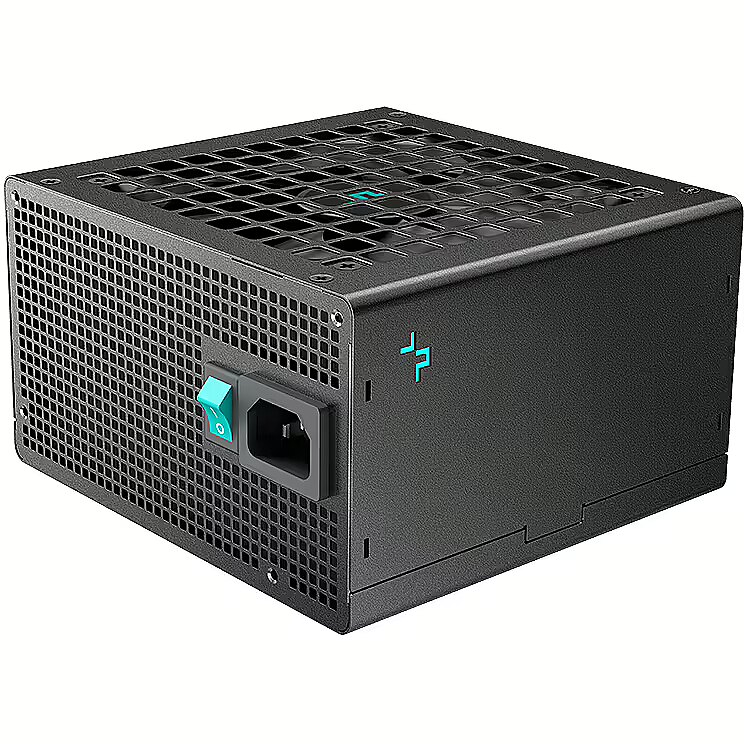

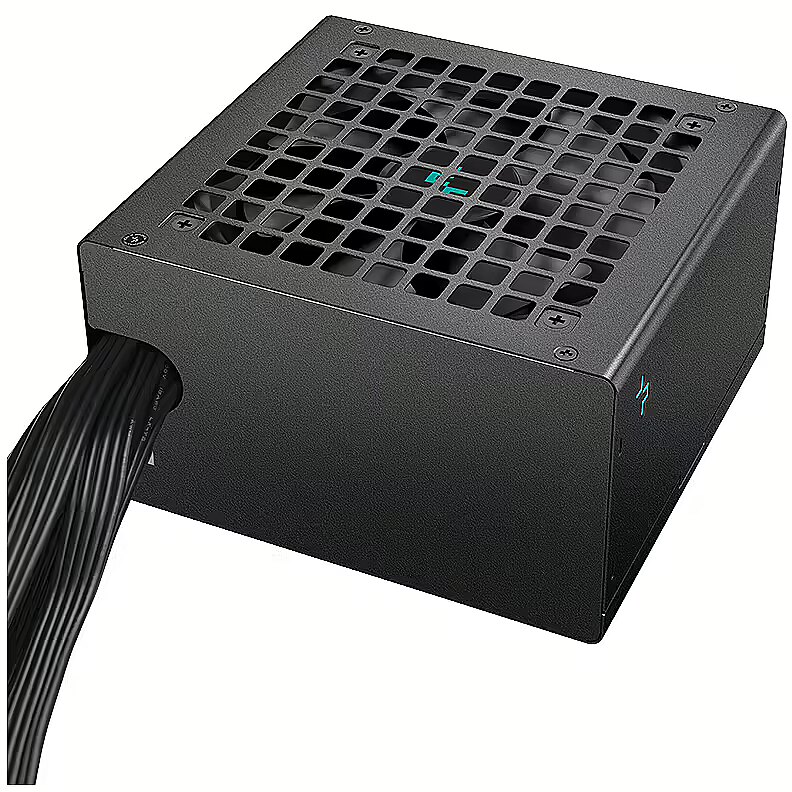

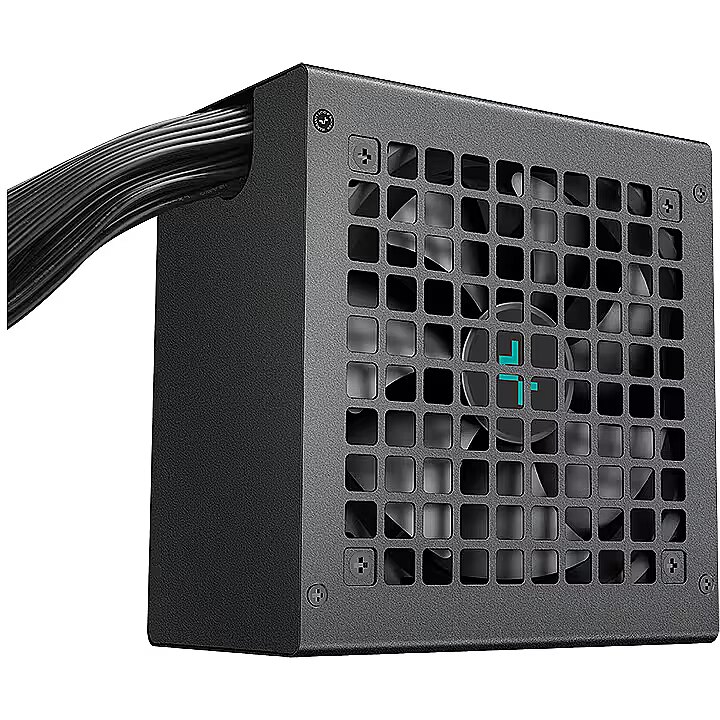

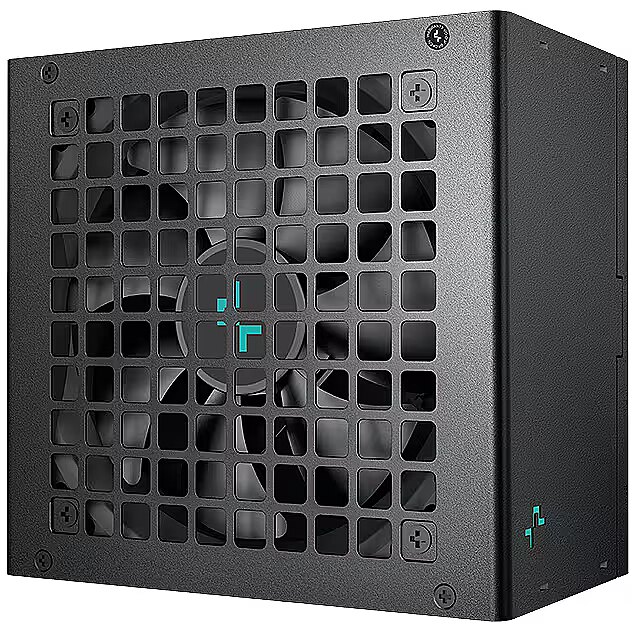

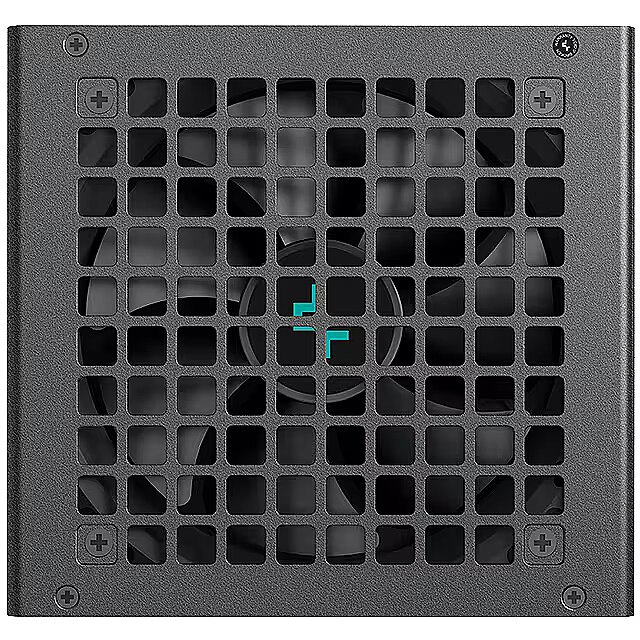

Deepcool PL800D, 800W, 80 PLUS Bronze

Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
ID: 1104745 Tuotekoodi: R-PL800D-FC0B-EU
Varastossa 50 yksiköt
Takuu: 2 vuotta
82,39 €
Toimitusvaihtoehdot
  • Toimitus Smartpost-pakettiautomaattiin 6,99 €: torstaina, 28.11.2024
  • Kuriiritoimitus 11,99 €: torstaina, 28.11.2024
Tärkeimmät tuoteparametrit Kaikki parametrit
  • Tuottaja: Deepcool
  • Teho: 800W
  • 80 PLUS -sertifiointi: 80 PLUS Bronze
  • Puhaltimen koko: 120 mm
  • Modulaariset kaapelit: Ei ole
  • Prosessori-liitännäinen: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Perustiedot
Cybenetics Melutason sertifiointi : Nav
Cybeneticsin tehokkuuden sertifiointi : Nav
Virtalähteen tyyppi : ATX
Teho 800W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi : 80 PLUS Bronze
Kokonaisvirta (+12V) : 66.5A
Puhaltimen koko : 120 mm
Toiminnallisuus
Kaapelin väri : Musta
Valaistus : Ei ole
Väri : Musta
Modulaariset kaapelit : Ei ole
Satamat ja laitteet
PCI-E 5.0 : 1 x 450W 12VHPWR
Prosessori-liitännäinen : 2 x 8-pin(4+4) EPS
Emolevyn virta : 20+4-pin
PCI-E : 3 x 6+2pin
SATA-liittimet : 8
4pin Molex : 2
Tapaus
Yksityiskohtaisempi erittely
Code - R-PL800D-FC0B-EU
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design > Colour of product - Black
dimensionalWeight - 1276
EAN - 6933412718239
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PL800D-ATX3.0-Direct-Power-Supply/2023/17603.shtml
Name - Deepcool PSU | PL800D | 800 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 155.00 mm
Package features > Gross height (mm) - 91.00 mm
Package features > Gross width (mm) - 145.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 422 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Cables included - AC
Packaging content - Cable tie(s) included - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.0
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 850 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 450 mm
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 650
Ports & interfaces - SATA power cable length - 750 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 798 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 16 ms
Power - Input current - 10 - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 66.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - No load operation
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Surge protection
Power - Power protection features - Under voltage
Power - Total power - 800 W
Power > Nominal power - 800 W
producerCode - R-PL800D-FC0B-EU
productName - DeepCool PL800D power supply unit 800 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 120
sizeY - 190
sizeZ - 280
Technical details - Compliance certificates - CCC
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - EAC
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - RCM
Technical details - Compliance certificates - RoHS
Technical details - Compliance certificates - WEEE
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.10 kg
Technical details > Producer - Deepcool
Technical details > Producer product family - PSU
Technical details > Producer product name - PL800D
Warranty - 60
Warranty - 60 month(s)
warrantyLength - 24
warrantyType - G
weight - 2390
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
