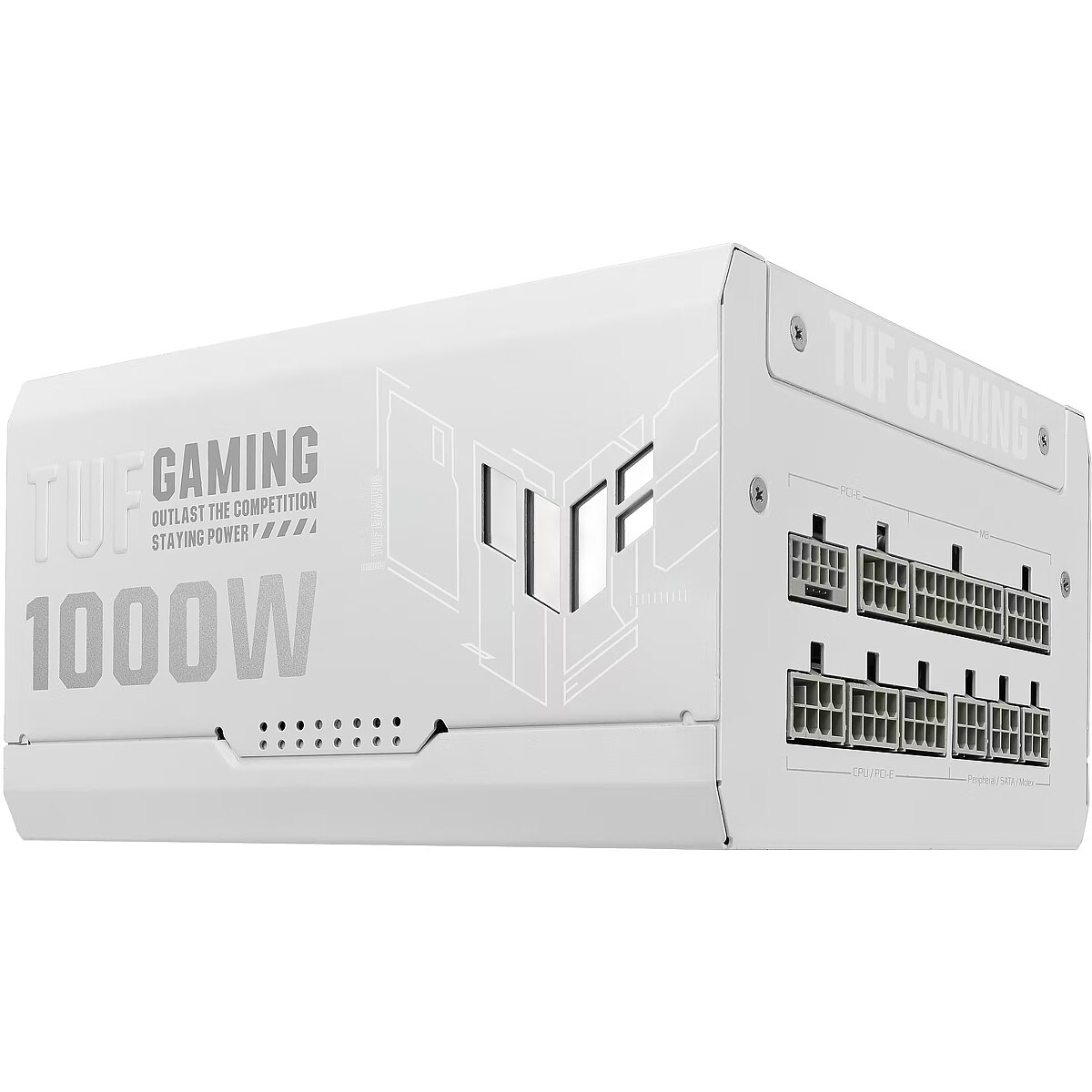

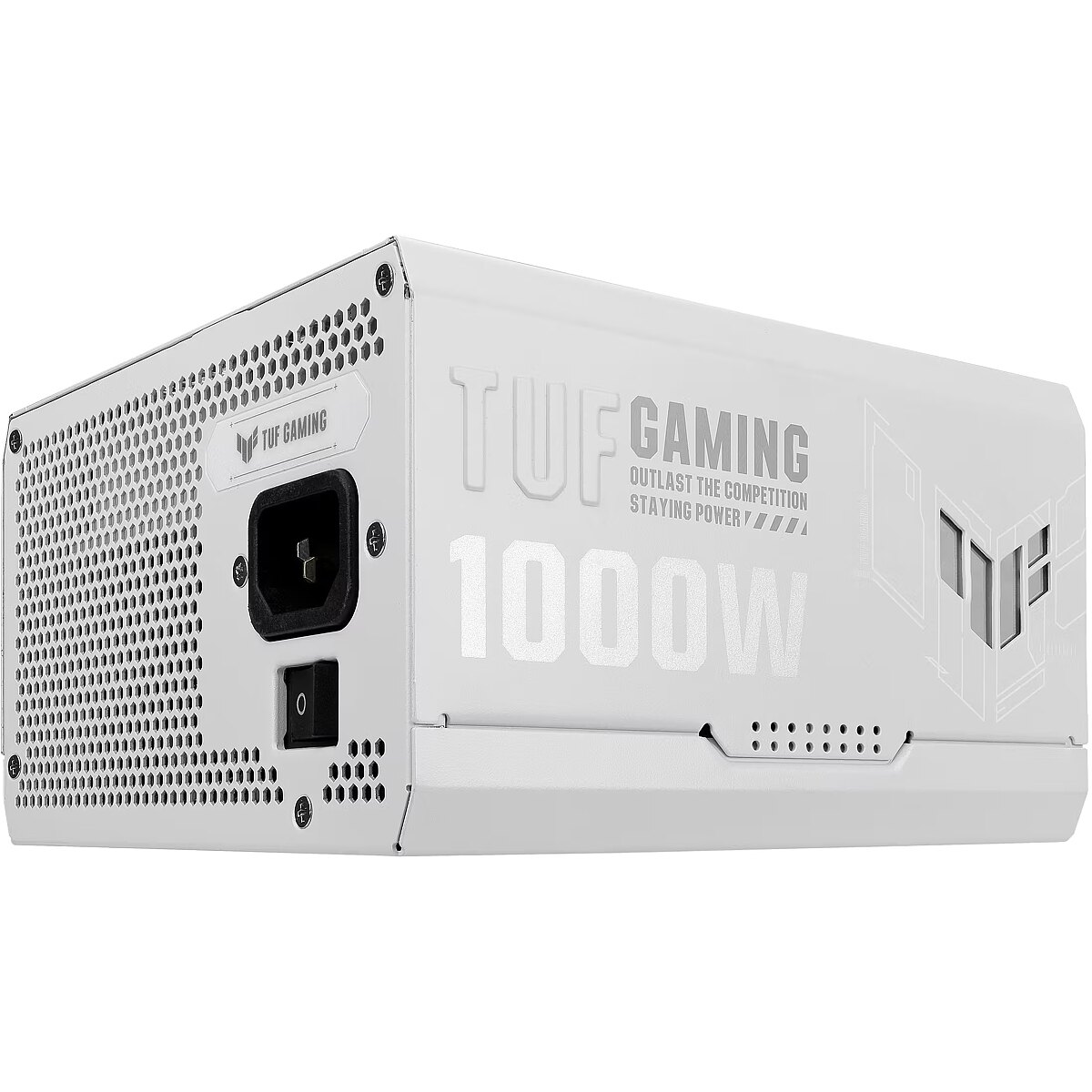

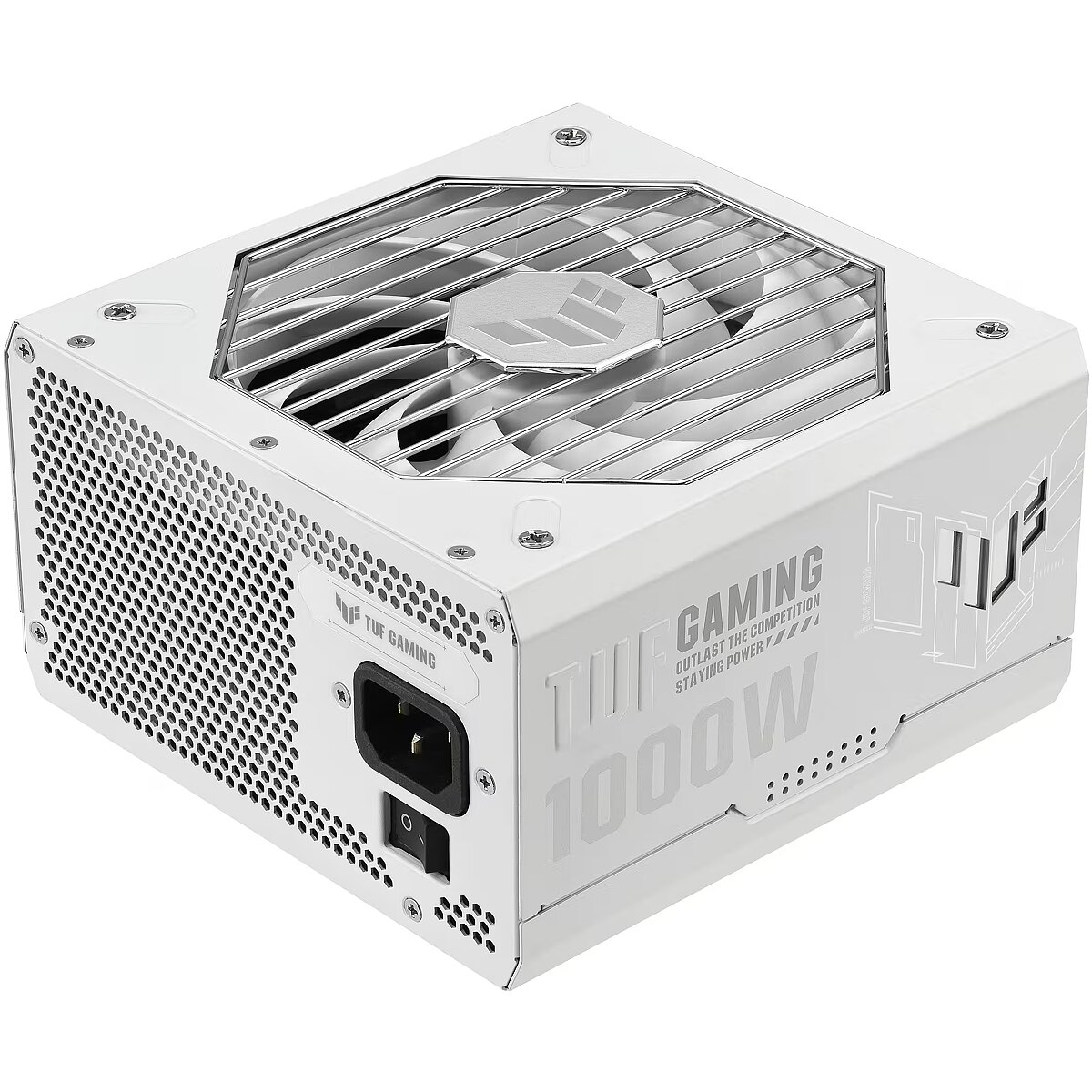

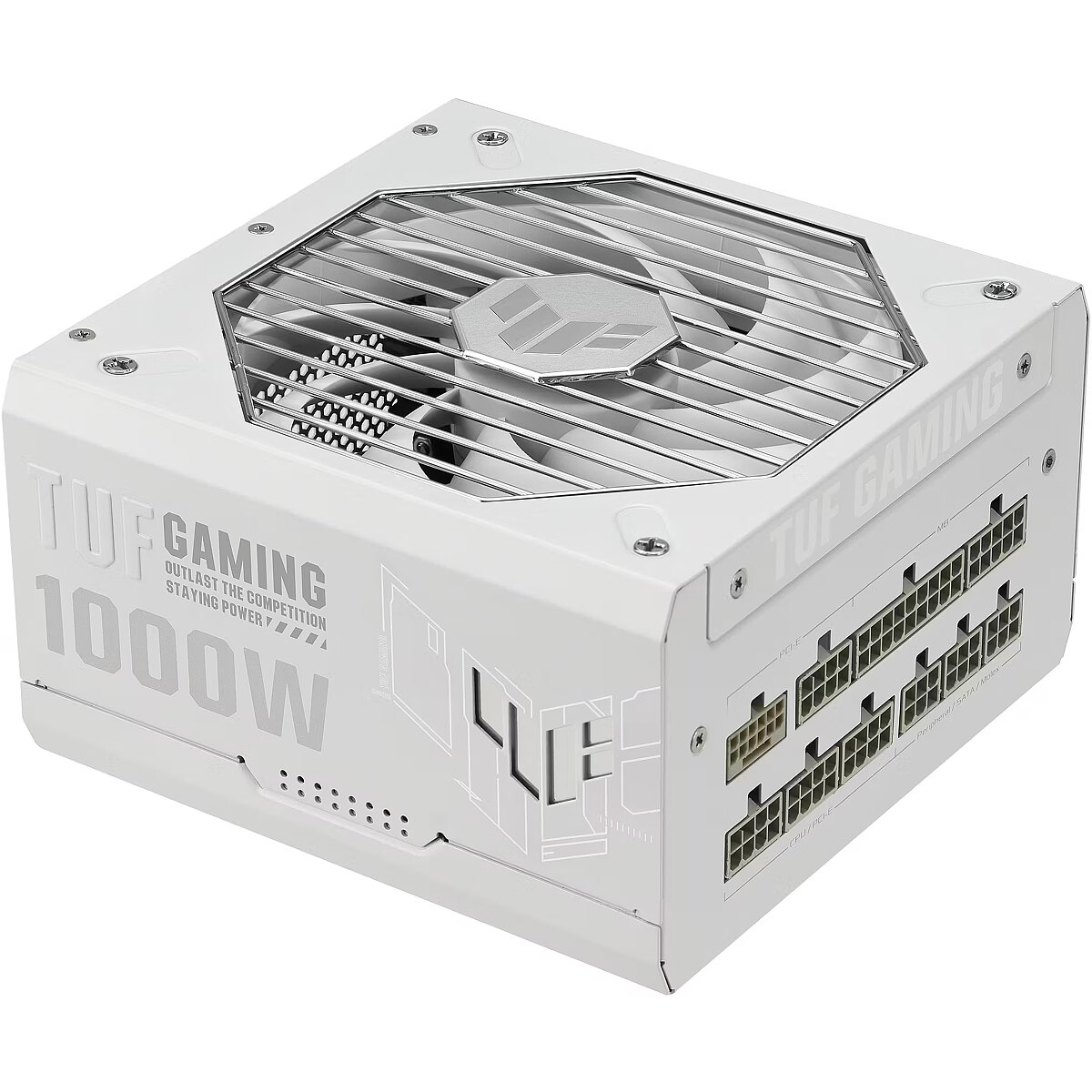

Asus TUF Gaming White, 1000W, 80PLUS Gold

Brand - ASUS
BrandPartCode - 90YE00S5-B0NA00
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
code - 90YE00S5-B0NA00
Design - Cooling type - Active

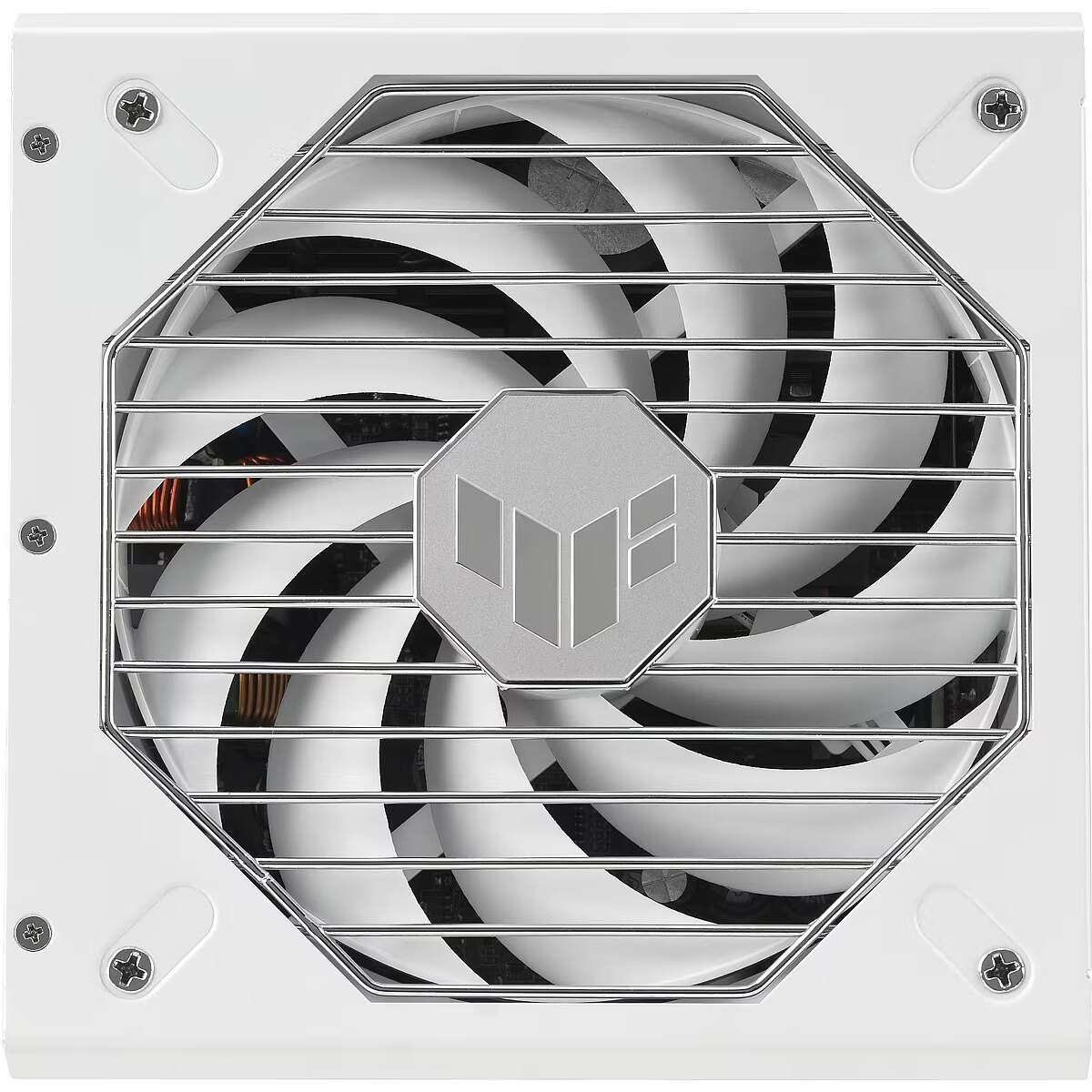

Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)

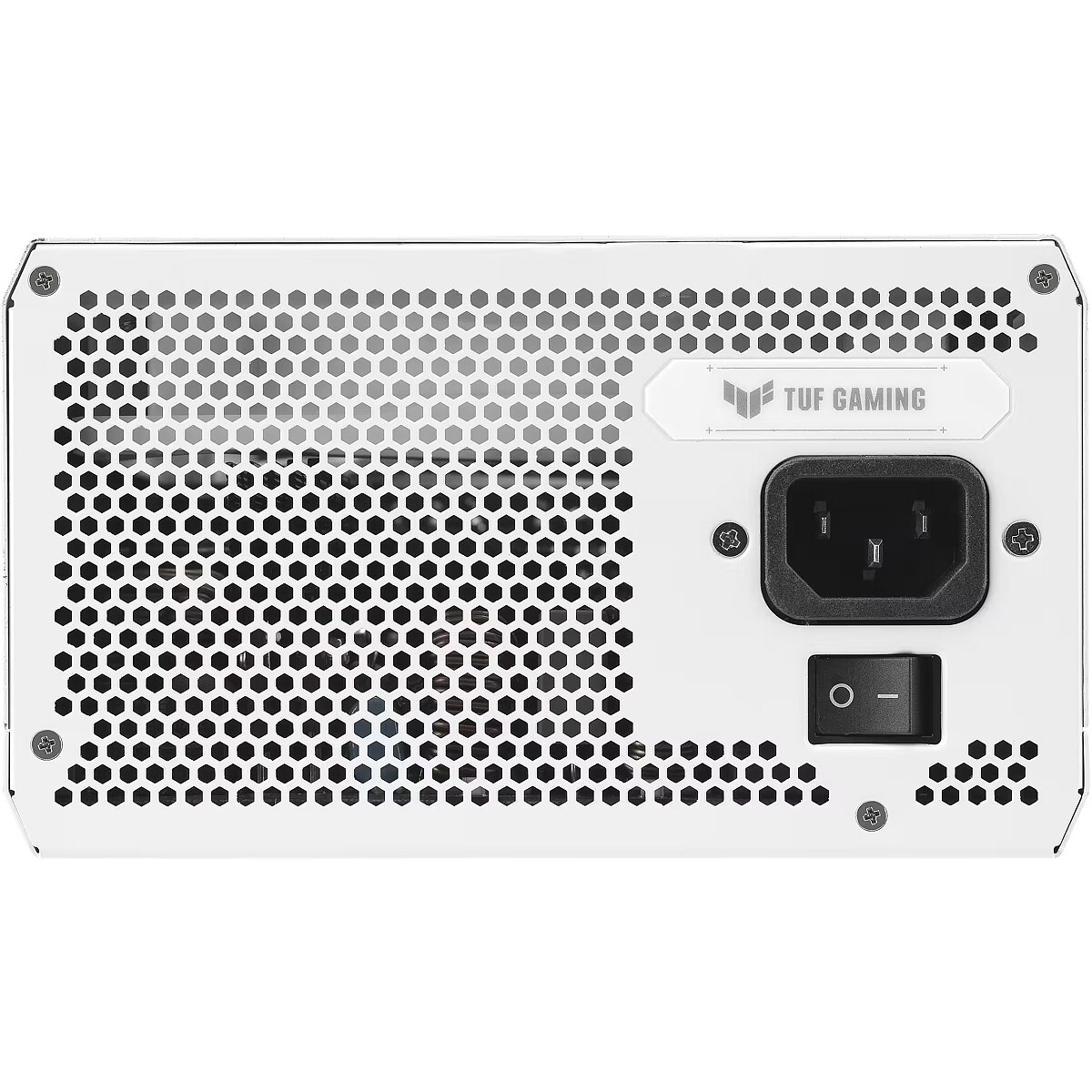

Design - On/off switch - Yes
Design - Product colour - White
ean - 4711387275993
Eans - 4711387275993
GTIN - 4711387275993

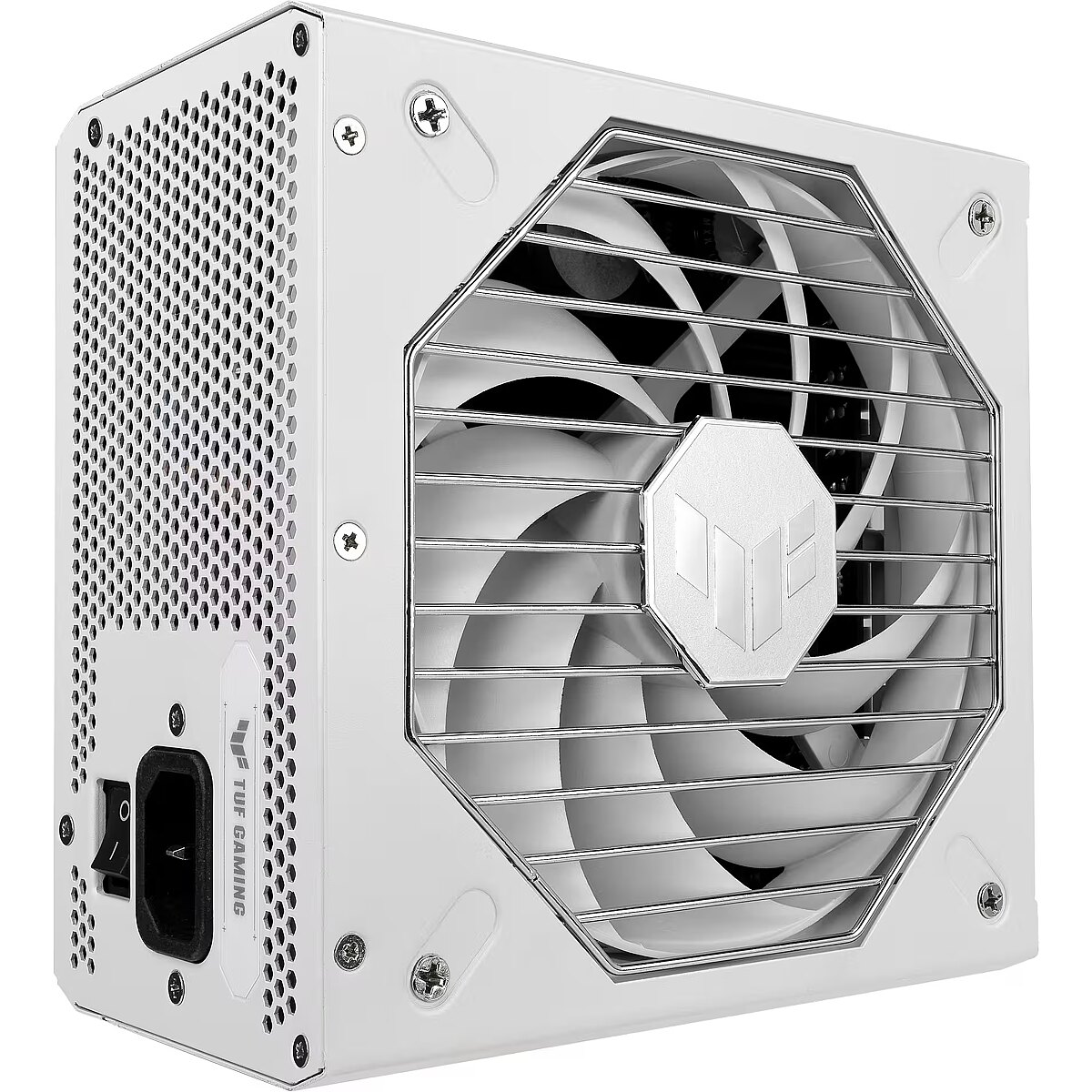

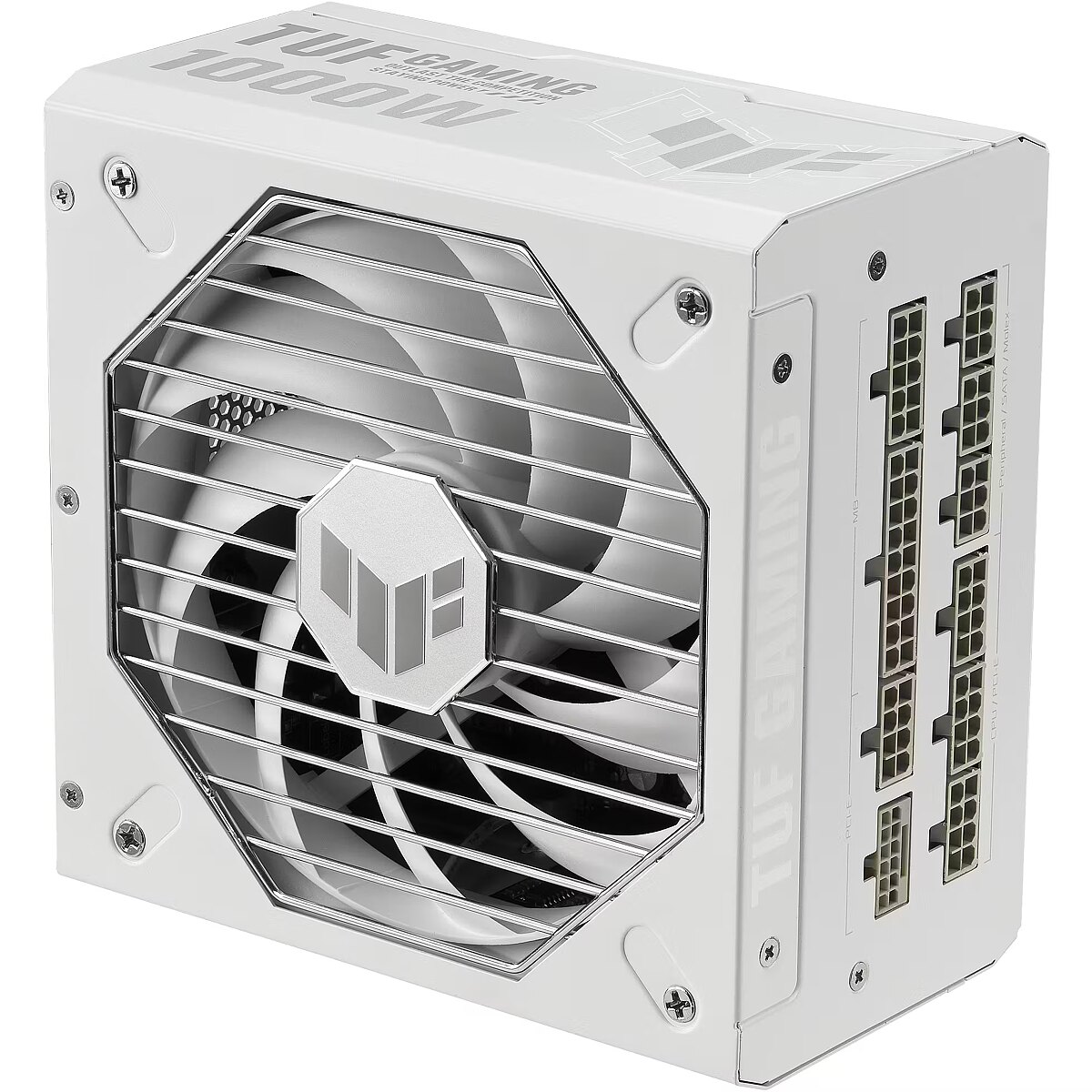

LongDesc - Built For The Long HaulThe ASUS TUF Gaming 1000W Gold White Edition packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.​DurabilityTUF ComponentsTop marksWith military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours' lifespan, the ASUS TUF Gaming 1000W Gold White Edition empowers you to build in confidence.​Dual Ball Fan Bearings2x longer lifespanExemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.Protective PCB CoatingAll wrapped upA protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.ENGINEERING80 Plus Gold CertificationHeart of goldThe TUF Gaming 1000W Gold White Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.​ATX 3.0 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold White Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.​Axial-tech Fan DesignBetter, faster, strongerAxial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.EXPERIENCE10-year WarrantyA decade of power​We're so confident about the reliability of the TUF Gaming 1000W Gold White Edition that we back it with a 10-year warranty.​Fully Modular Etched CablesSupple plyThe included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.
LongProductName - TUF Gaming 1000W Gold Gaming Power Supply (1000 Watt, fully modular power supply, ATX 3.0 compatible, Axial-tech fan, PCB coating, double ball bearing, white)
LongSummaryDescription - ASUS TUF Gaming 1000W Gold White Edition. Total power: 1000 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Name - ASUS TUF-GAMING-1000G White
name - ASUS TUF Gaming 1000W Gold, 80 PLUS Gold Netzteil, modular - 1000 Watt, weiß

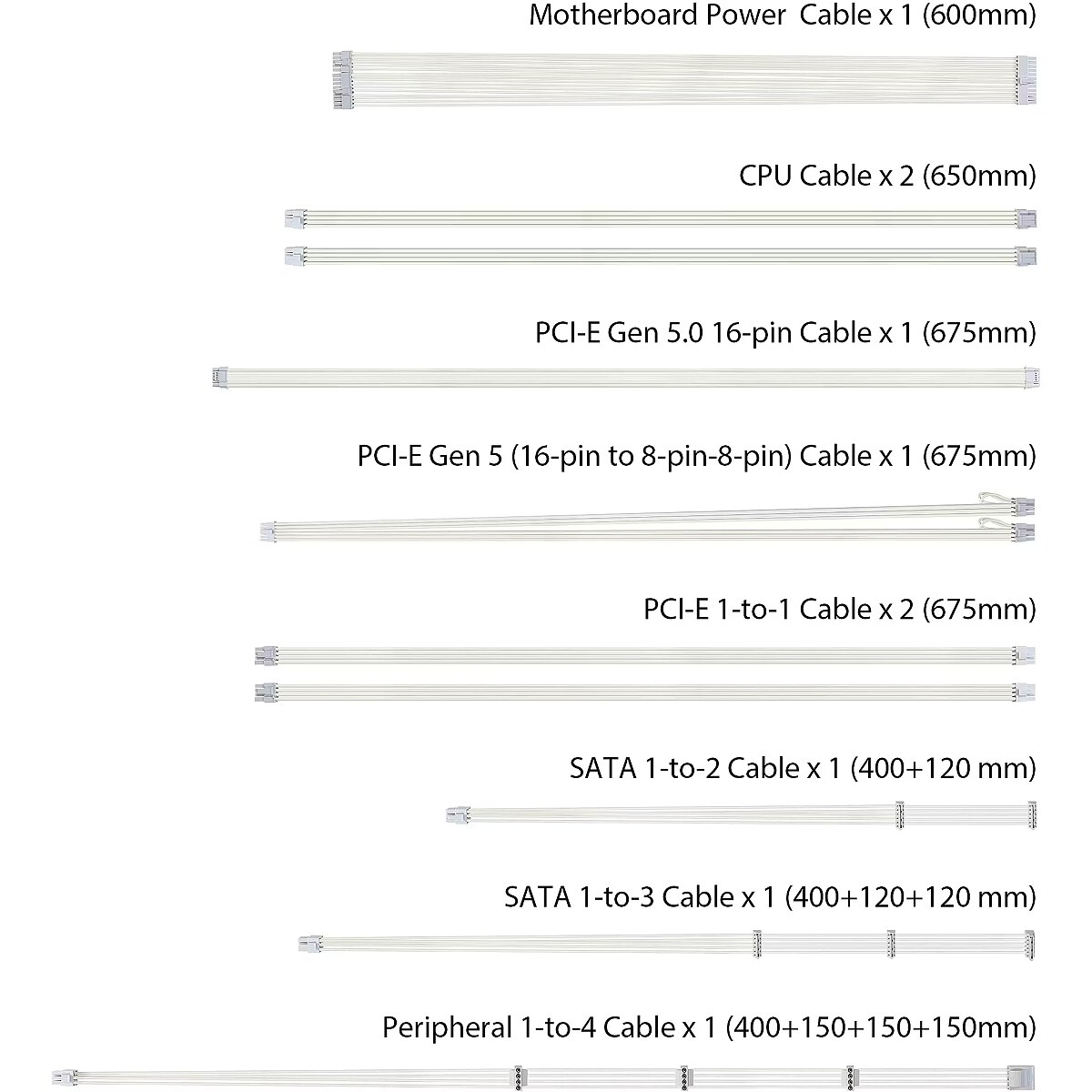

Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 200 mm
Packaging data - Package height - 108 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.17 kg
Packaging data - Package width - 310 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - Ball bearing
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC

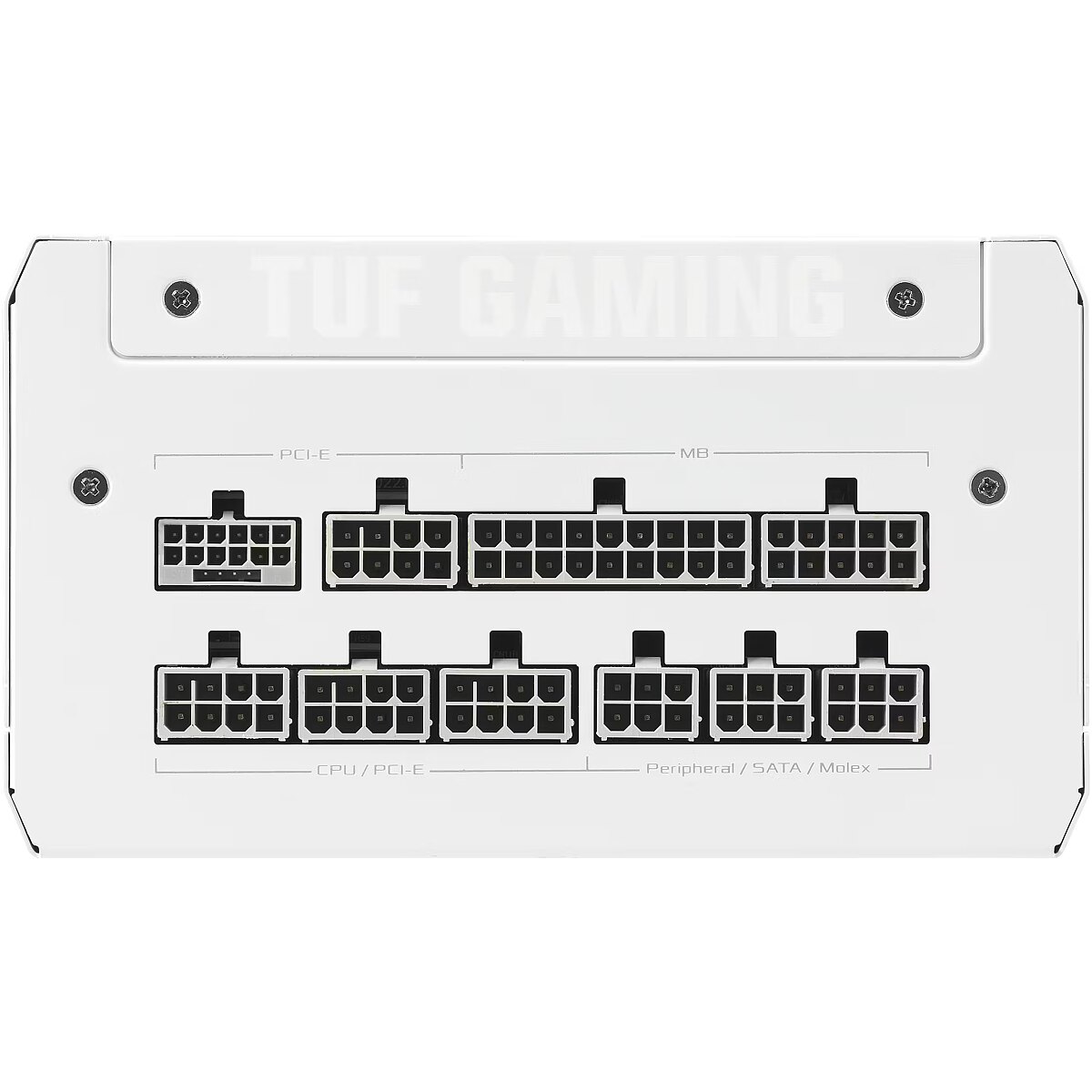

Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 67.5 cm
Ports & interfaces - PCI Express power connectors (8-pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 120,400 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 9.6 W
Power - Efficiency - 92%
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.8 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage
Power - Total power - 1000 W
Producer - Asus
ProducerCode - 90YE00S5-B0NA00
ProductName - TUF Gaming 1000W Gold White Edition
ShortDescription - 1000 | ATX | 135mm | 20 + 4 pin | 80Plus Gold | 150 x 150 x 86 mm | biały
ShortSummaryDescription - ASUS TUF Gaming 1000W Gold White Edition, 1000 W, 100 - 240 V, Active, 130 W, 1000 W, 130 W
Technical details - Compliance certificates - RoHS
Technical details - Sustainability compliance - Yes
Title - ASUS TUF Gaming 1000W Gold White Edition power supply unit 20+4 pin ATX ATX
URL - https://www.asus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-1000g-white/
WarrantyInfo - 10 Years
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.48 kg
Weight & dimensions - Width - 150 mm
