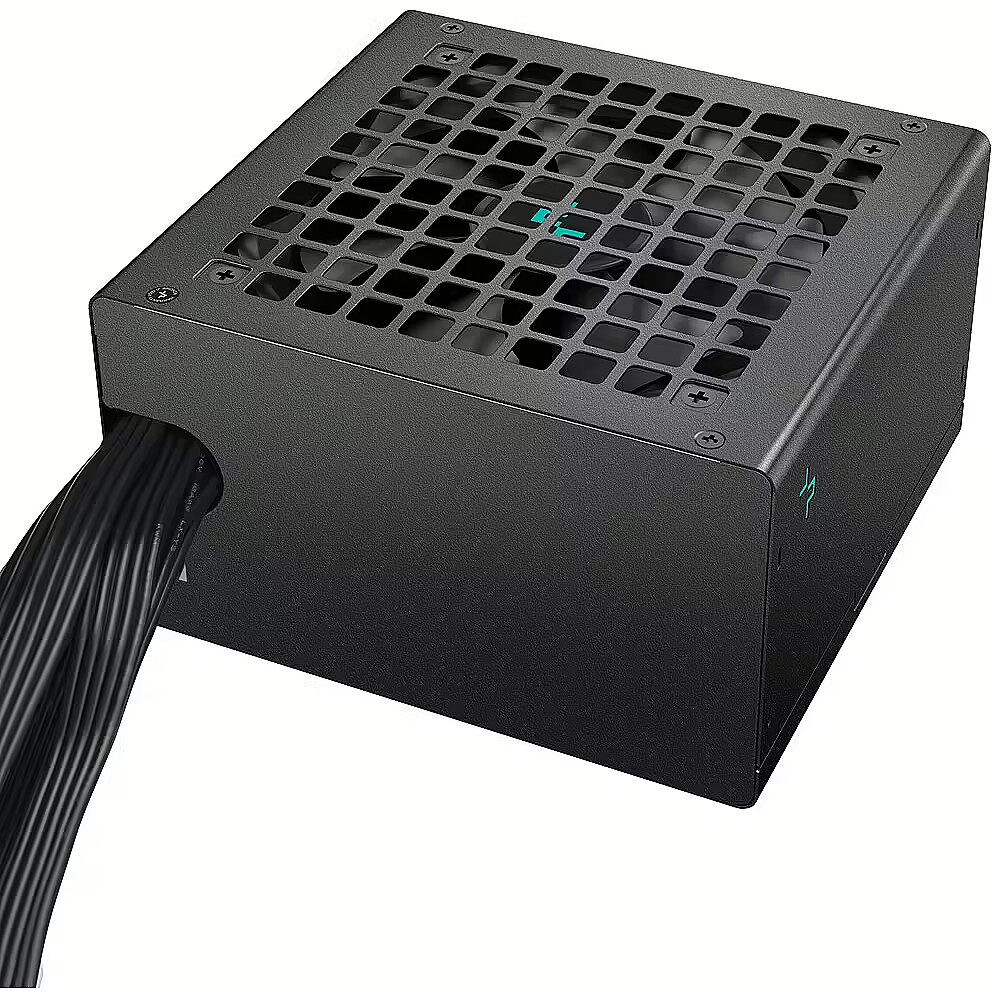

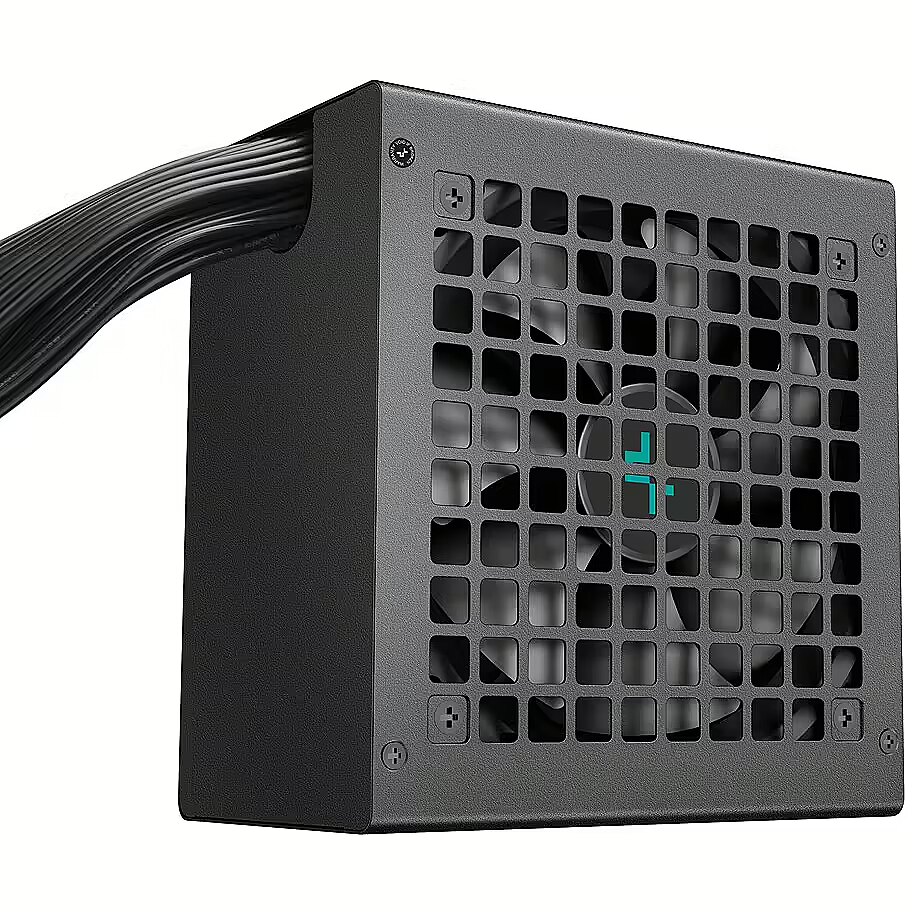

Deepcool PL750D, 750W, 80 PLUS Bronze

Category_1 - Power
Category_2 - Computer Power Supplies
Code - R-PL750D-FC0B-EU
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1310
dimensionalWeight - 1392
EAN - 6933412718055
EAN_code - 6933412721338
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PL750D-ATX3.0-Direct-Power-Supply/2023/17602.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PL750D-FC0B-EU
Name - DeepCool PL750-D ATX black
Name - Deepcool PSU | PL750D | 750 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 155.00 mm
Package features > Gross height (mm) - 91.00 mm
Package features > Gross width (mm) - 145.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 422 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.0
Performance - Bearing technology - HYB
Performance - Certification - CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 450
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 650
Ports & interfaces - SATA power cable length - 750 mm

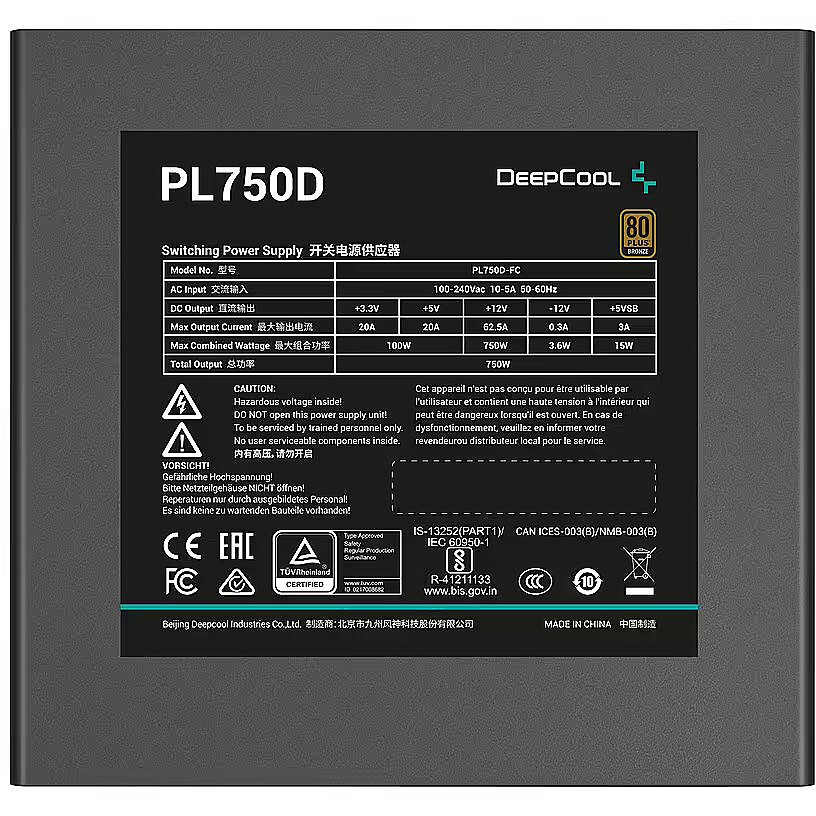

Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 16 ms
Power - Input current - 10 - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - No load operation
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Surge protection
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power > Nominal power - 750 W
producerCode - R-PL750D-FC0B-EU
producerCode - R-PL750D-FC0B-EU-V2
productName - DeepCool PL750D power supply unit 750 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 120
sizeX - 280
sizeY - 195
sizeY - 290
sizeZ - 120
sizeZ - 200
Technical details - Compliance certificates - RoHS
Technical details - Compliance certificates - WEEE
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.10 kg
Technical details > Producer - Deepcool
Technical details > Producer product family - PSU
Technical details > Producer product name - PL750D
Warranty - 60
Warranty - 60 month(s)
warrantyLength - 24
warrantyType - G
Weight - 2,40
weight - 2391
weight - 2450
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
