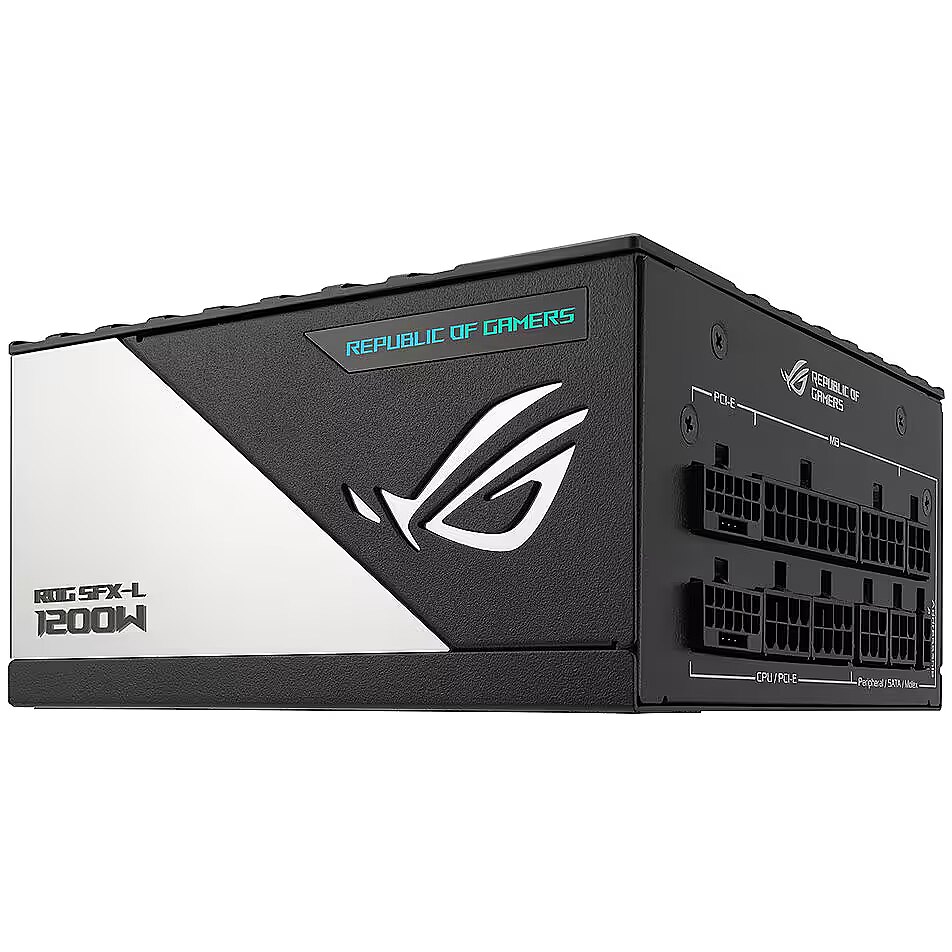

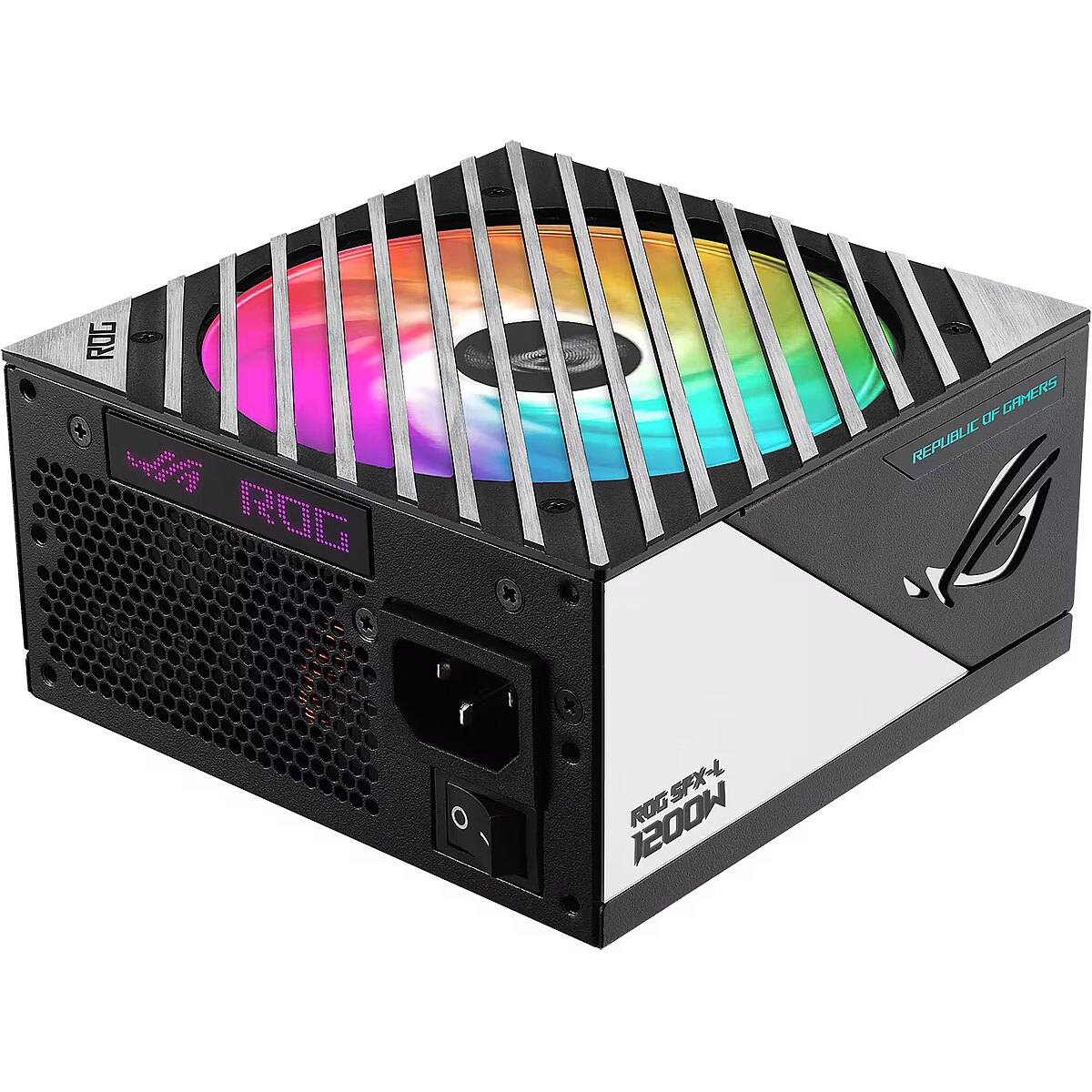

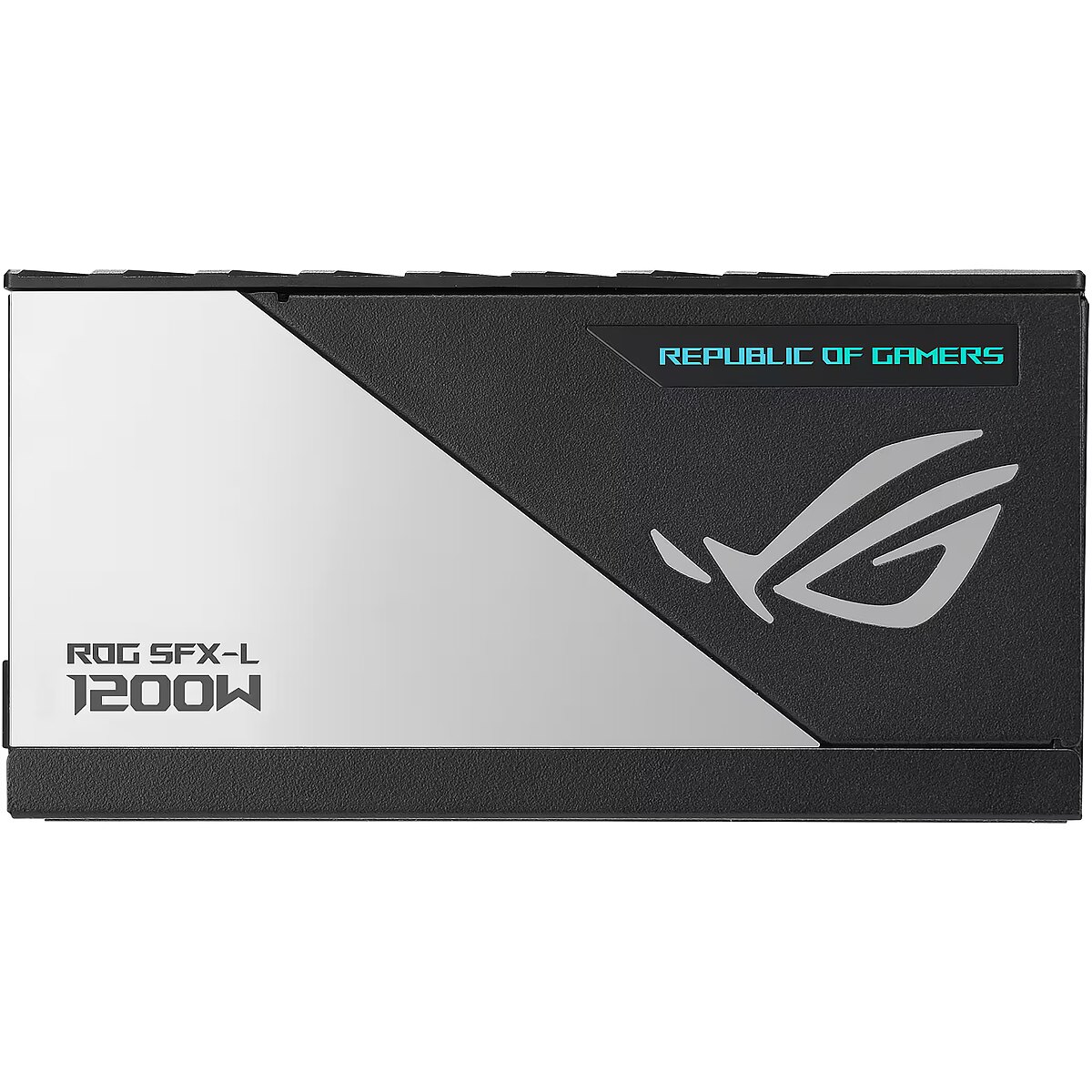

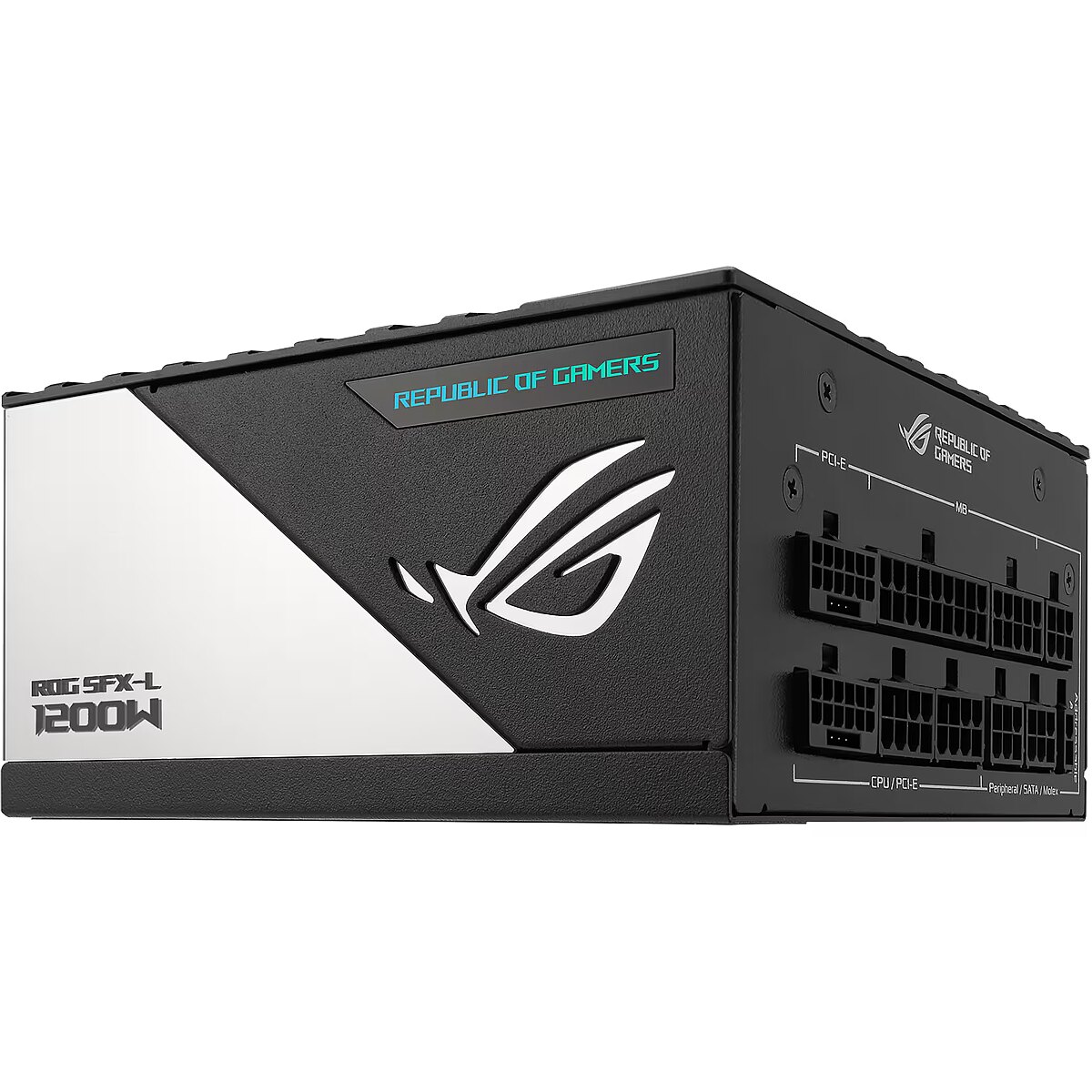

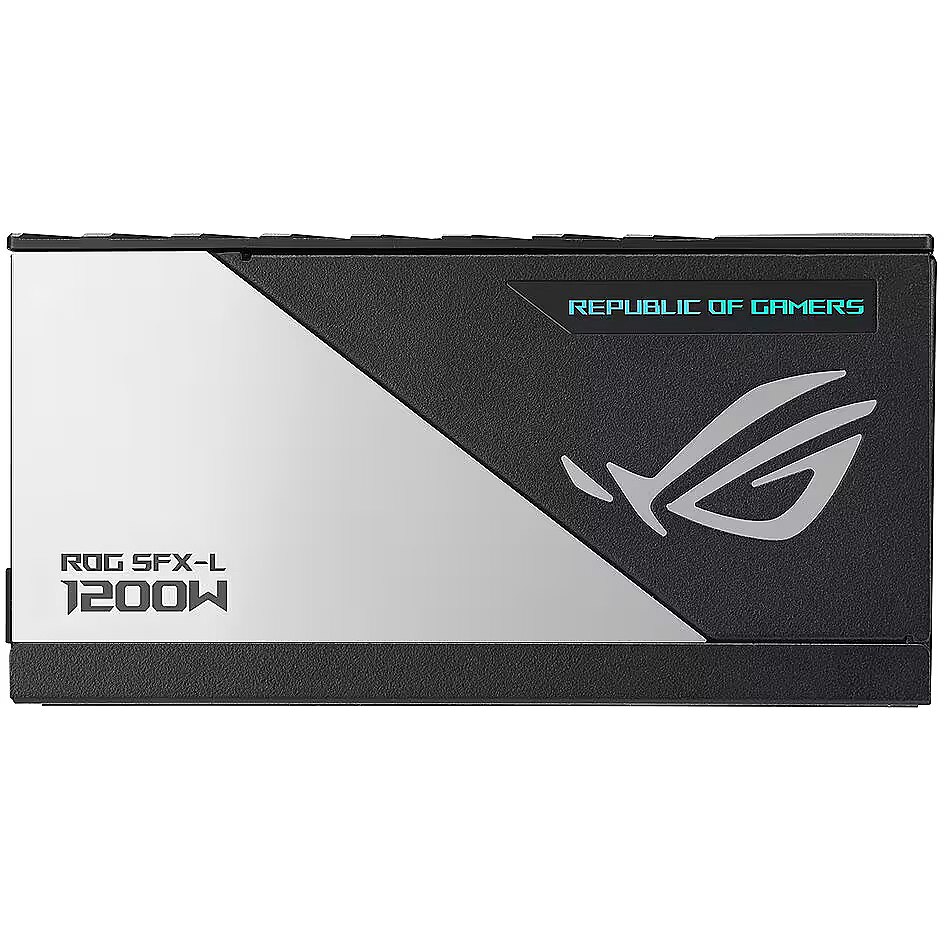

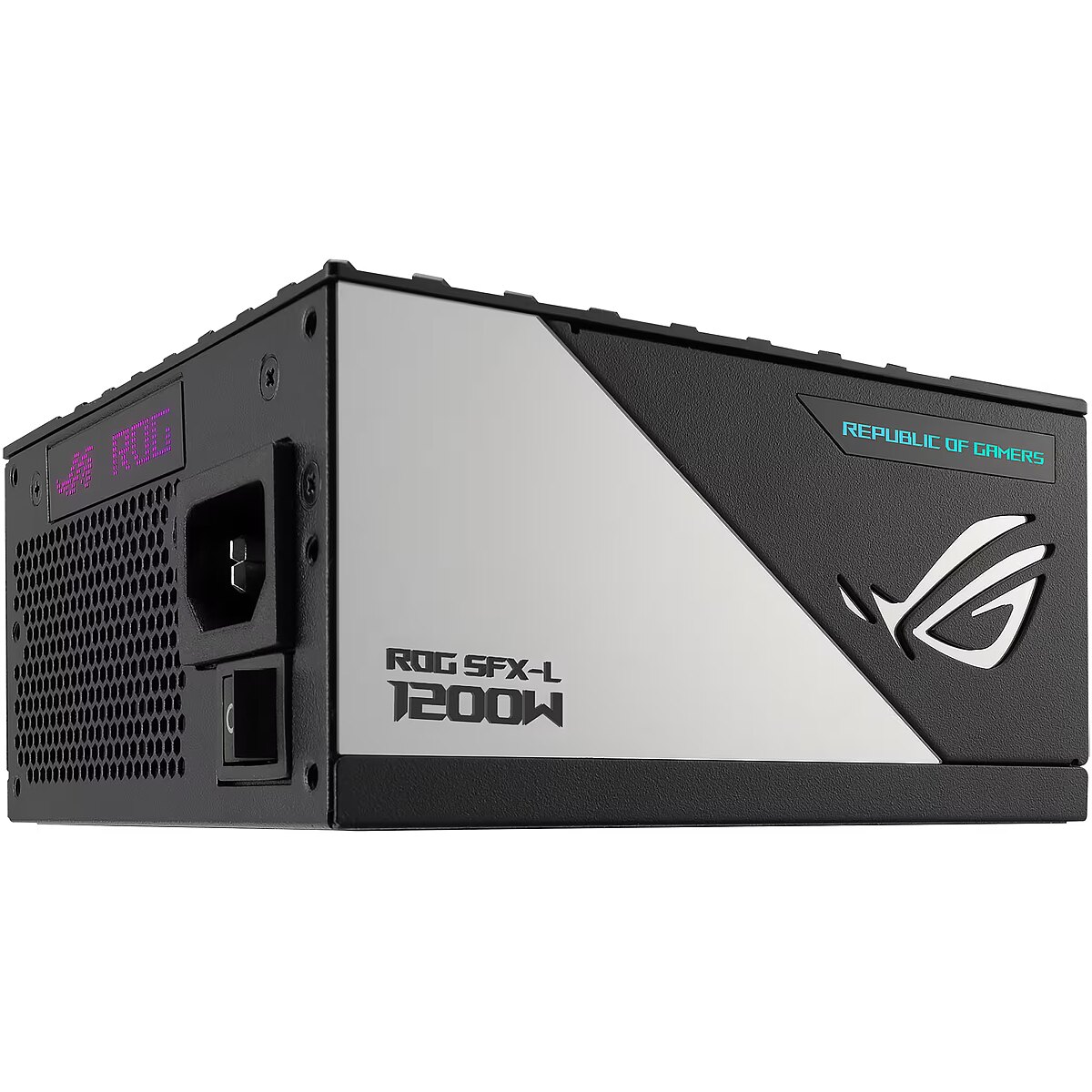

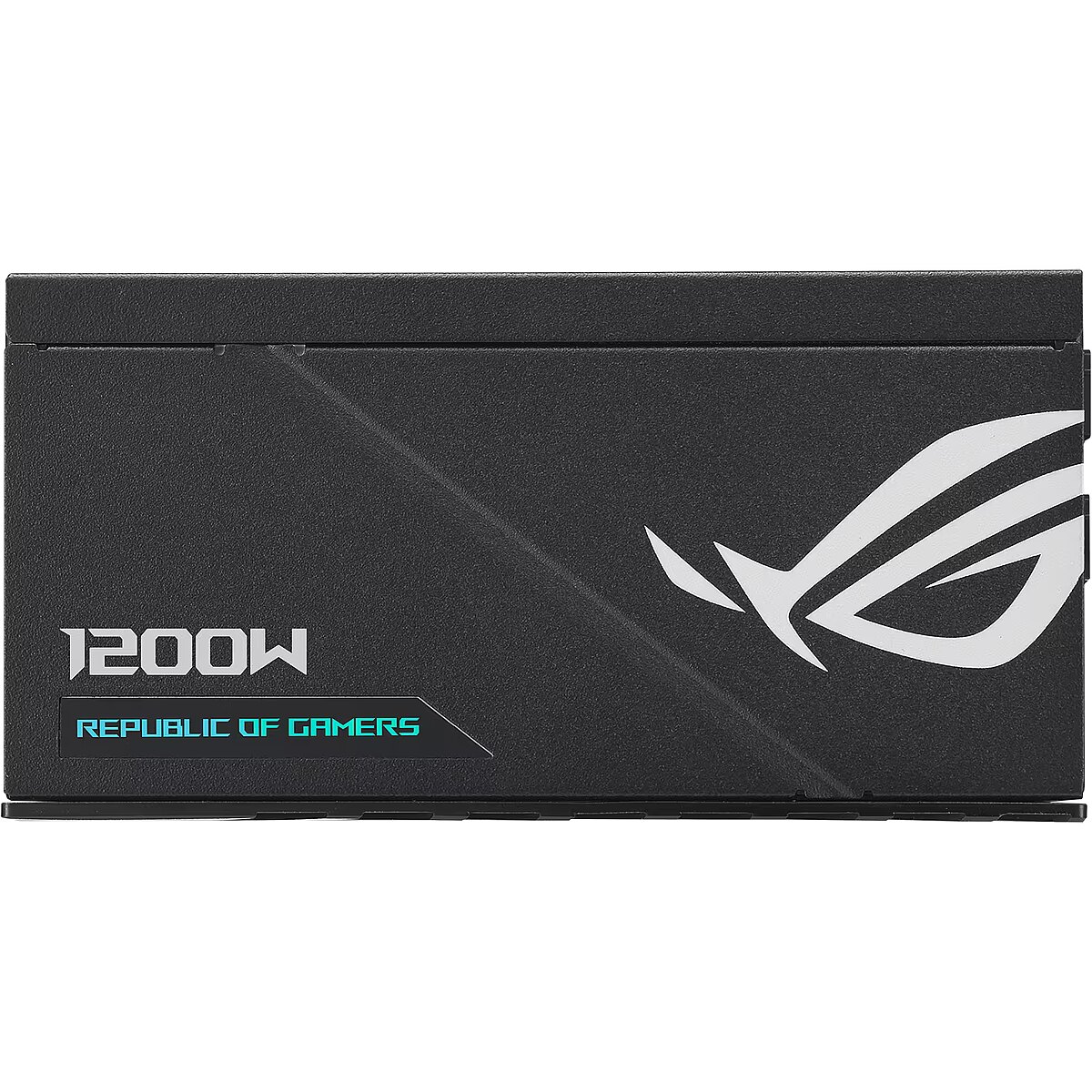

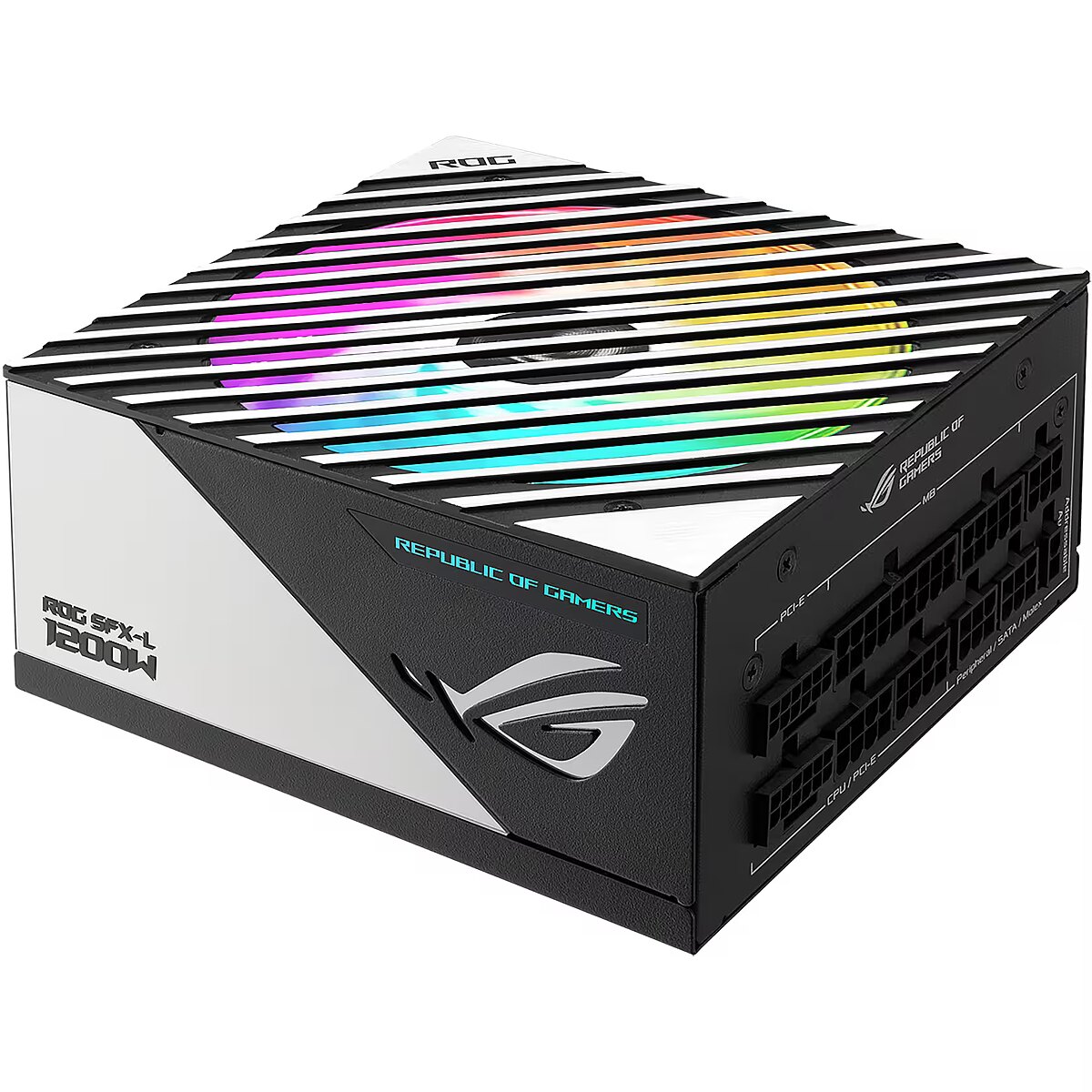

Asus ROG Loki SFX-L Titanium, 1200W, ATX 3.0, 80PLUS Titanium

Brand - ASUS
BrandPartCode - 90YE00N0-B0NA00
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
code - 90YE00N0-B0NA00
Design - Cooling type - Active

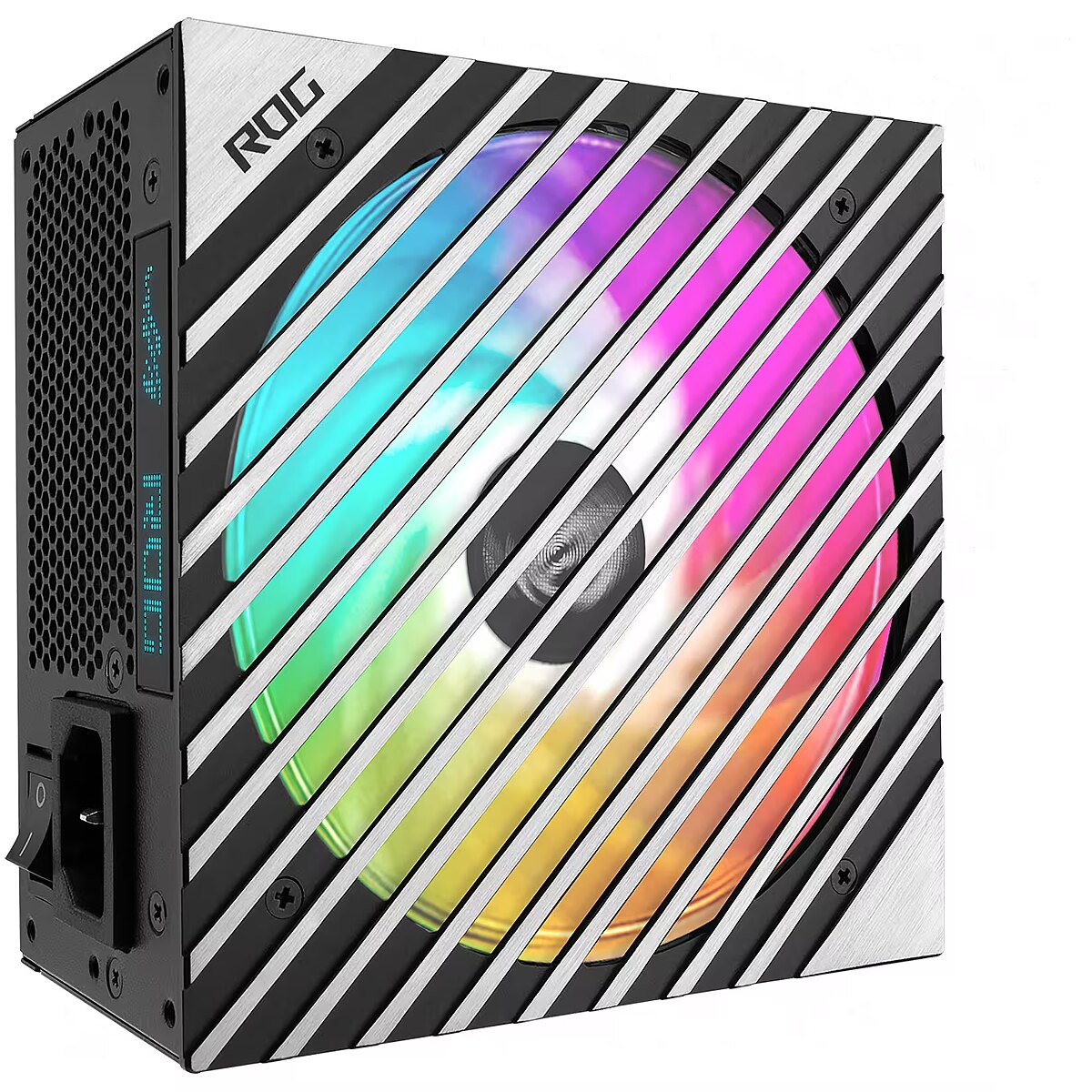

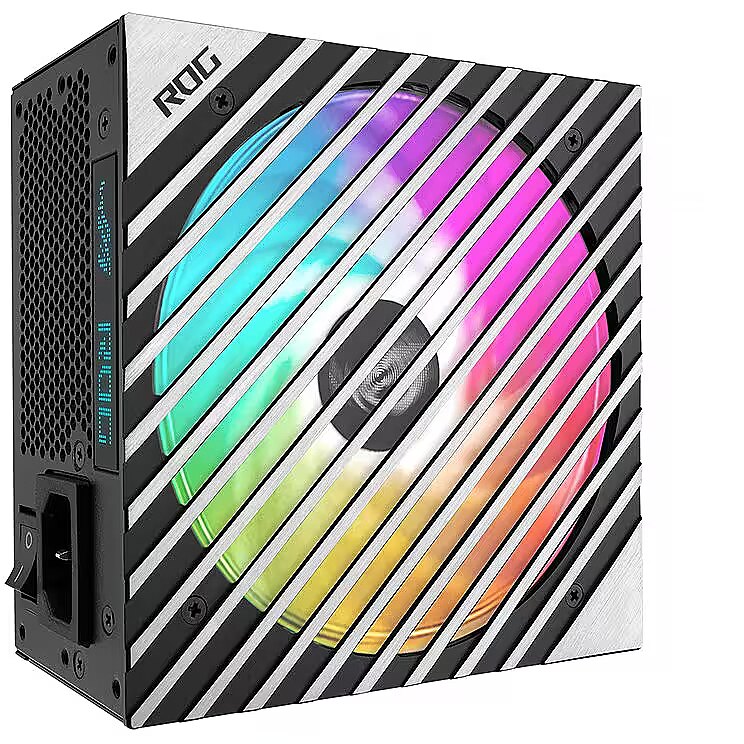

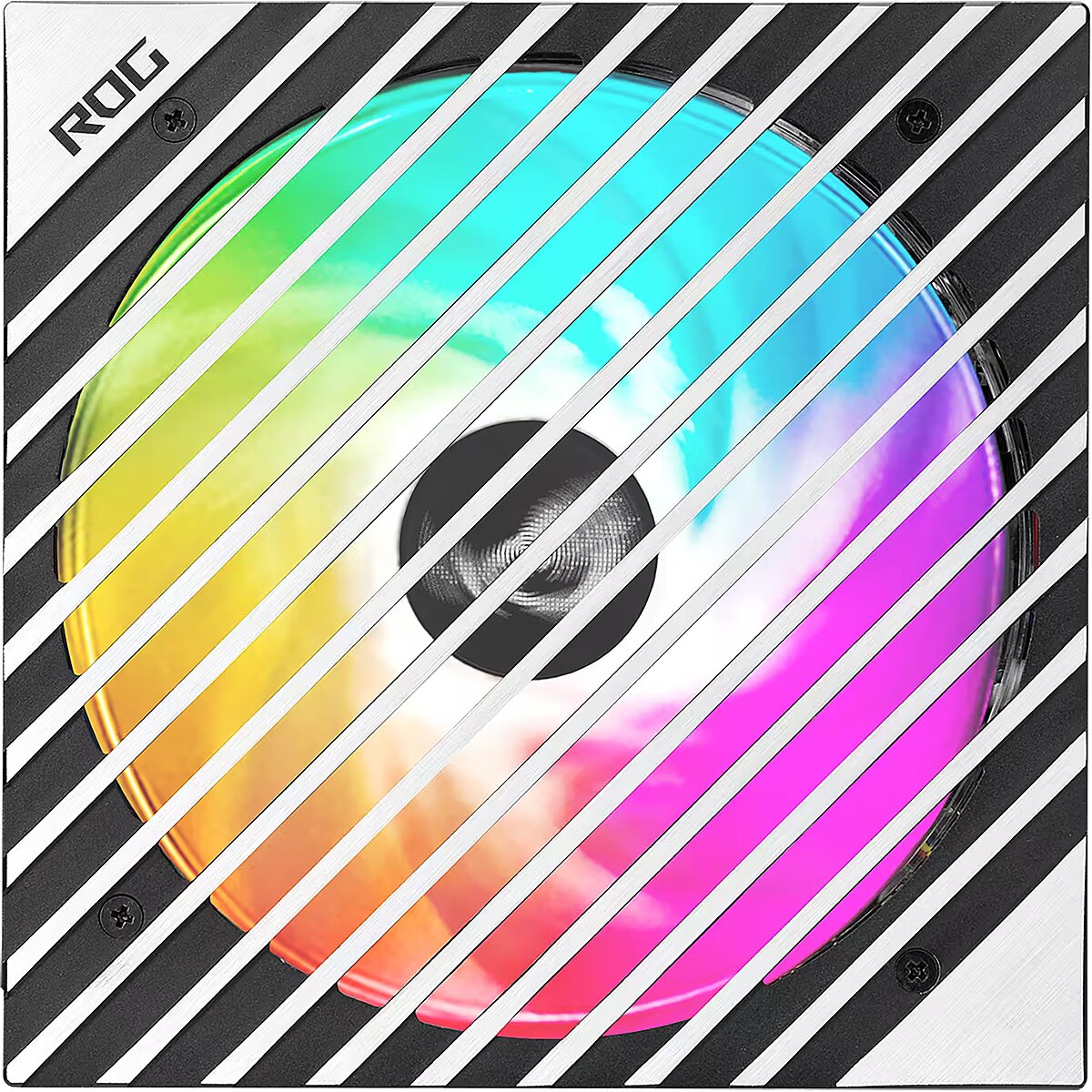

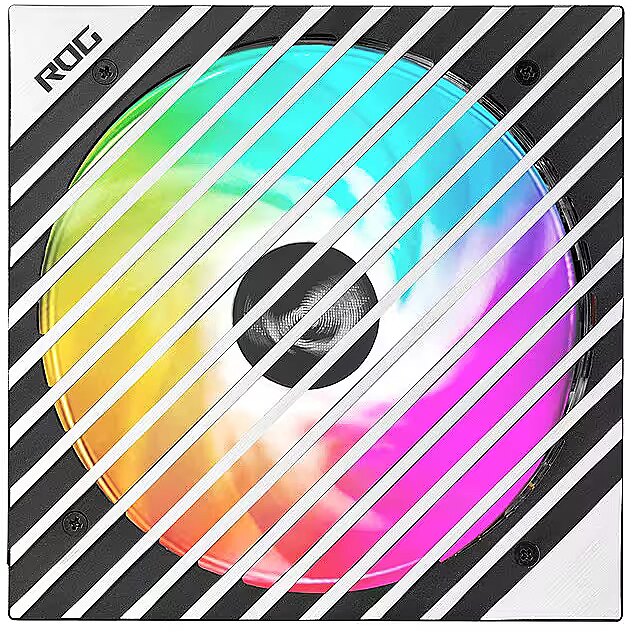

Design - Fan diameter - 12 cm
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)

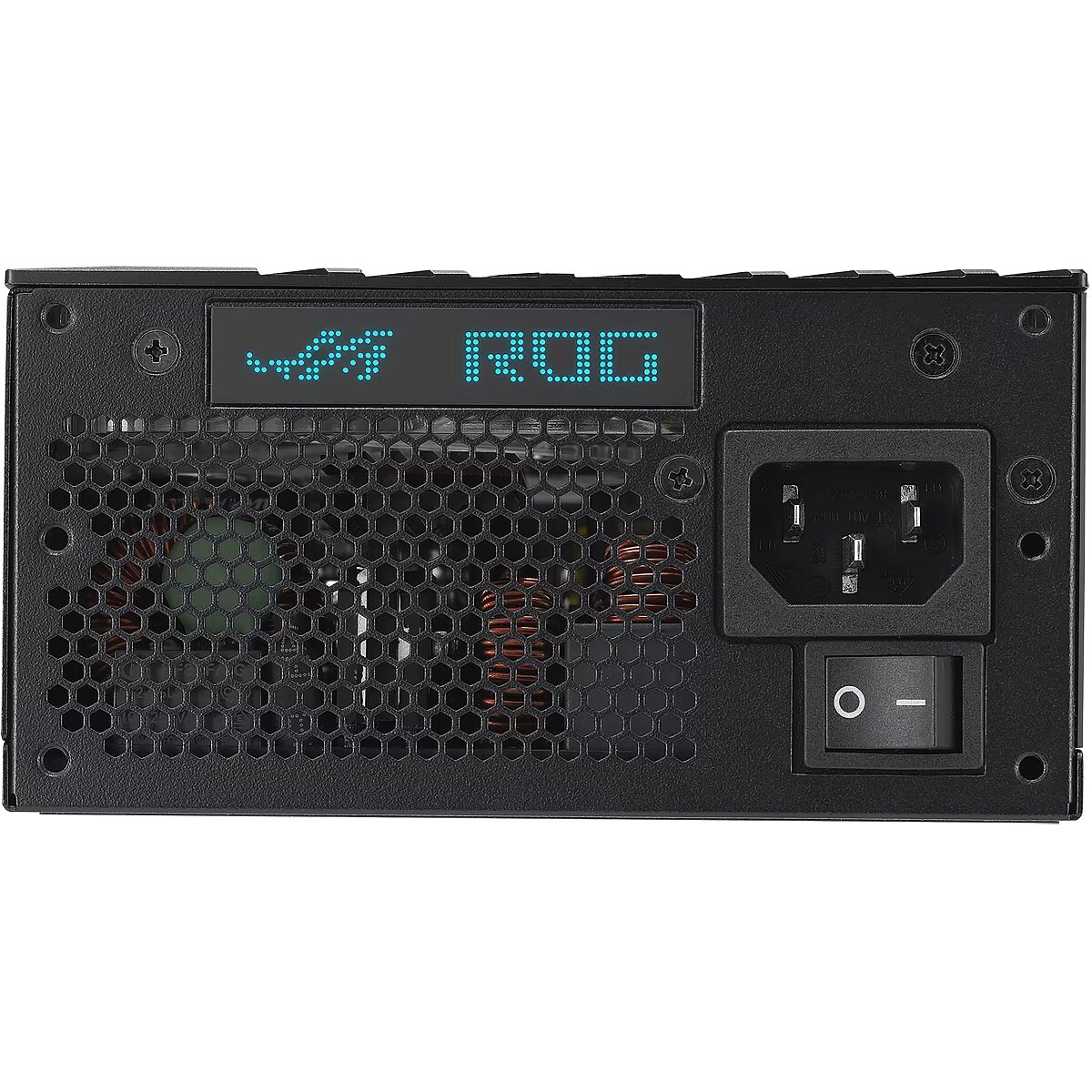

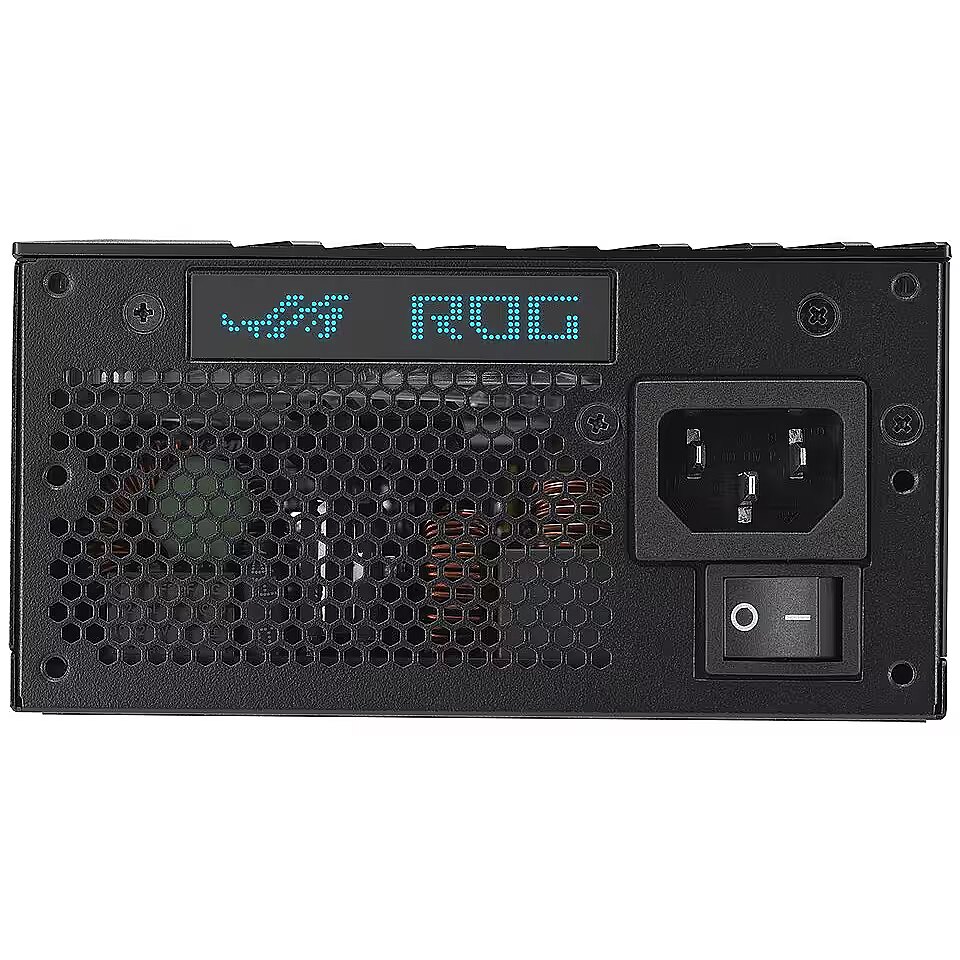

Design - On/off switch - Yes
Design - Product colour - Black
Design - Product colour - Black, Silver
Design - Product colour - Silver
dimensionalWeight - 1187
ean - 4711081721574
GTIN - 4711081721574
LongDesc - The World's Quietest and Most Powerful SFX-L PSUTaking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.COOLINGROG HeatsinksCool under pressureROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.Dual Ball Fan Bearings2x longer lifespanThe fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.0dB TechnologyQuiet intelligenceTo reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.Lambda Standard ++ CertificationQuietly deviantOn average, ROG Loki 1200W Titanium emits less than 35 dB of noise – earning a coveted Cybenetics Lambda standard ++ certification.ENGINEERING80 PLUS Titanium CertifiedEffortless outputLow-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.ATX 3.0 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.EXPERIENCEARGB-illuminated Fan & Aura SyncMagical glowThe Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.* If the connector cable is not used, the default color effect is rainbow.* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.10-Year WarrantyA decade of powerWe're so confident about the reliability of the ROG Loki SFX-L 1200W Titanium that we back it with a 10-year warranty.*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.
LongProductName - ROG Loki SFX-L 1200W Titanium fully modular gaming power supply (120mm PWM ARGB fan, Aura Sync ARGB lighting, ATX 3.0 compatible, PCIe 5.0 Ready, incl. 16-pin cable, 80+ Titanium certification, Lambda Standard ++ certification)
LongSummaryDescription - ASUS ROG -LOKI-1200T-SFX-L-GAMING. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1200 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 100,200,300 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX-L, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Silver, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
name - ASUS ROG Loki SFX-L 1200W, 80 PLUS Titanium Netzteil, modular, PCIe 5.0 - 1200 Watt, weiß

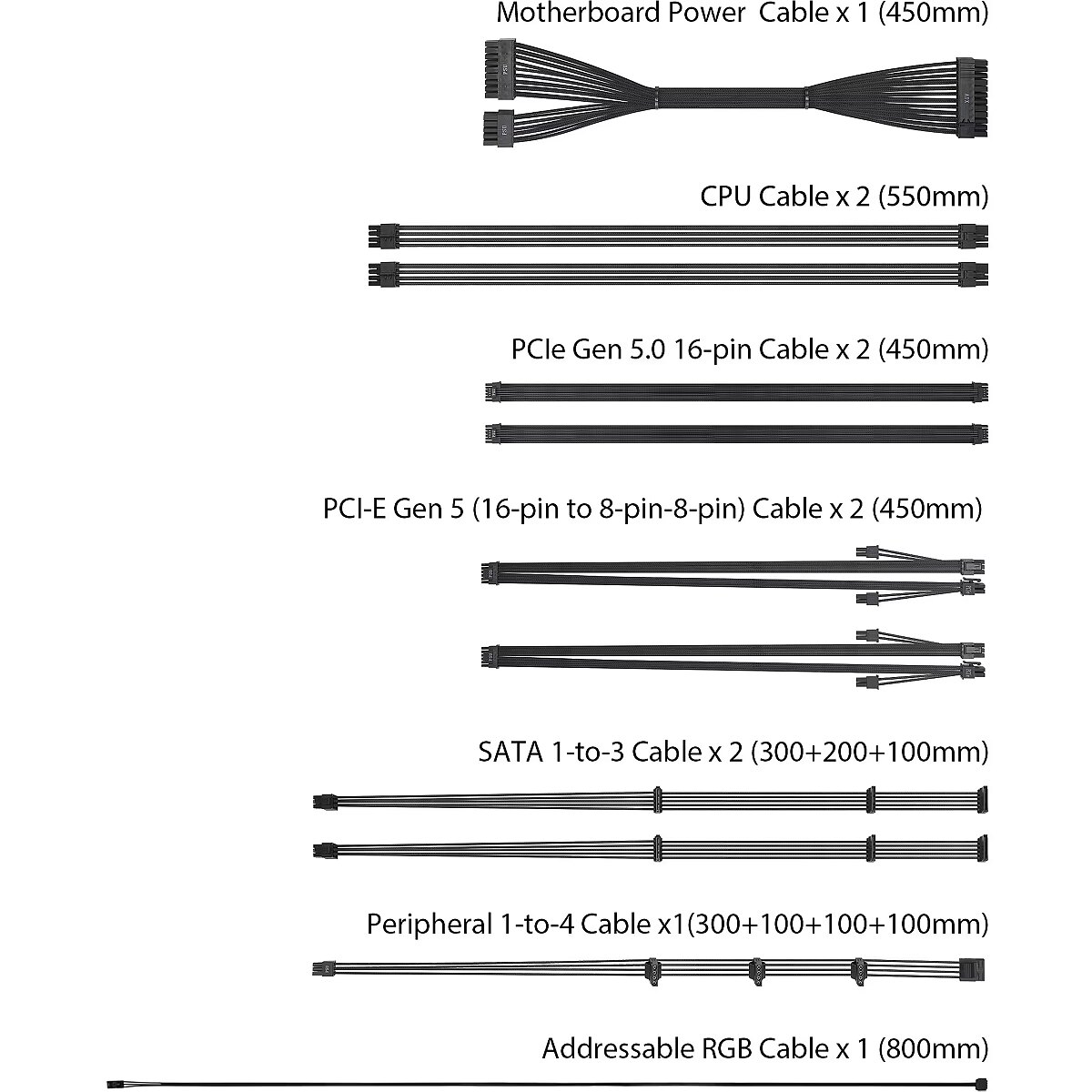

Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Manual - Yes
Packaging data - Package depth - 190 mm
Packaging data - Package height - 100 mm

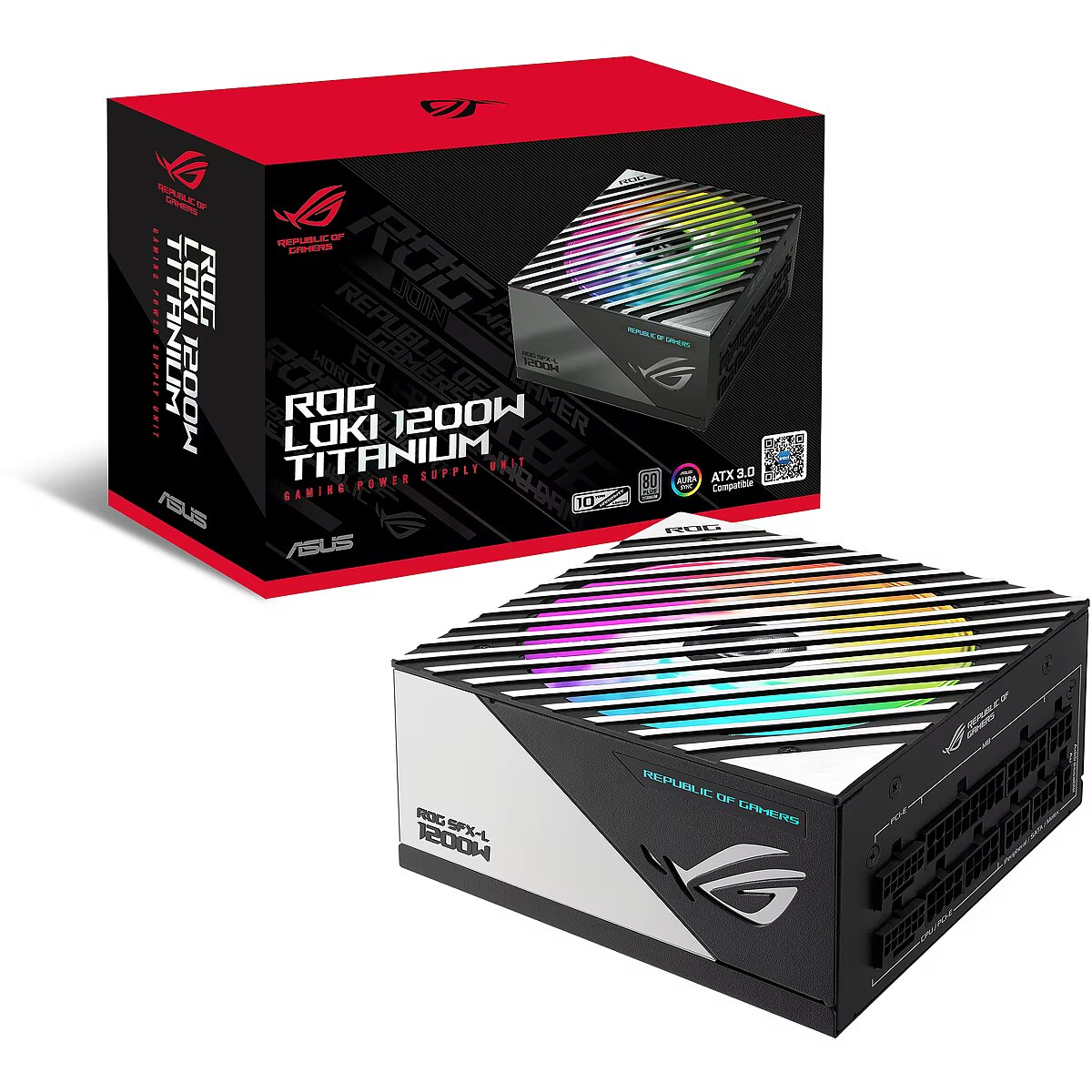

Packaging data - Package type - Box
Packaging data - Package weight - 2.84 kg
Packaging data - Package width - 285 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.0
Performance - Bearing technology - Ball bearing
Performance - Power supply unit (PSU) form factor - SFX-L
Performance - Purpose - PC

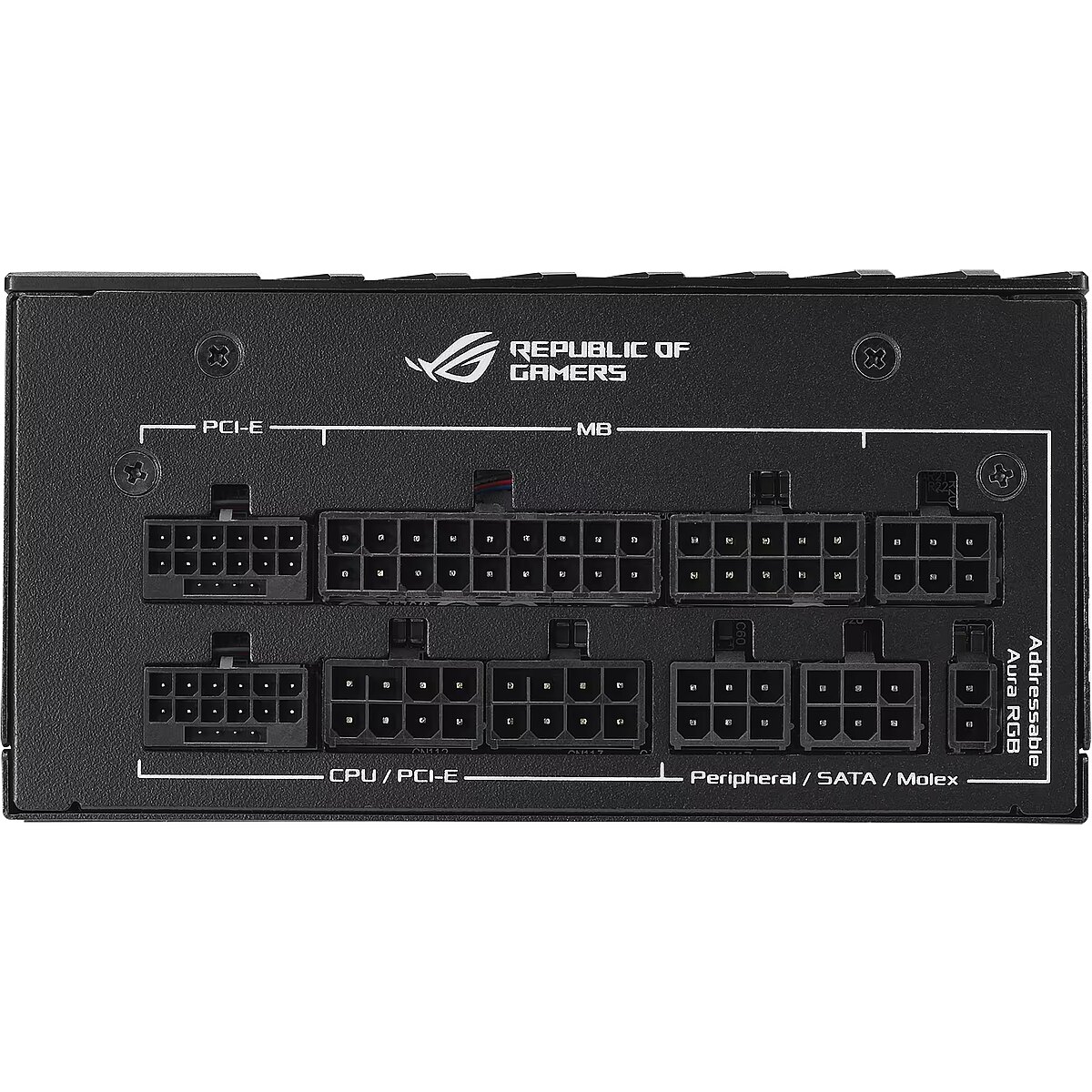

Ports & interfaces - ATX power connector (20+4 pin) - Yes

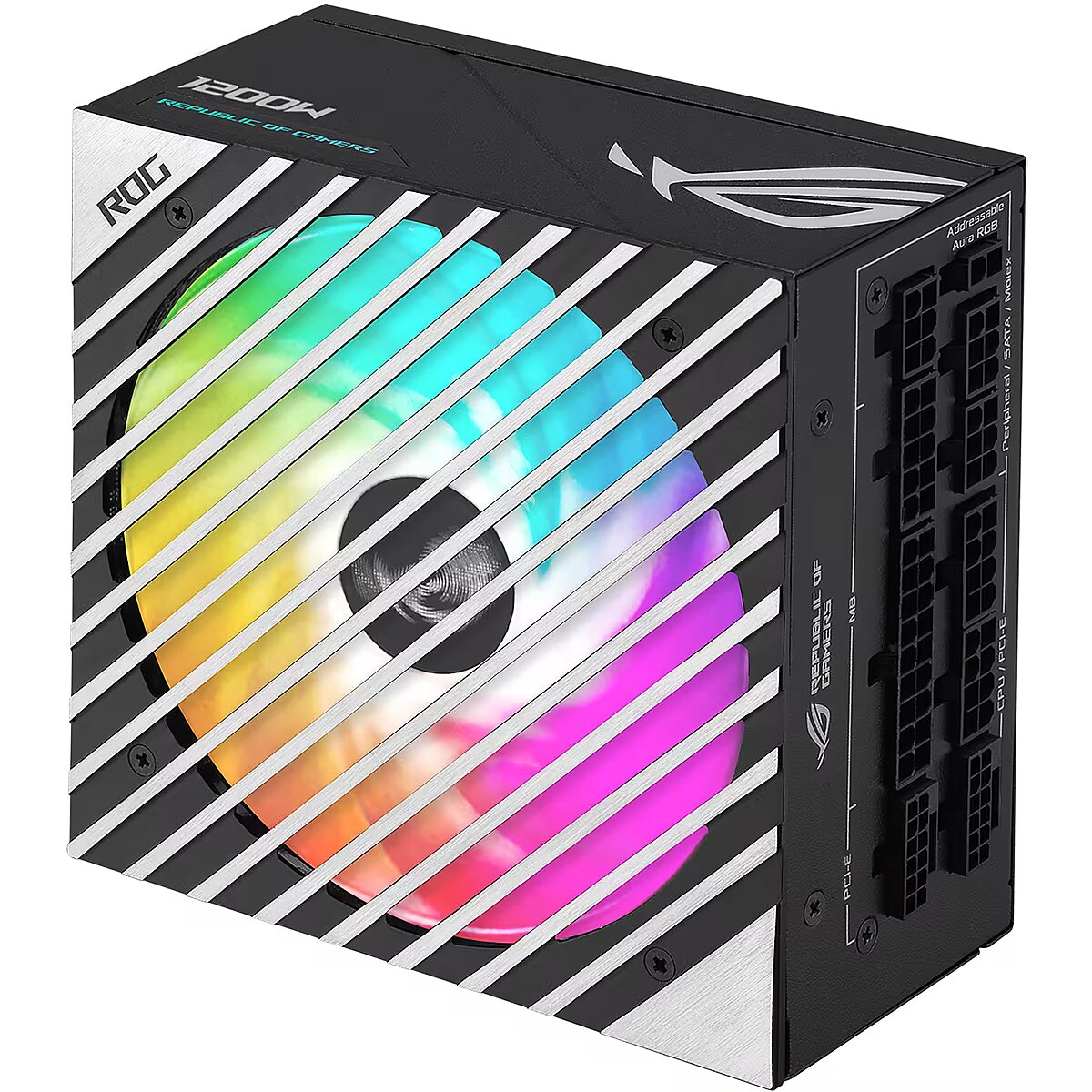

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 45 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (8-pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 100
Ports & interfaces - Peripheral (Molex) power cable length - 100,300 mm
Ports & interfaces - Peripheral (Molex) power cable length - 300 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 100
Ports & interfaces - SATA power cable length - 100,200,300 mm
Ports & interfaces - SATA power cable length - 200
Ports & interfaces - SATA power cable length - 300
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 9.6 W
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.8 A
Power - Peak power - 1200 W
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overcharge
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1200 W
producerCode - 90YE00N0-B0NA00
productName - ASUS ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver
ProductName - ROG-LOKI-1200T-SFX-L-GAMING
productSize - Normal
ShortSummaryDescription - ASUS ROG -LOKI-1200T-SFX-L-GAMING, 1200 W, 100 - 240 V, 1200 W, Active, 110 W, 1200 W
sizeX - 105
sizeY - 195
sizeZ - 290
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability compliance - Yes
Technical details - Warranty period - 10 year(s)
Title - ASUS ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver
URL - https://rog.asus.com/power-supply-units/rog-loki/rog-loki-1200t-sfx-l-gaming-model/
WarrantyInfo - 10 years
warrantyLength - 72
warrantyType - G
weight - 2940
Weight & dimensions - Depth - 125 mm
Weight & dimensions - Height - 63.5 mm
Weight & dimensions - Weight - 2.15 kg
Weight & dimensions - Width - 125 mm
