ID: 1050561
Tuotekoodi: PS-SPD-0650NNSABE-1
Voidaan tilata 5 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 3 vuotta

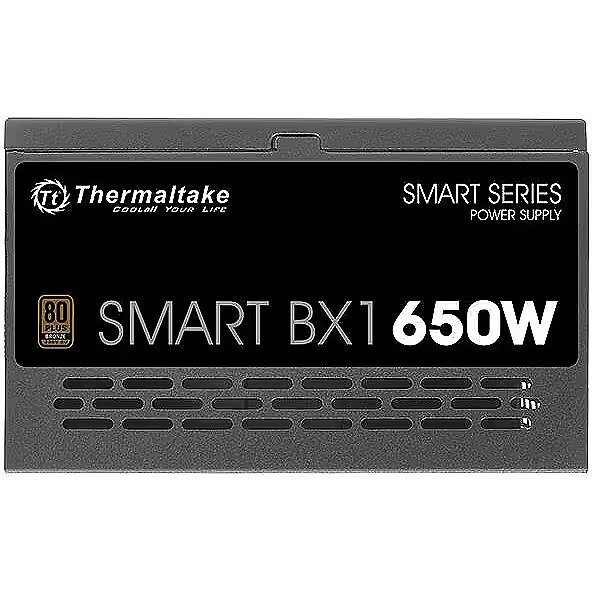

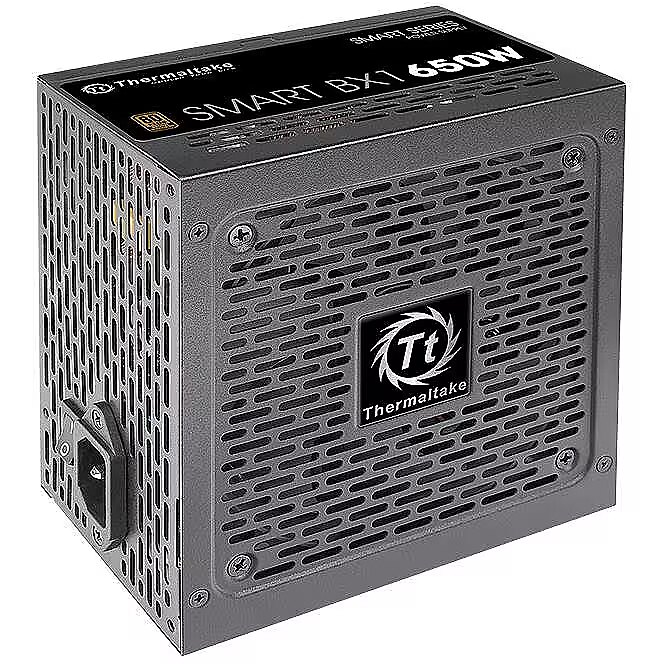

Thermaltake Smart BX1, 650W, 80PLUS Bronze
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpostille 6,99 €: 06.05.2025
- Kuriiritoimitus 11,99 €: 06.05.2025
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Thermaltake
- Teho: 650W
- 80 PLUS -sertifiointi: 80 PLUS Bronze
- Puhaltimen koko: 120 mm
- Modulaariset kaapelit: Ei ole
- Prosessori-liitännäinen: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Perustiedot
Cybenetics Melutason sertifiointi
: Nav
Cybeneticsin tehokkuuden sertifiointi
: Nav
Virtalähteen tyyppi
: ATX
Teho
650W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS Bronze
Kokonaisvirta (+12V)
: 48A
Puhaltimen koko
: 120 mm
Toiminnallisuus
Kaapelin väri
: Musta
Valaistus
: Ei ole
Väri
: Musta
Modulaariset kaapelit
: Ei ole
Satamat ja laitteet
PCI-E 5.0
: Nav
Prosessori-liitännäinen
: 1 x 8-pin(4+4) EPS
Emolevyn virta
: 24-pin
PCI-E
: 2 X 6+2pin
SATA-liittimet
: 6
4pin Molex
: 4
Tapaus
Yksityiskohtaisempi erittely
Accessories included -
Certificates 80+ - 80 PLUS Bronze
Description -
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1000
dimension depth - 100 mm
dimension height - 250 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 204 g
dimension width - 200 mm
ean - 4711246875258
Fan - 12 cm
Floppy power connectors - 1
guarantee - 60
guarantee_type - statutory
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 4
name - Power Supply Smart BX1 650W
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 2
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 5 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 55 °C
Other features -
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 1 mm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 576 W
Power - Combined power (-12V) - 6 W
Power - Input current - 12 A
Power - Max output current (+3.3V) - 23 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 48 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 80 W
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 650 W
Power supply - 650 W
producer - Thermaltake
producerCode - PS-SPD-0650NNSABE-1
productName - Thermaltake Smart BX1 power supply unit 650 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 6
sizeX - 250
sizeY - 200
sizeZ - 100
vendpn - PS-SPD-0650NNSABE-1
warrantyLength - 60
warrantyType - G
weight - 2050
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
