Deepcool PX1300P, 1300W, 80PLUS Platinum, PCI-E 5.0

category - PC Components|Power Supplies
Category_1 - Power
Category_2 - PSU - Accessories
code - R-PXD00P-FC0B-EU
Code - R-PXD00P-FC0B-EU
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2059
EAN - 6933412717355
ean - 6933412717355
EAN_code - 6933412717355
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PX1300P-ATX-3.0-Platinum-Power-Supply/2023/17420.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PXD00P-FC0B-EU
Name - DeepCool PX-P 1300W Platinum, power supply (1x 12VHPWR, 5x PCIe, cable management, 1300 watts)
name - DeepCool PX1300P Netzteil, 80 Plus Platinum, ATX 3.0, PCIe 5.0 - 1.300 Watt
Name - Deepcool | PSU | PX1300P | 1300 W
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 160.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 150.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 419 pc(s)
Package features > Paper/Pasteboard - 260.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No

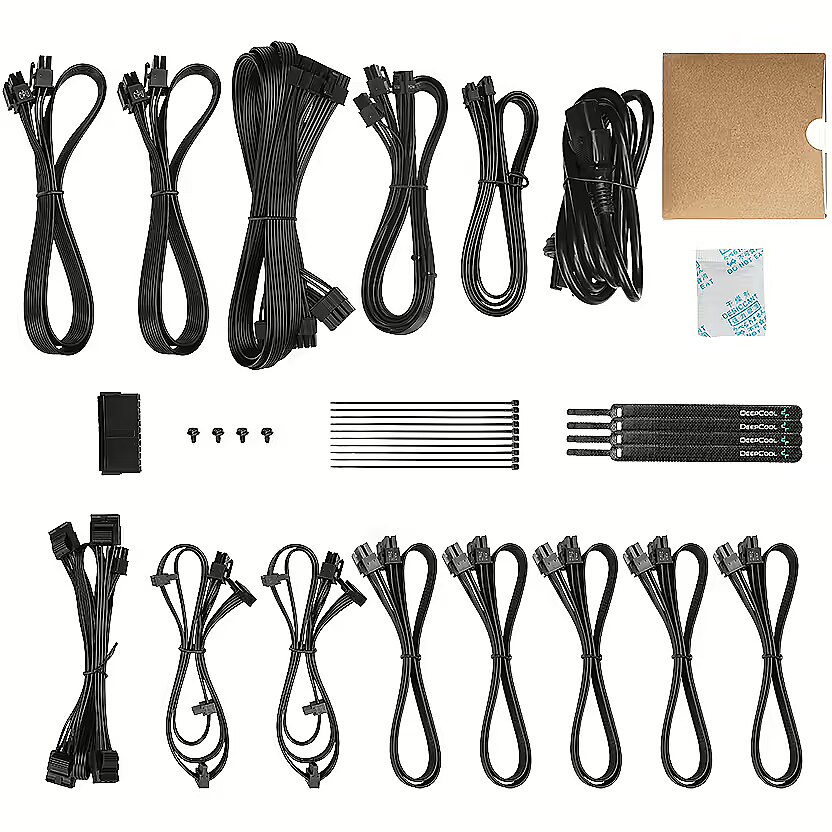

Packaging content - Cables included - AC, PCIe, CPU, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC

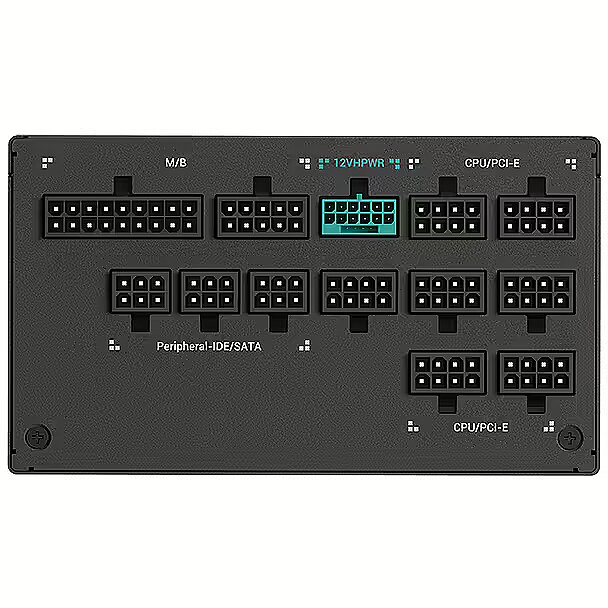

Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - 2
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 65 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 5
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 650 mm
Ports & interfaces - Peripheral (Molex) power cable length - 800
Ports & interfaces - Peripheral (Molex) power cable length - 950 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 500
Ports & interfaces - SATA power cable length - 650
Ports & interfaces - SATA power cable length - 800 mm
Ports & interfaces - SATA power cable length - 950 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1299.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Hold time - 16 ms

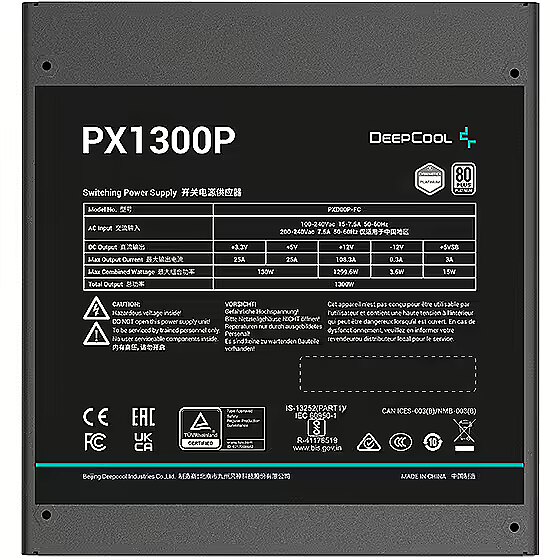

Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 108.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - NLO
Power - Power protection features - OCP (overcurrent protection)
Power - Power protection features - OPP (overload protection)
Power - Power protection features - OTP (overheat protection)
Power - Power protection features - OVP (overvoltage protection)
Power - Power protection features - SCP (short circuit protection)
Power - Power protection features - SIP (surge and shock protection)
Power - Power protection features - UVP (undervoltage protection)
Power - Total power - 1300 W
Power > Nominal power - 1300 W
producerCode - R-PXD00P-FC0B-EU
Producer product family - PSU
Producer product name - PX1300P
productName - DeepCool PX1300P power supply unit 1300 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 360
sizeY - 130
sizeZ - 220
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.10 kg
Technical details > Producer - Deepcool
Warranty - 120
Warranty - 120 month(s)
warrantyLength - 144
warrantyType - G
Weight - 0,10
weight - 4100
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
