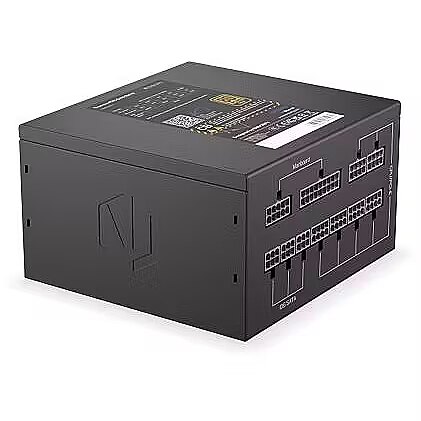

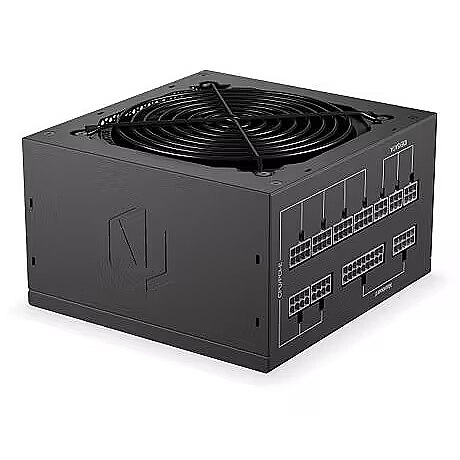

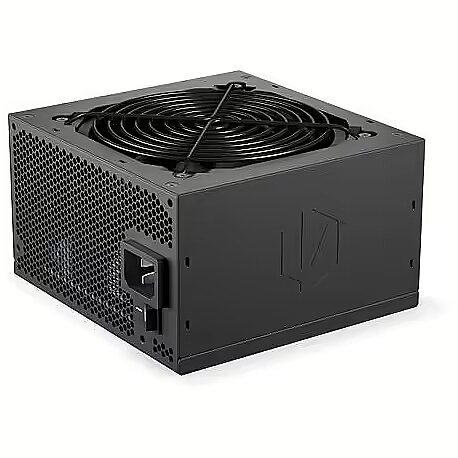

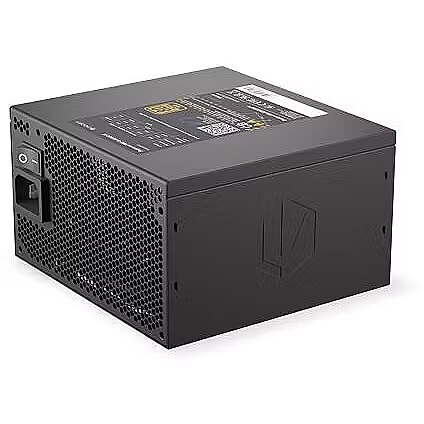

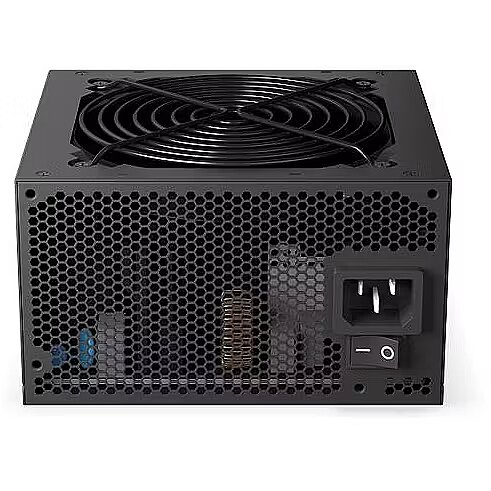

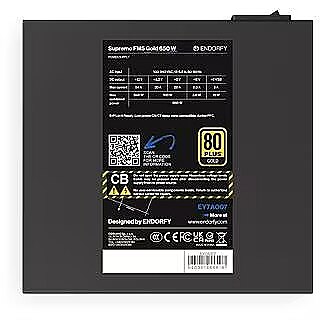

Endorfy Supremo FM5 Gold, 650W, 80PLUS Gold

8-pin 12V power connectors - 0
Accessories included - Supremo FM5 Gold 650W power supply Modular cabling Power cable Mounting kit User manual
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Gold
Description - Supremo FM5 Gold 650W Supremo FM5 Gold 650W is an efficient power supply with a 120 mm Fluctus fan that ensures stable operation of your PC without unexpected reset interruptions. This bad boy is equipped with Japanese electrolytic and aluminum-polymer capacitors, so you can get the most out of it from the factory. No wonder it is 80 PLUS Gold certified Supremo FM5 Gold 650W When you spend half your life at a computer, you know that stable operation of components = failure-free battles with bosses (including those in the office). That's why we created Supremo FM5 Gold 650W. This is an efficient and small (14 cm long) DC-DC power supply dedicated to demanding components. We mean seriously, we packed everything we thought we needed to precisely regulate voltages and deliver 650W of continuous power without unexpected resets or blue screens. There is also room for a 120 mm Fluctus fan, which will (literally!) ensure the appropriate temperature inside the power supply. No wonder our Supremo got the 80 PLUS Gold certificate, right? :) No blue screen Supremo FM5 Gold 650W is equipment with which you can go crazy without worrying that your PC will surprise you with a blue screen in a moment. We designed it in such a way that it provides stable voltage separately on each line because we know that you do not have time for resets during skirmishes with virtual opponents. This is due to the DC-DC conversion, which guarantees precise voltage regulation, stable operation and a total continuous power of 650 W. In addition, you get a full package of protections protecting against, among others, short circuits and overload. Thanks to them, in the event of a failure or overvoltage in the electrical installation, the power supply will simply turn off. So quiet you can hear yourself think We tested Supremo FM5 Gold 650W in various scenarios and we can say one thing: our power supply is so quiet that you can hear your thoughts. And this is even when you squeeze the last juices out of your computer (we checked it ourselves). This is due to our greatest pride in the silent Fluctus 120 PWM fan, which we developed in cooperation with Synergy Cooling. It's small, but it cools you like the best air conditioning. Thanks to it, the entire power supply maintains a low temperature even during the most demanding tasks, and you can work and play without monotonous background noise. Only Japanese capacitors Supremo FM5 Gold 650W is a power supply that can easily handle the most hardcore temperatures. Where water begins to boil, it will not boil due to effort and is designed to work even at 105° Celsius. This is due to Japanese electrolytic and aluminum polymer capacitors (solid state). They are small, but they contain the true power of samurai - we are considering installing tiny katanas in the next version. 7 years warranty Together with Supremo FM5 Gold 650W, we give you a long, 7-year warranty. You probably won't use it anyway (hey, they're ENDORPHS!), but it's good to have this option.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1128
dimension depth - 95 mm
dimension height - 220 mm
Dimensions - 87 × 140 × 150 mm
dimension weight - 2425 g
dimension width - 270 mm
ean - 5903018666167
Eans - 5903018666167
Fan - 12 cm
Floppy power connectors - 0
guarantee - 84
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 1
Name - ENDORFY Supremo FM5 Gold 650 W
name - Supremo FM5 Gold 650W power supply
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - Security: OVP UVP OCP SCP OPP SIP OTP
Packaging data - Package weight - 2.42 kg
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.31
Performance - Power supply unit (PSU) form factor - ATX
PFC - Active
Ports & interfaces - EPS power connector (4+4 pin) - 2
Ports & interfaces - Length of EPS power connectors (4+4 pin) - 705 mm
Ports & interfaces - Modular cabling - Y
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 56 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 880 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 560 mm
Ports & interfaces - SATA power cable length - 880 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 115 - 240 V
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - OCP (overcurrent protection)
Power - Power protection features - OPP (overload protection)
Power - Power protection features - OTP (overheat protection)
Power - Power protection features - OVP (overvoltage protection)
Power - Power protection features - SCP (short circuit protection)
Power - Power protection features - SIP (surge and shock protection)
Power - Power protection features - UVP (undervoltage protection)
Power - Total power - 650 W
Power supply - 650 W
producer - Endorfy
Producer - Endorfy
producerCode - EY7A007
ProducerCode - EY7A007
productName - Power supply Endorfy Supremo FM5 Gold 650W (EY7A007)
productSize - Normal
SATA power connectors - 5
ShortDescription - 650 | ATX | 120 mm | 87 mm 140mm 150 mm | 80PLUS GOLD | modularny |
sizeX - 270
sizeY - 220
sizeZ - 95
vendpn - EY7A007
warrantyLength - 24
warrantyType - F
weight - 2400
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 1.44 kg
Weight & dimensions - Width - 150 mm
