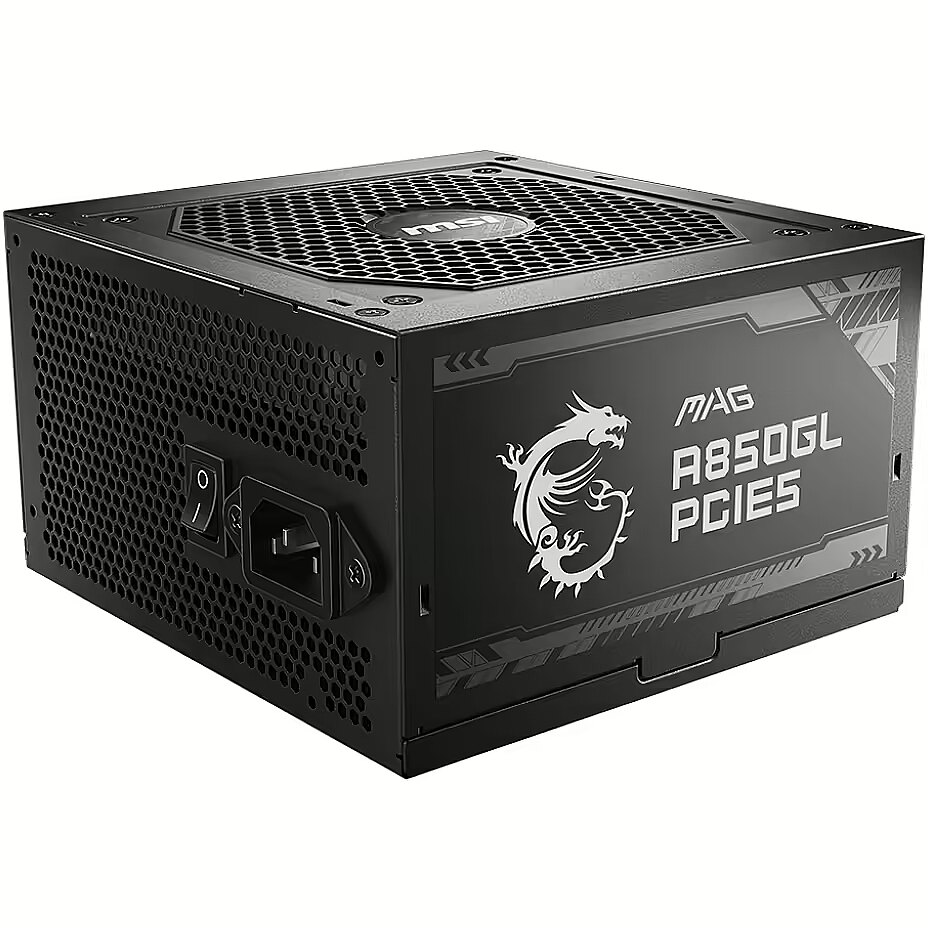

MSI MAG A850GL PCIE5, 850W, 80PLUS Gold

8-pin 12V power connectors - 0
Accessories included -
Brand - MSI
BrandPartCode - MAG A850GL PCIE5
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - Energy Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Gold
code - 306-7ZP8A11-CE0
Code - MAG A850GL PCIE5
Colour - Black

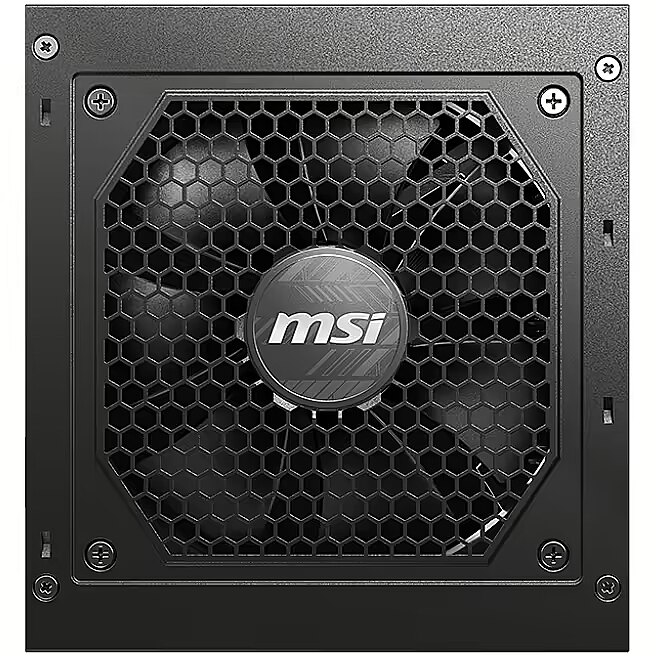

Cooling System - 12cm fan
Desc - Jauda: 850W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 4, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
Description - - ATX 3.0 compatible, native PCIe 5.0 connector - Supports NVIDIA® GeForce RTX™ 40 Series graphics cards - Full modular design,Flat cables - 80 Plus Gold certified for high efficiency - Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP - 120mm Fluid Dynamic Bearing Fan - LLC Full Bridge Topology with DC-DC module design
Description - MAG A850GL PCIE5 ATX 3.0 compliant, native PCIe 5.0 connector Supports NVIDIA GeForce RTX 40 series graphics cards Full modular design, flat cables 80 Plus Gold certificate confirming high efficiency Active PFC design, industrial level protection with OVP,OCP,OPP,OTP,SCP,UVP Fan with 120 mm fluid dynamic bearing LLC Full Bridge Topology with DC-DC module design
description_en - Power: 850W Energy Efficiency: 80 Plus Gold PFC: active Fan: 120mm SATA connections: 8
Molex PATA connections: 4 PCI-E: 4 x 6 + 2 PIN.
description_lv - Jauda: 850W Energoefektivitāte: 80 Plus Gold PFC: Aktīvs Ventilators: 120mm SATA pieslēgumi: 8
MOLEX PATA pieslēgumi: 4 PCI-E: 4 x 6 + 2 PIN.
description_ru - Мощность: 850 Вт Энергоэффективность: 80 Plus Gold PFC: активный Вентилятор: 120 мм Подключения SATA: 8
MOLEX PATA подключения: 4 PCI-E: 4 x 6 + 2 контакта.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1687
dimension depth - 125 mm
dimension height - 220 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 2838 g
dimension width - 300 mm
EAN - 4711377084253
ean - 4711377084253
Eans - 4711377084253
Efficiency - 80 PLUS GOLD
Fan - 12 cm
Floppy power connectors - 1
Full Description Line - MAG A850GL PCIE5|For gaming|ATX 3.0|850 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|Colour Black
gross_weight - 2.5 kg
GTIN - 0824142319222
GTIN - 824142319222
GTIN - 4711377084253
GTIN - 4711377087254
guarantee - 84
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_110420_1.png
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The MAG series fights alongside gamers in pursuit of honor.With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.ATX 3.0 COMPATIBLEIt has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.80 PLUS GOLD CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.COMPACT SIZINGSmaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.ONLY WHAT YOU NEEDThe connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.ALL THE MORE ORGANIZEDOrganizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.FLUID DYNAMIC BEARINGThe power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.DC TO DC & FULL BRIDGEDC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply designTHE POWER YOU HAVEThe single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.PROTECTION MECHANISMSTo make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
LongProductName - 850W, 47-63Hz, 600W, 2.5A, 0.3A, 120 mm, 80 PLUS Gold, ATX 3.0
LongSummaryDescription - MSI MAG A850GL PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - MSI
MB power connector - 20 + 4 pin
Model - MAG A850GL PCIE5
Model name - MAG A850GL PCIE5
Modular power supply - Yes
MOLEX power connectors - 4
MPN - 306-7ZP8A11-CE0
Name - 850W MSI MAG A850GL PCIE5 80 + Gold
Name - Barošanas bloks MSI MAG A850GL PCIE5 850W
name - MAG A850GL PCIE5 850W 80PLUS GOLD F.MODULAR
Name - MSI MAG A850GL PCIE5
name - MSI MAG A850GL PCIe5 Netzteil, 80 PLUS Gold, vollmodular, ATX 3.0, PCIe 5.0 - 850 Watt
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - No
Ports & interfaces - ATX Power connector (24-pin) - No

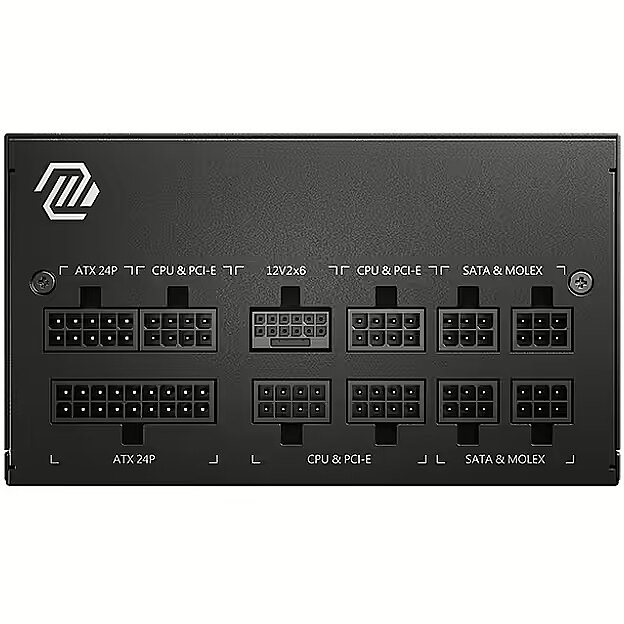

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 846 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Maximum input current (@110V) - 8 A
Power - Maximum input current (@220V) - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 70.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 850 W
Power supply - 850 W
producer - MSI
Producer - MSI
producerCode - 306-7ZP8A11-CE0
ProducerCode - MAG A850GL PCIE5
ProductName - MAG A850GL PCIE5
productName - MSI MAG A850GL PCIE5 power supply unit 850 W 20+4 pin ATX ATX Black
productSize - Normal
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 850 Watts
SATA power connectors - 8
Shipping Box Depth Shipping/Package Box Dimensions - 30.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 22.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.83 kg
Shipping Box Width Shipping/Package Box Dimensions - 12.8 cm
ShortDescription - 850 | ATX | 135 mm | 20 + 4 pin |300mm x 220mm x 125mm | 80PLUS GOLD | modularny |
ShortSummaryDescription - MSI MAG A850GL PCIE5, 850 W, 100 - 240 V, 47 - 63 Hz, 8 A, 4 A, Active
sizeX - 300
sizeY - 225
sizeZ - 125
Title - MSI MAG A850GL PCIE5 power supply unit 850 W 20+4 pin ATX ATX Black
title_en - MSI Power Supply 850W
title_lv - MSI Barošanas Bloks 850W
title_ru - MSI Блок Питания 850W
Unit Box Height - 0.225
Unit Box Length - 0.305
Unit Box Width - 0.128
Unit Brutto Volume - 0.008784 cubm
Unit Gross Weight - 2.83 kg
Unit Net Weight - 1.5 kg
URL - https://www.msi.com/Power-Supply/MAG-A850GL-PCIE5/Overview
Vendor Homepage - www.msi.com/Power-Supply/MAG-A850GL-PCIE5/Overview
vendpn - MAG A850GL PCIE5
Warranty - 24 months
WarrantyInfo -
warrantyLength - 84
warrantyType - G
weight - 2 kg
Weight - 2.82
weight - 2840
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
