Brand - be quiet!
BrandPartCode - BN334
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Certification - BSMI, CB, CCC, CE, cRUus, CU, FCC, cTUVus, RCM, TUV, UKCA, Triman
Certificates - Compliance certificates - CB, CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Design - Built-in display - No
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Fan speed - 0 - 1800 RPM
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
EAN_code - 4260052189399
GTIN - 4260052189399
Logistics data - Shipping (inner) case height - 36.8 cm
Logistics data - Shipping (inner) case length - 50.4 cm
Logistics data - Shipping (inner) case net weight - 18.3 kg
Logistics data - Shipping (inner) case width - 30.5 cm
Logistics data - Warranty period - 10 year(s)
LongDesc - NO COMPROMISE SILENCE AND PERFORMANCEThe be quiet! Dark Power 13 850W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.80 PLUS® TITANIUM CERTIFIEDThe highest efficiency certificate availableDark Power 13 850W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.4%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 wattsFUTURE-PROOF YOUR SYSTEMFulfills all ATX 3.0 specificationsDark Power 13 850W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come. THE NEW STANDARD OF POWERFor massive transient loadsDark Power 13 offers 850W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.FRAMELESS SILENT WINGS FANPatented fan technology for virtually inaudible operationThe improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.INNOVATIVE COOLING CONCEPTFor a longer lifespanThe split fan inlet of the Dark Power 13 850W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespanREADY FOR OVERCLOCKINGPushing the performance of your PSU to the maxDark Power 13 850W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massivesingle-rail operation.WORLD CLASS TOPOLOGYState-of-the-art technology for extremelyhigh efficiencyWith an active rectifier and full bridge LLC technology Dark Power 13 850W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparablystable operation.JAPANESE 105° CAPACITORSA testament to high qualityOnly the best components are used in Dark Power 13 850W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.HIGHEST CONVENIENCE AND BEST CONNECTIVITYModular cablesModular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
LongProductName - DARK POWER 13 850W, Version 3.0, 175 x 150 x 86 mm, 1.97 k, 100-240V, 50-60Hz, 10/5A
LongSummaryDescription - be quiet! Dark Power 13. Total power: 850 W, AC input voltage: 100 - 240 V, Peak power: 950 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: SATA
Manufacturer - Be quiet
Manufacturer_code - BN334
Name - Be quiet! Dark Power 13 850W, PC power supply (black, 5x PCIe, cable management, 850 watts)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Cables included - SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 350 mm
Packaging data - Package height - 270 mm
Packaging data - Package type - Box
Packaging data - Package weight - 4.25 kg
Packaging data - Package width - 120 mm
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 19.8 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX, micro ATX, Mini-ATX

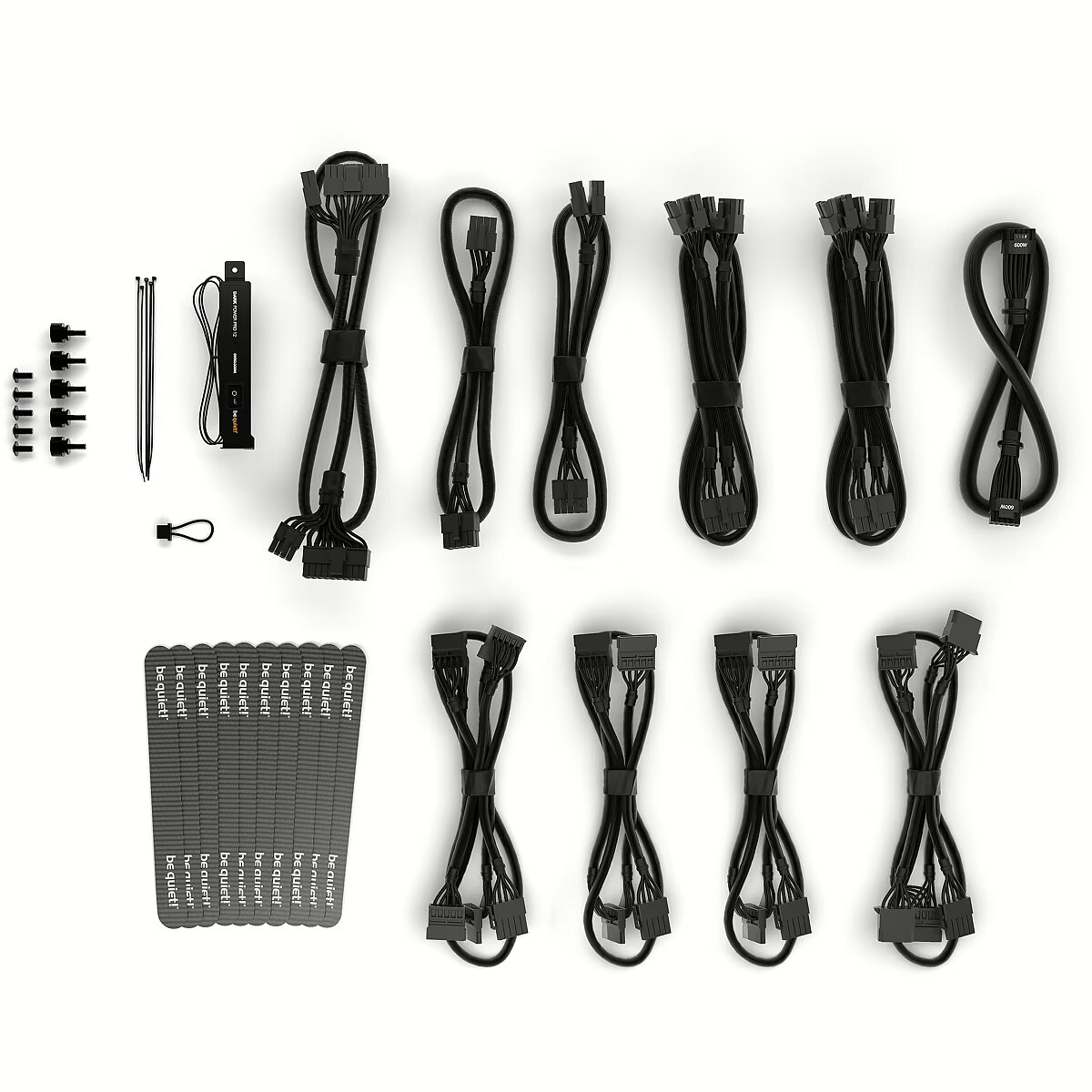

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - SATA power cable length - 1050 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Efficiency - 95.4%
Power - Hold time - 22.6 ms
Power - Input current - 10 A
Power - Maximum input current (@110V) - 5 A
Power - Maximum input current (@220V) - 10 A
Power - Max output current (+3.3V) - 24 A
Power - Max output current (+5V) - 24 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 30 A
Power - Max output current (+12V2) - 30 A
Power - Max output current (+12V3) - 35 A
Power - Max output current (+12V4) - 35 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 950 W
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 850 W
ProductName - Dark Power 13
ShortSummaryDescription - be quiet! Dark Power 13, 850 W, 100 - 240 V, 950 W, 50 - 60 Hz, 10 A, 5 A
Technical details - Sustainability certificates - ENERGY STAR, ErP
Title - be quiet! Dark Power 13 power supply unit 850 W 20+4 pin ATX ATX Black
URL - https://www.bequiet.com/en/powersupply/4043
WarrantyInfo - 10 years
Weight - 4,25
Weight & dimensions - Depth - 175 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.97 kg
Weight & dimensions - Width - 150 mm
