ID: 863631
Tuotekoodi: GPU-1200FC
Varastossa 3 yksiköt
Takuu: 2 vuotta

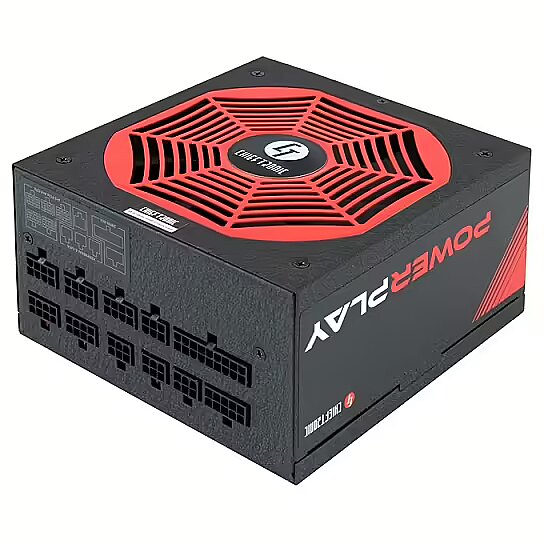

Chieftec PowerPlay GPU-1200FC, 1200W, 80PLUS Platinum
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Chieftec
- Teho: 1200W
- 80 PLUS -sertifiointi: 80 PLUS Platinum
- Puhaltimen koko: 140 mm
- Modulaariset kaapelit: Fully-Modular
- Prosessori-liitännäinen: 2 x 8-pin(4+4) EPS
- PCI-E: 8 x 6+2pin
Kuvaus
Tässä Chieftec virtalähteessä on 80 PLUS Platinum -energiatehokkuussertifikaatti ja 1200W teho.
140 mm140 mm uuletin. Valtavan kokonsa ansiosta se tarjoaa erinomaisen ilmavirran, paremman jäähdytyksen pienemmillä nopeuksilla ja on huomattavasti hiljaisempi kuin tavallinen 120 mm:n tuuletin.
80 PLUS Platinum -energiatehokkuussertifikaatti, joka takaa vähintään 92 prosentin hyötysuhteen 50 prosentin kuormituksella. Tämä tarkoittaa, että virtalähteen verkosta saamasta 100 W:n tehosta vähintään 92 W toimitetaan tietokoneen komponentteihin, ja loput 8 W häviää lämpönä.
Melna,Sarkana Kaapeleiden väri on Melna ja ne ovat litteitä.
Tämä virtalähde on ATX 2.0 -standardin mukainen. Tämä tarkoittaa, että virtalähteessä on vain 6-nastainen ja 8-nastainen portti, jotka tuottavat vastaavasti 75W ja 150W tehoa. ATX 2.0 -virtaportteja ei ole suunniteltu käsittelemään nykyaikaisten näytönohjainten suuria tehovaatimuksia. Jos rakennat järjestelmää, jossa on erittäin tehokas näytönohjain, kuten RTX 4070, tarvitaan ATX 3.* -standardin mukainen virtalähde.
Tässä virtalähteessä on täysin modulaariset kaapelit - kaikki mukana toimitetut kaapelit voidaan liittää ja irrottaa tarpeen mukaan, mikä vähentää epäjärjestystä ja parantaa ilmanvaihtoa. Tämä on hyödyllistä niille, joilla on puoliksi läpinäkyvä PC-kotelo ja esteettisiä näkökohtia.
Perustiedot
Cybenetics Melutason sertifiointi
: Nav
Cybeneticsin tehokkuuden sertifiointi
: Nav
Virtalähteen tyyppi
: ATX
Teho
1200W
Virtalähteen kapasiteetti watteina. Suurempi kapasiteetti tarkoittaa tietokoneen toiminnan vakaampaa toimintaa. Nykyaikaisen keskiverto tietokoneen virtalähteen suositeltu kapasiteetti on vähintään 500 W. Jos käytät useita kiintolevyjä, tehokasta näytönohjainta ja prosessoria, on suositeltavaa ostaa virtalähde, jonka kapasiteetti on vähintään 600 W.
80 PLUS -sertifiointi
: 80 PLUS Platinum
Kokonaisvirta (+12V)
: 100A
Puhaltimen koko
: 140 mm
Toiminnallisuus
Kaapelin väri
: Musta
Valaistus
: Ei ole
Väri
: Musta, Punainen
Modulaariset kaapelit
: Fully-Modular
Satamat ja laitteet
PCI-E 5.0
: Nav
Prosessori-liitännäinen
: 2 x 8-pin(4+4) EPS
Emolevyn virta
: 20+4-pin
PCI-E
: 8 x 6+2pin
SATA-liittimet
: 9
4pin Molex
: 3
Tapaus
Yksityiskohtaisempi erittely
Brand - Chieftec
BrandPartCode - GPU-1200FC
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product colour - Black, Red
Design - Product colour - Red
dimensionalWeight - 1955
EAN_code - 0753263077677
GTIN - 0753263077677
GTIN - 753263077677
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The Chieftronic PowerPlay series builds on Chieftec’s many years of experience developing top-quality power-supplies and combines top specs like 80 PLUS Gold (at 550W, 650W, 750W) and 80 PLUS Platinum (at 850W, 1050W), premium Japanese capacitors for low ripple noise with an eye-catching fan filter design to offer an attractive PSU for users who want a true top-tier product.Featuring a rugged build quality, the PowerPlay series measures only 160mm in length, therefore comfortably fitting into almost any system supporting ATX format PSU’s and leaving plenty of space for easy cable management.This combination of efficiency, performance and build design makes the PowerPlay series a true top-of-the-line model leading Chieftronic’s PSU line-up.
LongProductName - 1200W, 100-240V 13.0A, 47-63Hz, 20+4-pin ATX, ATX 12V 2.53, 80 PLUS Platinum, 160x150x87 mm
LongSummaryDescription - Chieftec GPU-1200FC. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 160 mm, Height: 86 mm
Manufacturer - Chieftronic
Manufacturer_code - GPU-1200FC
Name - Chieftronic GPU-1200FC, PC power supply (black/red, 8x PCIe, cable management, 1200 watts)
Packaging data - Package weight - 3.87 kg
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.53
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - No
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 8
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,700 mm
Ports & interfaces - Peripheral (Molex) power cable length - 700
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,500 mm
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 14 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1200 W
producerCode - GPU-1200FC
productName - Chieftec GPU-1200FC power supply unit 1200 W 20+4 pin ATX ATX Black, Red
ProductName - GPU-1200FC
productSize - Normal
ShortSummaryDescription - Chieftec GPU-1200FC, 1200 W, 100 - 240 V, 47 - 63 Hz, 14 A, Active, 130 W
sizeX - 239
sizeY - 132
sizeZ - 310
Technical details - Compliance certificates - CE
Technical details - Sustainability certificates - CE
Technical details - Sustainability compliance - Yes
Title - Chieftec GPU-1200FC power supply unit 1200 W 20+4 pin ATX ATX Black, Red
URL - https://www.chieftec.eu/products-detail/323/PowerPlay_Platinum_SERIES/524/GPU-1200FC
WarrantyInfo - 5 Years
warrantyLength - 24
warrantyType - G
Weight - 3,87
weight - 3606
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 3.46 kg
Weight & dimensions - Width - 150 mm
