Accessories included - PoE+ 2-Port Gigabit Extender Regenerator User manual
Antenna - Not applicable
Brand - Intellinet
BrandPartCode - 561266
Category - Network Switches
Certificates - FCC Class A CE
Certificates - Certification - FCC Class A, CE
Color - Black
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2048 entries
Data transmission - Packet buffer memory - 0.256 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 6 Gbit/s

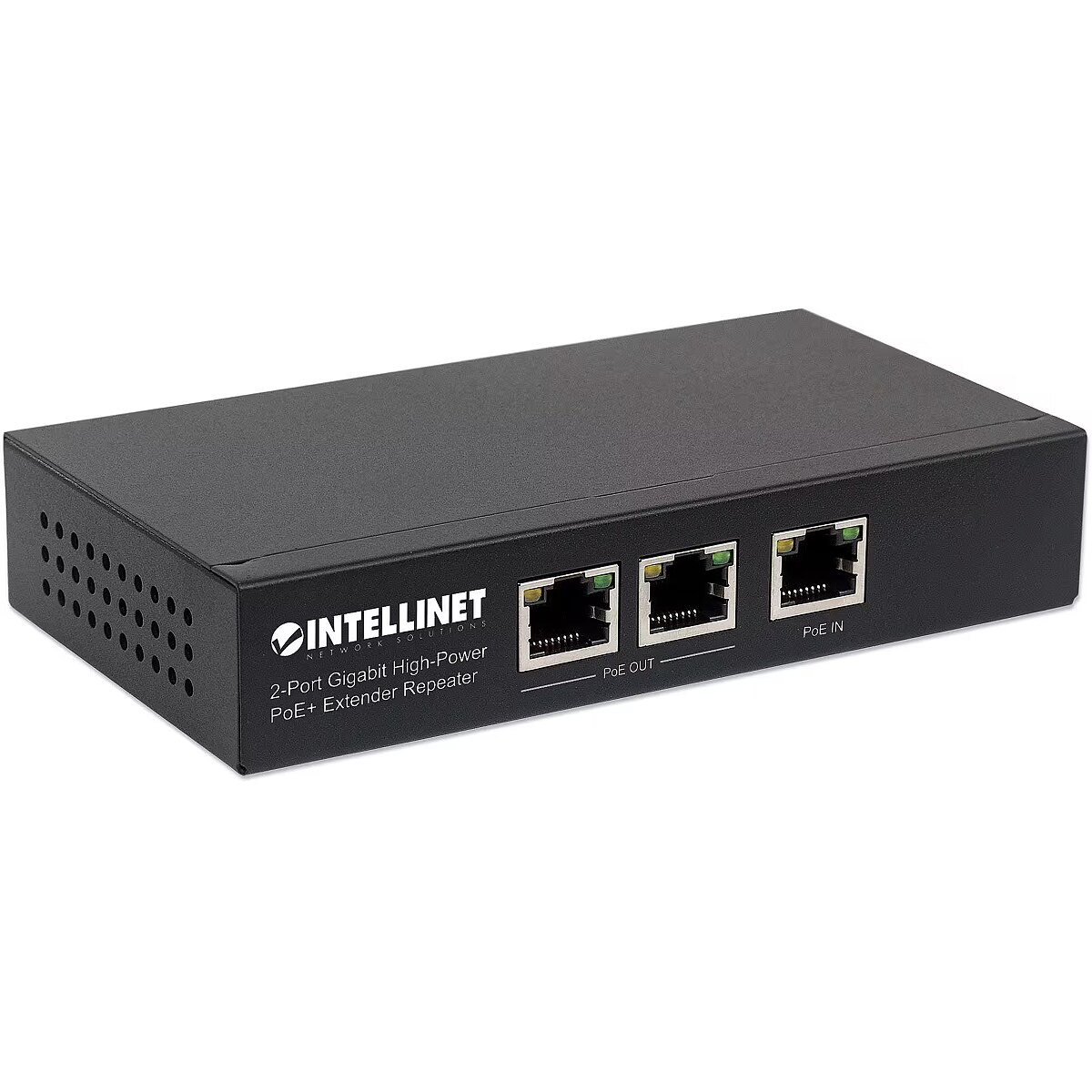

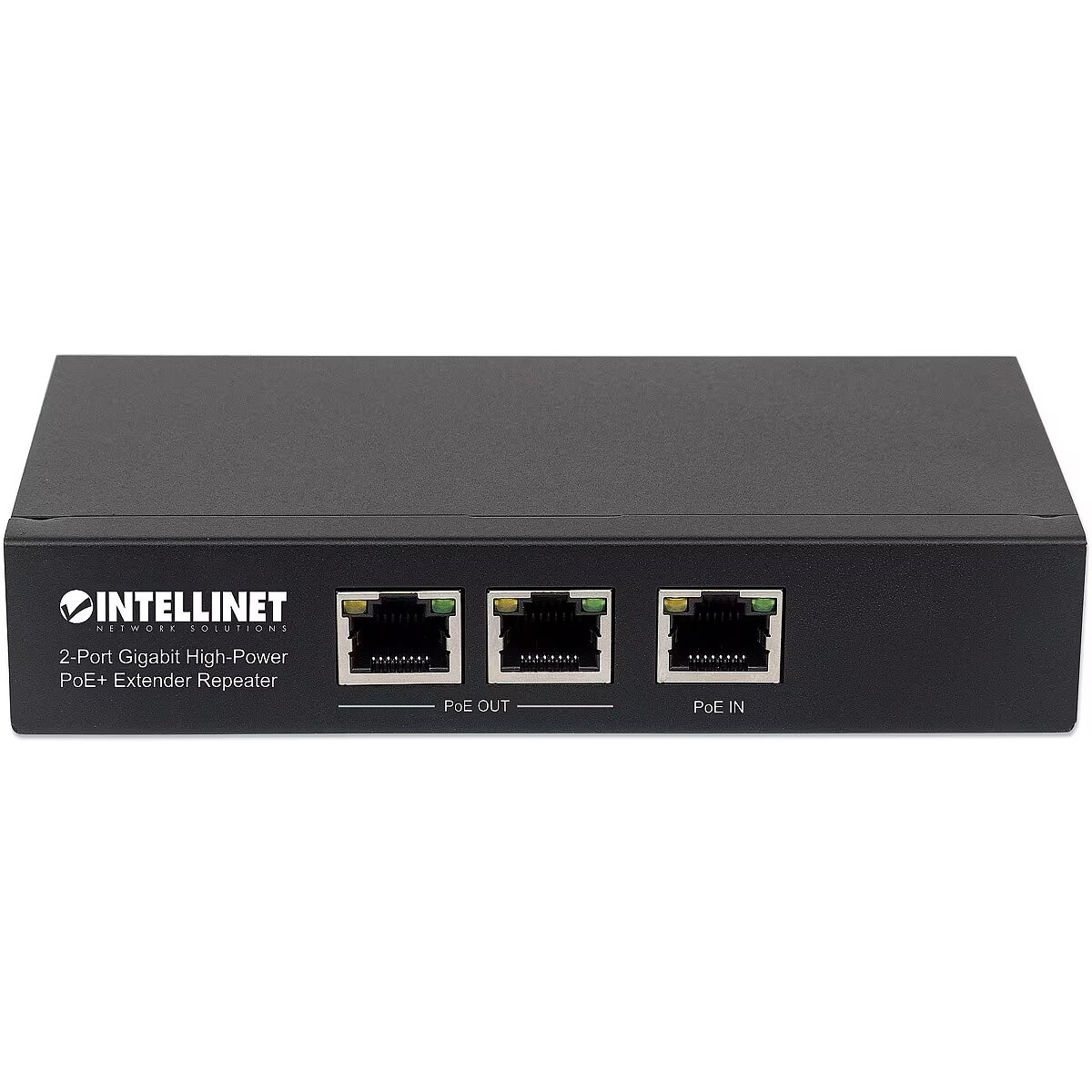

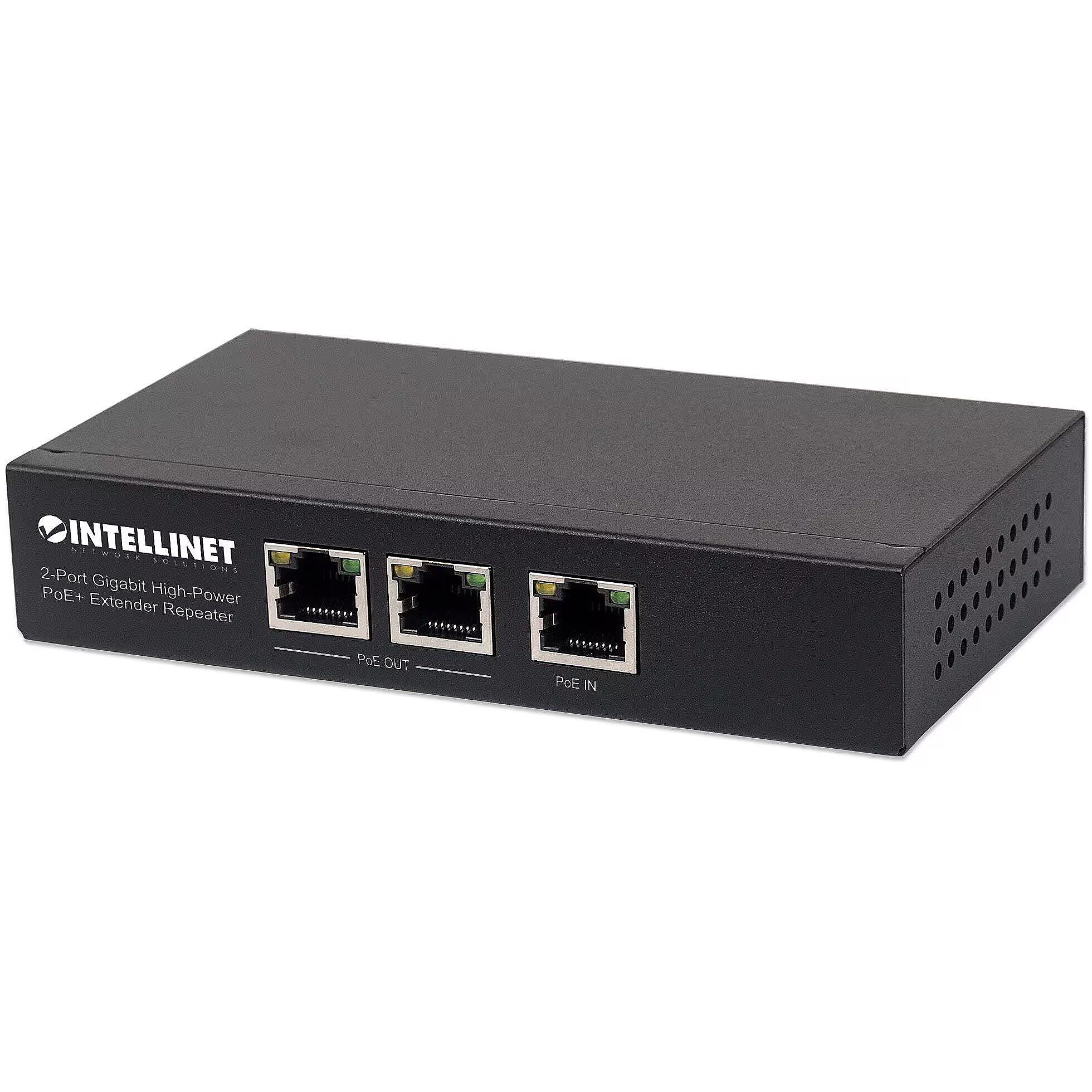

Description - PoE+ 2-Port Gigabit Extender Regenerator It allows you to connect and power two PoE devices such as network cameras, wireless access points or VoIP phones from one PoE power supply or the PSE port of a PoE switch Doubles the connection distance between PoE devices from 100 meters to 200 meters Save time and money by using your existing cable for power and data transmission 10/100/1000 Mbps bandwidth, provides up to 25W of power for connected PoE devices Allows powering of IEEE 802.3af/at PoE compliant devices only, non-PoE compliant devices can only receive data Does not require additional power supply, powered directly from the PoE input port Compatible with IEEE 802.3at/af compliant PoE (PSE) adapters and switches Compatible with IEEE 802.3at/af compliant devices (PD). PoE-powered 3-port Gigabit switch with PoE Passthrough Fully NDAA compliant
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Black
dimension depth - 120 mm
dimension height - 95 mm
Dimensions - 28 x 140 x 77 mm
dimension weight - 353 g
dimension width - 165 mm
ean - 766623561266
Environment requirements - Operating temperature: -10 - 45°C (14 - 113°F) Storage temperature: -40 - 70°C (-40,158°F) Humidity: 5 - 90% RH, non-condensing
GTIN - 0766623561266
GTIN - 766623561266
guarantee - 36
guarantee_type - external
I/O ports - 3 x 10/100/1000 Mbit/s PoE
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Extend the range of a PoE connection. The Intellinet Network Solutions 2-Port Gigabit High-Power PoE+ Extender Repeater extends connection distances from a PoE source to two output devices up to 100 m (328 ft.) via Cat5e or Cat6 cable. The PoE+ extender does not need any additional power supply, as it draws the power it needs from the PoE input. Reduce Wiring Costs Avoid the expense of running AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port and use the existing Cat5e/6/6a cabling to deliver DC power as well as transfer data. Power over Ethernet 802.3at Compliant The Intellinet Network Solutions 2-Port Gigabit High-Power PoE+ Extender Repeater supports the IEEE 802.3at protocol. The repeater forwards data at Gigabit speeds and offers up to 30 watts of input power to a connected IEEE 802.3af- or IEEE 802.3at-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.). Simple Installation Simply connect the "PoE In" port with your PoE injector or PoE switch, and connect the "PoE Out" ports with the PoE devices that you wish to connect (e.g., a VoIP phone and a PoE network camera). That's it. This product was designed to be as easy as possible to set up and use.
LongProductName - 2-Port Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal
LongSummaryDescription - Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 3. MAC address table: 2048 entries, Switching capacity: 6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE)
Management, monitoring, configuration -
Management features - Switch type - Unmanaged
name - Extender PoE+ 2-ports Gigabit 802.3at/af
Network - 10G support - No
Network - Cable types supported - Cat5, Cat5e
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Network architecture - GigabitEthernet
Number of antennas - Not applicable
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 45 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - MAC address table: 2048 entries Memory buffer: 256 kB Bus bandwidth: 6 Gbps
Packaging content - Manual - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 3
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Power - Power consumption (typical) - 30 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 25 W
Power supply - Maximum PD output power: 25W Input voltage: compliant with IEEE 802.3af/at PSE, 30W max., 52-55V DC
producer - Intellinet
ProductName - 2-Port Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal
Security -
ShortSummaryDescription - Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Software -
Special functions - LED signaling for PoE power supply and data transmission Fanless design ensures quiet operation Compact metal housing Mounting holes on the bottom allow for optional wall or ceiling mounting
Standards - 802.3
Standards - 802.3ab
Standards - 802.3af
Standards - 802.3at
Standards - 802.3u
System Requirements -
Title - Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal
URL - https://intellinetnetwork.eu/catalogsearch/result/?q=561266
vendpn - 561266
WarrantyInfo - 3 Year
Weight - 240 g
Weight & dimensions - Depth - 77 mm
Weight & dimensions - Height - 28 mm
Weight & dimensions - Weight - 240 g
Weight & dimensions - Width - 140 mm
