2.5GbE LAN Ports - 1
10/100/1000M LAN Ports - 4
Accessories included -
Antenna - Fixed external
Antenna - Antenna design - External
Antenna - Antennas quantity - 8
Antenna - Detachable antenna(s) - No
Antenna > Antennas quantity - 8x External; 4 x Internal
Antenna > Antenna type - External/Internal
Available bandwidth - 16000 Mbps
Brand - ASUS
BrandPartCode - 90IG06W0-MU2A10
category - Peripherals|Networking & WLAN|Routers
Category - Root/Electronics/Networks and communication/Routers
Category - Wireless Routers
Category Code - WRO
Category_1 - Network and Servers
Category_2 - Network - Routers
category_en - Computers & Components > Network products > Routers (Wi-Fi)
category_lv - Datortehnika > Tīkla produkti > Maršrutētāji (Wi-Fi)
category_ru - Datortehnika > Tīkla produkti > Maršrutētāji (Wi-Fi)
CnCode CnCode - 85176200
code - 90IG06W0-MU2A10
Code - 90IG06W0-MU2A10
Color - Black
Description - GT-AXE16000 quad-band Wi-Fi 6E (802.11ax) gaming router, new 6GHz bandwidth, two 10G ports, 2.5G WAN port, dual WAN, AiMesh support, VPN Fusion, tri-level gaming acceleration and free network security suite World's first quad-band Wi-Fi 6E-enabled gaming router - ultra-fast quad-band WiFi 6E (802.11ax) router delivers high transfer speeds of up to 16,000 Mbps New 6 GHz frequency band - expanded channels and support for more simultaneously connected devices, lower latency and less interference. Extended range - exclusive ASUS RangeBoost Plus technology provides extended range and improved coverage. Flexible AiMesh configuration - dedicated backhaul on 5GHz or 6GHz using ASUS AiMesh routers - for greater flexibility in device selection Dual 10G ports - enjoy up to 10x faster data transfer speeds for bandwidth-intensive tasks with two 10Gbps WAN/LAN ports. 2.5Gb/s WAN port - the 2.5Gb/s port prioritises all network traffic and allows you to make the most of the potential of the Wi-Fi 6 standard. Three-level game acceleration function speeds up the exchange of game data packets at every stage of their journey - from the device to the game server
Description - ROG Rapture GT-AXE16000 GT-AXE16000 quad-band WiFi 6E (802.11ax) gaming router, new 6 GHz band, dual 10G ports, 2.5G WAN port, dual WAN, AiMesh support, VPN Fusion, Triple-level game acceleration and free network security - World's first quad-band WiFi 6E gaming router – Ultrafast WiFi 6E (802.11ax) quad-band WiFi router boosts speeds up to 16000 Mbps - New 6 GHz frequency band – Wider channels and higher capacity delivers higher performance, lower latency, and less interference. - Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage. - Flexible AiMesh configuration – Dedicated 5 GHz or 6 GHz backhaul using ASUS AiMesh routers for more flexible device options - Dual 10G ports – Enjoy up to 10X-faster data-transfer speeds for bandwidth-demanding tasks with two 10 Gbps WAN/LAN ports. - 2.5G WAN port – 2.5 Gbps port prioritizes all network traffic, and unlocks the full potential of WiFi 6. - Triple-level game acceleration - Accelerate game traffic every step of the way — from device to game server
description_en - Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard:vWi-Fi 6E (802.11ax)
WLAN data transfer rate (max): 4804 Mbit/s
USB port:vYes
Ethernet LAN (RJ-45) ports: 6
Ethernet LAN: Yes
Ethernet LAN interface type: 10 Gigabit Ethernet
Antennas quantity: 8
Weight: 2.425 kg
Product colour: Black
description_lv - Wi-Fi josla: Tri-band (2,4 GHz / 5 GHz / 6 GHz)
Labākais Wi-Fi standarts: vWi-Fi 6E (802.11ax)
WLAN datu pārraides ātrums (maks.): 4804 Mbit/s
USB ports: Jā
Ethernet LAN (RJ-45) porti: 6
Ethernet LAN: Jā
Ethernet LAN interfeisa tips: 10 Gigabit Ethernet
Antenu skaits: 8
Svars: 2,425 kg
Produkta krāsa: melna
description_ru - Диапазон Wi-Fi: Tri-диапазон (2,4 ГГц/5 ГГц/6 ГГц)
Лучший стандарт Wi-Fi: vWi-Fi 6E (802.11ax)
Скорость передачи данных WLAN (макс): 4804 Мбит/с
USB-порт: Да
Порты Ethernet LAN (RJ-45): 6
Локальная сеть Ethernet: Да
Тип интерфейса Ethernet LAN: 10 Gigabit Ethernet
Количество антенн: 8
Вес: 2,425 кг
Цвет товара: Черный
Design - LED indicators - Activity, LAN, Power, WAN
Design - Product colour - Black
Design - Product type - Tabletop router
dimension depth - 140 mm
dimension height - 390 mm
Dimensions -
dimension weight - 4232 g
dimension width - 400 mm
EAN - 4711081263838
ean - 4711081263838
Eans - 4711081263838
EAN_code - 4711081263838
Features - Built-in processor - Yes
Features - Flash memory - 256 MB
Features - Internal memory - 2048 MB
Features - Processor cores - 4
Features - Processor frequency - 2000 MHz
Features - Works with Amazon Alexa - Yes
Features > Mesh Support - Yes
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
Full Description Line - GT-AXE1600|Wireless Router|Available bandwidth 16000 Mbps|Mesh|Wi-Fi 6|Wi-Fi 6e|USB 2.0|USB 3.2|4x10/100/1000M|1x2.5GbE|Number of antennas 12|Wireless Frequency Range 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz|Included Accessories RJ-45 Cable;Power Adapter;Quick Start Guide;Warranty Card|Power supply requirements AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current ； 19.5 V with max. 3.33 A current
gross_weight - 2.5 kg
GTIN - 0195553263825
GTIN - 195553263825
GTIN - 0195553263832
GTIN - 195553263832
GTIN - 4711081263838
guarantee - 36
guarantee_type - normal

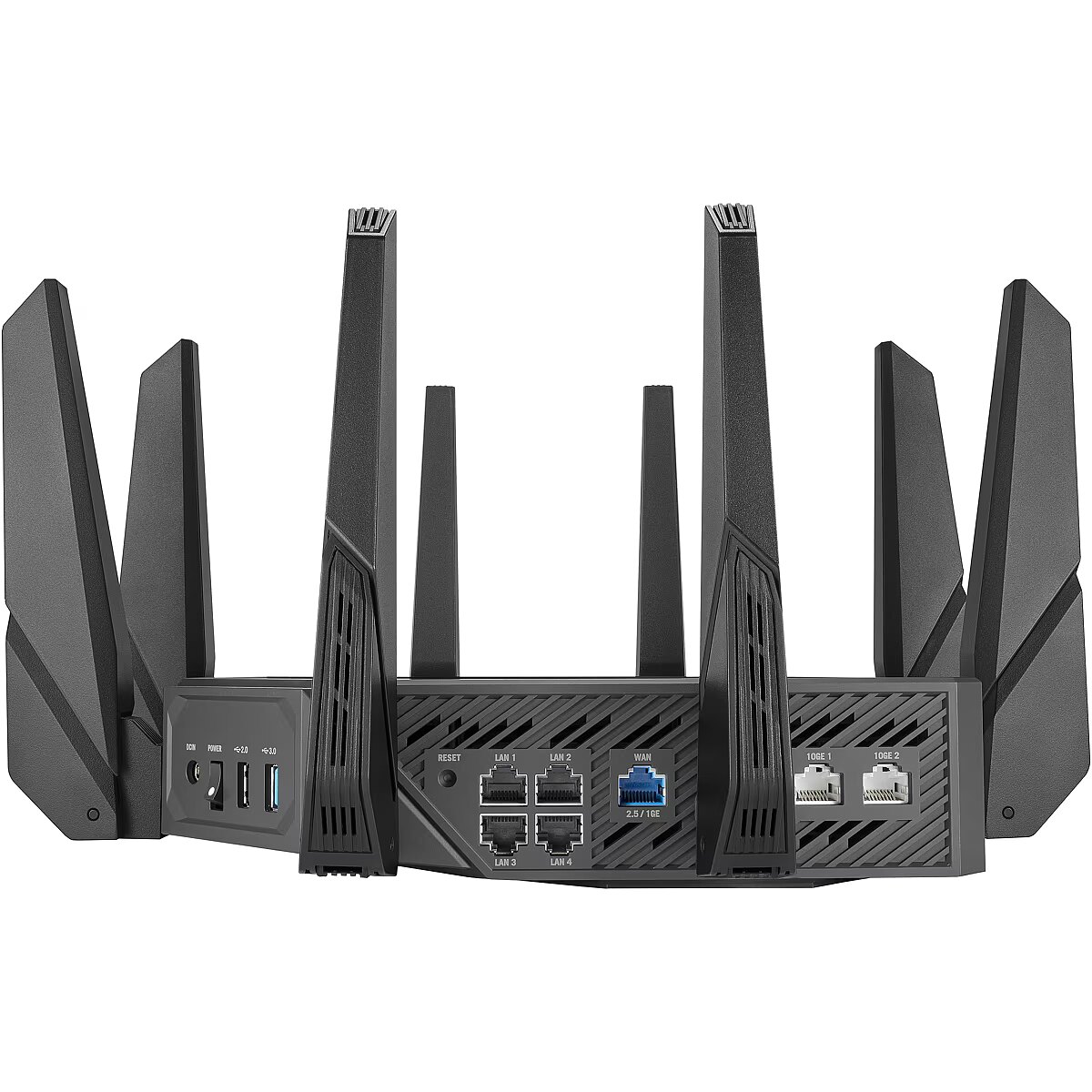

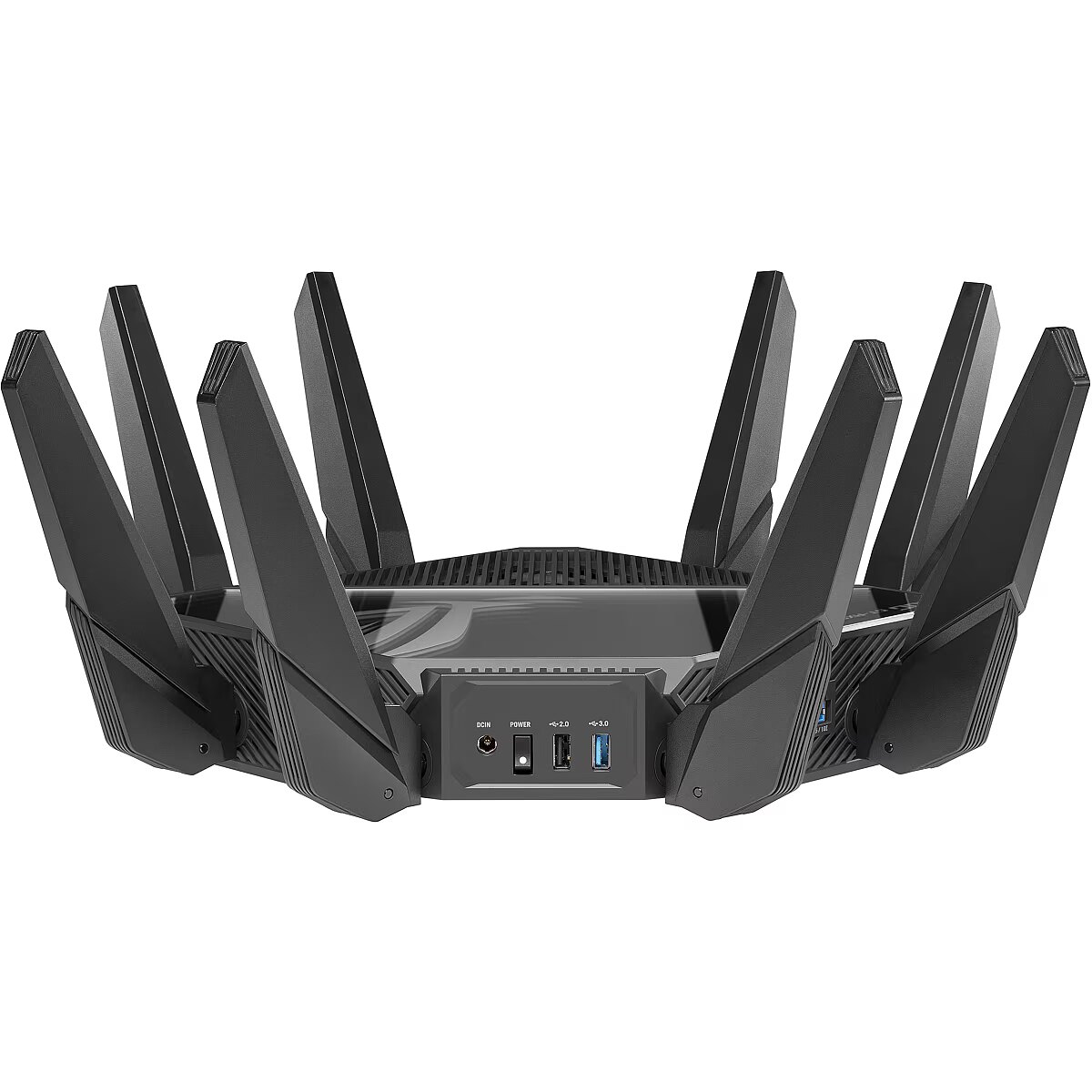

I/O ports - 1 x USB 2.0
I/O ports - 1 x USB 3.0
I/O ports - 1 x WAN (RJ-45)
I/O ports - 2 x 10 Gbit/s
I/O ports - 4 x 10/100/1000 Mbit/s
Included Accessories - RJ-45 Cable;
Power Adapter;
Quick Start Guide;
Warranty Card
LAN \ WAN ports - 2
Link - https://rog.asus.com/networking/rog-rapture-gt-axe16000-model/
LongDesc - GT-AXE16000 quad-band WiFi 6E (802.11ax) gaming router, new 6 GHz band, dual 10G ports, 2.5G WAN port, dual WAN, AiMesh support, VPN Fusion, Triple-level game acceleration and free network security- World's first quad-band WiFi 6E gaming router – Ultrafast WiFi 6E (802.11ax) quad-band WiFi router boosts speeds up to 16000 Mbps- New 6 GHz frequency band – Wider channels and higher capacity delivers higher performance, lower latency, and less interference.- Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage.- Flexible AiMesh configuration – Dedicated 5 GHz or 6 GHz backhaul using ASUS AiMesh routers for more flexible device options- Dual 10G ports – Enjoy up to 10X-faster data-transfer speeds for bandwidth-demanding tasks with two 10 Gbps WAN/LAN ports.- 2.5G WAN port – 2.5 Gbps port prioritizes all network traffic, and unlocks the full potential of WiFi 6.- Triple-level game acceleration - Accelerate game traffic every step of the way — from device to game serverThe world's first quad-band WiFi 6E gaming routerThe trailblazing ROG Rapture GT-AXE16000 is the world's very first quad-band WiFi 6E gaming router, delivering incredible speeds of up to 16000 Mbps. We've unlocked the full potential of the four frequency bands — 2.4 GHz, two 5 GHz bands, and 6 GHz — with 160 MHz channels in the 5 GHz and 6 GHz bands to bring you the fastest speeds possible.Experience ultimate connectivityWith four frequency bands available, you can dedicate each band to different devices for faster and smoother WiFi connections. It also gives you even more flexible options for connecting ASUS AiMesh-compatible routers as mesh nodes if you want to create a whole-home mesh system.WiFi 6E - 6 GHz bandWiFi 6E gives you up to seven* additional high-speed 160 MHz channels, for multi-gigabit speeds with stable and consistent connections. It dramatically increases network capacity while reducing bandwidth congestion, delivering higher performance for every WiFi 6E device.Built for the ultimate speedROG Rapture GT-AXE16000 is powered by the latest 2.0 GHz quad-core 64-bit CPU and WiFi chipsets, giving it the performance to handle even the most demanding gaming networks. Maximum network throughput is increased by up to 18%* for lightning-fast responsiveness, accelerated data transfers and an optimized gaming experience.Built for the ultimate speedROG Rapture GT-AXE16000 is powered by the latest 2.0 GHz quad-core 64-bit CPU and WiFi chipsets, giving it the performance to handle even the most demanding gaming networks. Maximum network throughput is increased by up to 18%* for lightning-fast responsiveness, accelerated data transfers and an optimized gaming experience.Built for theultimate coverageASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, which can improve coverage and WiFi performance significantly compared to other models without RangeBoost. By using next-gen flagship Broadcom WiFi chipsets with the exclusive ASUS RF technology, RangeBoost Plus leverages multiple upgraded ASUS features that improve WiFi signal range and overall coverage by up to 38%*.To infinity and beyondFor the ultimate style, ROG Rapture GT-AXE16000 has an infinity mirror on the top of the case that adds a unique touch to the multiple Aura RGB lighting effects. GT-AXE16000 shows your true style while gaming!Game without boundariesVPN Fusion lets you run both a VPN and an ordinary internet connection — simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.
LongProductName - W-Fi 6E, 6GHz, 256mb, USB, IPv6, VPN
LongSummaryDescription - ASUS ROG Rapture GT-AXE16000. WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 6E (802.11ax), WLAN data transfer rate (max): 4804 Mbit/s. Ethernet LAN interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Beamforming frequency: 6 GHz. Product type: Tabletop router, Product colour: Black, LED indicators: Activity, LAN, Power, WAN
Management, monitoring, configuration -
Management features - Intelligent Mesh technology - Yes
Management features - Reset button - Yes
Management features - WPS push button - Yes
Manufacturer - Asus
Manufacturer_code - 90IG06W0-MU2A10
Mesh support - Yes
Mobile network - 3G - No
Mobile network - 4G - No
Mobile network - 5G - No
Model - GT-AXE16000
Model - GTAXE16000
Model name - GT-AXE1600
Name - ASUS GT-AXE16000
Name - ASUS GT-AXE16000, router (black)
name - ASUS ROG Rapture GT-AXE16000 WLAN Gaming Router
name - GT-AXE16000 router WiFi 6E 2xWAN 10Gb
Name - Wifi 6 802.11ax Quad-band Gigabit Gaming Router | ROG GT-AXE16000 Rapture | 802.11ax | 1148+4804+4804+48004 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 4 | Mesh Support Yes | MU-MiMO Yes | No mobile broadband | Antenna type External/Internal | 1xUSB 3.2, 1x USB 2.0
Network - Built-in FTP server - Yes
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000,2500,10000 Mbit/s
Network - Ethernet LAN interface type - 10 Gigabit Ethernet
Network - Media server - Yes
Network - Number of guest networks (2.4 GHz) - 3
Network - Number of guest networks (5 GHz) - 3
Network - Port forwarding - Yes
Network - Port triggering - Yes
Network - Support Samba (storage) - Yes
Network - VPN Passthrough - Yes
Network - VPN server - IPSEC, PPTP, OVPN
Network architecture - GigabitEthernet
Network Device Type - Wireless Router
Number of antennas - 8
Number of antennas - 12
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operating frequency - 6 GHz
Other features -
Other features > Ethernet LAN (RJ-45) ports - 4
Other features > USB ports quantity - 1xUSB 3.2, 1x USB 2.0
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 435.00 mm
Package features > Gross height (mm) - 426.00 mm
Package features > Gross width (mm) - 589.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16 pc(s)
Package features > Paper/Pasteboard - 1100.00 g
Package features > PET - 1 g
Package features > Plastic (No PET) - 400.00 g
Package features > Tare other - 2 g
Package features > Tare weight (kg) - 1.50 kg
Package features > Volume (m3) - 0.11 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick start guide - Yes
Packaging content - Warranty card - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Frequency band - 2.4 GHz/5 GHz/6 GHz
Performance > Wi-Fi data rate (max) - 1148+4804+4804+48004 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 6
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces > WAN connection - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 110 - 240 V
Power - Output current - 3.42 A
Power - Output voltage - 19 V
Power - Power source type - DC
Power supply -
Power supply requirements - AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current ； 19.5 V with max. 3.33 A current
producer - Asus
Producer - ASUS
Producer - Asus
ProducerCode - GT-AXE16000
Producer product family - Wifi 6 802.11ax Quad-band Gigabit Gaming Router
Producer product name - ROG GT-AXE16000 Rapture
ProductName - ROG Rapture GT-AXE16000
Security -
Security - Beamforming frequency - 6 GHz
Security - Firewall - Yes
Security - Parental control - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 58.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 41.5 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 18.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 43.5 cm
ShortDescription -
ShortSummaryDescription - ASUS ROG Rapture GT-AXE16000, Wi-Fi 6E (802.11ax), Tri-band (2.4 GHz / 5 GHz / 6 GHz), Ethernet LAN, Black, Tabletop router
Software -
Special functions -
Standards - 802.11ax
Supported operating systems - Windows 11
System Requirements -
Technical details > Gross weight - 3.93 kg
Technical details > Net weight - 2.43 kg
Technical details > Other features - AiProtection Pro, Router Security Assessment, Malicious site blocking, Two-Way IPS, Infected Device Prevention and Blocking
Technical details > Producer - Asus
Title - ASUS ROG Rapture GT-AXE16000 wireless router 10 Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 6 GHz) Black
title_en - Asus GTAXE16000 Router 2.4 GHz / 5 GHz / 6 GHz
title_lv - Asus GTAXE16000 Maršrutētājs 2.4 GHz / 5 GHz / 6 GHz
title_ru - Asus GTAXE16000 Mаршрутизатор 2.4 GHz / 5 GHz / 6 GHz
Type - xDSL
Unit Box Height - 0.4
Unit Box Length - 0.405
Unit Box Width - 0.16
Unit Brutto Volume - 0.0264018 cubm
Unit Gross Weight - 4.575 kg
Unit Net Weight - 2.425 kg
URL - https://rog.asus.com/networking/rog-rapture-gt-axe16000-model/spec
USB 2.0 Fixed ports - Yes
USB 3.2 Fixed ports - Yes
Vendor Homepage - rog.asus.com/networking/rog-rapture-gt-axe16000-model/
vendpn - GT-AXE16000
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - WAN connection type - RJ-45
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 1
weight - 2.425 kg
Weight & dimensions - Weight - 2.42 kg
Wi-Fi 6 Network standard - Yes
Wi-Fi 6e Network standard - Yes
Wireless Frequency Range - 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Wireless LAN features - Wi-Fi band - Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 1148 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 4804 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 4804 Mbit/s
Wireless LAN features - WLAN data transfer rate (third band) - 4804 Mbit/s
Wireless LAN features > Wi-Fi band - 802.11ax
Wireless LAN features > Wi-Fi standards - 802.11a/b/g/n/ac/ax/ax
