Antenna - Antenna direction type - Omni-directional
Antenna - Antenna features - Integrated antenna
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 5
Antenna - Antenna type - Internal
Brand - TP-Link
BrandPartCode - EAP225
Category - Wireless Access Points
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - LED indicators - Power, WLAN
Design - On/off switch - Yes
Design - Placement - Ceiling, Wall
Design - Product colour - White
Design - Reset button - Yes
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Airtime Fairness (ATF) - Yes
Features - Band steering - Yes
Features - BeamForming - Yes
Features - Cabling technology - 10/100/1000Base-T(X)
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Maximum data transfer rate - 1350 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 450 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 867 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Features - Quality of Service (QoS) support - Yes
Features - Rate limiting - Yes
Features - Transmitting power (CE) - 23 dBm
Features - Transmitting power (FCC) - 24 dBm
Features - Virtual LAN features - VLAN mapping
Features - VLAN support - Yes
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
GTIN - 6935364096915
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Superior Wi-Fi Speeds with MU-MIMO TechnologyOutfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.Cloud Centralized Management- Anytime, AnywhereOmada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.Facebook check-in and SMS authentication expands your social influence in secured waysCaptive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.Multiple PoE Options for Easy InstallationEAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.Easy Management with the Omada AppFollow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.Meet Our New Hero Product!The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
LongProductName - 802.3af/at PoE, 12.6W, 2.4GHz: 4dBi x 3, 5GHz: 5dBi x 2, 2.4GHz and 5GHz, FCC, RoHS
LongSummaryDescription - TP-Link Omada EAP225. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1350 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Management features - Syslog - Yes
Management features - Web-based management - Yes
Mobile network - SIM card slot - No
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - AC adapter included - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of products included - 1 pc(s)
Packaging content - PoE adapter included - Yes
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 340 mm
Packaging data - Package height - 65 mm
Packaging data - Package type - Box
Packaging data - Package weight - 910 g
Packaging data - Package width - 228 mm
Performance - Compatible operating systems - Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - Output current - 1.5 A
Power - Output voltage - 12 V
Power - Power consumption (typical) - 10.15 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - Passive PoE
ProductName - EAP225
Security - Access Control List (ACL) - Yes
Security - MAC address filtering - Yes
Security - Number of SSID supported - 16
Security - Security algorithms - 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
Security - Service Set Identifier (SSID) features - Multiple SSIDs
ShortSummaryDescription - TP-Link Omada EAP225, 2.4 GHz, 5 GHz, 1350 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100,1000 Mbit/s
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS

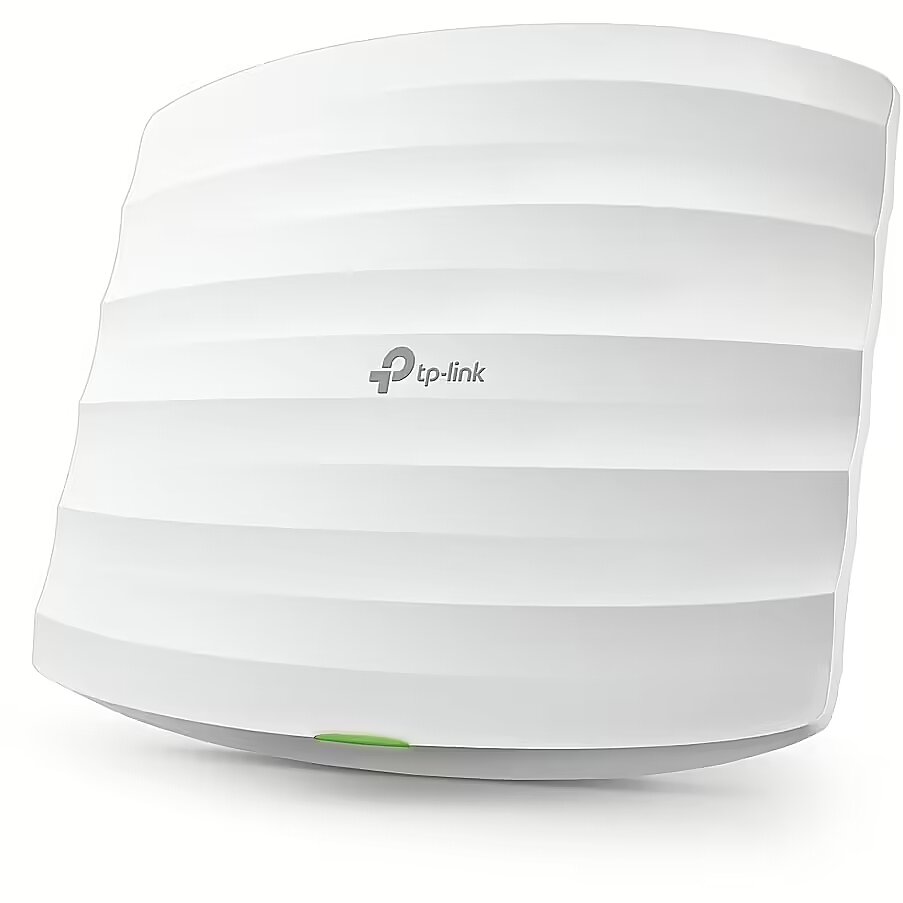

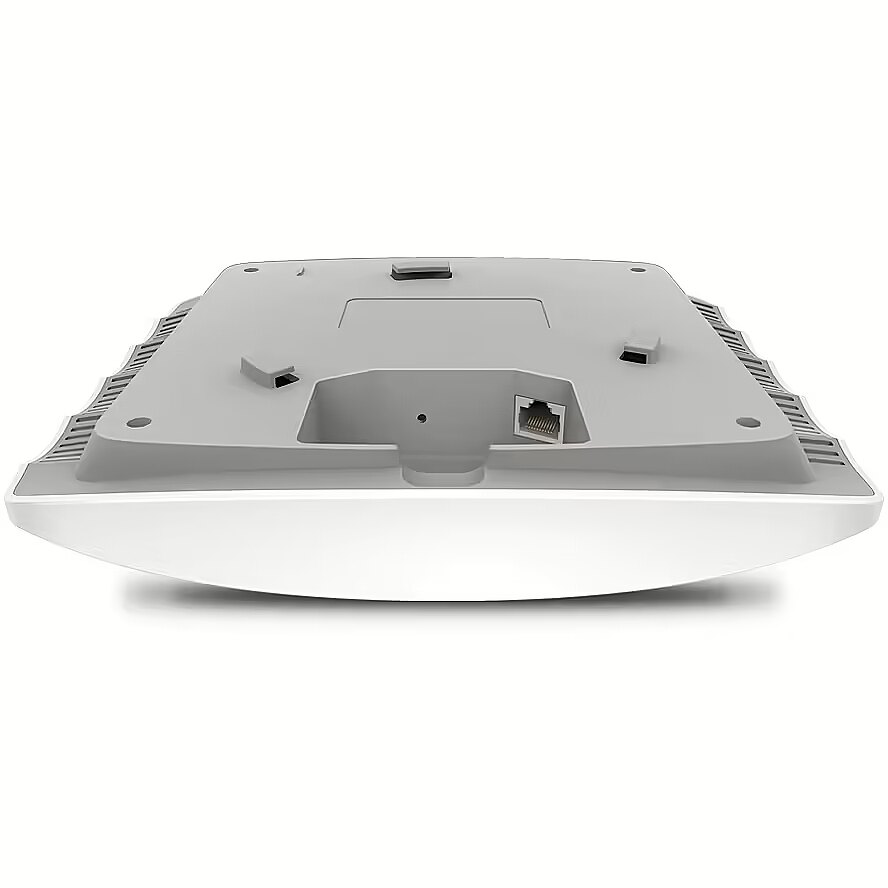

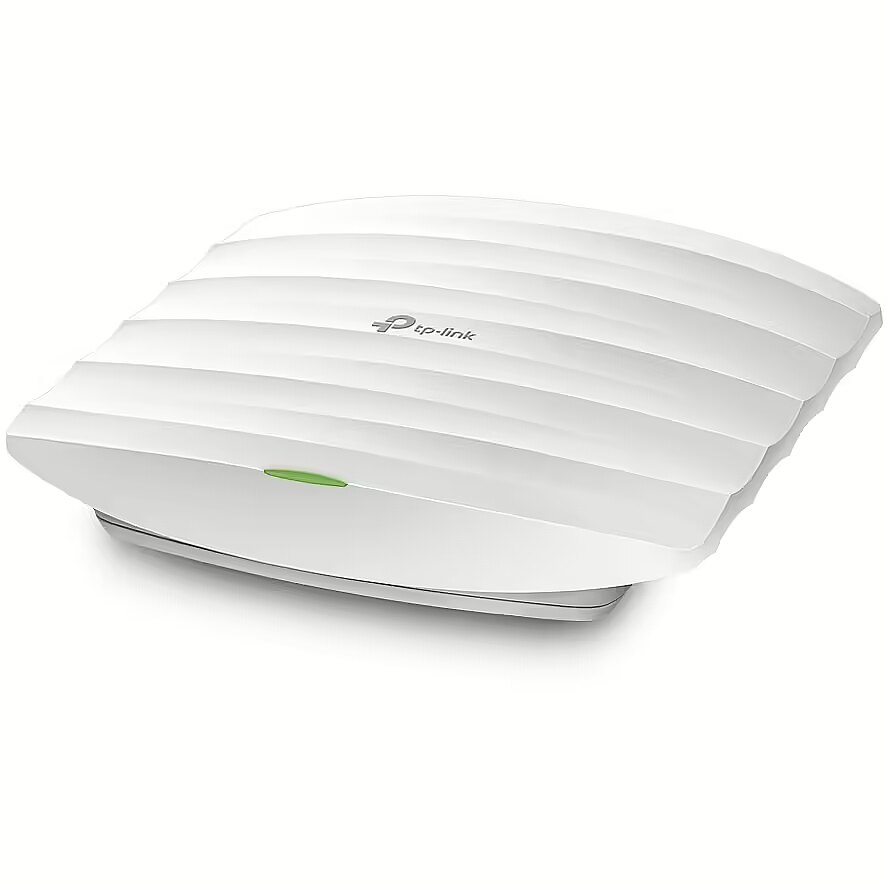

Title - TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)
URL - https://www.tp-link.com/us/business-networking/ceiling-mount-access-point/eap225/
WarrantyInfo -
Weight & dimensions - Depth - 181.5 mm
Weight & dimensions - Height - 37.1 mm
Weight & dimensions - Width - 205.5 mm
