Accessories included - ExpertWiFi EBA63 Access Point RJ-45 Cable Power Supply Warranty Card Quick Start Guide Wall Mount Kit
Antenna - Built-in
Antenna - Antennas quantity - 4
Antenna - Antenna type - Internal
Antenna > Antennas quantity - 4
Antenna > Antenna type - Internal
Brand - ASUS
BrandPartCode - 90IG0880-MO3C00
category - Peripherals|Networking & WLAN|Wireless LAN|Repeaters
Category - Root/Electronics/Networks and communication/Access points
Category - Wireless Access Points
Certificates -
code - 90IG0880-MO3C00
Code - 90IG0880-MO3C00
Color - White
Description - ASUS ExpertWiFi EBA63 AX3000 access point Asus, a renowned electronics manufacturer, has created a device that impresses not only with its performance, but also with its design. The ASUS ExpertWiFi EBA63 access point is a compact device measuring 160 x 160 x 42 mm, which will fit perfectly into any interior without being too conspicuous. Its wide data transmission bandwidth - both 2.4 GHz and 5 GHz - ensures a stable and fast connection regardless of the network load. The access point supports a range of standards, such as 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, IPv4 and IPv6, ensuring compatibility with a variety of devices. The ASUS ExpertWiFi EBA63 offers comprehensive network protection with WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS and SSH protocols. So you can be sure that your data is safe and protected from unauthorized access. Managing the device is extremely intuitive and easy. Device access control, time scheduling are just some of the features that make using the ExpertWiFi EBA63 access point a pleasure. The device has 4 internal antennas that provide a strong and stable signal.
Design - LED indicators - Power

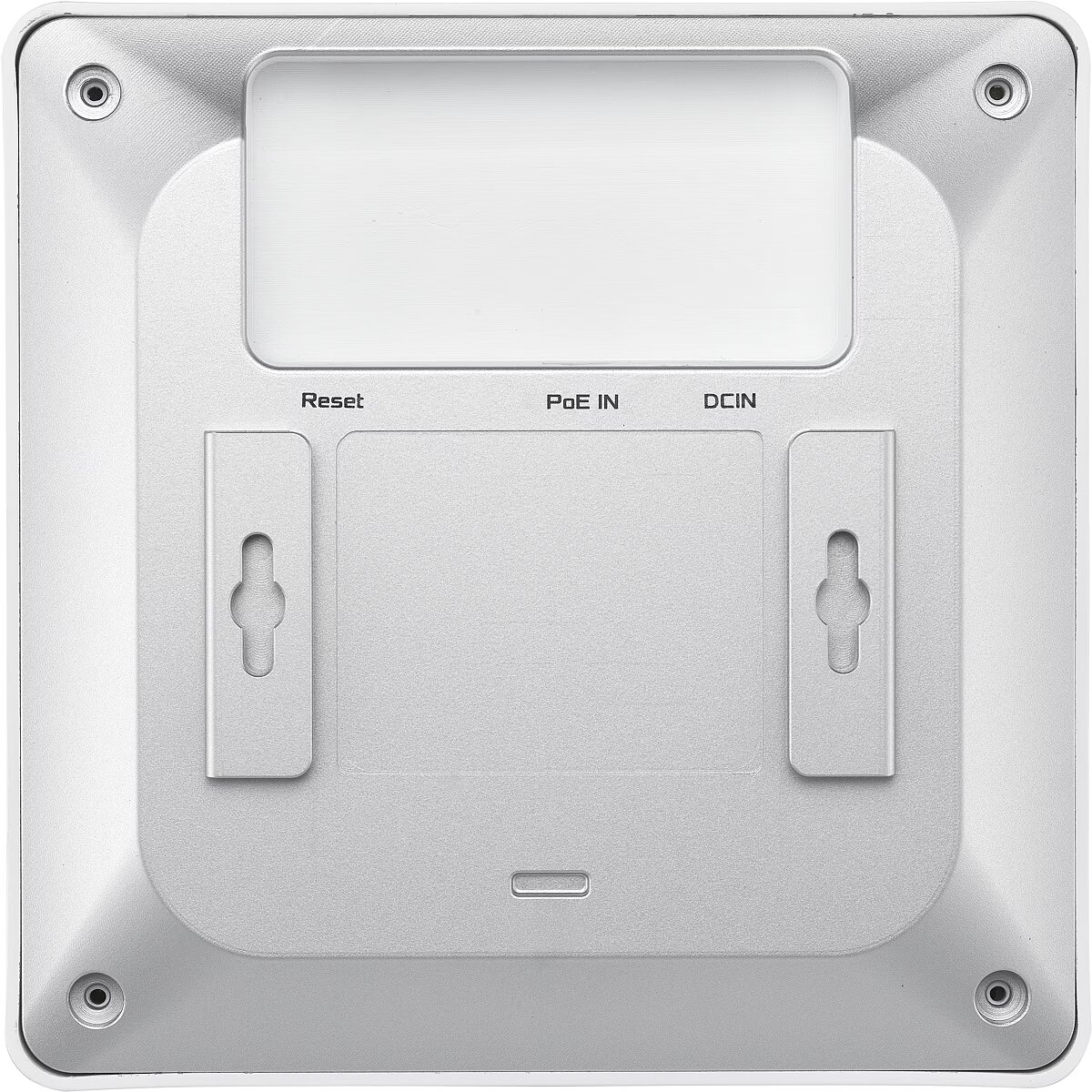

Design - Placement - Ceiling, Wall
Design - Product colour - White
Design - Reset button - Yes
dimension depth - 60 mm
dimension height - 180 mm
Dimensions - 160 x 160 x 42 mm
dimension weight - 811 g
dimension width - 260 mm
EAN - 4711387003442
ean - 4711387003442
Eans - 4711387003442
Environment requirements -
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - BeamForming - Yes
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Frequency band - 2.4 - 5 GHz
Features - Maximum data transfer rate - 2402 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 574 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 2402 Mbit/s
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features - Number of users - 100 user(s)
Features - Spread spectrum method - OFDMA
Features - VLAN support - Yes
Features > Mesh Support - Yes
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
GTIN - 4711387003442
guarantee - 36
guarantee_type - normal
I/O ports - 1 x 10/100/1000 Mbit/s PoE
Link - https://www.asus.com/networking-iot-servers/business-network-solutions/asus-expertwifi/asus-expertwifi-eba63/
LongDesc - ASUS ExpertWiFi EBA63 PoE Access PointYour Business WiFi Expert Within ReachThe ASUS ExpertWiFi EBA63 is a Power over Ethernet (PoE) solution that provides fast, seamless and secure networking, with rich features tailored for small-to-midsized businesses. With its easy scalability, it can effortlessly adapt to your business network needs.Fast, Versatile Connectivity to Accommodate All Business ScenariosThe ASUS ExpertWiFi EBA63 provides seamless connectivity for various business settings, featuring the flexible power options of PoE (Power over Ethernet) and AC adapters. By connecting to a PoE switch or PoE wired router, you can get both power and data transmission over a single Ethernet cable.Extend Your Business Network with ASUS ExpertWiFiASUS ExpertWiFi networking products are designed for easy scalability to fit a variety of SMB scenarios. By integrating ExpertWiFi series products, you can extend your business network coverage and access a complete suite of ExpertWiFi’s software features to boost your business operations. You can also connect the ExpertWiFi products with ASUS AiMesh extendable routers.*The ASUS ExpertWiFi series is compatible with ASUS AiMesh products; however, the functionality of software features is subject to the capabilities of the primary router. The availability of some ExpertWiFi features may also depend on whether the AiMesh router supports them.
LongProductName - AX3000 Dual-Band WiFi 6 (802.11ax) PoE Access Point, support up to 5 SSIDs and VLAN, Self-defined Network, support PoE & PoE+, easy management app, AiMesh compatible
LongSummaryDescription - ASUS EBA63 ExpertWiFi AX3000 Dual-band PoE. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2402 Mbit/s. Security algorithms: IPSec, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPS. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Management, monitoring, configuration - Device access control: Time scheduling Rewarding Custom scheduling Maximum number of device access control profiles: 12 Content filtering rule for maximum device access control: 12 Self-defined network type Employee Guest network Scheduled network Maximum Self-Defined Network Rule: 16 VLAN Wi-Fi Scheduling: one-time access Wi-Fi scheduling: weekly schedule Wi-Fi Sharing: QR code, PDF file Isolated AP Traffic monitoring: Real-time traffic monitoring Wired traffic monitoring Wireless traffic monitoring Wireless network: UTF-8 SSID Wi-Fi MAC address filter Maximum number of MAC filters: 64 Wireless scheduler User interface: WEB: ASUSWRT APPLICATION: ASUS ExpertWiFi application. Administration: Configuration backup and restore Diagnostic tools Feedback system System log Notification when a new device is connected Login Captcha Connection diagnosis Automatic firmware update
Management features - Firmware upgradeable - Yes
Management features - Syslog - Yes
name - Access Point EBA63 AX3000
Name - ASUS EBA63
name - ASUS EBA63 Expert AX3000 PoE Access Point, 3.000 Mbps - weiß
Name - AX3000 Dual-band WiFi Router WiFi 6 | EBA63 | 802.11ax | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | Mesh Support Yes | MU-MiMO No | No mobile broadband | Antenna type Internal
Network architecture - GigabitEthernet
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - AiMesh Quad-core 1.7 GHz processor Wall and ceiling mounting Memory: 256 MB Flash 512 MB RAM Data transmission speed: 802.11a: up to 54 Mbps 802.11b: up to 11 Mbps 802.11g: up to 54 Mbps WiFi 4 (802.11n): up to 300 Mbps WiFi 5 (802.11ac): up to 1734 Mbps WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps WiFi 6 (802.11ax) (5GHz): up to 2402 Mbps
Other features > Ethernet LAN (RJ-45) ports - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 262.00 mm
Package features > Gross height (mm) - 58.00 mm
Package features > Gross width (mm) - 180.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 316 pc(s)
Package features > Paper/Pasteboard - 280.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.33 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Mounting kit - Yes
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 180 mm
Packaging data - Package height - 58 mm
Packaging data - Package type - Box
Packaging data - Package weight - 750 g
Packaging data - Package width - 262 mm
Performance - Built-in processor - Yes
Performance - Flash memory - 256 MB
Performance - Internal memory - 512 MB
Performance - Processor frequency - 1.7 MHz
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC voltage range - 12 V
Power - Input current - 1.5 A
Power - Power over Ethernet (PoE) - Yes
Power supply - PoE 802.3af 12V @ 1.5A DC max (power supply included)
producer - Asus
Producer - Asus
ProducerCode - EBA63
ProductName - EBA63 ExpertWiFi AX3000 Dual-band PoE
Security - WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS SSH
Security - MAC address filtering - Yes
Security - Number of SSID supported - 5
Security - Security algorithms - IPSec, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPS
ShortDescription -
ShortSummaryDescription - ASUS EBA63 ExpertWiFi AX3000 Dual-band PoE, 2.4 GHz, 5 GHz, 2402 Mbit/s, IPSec, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPS, 10,100,1000 Mbit/s
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
System Requirements -
Technical details > Gross weight - 0.75 kg
Technical details > Net weight - 0.42 kg
Technical details > Producer - Asus
Technical details > Producer product family - AX3000 Dual-band WiFi Router WiFi 6
Technical details > Producer product name - EBA63
Title - ASUS EBA63 ExpertWiFi AX3000 Dual-band PoE 2402 Mbit/s White Power over Ethernet (PoE)
URL - https://www.asus.com/networking-iot-servers/business-network-solutions/asus-expertwifi/asus-expertwifi-eba63/
vendpn - EBA63
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight - 426 g
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 42 mm
Weight & dimensions - Weight - 426 g
Weight & dimensions - Width - 160 mm
Wireless LAN features > Wi-Fi band - 802.11ax
Wireless LAN features > Wi-Fi standards - 802.11a/b/g/n/ac/ax
