Antenna - Antenna direction type - Omni-directional
Antenna - Antenna gain level (max) - 4 dBi
Antenna - Antennas quantity - 2
Antenna - Antenna type - Internal
ARTIKEL1 - AC2600 WAVE2 DUALBAND ACC.POINT
ARTIKEL2 - DUAL-BAND UNIFIED ACCESS POINT
Brand - D-Link
BrandPartCode - DWL-8620AP
Category - Wireless Access Points
Design - Certification - CE
Design - Housing material - Plastic
Design - Product colour - White
EANCode - 0790069441219
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - Airtime Fairness (ATF) - Yes
Features - Automatic channel selection - Yes
Features - Band steering - Yes
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Fast roaming - Yes
Features - Maximum data transfer rate - 2533 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 800 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 1733 Mbit/s
Features - MIMO - Yes
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Features - Quality of Service (QoS) support - Yes
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0790069441219
GTIN - 790069441219
GTIN - 0790069441400
GTIN - 790069441400
HERSTELLER - D-LINK
HSTNUMMER - DWL-8620AP
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Enjoy Faster Business with Wave 2The DWL-8620AP is designed for medium to large-scale Wi-Fi networks, delivering fast Wave 2 wireless speeds. It’s highly manageable, it fits into any existing network, and can be scaled to meet future wireless demands.Greater Speeds and Reliable ConnectivityUtilise the full potential of 802.11ac Wave 2. Provide faster connectivity with combined data rates of up to 2.5 Gbps2.It also supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together to act as a single port to double the available bandwidth and maximise the access point’s overall throughput.Increase Network EfficiencyThe DWL-8620AP’s 4 x 4 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.MU-MIMO (Multi-User Multiple Input Multiple Output) simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity.Rapid DeploymentsIt can be ceiling mounted or wall mounted to provide the best wireless coverage. The built-in Power over Ethernet (PoE) port makes deployments faster and means it can be installed in areas without power outlets.Robust ManagementWhen working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple DWL-8620AP units in the Wi-Fi network can be easily and efficiently centrally managed.Automatic Radio Frequency (RF) ManagementRadio Frequency (RF) resource management allows wireless coverage to be managed automatically, providing the best possible coverage for wireless clients.When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When the DWL-8620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.This greatly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-8620AP will automatically adjust its transmission power. If an AP goes down, others will increase their transmission power to expand coverage.Band SteeringIt places clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads speeds.Airtime FairnessEnsures equal airtime given to each client. Increases performance even if slower devices are connected.802.11k Fast RoamingAllows the wireless client to roam seamlessly between access points.802.1p Quality of Service (QoS)Supports 802.1p QoS for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP.Wi-Fi Multimedia (WMM)In the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.
LongProductName - DWL‑8620AP - Wireless AC2600 Wave 2 Dual‑Band Unified Access Point
LongSummaryDescription - D-Link DWL-8620AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2533 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 24.24 W
Management features - Command-line interface (CLI) - Yes
Operational conditions - Operating relative humidity (H-H) - 0 - 40%
Operational conditions - Operating temperature (T-T) - -20 - 65 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - 10 - 90 °C
Packaging content - Number of products included - 1 pc(s)
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 296 mm
Packaging data - Package height - 94 mm
Packaging data - Package weight - 1.47 kg
Packaging data - Package width - 295 mm
Ports & interfaces - DC-in jack - Yes

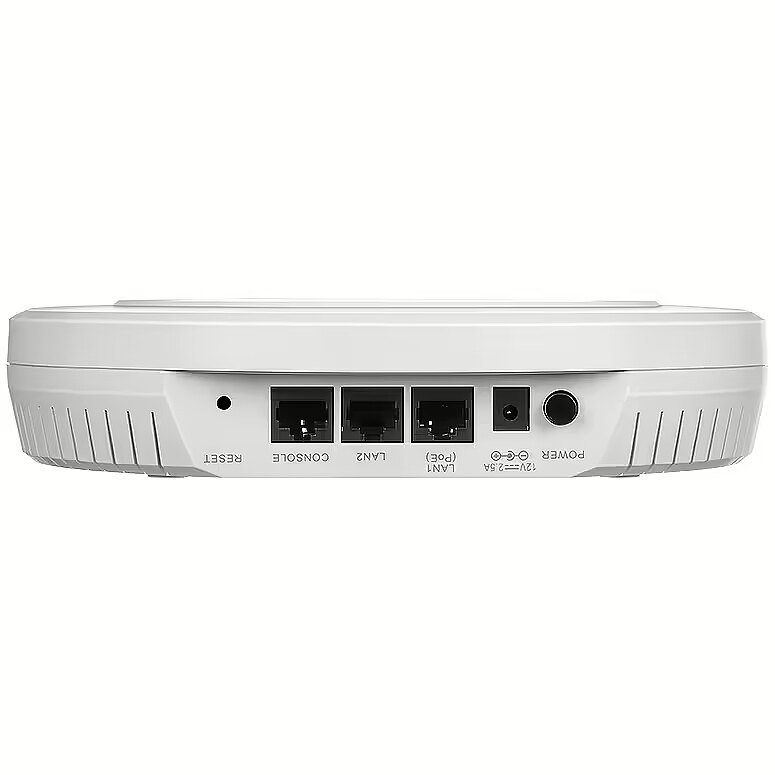

Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - AC input voltage - 12 V
Power - Input current - 2.5 A
Power - Power consumption (max) - 24.24 W
Power - Power over Ethernet (PoE) - Yes
ProductName - DWL-8620AP
Protocols - Management protocols - SNMP v1/v2c/v3
Security - Auto Wireless Distribution System (WDS) - Yes
Security - MAC address filtering - Yes
Security - Number of SSID supported - 32
Security - Security algorithms - AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
ShortSummaryDescription - D-Link DWL-8620AP, 2.4 GHz, 5 GHz, 2533 Mbit/s, AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, 10,100,1000 Mbit/s
Stck_Kart - 5
Stck_Pal - 125
Storno - Y
Technical details - Master (outer) cases per pallet (air) - 24 pc(s)
Technical details - Master (outer) cases per pallet (sea) - 30 pc(s)
Technical details - Pallet gross length - 110 cm
Technical details - Pallet gross weight (air) - 222.3 kg
Technical details - Pallet gross weight (sea) - 272 kg
Technical details - Pallet gross width - 120 cm
Technical details - Pallet height (air) - 144.7 cm
Technical details - Pallet height (sea) - 177.5 cm
Technical details - Products per pallet (air) - 120 pc(s)
Technical details - Products per pallet (sea) - 150 pc(s)
Technical details - Products per shipping (inner) case - 5 pc(s)
Technical details - Shipping (inner) case gross weight - 8.2 kg
Technical details - Shipping (inner) case height - 32.8 cm
Technical details - Shipping (inner) case length - 44.9 cm
Technical details - Shipping (inner) case net weight - 7.33 kg
Technical details - Shipping (inner) case width - 31.2 cm
Title - D-Link DWL-8620AP wireless access point 2533 Mbit/s White Power over Ethernet (PoE)
URL - https://eu.dlink.com/uk/en/products/dwl-8620ap-wireless-ac2600-wave-2-dualband-unified-access-point
WarrantyInfo -
Weight & dimensions - Depth - 220 mm
Weight & dimensions - Height - 47 mm
Weight & dimensions - Weight - 790 g
Weight & dimensions - Width - 220 mm
