Accessories included -
Antenna - Built-in
Antenna - Antenna gain level (max) - 4 dBi
Antenna gain - 4 dBi
Brand - Zyxel
BrandPartCode - WAC6303D-S-EU0101F
Category - Wireless Access Points
Color - White
Description - Network administrators managing complex facilities must understand how users want to use Wi-Fi and how difficult it is to meet specific requirements within a limited budget.
Zyxel offers an affordable access point with three times higher performance 3X3: 3 MU-MIMO WAC6303D-S, which has been equipped with an Intelligent Antenna to reduce inter-channel interference in a large number of devices. The built-in BLE Beacon function provides comprehensive user service. Thanks to this, the WAC6303D-S not only confronts the current challenges, but also provides a solution for the constantly developing future mobile needs
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Internal - No
Design - Placement - Ceiling, Wall
Design - Product colour - White
Designation - CE+WEEE
dimensionalWeight - 660
dimension depth - 50 mm
dimension height - 350 mm
Dimensions - 211 x 223 x 39 mm
dimension weight - 1200 g
dimension width - 210 mm
ean - 4718937594603
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - Channel bandwidth - 80 MHz
Features - Cyclic Shift Diversity (CSD) - Yes
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000 Mbit/s
Features - Maximal-Ratio Combining (MRC) - Yes
Features - Maximum data transfer rate - 1300 Mbit/s
Features - Maximum Likelihood Detection (MLD) - Yes
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Modulation - 16-QAM
Features - Modulation - 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, QPSK
Features - Modulation - 64-QAM
Features - Modulation - 256-QAM
Features - Modulation - BPSK
Features - Modulation - CCK
Features - Modulation - DBPSK
Features - Modulation - DBQSK
Features - Modulation - QPSK
Features - Networking standards - IEEE 802.3
Features - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3au, IEEE 802.3az, IEEE 802.3u
Features - Networking standards - IEEE 802.3ab
Features - Networking standards - IEEE 802.3af
Features - Networking standards - IEEE 802.3at
Features - Networking standards - IEEE 802.3au
Features - Networking standards - IEEE 802.3az
Features - Networking standards - IEEE 802.3u
Features - Quality of Service (QoS) support - Yes
Features - Receiver sensitivity - -103 dBm
Features - Throughput data rate - 1600 Mbit/s
Features - VLAN support - Yes
Features - Wi-Fi data rate (max) - 1300 Mbit/s
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
GTIN - 4718937594603
guarantee - -1
guarantee_type - external
I/O ports - 2 x 10/100/1000 Mbit/s
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Networking administrators managing busy venues must understand how visitors longed for WiFi and how challenging it is to meet the demands within limited budgets.Zyxel brings affordable and triple-performance 3x3:3 MU-MIMO access point WAC6303D-S which is built with Smart antenna to mitigate co-channel interference in high-density environment. And its embedded BLE Beacon provides insight into your consumers, WAC6303D-S not only resolves the challenge today it thinks for the ever-growing mobility demands tomorrow.MU-MIMO, New Definition of Wi-FiStepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP.Next Generation Transmit Beamforming benefits overall networkingTransmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients.Optimal Wireless ExperienceWAC6303D-S features Smart antenna technology which is proven able to mitigate co-channel interference, and adaptively adjust antenna patterns to fit in high-density application.Built for Superior performanceThe WAC6303D-S is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.Optimized wireless experience with advanced featuresTo provide outstanding performance in crowded environment, WAC6303D-S features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.Unified access point- Fits all businessesStay standalone mode if you’re a start-up, needing just few APs; convert to controller-managed mode when business grows up, requiring hundreds of APs.

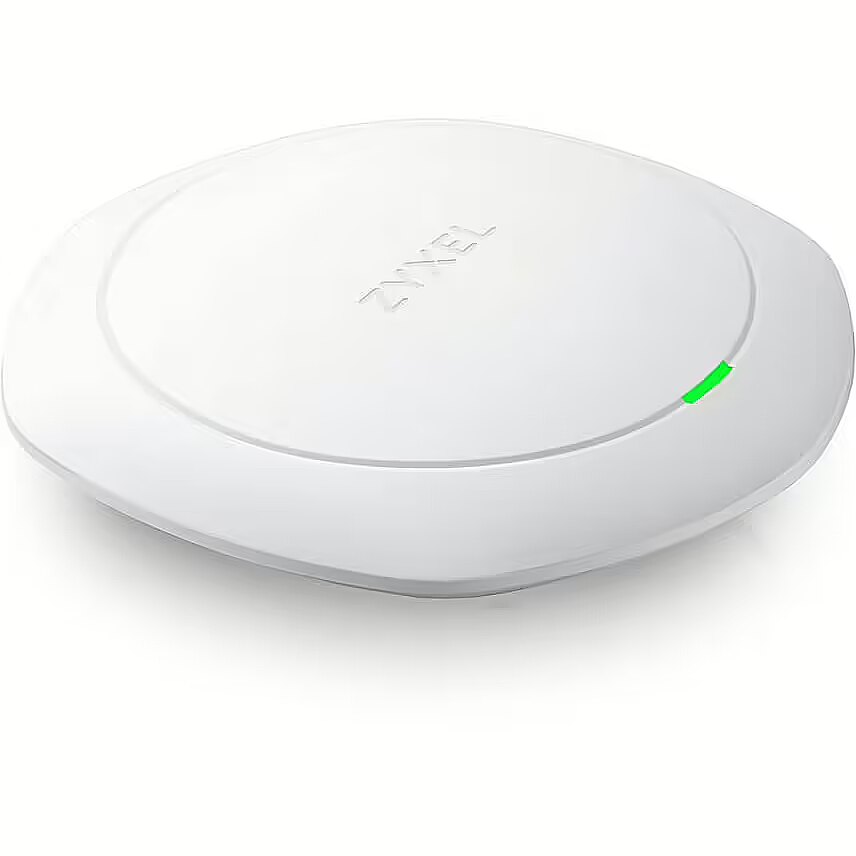

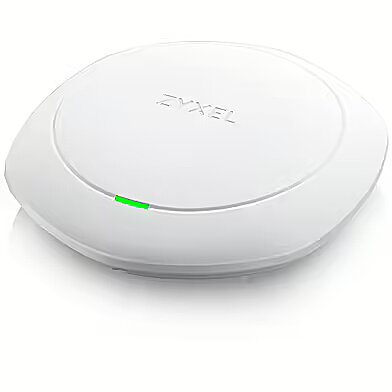

LongProductName - WAC6303D-S - 802.11ac Wave 2 Dual-Radio Unified Pro Access Point
LongSummaryDescription - Zyxel WAC6303D-S. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1300 Mbit/s. Security algorithms: 802.1x RADIUS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Management, monitoring, configuration -
name - WAC6303D-S Wave2 3x3Smart Antenna noPSU 802.11AC WAC6303D-S-EU01F
Network architecture - GigabitEthernet
Number of antennas - 3
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Packaging content - Mounting kit - Yes
Packaging data - Package depth - 247 mm
Packaging data - Package height - 55 mm
Packaging data - Package weight - 1.04 kg
Packaging data - Package width - 251 mm
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Output current - 2 A
Power - Output voltage - 12 V
Power - PoE+ support - Yes
Power - Power over Ethernet (PoE) - Yes
Power supply - Input: AC 100-240V, 50~60Hz
producer - Zyxel
producerCode - WAC6303D-S-EU0101F
productName - Access point Zyxel WAC6303D-S Wi-Fi 5 1300 Mbit/s 2.4 GHz/5 GHz PoE/PoE+
ProductName - WAC6303D-S
productSize - Normal
Protocols - DHCP client - Yes
Protocols - Management protocols - SNMP v2c/v3
Security - - WPA/WPA2-PSK
- WPA/WPA2-Enterprise
- WLAN access control list
- EAP type
- IEEE 802.1X
- MAC filtering
- Web authentication
- Layer-2 isolation
- RADIUS authentication
- Microsoft AD authentication
- LDAP authentication
- MAC authentication
- Rogue AP detection
Security - MAC address filtering - Yes
Security - Number of SSID supported - 16
Security - Security algorithms - 802.1x RADIUS
Security - Security algorithms - 802.1x RADIUS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA2-PSK
Security - Security algorithms - WPA
Security - Security algorithms - WPA-Enterprise
Security - Security algorithms - WPA2
Security - Security algorithms - WPA2-Enterprise
Security - Security algorithms - WPA2-PSK
ShortSummaryDescription - Zyxel WAC6303D-S, 2.4 GHz, 5 GHz, 1300 Mbit/s, 802.1x RADIUS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA2-PSK, 10,100,1000 Mbit/s
sizeX - 240
sizeY - 250
sizeZ - 55
Software -
Special functions -
Standards - 802.3
Standards - 802.3af
Standards - 802.3at
Standards - 802.3az
Standards - 802.3u
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Title - Zyxel WAC6303D-S 1300 Mbit/s White Power over Ethernet (PoE)
URL - https://www.zyxel.com/products_services/802-11ac-Wave-2-Dual-Radio-Unified-Pro-Access-Point-WAC6303D-S/overview
vendpn - WAC6303D-S-EU0101F
WarrantyInfo -
warrantyType - W
Weight - 1.76 kg
weight - 1080
Weight & dimensions - Depth - 223 mm
Weight & dimensions - Height - 39 mm
Weight & dimensions - Weight - 800 g
Weight & dimensions - Width - 211 mm
