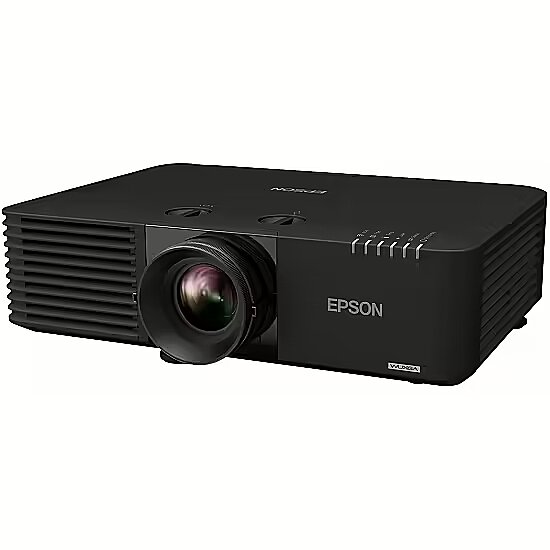

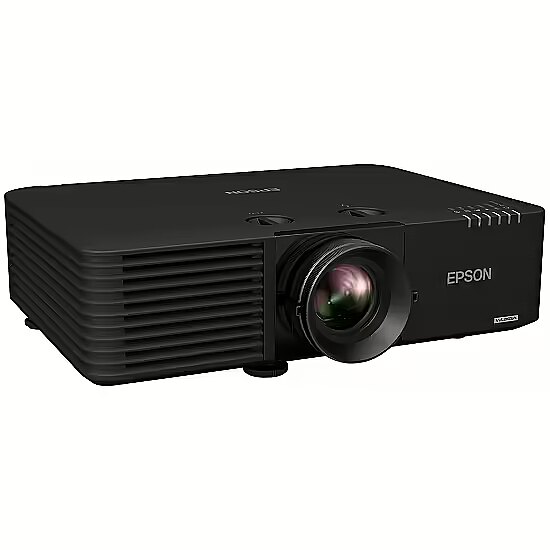

Epson EB-L735U

Brand - Epson
BrandPartCode - V11HA25140
Category - Data Projectors
Code - V11HA25140
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Market positioning - Presentation

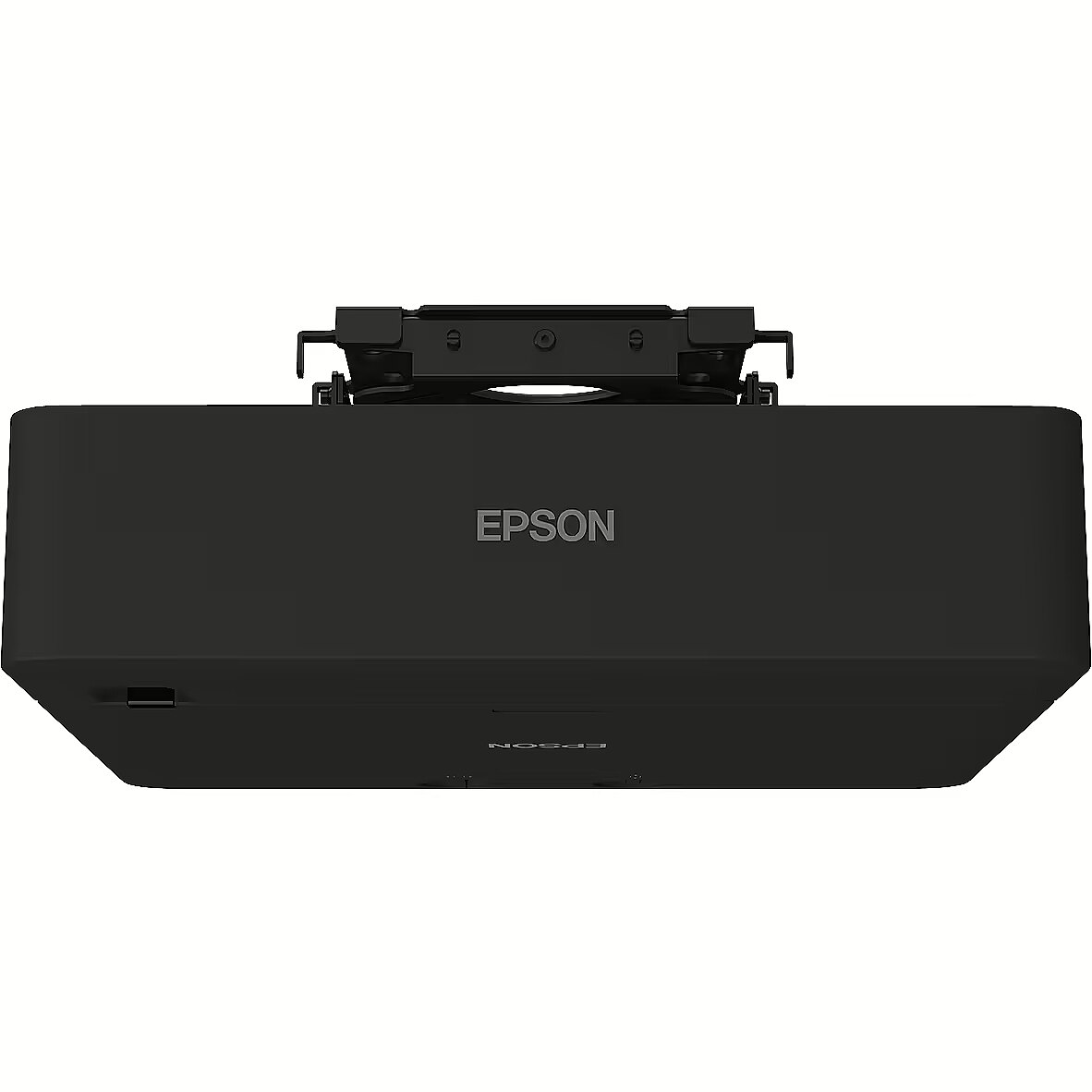

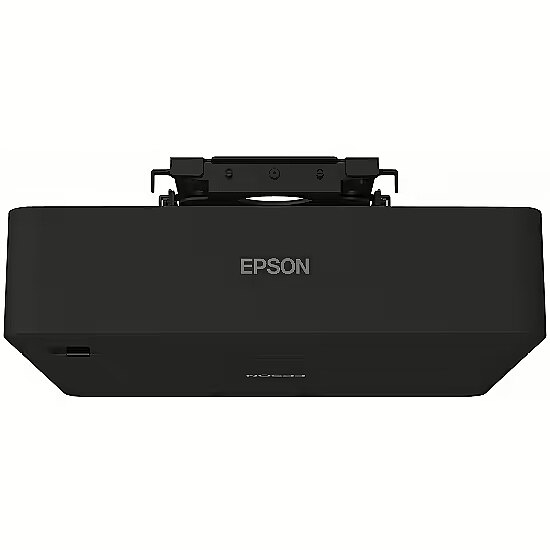

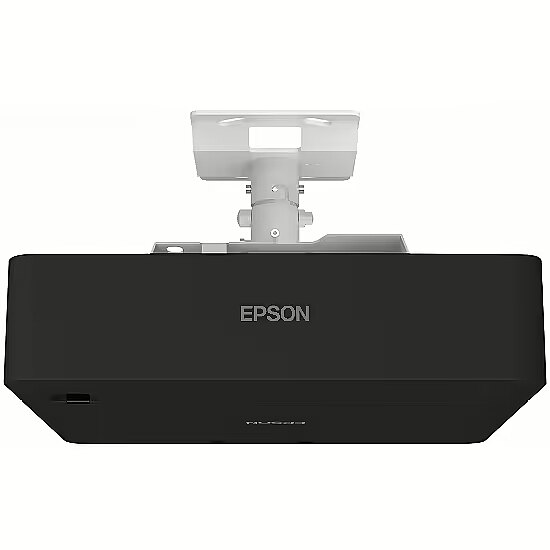

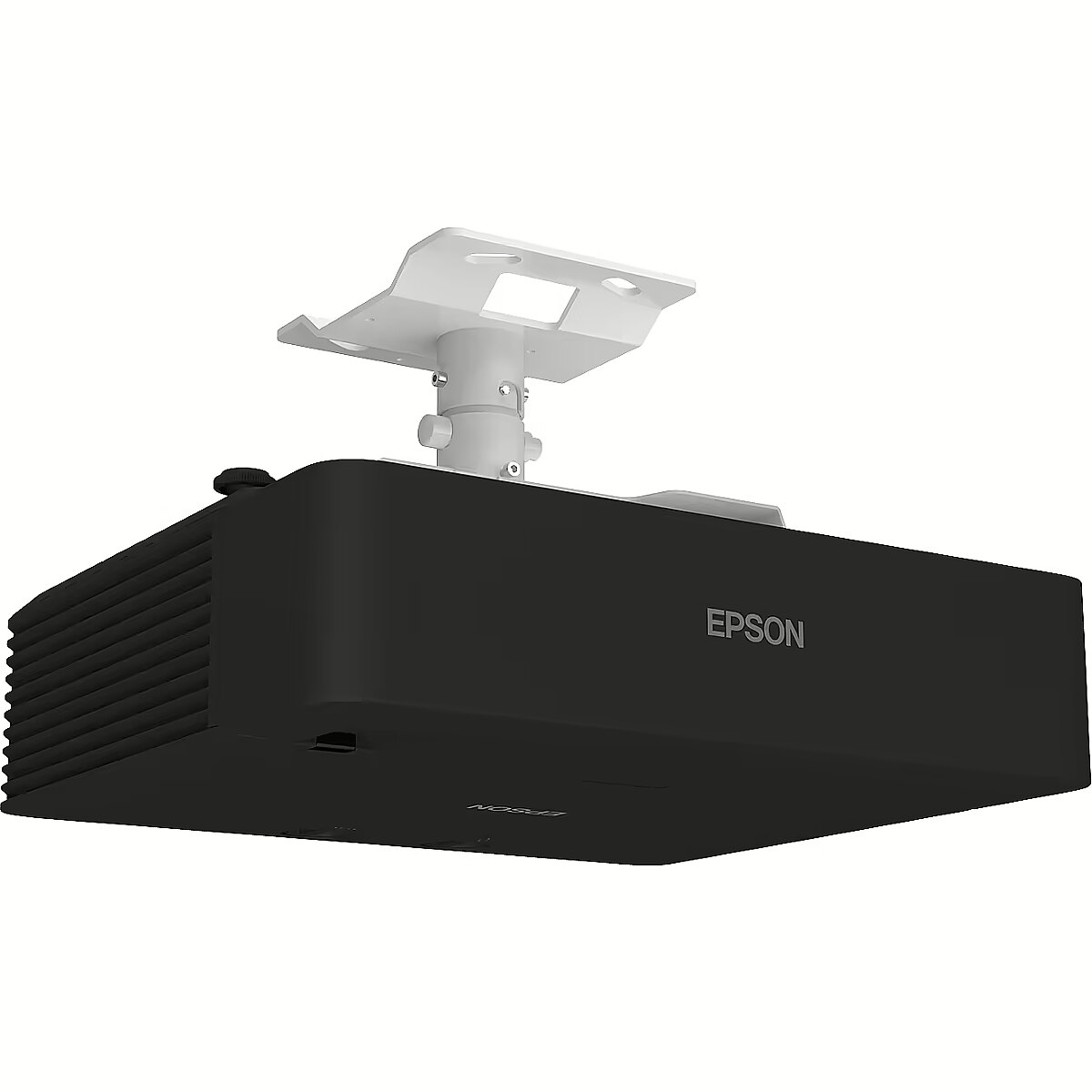

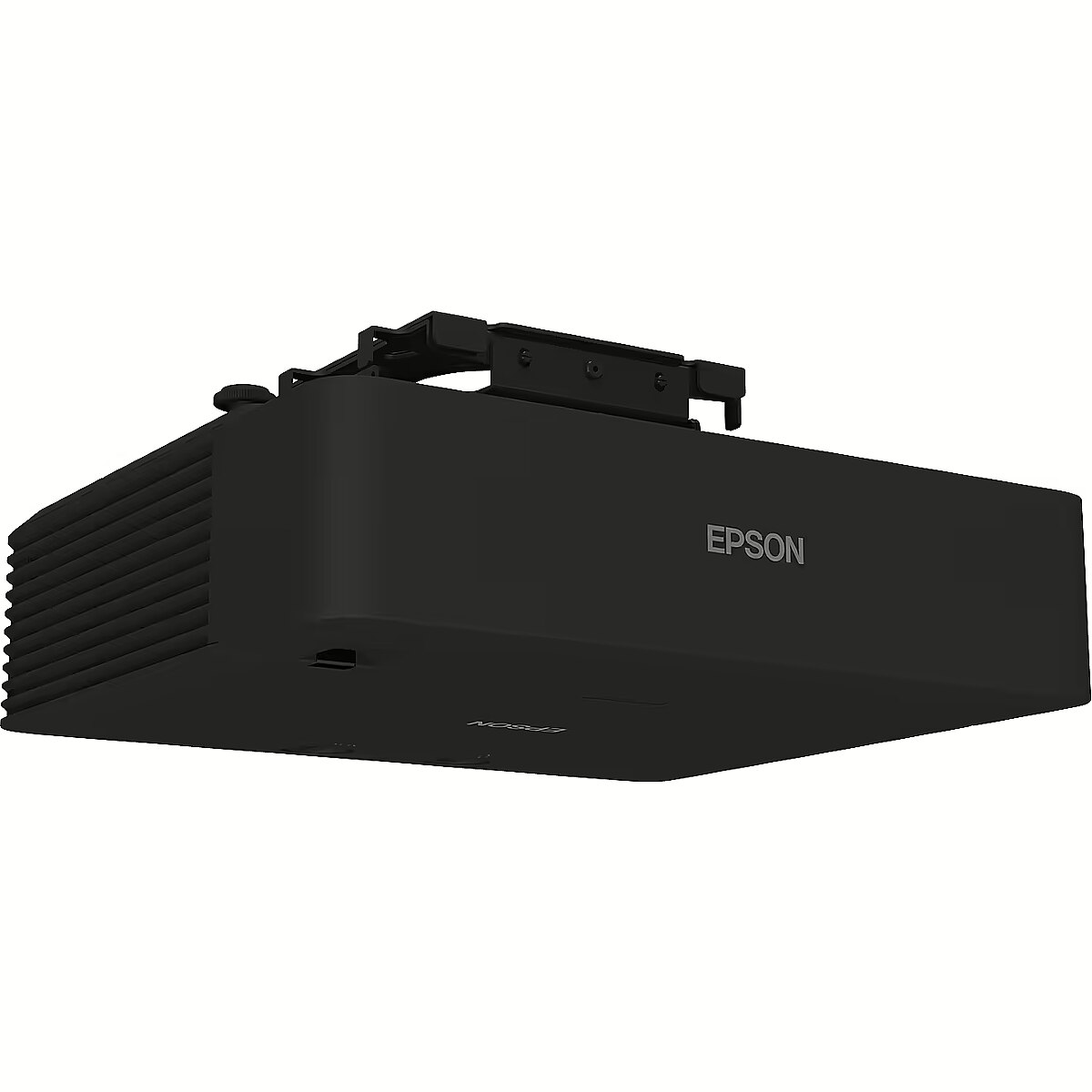

Design - Placement - Ceiling, Desktop
Design - Product colour - Black
Design - Product type - Standard throw projector
Design > Colour of product - Black
Design > Producer product family - Laser Projector
Display - Built-in display - No
EAN - 8715946695303
Features - Country of origin - Philippines
Features - HDCP - Yes
Features - Interactive - No
Features - Noise level - 38 dB
Features - Noise level (economic mode) - 27 dB
Features - Password protection - Yes
GTIN - 8715946695303
Lens system - Aperture range (F-F) - 1.5 - 1.7
Lens system - Focal length range - 20 - 31.8 mm
Lens system - Focus - Manual
Lens system - Horizontal lens shift range - -20 - 20%
Lens system - Throw ratio - 1.35 - 2.2:1
Lens system - Vertical lens shift range - -50 - 50%
Lens system - Zoom capability - Yes
Lens system - Zoom ratio - 1.6:1
Lens system - Zoom type - Manual
Lens system > Lens type - Optical
Lens system > Throw ratio - 1.35 - 2.20:1
Light source - Light source type - Laser
Light source - Service life of light source - 20000 h
Light source - Service life of light source (economic mode) - 30000 h
Link - https://www.epson.eu/products/projectors/installation/eb-l735u
Logistics data - Harmonized System (HS) code - 85286200
Logistics data - Products per pallet - 14 pc(s)
Logistics data - Products per pallet (UK) - 14 pc(s)
Logistics data - Quantity per pack - 1 pc(s)
LongDesc - As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L735U delivers even more effective, practical and creative display applications across a number of different industries.Bright, cost-effective display solutionsProviding bolder, brighter, more engaging and impactful displays even in brightly-lit environments, the EB-L735U offers impressive 7,000-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L735U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.Enhanced connectivityThis display solution offers many different ways to connect, show multiple sources simultaneously and present wirelessly. The EB-L735U comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.
LongProductName - 3LCD, 1920x1200, 16:10, USB, WLAN, LAN, VGA, HDMI, AC 100-240V, 440x339x136 mm
LongSummaryDescription - Epson EB-L735U. Projector brightness: 7000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20 - 31.8 mm, Aperture range (F-F): 1.5 - 1.7. Video processing: 10 bit, Video colour modes: Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection. Serial interface type: RS-232C, HDMI connector type: Full-size
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of built-in speakers - 1
Multimedia - RMS rated power - 10 W
Multimedia > Built-in speaker(s) - Yes
Name - Epson | EB-L735U | WUXGA (1920x1200) | 7000 ANSI lumens | Black | Lamp warranty 12 month(s)
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Miracast - Yes
Network - Smart TV - No
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Networking > Wi-Fi connection - Yes (integrated)
Networking > Wi-Fi standards - 802.11ac
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -10 - 60 °C
Other features - Supported network protocols - HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Other features > Aspect ratio - 16:10
Other features > Special features - WUXGA resolution: Sharp Full HD images for excellent clarity; Futureproofed connectivity options: 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring;
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 565 mm
Package features > Gross height (mm) - 200 mm
Package features > Gross width (mm) - 540 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 24 pc(s)
Package features > Paper/Pasteboard - 700.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.80 kg
Package features > TI weight (kg) - 0.02 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.06102 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC
Packaging content - Manual - Yes
Packaging content - Remote control included - Yes
Packaging content - Warranty card - Yes
Packaging content - WLAN adapter included - Yes
Performance > Light source - Laser
Performance > Noise level (economic mode) - 27 dB
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - DVI port - No
Ports & interfaces - HDBaseT port - Yes
Ports & interfaces - HDMI connector type - Full-size
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - Serial interface type - RS-232C
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 2.0 Type-B ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100-240 V
Power - Power consumption (economy mode) - 258 W
Power - Power consumption (standby) - 0.3 W
Power - Power consumption (typical) - 345 W
Power - Power source - AC
Producer product name - EB-L735U
ProductName - EB-L735U
Projector - Contrast ratio (typical) - 2500000:1
Projector - Keystone correction, horizontal - -30 - 30°
Projector - Keystone correction, vertical - -30 - 30°
Projector - Matrix size - 1.7 cm (0.67")
Projector - Native aspect ratio - 16:10
Projector - Number of colours - 1.07 billion colours
Projector - Projection distance - 1.44 - 23.84 m
Projector - Projection distance (tele) - 2.4 - 23.8 m
Projector - Projection distance (wide) - 1.4 - 14.8 m
Projector - Projection technology - 3LCD
Projector - Projector brightness - 7000 ANSI lumens
Projector - Projector brightness (economic mode) - 4900 ANSI lumens
Projector - Projector native resolution - WUXGA (1920x1200)
Projector - Screen size compatibility - 1270 - 12700 mm (50 - 500")
Projector - Smart projector - No
ShortSummaryDescription - Epson EB-L735U, 7000 ANSI lumens, 3LCD, WUXGA (1920x1200), 2500000:1, 16:10, 1270 - 12700 mm (50 - 500")
Software - Software support - via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Storage - Card reader integrated - No
Technical details - Sustainability certificates - TCO
Technical details > Brightness - 7000 ANSI lumens
Technical details > Contrast ratio - 2500000:1
Technical details > Gross weight - 11.8 kg
Technical details > Lamp warranty - 12 month(s)
Technical details > Maximum resolution - WUXGA (1920x1200)
Technical details > Net weight - 11 kg

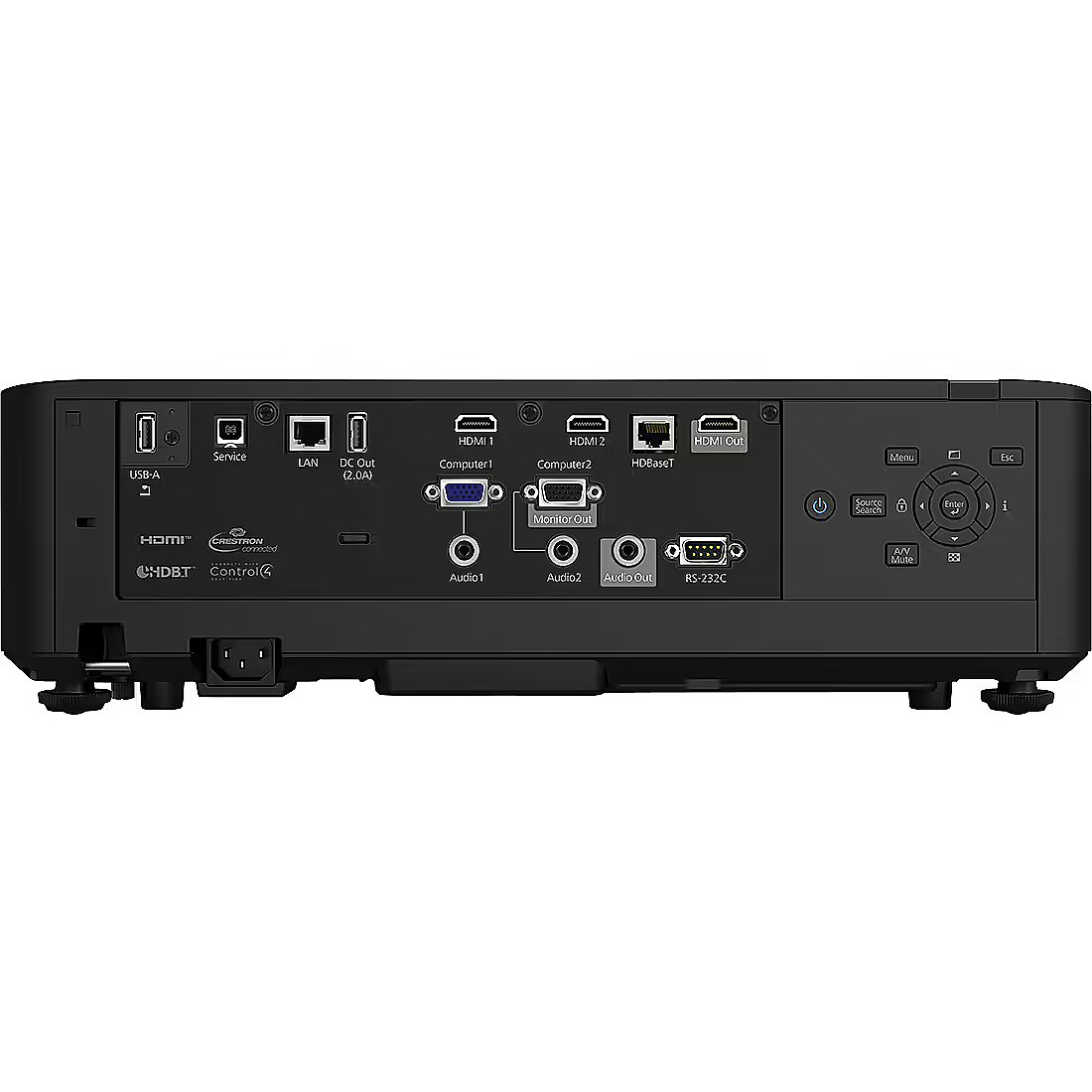

Technical details > Other features - Interfaces: USB 2.0 Type A, USB 2.0 Type B, RS-232C, Wired Network, Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN b/g/n (2.4GHz), Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Stereo mini jack audio out, Stereo mini jack audio in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback
Technical details > Producer - Epson
Title - Epson EB-L735U data projector Standard throw projector 7000 ANSI lumens 3LCD WUXGA (1920x1200) Black
URL - https://www.epson.eu/products/projectors/installation/eb-l735u
Video - Full HD - Yes
Video - Video colour modes - Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Video - Video processing - 10 bit
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 339 mm
Weight & dimensions - Height - 136 mm
Weight & dimensions - Package depth - 565 mm
Weight & dimensions - Package height - 210 mm
Weight & dimensions - Package weight - 12.3 kg
Weight & dimensions - Package width - 540 mm
Weight & dimensions - Weight - 8.4 kg
Weight & dimensions - Width - 440 mm
Weight & dimensions > Weight - 8400 g
