Accessories included - Remote Control w/ Battery RCE013 Power Cord (by region) Warranty card (by Region) User Manual e-edition QSG
ANSI Lumens (Max.) - 3400
ARTIKEL1 - MW826STH DLP SHORT DISTANC WXGA
ARTIKEL2 - 3500 ANSI 20.000:1 1280 X 800
Aspect ratio - 16:10
Audio - Yes
Brand - BenQ
BrandPartCode - 9H.JMW77.13E
Brightness - 3500 ANSI Lumen
Category - Data Projectors
Category - Root/Electronics/PC peripherals/Projectors and screens/Projectors
Code - 9H.JMW77.13E
Color - White
Compatibility with computer standards - 480i 480p 576i 567p 720p 1080i 1080p
Compatibility with video standards -
Connections - Audio (3.5mm)
Connections - Ethernet (RJ-45)
Connections - HDMI
Connections - S-Video
Connections - Serial (RS-232)
Connections - USB-A
Connections - USB-B
Connections - VGA
Contrast ratio (typical) - 20000:1
Description -
Description - BENQ MW826STH 3500ANSI WXGA 0.49:1 DLP LAMP
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Market positioning - Presentation
Design - Product colour - White
Design - Product type - Short throw projector
dimensionalWeight - 5363
dimension depth - 420 mm
dimension height - 180 mm
Dimensions - 296 x 239 x 120 mm
Dimensions W x D x H, mm - 296 x 239 x 120
dimension weight - 3730 g
dimension width - 330 mm
Display number of colours - 1.07 B
Display technology - DLP
EAN - 4718755083808
ean - 4718755083808
EANCode - 4718755083808
Eans - 4718755083808
Ethernet LAN (RJ-45) ports quantity - 1
Features - Interactive - Yes
Features - Noise level - 33 dB
Features - Noise level (economic mode) - 29 dB
Features - On Screen Display (OSD) - Yes
Features - On Screen Display (OSD) languages - Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish
Frequency, horizontal max. - 102 kHz
Frequency, horizontal min. - 15 kHz
Frequency, vertical max. - 120 Hz
Frequency, vertical min. - 23 Hz
GRUPPE1 - Projector/Plasma
GRUPPE2 - Projector Xga
GTIN - 4718755083808
guarantee - 36
guarantee_type - external
HDMI ports quantity - 2
Height - 340.000000
HERSTELLER - BENQ
HSTNUMMER - 9H.JMW77.13E

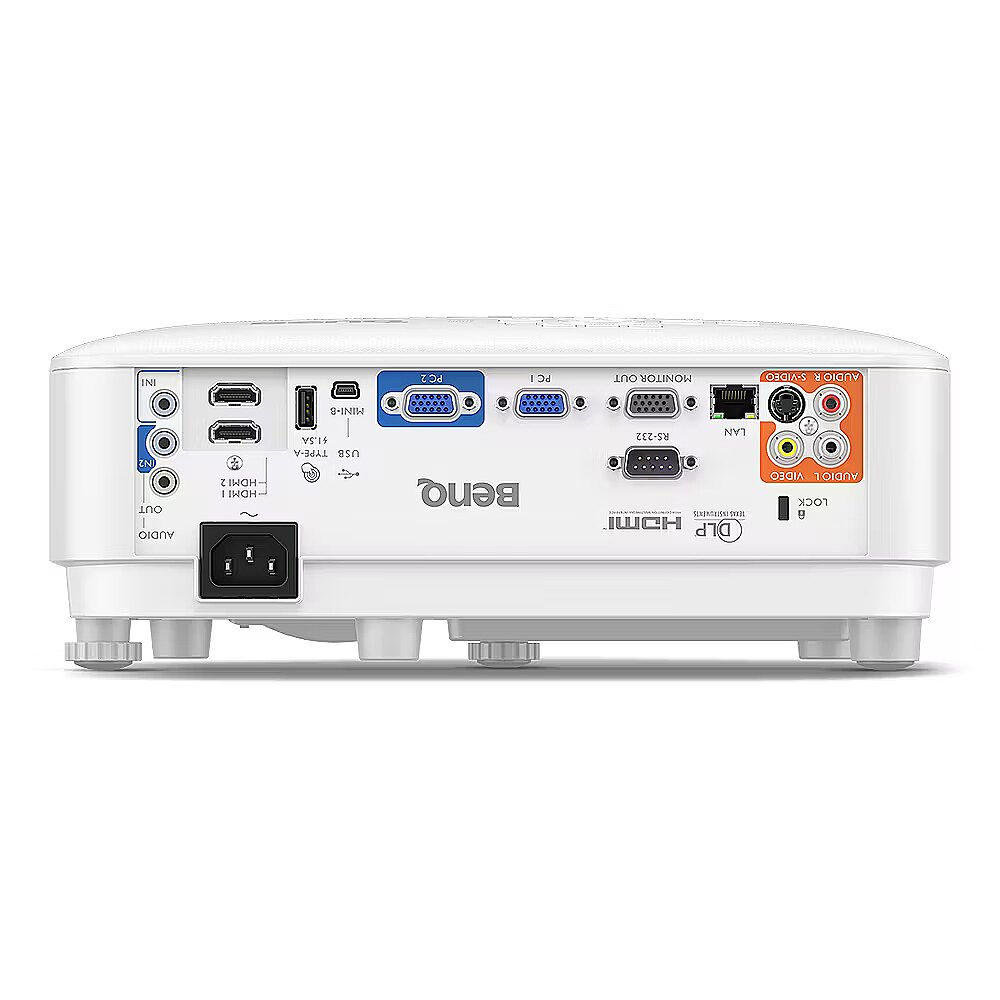

I/O connectors - 1 x mini USB (Type B)
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x S-Video
I/O connectors - 1 x USB 2.0
I/O connectors - 2 x HDMI
I/O connectors - 2 x RCA in
I/O connectors - 3 x 3,5 mm minijack
I/O connectors - 3 x 15-pin D-Sub
Keystone correction, vertical, ° - +/- 30
Lamp power, W - 200
Length - 420.000000
Lens -
Lens system - Offset - 105%
Lens system - Throw ratio - 0.49:1
Lens system - Zoom capability - No
light life time - 6000 h
light life time (ECO mode) - 10000 h
Light source - Lamp
Light source - Lamps quantity - 1 lamp(s)
Light source - Light source type - Lamp
Light source - Service life of light source - 6000 h
Light source - Service life of light source (economic mode) - 10000 h
Logistics data - Harmonized System (HS) code - 85286200
Logistics data - Quantity per pack - 1 pc(s)
LongDesc - Advanced Interactive Instruction for Leading SchoolsHigh Quality ImageUncompromised High BrightnessMW826STH produces 3,500 high ANSI lumen brightness and resolution for perfect projection performance with crisp images and sharp text even in bright lecture room. High brightness provides clear content under high ambient lighting, allowing lights to be kept on during classes for note taking and interactive collaboration.Crisp Readability via High Contrast RatioIdeal for text, numbers, and tables widely used in instruction, BenQ education projectors leverage the native DLP advantage of digitally controlled micromirrors on the DMD chip. By completely toggling off reflective micromirrors to generate deep true blacks, BenQ education projectors create high native contrast ratio for sharp readability and crisp resolution at every single sub-pixel.Enduring Picture Perfection from DLP TechnologyWith sealed design that protects the DLP chip from dust-induced image degradation and the industrial-grade durability of DLP projection technology, BenQ education projectors are capable of maintaining long-lasting picture quality by eliminating color decay. Unlike non-DLP projectors, BenQ education projectors deliver premium picture quality equivalent to the result from brand new projectors after lamp replacement.High DLP Pixel Fill Factor for Superb Viewing ExperienceBenQ DLP projectors feature class-leading high fill factor, minimizing black borders around each pixel to eliminate the dreaded “screen door effect” commonly observed in non-DLP projectors. BenQ education projectors produce superior definition and clarity in small-size text and fine details for beautifully rendered images instead of pixelated graphics.Bigger ImagesBenQ education projectors offer a range of resolutions and projected image sizes to meet diverse classroom needs. Featuring crisp image quality up to 120 inches, our ultra-short throw education projectors deliver increased classroom versatility at reduced costs.Enabling Interactive LearningInteraction on Any SurfacePointWrite™ technology transforms BenQ education projectors into collaborative platforms that turn any surface into an interactive whiteboard. Seamless integration of PointWrite™ kit and QWrite software with BenQ projectors encourages a truly collaborative learning environment where students and teachers work together using intuitive templates along with annotation tools.Multi-Touch & Multi- Screen DrawingWith enhanced multi-touch capability for pens or fingers, two PointWrite™ projectors can be used in conjunction to double the interactive projection surface, creating vast new opportunities for interactive learning in modern digital classrooms. In QWrite Whiteboard Mode, teachers can also run different applications or display, view, and annotate across two surfaces.Intuitive SetupReliably accurate in any ambient lighting, PointWrite™ auto calibrates and saves its settings immediately when plugged into a computer’s USB port, remaining ready with no manual configuration or complicated training for teachers.Windows Gesture SupportPointWrite™ projectors support intuitive Windows gestures such as zooming in and out or scrolling while browsing webpages, pictures or Google Maps. All multi-touch commands and gestures are supported for Windows 8 or above and future applications.Easy Set-up and MaintenanceUnobstructed Instruction Without Space ConstraintsOffering a big screen in short distance with a 0.49 short-throw ratio, MW826STH eliminates distracting shadows and glare for students and teachers to engage and collaborate freely in front of the board.Remote Control HotkeyPress the “Quick Install” hotkey on the remote control to setup the projector. This is a great time saver for managers performing initial projector installation work.Anti-Dust Accumulation SensorResists Dust BuildupIncorporating color wheel sensors with an ingenious anti-dust accumulation feature, MW826STH prolongs optimal performance by rejecting dust which can accumulate on traditional sensors to block the IR signal and cause flickering, abnormal colors, or even shutdown.LAN Control CompatibilityBenQ education projectors are compatible with Creston, AMX, and PJ Link control systems for convenient system integration with various third-party components and cost reduction via central maintenance of multiple projectors.Centralized Multiple Display ManagementWith enhanced multi-touch capability for pens or fingers, two PointWrite™ projectors can be used in conjunction to double the interactive projection surface, creating vast new opportunities for interactive learning in modern digital classrooms. In QWrite Whiteboard Mode, teachers can also run different applications or display, view, and annotate across two monitors.Optimizing Educational InvestmentCentralized Multiple Display ManagementThe exclusive BenQ innovation SmartEco™ technology intelligently modulates light output and perfects DLP's energy saving capabilities to increase lamp life with uncompromised brightness and exquisite picture quality. Reducing energy consumption, SmartEcoTM extends lamp life up to 15,000 hours, 3X* more than without SmartEco™ technology.And Eco Blank mode further increases energy saving capability by dimming lamp power automatically to lower total power by 70% when blanking the projection.
LongProductName - DLP, 3500 ANSI Lumen, 1280 x 800, 16:10, 20000:1, RMS 10W
LongSummaryDescription - BenQ MW826STH. Projector brightness: 3500 ANSI lumens, Projection technology: DLP, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 6000 h, Service life of light source (economic mode): 10000 h. Throw ratio: 0.49:1, Offset: 105%. Supported 3D formats: Frame Sequential, Frame packing, Side by side, Top and bottom, Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1200 (WUXGA), Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232
Manufacturer - BENQ
ManufacturerPartNumber - 9H.JMW77.13E
Maximum image diagonal - 120 ''
Minimum image diagonal - 70 ''
Model - MW826STH
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of built-in speakers - 1
Multimedia - RMS rated power - 10 W

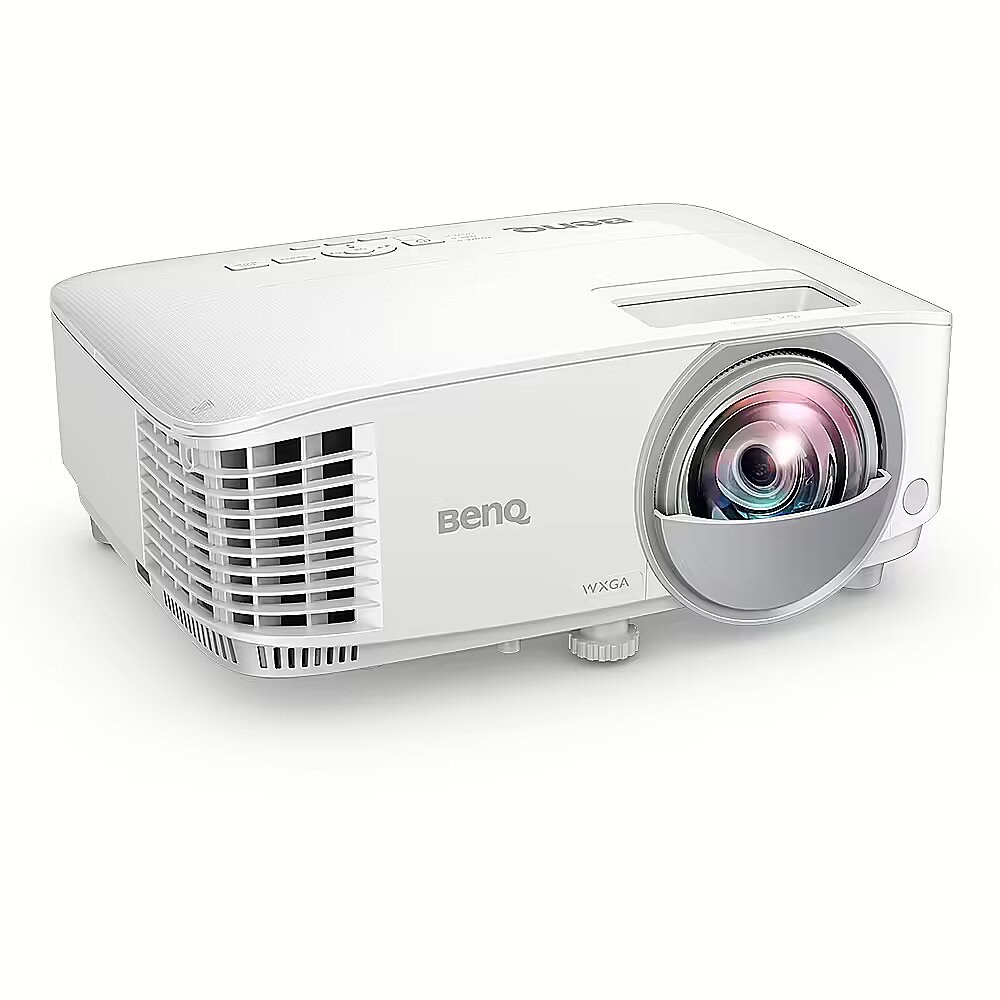

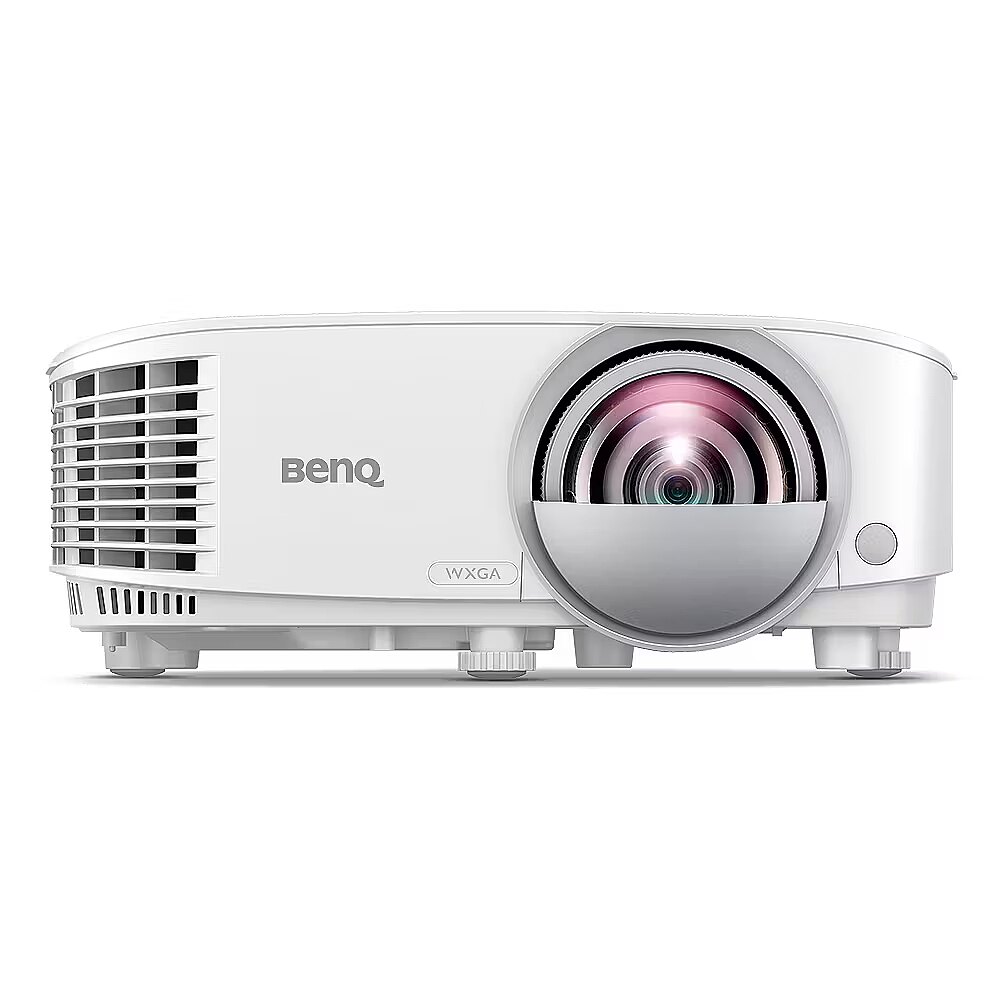

Name - BenQ MW826STH short throw
Name - Benq | MW826STH | WUXGA (1920x1200) | 3500 ANSI lumens | White | Lamp warranty 12 month(s)
name - Projector MW826STH DLP 3500/20000:1/HDMI
Native resolution - WXGA (1280x800)
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Noise - 33 dB
Noise level, dB - 33
Number of colors - 1,07 mld
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC
Packaging content - Manual - Yes
Packaging content - Remote control included - Yes
Packaging content - Remote control type - IR
PeriodofWarranty - 36 M
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - Audio (L/R) in - 1
Ports & interfaces - Composite video in - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Mini-USB 2.0 ports quantity - 1
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - S-Video inputs quantity - 1
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 3
Power - AC input frequency - 50 / 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 260 W
Power - Power source - AC
Power consumption - 260 W
Power consumption (standby), W - 0.5
Power consumption, W - 260
producer - Benq
Producer - BenQ
producerCode - 9H.JMW77.13E
ProducerCode - 9H.JMW77.13E
productName - Benq | MW826STH | WUXGA (1920x1200) | 3500 ANSI lumens | White | Lamp warranty 12 month(s)
ProductName - MW826STH
productSize - Normal
Projection - Short throw
Projection size, " - 70 - 120
Projection technology - DLP
Projector - Contrast ratio (typical) - 20000:1
Projector - Keystone correction, vertical - -30 - 30°
Projector - Matrix size - 1.65 cm (0.65")
Projector - Native aspect ratio - 16:10
Projector - Number of colours - 1.07 billion colours
Projector - Projection technology - DLP
Projector - Projector brightness - 3500 ANSI lumens
Projector - Projector native resolution - WXGA (1280x800)
Projector - Screen size compatibility - 1778 - 3048 mm (70 - 120")
Resolution - 1280 x 800 (WXGA)
RS-232 ports quantity - 1
Service life of lamp, h - 5000
ShortDescription - 1280 x 800 | DLP | 3500 lm | HDMI | contrast 12 000:1| USB | 3D |
ShortSummaryDescription - BenQ MW826STH, 3500 ANSI lumens, DLP, WXGA (1280x800), 20000:1, 16:10, 1778 - 3048 mm (70 - 120")
sizeX - 422
sizeY - 338
sizeZ - 188
Static contrast - 20 000:1
Stck_Kart - 0
Stck_Pal - 0
Storage - Card reader integrated - No
Storno - N
Throw ratio - 0.49
Title - BenQ MW826STH data projector Short throw projector 3500 ANSI lumens DLP WXGA (1280x800) 3D White
URL - https://www.benq.eu/en-eu/business/projector/mw826sth.html
USB-A (USB 2.0) ports quantity - 1
USB-B (USB 2.0) ports quantity - 1
vendpn - 9H.JMW77.13E
VGA (D-Sub) ports quantity - 2
Video - 3D - Yes
Video - Full HD - No
Video - Supported 3D formats - Frame Sequential, Frame packing, Side by side, Top and bottom
Video - Supported graphics resolutions - 640 x 480 (VGA), 1920 x 1200 (WUXGA)
Video - Supported video modes - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Warranty -
WarrantyInfo -
warrantyLength - 24
warrantyType - G
Weight - 2.6 kg
Weight - 3.870000
weight - 3850
Weight & dimensions - Depth - 239 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Weight - 2.6 kg
Weight & dimensions - Width - 296 mm
Weight, g - 2600
Width - 188.000000
Wireless communication - No
