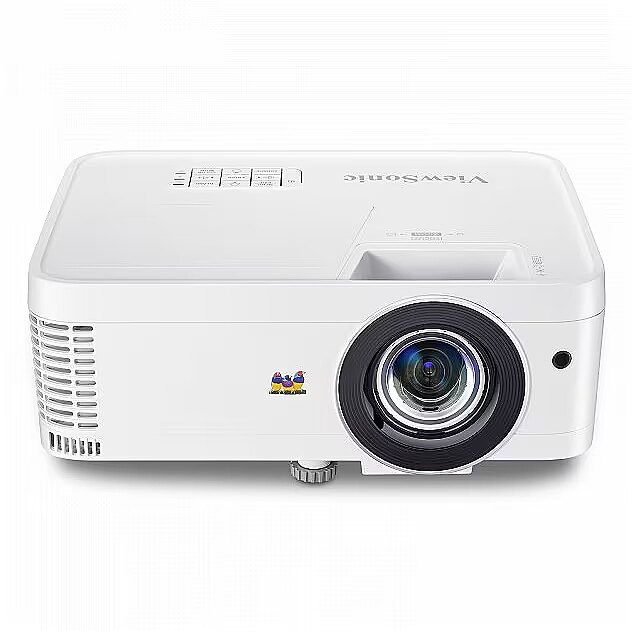

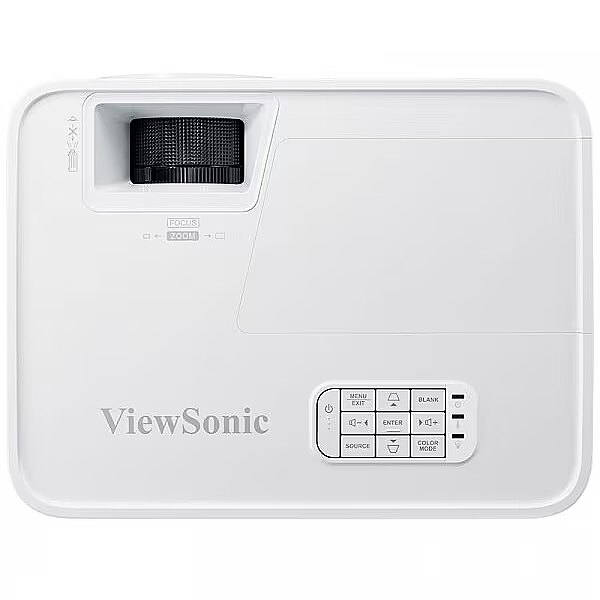

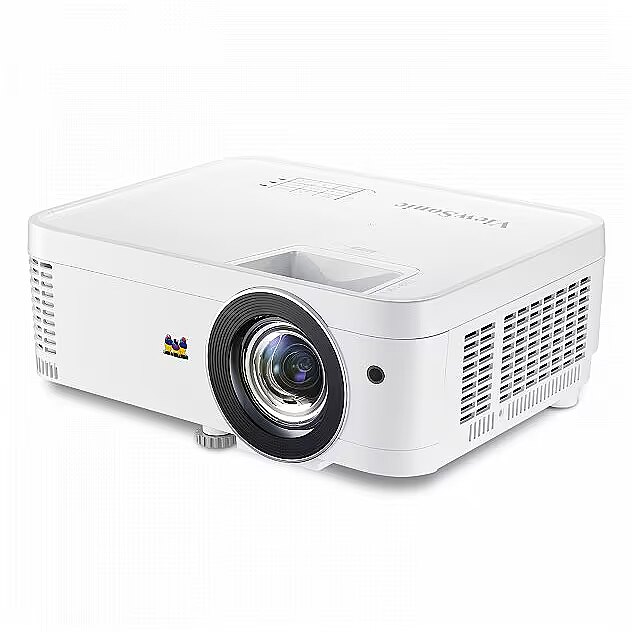

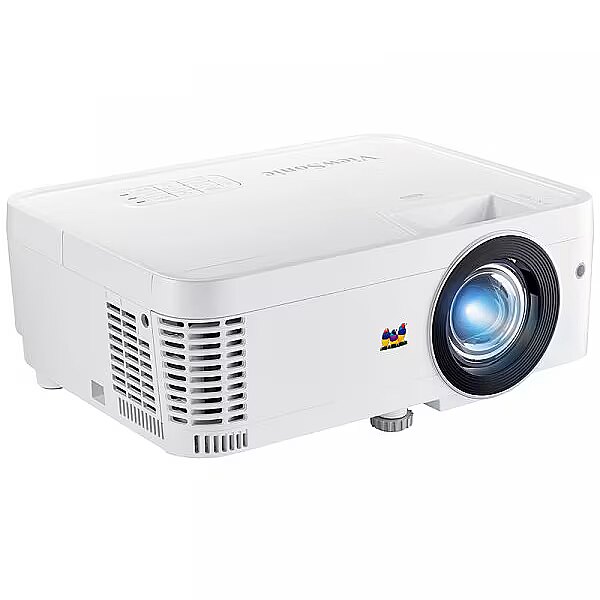

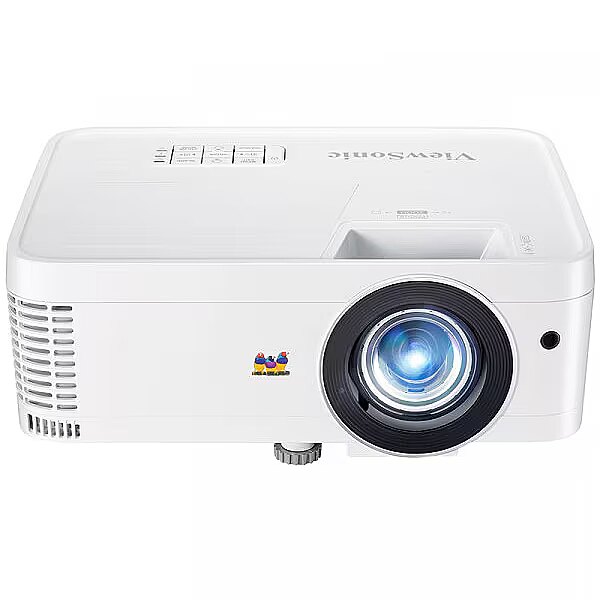

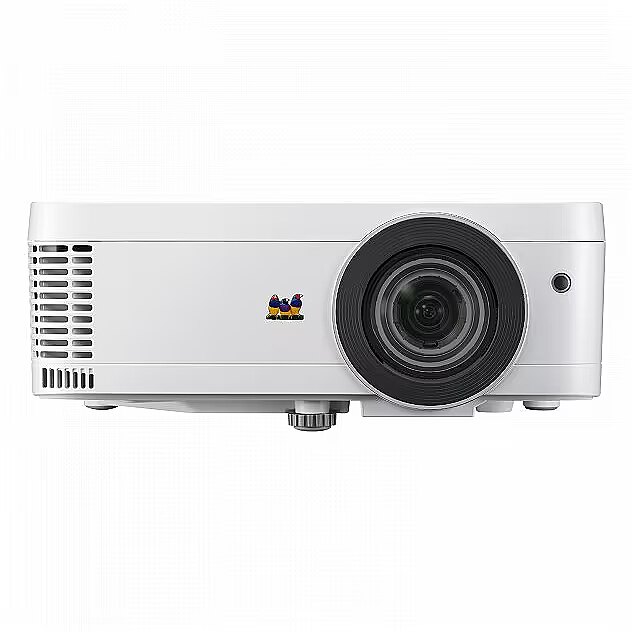

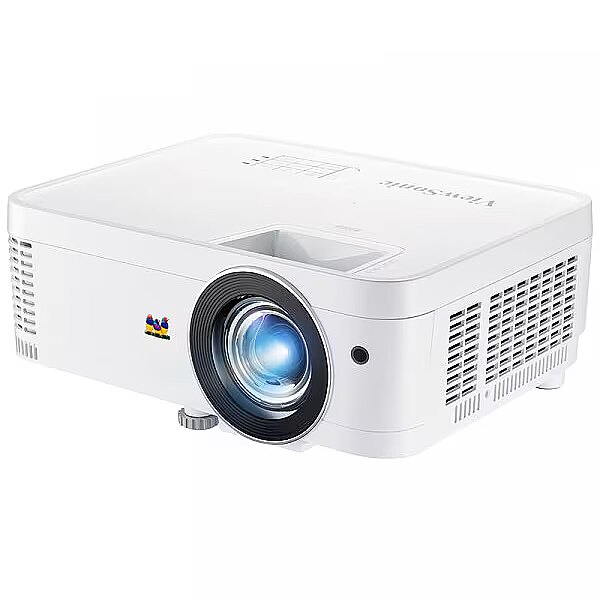

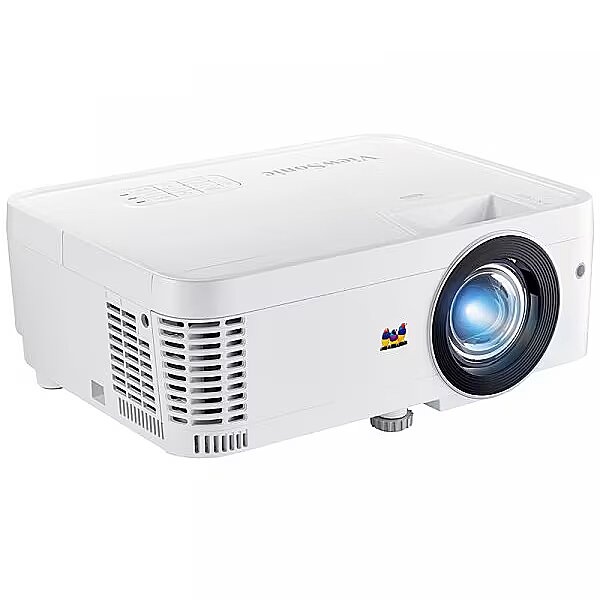

ViewSonic PX706HD

Accessories included - Power cable, VGA cable, Remote control, Quick Start Guide
AspectRatio - 16:9
Aspect ratio - 16:9
Audio - Yes
AudioFeatures - 5W
Automatic focus adjustment - No
Brand - Viewsonic
BrandPartCode - PX706HD
Brightness - 3000 ANSI Lumen
Category - Data Projectors
Compatibility with computer standards -
Compatibility with video standards - VGA(640 x 480) to FullHD(1920 x 1080) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p NTSC, PAL, SECAM
CompressedResolution - -
ComputerCompatibility - -
ContrastRatio - 22,000:1
Depth - 220 mm
Description - For convenient big screen gaming and entertainment, the ViewSonic PX706HD projector delivers huge images in small spaces. With a short throw lens, this projector can be placed just a few feet away from a wall or screen, and project an immersive 100 image making it perfect for big gaming sessions in smaller rooms. 3,000 lumens of brightness and Full HD 1920x1080 resolution provide vivid, ultra-sharp images and graphics, while an ultra-low input latency ensures faster frame-by-frame action and smooth gameplay without delay. Whats more, Full HD 3D compatibility lets you enjoy 3D movies and games, while an internal speaker delivers room-filling sound for an immersive audiovisual experience. Reduced Input Latency Ideal for intense action-packed gaming, this projector delivers smooth images without delay. Its ultra-low 16ms input latency provides faster frame-by-frame action. Bright Images in Any Environment Packed with 3,000 lumens and a high contrast ratio, this projector produces bright images in nearly any environment. Large Images in Small Spaces With a short throw lens, this projector can be placed just a few feet from a wall or screen and project images up to 100" USB Type-C for Video and Power A USB Type-C port delivers fast data, audio, video and quick charging over a single cable. SonicExpert Technology This projector is designed with ViewSonics proprietary SonicExpert technology that incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20Hz 20Khz sound range. An integrated speaker captivates your audience with immersive sound.
Design - Market positioning - Presentation
Design - Placement - Desktop, Ceiling
Design - Product colour - White
Design - Product type - Short throw projector
dimension depth - 290 mm
dimension height - 180 mm
Dimensions - 293.0 x 115.0 x 220.0 mm
dimension weight - 3980 g
dimension width - 370 mm
Display - Built-in display - No
Display technology - DLP
DisplayType - DLP
ean - 766907958911
Features - HDCP - Yes
Features - Interactive - No
Features - Noise level - 32 dB
Features - Noise level (economic mode) - 27 dB
Features - Number of OSD languages - 20
Features - On Screen Display (OSD) - Yes
Features - On Screen Display (OSD) languages - Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Frequency - 15-102 kHz
Frequency, horizontal max. - 102 kHz
Frequency, horizontal min. - 15 kHz
Frequency, vertical max. - 120 Hz
Frequency, vertical min. - 23 Hz
FrequencyVertical - 23-120 Hz
GrossWeight - 4.000 kg
GTIN - 0766907958911
GTIN - 766907958911
guarantee - 36
guarantee_type - external
Height - 115 mm
I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x BNC Composite
I/O connectors - 1 x Composite
I/O connectors - 1 x mini USB (Type B)
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type C)
I/O connectors - 2 x 3,5 mm minijack
I/O connectors - 2 x HDMI

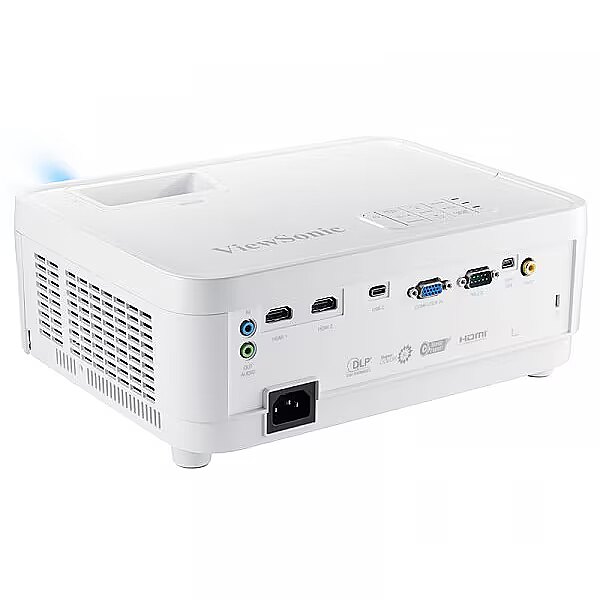

InputOutput -

USB Type-C

2x Audio jack

RS-232

2x HDMI

VGA

RCA

Mini USB

LampLife -

4,000 hours (Normal)

15,000 hours (Eco)

LampWarranty - -
Lens - 1.2x optical zoom
Lens - f = 2.6 - 2.78 f = 10.2 ~ 12.24
Lens system - Aperture range (F-F) - 2.6 - 2.78
Lens system - Focal length range - 10.2 - 12.24 mm
Lens system - Focus - Manual
Lens system - Offset - 105%
Lens system - Throw ratio - 0.69-0.83
Lens system - Zoom capability - Yes
Lens system - Zoom ratio - 2.0:1
light life time - 4000 h
light life time (ECO mode) - 15000 h
Light source - Lamp power - 240 W
Light source - Lamps quantity - 1 lamp(s)
Light source - Light source type - Lamp
Light source - Service life of light source - 4000 h
Light source - Service life of light source (economic mode) - 15000 h
Logistics data - Harmonized System (HS) code - 85286200
LongDesc -
LongDesc - For convenient big screen gaming and entertainment, the ViewSonic® PX706HD projector delivers huge images in small spaces. With a short throw lens, this projector can be placed just a few feet away from a wall or screen, and project an immersive 100” image – making it perfect for big gaming sessions in smaller rooms. 3,000 lumens of brightness and Full HD 1920x1080 resolution provide vivid, ultra-sharp images and graphics, while an ultra-low input latency ensures faster frame-by-frame action and smooth gameplay without delay. What’s more, Full HD 3D compatibility lets you enjoy 3D movies and games, while an internal speaker delivers room-filling sound for an immersive audiovisual experience.Reduced Input LatencyIdeal for intense action-packed gaming, this projector delivers smooth images without delay. Its ultra-low 16ms input latency provides faster frame-by-frame action.USB Type-C for Video and PowerA USB Type-C port delivers fast data, audio, video and quick charging over a single cable.SonicExpert® TechnologyThis LightStream projector is designed with ViewSonic’s proprietary SonicExpert technology that incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20Hz – 20Khz sound range. An integrated speaker captivates your audience with immersive sound.Automatic Vertical Keystone CorrectionVertical keystone correction helps eliminate crooked and distorted images for a perfectly proportioned picture every time.Dual 3D Blu-ray Ready HDMI InputsDesigned with two HDMI ports, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.Industry-leading WarrantyViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service* for an added value worth up to $150.
LongProductName - DLP, 1920x1080, 3000 ANSI lum, 60-120", 240 W, 16:9, USB 3.1 C, 3.5mm, RS-232, Mini USB, 2x HDMI 1.4, VGA, RCA, RMS 5 W, 100-240 V, 50/60 Hz, 293x115x220 mm
LongSummaryDescription - Viewsonic PX706HD. Projector brightness: 3000 ANSI lumens, Projection technology: DMD, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 4000 h, Service life of light source (economic mode): 15000 h. Focus: Manual, Focal length range: 10.2 - 12.24 mm, Aperture range (F-F): 2.6 - 2.78. Analog signal format system: NTSC, PAL, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1200 (WUXGA), Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size
Lumens - 3000 lumens
MANUFDATASHEET - https://www.viewsonic.com/us/px706hd.html#specs
Maximum image diagonal - 120 mm
Maximum throw distance - 2.2 m
Minimum image diagonal - 60 ''
Minimum throw distance - 0.9 m
MountingCapability - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - RMS rated power - 5 W
name - Projector PX706HD
NativeResolution - 1920 x 1080
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Smart TV - No
Network - Wi-Fi - No
Number of colors - 1,07 mld
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - 3D Blu-ray (signal support) 3D Ready Auto-Keystone (automatic correction of vertical keystone effect) Auto Power Off - turn off after a certain period of time without an active signal BrilliantColor Direct Power On - starting after power connection Kensington Lock Screen menu in Polish CEC - sending on / off commands to compatible devices via HDMI Rear projection Security bar Fast on and off Presentation timer Password protection / PIN code Signal Power On - start after detecting the HDMI signal Signal Power On - start after detecting the VGA signal
PackageContents -

PX706HD projector

Power cable

USB Type C cable

Remote control

Quick Start Guide

Packaging content - Cables included - AC, VGA
Packaging content - Manual - Yes
Packaging content - Remote control included - Yes
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - Composite video in - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI connector type - Full-size
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - S-Video inputs quantity - 1
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100-240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 310 W
Power - Power source - AC
Power consumption - 310 W
ProdDesc - Full HD 1080p (1920x1080), 3000 lm, Short throw, 3X fast input, 2xHDMI, USB C (5V), exclusive SuperColor technology
producer - ViewSonic
ProductName - PX706HD
ProductPicture - http://www.tdbaltic.ee/images/ds4/PX706HD-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/PX706HD-02.jpg
ProductPicture3 -
ProductPicture4 -
Projection - Short throw
Projection ratio (max) - 0,83:1
Projection ratio (min) - 0,69:1
ProjectionSize - 1.5 m
ProjectionSizeMax - 3 m
Projector - Contrast ratio (typical) - 22000:1
Projector - Horizontal scan range - 15 - 102 kHz
Projector - Keystone correction, horizontal - -40 - 40°
Projector - Keystone correction, vertical - -40 - 40°
Projector - Matrix size - 1.65 cm (0.65")
Projector - Number of colours - 1.07 billion colours
Projector - Projection distance - 0.9 - 2.2 m
Projector - Projection technology - DMD
Projector - Projector brightness - 3000 ANSI lumens
Projector - Projector native resolution - 1080p (1920x1080)
Projector - Screen size compatibility - 762 - 7620 mm (30 - 300")
Projector - Vertical scan range - 23 - 120 Hz
Resolution - 1920 x 1080 (FHD 1080)
ShortSummaryDescription - Viewsonic PX706HD, 3000 ANSI lumens, DMD, 1080p (1920x1080), 22000:1, 762 - 7620 mm (30 - 300"), 0.9 - 2.2 m
Static contrast - 22 000:1
Storage - Card reader integrated - No
ThrowDistance - 0.9 m
ThrowDistanceMax - 2.2 m
Title - Viewsonic PX706HD data projector Short throw projector 3000 ANSI lumens DMD 1080p (1920x1080) White
URL - https://www.viewsonic.com/us/px706hd.html
UserControls - -
vendpn - 1PD093
Video - Analog signal format system - NTSC, PAL, SECAM
Video - Full HD - Yes
Video - Supported graphics resolutions - 640 x 480 (VGA), 1920 x 1200 (WUXGA)
Video - Supported video modes - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
VideoCompatibility - -
Warranty - 3 years
Warranty - Three-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange service. (One year Express Exchange Service requires product registration).
WarrantyInfo - Three-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange service
Weight - 2.700 Kg
Weight - 3.8 kg
Weight & dimensions - Depth - 115 mm
Weight & dimensions - Height - 220 mm
Weight & dimensions - Package depth - 300 mm
Weight & dimensions - Package height - 188 mm
Weight & dimensions - Package weight - 3.8 kg
Weight & dimensions - Package width - 365 mm
Weight & dimensions - Weight - 2.7 kg
Weight & dimensions - Width - 293 mm
Width - 293 mm
Wireless - No
Wireless communication - No
WirelessInterface - -
Zoom - 1,2x
