Accessories included - - VGA (D-Sub 15) cable
- Power cord
- Remote control
- Quick start guide
Audio - Yes
Automatic focus adjustment - No
Brand - Viewsonic
BrandPartCode - PA503S
Brightness - 3600 ANSI Lumen
Category - Data Projectors
Category - Root/Electronics/PC peripherals/Projectors and screens/Projectors
Compatibility with computer standards - VGA (640 x 480) to FullHD (1920 x 1080)
Compatibility with video standards - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, NTSC, PAL, SECAM
Description - The ViewSonic PA503S offers impressive visual performance in small business meeting rooms and classrooms. With higher brightness and longer lamp life, PA503S projector is guaranteed to reproduce the finest of details in any environment for much longer. ViewSonic exclusive SuperColour technology offers a wider range of displayable colour ensuring true-to-life colour accuracy in both bright and dark environments without sacrificing image quality. Extended lifespan
Users can choose different lamp mode to extend the lamps lifespan. When Power Saving setting is on and without any signal input, the projector will automatically switch to Eco Mode and SuperEco Mode Eco Mode: This projector automatically switches from Normal to Eco Mode whenever it has been left idle for 5 minutes. SuperEco Mode: When the projector has not received an input signal for 20 minutes, projected images are dimmed to 70%, extending the lamps lifespan to 15,000 hours on average. Automatic sleep timer
Forgetting to shut off projectors is a common occurrence, especially in public spaces such as classrooms and meeting rooms. PA503Ss sleep timer allows you to select a period of inactivity that will determine when the projector should put itself into sleep mode automatically. Auto Power Off
When no signal has been detected, the projector will automatically power off to conserve energy and lamp life. Bright images in any environment
3,600 ANSI Lumens of brightness and a 22,000:1 high contrast ratio guarantee the production of bright images in any environment, including rooms with high ambient light. Amazing colour accuracy
ViewSonics proprietary SuperColour Technology displays a wide range of visible colour, ensuring that users enjoy more realistic and accurate colour in both bright and dark environments without sacrificing image quality. Fine-tuned viewing
Choose from 5 unique preset viewing modes to provide the best settings for your usage: Brightest Mode: For environments where the maximum brightness is required Presentation Mode: High-brightness and a high contrast ratio for presentations in brightly lit environments. Standard Mode: Enhanced colour, similar to that of a PC or Notebook. Photo Mode: Natural colour for general viewing Movie Mode: Saturated colour for a better movie watching experience in dark environments. Immersive 3D viewing
PA503S's HDMI port allows users to project 3D content directly from 3D Blu-Ray players and HDMI-enabled devices such as laptops, tablets, and media players. Instant activation
Get your projector up and running instantly with two simple settings: Direct Power On: Simply connect the power cord and begin; the projector will power itself on automatically. Signal Power On: The projector will power on automatically upon detection of a VGA cable connection. Remote control functionality
This projector can be assigned to 8 different remote control codes in the same venue through a single remote control for effortless projector selection, configuration and operation during lessons or meeting. It can also operate certain projectors when the coded are fitted both on the projector and on the remote control. Advanced image correction
Vertical keystone allows you to correct and adjust distorted images with ease, making installation flexible. Time management assistance
Presentation Timer is an embedded on-screen timer that helps users with time management during presentations. Once a specified time limit has been reached, the projector will signal this with a beep, keeping presentations running on time. Attention refocusing capabilities
Using PA503Ss Blank Timer, presenter can refocus the audiences attention back to them by hiding the screens image at different points during a presentation. In addition, Blank Timer can also be used as a reminder for when to take breaks.
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Placement - Desktop
Design - Product colour - Grey, White
Design - Product type - Standard throw projector
dimension depth - 185 mm
dimension height - 360 mm
Dimensions - 110 x 294 x 218 mm
dimension weight - 3535 g
dimension width - 310 mm
Display - Built-in display - No
Display technology - DLP
ean - 766907904710
Eans - 0766907904710
Features - Certification - FCC (ICES-003), cTUVus
GTIN - 766907904710
GTIN - 0766907904710
guarantee - 24
guarantee_type - external

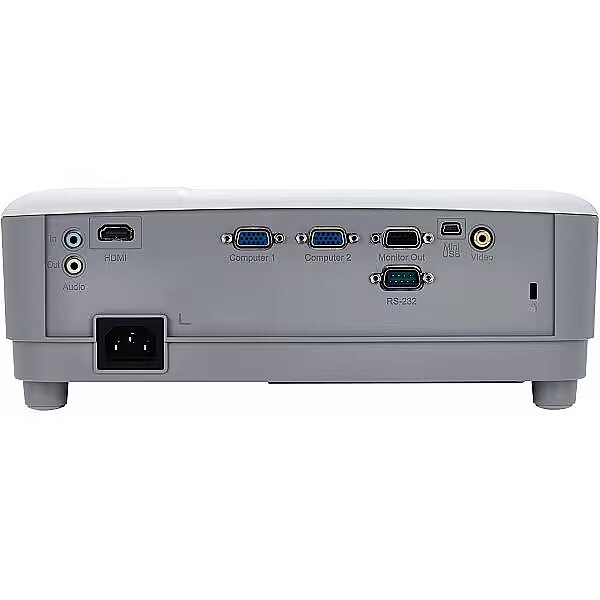

I/O connectors - 1 x Component (Y, Pb, Pr)
I/O connectors - 1 x Composite
I/O connectors - 1 x HDMI
I/O connectors - 1 x mini USB (Type B) Servis
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 2 x 3,5 mm minijack
I/O connectors - 3 x 15-pin D-Sub
Lens - - F = 2.56 - 2.68
- f = 22 - 24.1 mm
- projection offset: 120% +/-5%
Lens system - Focus - Manual
Lens system - Optical zoom - 1.1x
Lens system - Throw ratio - 1.96 - 2.15:1
Lens system - Zoom capability - Yes
Lens system - Zoom type - Manual
light life time - 5000 h
light life time (ECO mode) - 15000 h
Light source - Lamp power - 190 W
Light source - Lamps quantity - 1 lamp(s)
Light source - Light source type - Lamp
Light source - Service life of light source - 4500 h
Light source - Service life of light source (economic mode) - 15000 h
Logistics data - Harmonized System (HS) code - 85286200
LongDesc - The ViewSonic PA503S price-performance projector features 3,600 lumens, native SVGA 800 x 600 resolution, and intuitive, user-friendly design. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. The PA503S also features extensive connectivity including HDMI, 2 x VGA, VGA out, Composite Video and audio in/out. An energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 15,000 hours. With advanced audio-visual features, flexible connectivity options, and an affordable price, the PA503S is ideal for use in education and small business environments.3D Blu-ray ReadyHDMI InputEquipped with the latest HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.Quick Power OffWith the Quick Power Off feature enabled, the projector can be quickly powered off in seconds rather than waiting for a cool-down cycle to complete. This lets users pack the projector away without having to worry about the internal fan still running.Industry-leading WarrantyViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service for an added value worth up to $150.
LongProductName - 800 x 600, DLP, 3600 ANSI lum, 30-300", 190 W, 4:3, Mini USB B, RS-232, RCA, 3.5mm, HDMI 1.4, VGA, 2x RGB, 2 W RMS, 294x218x110 mm
LongSummaryDescription - Viewsonic PA503S. Projector brightness: 3600 ANSI lumens, Projection technology: DLP, Projector native resolution: SVGA (800x600). Light source type: Lamp, Service life of light source: 4500 h, Service life of light source (economic mode): 15000 h. Focus: Manual, Zoom type: Manual, Optical zoom: 1.1x. Analog signal format system: NTSC, PAL, PAL 60, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA),..., Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size
Maximum image diagonal - 300 ''
Maximum throw distance - 13.11 m
Minimum image diagonal - 30 ''
Minimum throw distance - 1.19 m
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of built-in speakers - 1
Multimedia - RMS rated power - 2 W
name - Projector PA503S DLP/ SVGA/ 3600 Ansi/ 22000:1/ HDMI
Name - ViewSonic PA503S
Network - Ethernet LAN - No
Network - Wi-Fi - No
Noise - 29 dB
Operational conditions - Operating altitude - 0 - 1499 m
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - - Keystone +/-40° (vertical)
Other features - RS-232 ports - 1
Packaging content - Cables included - AC, VGA
Packaging content - Quick start guide - Yes
Packaging content - Remote control included - Yes
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - Composite video in - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI connector type - Full-size
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - VGA (D-Sub) ports quantity - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 260 W
Power - Power source - AC
Power consumption - 260 W
producer - ViewSonic
Producer - Viewsonic
ProducerCode - 1PD073
ProductName - PA503S
Projection - Long throw
Projection ratio (max) - 2,15:1
Projection ratio (min) - 1,96:1
Projector - Horizontal scan range - 15 - 102 kHz
Projector - Keystone correction, vertical - -40 - 40°
Projector - Matrix size - 1.4 cm (0.55")
Projector - Matrix type - DMD
Projector - Native aspect ratio - 4:3
Projector - Number of colours - 1.073 billion colours
Projector - Projection distance - 1.1 - 13 m
Projector - Projection technology - DLP
Projector - Projector brightness - 3600 ANSI lumens
Projector - Projector native resolution - SVGA (800x600)
Projector - Screen size compatibility - 762 - 7620 mm (30 - 300")
Projector - Vertical scan range - 23 - 120 Hz
Resolution - 800 x 600 (SVGA)
ShortDescription - 1024 x 768 | 3D | lampa 190 W | DLP | 3600 lm | contrast 22 000:1 | USB | HDMI | D-Sub | RS232
ShortSummaryDescription - Viewsonic PA503S, 3600 ANSI lumens, DLP, SVGA (800x600), 4:3, 762 - 7620 mm (30 - 300"), 1.1 - 13 m
Static contrast - 22 000:1
Storage - Card reader integrated - No
Title - Viewsonic PA503S data projector Standard throw projector 3600 ANSI lumens DLP SVGA (800x600) Grey, White
URL - https://www.viewsonic.com/us/pa503s.html
vendpn - 1PD073
Video - 3D Ready - Yes
Video - Analog signal format system - NTSC, PAL, PAL 60, SECAM
Video - Supported graphics resolutions - 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1200 (WUXGA)
Video - Supported video modes - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Warranty - 2 years - collection, repair, return [lamp warranty 1 year, or 1000 hours]
WarrantyInfo - 3-year limited parts and labor, 1-year lamp
Weight - 2.2 kg
Weight & dimensions - Depth - 218 mm
Weight & dimensions - Height - 110 mm
Weight & dimensions - Package depth - 188 mm
Weight & dimensions - Package height - 300 mm
Weight & dimensions - Package weight - 3.24 kg
Weight & dimensions - Package width - 365 mm
Weight & dimensions - Weight - 2.2 kg
Weight & dimensions - Width - 294 mm
Wireless communication - No
Zoom - 1,1x
Zoom - Manual
