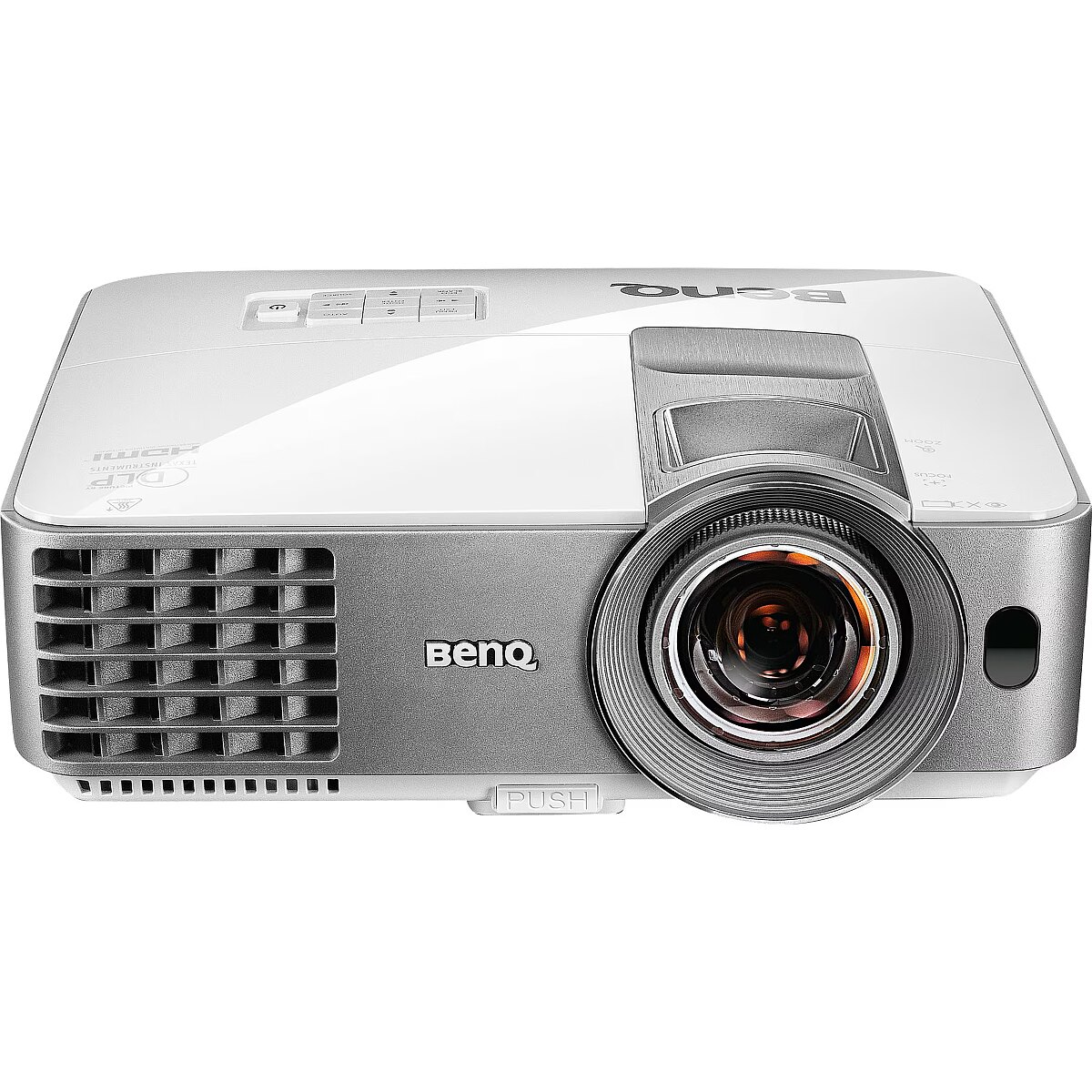

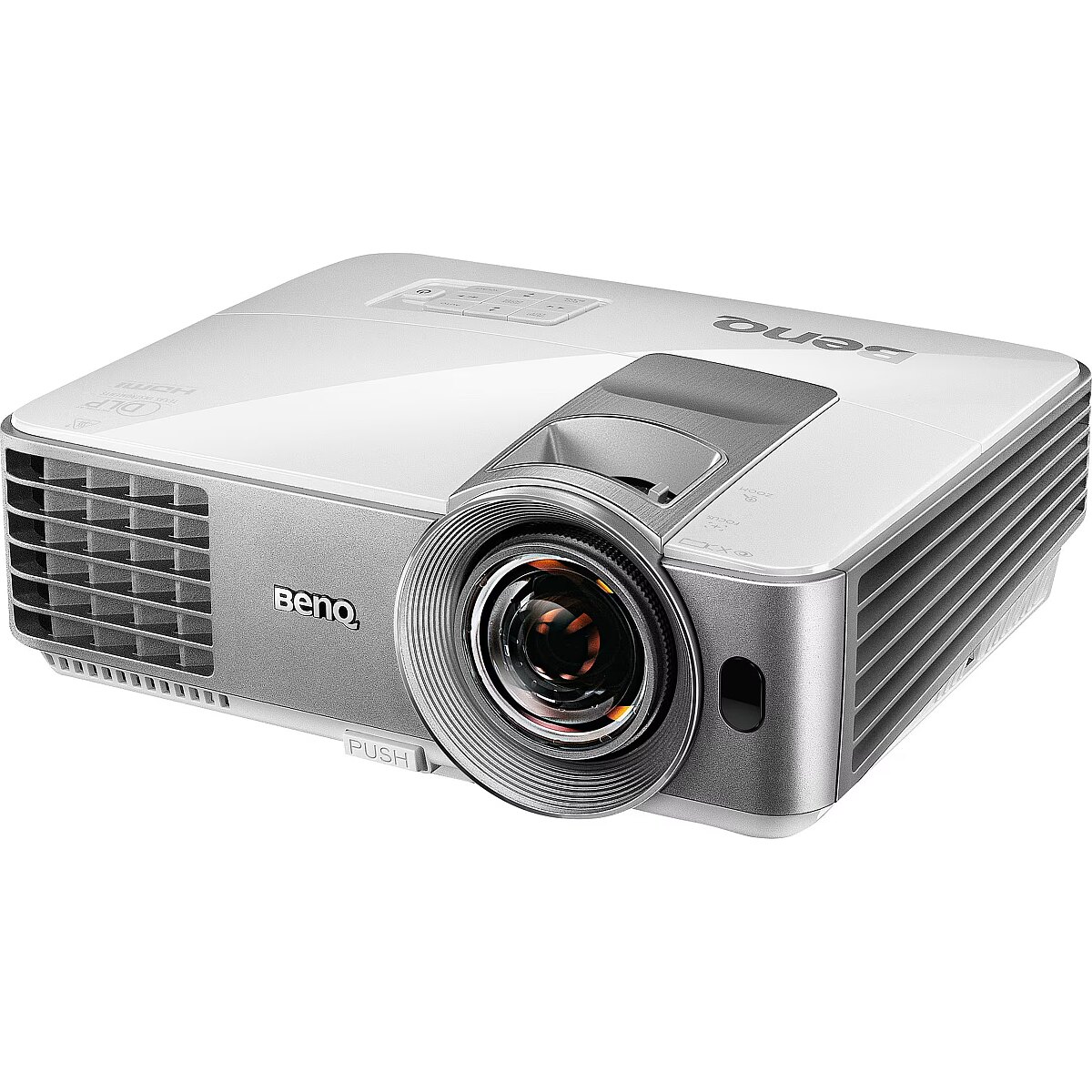

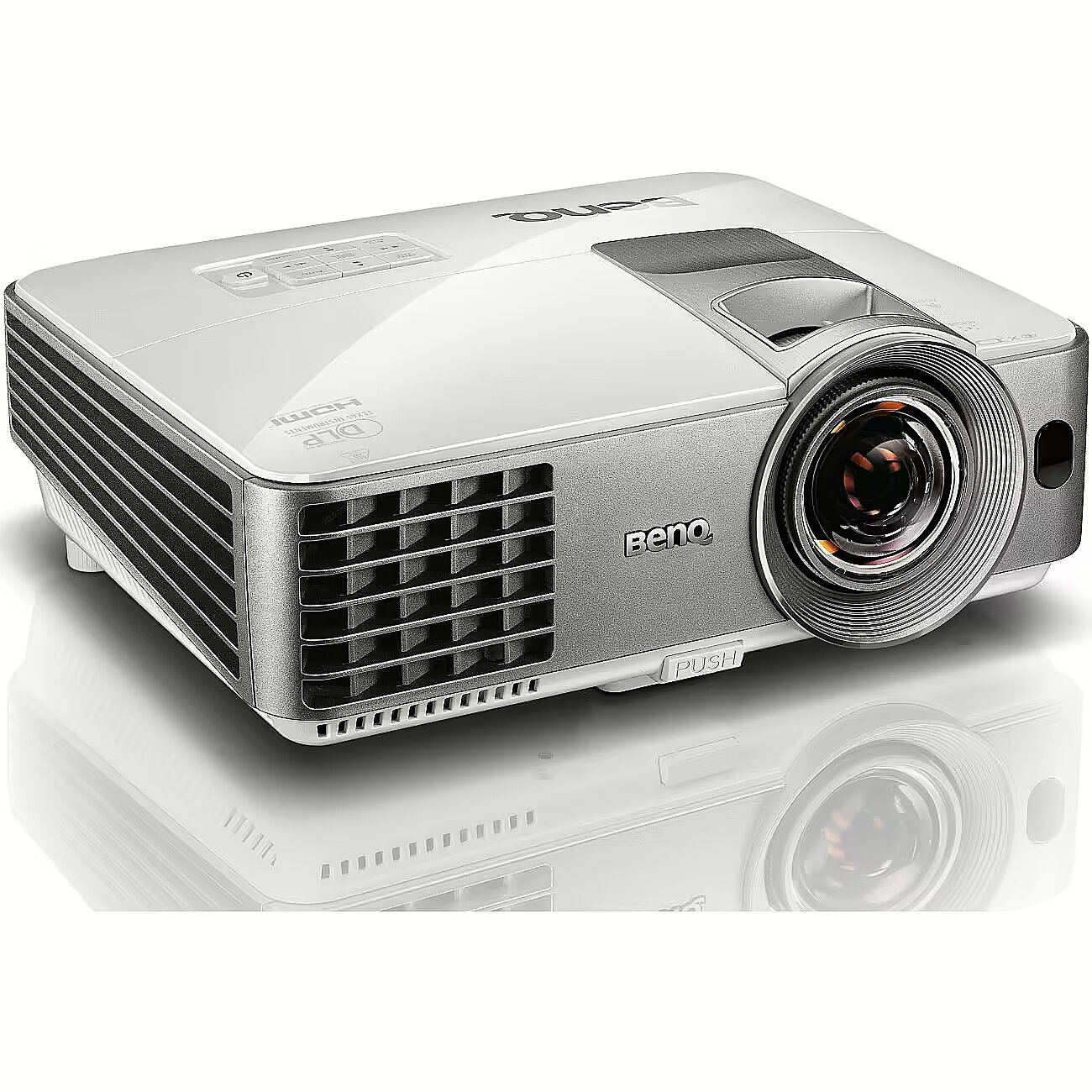

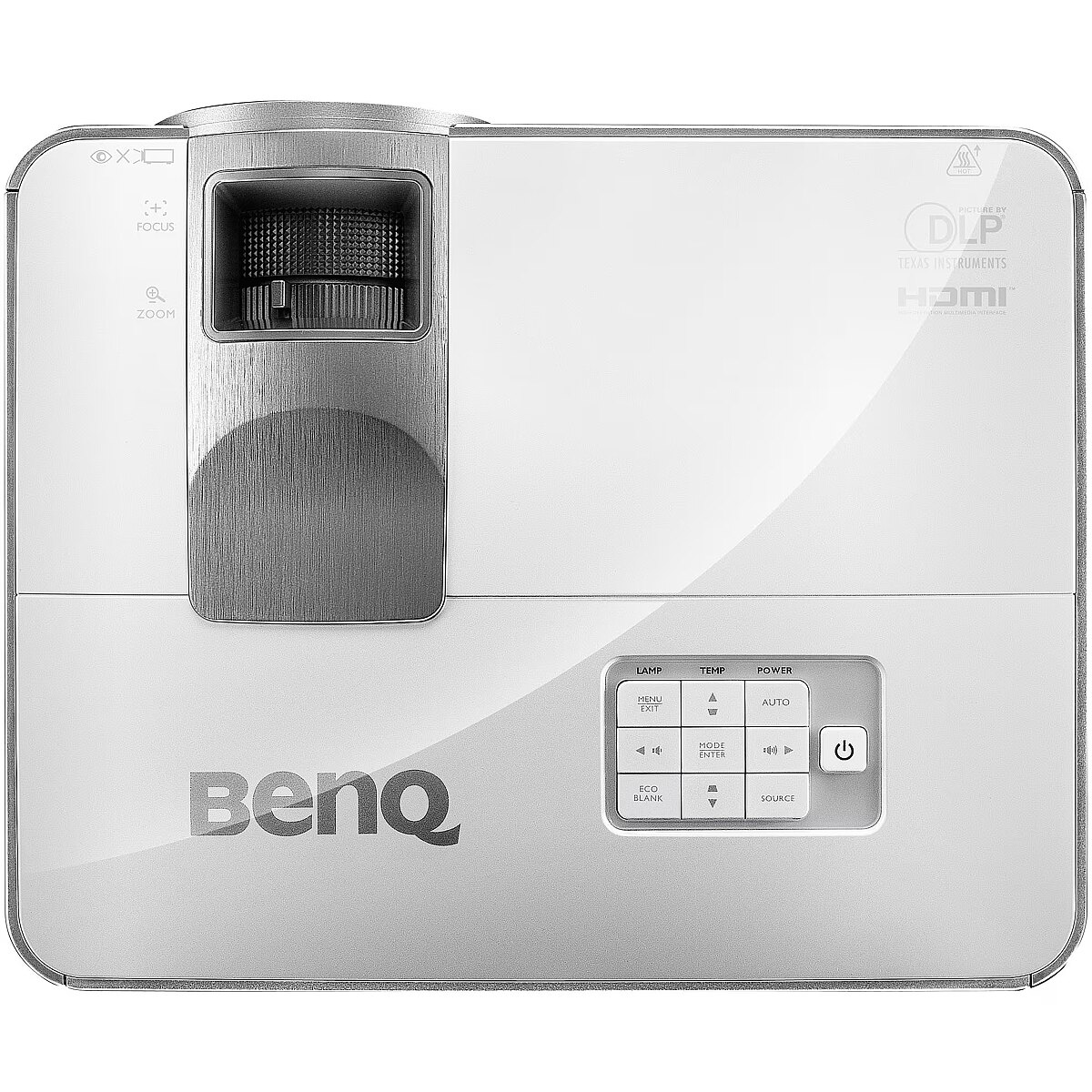

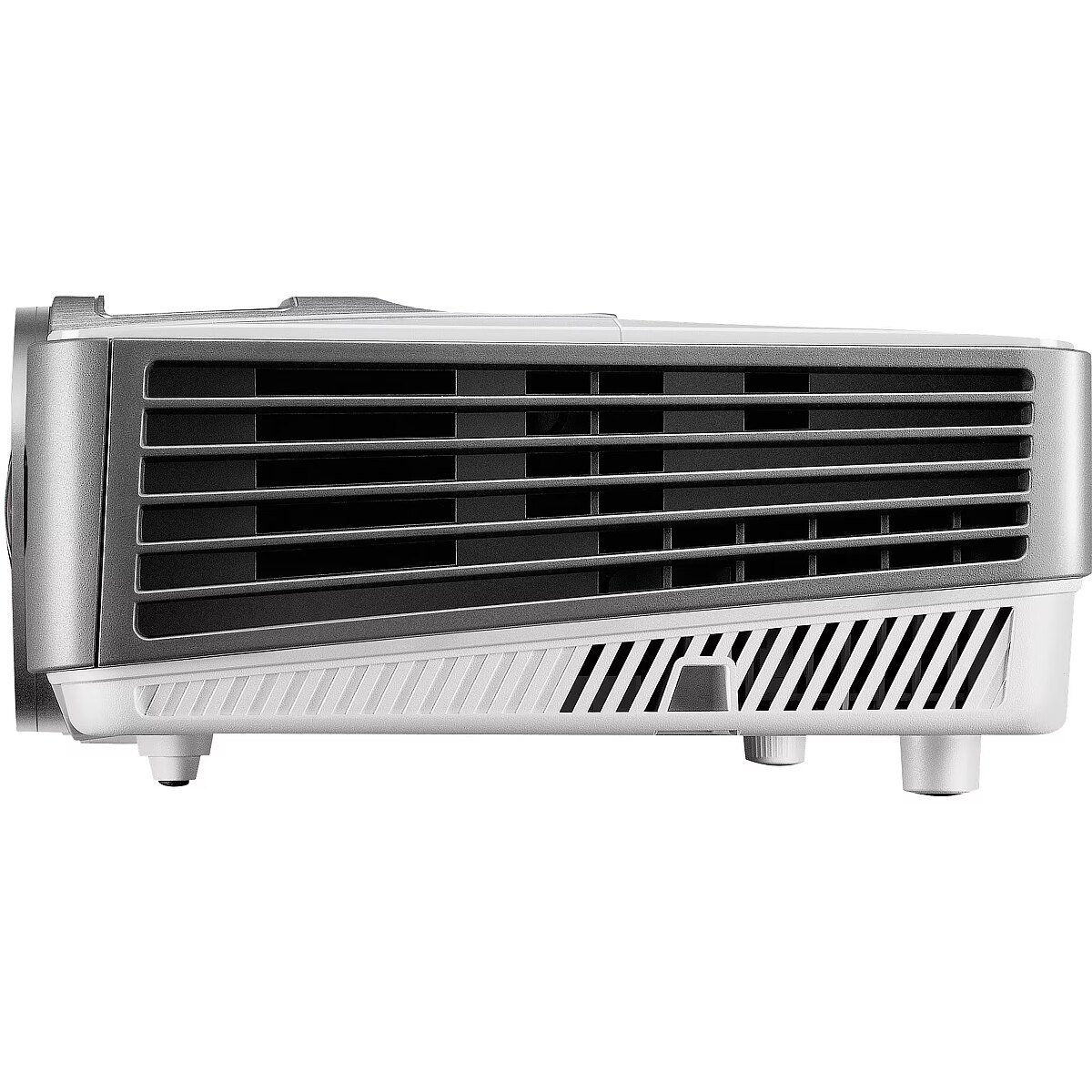

Benq MW632ST

3D compatibility - Yes
Accessories included - Remote with batteries Power cable User manual Quick Start Guide Warranty Card VGA cable (D-sub 15pin)
ANSI Lumens (Max.) - 3200
ARTIKEL1 - MW632ST WXGA 1200X800
ARTIKEL2 - 3200 ANSI 13000:1 2.6KG 28DB
Aspect ratio - 16:10
Audio - Yes
Brand - BenQ
BrandPartCode - 9H.JE277.13E
Brightness - 3200 ANSI Lumen
Built-in speakers - 1 x 10W
Category - Data Projectors
Category - Root/Electronics/PC peripherals/Projectors and screens/Projectors
Certificates > Energy Star certified - No
Code - 9H.JE277.13E
Compatibility with computer standards -
Compatibility with video standards -
Connections - Audio
Connections - Component
Connections - Composite
Connections - HDMI
Connections - HDMI (MHL)
Connections - IR Receiver
Connections - S-Video
Connections - Serial (RS-232)
Connections - USB 2.0 A
Connections - USB Mini B
Connections - VGA
Contrast ratio (typical) - 13000:1
Description - BENQ MW632ST 3200ANSI WXGA 13000:1 2.6KG
Description - Large Projection Image Even in Small Rooms
BenQ MW632ST! Equipped with 3200 ANSI lumens, contrast ratio of 13000: 1, in a short shot picture gives a 64 "large picture with only 1 meter projection! This XGA projector is equipped with DLP Link 3D technology and is ideal for small and medium projection rooms. And educational rooms!
Zero Location Limits Display Image
Just imagine the freedom of the same projection quality at a distance of half the required!
You will have much more flexibility in choosing a projection location!
Zero Lights Blinding Lecturer
The short projection distance projection maintains the light from the projector outside of the direct field of view of the lecturer's eyes, thus keeping the audience focused exclusively on the subject!
Zero Disturbance
Say goodbye to shadows that often interfere with your presentation. With distance projection so close, both you and your audience can move freely without fear of obstacles between the projector and the screen!
Design - Cable lock slot - Yes
Design - Market positioning - Business
Design - Placement - Desktop
Design - Product colour - White
Design - Product type - Standard throw projector
Design > Colour of product - White
Design > Form factor - Desktop
Design > Producer product family - Short Throw Series
Digital horizontal frequency, Hz - 24-120
Digital vertical frequency, kHz - 15 -102
dimension depth - 320 mm
dimension height - 165 mm
Dimensions - 287.3 x 114.4x 232.6 mm
Dimensions W x D x H, mm - 287.3 x 232.6 x 114.4
dimension weight - 3700 g
dimension width - 395 mm
Display - Built-in display - Yes
Display - Display number of colours - 1.073 billion colours
Display > Built-in display - Yes
Display > Color gamut - 1.07 Billion Colors %
Display > Display number of colours - 1070 M
Display > Panel type - DLP
Display number of colours - 30 Bits (1.07 billion colors)
Display technology - DLP
EAN - 4718755059285
ean - 4718755059285
EANCode - 4718755059285
Eans - 4718755059285
Features - HDCP - No
Features - Noise level - 33 dB
Features - Noise level (economic mode) - 28 dB
Features - Number of OSD languages - 28
Features - On Screen Display (OSD) - Yes
Features - On Screen Display (OSD) languages - Arabic, Dutch, Norwegian, Bulgarian, English, Indonesian, Italian, Polish, Swedish, Japanese, Portuguese, Thai, Finnish, Romanian, Turkish, Croatian, French, Korean, Russian, Czech, Greek, Danish, Hungarian
Frequency, horizontal max. - 102 kHz
Frequency, horizontal min. - 15 kHz
Frequency, vertical max. - 120 Hz
Frequency, vertical min. - 23 Hz
Gross weight - 3.6 kg
GRUPPE1 - Projector/Plasma
GRUPPE2 - Projector Wxga
GTIN - 0840046032296
GTIN - 840046032296
GTIN - 4718755059285
guarantee - 36
guarantee_type - external
HDMI ports quantity - 2
HDTV compatibility - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Height - 317.000000
HERSTELLER - BENQ
HSTNUMMER - 9H.JE277.13E

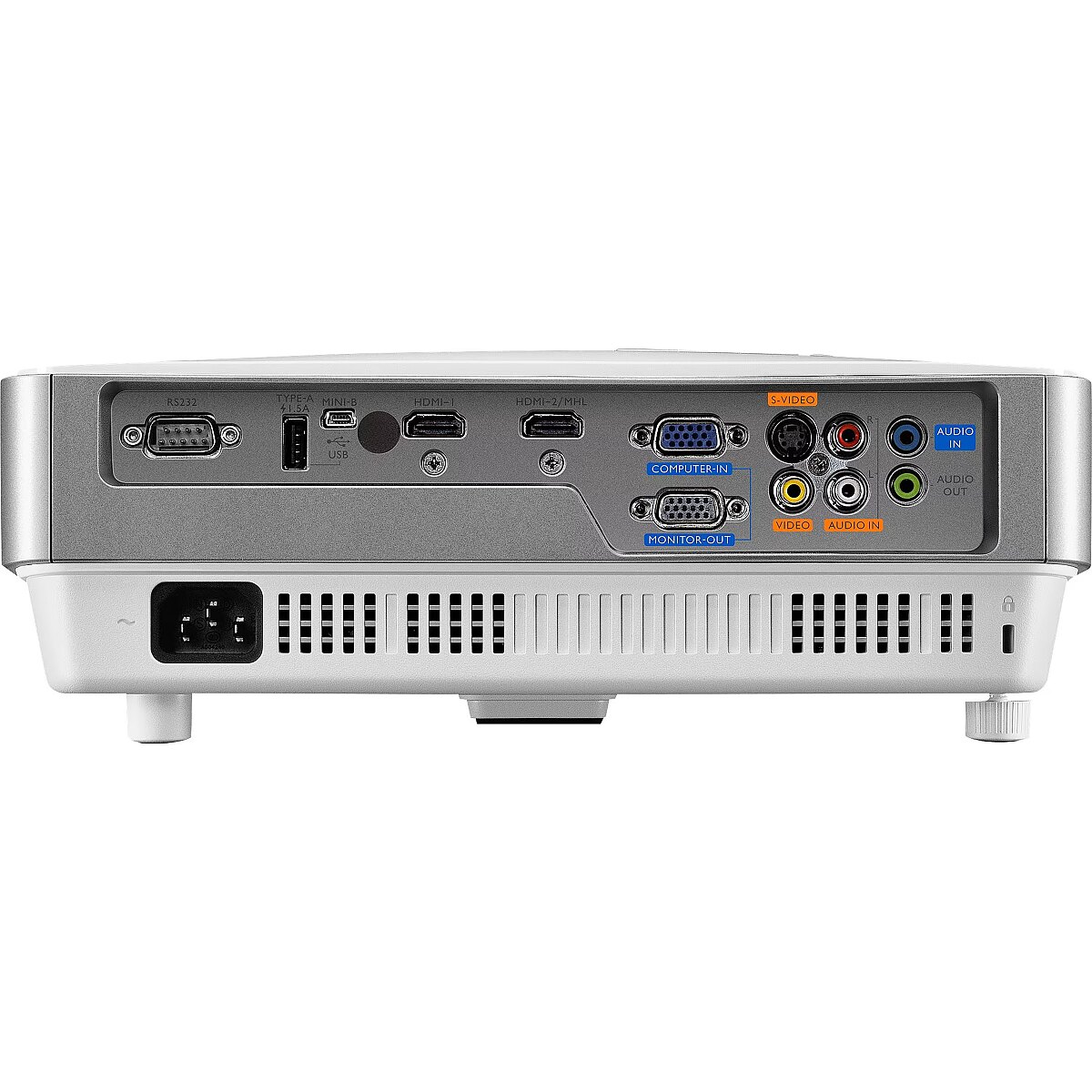

I/O connectors - 1 x Audio in
I/O connectors - 1 x Audio out
I/O connectors - 1 x Composite
I/O connectors - 1 x HDMI
I/O connectors - 1 x MHL-HDMI
I/O connectors - 1 x Mini-DIN-4 (S-Video)
I/O connectors - 1 x mini USB (Type B)
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
I/O connectors - 2 x 15-pin D-Sub
Keystone correction, horizontal, ° - +/- 30
Lamp power, W - 210
Lamps > Bulb power - 196 W
Lamps > Service life of lamp (economic mode) - 6000 h
Length - 400.000000
Lens - F=2.6-2.78, f=10.2-12.24mm
Lens - F=2.56~2.68, f=22.04~24.14mm
Lens shift - NA
Lens system - Aperture range (F-F) - 2.6 - 2.78
Lens system - Focal length range - 10.2 - 12.24 mm
Lens system - Offset - 105%
Lens system - Throw ratio - 0.72 - 0.87:1
Lens system - Vertical lens shift range - -30 - 30%
Lens system - Zoom ratio - 1.2:1
Lens system > Aperture range (F-F) - 2.6 - 2.78
Lens system > Focal length range (f-f) - 10.2 - 12.2 mm
Lens system > Lens structure (elements/groups) - F=2.6-2.78, f=10.2-12.24mm
Lens system > Lens type - F=2.6-2.78, f=10.2-12.24mm
Lens system > Offset - 105 %
Lens system > Throw ratio - 0.72 - 0.87:1
Lens system > Vertical lens shift range - -30 - 30 %
light life time - 4000 h
light life time (ECO mode) - 6000 h
Light source - Lamp
Light source - Lamp power - 196 W
Light source - Light source type - Lamp
Light source - Service life of light source - 4500 h
Light source - Service life of light source (economic mode) - 6000 h
Link - http://www.benq.com/product/projector/mw632st/
LongDesc - Projector MW632ST WXGA 3200 ANSI LUMEN 2x HDMI 1x MHL d-subZero Space ConstraintsJust imagine the freedom of having the same projection quality with half the required distance! You'll have better flexibility in choosing your projection locations! That's the magic of short-throw!Zero Eye-Blinding LightsThe short-throw projection distance keeps the projector light from shinning directly into your eyes, allowing you to keep your focus on your audience.Zero DisruptionsSay goodbye to the annoying shadows. With a projection distance this close, you can move freely without worrying about obstructions between the projector and the screen!High ContrastA high contrast ratio ensures that every text, image, graph, chart and video is projected with optimal clarity and enhanced sharpness, especially for numerical data. This is for presenters to view their presentation files clearly and the audience to stay focused on the contents projected.High BrightnessA high brightness business projector ensures every presentation is consistently projected with bright hues and high clarity – even in a relatively bright setting or with the lights kept on for note taking.2 HDMIPlay from many devices with HDMI x 2 and multiple connectivity options.Plug 'N Play, Enjoy Big Screen Fun with Your Android DevicesNow you can share your loved content from your Android devices with your family and friends on big screen. it features MHL function and allows you to mirror the movie, games from your android devices to big screen, Also, your device is being charged while you’re using it, so the fun never stops.1.5A USB Type-A Power SupplyUsers can charge their mobile devices through 1.5A USB Type-A power supply through USB Type-A. You don't need to worry about your mobile device running out of battery during meeting.
LongProductName - 1920 x 1200, 3200 ANSI, DLP, 4000h, 196W, HDMI, USB
LongSummaryDescription - BenQ MW632ST. Projector brightness: 3200 ANSI lumens, Projection technology: DLP, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 4500 h, Service life of light source (economic mode): 6000 h. Focal length range: 10.2 - 12.24 mm, Aperture range (F-F): 2.6 - 2.78, Zoom ratio: 1.2:1. Analog signal format system: SECAM, NTSC, PAL, Supported 3D formats: Frame Sequential, Top and bottom, Supported graphics resolutions: 640 x 480 (VGA), 1600 x 1200 (UXGA). Serial interface type: RS-232, HDMI version: 1.4a, USB connector type: USB Type-A, Mini-USB B
Manufacturer - BENQ
ManufacturerPartNumber - 9H.JE277.1HE
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of built-in speakers - 1
Multimedia - RMS rated power - 10 W
Multimedia > Built-in speaker(s) - No
Name - BenQ MW632ST short throw
Name - Benq | MW632ST | WXGA (1280x800) | 3200 ANSI lumens | 13.000:1 | White | Lamp warranty 12 month(s) | Business Projector
name - Projector MW632ST DLP WXGA/3200AL/13000:1/HDM
Native resolution - WXGA (1280 x 800)
Network - Bluetooth - No
Network - Ethernet LAN - No
Network - Wi-Fi - No
Networking > Bluetooth - No
Networking > Ethernet LAN - No
Networking > Wi-Fi - No
Networking > Wi-Fi connection - No
Noise - 33 dB
Noise level, dB - 33/ 28 (Normal/Eco)
Number of colors - 1,07 mld
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Other features - RS-232 ports - 1
Other features - Security updates end date - 31/12/2026
Other features > Aspect ratio - Native 16:10 (5 aspect ratio selectable)
Other features > Digital keystone correction - 1D, Vertical +/- 30 degrees
Other features > Dimensions (WxDxH) - 287.3 x 114.4 x 232.6mm mm
Other features > Power supply type - AC100V to 240V, 50Hz to 60 Hz
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 395 mm
Package features > Gross height (mm) - 315 mm
Package features > Gross width (mm) - 170.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 41 pc(s)
Package features > Paper/Pasteboard - 580.00 g
Package features > Plastic (No PET) - 105.00 g
Package features > Tare weight (kg) - 0.685 kg
Package features > TI weight (kg) - 0.01 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.02115225 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC, VGA
Packaging content - Manual - Yes
Packaging content - Quick start guide - Yes
Packaging content - Remote control included - Yes
Packaging content - Remote control type - IR
Packaging content - Warranty card - Yes
Performance > HDCP - No
Performance > Horizontal scan range - 15 - 102 kHz
Performance > Light source - 196W
Performance > Noise level (economic mode) - 28 dB
Performance > Noise level (max) - 33 dB
Performance > On Screen Display (OSD) - Yes
Performance > On Screen Display (OSD) languages - ARA, DUT, NOR, BUL,
Performance > Vertical scan range - 24 - 120 Hz
PeriodofWarranty - 36 M
Ports & interfaces - Audio (L/R) in - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4a
Ports & interfaces - Microphone in - No
Ports & interfaces - Mini-USB 2.0 ports quantity - 1
Ports & interfaces - Mobile High-Definition Link (MHL) - Yes
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - PC in (D-Sub) - Yes
Ports & interfaces - S-Video inputs quantity - 1
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB connector type - USB Type-A, Mini-USB B
Ports & interfaces - VGA (D-Sub) ports quantity - 2
Ports & interfaces > Audio (L,R) in - 1
Ports & interfaces > Audio (L,R) out - 1
Ports & interfaces > DVI port - No
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > HDMI version - 1.4a
Ports & interfaces > Microphone in - No
Ports & interfaces > Output connections - Computer In (D-sub 15pin) x 1 (Share with component); Monitor Out (D-sub 15pin) x 1; Composite Video In (RCA) x 1; S-Video In (Mini DIN 4pin) x 1HDMI (1.4a) x 2 (One share with MHL2.0); Audio In (Mini Jack) x 1; Audio L/R In (RCA) x 1; Audio Out (Mini Jack) x 1; Speaker 10W x 1; USB (Type mini B) x 1 (Download & Page Up/ Down); USB (Type A) x1 (1.5A Power Supply); RS232 (DB-9pin) x 1; IR Receiver x 2 (Front + Top)
Ports & interfaces > PC Audio in - Yes
Ports & interfaces > PC in (D-Sub) - Yes
Ports & interfaces > RS-232 ports - 1
Ports & interfaces > S-Video inputs quantity - 1
Ports & interfaces > USB 2.0 ports quantity - 2
Ports & interfaces > USB connector type - USB Type-A, Mini-USB
Ports & interfaces > VGA (D-Sub) ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (PowerSave) - 220 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 305 W
Power - Power source - AC
Power > AC adapter frequency - 50/60 Hz
Power > AC adapter input voltage - 100 - 240 V
Power > Power consumption (economy mode) - Normal 305W, Eco 220W, Standby < 0.5W W
Power > Power consumption (PowerSave) - 220 W
Power > Power consumption (standby) - 0.5 W
Power > Power consumption (typical) - 305 W
Power > Power source - AC
Power > Power supply - AC100V to 240V, 50Hz to 60 Hz W
Power consumption - 305 W
Power consumption (standby), W - 0.5
Power consumption, W - 280
producer - Benq
Producer - BenQ
ProducerCode - 9H.JE277.13E
Producer product name - MW632ST
ProductName - MW632ST
Projection size, " - 60 ~ 300
Projection technology - DLP
Projector - Contrast ratio (dynamic) - 13000:1
Projector - Horizontal scan range - 15 - 102 kHz
Projector - Horizontal synchronization (max) - 102 kHz
Projector - Horizontal synchronization (min) - 15 kHz
Projector - Keystone correction, horizontal - -30 - 30°
Projector - Native aspect ratio - 16:10
Projector - Number of colours - 1.073 billion colours
Projector - Projection technology - DLP
Projector - Projector brightness - 3200 ANSI lumens
Projector - Projector native resolution - WXGA (1280x800)
Projector - Screen size compatibility - 762 - 7620 mm (30 - 300")
Projector - Vertical scan range - 24 - 120 Hz
Projector - Vertical synchronization (max) - 0.12 kHz
Projector - Vertical synchronization (min) - 0.024 kHz
Projector > Contrast ratio (typical) - 13.000:1
Projector > Horizontal synchronization (max) - 102 kHz
Projector > Horizontal synchronization (min) - 15 kHz
Projector > Keystone correction, horizontal - -30 - 30 °
Projector > Native aspect ratio - 16:10
Projector > Number of colours - 1.07 M
Projector > Projection technology - DLP
Projector > Projector brightness - 3200 ANSI lumens
Projector > Projector native resolution - WXGA (1280x800)
Projector > Screen size compatibility - 1524 - 7620 mm
Projector > Vertical synchronization (max) - 120 kHz
Projector > Vertical synchronization (min) - 24 kHz
Projector > Zoom ratio - 1.2:1
Resolution - 1280 x 800 (WXGA)
Resolution compatibility - NTSC, PAL, SECAM
Service life of lamp, h - 4000 / 6000 / 8000
ShortDescription - 1280 x 800 | DLP | 3300 lm | contrast 13 000:1 | USB | HDMI | RS232 | D-Sub | S-Video
Short summary - The BenQ MW632ST offers the highest display flexibility- giving you a 64" big picture in a mere projection distance of 1 meter! Featuring 3,200 ANSI Lumens high brightness and 13000:1 high contrast ratio and DLP® Link? 3D technology, this WXGA projector is the perfect match for small-sized business and education settings!
ShortSummaryDescription - BenQ MW632ST, 3200 ANSI lumens, DLP, WXGA (1280x800), 16:10, 762 - 7620 mm (30 - 300"), 13000:1
Static contrast - 13 000:1
Stck_Kart - 1
Stck_Pal - 0
Storage - Card reader integrated - Yes
Storage > Card reader integrated - Yes
Storno - N
Technical details - Operating time - 4000 h
Technical details > Brightness - 3200 ANSI lumens
Technical details > Contrast ratio - 13000
Technical details > Lamp warranty - 12 month(s)
Technical details > Maximum resolution - WXGA (1280x800)
Technical details > Net weight - 2.915 kg
Technical details > Operating time - 4000 h
Technical details > PC connection - Computer In (D-sub 15pin) x 1 (Share with component); Monitor Out (D-sub 15pin) x 1; Composite Video In (RCA) x 1; S-Video In (Mini DIN 4pin) x 1HDMI (1.4a) x 2 (One share with MHL2.0); Audio In (Mini Jack) x 1; Audio L/R In (RCA) x 1; Audio Out (Mini Jack) x 1; Speaker 10W x 1; USB (Type mini B) x 1 (Download & Page Up/ Down); USB (Type A) x1 (1.5A Power Supply); RS232 (DB-9pin) x 1; IR Receiver x 2 (Front + Top)
Technical details > Picture size - 1.2:1 cm
Technical details > Producer - Benq
Technical details > Type - Business Projector
Technical details > Warranty - 36 month(s)
Throw ratio - 0.72 - 0.87
Title - BenQ MW632ST data projector Standard throw projector 3200 ANSI lumens DLP WXGA (1280x800) 3D White
URL - https://www.benq.com/product/projector/mw632st/
vendpn - 9H.JE277.13E
Video - 3D - Yes
Video - Analog signal format system - SECAM, NTSC, PAL
Video - Full HD - No
Video - Supported 3D formats - Frame Sequential, Top and bottom
Video - Supported graphics resolutions - 640 x 480 (VGA), 1600 x 1200 (UXGA)
Video - Supported video modes - 576i, 480i, 576p, 1080i, 480p, 1080p, 720p
Video - Video processing - 30 bit
Video > 3D - Yes
Video > Analog signal format system - SECAM, NTSC, PAL
Video > Full HD - No
Video > Supported 3D formats - Frame Sequential, To
Video > Supported graphics resolutions - 640 x 480 (VGA), 192
Video > Supported video modes - 576i, 480i, 576p, 10
Video color modes - Bright / Presentation / sRGB / Cinema / (3D) / User 1 / User 2
Warranty - 36
WarrantyInfo -
Weight - 2.6 kg
Weight - 3.700000
Weight & dimensions - Depth - 232.6 mm
Weight & dimensions - Height - 114.4 mm
Weight & dimensions - Weight - 2.6 kg
Weight & dimensions - Width - 287.3 mm
Weight & dimensions > Depth - 23.3 cm
Weight & dimensions > Height - 11.4 cm
Weight & dimensions > Weight - 2.6 g
Weight & dimensions > Width - 28.7 cm
Weight, g - 2600
Width - 167.000000
Wireless communication - Optional
