ViewSonic PA700X

Accessories included - VGA cable (D-Sub 15) Power cable Warranty Card Lens hood Quick start guide Replaceable filter
Aspect ratio - 16:10
Audio - Yes
Brand - Viewsonic
BrandPartCode - PA700X
Brightness - 4500 ANSI Lumen
Category - Data Projectors
Color - White
Compatibility with computer standards -
Compatibility with video standards -
Description - The PA700X is a high-brightness 4,500 ANSI lumen WXGA business/educational projector from ViewSonic. It was designed to project images on large screens up to 300 inches in conference rooms, classrooms or other bright environments. The projector offers the flexibility to connect additional devices via two HDMI ports, eliminating the need to disconnect existing devices when switching between them. Simply use the on-screen display to select and change the input source. The use of unique ViewSonic color technology improves the quality of presentations through realistic color reproduction. The projector also allows you to update the software using a USB cable connected to your laptop, so you can do it yourself at home. The built-in 5V/1.5A USB power output can be used to power wireless devices connected to the projector, eliminating the need for separate power supplies when transmitting multimedia content.
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - LED indicators - Yes
Design - Market positioning - Education
Design - Product colour - White
Design - Product type - Standard throw projector
dimension depth - 115 mm
dimension height - 309 mm
Dimensions - 115 x 309 x 234 mm
dimension weight - 2700 g
dimension width - 234 mm
Display - Built-in display - No
Display technology - DLP
ean - 766907020007
Features - Air filter - Yes
Features - HDCP - Yes
Features - HDCP version - 1.4
Features - Interactive - No
Features - Noise level - 34 dB
Features - Noise level (economic mode) - 25 dB
Features - Number of OSD languages - 22
Features - On Screen Display (OSD) - Yes
Features - On Screen Display (OSD) languages - Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese
GTIN - 0766907020007
GTIN - 766907020007
guarantee - 24
guarantee_type - external
I/O connectors - 1 x HDMI
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
I/O connectors - 2 x 3,5 mm minijack
Lens - F=2.42-2.53, f=21.85-24.01mm
Lens system - Aperture range (F-F) - 2.42 - 2.53
Lens system - Digital zoom - 2x
Lens system - Focal length range - 21.85 - 24.01 mm
Lens system - Focus - Manual
Lens system - Offset - 115%
Lens system - Optical zoom - 1.1x
Lens system - Throw ratio - 1.94 - 2.16
Lens system - Zoom capability - Yes
light life time - 4000 h
light life time (ECO mode) - 12000 h
Light source - Lamp power - 240 W
Light source - Lamps quantity - 1 lamp(s)
Light source - Lamp type - UHP
Light source - Light source type - Lamp
Light source - Service life of light source - 4000 h
Light source - Service life of light source (economic mode) - 12000 h
LongDesc - The PA700X is ViewSonic’s high brightness XGA business/education projector. With 4,500 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers. ​High Brightness for Business & Education Environments​Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.Ultra-Large Screen with Lower Cost-per-inch​​The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.Easy and Flexible Connection​The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.​Present the Best with Vibrant ColorsImpress any audience with ViewSonic’s exclusive color technology and elevate your presentationwith a true-to-life color experience.A Simpler Way to Update Projector Software​Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.​​​​​​*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.​USB Type A Power Supply​A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.
LongProductName - XGA, 4500 ANSI, 12500:1, 1.07 B, 240W UHP, 1.1x, 3W, HDMI, Audio-in/out, VGA, RS232, USB, 100-240 V, 2.70 kg
LongSummaryDescription - Viewsonic PA700X. Projector brightness: 4500 ANSI lumens, Projector native resolution: XGA (1024x768), Contrast ratio (typical): 12500:1. Light source type: Lamp, Service life of light source: 4000 h, Service life of light source (economic mode): 12000 h. Focus: Manual, Focal length range: 21.85 - 24.01 mm, Aperture range (F-F): 2.42 - 2.53. Analog signal format system: NTSC, PAL, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size, Service port type: USB Type-A
Maximum image diagonal - 300 ''
Minimum image diagonal - 30 ''
Model - PA700X
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of built-in speakers - 1
Multimedia - RMS rated power - 3 W
name - Projector PA700X
Network - Ethernet LAN - No
Network - Smart TV - No
Network - Wi-Fi - No
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Packaging content - Cables included - AC, VGA
Packaging content - Quick start guide - Yes

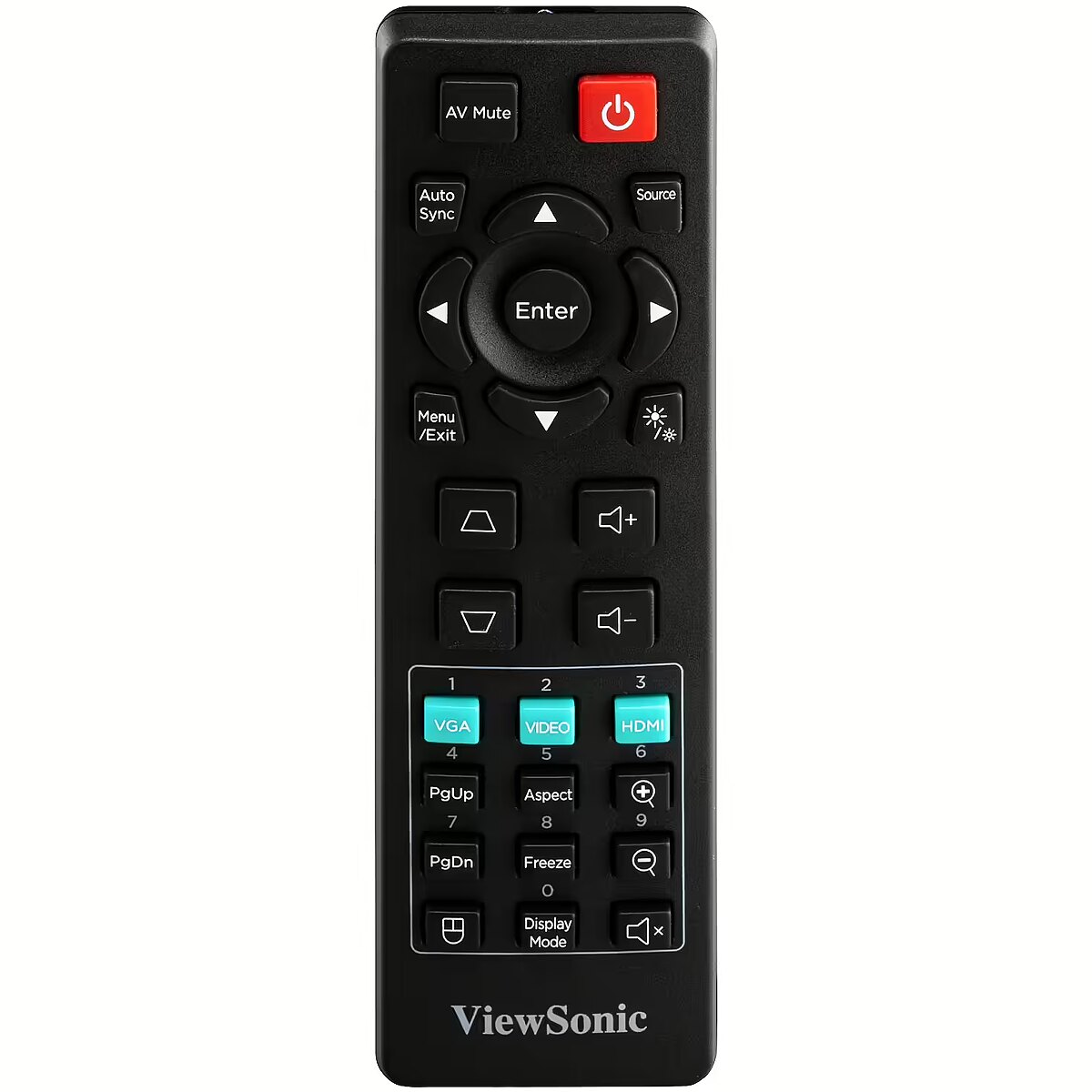

Packaging content - Remote control included - Yes
Packaging content - Remote control type - IR
Packaging content - Warranty card - Yes
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI connector type - Full-size
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - PC in (D-Sub) - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Service port type - USB Type-A
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 2.0 Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 295 W
Power - Power source - AC
Power consumption - 240 W
producer - ViewSonic
ProductName - PA700X
Projection - Short throw
Projector - Contrast ratio (typical) - 12500:1
Projector - Horizontal scan range - 15 - 102 kHz
Projector - Keystone correction, vertical - -40 - 40°
Projector - Number of colours - 1.07 billion colours
Projector - Projection distance - 1.18 - 13.17 m
Projector - Projector brightness - 4500 ANSI lumens
Projector - Projector native resolution - XGA (1024x768)
Projector - Screen size compatibility - 762 - 7620 mm (30 - 300")
Projector - Smart projector - No
Projector - Vertical scan range - 23 - 120 Hz
Resolution - 1024 x 768 (XGA)
ShortSummaryDescription - Viewsonic PA700X, 4500 ANSI lumens, XGA (1024x768), 12500:1, 762 - 7620 mm (30 - 300"), 1.18 - 13.17 m, 1.07 billion colours
Static contrast - 12 000:1
Storage - Card reader integrated - No
Technical details - Image lag time - 33.2 ms
Title - Viewsonic PA700X data projector Standard throw projector 4500 ANSI lumens XGA (1024x768) White
URL - https://www.viewsonic.com/global/products/projectors/PA700X#specs
vendpn - 1PD141
Video - 3D - No
Video - Analog signal format system - NTSC, PAL, SECAM
Video - Full HD - Yes
Video - Supported graphics resolutions - 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Video - Supported video modes - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Warranty - 2 years - collection, repair, return [warranty for the lamp: 1 year or 1000 hours]
WarrantyInfo -
Weight - 2.7 kg
Weight & dimensions - Depth - 234 mm
Weight & dimensions - Height - 115 mm
Weight & dimensions - Package depth - 337 mm
Weight & dimensions - Package height - 168 mm
Weight & dimensions - Package weight - 3.8 kg
Weight & dimensions - Package width - 400 mm
Weight & dimensions - Weight - 2.7 kg
Weight & dimensions - Width - 309 mm
Zoom - 2,0x
Zoom - Automatic (Digital)
