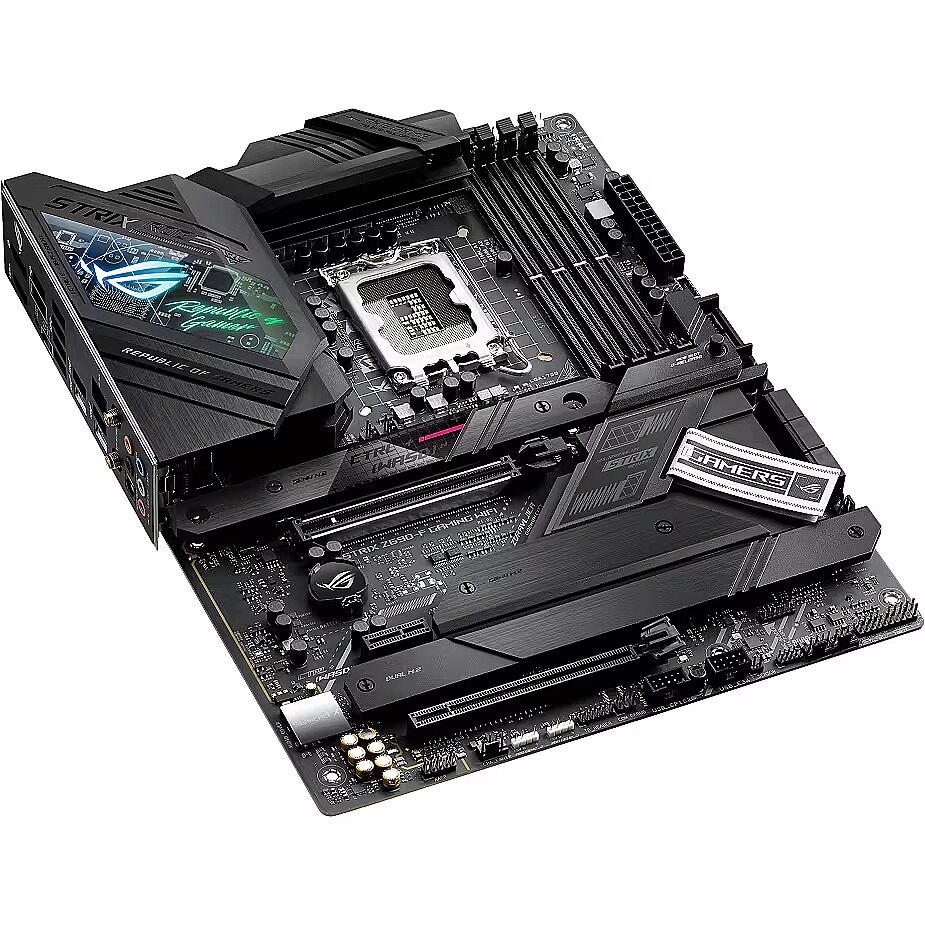

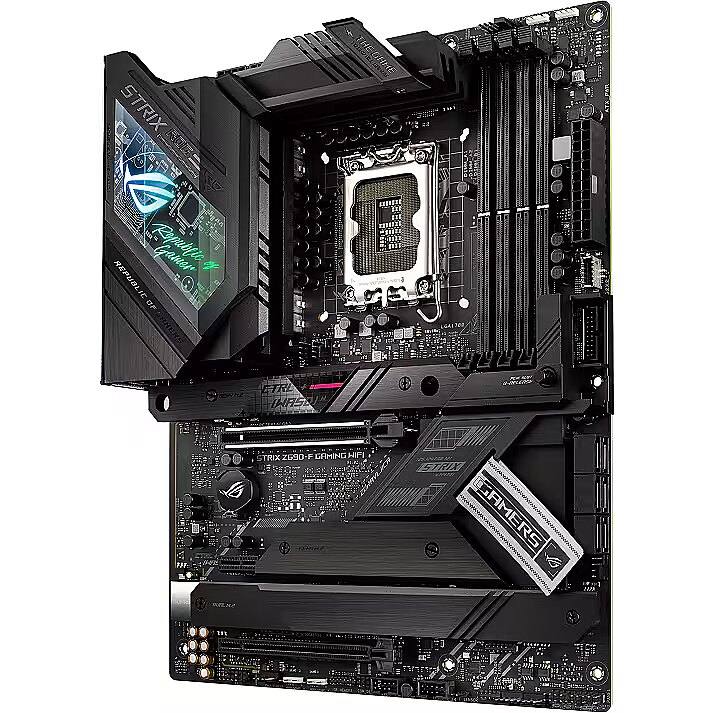

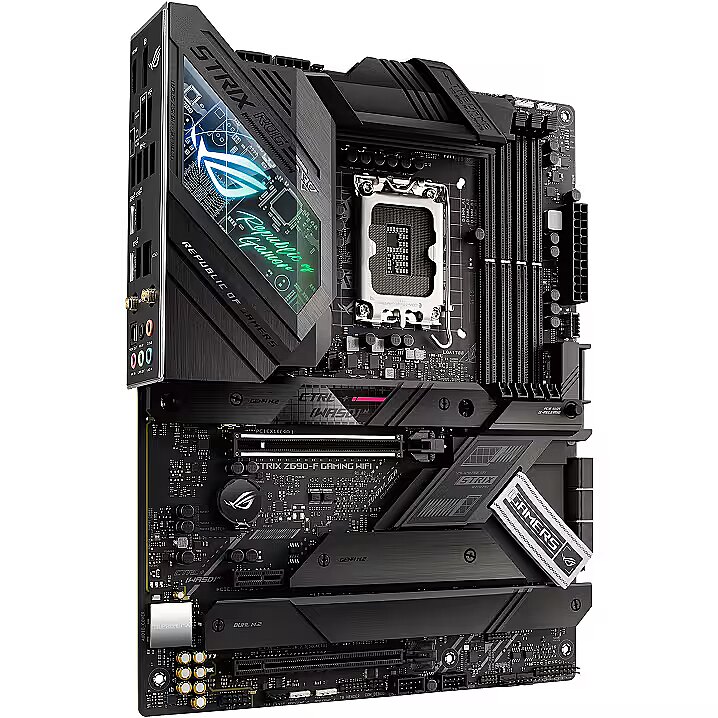

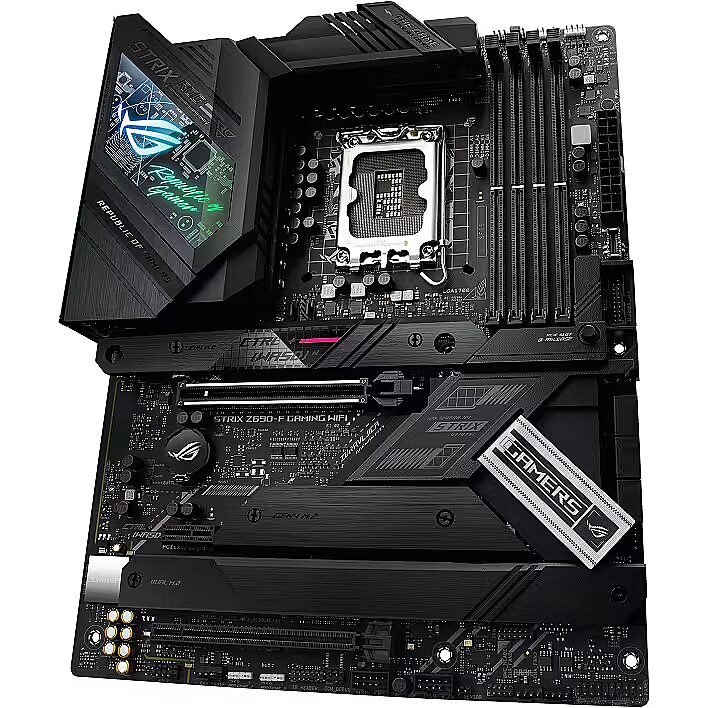

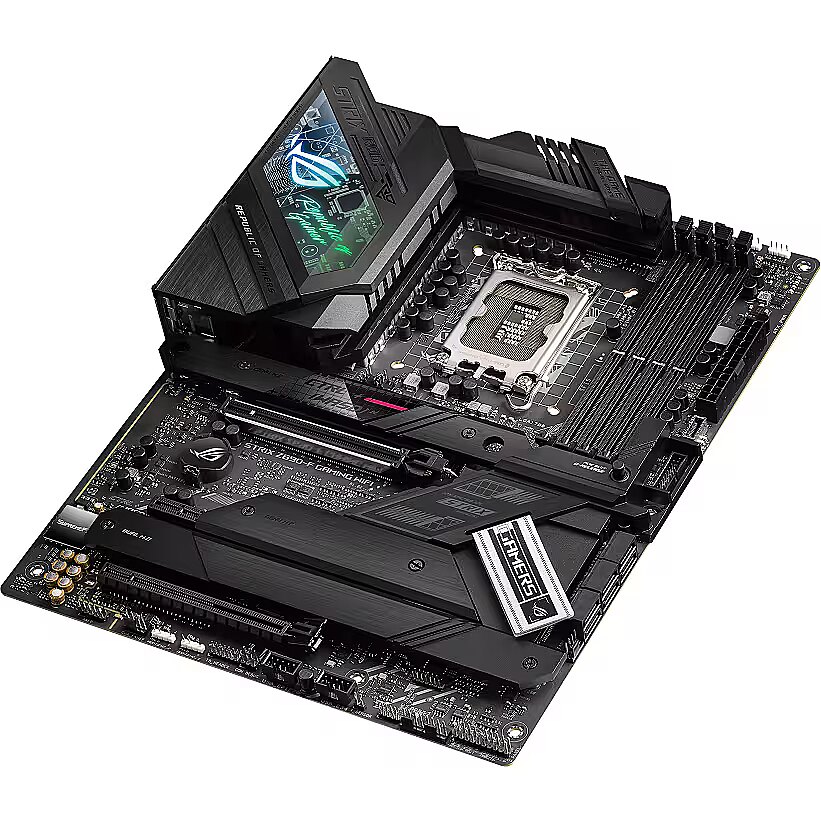

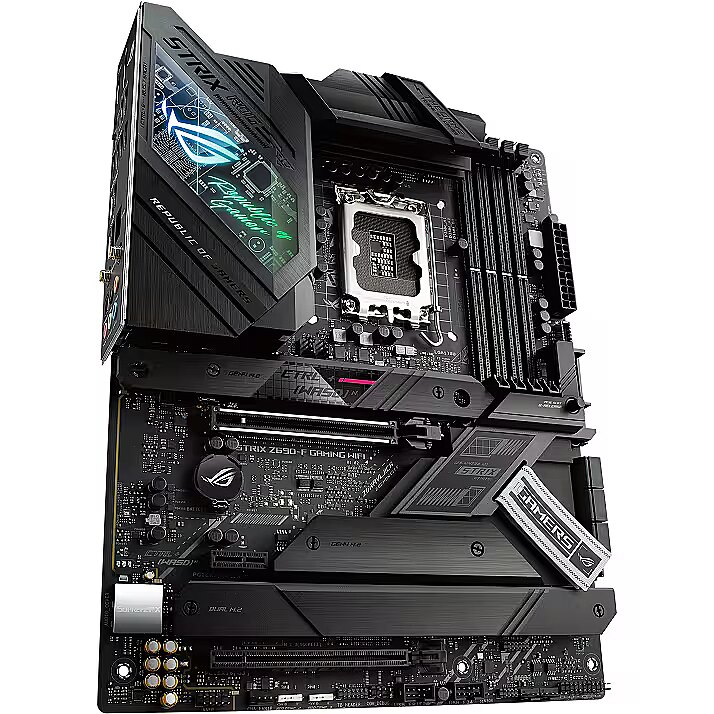

Asus ROG STRIX Z690-F GAMING WIFI

Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
ID: 775868 Tuotekoodi: ROG STRIX Z690-F GAMING WIFI
Voidaan tilata 2 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 2 vuotta (Yritysten takuu 1 vuosi)
2 791,35 €
Toimitusvaihtoehdot
  • Toimitus Smartpost-pakettiautomaattiin 6,99 €: 27.11.2024
  • Kuriiritoimitus 11,99 €: 27.11.2024
Tärkeimmät tuoteparametrit Kaikki parametrit
  • Sarja: ASUS ROG Strix
  • CPU-kanta: LGA 1700
  • Piirisarja: Intel Z690
  • Muotoilutekijä: ATX
  • Tyyppi: DDR5
  • RAM-paikat: 4
  • Sisäänrakennettu Wi-Fi: Ja
Perustiedot
Sarja : ASUS ROG Strix
CPU-kanta LGA 1700
Suorittimen kanta on tärkeä tekijä levyn valinnassa; suorittimen kannan on oltava täsmälleen yhteensopiva sen suorittimen kanssa, jonka haluat asentaa levyn kanssa. Riippumatta siitä, että prosessori sopii emolevyn kantaan, on otettava huomioon myös kyseisen prosessorin tuki. Sen tarkistamiseksi, mitä suorittimia valittu emolevy tukee, sinun on käytävä emolevyn valmistajan verkkosivustolla, etsittävä kyseisen emolevyn suorittimen tukiosio ja tarkistettava, että kyseisen emolevyn tekniset tiedot tukevat valitsemaasi suorittinta.
Piirisarja Intel Z690

Piiriväylä on tärkein kriteeri emolevyn valinnassa (järjestelmän logiikkapiirit tai jännitemuuntajat). Piiriväylä määrittää suorittimet, muistiportit ja muut parametrit, joita emolevy tukee.

Kukin piirisarja liittyy suoraan tiettyyn suorittimen alustaan, jotka jaetaan suorittimen perheen tai suorittimen liitäntäpisteen perusteella.

sen tarkistamiseksi, mikä piiriväylä sopii suorittimellesi jne. sinun kannattaa kysyä johtajiltamme.
Muotoilutekijä ATX

Emolevyn fyysinen koko. TopPC.fi tarjoaa ATX- (täysikokoinen emolevy), mATX- (micro ATX) (pienikokoinen emolevy) ja miniATX-kokoisia emolevyjä. ATX-kokoisen tietokoneen koteloon on mahdollista sijoittaa sekä ATX- että mATX-emolevy, mutta mATX-koteloon ei voi sijoittaa ATX-emolevyä.

ATX-piirilevyssä on vähintään 3 muistipaikkaa ja vähintään 5 paikallista PCI-paikkaa, mikä tarkoittaa, että tälle levylle voidaan rakentaa hyvin toimiva tehokas tietokone. Koti- tai toimistotietokone ei kuitenkaan tarvitse näin suurta määrää korttipaikkoja, joten myös microATX-kortti sopii.

Emolevyn virtalähteen liitin on virtalähdepistorasia, jotka ovat nykyisin ATX- ja ATX2.0-standardia. ATX on vanhempi standardi, jossa on 20-nastainen liitin (20 "nastaa"), ja ATX2.0:ssa on 4 lisänastaa (20+4). ATX-standardin emolevyt voivat toimia ATX2.0-virtalähteellä (PSU), mutta ATX2.0-standardin emolevy vaatii ATX2.0-virtalähteen.

Form-factor on pikemminkin suositus. Ennen emolevyn ostamista kannattaa kuitenkin tarkistaa kotelon koon yhteensopivuus emolevyn koon ja sen virtalähteen liittimen kanssa.

Satunnaiskäyttömuisti (RAM)
Tyyppi : DDR5
RAM-paikat 4
Käytettävissä olevien muistipaikkojen määrä osoittaa emolevyyn asennettavien muistimoduulien (levyjen) määrän.
Muistituki DDR5 4800 (OC 6400)

RAM-väylä määrittää, minkä tyyppistä RAM-muistia kyseinen emolevy tukee.

Väylämerkintä sisältää muistityypin DDRII tai DDRIII sekä emolevyn tukeman muistin enimmäiskellotaajuuden. Muistin tyyppi on tärkein indeksi, eri tyyppiset muistit ovat fyysisesti erilaisia, joten DDRIII-muistia ei voi liittää emolevyyn, joka tukee DDRII-muistia (lukuun ottamatta tapauksia, joissa emolevy tukee molempia muistityyppejä). Emolevy, joka tukee 800 MHz:n DDRII-muistia, voi kuitenkin toimia muistinopeuksilla DDII667 ja DDRII533. Emolevy, jonka muistiväylän nopeus on pienempi kuin muistimoduulin nopeus, pystyy toimimaan vain määritellyn väylänopeuden verran, eli jos emolevyn muistiväylä on DDRII667 ja siihen on asennettu DDRII800-muisti, se toimii DDRII667-nopeudella.

Näytönohjain
Videokorttiportti PCI-EXPRESS
VGA-portti tai näytönohjaimen pistoke. VGA-portin on oltava valitsemasi näytönohjainportin eritelmän mukainen. Vanhemmissa näytönohjaimissa on AGP-portti, uusien korttien valmistajissa on PCI-EXPRESS (PCI-X) -portti.AGP- ja PCI-Xpress-näytönohjaimet eivät ole keskenään yhteensopivia. Ennen emolevyn ostamista sinun on tarkistettava sekä emolevyn että näytönohjaimen näytönohjainportin yhteensopivuus.
Integroitu grafiikka Vain iGPU-valmiilla suorittimella

Parametri, joka määrittää, onko näytönohjain integroitu emolevyyn. Integroitu näytönohjain soveltuu toimisto-ohjelmistojen, Internetin, elokuvien katseluun ja yksinkertaisten pelien pelaamiseen. Jos haluat käyttää grafiikkasovelluksia, pelata 3D-pelejä ja katsella 3D-animaatioita, tarvitset lisänäytönohjaimen.

Integroitu näytönohjain käyttää murto-osan emolevyn muistista, joten jos emolevyssäsi on 1 Gt muistia ja emolevyn näytönohjaimen asetuksissa ilmoitetaan, että se vie 256 Mt, käyttöjärjestelmä näyttää käytettävissä olevan muistin määräksi noin 700 Mt.
Ennen kuin ostat emolevyn, jossa on sisäänrakennettu näytönohjain, sinun on tarkistettava, onko siinä ylimääräinen näytönohjainportti, jotta voit tarvittaessa päivittää sitä.

Satamat ja laitteet
PCI-portit 0
PCI-portit ovat suosituin tapa täydentää tietokoneen toimintoja lisäkorteilla (ääni, verkko, viestintä, videovalvonta jne.). Uudemmissa emolevyissä on PCI-Express-standardin ansiosta pieni määrä PCI-laajennusportteja, joten ennen emolevyn ostamista kannattaa tarkistaa, että PCI-porttien määrä mahdollistaa kaikkien tarvitsemiesi PCI-korttien liittämisen.
D-Sub : 0
DVI : 0
HDMI : 1
DisplayPort : 1
Integroitu äänikortti : Realtek ALC4080
Langattomat yhteydet
Sisäänrakennettu Bluetooth : Ir
Sisäänrakennettu Wi-Fi : Ja
Ulkoiset portit
Ulkoinen USB Type-C : 2
Ulkoinen USB 2.0 : 2
Ulkoinen USB 3.0 (USB 3.2 Gen1) : 4
Ulkoinen USB 3.1 (USB 3.2 Gen2) : 2
Sisäiset portit
Sisäinen A-RGB 5V (3-nastainen) : 3
Sisäinen RGB 12V (4-nastainen) : 1
Sisäinen USB 2.0 : 2
Sisäinen USB 3.0 : 1
Sisäinen USB Type-C : 1
M.2-portti : 4
SATA3-portti : 6
Yksityiskohtaisempi erittely
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB18M0-M0EAY0
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Eans - 4711081441762
EAN_code - 4711081441762
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z690
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10, Windows 11
Graphics - Parallel processing technology support - Not supported
GTIN - 4711081441762
GTIN - 4711081441779
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 6
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - ROG STRIX Z690-F GAMING WIFIROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.POWER DESIGNDigital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.Integrated I/O Cover & VRM HeatsinksTwo thick VRM heatsinks connected by a heat pipe and bonded to a pre-mounted metal I/O shield provide ample surface area and mass to handle the power needs of high-performance 12th Gen Intel processors.Thermal PadsSpecially engineered thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.Four M.2 HeatsinksMultiple M.2 heatsinks help maintain onboard M.2 NVME SSDs at optimal temperatures for consistent performance and reliability.M.2 BackplateAn integrated M.2 backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted.COOLER BY DESIGNROG Strix Z690 motherboards feature comprehensive cooling options that are configurable via the Fan Xpert 4 tool in Armoury Crate or within the UEFI BIOS.CPU fan headersA dedicated pair of PWM/DC fan headers for CPU coolersAIO pump fan headerA dedicated PWM/DC header for self-contained water-cooling setupsM.2 heatsinkKeeps a mounted M.2 SSD at the optimum operating temperature for consistent performance and reliability.M.2 backplateProvides additional heat dissipation to deal with the thermal load of high-performance M.2 NVME SSDs4-pin PWM/DC fan headersHeaders that supports auto-detection of PWM or DC fansTWO-WAY AI NOISE CANCELATIONThis powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.*A splitter cable is necessary when using a 3.5 mm headset.AI OVERCLOCKINGROG AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.AI COOLINGASUS AI Cooling technology automatically manages and controls motherboard-connected fans to ensure optimal settings based on current system load and temperature.AI NETWORKINGThe proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technologies to ensure faster and smarter network optimization.IdentificationGameFirst VI analyzes usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps.BoostGameFirst VI intelligently switches application priority and adjusts bandwidth, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you supersmooth online gameplay ― even when you're streaming high-quality video or transferring large files.VisualizationAn intuitive graph provides an overview of real-time network status. Simply click on the tab to view the current bandwidth usage of each application, geolocation status of each network connection, or an analysis of the WiFi channels.WHAT IT DOESDDR5 Overclocking Strength - ASUS Enhanced Memory ProfileComprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Strix Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).New to overclocking? Click here to learn about the ASUS-exclusive AEMP technologyA dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.PCIe PerformanceWith four strategically placed M.2 slots, ROG Strix Z690-F Gaming WiFi leverages mighty CPU and chipset bandwidth to deliver lightning-fast PCIe 4.0 data transfers, Intel NVM Express® RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs.WIFI 6E (802.11 AX)Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFiIntel 2.5 Gb EthernetOnboard 2.5 Gb Ethernet gives your wired connection a boost, delivering up to 2.5X the speed of standard Ethernet connections for faster file transfers, low-lag gaming and high-resolution video streaming.SUPREMEFXROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z690-F Gaming WiFi, SupremeFX features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.UNDENIABLY ROG STRIXA specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, touches of brushed metal throughout the motherboard, plus the stitched fabric of the ROG Strix Cable organizer, deliver a variety of carefully crafted surface textures. Last but not least, a special lighting pattern built into the motherboard finishes off a colorful tour of the ROG worldview.OUTSHINE THE COMPETITIONROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs and third-party lighting strips that can connect to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.PCIE SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.CLR CMOS BUTTONA quick press of the Clr CMOS button helps reset BIOS settings. It can also be used to reboot the PC if incorrect BIOS settings have been selected.BIOS FLASHBACK™ BUTTONBIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.ROG STRIX CABLE ORGANIZERThis cable management feature enhances the flexibility of PC building. And with its Velcro interior, users can keep reusing the organizer if they need to make changes later on.CERTIFIED COMPATIBILITYROG Strix motherboards undergo an extensive certification program to ensure compatibility with the widest range of components and devices. Our Qualified Vendor List (QVL) provides a reference for identifying guaranteed-compatible components and memory.ASUS AIO coolers are also compatible with a wide variety of CPUs, up to and including 12th Gen Intel processors, giving you ultimate flexibility to cool the CPU that fits your needs.THE ROG STRIX ECOSYSTEM AWAITSLevel up your game with ROG Strix. Enjoy complementary aesthetics, control and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.UEFI BIOSThe renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.SONIC STUDIO IIIROG Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.DTS: SOUND UNBOUNDROG Strix Z690 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.* DTS Sound Unbound requires in-game support. Check with game developers for supported titles.AIDA64 EXTREMEROG Strix Z690 motherboards include an AIDA64 Extreme 60 days free trial. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the OLED panels of ROG AIO liquid coolers*.*Support available for ROG Ryujin II and selected models.ARMOURY CRATEArmoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers.You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
LongProductName - Intel®Z690 LGA 1700 ATX motherboard with PCIe®5.0, 16+1 power stages, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel®2.5 Gb Ethernet, four M.2 slots with heatsinks, PCIe 4.0 NVMe®SSD support, M.2 backplate, PCIe®Slot Q-Release, USB 3.2 Gen 2x2 Type-C®, SATA and Aura Sync RGB lighting
LongSummaryDescription - ASUS ROG-STRIX-Z690-F-GAMING-WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer_code - 90MB18M0-M0EAY0
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Name - Asus ROG STRIX Z690 -F GAMING WIFI Z690 - Socket 1700
Name - ASUS ROG STRIX Z690-F GAMING WIFI
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

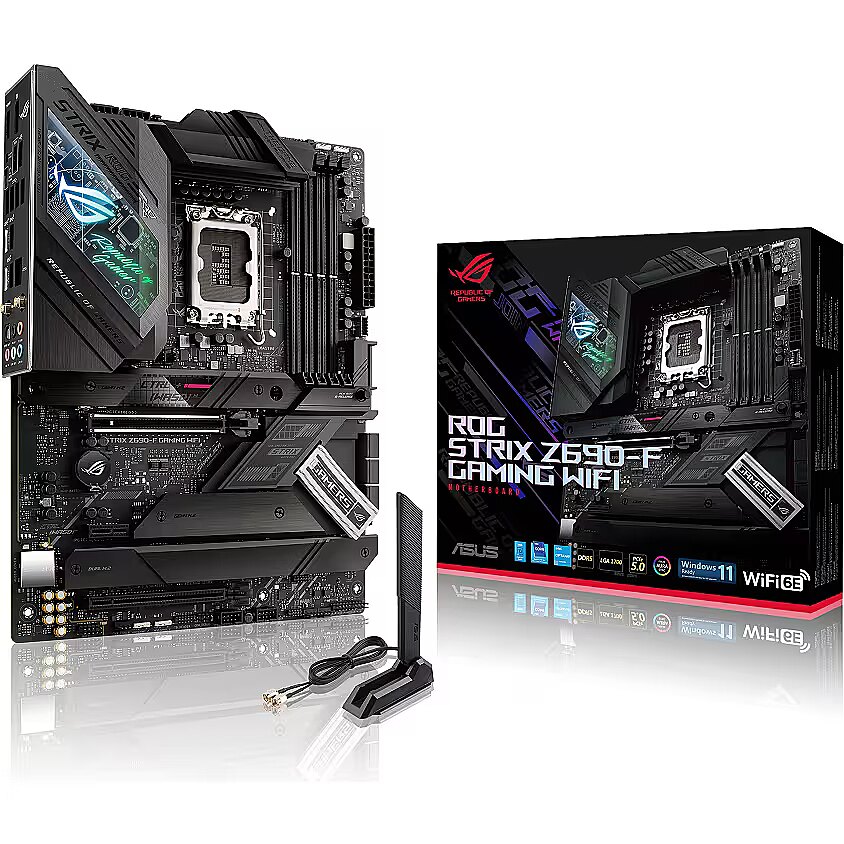

Other features - Packaging content - 4 x SATA 6Gb/s cables
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package
1 x M.2 Q-Latch package for M.2 backplate
2 x M.2 Rubber Packages
1 x ROG key chain
1 x cable tie
1 x ROG STRIX stickers
1 x ROG STRIX thank you card
1 x Support DVD
1 x User manual
Other features - Weight - 1.54 kg
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Producer - Asus
ProducerCode - ROG STRIX Z690-F GAMING WIFI
ProductName - ROG-STRIX-Z690-F-GAMING-WIFI

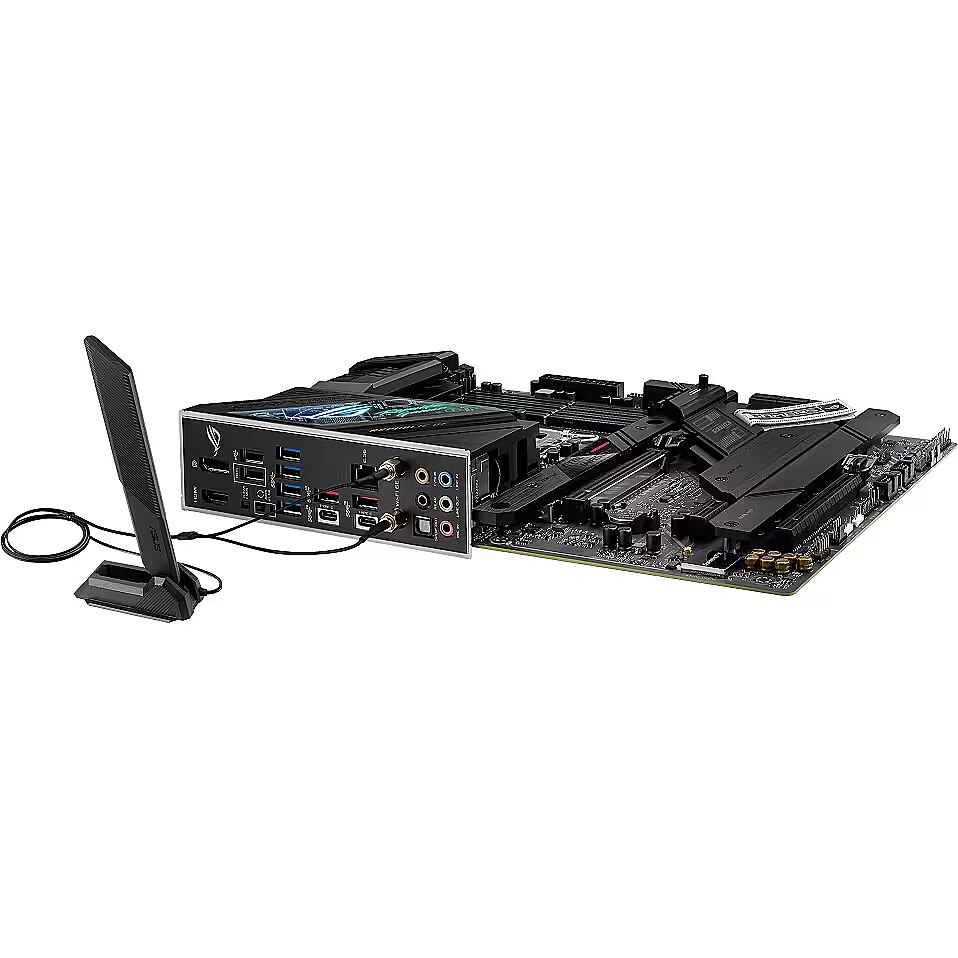

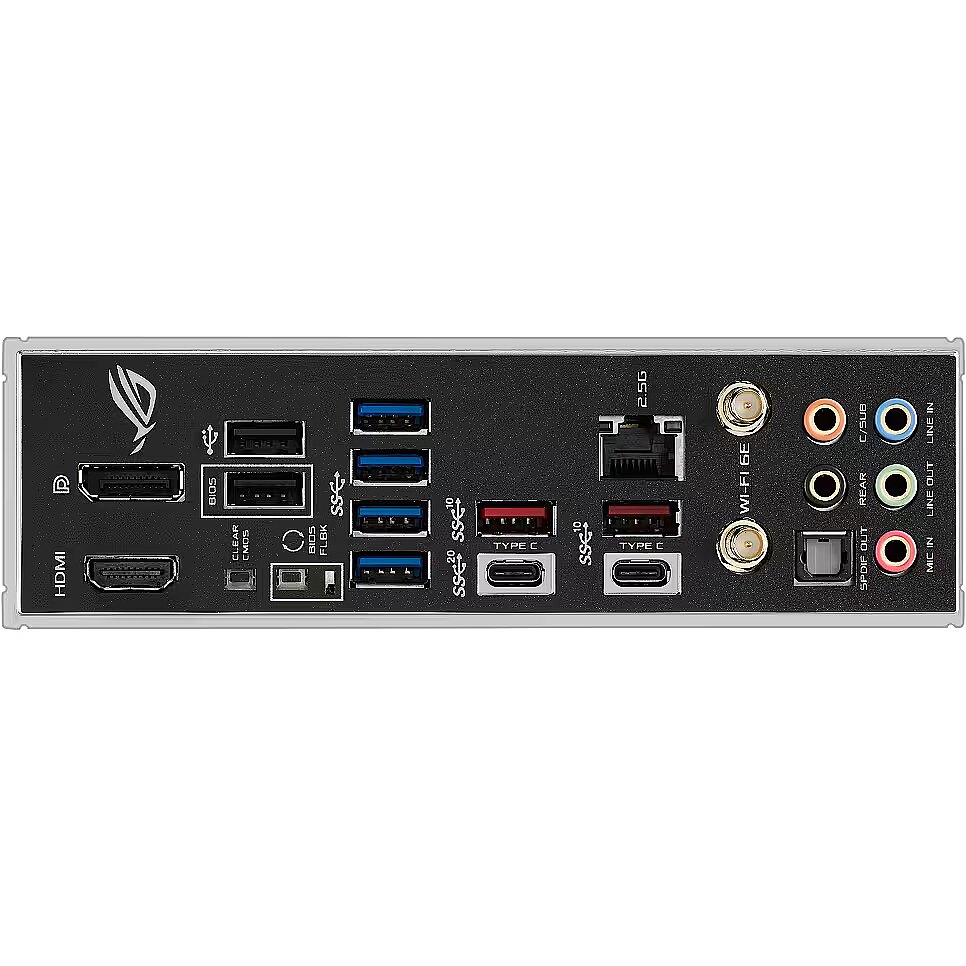

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortDescription - Socket 1700| Chipset Intel Z690 | DDR5 |
ShortSummaryDescription - ASUS ROG-STRIX-Z690-F-GAMING-WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, DDR5-SDRAM, 128 GB, DIMM
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS ROG-STRIX-Z690-F-GAMING-WIFI Intel Z690 LGA 1700 ATX
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z690-f-gaming-wifi-model/
WarrantyInfo -
Weight - 2,44
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
