BIOS - ACPI version - 6.1
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.1
Brand - ASUS
BrandPartCode - 90MB11F0-M0EAY0
category - Mainboards Intel Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - Intel 2066
code - 90MB11F0-M0EAY0
ean - 4718017488594
EAN - 4718017488594
Eans - 4718017488594
EAN_code - 4718017488594
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 3
Features - Audio chip - Realtek ALC S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel® X299
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Graphics - Parallel processing technology support - 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
Gross Weight Kg - 2,07
GTIN - 4718017488594
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of EATX power connectors - 2
Internal I/O - Number of SATA III connectors - 8
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The Prime X299-A II caters to users with serious pursuits: Those who prefer to put their high-core-count processors to more productive use. This high-end desktop board combines cutting-edge performance with our signature features, including an enhanced VRM tailored for running the CPU performance at stock speeds, intuitive cooling control, next-gen connectivity, and extensive customization.Get the most out of all your coresIntel®'s high-end desktop platform raises the stakes with updated Intel Core™ X-Series Processors that boast cores, cache, and bandwidth. The Prime X299-A II is ready for the additional processing power that plows through CPU-intensive tasks, and the extra bandwidth allows you to add more GPUs and NVMe SSDs to accelerate a wide range of work.Robust Power DesignThe LGA 2066 socket is compatible with Intel Core X-Series Processors with up to 18 cores, over 44 PCI Express® lanes, and 165-watt thermal design power (TDP). Those specs require serious power, so the Prime X299-A II is equipped with an enhanced power solution that includes 12 power stages that line up neatly along the top edge of the PCB.Multi-GPU supportFully loaded takes on a new meaning when you have over 44 PCI Express lanes stemming from the CPU. Those lanes can be split in an x16/x16/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of work.Achieve speed with onboard M.2Professional applications require fast solid-state storage, which is why the Prime X299-A II is equipped with three M.2 slots that are compatible with the latest NVMe SSDs. All slots support longer 110 mm drives, and they can be configured into bootable RAID arrays connected directly to the CPU via Intel VROC technology.VROCUpgrade your RAIDUse onboard M.2 slots and ASUS Hyper M.2 x16 Card V2* to take advantage of Intel's Virtual RAID on CPU (VROC)** by connecting the three M.2 drives in RAID configurations. With VROC, your RAID arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated so that your storage is not held back by other traffic.USB 3.2 Gen 2 front-panel connectorFuture-proof connectivityPlenty of USB ports are provided to support high-end rigs loaded with peripherals, including a front-panel header with faster USB 3.2 Gen 2 connectivity for compatible cases.Intel EthernetMore throughput, less CPU usage and great gaming experiencesThe latest Intel I219-V Ethernet has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.Cool to the coreEffective cooling is extremely important, even at stock speeds. That is why the Prime X299-A II allows consolidated cooling control of the entire system, even for the most hardcore rigs. It comes equipped with onboard heatsinks, an array of fan headers, and options for water pump or AIO headers.M.2 HeatsinksTwo M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads.BackplateA reinforced backplate improves the stability of the board, and the included thermal pad efficiently directs heat away from the VRM and other components.Cooler by designPrime X299-A II features the most comprehensive cooling controls ever, configurable via FanXpert 4 or the UEFI BIOS.Each header can dynamically reference three thermal sensors, and via Fan Xpert 4 you can even map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.Tune it your wayComprehensive controls form the foundation of the ASUS Prime series. The Prime X299-A II packs flexible tools to tune every aspect of your system to deliver the performance that you desire.AI OverclockingASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.5-way OptimizationOne click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.- Fans stay quiet as a whisper for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.- All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.UEFI BIOSThe renowned UEFI BIOS provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.Advanced tuning for serious tweakerWhen you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you're ready to take charge, parameters have the granularity to dial in performance just the way you want.PredictionAI Overclocking monitors system vitals such as temperature, fan speed, and power draw to estimate overclocking performance.AI Overclocking GuideThe AI Overclocking Guide allows you to enable AI Overclocking or to view a quick guide.Search FunctionQuickly and easily find the option or setting that you're looking for.ASUS User ProfilePort configuration settings between different BIOS versions or share them with friends.Breeze setup with easeDesigned to simplify setup, EZ mode presents all the vital settings and stats on one single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.AI OverclockingEnable AI Overclocking intelligence via shortcutIntuitive Graphical Fan ControlFine-tune individual fans simply by dragging a curve with the mouse.EZ XMPImprove DRAM performance with one click.Aura On/Off mode (Stealth)Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.Little things make a big differenceWe pay careful attention to all the little details that improve your overall experience, from integrating a flashing utility directly into the UEFI to simplifying firmware updates or displaying your system vital signs. Prime X299-A II provides the tools you need to personalize your build and stay on top of things.Pre-mounted I/O ShieldSet up without slip-upsForm meets function in the pre-mounted I/O shield that we pioneered with the ROG series. Now available on Prime X299-A II, this feature streamlines the installation process for budding builders and savvy enthusiasts alike.FlexKeyA multi-purpose buttonThe FlexKey maps the rarely used Reset button on the front-panel of your chassis to a different function. Instead of leaving the button set to a dated function, you can reassign it to change performance profiles, boot directly into the UEFI, toggle Aura Sync lighting, and much more.BIOS FlashBack™Update your BIOS without CPU and DRAMThe Prime X299-A II supports USB BIOS FlashBack™, which can perform low-level firmware updates using only a power supply and a USB stick with the required file.ASUS NodeA header to keep aheadASUS Node is a proprietary bi-directional interface that allows ASUS motherboards to communicate with other system components, opening up a wealth of new options for system builders.Intel Optane memory readyIntel Optane™ is a revolutionary non-volatile memory technology supported by Prime X299-A II. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.Intel X299 chipsetThe Intel X299 chipset supports LGA 2066-socket Intel Core X-Series Processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.2 Gen 1 ports, 8 SATA 6 Gbps ports and up to 32 Gbps M.2 support for faster data retrieval.Intel® Core™ X-series processors for LGA 2066 socketIntel Core X-series processors (6-core and above): 4-channel (8-DIMM), over 44 PCI Express 3.0/2.0 lanes.
LongProductName - Socket 2066, Intel X299 Chipset, 8 x DIMM DDR4, 8 x SATA, 3 x M.2, Gigabit LAN, Realtek S1220A, ATX
LongSummaryDescription - ASUS Prime X299-A II. Processor manufacturer: Intel, Processor socket: LGA 2066 (Socket R4), Compatible processor series: Intel® Core™ X-series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I219-V
Manufacturer - Asus
Manufacturer Code - 90MB11F0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB11F0-M0EAY0
Memory - Maximum internal memory - 256 GB
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 8
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes

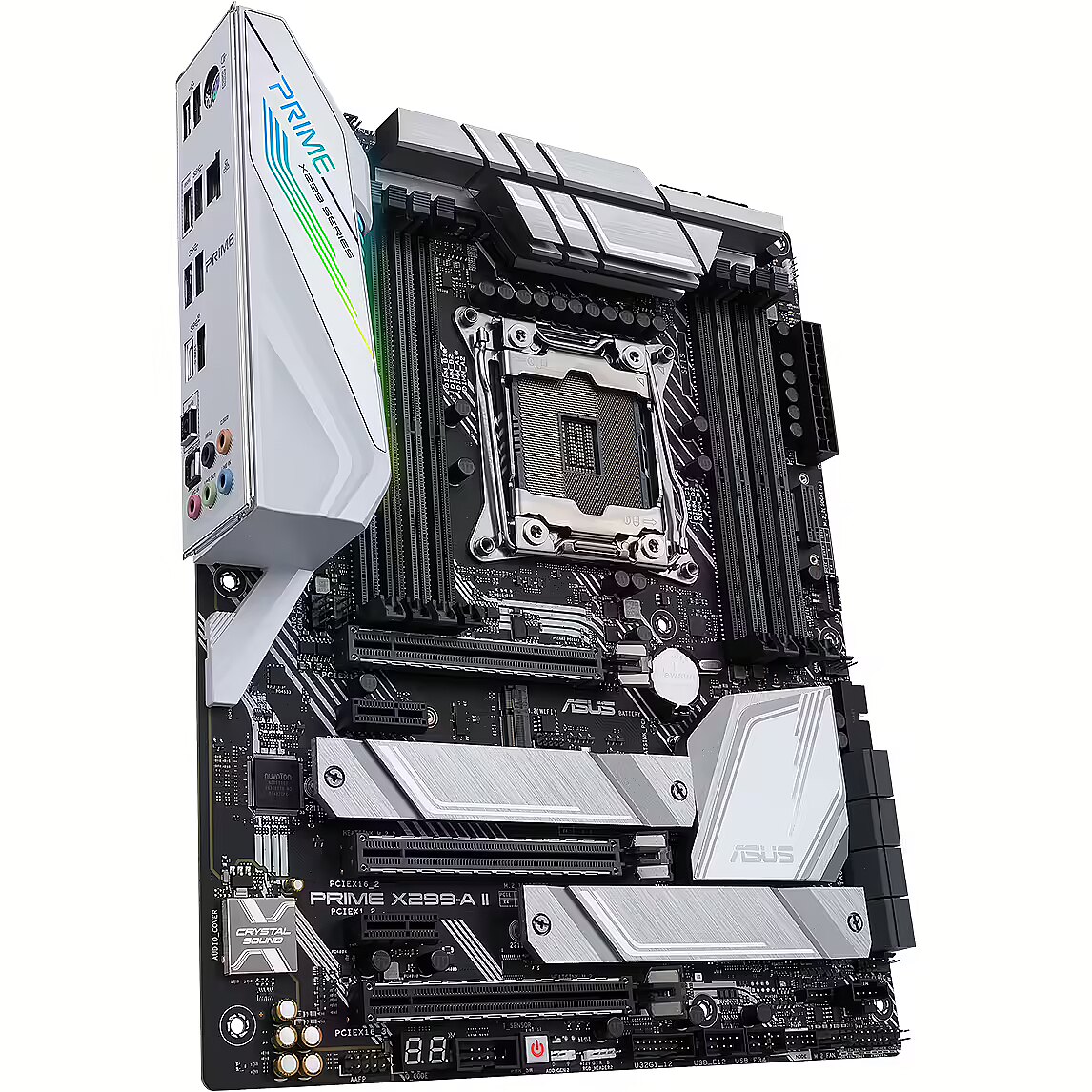

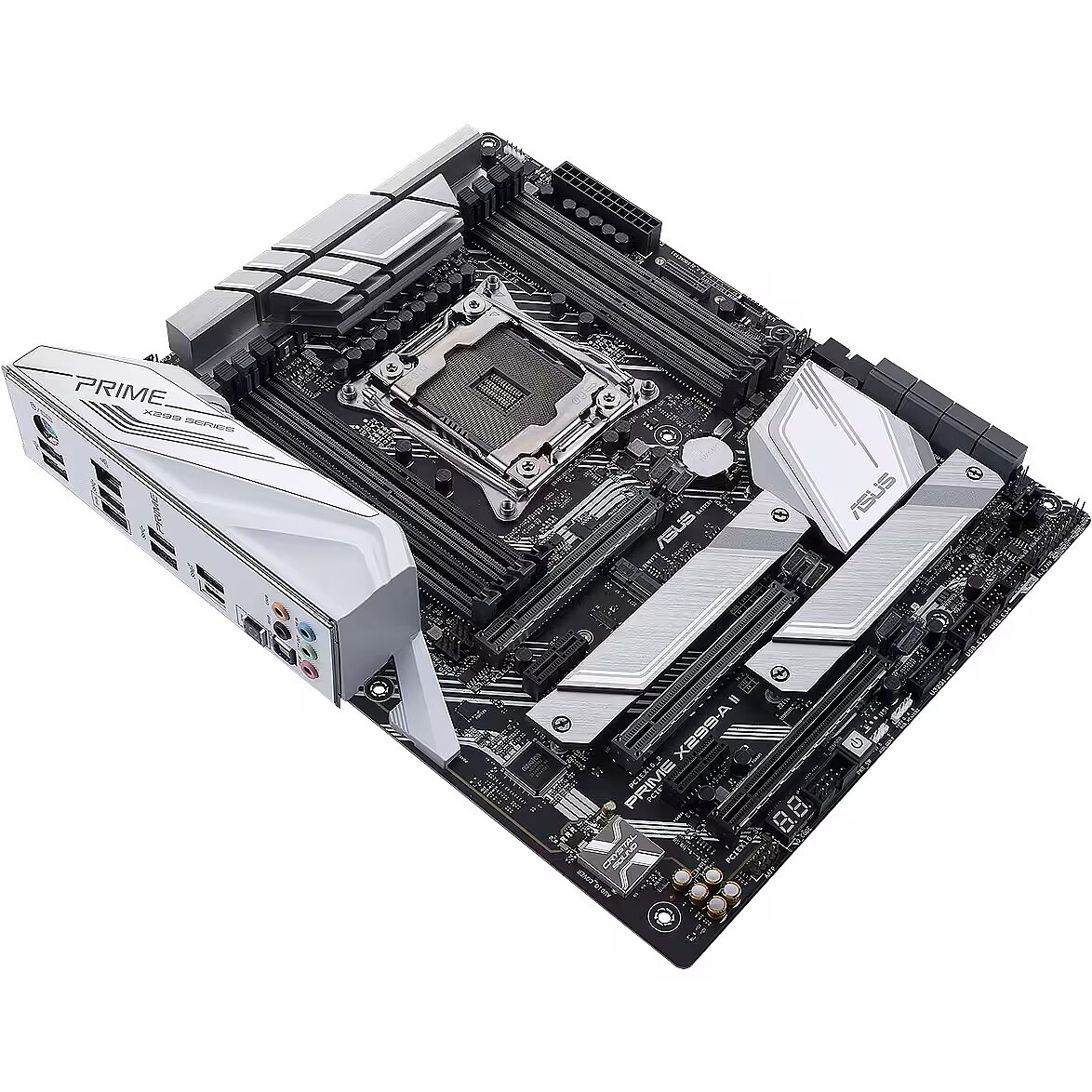

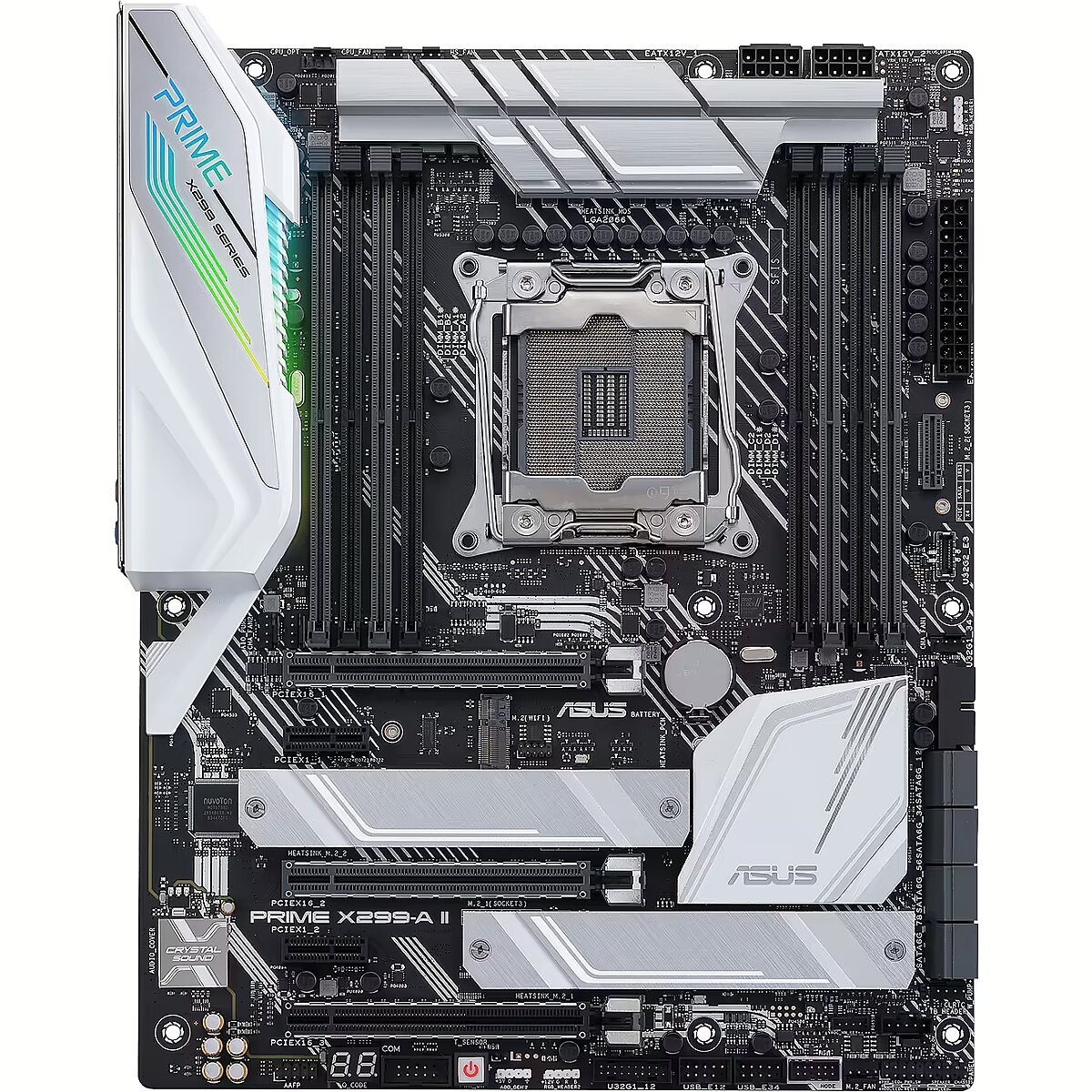

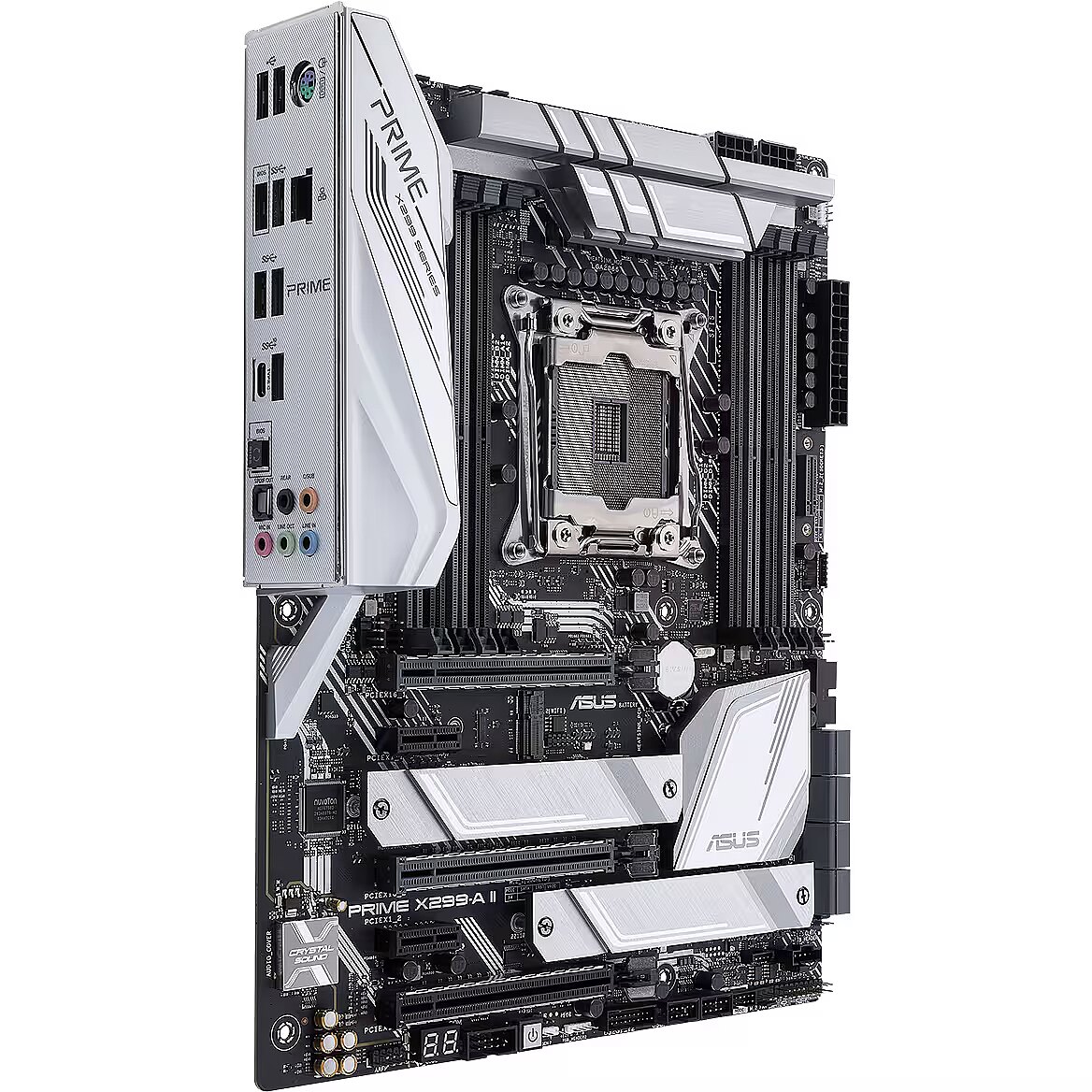

Name - ASUS PRIME X299-A II
name - ASUS Prime X299-A II, Intel X299 Mainboard - Sockel 2066
Name - ASUS PRIME X299-A II - Socket 2066 - mainboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I219-V
Network - Wi-Fi - No
Other features - HDD size - 2.5/3.5"
Other features - Processor lithography - 14 nm
Other features - Utilities included - Yes
Packaging content - Drivers included - Yes
Processor - Compatible processor series - Intel® Core™ X-series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 2066 (Socket R4)
Processor - Supported processor sockets - LGA 2066
Processor special features - Intel Extreme Memory Profile (XMP) - Yes
Processor special features - Intel® Optane™ Memory Ready - Yes
Producer - Asus
ProducerCode - PRIME X299-A II
ProductName - Prime X299-A II
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Short description - ASUS PRIME X299-A II S2066 3xM.2/Type-C/ATX
ShortDescription - Socket 2066 | Chipset Intel X299 | DDR4 |
ShortSummaryDescription - ASUS Prime X299-A II, Intel, LGA 2066 (Socket R4), Intel® Core™ X-series, LGA 2066, DDR4-SDRAM, 256 GB
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS Prime X299-A II Intel® X299 LGA 2066 (Socket R4) ATX
URL - https://www.asus.com/Motherboards/Prime-X299-A-II/specifications/
WarrantyInfo -
Weight - 2,10
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
