+ Lahjapeli Monster Hunter Wilds
ID: 1151877
Tuotekoodi: 90MB1ID0-M0EAY0
Varastossa 1 yksiköt
Takuu: 3 vuotta

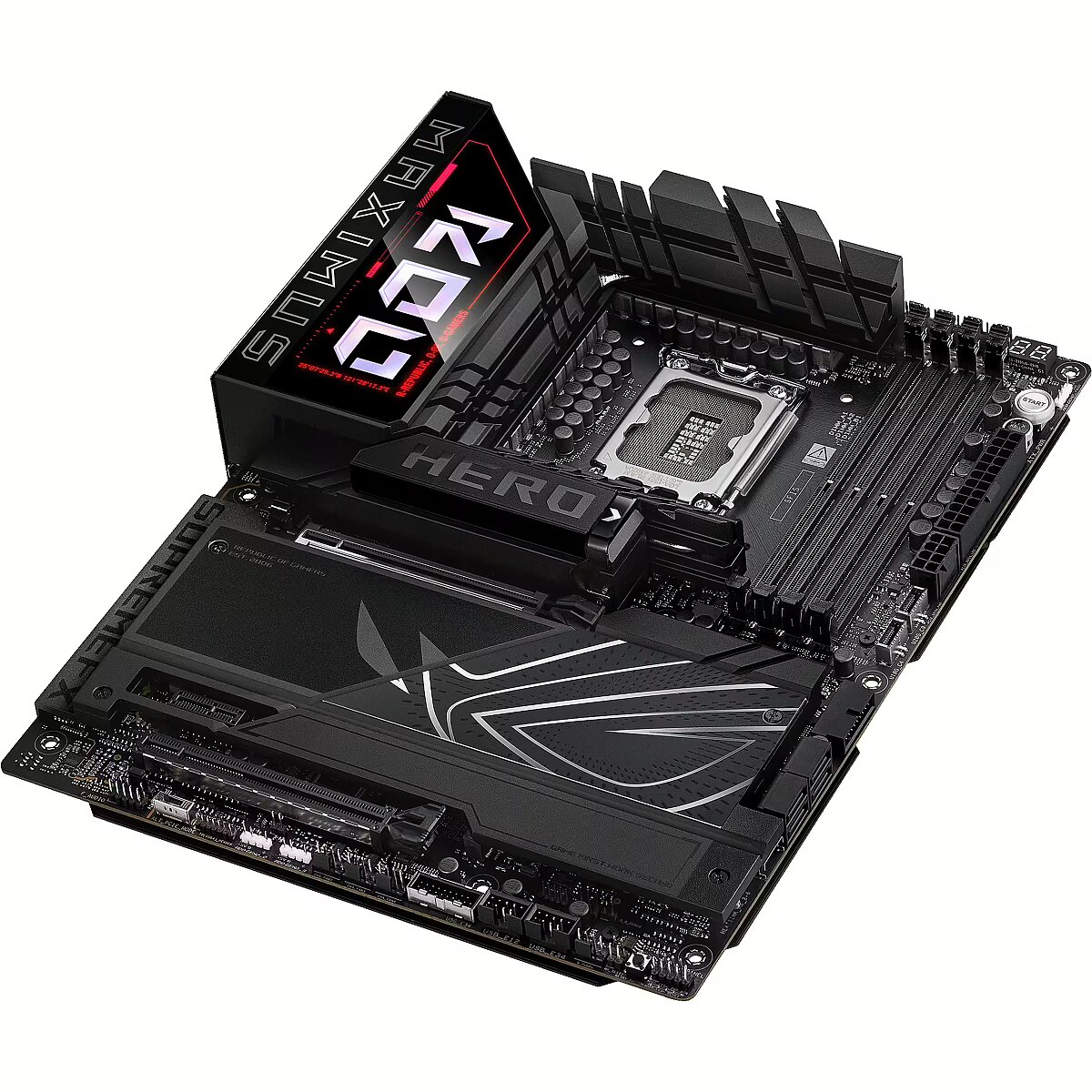

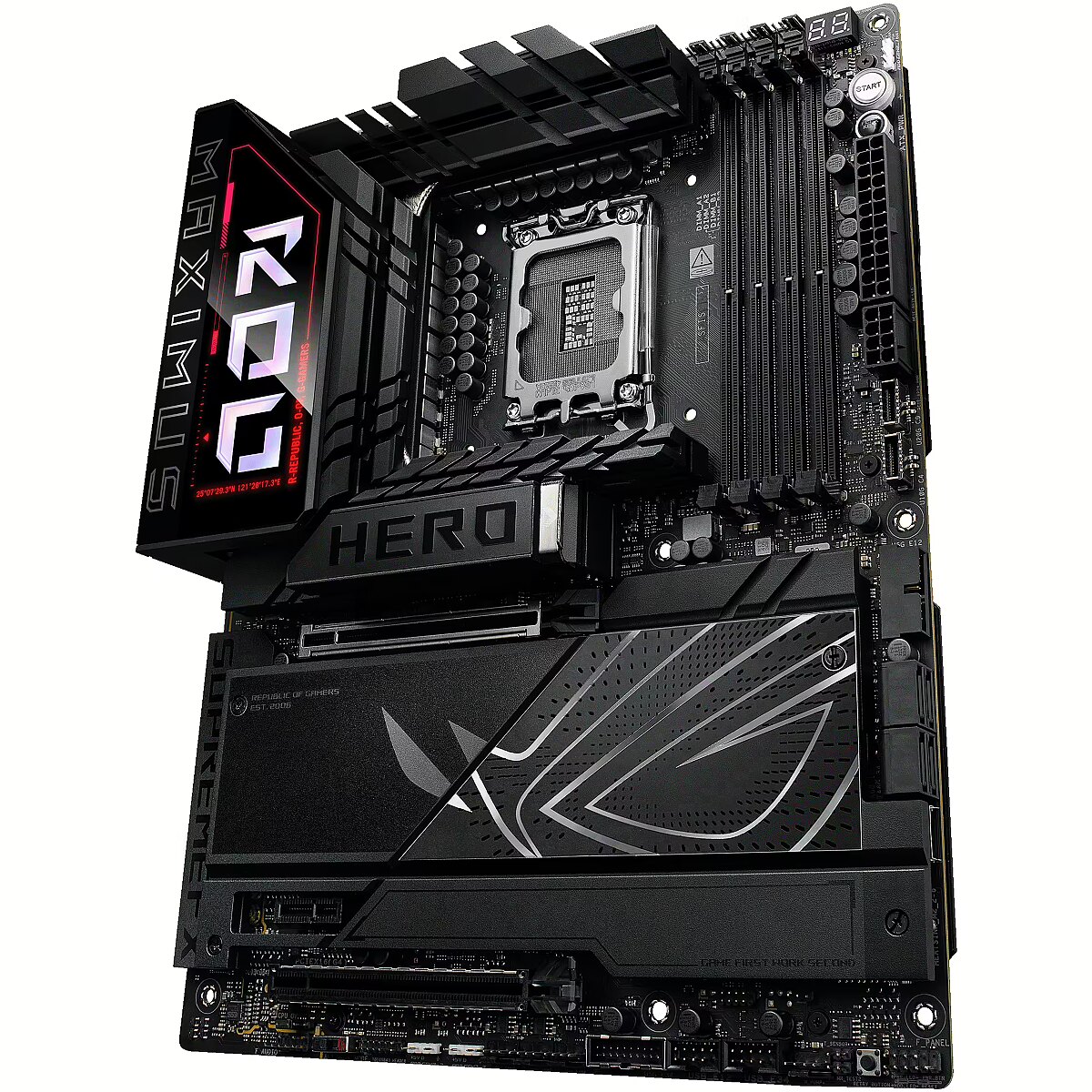

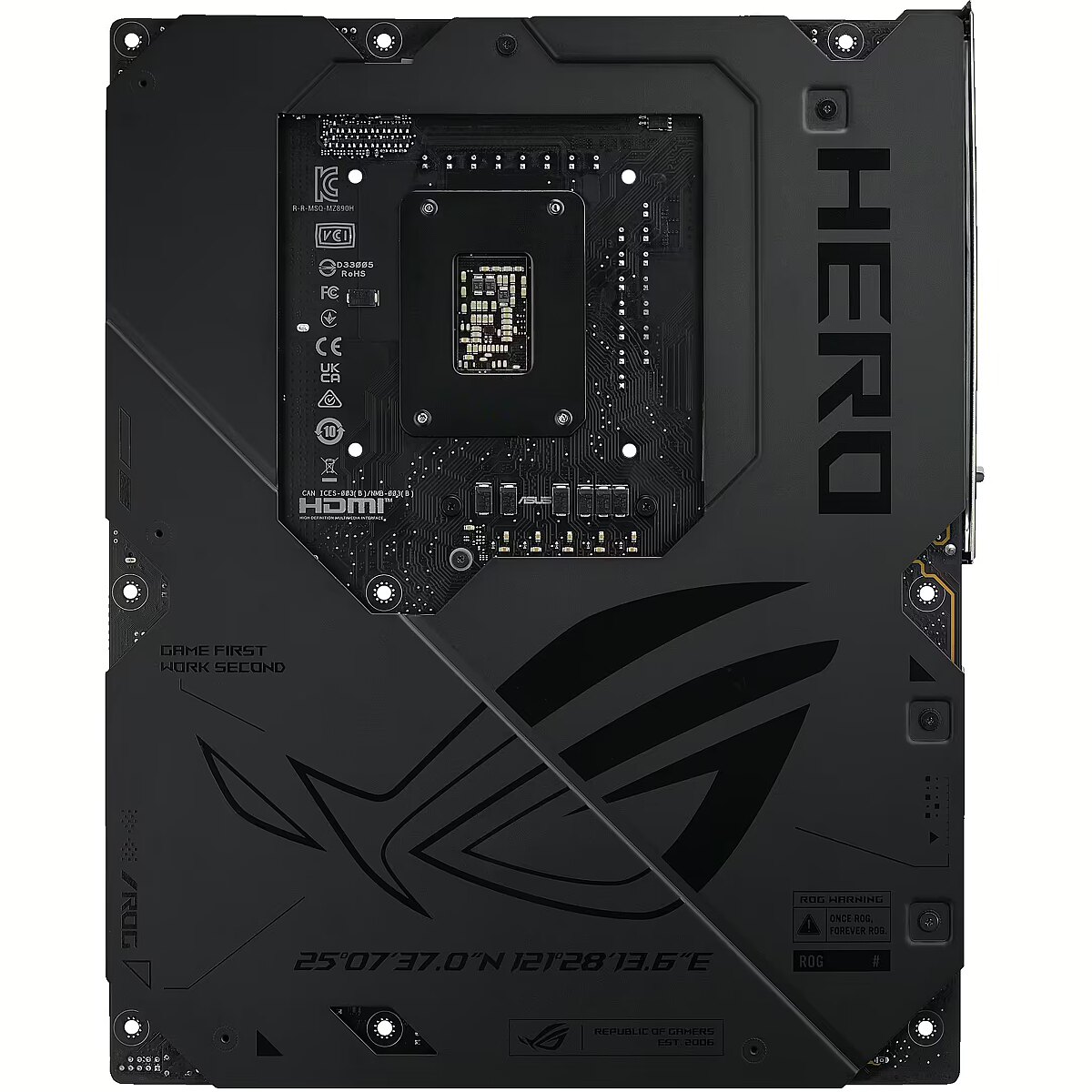

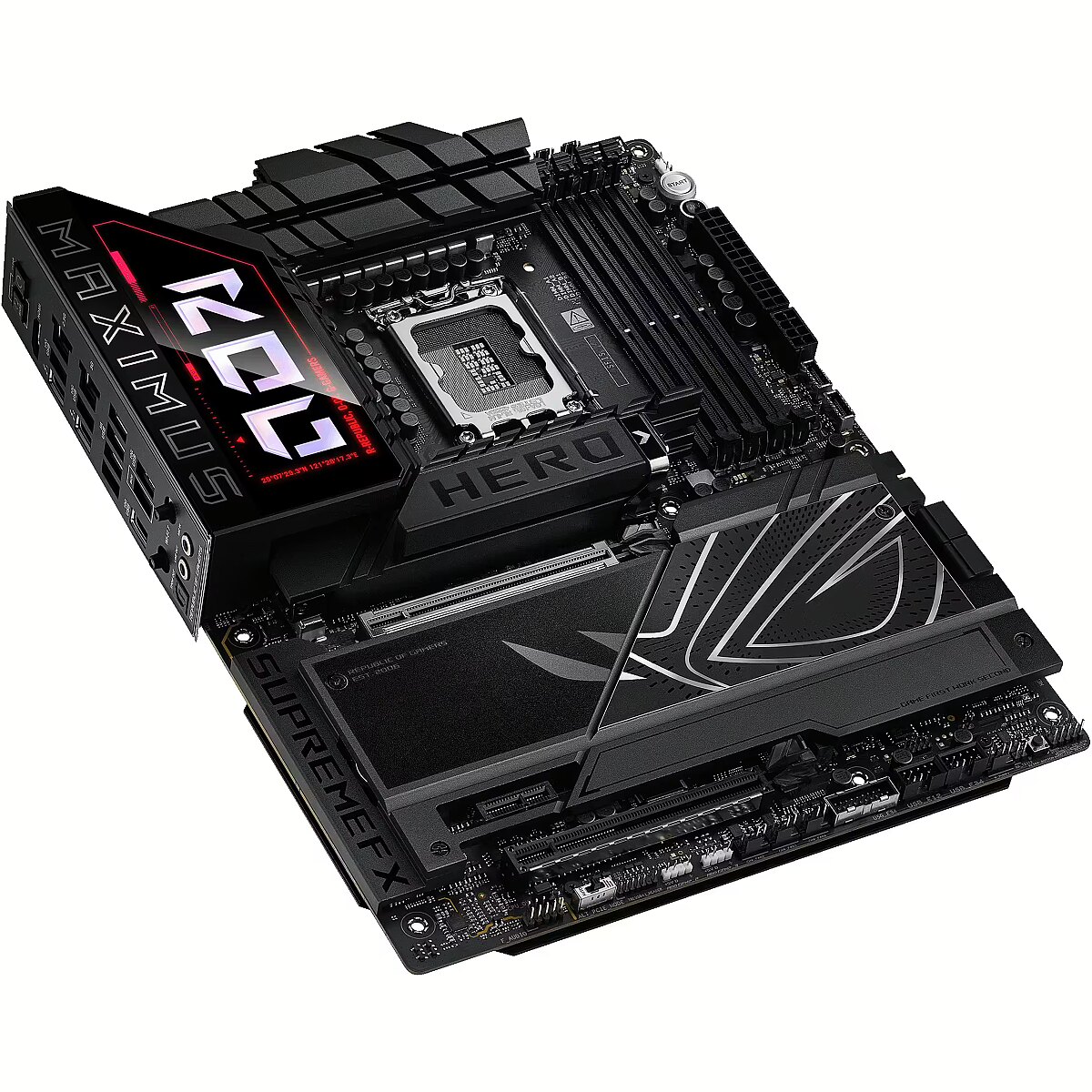

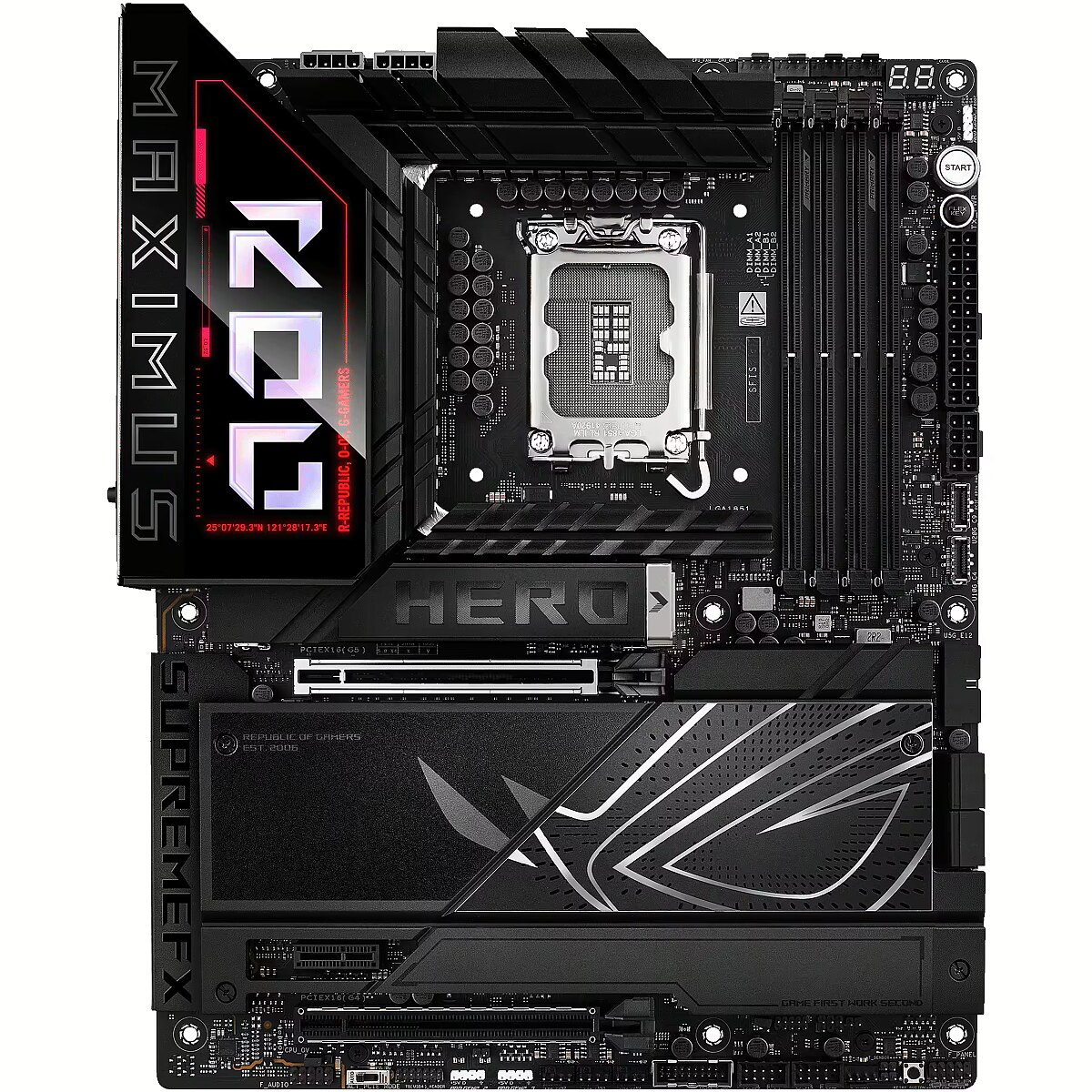

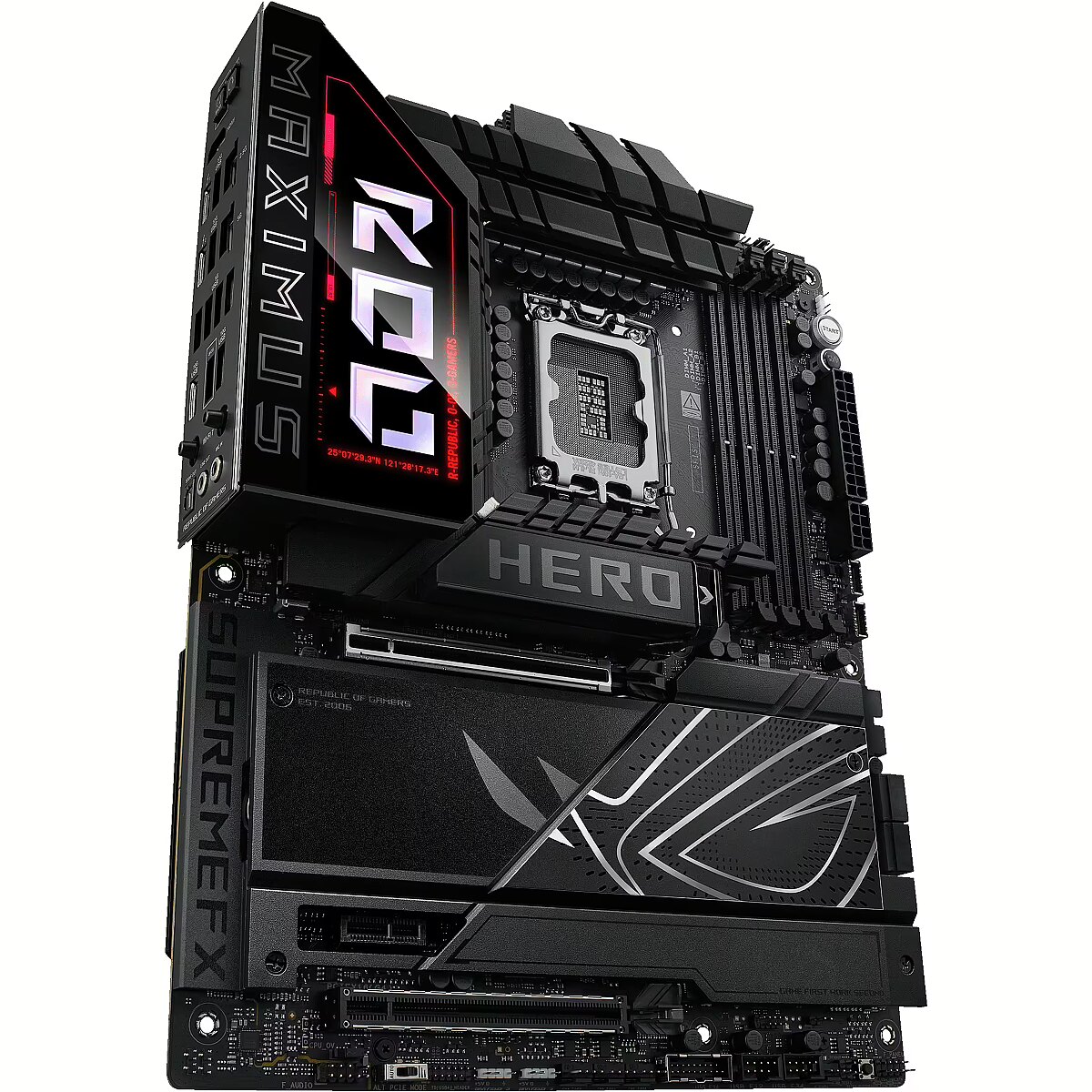

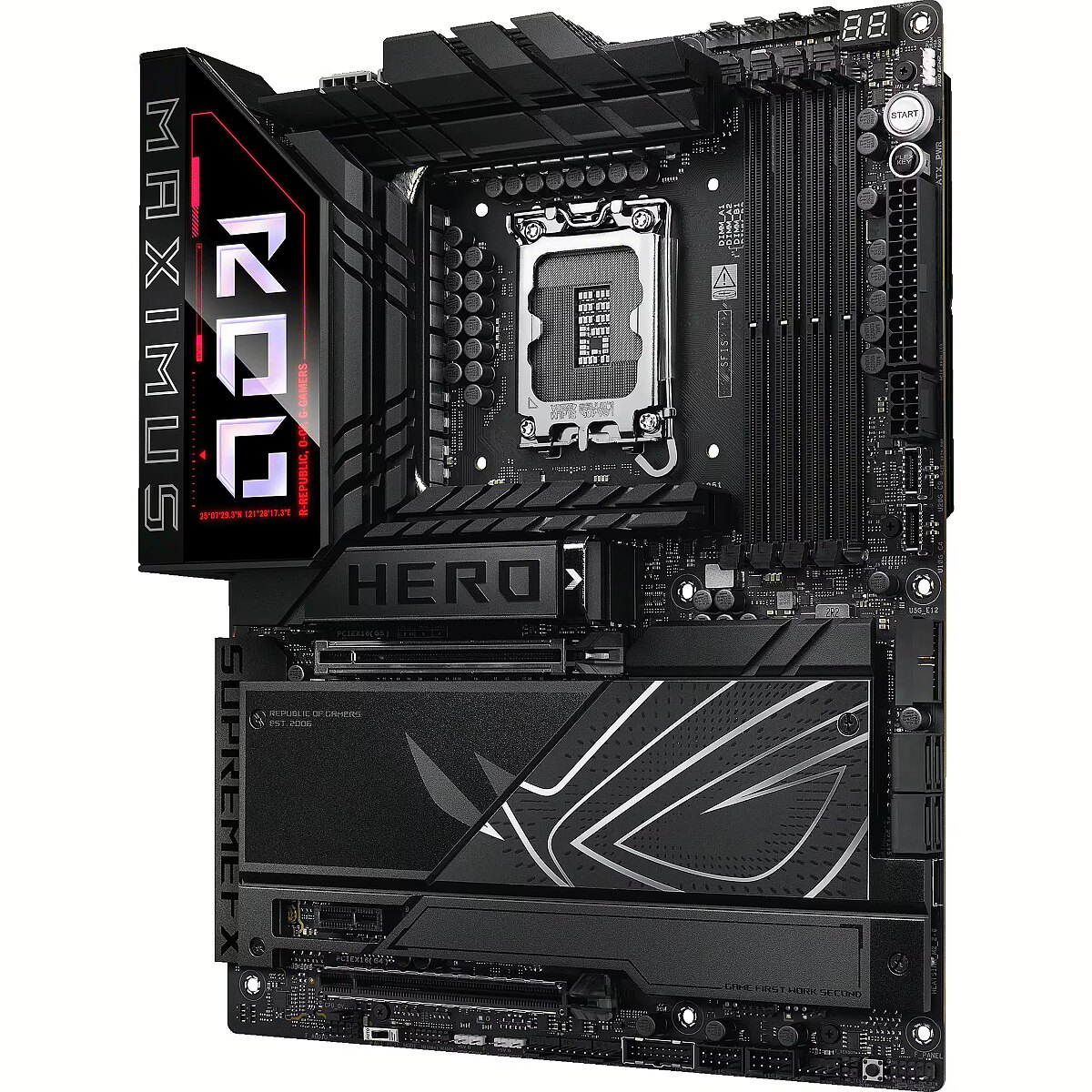

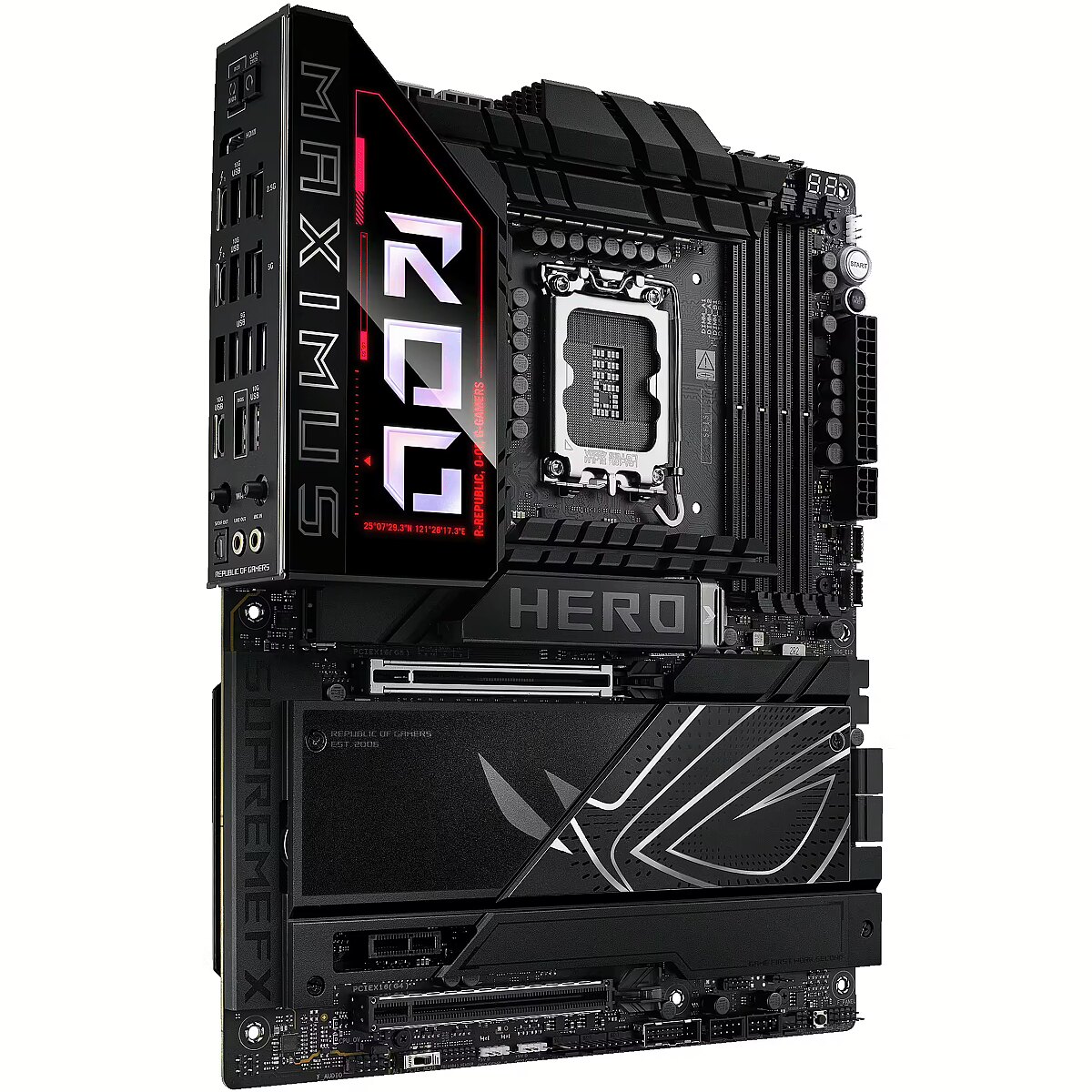

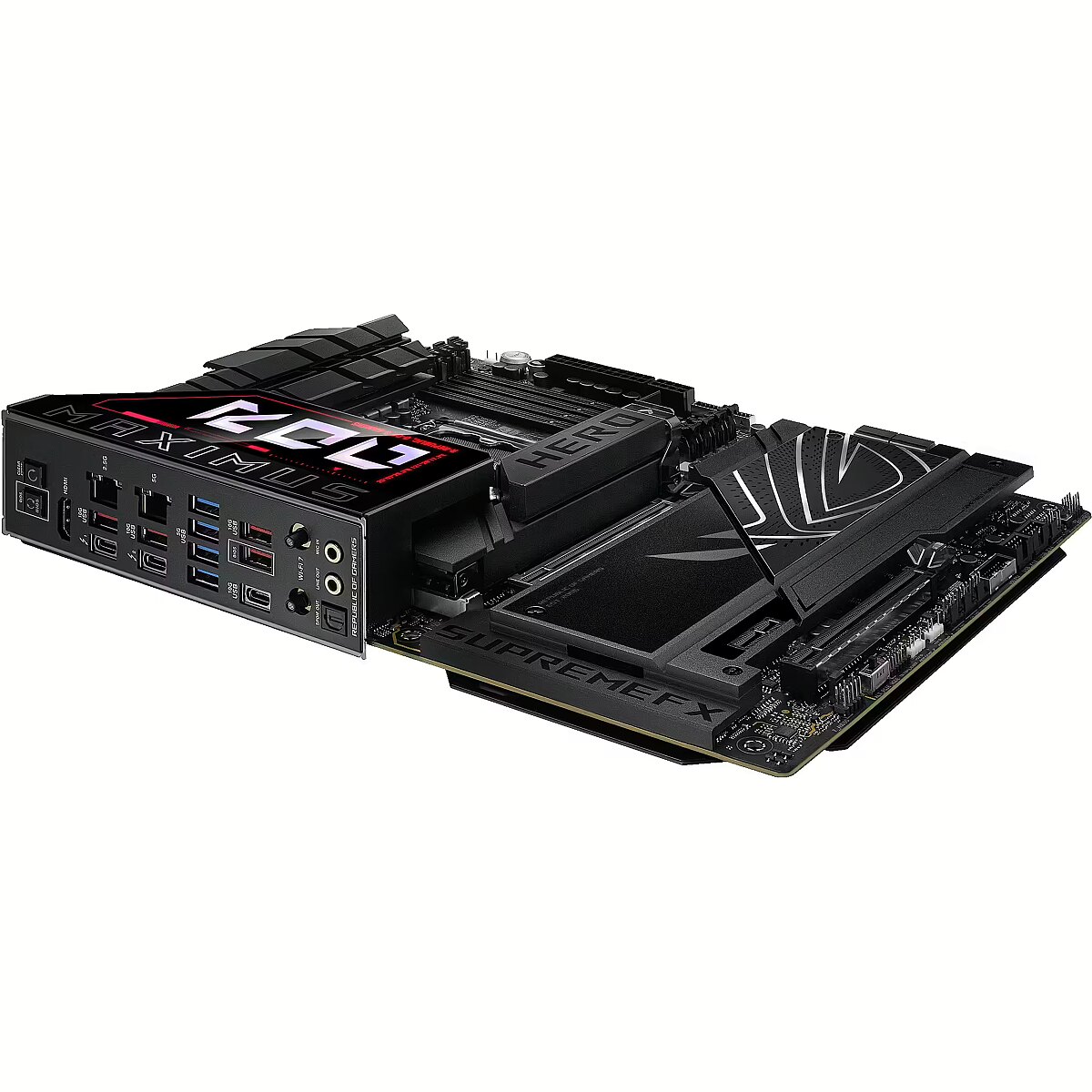

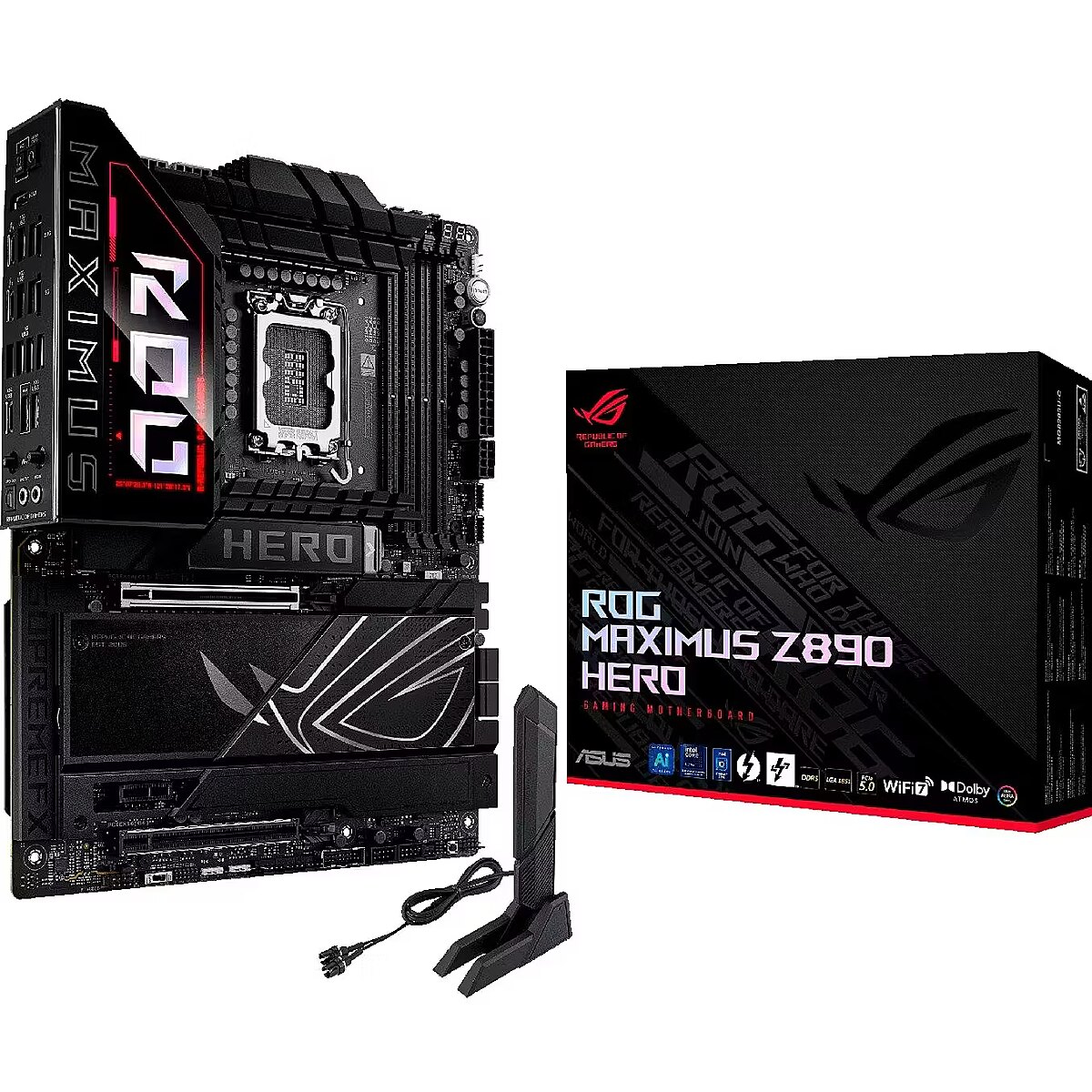

Asus ROG MAXIMUS Z890 HERO
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpostille 6,99 €: tiistaina, 18.03.2025
- Kuriiritoimitus 11,99 €: tiistaina, 18.03.2025
Tärkeimmät tuoteparametrit Kaikki parametrit
- Sarja: ASUS ROG MAXIMUS
- CPU-kanta: LGA 1851
- Piirisarja: Intel Z890
- Muotoilutekijä: ATX
- Tyyppi: DDR5
- RAM-paikat: 4
- Sisäänrakennettu Wi-Fi: Ja
Perustiedot
Sarja
: ASUS ROG MAXIMUS
CPU-kanta
LGA 1851
Suorittimen kanta on tärkeä tekijä levyn valinnassa; suorittimen kannan on oltava täsmälleen yhteensopiva sen suorittimen kanssa, jonka haluat asentaa levyn kanssa. Riippumatta siitä, että prosessori sopii emolevyn kantaan, on otettava huomioon myös kyseisen prosessorin tuki. Sen tarkistamiseksi, mitä suorittimia valittu emolevy tukee, sinun on käytävä emolevyn valmistajan verkkosivustolla, etsittävä kyseisen emolevyn suorittimen tukiosio ja tarkistettava, että kyseisen emolevyn tekniset tiedot tukevat valitsemaasi suorittinta.
Piirisarja
Intel Z890
Piiriväylä on tärkein kriteeri emolevyn valinnassa (järjestelmän logiikkapiirit tai jännitemuuntajat). Piiriväylä määrittää suorittimet, muistiportit ja muut parametrit, joita emolevy tukee.
Kukin piirisarja liittyy suoraan tiettyyn suorittimen alustaan, jotka jaetaan suorittimen perheen tai suorittimen liitäntäpisteen perusteella.
sen tarkistamiseksi, mikä piiriväylä sopii suorittimellesi jne. sinun kannattaa kysyä johtajiltamme.
Muotoilutekijä
ATX
Emolevyn fyysinen koko. TopPC.fi tarjoaa ATX- (täysikokoinen emolevy), mATX- (micro ATX) (pienikokoinen emolevy) ja miniATX-kokoisia emolevyjä. ATX-kokoisen tietokoneen koteloon on mahdollista sijoittaa sekä ATX- että mATX-emolevy, mutta mATX-koteloon ei voi sijoittaa ATX-emolevyä.
ATX-piirilevyssä on vähintään 3 muistipaikkaa ja vähintään 5 paikallista PCI-paikkaa, mikä tarkoittaa, että tälle levylle voidaan rakentaa hyvin toimiva tehokas tietokone. Koti- tai toimistotietokone ei kuitenkaan tarvitse näin suurta määrää korttipaikkoja, joten myös microATX-kortti sopii.
Emolevyn virtalähteen liitin on virtalähdepistorasia, jotka ovat nykyisin ATX- ja ATX2.0-standardia. ATX on vanhempi standardi, jossa on 20-nastainen liitin (20 "nastaa"), ja ATX2.0:ssa on 4 lisänastaa (20+4). ATX-standardin emolevyt voivat toimia ATX2.0-virtalähteellä (PSU), mutta ATX2.0-standardin emolevy vaatii ATX2.0-virtalähteen.
Form-factor on pikemminkin suositus. Ennen emolevyn ostamista kannattaa kuitenkin tarkistaa kotelon koon yhteensopivuus emolevyn koon ja sen virtalähteen liittimen kanssa.
Satunnaiskäyttömuisti (RAM)
Tyyppi
: DDR5
RAM-paikat
4
Käytettävissä olevien muistipaikkojen määrä osoittaa emolevyyn asennettavien muistimoduulien (levyjen) määrän.
Muistituki
DDR5 6400 (OC 9200)
RAM-väylä määrittää, minkä tyyppistä RAM-muistia kyseinen emolevy tukee.
Väylämerkintä sisältää muistityypin DDRII tai DDRIII sekä emolevyn tukeman muistin enimmäiskellotaajuuden. Muistin tyyppi on tärkein indeksi, eri tyyppiset muistit ovat fyysisesti erilaisia, joten DDRIII-muistia ei voi liittää emolevyyn, joka tukee DDRII-muistia (lukuun ottamatta tapauksia, joissa emolevy tukee molempia muistityyppejä). Emolevy, joka tukee 800 MHz:n DDRII-muistia, voi kuitenkin toimia muistinopeuksilla DDII667 ja DDRII533. Emolevy, jonka muistiväylän nopeus on pienempi kuin muistimoduulin nopeus, pystyy toimimaan vain määritellyn väylänopeuden verran, eli jos emolevyn muistiväylä on DDRII667 ja siihen on asennettu DDRII800-muisti, se toimii DDRII667-nopeudella.
Näytönohjain
Videokorttiportti
PCI-EXPRESS
VGA-portti tai näytönohjaimen pistoke. VGA-portin on oltava valitsemasi näytönohjainportin eritelmän mukainen. Vanhemmissa näytönohjaimissa on AGP-portti, uusien korttien valmistajissa on PCI-EXPRESS (PCI-X) -portti.AGP- ja PCI-Xpress-näytönohjaimet eivät ole keskenään yhteensopivia. Ennen emolevyn ostamista sinun on tarkistettava sekä emolevyn että näytönohjaimen näytönohjainportin yhteensopivuus.
Integroitu grafiikka
Vain iGPU-valmiilla suorittimella
Parametri, joka määrittää, onko näytönohjain integroitu emolevyyn. Integroitu näytönohjain soveltuu toimisto-ohjelmistojen, Internetin, elokuvien katseluun ja yksinkertaisten pelien pelaamiseen. Jos haluat käyttää grafiikkasovelluksia, pelata 3D-pelejä ja katsella 3D-animaatioita, tarvitset lisänäytönohjaimen.
Integroitu näytönohjain käyttää murto-osan emolevyn muistista, joten jos emolevyssäsi on 1 Gt muistia ja emolevyn näytönohjaimen asetuksissa ilmoitetaan, että se vie 256 Mt, käyttöjärjestelmä näyttää käytettävissä olevan muistin määräksi noin 700 Mt.
Ennen kuin ostat emolevyn, jossa on sisäänrakennettu näytönohjain, sinun on tarkistettava, onko siinä ylimääräinen näytönohjainportti, jotta voit tarvittaessa päivittää sitä.
Satamat ja laitteet
PCI-portit
0
PCI-portit ovat suosituin tapa täydentää tietokoneen toimintoja lisäkorteilla (ääni, verkko, viestintä, videovalvonta jne.). Uudemmissa emolevyissä on PCI-Express-standardin ansiosta pieni määrä PCI-laajennusportteja, joten ennen emolevyn ostamista kannattaa tarkistaa, että PCI-porttien määrä mahdollistaa kaikkien tarvitsemiesi PCI-korttien liittämisen.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integroitu äänikortti
: Realtek ALC4082
Langattomat yhteydet
Sisäänrakennettu Bluetooth
: Ir
Sisäänrakennettu Wi-Fi
: Ja
Ulkoiset portit
Ulkoinen USB Type-C
: 2
Ulkoinen USB 2.0
: 2
Ulkoinen USB 3.0 (USB 3.2 Gen1)
: 4
Ulkoinen USB 3.1 (USB 3.2 Gen2)
: 4
Sisäiset portit
Sisäinen A-RGB 5V (3-nastainen)
: 3
Sisäinen RGB 12V (4-nastainen)
: 0
Sisäinen USB 2.0
: 2
Sisäinen USB 3.0
: 2
Sisäinen USB Type-C
: 2
M.2-portti
: 6
SATA3-portti
: 4
Lahjapeli Monster Hunter Wilds
Yksityiskohtaisempi erittely
Accessories included -
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1ID0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category Code - MBI
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890 Chipset
code - 90MB1ID0-M0EAY0
Code - 90MB1ID0-M0EAY0
COM connector / port - No
CPU socket - LGA1851
Description - ROG Maximus Z890 HERO
Płyta główna ROG Maximus Z890 Hero wyzwala pełną moc procesorów Intel Core Ultra (seria 2) za pośrednictwem ekskluzywnych technologii AI PC, solidnego układu zasilania, zoptymalizowanych rozwiązań chłodzenia, szerokiej obsługi połączeń PCIe 5.0, gniazd pamięci DDR5 oraz łączności Wi-Fi 7. Ponadto kanciaste elementy wzornictwa i akcenty świetlne Polymo II Lighting wokół logo ROG tworzą charakterystyczny wygląd, który przenosi design systemu na wyższy poziom.
Description - The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Gniazda rozszerzeń Intel Core Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)** Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Magazyn danych Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel Z890 Chipset M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
dimensionalWeight - 2489
dimension depth - 115 mm
dimension height - 310 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 4209 g
dimension width - 370 mm
EAN - 4711387747223
ean - 4711387747223
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 6 x M.2
Expansion slots - Number of M.2 (M) slots - 6
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 1 x Wi-Fi Module
External connectors - 2 x RJ-45
External connectors - 2 x Thunderbolt 4
External connectors - 4 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 3.2 Gen 2 Type-A
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|6xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 3.0|4xUSB 3.1|1xUSB-C|2xUSB-C w/Thunderbolt|1xOptical S/PDIF|2xRJ45|SATA|USB-C|USB 2.0|USB 3.0|Bluetooth|WiFi|SATA 3.0|Video|LAN 5 Gigabit|Audio Realtek ALC4082|RAID SATA 0, 1, 5, 10
Graphics - 1 x port HDMI** 2 x porty Intel Thunderbolt 4 (USB Type-C) obsługują wyjścia wideo DisplayPort i Thunderbolt***
* Specyfikacje graficzne mogą się różnić w zależności od typu procesora. Aby uzyskać aktualizacje, zapoznaj się z witryną www.intel.com
** Obsługuje maks. 8K@60Hz z DSC zgodnie ze specyfikacją HDMI 2.1.
*** W trybie Thunderbolt 4 obsługuje do 8K@60Hz x1 z DSC lub 4K@60Hz x2, maksymalna całkowita przepustowość do 23,8 Gb/s lub 16 Gb/s/16 Gb/s, w celu uzyskania informacji o obsługiwanej rozdzielczości sprawdź specyfikację DisplayPort 2.1.
**** W trybie DP alt tylko jeden port USB Type-C obsługuje do UHBR20 na raz.
***** Obsługa rozdzielczości VGA zależy od rozdzielczości procesorów lub kart graficznych. ******Podczas instalacji systemu operacyjnego upewnij się, że monitor jest podłączony do portu HDMI na tylnym panelu I/O lub do oddzielnej karty graficznej.
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 0197105747227
GTIN - 197105747227
GTIN - 4711387747223
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - Cables:
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Additional Cooling Kit:
1 x DDR5 fan holder
1 x Thermal pad for M.2 22110
Miscellaneous:

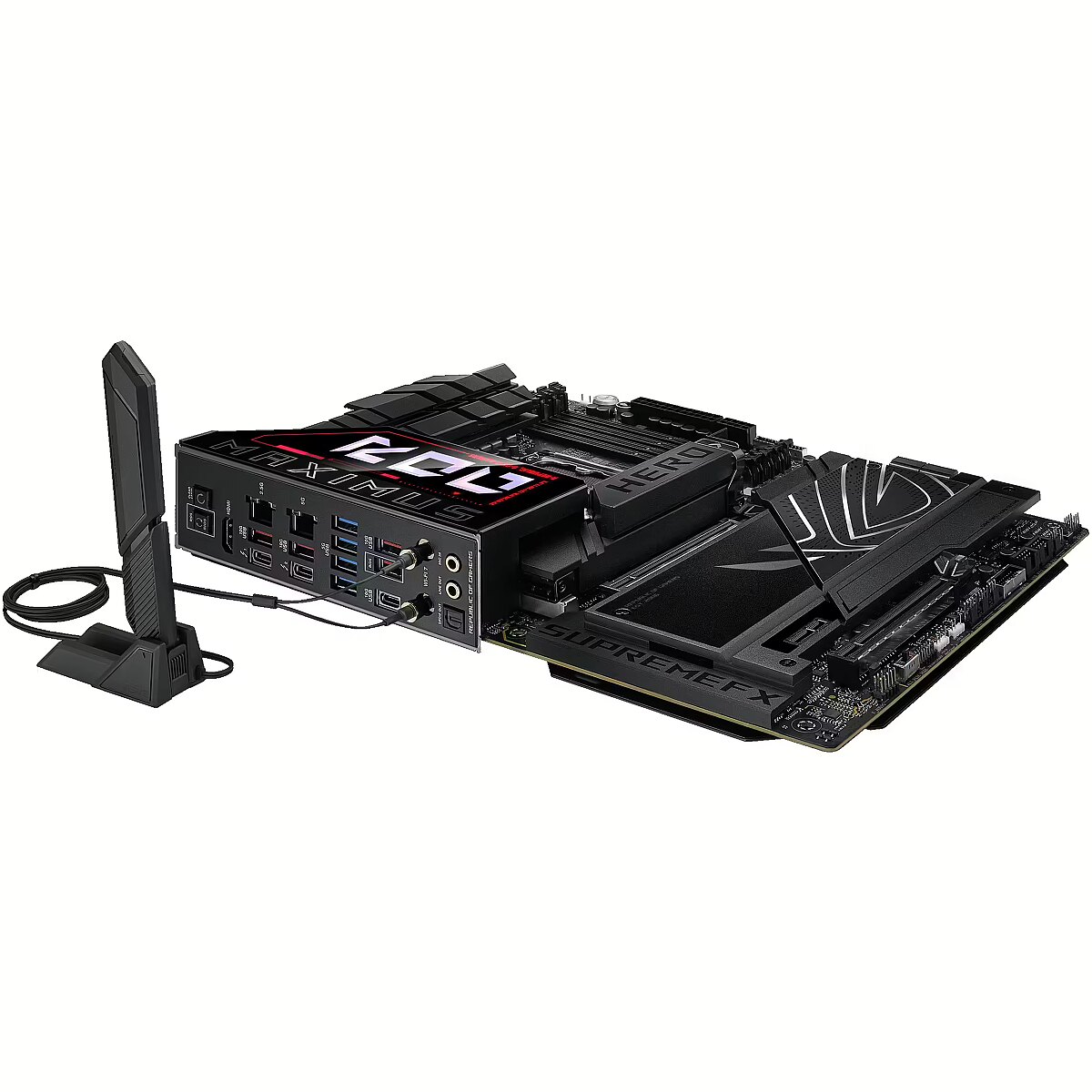

1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide packages
1 x ROG stickers
6 x M.2 rubber packages
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media:
1 x USB drive with utilities and drivers
Documentation:
1 x Quick start guide
Integrated audio - Realtek ALC4082
Integrated CPU - No
Integrated LAN - 5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
LongDesc - ROG Maximus Z890 HEROThe ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
LongProductName - Intel Z890, LGA1851, 4 x DIMM slots, max. 192GB, DDR5, Realtek 5Gb, Wi-Fi 7, Bluetooth 5.4, ATX, 256 Mb Flash ROM, UEFI AMI BIOS
LongSummaryDescription - ASUS ROG MAXIMUS Z890 HERO. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
LPT connector / port - No
M.2 Expansion slots - 6
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 9200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG MAXIMUS Z890 HERO
name - ASUS ROG Maximus Z890 Hero Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
Name - Asus ROG MAXIMUS Z890 HERO | Processor family Intel | Processor socket LGA1851 | DDR5 | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - Motherboard ROG MAXIMUS Z890 HERO s1851 4DDR5 TB4 ATX/90MB1ID0-M0EAY0
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet 1 x Intel 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard Bezprzewodowy i Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Obsługuje pasmo częstotliwości 2.4/5/6GHz Obsługuje pasmo Wi-Fi 7 320MHz, do 5.8Gbps szybkość transferu. Bluetooth v5.4
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 9
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Flex Key pin
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x ReTry button
Onboard connectors - 1 x SlimSAS
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 2 x USB C
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 6 x M.2
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 312 mm
Packaging data - Package height - 108 mm
Packaging data - Package width - 370 mm
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor > Processor family - Intel
Processor > Processor socket - LGA1851
Processor family - Intel Core Ultra
producer - Asus
producerCode - 90MB1ID0-M0EAY0
productName - ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX
ProductName - ROG MAXIMUS Z890 HERO
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes

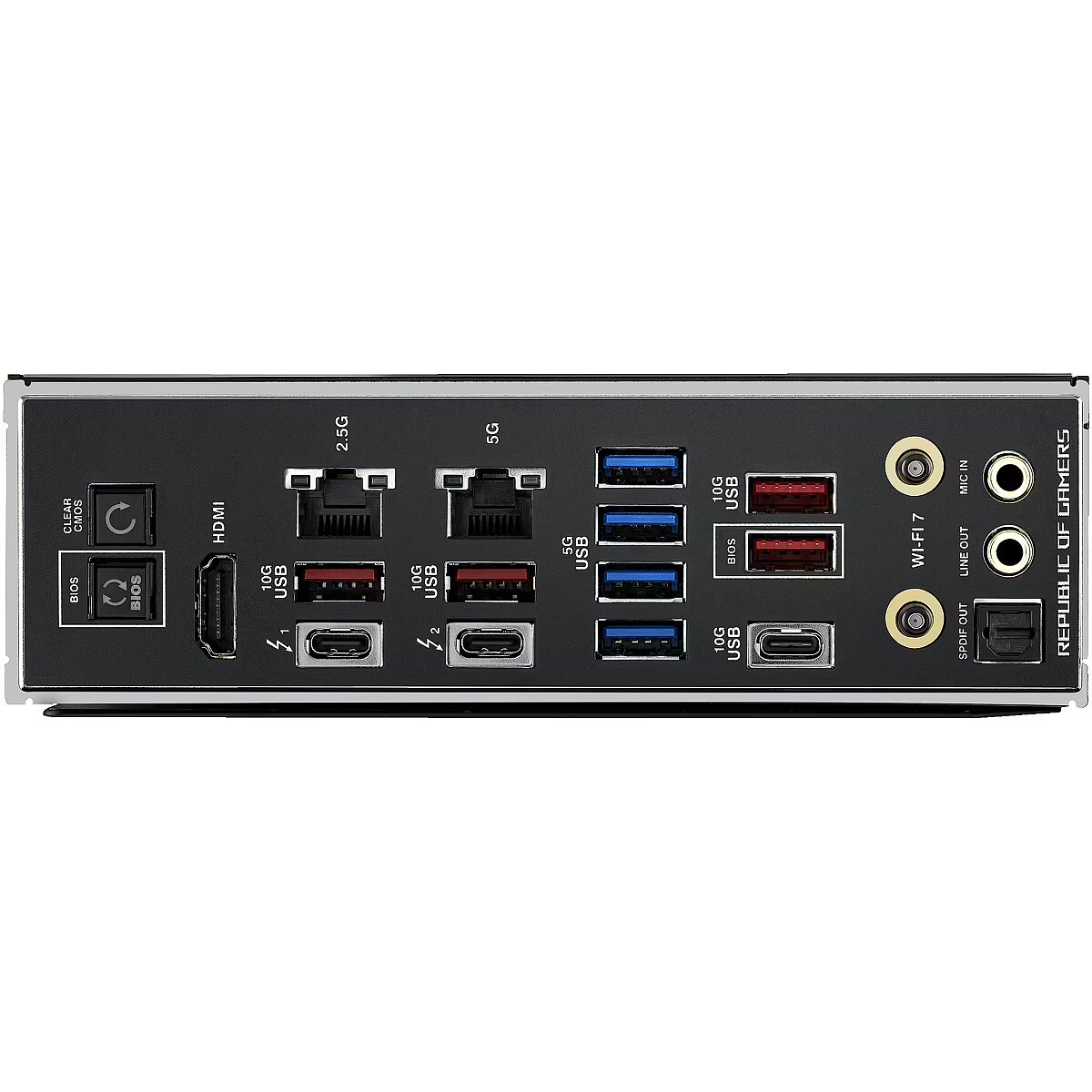

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
RJ45 Input/Output connectors - 2
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 46 cm
Shipping Box Height Shipping/Package Box Dimensions - 34 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 13.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 38 cm
ShortSummaryDescription - ASUS ROG MAXIMUS Z890 HERO, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 192 GB, DIMM
sizeX - 365
sizeY - 110
sizeZ - 310
Socket - LGA1851
Software - WOL by PME
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Wykrywanie impedancji dla przednich i tylnych wyjść słuchawkowych
- Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda mikrofonowego na przednim panelu
- Wysokiej jakości wyjście odtwarzania stereo SNR 120 dB i wejście nagrywania SNR 110 dB
- Obsługuje odtwarzanie do 32-bitów/384 kHz na przednim panelu"
Funkcje audio
- Technologia ekranowania SupremeFX
- ESS ES9219 QUAD DAC
- Pozłacane gniazda audio
- Tylny optyczny port wyjściowy S/PDIF
- Kondensatory audio klasy premium
* Port LINE OUT na tylnym panelu nie obsługuje dźwięku przestrzennego. Jeśli chcesz korzystać z dźwięku przestrzennego, podłącz urządzenie wyjściowe audio do gniazda audio na przednim panelu obudowy lub użyj urządzenia audio z interfejsem USB.
Special functions - Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG M.2 PowerBoost
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.321V max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Technical details > Producer product name - ROG MAXIMUS Z890 HERO
Title - ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX
Unit Box Height - 0.31
Unit Box Length - 0.37
Unit Box Width - 0.11
Unit Brutto Volume - 0.01486 cubm
Unit Gross Weight - 3.42 kg
Unit Net Weight - 2.6 kg
URL - https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-hero/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 4
USB 3.0 Interface - Yes
USB 3.1 Input/Output connectors - 4
USB ports at back panel - 11
USB ports on motherboard - 10
Vendor Homepage - rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-hero/
vendpn - ROG MAXIMUS Z890 HERO
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 4200
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1ID0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category Code - MBI
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890 Chipset
code - 90MB1ID0-M0EAY0
Code - 90MB1ID0-M0EAY0
COM connector / port - No
CPU socket - LGA1851
Description - ROG Maximus Z890 HERO
Płyta główna ROG Maximus Z890 Hero wyzwala pełną moc procesorów Intel Core Ultra (seria 2) za pośrednictwem ekskluzywnych technologii AI PC, solidnego układu zasilania, zoptymalizowanych rozwiązań chłodzenia, szerokiej obsługi połączeń PCIe 5.0, gniazd pamięci DDR5 oraz łączności Wi-Fi 7. Ponadto kanciaste elementy wzornictwa i akcenty świetlne Polymo II Lighting wokół logo ROG tworzą charakterystyczny wygląd, który przenosi design systemu na wyższy poziom.
Description - The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Gniazda rozszerzeń Intel Core Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)** Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Magazyn danych Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel Z890 Chipset M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
dimensionalWeight - 2489
dimension depth - 115 mm
dimension height - 310 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 4209 g
dimension width - 370 mm
EAN - 4711387747223
ean - 4711387747223
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 6 x M.2
Expansion slots - Number of M.2 (M) slots - 6
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 1 x Wi-Fi Module
External connectors - 2 x RJ-45
External connectors - 2 x Thunderbolt 4
External connectors - 4 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 3.2 Gen 2 Type-A
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|6xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 3.0|4xUSB 3.1|1xUSB-C|2xUSB-C w/Thunderbolt|1xOptical S/PDIF|2xRJ45|SATA|USB-C|USB 2.0|USB 3.0|Bluetooth|WiFi|SATA 3.0|Video|LAN 5 Gigabit|Audio Realtek ALC4082|RAID SATA 0, 1, 5, 10
Graphics - 1 x port HDMI** 2 x porty Intel Thunderbolt 4 (USB Type-C) obsługują wyjścia wideo DisplayPort i Thunderbolt***
* Specyfikacje graficzne mogą się różnić w zależności od typu procesora. Aby uzyskać aktualizacje, zapoznaj się z witryną www.intel.com
** Obsługuje maks. 8K@60Hz z DSC zgodnie ze specyfikacją HDMI 2.1.
*** W trybie Thunderbolt 4 obsługuje do 8K@60Hz x1 z DSC lub 4K@60Hz x2, maksymalna całkowita przepustowość do 23,8 Gb/s lub 16 Gb/s/16 Gb/s, w celu uzyskania informacji o obsługiwanej rozdzielczości sprawdź specyfikację DisplayPort 2.1.
**** W trybie DP alt tylko jeden port USB Type-C obsługuje do UHBR20 na raz.
***** Obsługa rozdzielczości VGA zależy od rozdzielczości procesorów lub kart graficznych. ******Podczas instalacji systemu operacyjnego upewnij się, że monitor jest podłączony do portu HDMI na tylnym panelu I/O lub do oddzielnej karty graficznej.
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 0197105747227
GTIN - 197105747227
GTIN - 4711387747223
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - Cables:
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Additional Cooling Kit:
1 x DDR5 fan holder
1 x Thermal pad for M.2 22110
Miscellaneous:
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide packages
1 x ROG stickers
6 x M.2 rubber packages
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media:
1 x USB drive with utilities and drivers
Documentation:
1 x Quick start guide
Integrated audio - Realtek ALC4082
Integrated CPU - No
Integrated LAN - 5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
LongDesc - ROG Maximus Z890 HEROThe ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
LongProductName - Intel Z890, LGA1851, 4 x DIMM slots, max. 192GB, DDR5, Realtek 5Gb, Wi-Fi 7, Bluetooth 5.4, ATX, 256 Mb Flash ROM, UEFI AMI BIOS
LongSummaryDescription - ASUS ROG MAXIMUS Z890 HERO. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
LPT connector / port - No
M.2 Expansion slots - 6
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 9200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG MAXIMUS Z890 HERO
name - ASUS ROG Maximus Z890 Hero Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
Name - Asus ROG MAXIMUS Z890 HERO | Processor family Intel | Processor socket LGA1851 | DDR5 | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - Motherboard ROG MAXIMUS Z890 HERO s1851 4DDR5 TB4 ATX/90MB1ID0-M0EAY0
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet 1 x Intel 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard Bezprzewodowy i Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Obsługuje pasmo częstotliwości 2.4/5/6GHz Obsługuje pasmo Wi-Fi 7 320MHz, do 5.8Gbps szybkość transferu. Bluetooth v5.4
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 9
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Flex Key pin
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x ReTry button
Onboard connectors - 1 x SlimSAS
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 2 x USB C
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 6 x M.2
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 312 mm
Packaging data - Package height - 108 mm
Packaging data - Package width - 370 mm
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor > Processor family - Intel
Processor > Processor socket - LGA1851
Processor family - Intel Core Ultra
producer - Asus
producerCode - 90MB1ID0-M0EAY0
productName - ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX
ProductName - ROG MAXIMUS Z890 HERO
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
RJ45 Input/Output connectors - 2
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 46 cm
Shipping Box Height Shipping/Package Box Dimensions - 34 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 13.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 38 cm
ShortSummaryDescription - ASUS ROG MAXIMUS Z890 HERO, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 192 GB, DIMM
sizeX - 365
sizeY - 110
sizeZ - 310
Socket - LGA1851
Software - WOL by PME
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Wykrywanie impedancji dla przednich i tylnych wyjść słuchawkowych
- Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda mikrofonowego na przednim panelu
- Wysokiej jakości wyjście odtwarzania stereo SNR 120 dB i wejście nagrywania SNR 110 dB
- Obsługuje odtwarzanie do 32-bitów/384 kHz na przednim panelu"
Funkcje audio
- Technologia ekranowania SupremeFX
- ESS ES9219 QUAD DAC
- Pozłacane gniazda audio
- Tylny optyczny port wyjściowy S/PDIF
- Kondensatory audio klasy premium
* Port LINE OUT na tylnym panelu nie obsługuje dźwięku przestrzennego. Jeśli chcesz korzystać z dźwięku przestrzennego, podłącz urządzenie wyjściowe audio do gniazda audio na przednim panelu obudowy lub użyj urządzenia audio z interfejsem USB.
Special functions - Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG M.2 PowerBoost
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.321V max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Technical details > Producer product name - ROG MAXIMUS Z890 HERO
Title - ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX
Unit Box Height - 0.31
Unit Box Length - 0.37
Unit Box Width - 0.11
Unit Brutto Volume - 0.01486 cubm
Unit Gross Weight - 3.42 kg
Unit Net Weight - 2.6 kg
URL - https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-hero/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 4
USB 3.0 Interface - Yes
USB 3.1 Input/Output connectors - 4
USB ports at back panel - 11
USB ports on motherboard - 10
Vendor Homepage - rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-hero/
vendpn - ROG MAXIMUS Z890 HERO
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 4200
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
