ID: 974729
Tuotekoodi: H510M K V2
Varastossa 17 yksiköt
Takuu: 3 vuotta

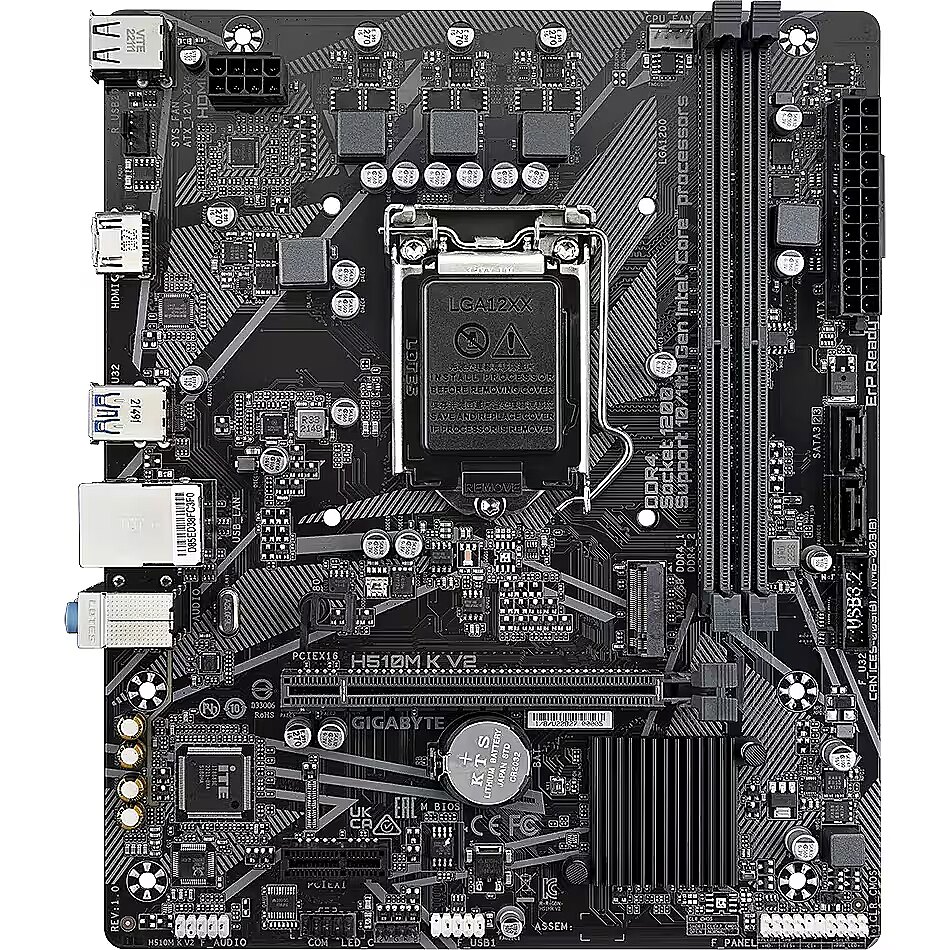

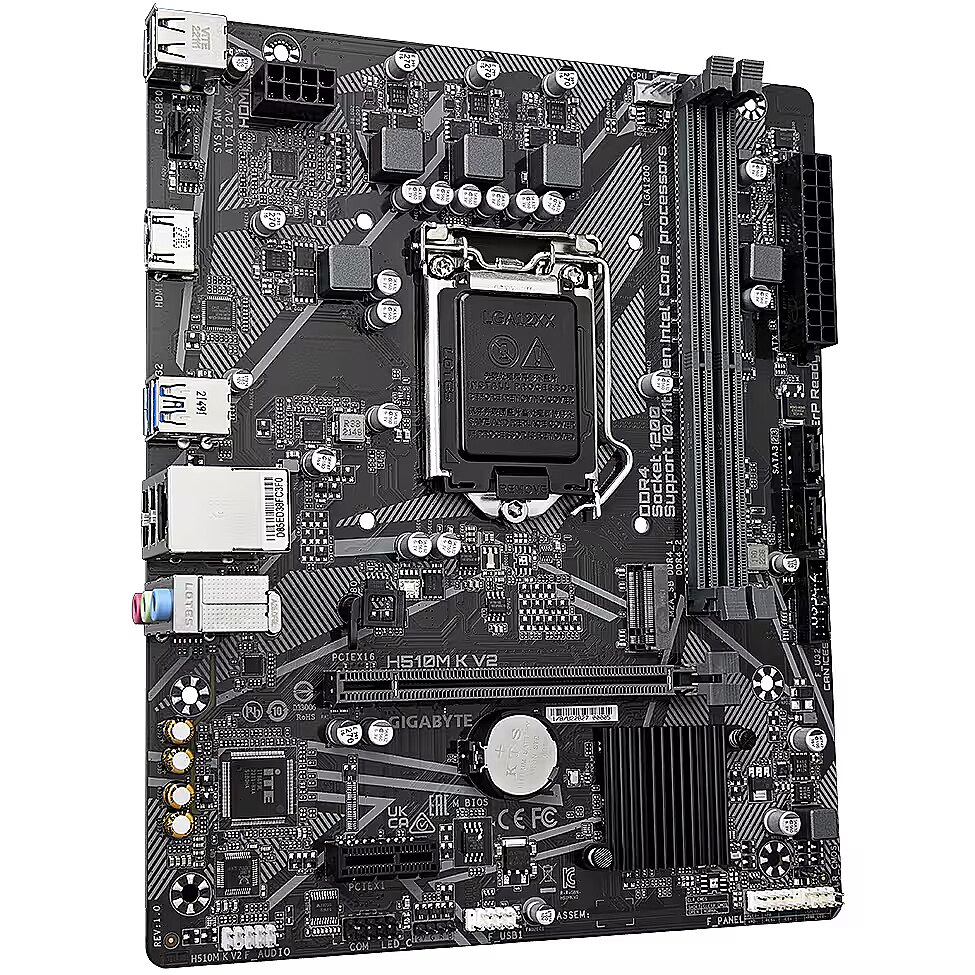

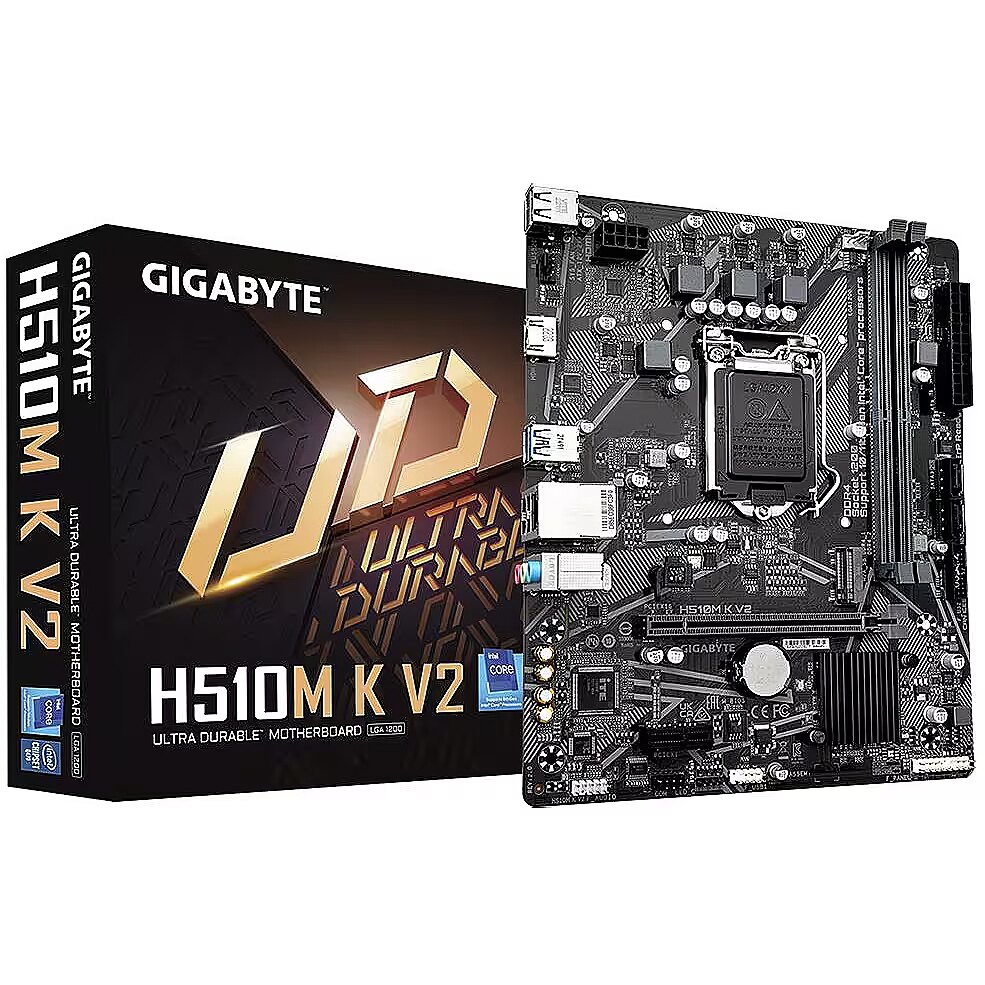

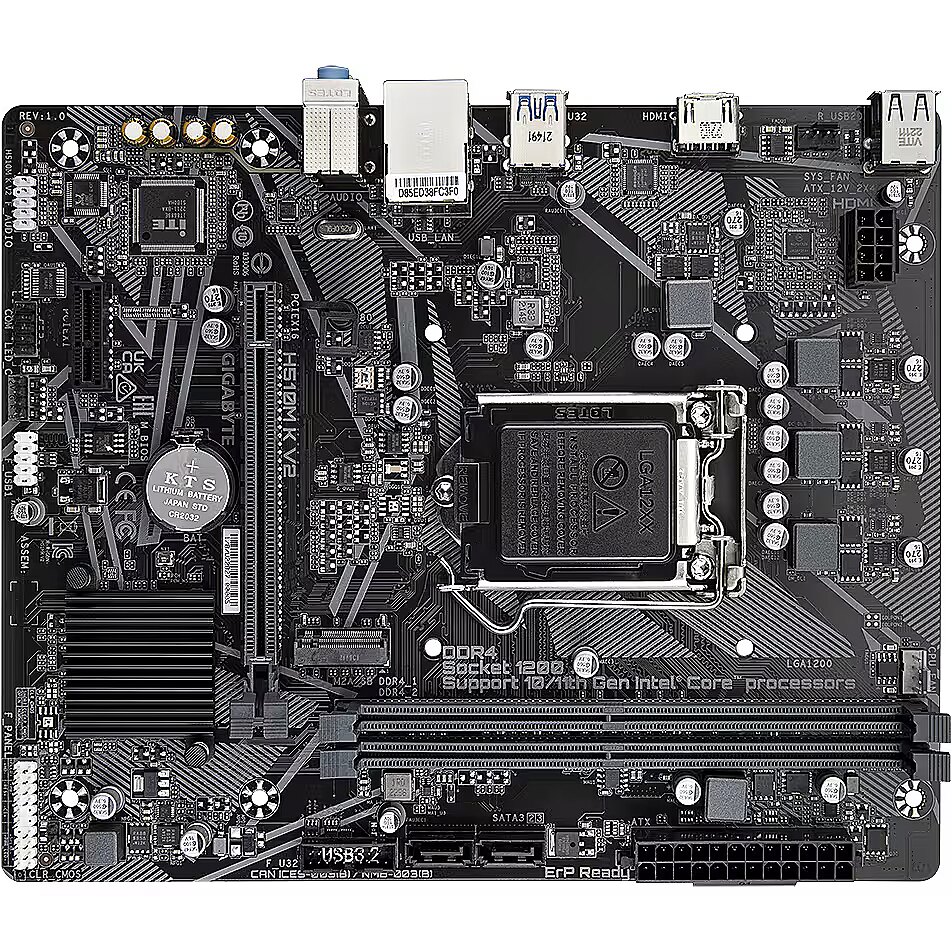

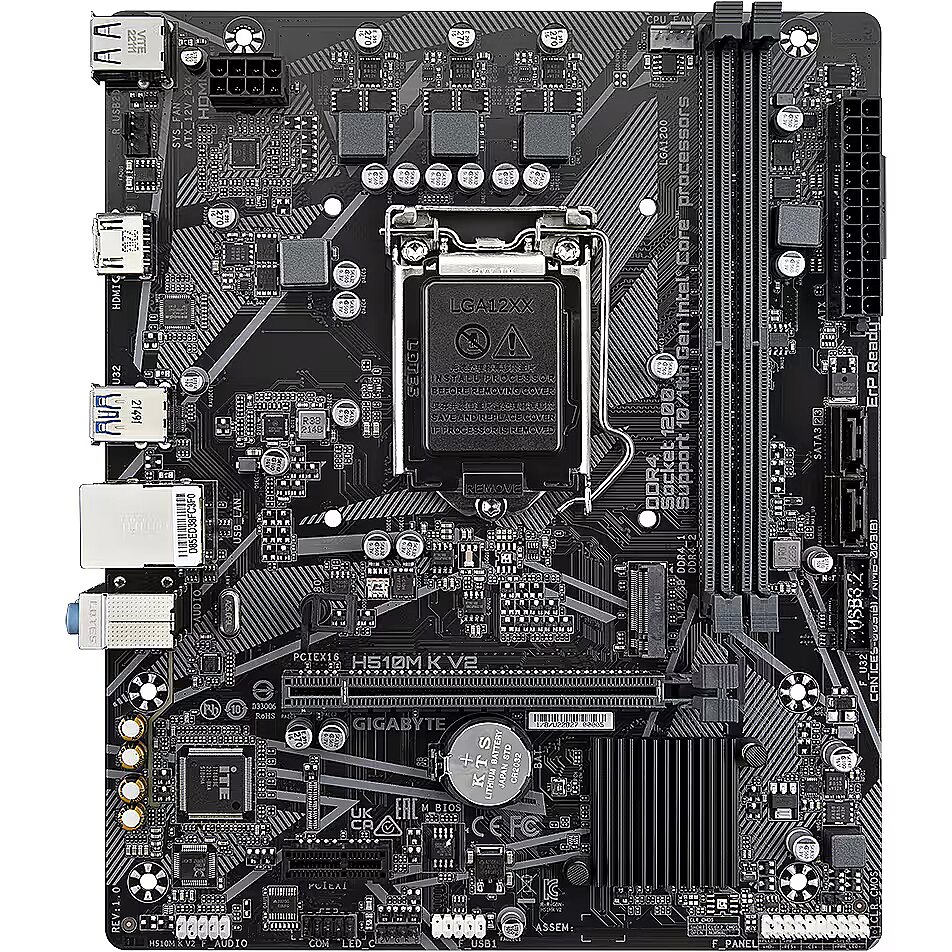

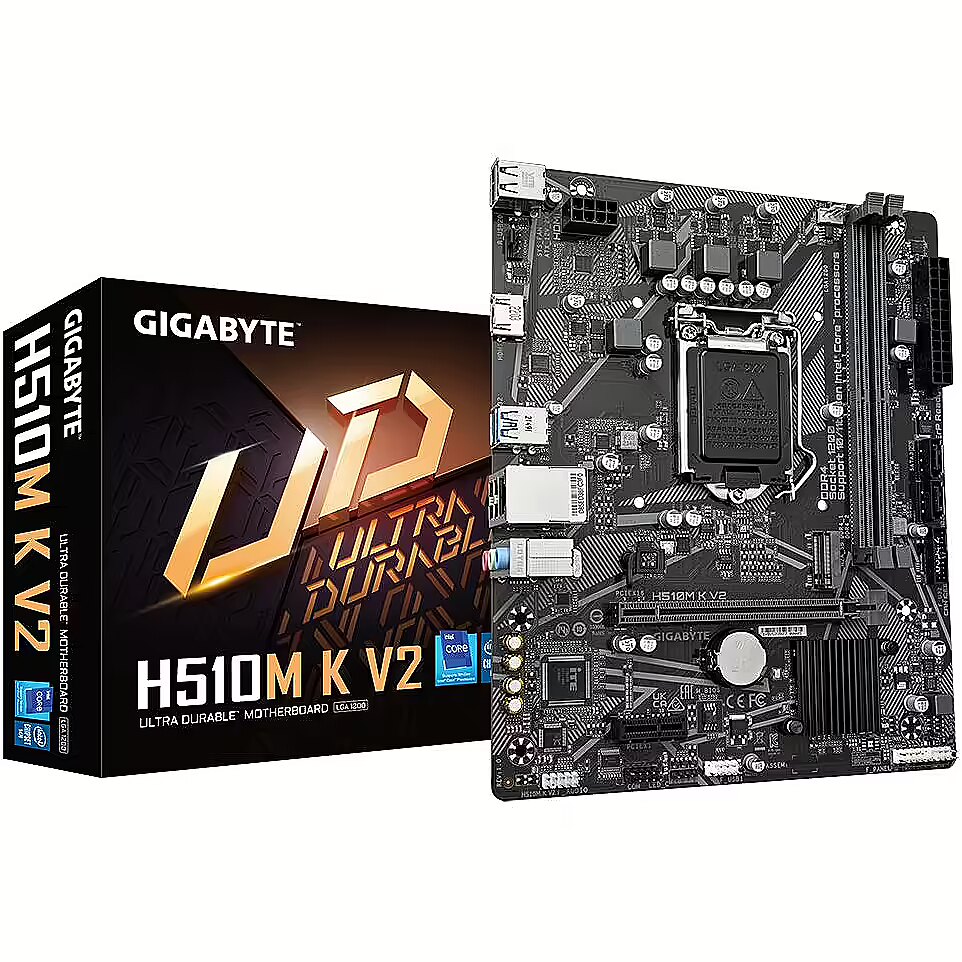

Gigabyte H510M K V2 (rev. 1.0)
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpost-pakettiautomaattiin 6,99 €: 28.11.2024
- Kuriiritoimitus 11,99 €: 28.11.2024
Tärkeimmät tuoteparametrit Kaikki parametrit
- Sarja: Gigabyte Ultra Durable
- CPU-kanta: LGA 1200
- Piirisarja: Intel H470
- Muotoilutekijä: Micro ATX
- Tyyppi: DDR4
- RAM-paikat: 2
- Sisäänrakennettu Wi-Fi: Ei ole
Perustiedot
Sarja
: Gigabyte Ultra Durable
CPU-kanta
LGA 1200
Suorittimen kanta on tärkeä tekijä levyn valinnassa; suorittimen kannan on oltava täsmälleen yhteensopiva sen suorittimen kanssa, jonka haluat asentaa levyn kanssa. Riippumatta siitä, että prosessori sopii emolevyn kantaan, on otettava huomioon myös kyseisen prosessorin tuki. Sen tarkistamiseksi, mitä suorittimia valittu emolevy tukee, sinun on käytävä emolevyn valmistajan verkkosivustolla, etsittävä kyseisen emolevyn suorittimen tukiosio ja tarkistettava, että kyseisen emolevyn tekniset tiedot tukevat valitsemaasi suorittinta.
Piirisarja
Intel H470
Piiriväylä on tärkein kriteeri emolevyn valinnassa (järjestelmän logiikkapiirit tai jännitemuuntajat). Piiriväylä määrittää suorittimet, muistiportit ja muut parametrit, joita emolevy tukee.
Kukin piirisarja liittyy suoraan tiettyyn suorittimen alustaan, jotka jaetaan suorittimen perheen tai suorittimen liitäntäpisteen perusteella.
sen tarkistamiseksi, mikä piiriväylä sopii suorittimellesi jne. sinun kannattaa kysyä johtajiltamme.
Muotoilutekijä
Micro ATX
Emolevyn fyysinen koko. TopPC.fi tarjoaa ATX- (täysikokoinen emolevy), mATX- (micro ATX) (pienikokoinen emolevy) ja miniATX-kokoisia emolevyjä. ATX-kokoisen tietokoneen koteloon on mahdollista sijoittaa sekä ATX- että mATX-emolevy, mutta mATX-koteloon ei voi sijoittaa ATX-emolevyä.
ATX-piirilevyssä on vähintään 3 muistipaikkaa ja vähintään 5 paikallista PCI-paikkaa, mikä tarkoittaa, että tälle levylle voidaan rakentaa hyvin toimiva tehokas tietokone. Koti- tai toimistotietokone ei kuitenkaan tarvitse näin suurta määrää korttipaikkoja, joten myös microATX-kortti sopii.
Emolevyn virtalähteen liitin on virtalähdepistorasia, jotka ovat nykyisin ATX- ja ATX2.0-standardia. ATX on vanhempi standardi, jossa on 20-nastainen liitin (20 "nastaa"), ja ATX2.0:ssa on 4 lisänastaa (20+4). ATX-standardin emolevyt voivat toimia ATX2.0-virtalähteellä (PSU), mutta ATX2.0-standardin emolevy vaatii ATX2.0-virtalähteen.
Form-factor on pikemminkin suositus. Ennen emolevyn ostamista kannattaa kuitenkin tarkistaa kotelon koon yhteensopivuus emolevyn koon ja sen virtalähteen liittimen kanssa.
Satunnaiskäyttömuisti (RAM)
Tyyppi
: DDR4
RAM-paikat
2
Käytettävissä olevien muistipaikkojen määrä osoittaa emolevyyn asennettavien muistimoduulien (levyjen) määrän.
Muistituki
DDR4 3200
RAM-väylä määrittää, minkä tyyppistä RAM-muistia kyseinen emolevy tukee.
Väylämerkintä sisältää muistityypin DDRII tai DDRIII sekä emolevyn tukeman muistin enimmäiskellotaajuuden. Muistin tyyppi on tärkein indeksi, eri tyyppiset muistit ovat fyysisesti erilaisia, joten DDRIII-muistia ei voi liittää emolevyyn, joka tukee DDRII-muistia (lukuun ottamatta tapauksia, joissa emolevy tukee molempia muistityyppejä). Emolevy, joka tukee 800 MHz:n DDRII-muistia, voi kuitenkin toimia muistinopeuksilla DDII667 ja DDRII533. Emolevy, jonka muistiväylän nopeus on pienempi kuin muistimoduulin nopeus, pystyy toimimaan vain määritellyn väylänopeuden verran, eli jos emolevyn muistiväylä on DDRII667 ja siihen on asennettu DDRII800-muisti, se toimii DDRII667-nopeudella.
Näytönohjain
Videokorttiportti
PCI-EXPRESS
VGA-portti tai näytönohjaimen pistoke. VGA-portin on oltava valitsemasi näytönohjainportin eritelmän mukainen. Vanhemmissa näytönohjaimissa on AGP-portti, uusien korttien valmistajissa on PCI-EXPRESS (PCI-X) -portti.AGP- ja PCI-Xpress-näytönohjaimet eivät ole keskenään yhteensopivia. Ennen emolevyn ostamista sinun on tarkistettava sekä emolevyn että näytönohjaimen näytönohjainportin yhteensopivuus.
Integroitu grafiikka
Vain iGPU-valmiilla suorittimella
Parametri, joka määrittää, onko näytönohjain integroitu emolevyyn. Integroitu näytönohjain soveltuu toimisto-ohjelmistojen, Internetin, elokuvien katseluun ja yksinkertaisten pelien pelaamiseen. Jos haluat käyttää grafiikkasovelluksia, pelata 3D-pelejä ja katsella 3D-animaatioita, tarvitset lisänäytönohjaimen.
Integroitu näytönohjain käyttää murto-osan emolevyn muistista, joten jos emolevyssäsi on 1 Gt muistia ja emolevyn näytönohjaimen asetuksissa ilmoitetaan, että se vie 256 Mt, käyttöjärjestelmä näyttää käytettävissä olevan muistin määräksi noin 700 Mt.
Ennen kuin ostat emolevyn, jossa on sisäänrakennettu näytönohjain, sinun on tarkistettava, onko siinä ylimääräinen näytönohjainportti, jotta voit tarvittaessa päivittää sitä.
Satamat ja laitteet
PCI-portit
0
PCI-portit ovat suosituin tapa täydentää tietokoneen toimintoja lisäkorteilla (ääni, verkko, viestintä, videovalvonta jne.). Uudemmissa emolevyissä on PCI-Express-standardin ansiosta pieni määrä PCI-laajennusportteja, joten ennen emolevyn ostamista kannattaa tarkistaa, että PCI-porttien määrä mahdollistaa kaikkien tarvitsemiesi PCI-korttien liittämisen.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integroitu äänikortti
: Realtek Audio CODEC
Langattomat yhteydet
Sisäänrakennettu Bluetooth
: Nav
Sisäänrakennettu Wi-Fi
: Ei ole
Ulkoiset portit
Ulkoinen USB Type-C
: 0
Ulkoinen USB 2.0
: 4
Ulkoinen USB 3.0 (USB 3.2 Gen1)
: 2
Ulkoinen USB 3.1 (USB 3.2 Gen2)
: 0
Sisäiset portit
Sisäinen A-RGB 5V (3-nastainen)
: 0
Sisäinen RGB 12V (4-nastainen)
: 1
Sisäinen USB 2.0
: 1
Sisäinen USB 3.0
: 1
Sisäinen USB Type-C
: 0
M.2-portti
: 1
SATA3-portti
: 2
Yksityiskohtaisempi erittely
Accessories included -
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - H510M K V2
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Socket 1200
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1200
Chipset manufacturer - Intel
Chipset type - Intel H470 Express Chipset
code - H510M K V2
Code - H510M K V2
COM connector / port - Yes
CPU socket - LGA1200
Description - Intel Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5 Supports 11th/10th Gen Intel Core Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 8-Channel HD Audio with High Quality Audio Capacitors NVMe PCIe Gen3 x4 2280 M.2 Connector GbE LAN with Bandwidth Management Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design
Detailed data on disk/drive interfaces - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID5 support for SATA storage devices
dimensionalWeight - 648
dimension depth - 53 mm
dimension height - 235 mm
Dimensions - 22.6 x 18.5 cm
dimension weight - 615 g
dimension width - 268 mm
EAN - 4719331855253
ean - 4719331855253
Eans - 4719331855253
EAN_code - 4719331855253
Expansion slots - 1 x PCIe x 1
Expansion slots - 1 x PCIe x 16
Expansion slots - Mini PCI Express slots - 1

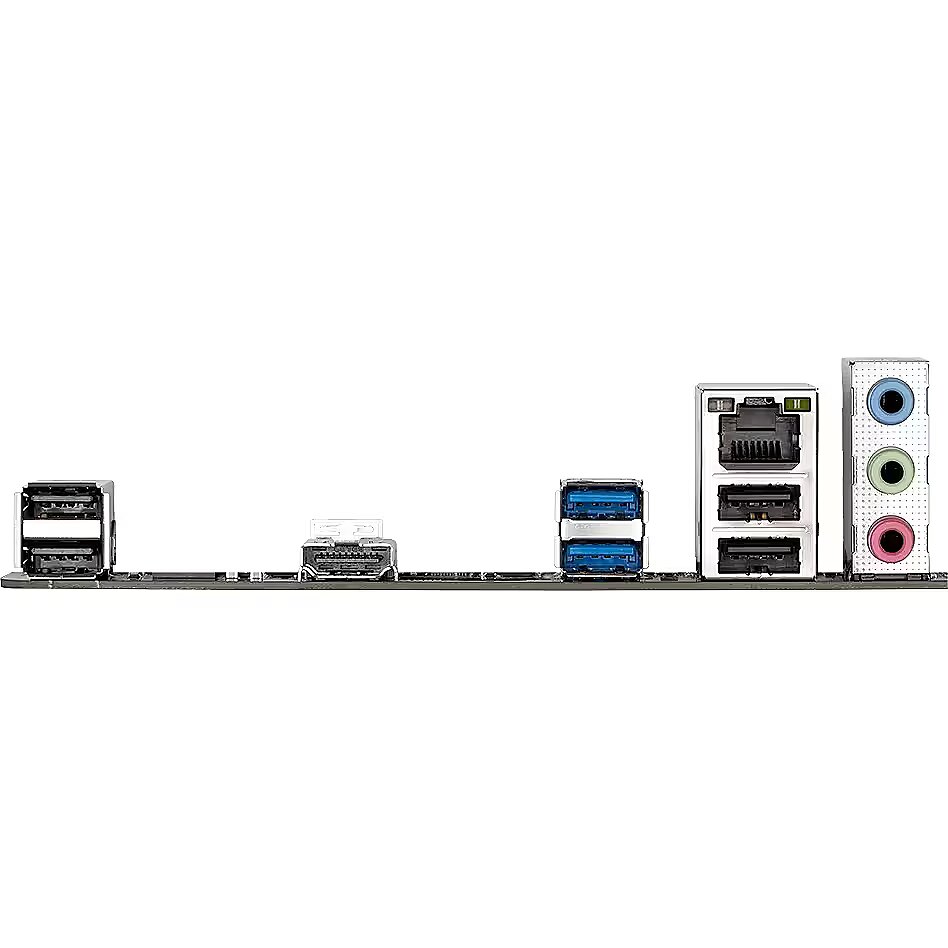

External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H470 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Power source type - ATX
Features - Product colour - Bronze
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Integrated graphics processor supports Intel HD graphics: 1 x HDMI port supporting a maximum resolution of 4096x2160 at 30 Hz * Support for HDMI 1.4 and HDCP 2.3 versions. (Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - On-board graphics card - Yes
Gross weight - 1.23 kg
GTIN - 4719331855253
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 2
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 2
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 2
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - LGA1200, Intel H470 Express, 2 x DDR4, 1 x HDMI, Micro ATX
LongSummaryDescription - GIGABYTE H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, Supported storage drive types: SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - H510M K V2
Max. number of ATA devices - 0
Max. number of SATA devices - 2
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3200 MHz
Memory type - DDR4
Model - H510M K V2
MPN - H510M K V2
Name - 1200 Gigabyte H510M K V2
Name - Gigabyte H510M K V2
Name - GIGABYTE H510M K V2 - Socket 1200 - motherboard
name - GIGABYTE H510M K V2, Intel H470 Mainboard, Sockel 1200, DDR4
Name - Gigabyte | H510M K V2 1.0 M/B | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 2 | Chipset Intel H470 Express | Micro ATX
name - Motherboard H510M K V2 s1200 2DDR4 HDMI/USB 3.2 M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x SATA III 6Gb/s
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross height (mm) - 68.00 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 181 pc(s)
Package features > Paper/Pasteboard - 230.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 683 g
Packaging data - Package width - 265 mm
Performance > Chipset - Intel H470 Express
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum internal memory supported by processor - 64 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor - Supported processor sockets - LGA 1200 (Socket H5)
Processor > Compatible processor series - Supports 11th/10th Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
producer - Gigabyte
Producer - Gigabyte
producerCode - H510M K V2
ProducerCode - H510M K V2
Producer product name - H510M K V2 1.0 M/B
productName - Gigabyte H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
ShortDescription - Socket 1200| Chipset Intel H510 | DDR4 |
ShortSummaryDescription - GIGABYTE H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1200 (Socket H5), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, LGA 1200 (Socket H5), 64 GB, DDR4-SDRAM
sizeX - 50
sizeY - 270
sizeZ - 240
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High quality sound 2/4/5.1/7.1-channel * Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound.
Special functions - Application Center support * Available applications in APP Center may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. @BIOS Ambient LED EasyTune Smart backup System Information Viewer Q-Flash support Support for Xpress installation
Storage controllers - Number of HDDs supported - 2
Storage controllers - Number of storage drives supported - 3
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA
Storage controllers - Supported storage drive types - SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
URL - https://www.gigabyte.com/Motherboard/H510M-K-V2-rev-10#kf
USB ports at back panel - 6
USB ports on motherboard - 4
vendpn - H510M K V2
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0,65
Weight - 0.6
weight - 600
Weight & dimensions - Depth - 185 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 226 mm
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - H510M K V2
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Socket 1200
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1200
Chipset manufacturer - Intel
Chipset type - Intel H470 Express Chipset
code - H510M K V2
Code - H510M K V2
COM connector / port - Yes
CPU socket - LGA1200
Description - Intel Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5 Supports 11th/10th Gen Intel Core Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 8-Channel HD Audio with High Quality Audio Capacitors NVMe PCIe Gen3 x4 2280 M.2 Connector GbE LAN with Bandwidth Management Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design
Detailed data on disk/drive interfaces - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID5 support for SATA storage devices
dimensionalWeight - 648
dimension depth - 53 mm
dimension height - 235 mm
Dimensions - 22.6 x 18.5 cm
dimension weight - 615 g
dimension width - 268 mm
EAN - 4719331855253
ean - 4719331855253
Eans - 4719331855253
EAN_code - 4719331855253
Expansion slots - 1 x PCIe x 1
Expansion slots - 1 x PCIe x 16
Expansion slots - Mini PCI Express slots - 1
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H470 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Power source type - ATX
Features - Product colour - Bronze
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Integrated graphics processor supports Intel HD graphics: 1 x HDMI port supporting a maximum resolution of 4096x2160 at 30 Hz * Support for HDMI 1.4 and HDCP 2.3 versions. (Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - On-board graphics card - Yes
Gross weight - 1.23 kg
GTIN - 4719331855253
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 2
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 2
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 2
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - LGA1200, Intel H470 Express, 2 x DDR4, 1 x HDMI, Micro ATX
LongSummaryDescription - GIGABYTE H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, Supported storage drive types: SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - H510M K V2
Max. number of ATA devices - 0
Max. number of SATA devices - 2
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3200 MHz
Memory type - DDR4
Model - H510M K V2
MPN - H510M K V2
Name - 1200 Gigabyte H510M K V2
Name - Gigabyte H510M K V2
Name - GIGABYTE H510M K V2 - Socket 1200 - motherboard
name - GIGABYTE H510M K V2, Intel H470 Mainboard, Sockel 1200, DDR4
Name - Gigabyte | H510M K V2 1.0 M/B | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 2 | Chipset Intel H470 Express | Micro ATX
name - Motherboard H510M K V2 s1200 2DDR4 HDMI/USB 3.2 M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x SATA III 6Gb/s
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross height (mm) - 68.00 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 181 pc(s)
Package features > Paper/Pasteboard - 230.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 683 g
Packaging data - Package width - 265 mm
Performance > Chipset - Intel H470 Express
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum internal memory supported by processor - 64 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor - Supported processor sockets - LGA 1200 (Socket H5)
Processor > Compatible processor series - Supports 11th/10th Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
producer - Gigabyte
Producer - Gigabyte
producerCode - H510M K V2
ProducerCode - H510M K V2
Producer product name - H510M K V2 1.0 M/B
productName - Gigabyte H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
ShortDescription - Socket 1200| Chipset Intel H510 | DDR4 |
ShortSummaryDescription - GIGABYTE H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1200 (Socket H5), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, LGA 1200 (Socket H5), 64 GB, DDR4-SDRAM
sizeX - 50
sizeY - 270
sizeZ - 240
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High quality sound 2/4/5.1/7.1-channel * Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound.
Special functions - Application Center support * Available applications in APP Center may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. @BIOS Ambient LED EasyTune Smart backup System Information Viewer Q-Flash support Support for Xpress installation
Storage controllers - Number of HDDs supported - 2
Storage controllers - Number of storage drives supported - 3
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA
Storage controllers - Supported storage drive types - SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE H510M K V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
URL - https://www.gigabyte.com/Motherboard/H510M-K-V2-rev-10#kf
USB ports at back panel - 6
USB ports on motherboard - 4
vendpn - H510M K V2
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0,65
Weight - 0.6
weight - 600
Weight & dimensions - Depth - 185 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 226 mm
