ID: 934191
Tuotekoodi: B760M PG RIPTIDE
Varastossa 2 yksiköt
Takuu: 3 vuotta

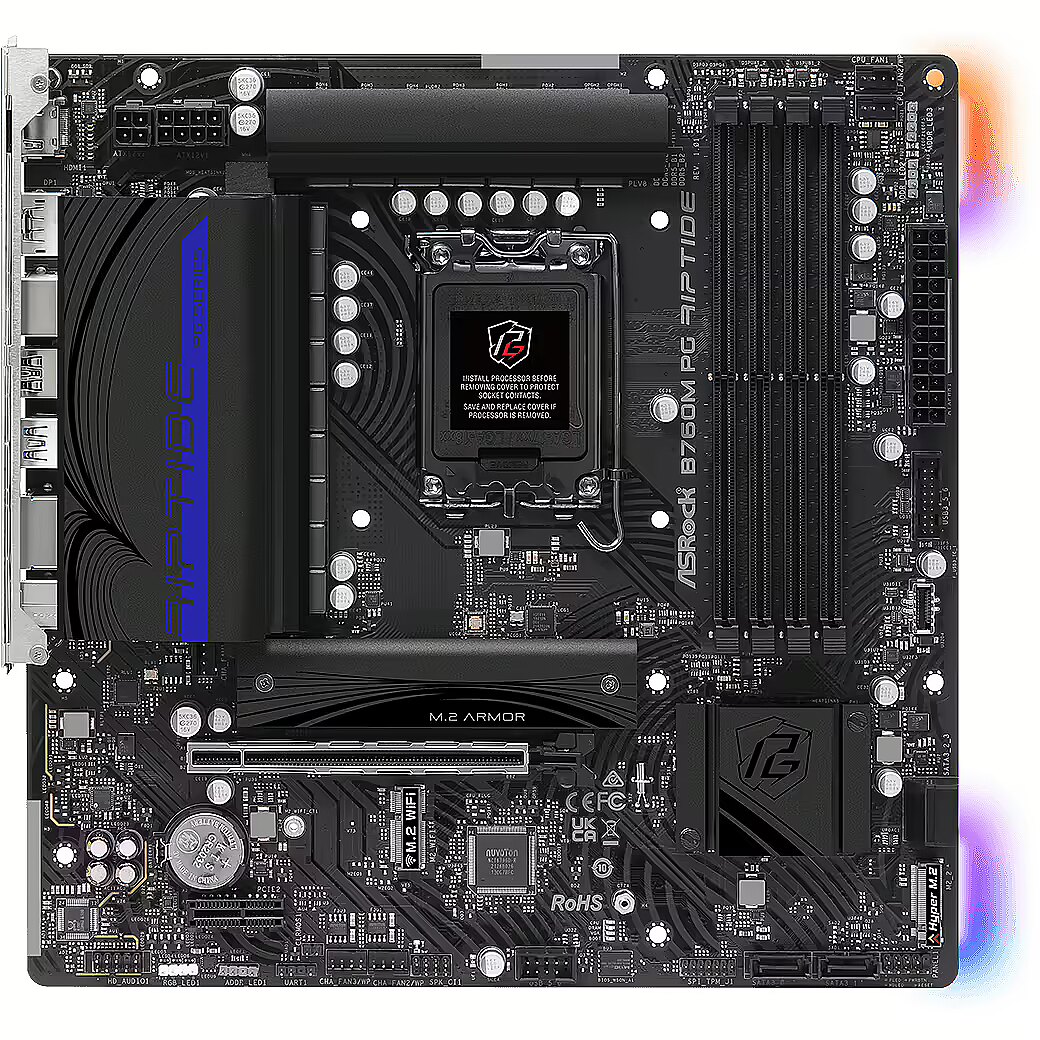

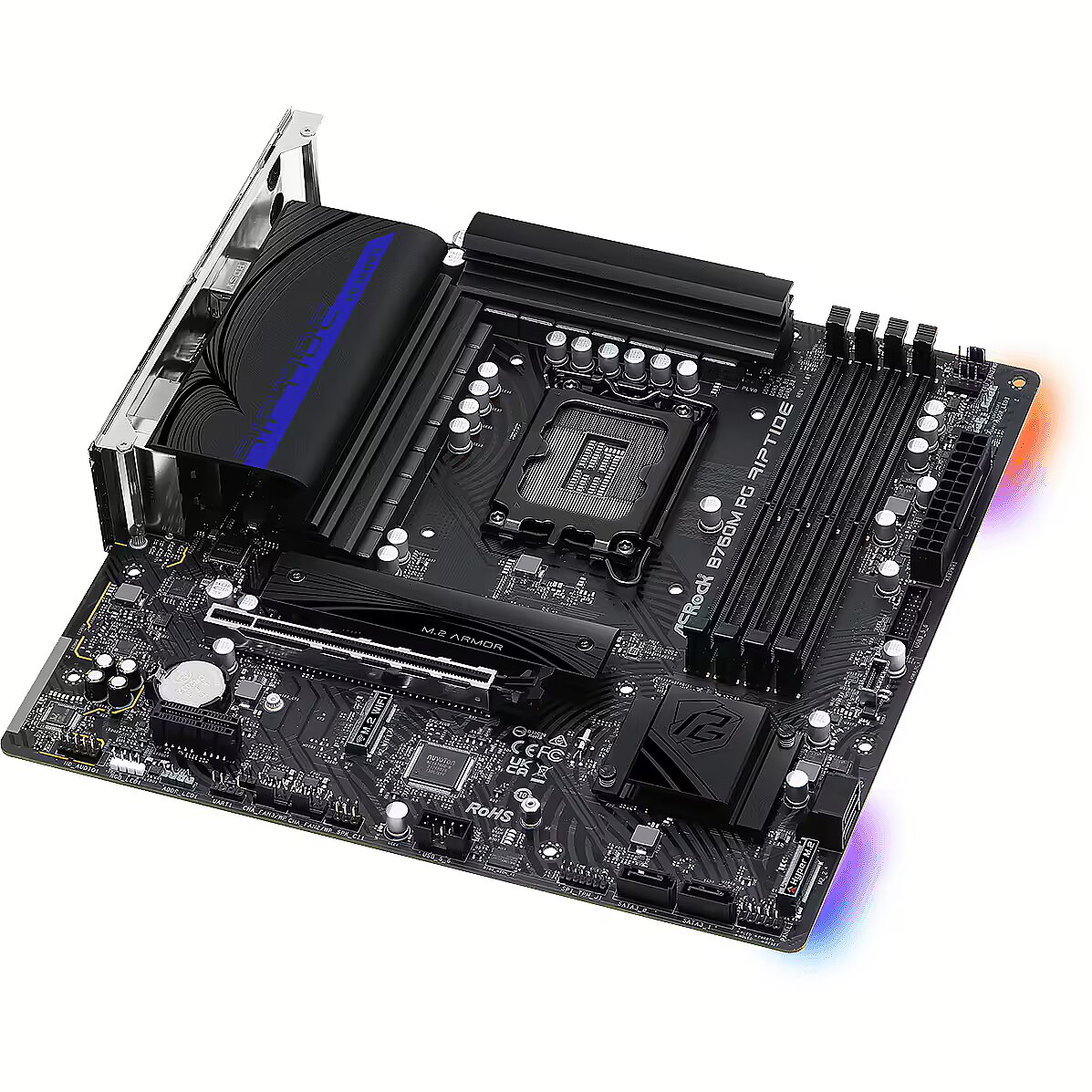

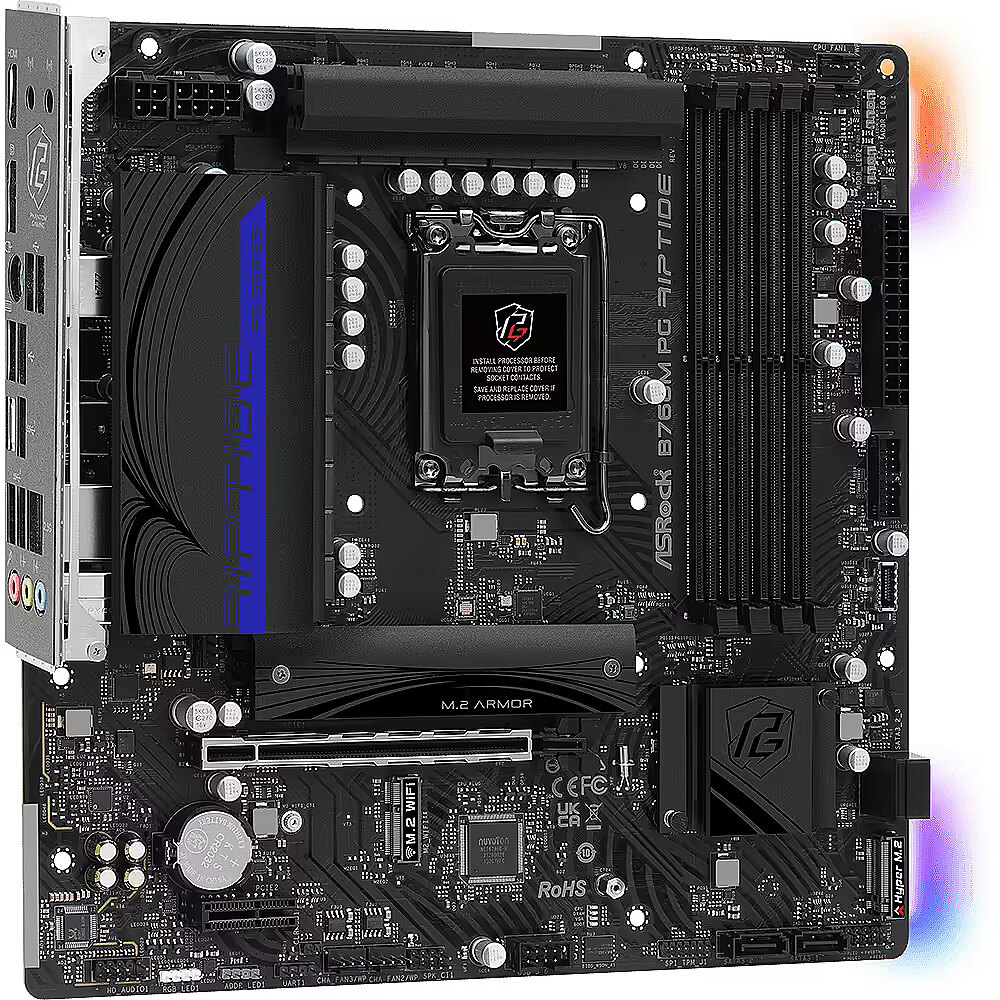

Asrock B760M PG Riptide
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpost-pakettiautomaattiin 6,99 €: 29.11.2024
- Kuriiritoimitus 11,99 €: 29.11.2024
Tärkeimmät tuoteparametrit Kaikki parametrit
- Sarja: ASRock Phantom Gaming
- CPU-kanta: LGA 1700
- Piirisarja: Intel B760
- Muotoilutekijä: Micro ATX
- Tyyppi: DDR5
- RAM-paikat: 4
- Sisäänrakennettu Wi-Fi: Ei ole
Perustiedot
Sarja
: ASRock Phantom Gaming
CPU-kanta
LGA 1700
Suorittimen kanta on tärkeä tekijä levyn valinnassa; suorittimen kannan on oltava täsmälleen yhteensopiva sen suorittimen kanssa, jonka haluat asentaa levyn kanssa. Riippumatta siitä, että prosessori sopii emolevyn kantaan, on otettava huomioon myös kyseisen prosessorin tuki. Sen tarkistamiseksi, mitä suorittimia valittu emolevy tukee, sinun on käytävä emolevyn valmistajan verkkosivustolla, etsittävä kyseisen emolevyn suorittimen tukiosio ja tarkistettava, että kyseisen emolevyn tekniset tiedot tukevat valitsemaasi suorittinta.
Piirisarja
Intel B760
Piiriväylä on tärkein kriteeri emolevyn valinnassa (järjestelmän logiikkapiirit tai jännitemuuntajat). Piiriväylä määrittää suorittimet, muistiportit ja muut parametrit, joita emolevy tukee.
Kukin piirisarja liittyy suoraan tiettyyn suorittimen alustaan, jotka jaetaan suorittimen perheen tai suorittimen liitäntäpisteen perusteella.
sen tarkistamiseksi, mikä piiriväylä sopii suorittimellesi jne. sinun kannattaa kysyä johtajiltamme.
Muotoilutekijä
Micro ATX
Emolevyn fyysinen koko. TopPC.fi tarjoaa ATX- (täysikokoinen emolevy), mATX- (micro ATX) (pienikokoinen emolevy) ja miniATX-kokoisia emolevyjä. ATX-kokoisen tietokoneen koteloon on mahdollista sijoittaa sekä ATX- että mATX-emolevy, mutta mATX-koteloon ei voi sijoittaa ATX-emolevyä.
ATX-piirilevyssä on vähintään 3 muistipaikkaa ja vähintään 5 paikallista PCI-paikkaa, mikä tarkoittaa, että tälle levylle voidaan rakentaa hyvin toimiva tehokas tietokone. Koti- tai toimistotietokone ei kuitenkaan tarvitse näin suurta määrää korttipaikkoja, joten myös microATX-kortti sopii.
Emolevyn virtalähteen liitin on virtalähdepistorasia, jotka ovat nykyisin ATX- ja ATX2.0-standardia. ATX on vanhempi standardi, jossa on 20-nastainen liitin (20 "nastaa"), ja ATX2.0:ssa on 4 lisänastaa (20+4). ATX-standardin emolevyt voivat toimia ATX2.0-virtalähteellä (PSU), mutta ATX2.0-standardin emolevy vaatii ATX2.0-virtalähteen.
Form-factor on pikemminkin suositus. Ennen emolevyn ostamista kannattaa kuitenkin tarkistaa kotelon koon yhteensopivuus emolevyn koon ja sen virtalähteen liittimen kanssa.
Satunnaiskäyttömuisti (RAM)
Tyyppi
: DDR5
RAM-paikat
4
Käytettävissä olevien muistipaikkojen määrä osoittaa emolevyyn asennettavien muistimoduulien (levyjen) määrän.
Muistituki
DDR5 5600 (OC 7200)
RAM-väylä määrittää, minkä tyyppistä RAM-muistia kyseinen emolevy tukee.
Väylämerkintä sisältää muistityypin DDRII tai DDRIII sekä emolevyn tukeman muistin enimmäiskellotaajuuden. Muistin tyyppi on tärkein indeksi, eri tyyppiset muistit ovat fyysisesti erilaisia, joten DDRIII-muistia ei voi liittää emolevyyn, joka tukee DDRII-muistia (lukuun ottamatta tapauksia, joissa emolevy tukee molempia muistityyppejä). Emolevy, joka tukee 800 MHz:n DDRII-muistia, voi kuitenkin toimia muistinopeuksilla DDII667 ja DDRII533. Emolevy, jonka muistiväylän nopeus on pienempi kuin muistimoduulin nopeus, pystyy toimimaan vain määritellyn väylänopeuden verran, eli jos emolevyn muistiväylä on DDRII667 ja siihen on asennettu DDRII800-muisti, se toimii DDRII667-nopeudella.
Näytönohjain
Videokorttiportti
PCI-EXPRESS
VGA-portti tai näytönohjaimen pistoke. VGA-portin on oltava valitsemasi näytönohjainportin eritelmän mukainen. Vanhemmissa näytönohjaimissa on AGP-portti, uusien korttien valmistajissa on PCI-EXPRESS (PCI-X) -portti.AGP- ja PCI-Xpress-näytönohjaimet eivät ole keskenään yhteensopivia. Ennen emolevyn ostamista sinun on tarkistettava sekä emolevyn että näytönohjaimen näytönohjainportin yhteensopivuus.
Integroitu grafiikka
Vain iGPU-valmiilla suorittimella
Parametri, joka määrittää, onko näytönohjain integroitu emolevyyn. Integroitu näytönohjain soveltuu toimisto-ohjelmistojen, Internetin, elokuvien katseluun ja yksinkertaisten pelien pelaamiseen. Jos haluat käyttää grafiikkasovelluksia, pelata 3D-pelejä ja katsella 3D-animaatioita, tarvitset lisänäytönohjaimen.
Integroitu näytönohjain käyttää murto-osan emolevyn muistista, joten jos emolevyssäsi on 1 Gt muistia ja emolevyn näytönohjaimen asetuksissa ilmoitetaan, että se vie 256 Mt, käyttöjärjestelmä näyttää käytettävissä olevan muistin määräksi noin 700 Mt.
Ennen kuin ostat emolevyn, jossa on sisäänrakennettu näytönohjain, sinun on tarkistettava, onko siinä ylimääräinen näytönohjainportti, jotta voit tarvittaessa päivittää sitä.
Satamat ja laitteet
PCI-portit
0
PCI-portit ovat suosituin tapa täydentää tietokoneen toimintoja lisäkorteilla (ääni, verkko, viestintä, videovalvonta jne.). Uudemmissa emolevyissä on PCI-Express-standardin ansiosta pieni määrä PCI-laajennusportteja, joten ennen emolevyn ostamista kannattaa tarkistaa, että PCI-porttien määrä mahdollistaa kaikkien tarvitsemiesi PCI-korttien liittämisen.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integroitu äänikortti
: Realtek ALC897
Langattomat yhteydet
Sisäänrakennettu Bluetooth
: Nav
Sisäänrakennettu Wi-Fi
: Ei ole
Ulkoiset portit
Ulkoinen USB Type-C
: 1
Ulkoinen USB 2.0
: 4
Ulkoinen USB 3.0 (USB 3.2 Gen1)
: 4
Ulkoinen USB 3.1 (USB 3.2 Gen2)
: 0
Sisäiset portit
Sisäinen A-RGB 5V (3-nastainen)
: 3
Sisäinen RGB 12V (4-nastainen)
: 1
Sisäinen USB 2.0
: 1
Sisäinen USB 3.0
: 1
Sisäinen USB Type-C
: 1
M.2-portti
: 2
SATA3-portti
: 4
Yksityiskohtaisempi erittely
Accessories included - User manual 2 x SATA data cable 2 x Screws for M.2 slot
Audio port Input/Output connectors - 3
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760
code - 90-MXBL60-A0UAYZ
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - 14+1+1 Power Phase - Supports DDR5 7200MHz (OC) - 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi - Graphics Output Options: HDMI, DisplayPort - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),6 USB 2.0 (4 Rear, 2 Front) - Dragon 2.5G LAN - Supports ASRock Auto Driver Installer
Description - Motherboard B760M PG Riptide Supports 13th and 12th generation Intel Core processors (LGA1700) 14+1+1 Power Phase Supports DDR5 7200MHz (OC) 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi Graphics outputs: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (4 Rear, 2 Front) Dragon 2.5G LAN Supports ASRock Auto Driver Installer Support DDR5 XMP AND EXPO Starting from the design concept of building for stability and reliability, ASRock does not compromise on any details. This motherboard is built with low-loss materials, allowing enthusiasts to enjoy the enhanced overclocking performance of DDR5j memory by enabling pre-tested profiles. Make sure your memory modules support Intel XMP/AMD EXPO technology and overclocking can be affordable, satisfying and absolutely hassle-free. Reinforced Steel Slot [PCIe 4.0 Revision] Reinforced steel slot along with next generation PCI Express 4.0 standard. List of benefits: More soldering points Stronger latch It ensures the stability of signal transmission It guarantees stable support for even the heaviest graphics cards Audio That Matters Whether you use headphones, handsfree, external or internal speakers via USB, Wi-Fi, analog or HDMI output, Nahimic Audio offers the best sound experience, vivid and full of details. Improved Communication Quality Powerful algorithms for the best noise-free conversation, ensure a constant voice level regardless of the distance from the microphone. The Nahimic audio engine dynamically cleans the sound, removes noise and reduces voice variability. The result is better understanding and less fatigue. Static Damping Echo elimination Side Sound Reduction Voice stabilization sound tracker The Sound Tracker is a visual indicator that indicates the directions from which dominant sounds are coming. Every sound is properly positioned on the 360° radar for complete gaming immersion. Works on all devices! Enjoy vivid and high-quality surround sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favorite audio tools and gives you the best sound with all of them. Nahimic measures and refines to optimize our technology and deliver the best experience. POLYCHROME RGB In addition to the built-in RGB lighting, the board also has integrated regular and addressable RGB headers that allow you to connect compatible LED devices such as LED strips, CPU fans, fans, cases, etc. Users can synchronize RGB LED devices with Polychrome RGB Sync certified accessories, to create your own unique lighting style. Fast M.2 Connections(PCIe Gen4 X4) Support for PCI Express 4.0 M.2 SSDs, which can run up to twice as fast compared to the previous 3rd generation, thus ensuring lightning-fast data transfer. Dragon LAN 2.5 Gbps Smart LAN 2.5Gb/s provides maximum connection speed to meet the needs of even the most demanding home network users, content creators, online gamers and high-quality content streamers. Accelerate your network connection 2.5 times compared to standard gigabit Ethernet. Enjoy unparalleled speed while gaming, transferring files and making backups. Front USB 3.2 Gen1 Type-C The front USB 3.2 Gen1 Type-C header enables data transfer speeds up to 10 Gbps, moreover, the next-generation reversible USB design is available on the front panel of the computer case. Automatic Driver Installation You don't have to worry about missing drivers! The ASRock board comes with a pre-installed LAN driver, offering you a convenient option to install the rest of the drivers. Step1: Install Auto Driver Installer Step 2: Update your drivers Step 3: Done! Factory Installed I/O Port Shield ASRock strives to offer only cutting-edge technology with the most user-friendly design. The pre-installed I/O port cover ensures that the motherboard is precisely installed in the case, prevents any interference and speeds up the assembly process.
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports 2280 PCIe Gen4x4 (64Gbps) chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports 2280 PCIe Gen4x4 (64Gbps) 4 x SATA3 6.0Gb/s connectors
dimensionalWeight - 960
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 930 g
dimension width - 280 mm
DisplayPort Input/Output connectors - 1
ean - 4710483942211
Eans - 4710483942211
EAN_code - 4710483942211
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1

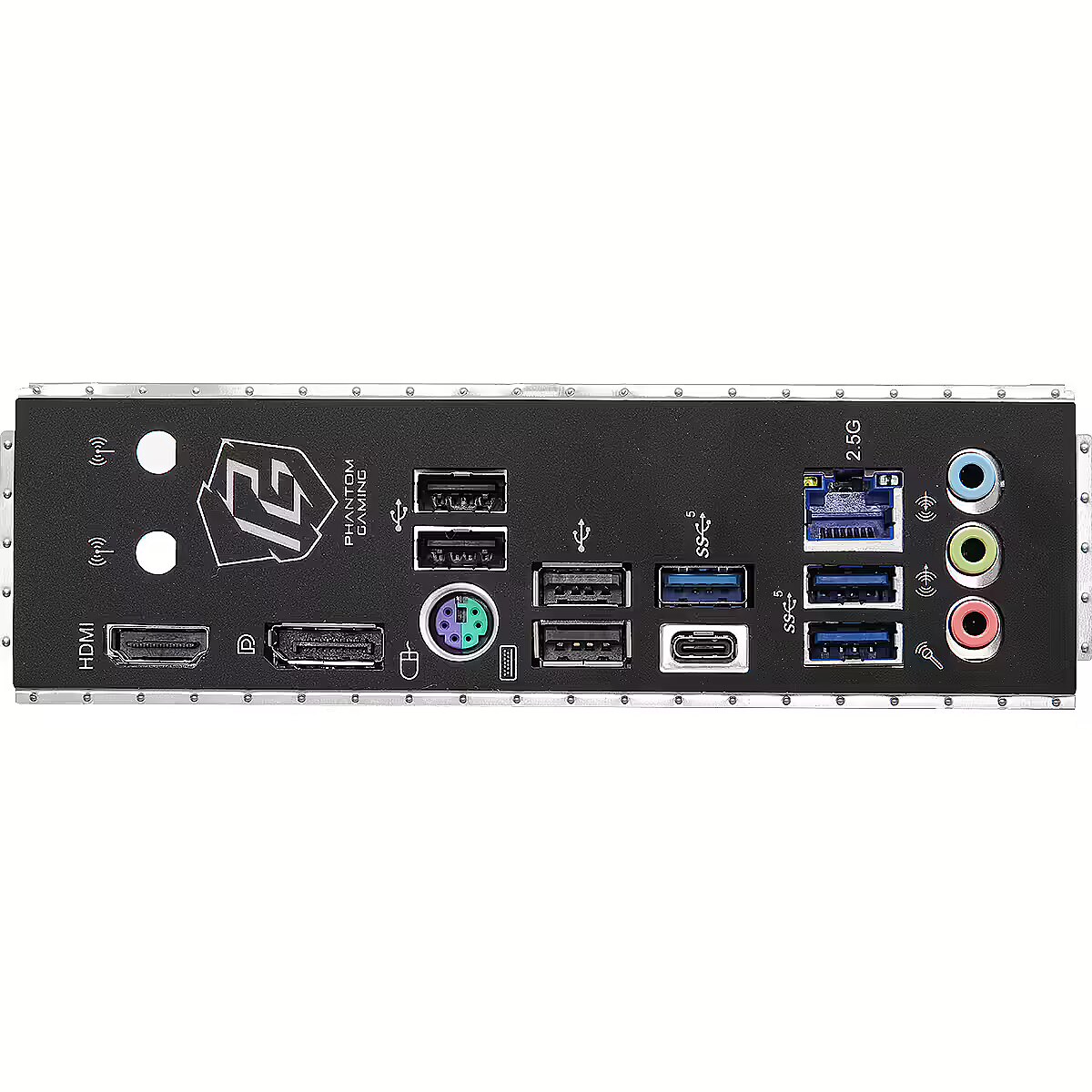

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 3 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 7200 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR5|7200 MHz|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Intel Xe Graphics Architecture (Gen 12) HDMI 2.1 Compatible with TMDS, supports HDCP 2.3 and max. The resolution is 4K 60Hz DisplayPort 1.4 with DSC (compressed), HDCP 2.3 support up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visual and image output technologies can only be supported by processors with an integrated GPU
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories -
- 1 x User Manual;
- 2 x SATA Data Cables;
- 2 x Screws for M.2 Sockets
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - Asrock
Manufacturer_code - 90-MXBL60-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B760M PG Riptide
Model - B760M PG RIPTIDE
Name - ASRock B760M PG Riptide
name - ASRock B760M PG Riptide, Intel B760 Mainboard - Sockel 1700, DDR5
Name - ASRock B760M PG RIPTIDE, motherboard - 1700
name - B760M PG RIPTIDE s1700 4DDR5 DP/HDMI/USB mATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500Mbps Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - ASRock
Producer - ASRock
producerCode - B760M PG RIPTIDE
ProducerCode - B760M PG Riptide
productName - Asrock B760M PG Riptide Intel B760 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.28 kg
Shipping Box Width Shipping/Package Box Dimensions - 26.5 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR5 |
sizeX - 282
sizeY - 65
sizeZ - 262
Socket - LGA1700
Software - Software: ASRock Motherboard Utility (Phantom Gaming Tuning Function) ASRock Phantom Network Gaming LAN Software ASRock Polychrome SYNC* UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI Automatic ASRock Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Incredible Productivity: Dual Channel DDR5 Solid as a Rock: 14+1+1 Power Phase Pre-Installed I/O Port Cover Ultrafast Connectivity: 2.5G LAN EZ Upgrades Automatic ASRock Driver Installer EZ Troubleshooter: ASRock Post Status Checker
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 10
Supported operating systems - Windows 11
TPM - Header
Unit Box Height - 0.065
Unit Box Length - 0.28
Unit Box Width - 0.265
Unit Brutto Volume - 0.004823 cubm
Unit Gross Weight - 1.28 kg
Unit Net Weight - 1.2 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 3
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - pg.asrock.com/mb/Intel/B760M%20PG%20Riptide/index.asp
vendpn - B760M PG RIPTIDE
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,28
weight - 1250
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
Audio port Input/Output connectors - 3
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760
code - 90-MXBL60-A0UAYZ
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - 14+1+1 Power Phase - Supports DDR5 7200MHz (OC) - 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi - Graphics Output Options: HDMI, DisplayPort - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),6 USB 2.0 (4 Rear, 2 Front) - Dragon 2.5G LAN - Supports ASRock Auto Driver Installer
Description - Motherboard B760M PG Riptide Supports 13th and 12th generation Intel Core processors (LGA1700) 14+1+1 Power Phase Supports DDR5 7200MHz (OC) 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi Graphics outputs: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (4 Rear, 2 Front) Dragon 2.5G LAN Supports ASRock Auto Driver Installer Support DDR5 XMP AND EXPO Starting from the design concept of building for stability and reliability, ASRock does not compromise on any details. This motherboard is built with low-loss materials, allowing enthusiasts to enjoy the enhanced overclocking performance of DDR5j memory by enabling pre-tested profiles. Make sure your memory modules support Intel XMP/AMD EXPO technology and overclocking can be affordable, satisfying and absolutely hassle-free. Reinforced Steel Slot [PCIe 4.0 Revision] Reinforced steel slot along with next generation PCI Express 4.0 standard. List of benefits: More soldering points Stronger latch It ensures the stability of signal transmission It guarantees stable support for even the heaviest graphics cards Audio That Matters Whether you use headphones, handsfree, external or internal speakers via USB, Wi-Fi, analog or HDMI output, Nahimic Audio offers the best sound experience, vivid and full of details. Improved Communication Quality Powerful algorithms for the best noise-free conversation, ensure a constant voice level regardless of the distance from the microphone. The Nahimic audio engine dynamically cleans the sound, removes noise and reduces voice variability. The result is better understanding and less fatigue. Static Damping Echo elimination Side Sound Reduction Voice stabilization sound tracker The Sound Tracker is a visual indicator that indicates the directions from which dominant sounds are coming. Every sound is properly positioned on the 360° radar for complete gaming immersion. Works on all devices! Enjoy vivid and high-quality surround sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favorite audio tools and gives you the best sound with all of them. Nahimic measures and refines to optimize our technology and deliver the best experience. POLYCHROME RGB In addition to the built-in RGB lighting, the board also has integrated regular and addressable RGB headers that allow you to connect compatible LED devices such as LED strips, CPU fans, fans, cases, etc. Users can synchronize RGB LED devices with Polychrome RGB Sync certified accessories, to create your own unique lighting style. Fast M.2 Connections(PCIe Gen4 X4) Support for PCI Express 4.0 M.2 SSDs, which can run up to twice as fast compared to the previous 3rd generation, thus ensuring lightning-fast data transfer. Dragon LAN 2.5 Gbps Smart LAN 2.5Gb/s provides maximum connection speed to meet the needs of even the most demanding home network users, content creators, online gamers and high-quality content streamers. Accelerate your network connection 2.5 times compared to standard gigabit Ethernet. Enjoy unparalleled speed while gaming, transferring files and making backups. Front USB 3.2 Gen1 Type-C The front USB 3.2 Gen1 Type-C header enables data transfer speeds up to 10 Gbps, moreover, the next-generation reversible USB design is available on the front panel of the computer case. Automatic Driver Installation You don't have to worry about missing drivers! The ASRock board comes with a pre-installed LAN driver, offering you a convenient option to install the rest of the drivers. Step1: Install Auto Driver Installer Step 2: Update your drivers Step 3: Done! Factory Installed I/O Port Shield ASRock strives to offer only cutting-edge technology with the most user-friendly design. The pre-installed I/O port cover ensures that the motherboard is precisely installed in the case, prevents any interference and speeds up the assembly process.
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports 2280 PCIe Gen4x4 (64Gbps) chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports 2280 PCIe Gen4x4 (64Gbps) 4 x SATA3 6.0Gb/s connectors
dimensionalWeight - 960
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 930 g
dimension width - 280 mm
DisplayPort Input/Output connectors - 1
ean - 4710483942211
Eans - 4710483942211
EAN_code - 4710483942211
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 3 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 7200 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR5|7200 MHz|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Intel Xe Graphics Architecture (Gen 12) HDMI 2.1 Compatible with TMDS, supports HDCP 2.3 and max. The resolution is 4K 60Hz DisplayPort 1.4 with DSC (compressed), HDCP 2.3 support up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visual and image output technologies can only be supported by processors with an integrated GPU
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories -
- 1 x User Manual;
- 2 x SATA Data Cables;
- 2 x Screws for M.2 Sockets
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - Asrock
Manufacturer_code - 90-MXBL60-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B760M PG Riptide
Model - B760M PG RIPTIDE
Name - ASRock B760M PG Riptide
name - ASRock B760M PG Riptide, Intel B760 Mainboard - Sockel 1700, DDR5
Name - ASRock B760M PG RIPTIDE, motherboard - 1700
name - B760M PG RIPTIDE s1700 4DDR5 DP/HDMI/USB mATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500Mbps Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - ASRock
Producer - ASRock
producerCode - B760M PG RIPTIDE
ProducerCode - B760M PG Riptide
productName - Asrock B760M PG Riptide Intel B760 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.28 kg
Shipping Box Width Shipping/Package Box Dimensions - 26.5 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR5 |
sizeX - 282
sizeY - 65
sizeZ - 262
Socket - LGA1700
Software - Software: ASRock Motherboard Utility (Phantom Gaming Tuning Function) ASRock Phantom Network Gaming LAN Software ASRock Polychrome SYNC* UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI Automatic ASRock Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Incredible Productivity: Dual Channel DDR5 Solid as a Rock: 14+1+1 Power Phase Pre-Installed I/O Port Cover Ultrafast Connectivity: 2.5G LAN EZ Upgrades Automatic ASRock Driver Installer EZ Troubleshooter: ASRock Post Status Checker
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 10
Supported operating systems - Windows 11
TPM - Header
Unit Box Height - 0.065
Unit Box Length - 0.28
Unit Box Width - 0.265
Unit Brutto Volume - 0.004823 cubm
Unit Gross Weight - 1.28 kg
Unit Net Weight - 1.2 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 3
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - pg.asrock.com/mb/Intel/B760M%20PG%20Riptide/index.asp
vendpn - B760M PG RIPTIDE
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,28
weight - 1250
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
