ID: 931864
Tuotekoodi: B760M PRO RS/D4
Voidaan tilata 6 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 2 vuotta

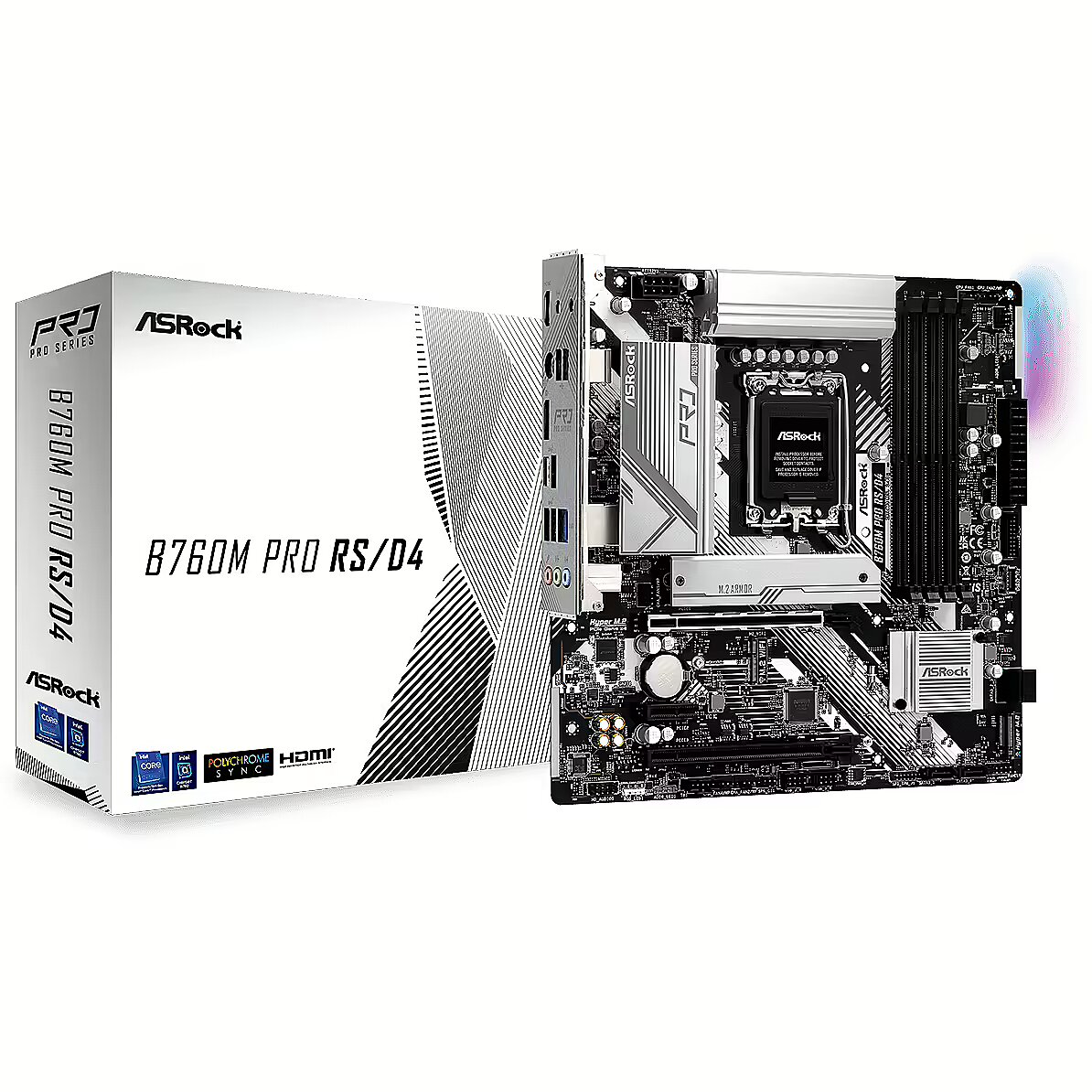

Asrock B760M Pro RS/D4
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpost-pakettiautomaattiin 6,99 €: 27.11.2024
- Kuriiritoimitus 11,99 €: 27.11.2024
Tärkeimmät tuoteparametrit Kaikki parametrit
- Sarja: ASRock Pro
- CPU-kanta: LGA 1700
- Piirisarja: Intel B760
- Muotoilutekijä: Micro ATX
- Tyyppi: DDR4
- RAM-paikat: 4
- Sisäänrakennettu Wi-Fi: Ei ole
Perustiedot
Sarja
: ASRock Pro
CPU-kanta
LGA 1700
Suorittimen kanta on tärkeä tekijä levyn valinnassa; suorittimen kannan on oltava täsmälleen yhteensopiva sen suorittimen kanssa, jonka haluat asentaa levyn kanssa. Riippumatta siitä, että prosessori sopii emolevyn kantaan, on otettava huomioon myös kyseisen prosessorin tuki. Sen tarkistamiseksi, mitä suorittimia valittu emolevy tukee, sinun on käytävä emolevyn valmistajan verkkosivustolla, etsittävä kyseisen emolevyn suorittimen tukiosio ja tarkistettava, että kyseisen emolevyn tekniset tiedot tukevat valitsemaasi suorittinta.
Piirisarja
Intel B760
Piiriväylä on tärkein kriteeri emolevyn valinnassa (järjestelmän logiikkapiirit tai jännitemuuntajat). Piiriväylä määrittää suorittimet, muistiportit ja muut parametrit, joita emolevy tukee.
Kukin piirisarja liittyy suoraan tiettyyn suorittimen alustaan, jotka jaetaan suorittimen perheen tai suorittimen liitäntäpisteen perusteella.
sen tarkistamiseksi, mikä piiriväylä sopii suorittimellesi jne. sinun kannattaa kysyä johtajiltamme.
Muotoilutekijä
Micro ATX
Emolevyn fyysinen koko. TopPC.fi tarjoaa ATX- (täysikokoinen emolevy), mATX- (micro ATX) (pienikokoinen emolevy) ja miniATX-kokoisia emolevyjä. ATX-kokoisen tietokoneen koteloon on mahdollista sijoittaa sekä ATX- että mATX-emolevy, mutta mATX-koteloon ei voi sijoittaa ATX-emolevyä.
ATX-piirilevyssä on vähintään 3 muistipaikkaa ja vähintään 5 paikallista PCI-paikkaa, mikä tarkoittaa, että tälle levylle voidaan rakentaa hyvin toimiva tehokas tietokone. Koti- tai toimistotietokone ei kuitenkaan tarvitse näin suurta määrää korttipaikkoja, joten myös microATX-kortti sopii.
Emolevyn virtalähteen liitin on virtalähdepistorasia, jotka ovat nykyisin ATX- ja ATX2.0-standardia. ATX on vanhempi standardi, jossa on 20-nastainen liitin (20 "nastaa"), ja ATX2.0:ssa on 4 lisänastaa (20+4). ATX-standardin emolevyt voivat toimia ATX2.0-virtalähteellä (PSU), mutta ATX2.0-standardin emolevy vaatii ATX2.0-virtalähteen.
Form-factor on pikemminkin suositus. Ennen emolevyn ostamista kannattaa kuitenkin tarkistaa kotelon koon yhteensopivuus emolevyn koon ja sen virtalähteen liittimen kanssa.
Satunnaiskäyttömuisti (RAM)
Tyyppi
: DDR4
RAM-paikat
4
Käytettävissä olevien muistipaikkojen määrä osoittaa emolevyyn asennettavien muistimoduulien (levyjen) määrän.
Muistituki
DDR4 3200 (OC 5333)
RAM-väylä määrittää, minkä tyyppistä RAM-muistia kyseinen emolevy tukee.
Väylämerkintä sisältää muistityypin DDRII tai DDRIII sekä emolevyn tukeman muistin enimmäiskellotaajuuden. Muistin tyyppi on tärkein indeksi, eri tyyppiset muistit ovat fyysisesti erilaisia, joten DDRIII-muistia ei voi liittää emolevyyn, joka tukee DDRII-muistia (lukuun ottamatta tapauksia, joissa emolevy tukee molempia muistityyppejä). Emolevy, joka tukee 800 MHz:n DDRII-muistia, voi kuitenkin toimia muistinopeuksilla DDII667 ja DDRII533. Emolevy, jonka muistiväylän nopeus on pienempi kuin muistimoduulin nopeus, pystyy toimimaan vain määritellyn väylänopeuden verran, eli jos emolevyn muistiväylä on DDRII667 ja siihen on asennettu DDRII800-muisti, se toimii DDRII667-nopeudella.
Näytönohjain
Videokorttiportti
PCI-EXPRESS
VGA-portti tai näytönohjaimen pistoke. VGA-portin on oltava valitsemasi näytönohjainportin eritelmän mukainen. Vanhemmissa näytönohjaimissa on AGP-portti, uusien korttien valmistajissa on PCI-EXPRESS (PCI-X) -portti.AGP- ja PCI-Xpress-näytönohjaimet eivät ole keskenään yhteensopivia. Ennen emolevyn ostamista sinun on tarkistettava sekä emolevyn että näytönohjaimen näytönohjainportin yhteensopivuus.
Integroitu grafiikka
Vain iGPU-valmiilla suorittimella
Parametri, joka määrittää, onko näytönohjain integroitu emolevyyn. Integroitu näytönohjain soveltuu toimisto-ohjelmistojen, Internetin, elokuvien katseluun ja yksinkertaisten pelien pelaamiseen. Jos haluat käyttää grafiikkasovelluksia, pelata 3D-pelejä ja katsella 3D-animaatioita, tarvitset lisänäytönohjaimen.
Integroitu näytönohjain käyttää murto-osan emolevyn muistista, joten jos emolevyssäsi on 1 Gt muistia ja emolevyn näytönohjaimen asetuksissa ilmoitetaan, että se vie 256 Mt, käyttöjärjestelmä näyttää käytettävissä olevan muistin määräksi noin 700 Mt.
Ennen kuin ostat emolevyn, jossa on sisäänrakennettu näytönohjain, sinun on tarkistettava, onko siinä ylimääräinen näytönohjainportti, jotta voit tarvittaessa päivittää sitä.
Satamat ja laitteet
PCI-portit
0
PCI-portit ovat suosituin tapa täydentää tietokoneen toimintoja lisäkorteilla (ääni, verkko, viestintä, videovalvonta jne.). Uudemmissa emolevyissä on PCI-Express-standardin ansiosta pieni määrä PCI-laajennusportteja, joten ennen emolevyn ostamista kannattaa tarkistaa, että PCI-porttien määrä mahdollistaa kaikkien tarvitsemiesi PCI-korttien liittämisen.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integroitu äänikortti
: Realtek ALC897
Langattomat yhteydet
Sisäänrakennettu Bluetooth
: Nav
Sisäänrakennettu Wi-Fi
: Ei ole
Ulkoiset portit
Ulkoinen USB Type-C
: 1
Ulkoinen USB 2.0
: 2
Ulkoinen USB 3.0 (USB 3.2 Gen1)
: 4
Ulkoinen USB 3.1 (USB 3.2 Gen2)
: 0
Sisäiset portit
Sisäinen A-RGB 5V (3-nastainen)
: 3
Sisäinen RGB 12V (4-nastainen)
: 1
Sisäinen USB 2.0
: 2
Sisäinen USB 3.0
: 1
Sisäinen USB Type-C
: 1
M.2-portti
: 2
SATA3-portti
: 4
Yksityiskohtaisempi erittely
Accessories included - User manual 2 x SATA data cable 3 x Screws for M.2 slot Spacer for M.2 slot
Audio port Input/Output connectors - 3
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760
CnCode CnCode - 84733020
code - 90-MXBKL0-A0UAYZ
Code - B760M PRO RS/D4
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - 7+1+1 Power Phase, Dr.MOS for VCore+GT - Supports DDR4 5333MHz (OC) - 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi - Graphics Output Options: HDMI, DisplayPort - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), - 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), - 6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN - Supports ASRock Auto Driver Installer
Description - B760M Pro RS/D4 motherboard Supports 13th and 12th generation Intel Core processors (LGA1700) 7+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR4 5333MHz (OC) 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi Graphics outputs: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front) Dragon 2.5G LAN Supports ASRock Auto Driver Installer
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64Gb/s) mode chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64Gb/s) mode 4 x SATA3 6.0Gb/s Connectors
dimensionalWeight - 916
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1230 g
dimension width - 280 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483941702
ean - 4710483941702
Eans - 4710483941702
EAN_code - 4710483941702
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 3 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR4|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Intel Xe Graphics Architecture (12th Gen) HDMI 2.1 Compatible with TMDS, supports HDCP 2.3 and max. resolution up to 4K 60Hz DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max resolution up to 8K 60Hz / 5K 120Hz *Onboard Intel UHD graphics and VGA output can only be supported on processors with integrated GPU
Gross weight - 1.14 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBKL0-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 5333 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B760M PRO RS/D4
MPN - 90-MXBKL0-A0UAYZ
Name - 1700 ASRock B760M PRO RS DDR4
Name - ASRock B760M Pro RS/D4
Name - ASRock B760M Pro RS/D4 - 1700
name - ASRock B760M Pro RS/D4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - ASRock | B760M PRO RS/D4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - Motherboad B760M Pro RS/D4 s1700 4DDR4 DP/HDMI mATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 382.00 mm
Package features > Gross height (mm) - 320.00 mm
Package features > Gross width (mm) - 94.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 150 pc(s)
Package features > Paper/Pasteboard - 380.00 g
Package features > Plastic (No PET) - 95.00 g
Package features > Tare weight (kg) - 0.48 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 2
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - ASRock
Producer - ASRock
producerCode - B760M PRO RS/D4
ProducerCode - B760M Pro RS/D4
Producer product name - B760M PRO RS/D4
productName - Asrock B760M PRO RS/D4 Intel B760 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.2 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.25 kg
Shipping Box Width Shipping/Package Box Dimensions - 26.1 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR4 |
sizeX - 282
sizeY - 62
sizeZ - 262
Socket - LGA1700
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Rock-Solid Durability 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Pre-Installed I/O Shield ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity 2.5G LAN EZ Update ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.67 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.062
Unit Box Length - 0.28
Unit Box Width - 0.261
Unit Brutto Volume - 0.004531 cubm
Unit Gross Weight - 1.25 kg
Unit Net Weight - 1.2 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 7
Vendor Homepage - www.asrock.com/mb/Intel/B760M%20Pro%20RSD4/index.asp
vendpn - B760M PRO RS/D4
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,23
Weight - 1.24
weight - 1375
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
Audio port Input/Output connectors - 3
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760
CnCode CnCode - 84733020
code - 90-MXBKL0-A0UAYZ
Code - B760M PRO RS/D4
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - 7+1+1 Power Phase, Dr.MOS for VCore+GT - Supports DDR4 5333MHz (OC) - 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi - Graphics Output Options: HDMI, DisplayPort - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) - 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), - 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), - 6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN - Supports ASRock Auto Driver Installer
Description - B760M Pro RS/D4 motherboard Supports 13th and 12th generation Intel Core processors (LGA1700) 7+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR4 5333MHz (OC) 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi Graphics outputs: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front) Dragon 2.5G LAN Supports ASRock Auto Driver Installer
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64Gb/s) mode chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64Gb/s) mode 4 x SATA3 6.0Gb/s Connectors
dimensionalWeight - 916
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1230 g
dimension width - 280 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483941702
ean - 4710483941702
Eans - 4710483941702
EAN_code - 4710483941702
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 3 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR4|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Intel Xe Graphics Architecture (12th Gen) HDMI 2.1 Compatible with TMDS, supports HDCP 2.3 and max. resolution up to 4K 60Hz DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max resolution up to 8K 60Hz / 5K 120Hz *Onboard Intel UHD graphics and VGA output can only be supported on processors with integrated GPU
Gross weight - 1.14 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBKL0-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 5333 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B760M PRO RS/D4
MPN - 90-MXBKL0-A0UAYZ
Name - 1700 ASRock B760M PRO RS DDR4
Name - ASRock B760M Pro RS/D4
Name - ASRock B760M Pro RS/D4 - 1700
name - ASRock B760M Pro RS/D4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - ASRock | B760M PRO RS/D4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - Motherboad B760M Pro RS/D4 s1700 4DDR4 DP/HDMI mATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 382.00 mm
Package features > Gross height (mm) - 320.00 mm
Package features > Gross width (mm) - 94.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 150 pc(s)
Package features > Paper/Pasteboard - 380.00 g
Package features > Plastic (No PET) - 95.00 g
Package features > Tare weight (kg) - 0.48 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 2
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - ASRock
Producer - ASRock
producerCode - B760M PRO RS/D4
ProducerCode - B760M Pro RS/D4
Producer product name - B760M PRO RS/D4
productName - Asrock B760M PRO RS/D4 Intel B760 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.2 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.25 kg
Shipping Box Width Shipping/Package Box Dimensions - 26.1 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR4 |
sizeX - 282
sizeY - 62
sizeZ - 262
Socket - LGA1700
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Rock-Solid Durability 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Pre-Installed I/O Shield ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity 2.5G LAN EZ Update ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.67 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.062
Unit Box Length - 0.28
Unit Box Width - 0.261
Unit Brutto Volume - 0.004531 cubm
Unit Gross Weight - 1.25 kg
Unit Net Weight - 1.2 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 7
Vendor Homepage - www.asrock.com/mb/Intel/B760M%20Pro%20RSD4/index.asp
vendpn - B760M PRO RS/D4
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,23
Weight - 1.24
weight - 1375
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
