Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1CP0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
code - 90MB1CP0-M0EAY0
Code - 90MB1CP0-M0EAY0

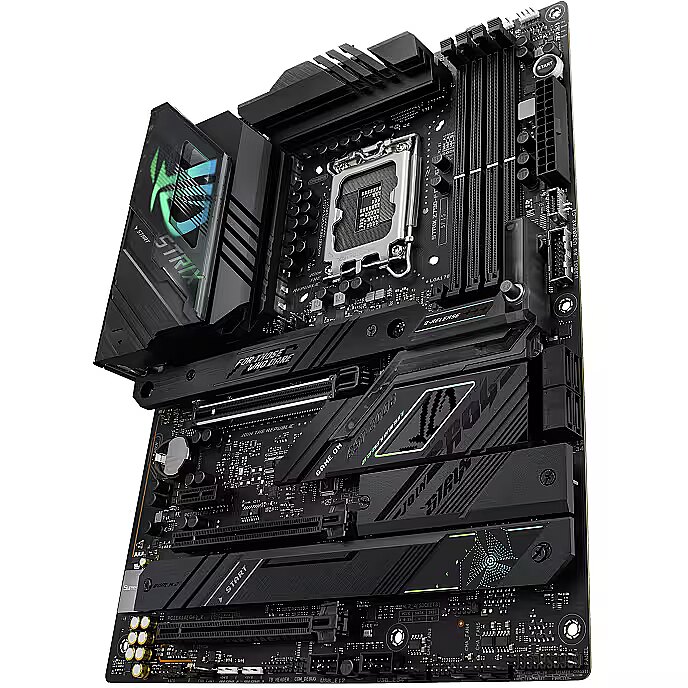

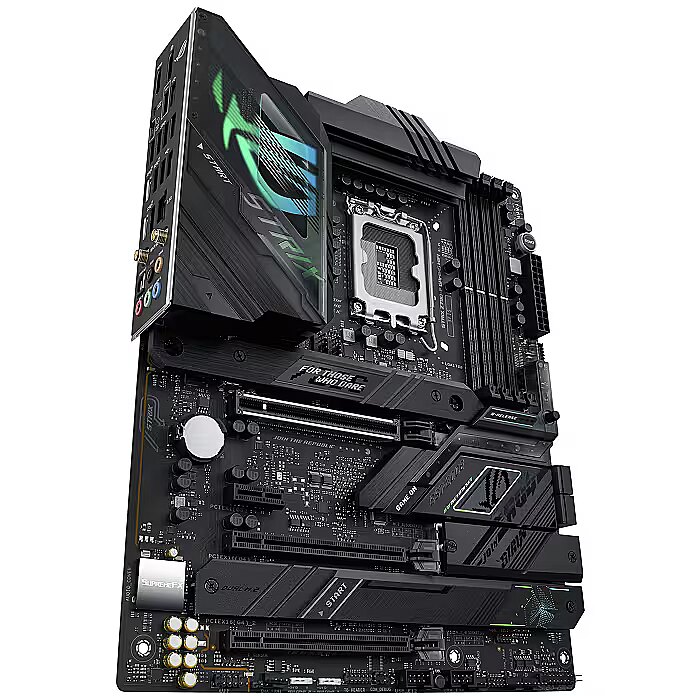

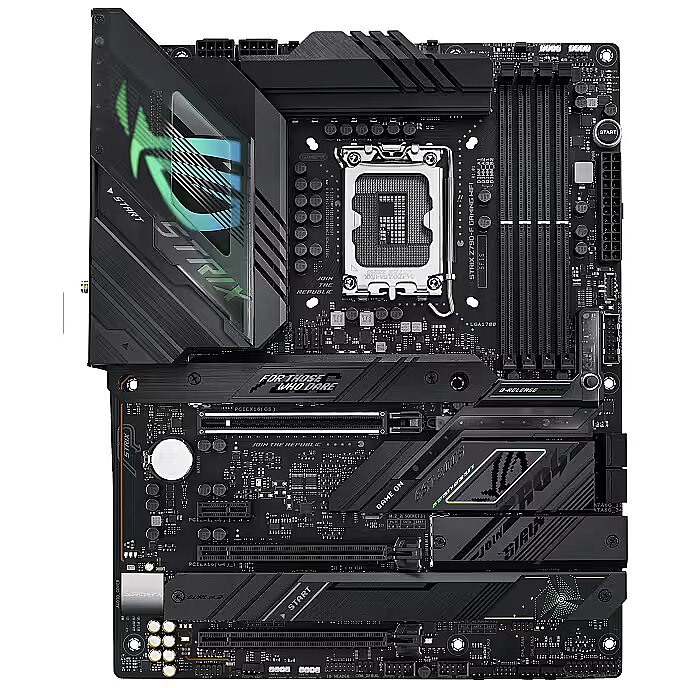

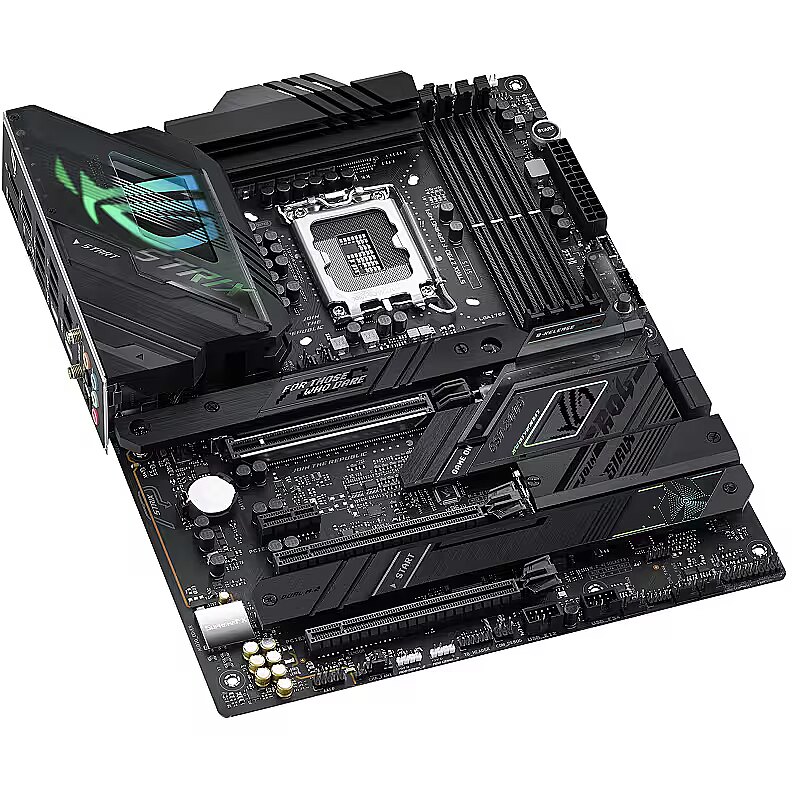

Description - ROG STRIX Z790-F GAMING WIFI Beneath its dark heatsinks and brooding aesthetic, the ROG Strix Z790-F packs a power solution and overclocking features that push Intel® 13th Gen Core processors to new heights. Flush with advanced thermal management for quieter builds, along with support for DDR5, PCIe 5.0, and WiFi 6E, this well-equipped powerhouse delivers massive bandwidth for everything.
DisplayPort Input/Output connectors - 1
EAN - 4711081938590
ean - 4711081938590
EAN_code - 4711081938590
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10, Windows 11
Form Factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Graphics - Parallel processing technology support - Not supported
Gross weight - 2.05 kg
Gross Weight Kg - 2
GTIN - 4711081938590
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-model/
LongDesc - Beneath its dark heatsinks and brooding aesthetic, the ROG Strix Z790-F packs a power solution and overclocking features that push Intel® 13th Gen Core processors to new heights. Flush with advanced thermal management for quieter builds, along with support for DDR5, PCIe 5.0, and WiFi 6E, this well-equipped powerhouse delivers massive bandwidth for everything.DIY-FRIENDLY FEATURESPCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.CLEAR CMOSThe Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.BIOS FLASHBACK™BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.START BUTTONThis convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.Q-LEDFour onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.ALL-ROUND PERFORMANCERobust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-F at its center.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.PCIE 5.0The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.POWER ARCHITECTURE16 + 1 power stages rated to 90A each deliver ample current in order to drive 13th and 12th Gen Intel® Core™ Processors through any workload with ease.ALLOY CHOKES AND DURABLE CAPACITORSHi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.DUAL PROCOOL II POWER CONNECTORSProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.SIX-LAYER PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.DDR5 DOMINATIONROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-F, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.AEMP IIASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP’s second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix Z790-F to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.VRM HEATSINK ARRAYCovering the power solution are two thick heatsinks connected by a heatpipe, sharing cooling capacity across VRMs and providing ample surface area and mass to handle the power needs of high-performance Intel 13th Gen processors.M.2 BACKPLATEAn integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.M.2 HEATSINKSHeatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.CPU FAN HEADERSA dedicated PWM/DC fan header provides easy access to CPU coolers.AIO PUMP FAN HEADERA dedicated PWM/DC header connects self-contained water-cooling setups.4-PIN FAN HEADERSEach header supports auto-detection of PWM or DC fans.LEADING CONNECTIVITYThe ROG Strix Z790-F delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.* WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi2.5G ETHERNETLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.USB 3.2 GEN 2X2The Strix Z790-F comes loaded with two USB 3.2 Gen 2x2 Type-C® connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.SUPREMEFXROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-F implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.PLAY IN STYLEBrooding aesthetics and Aura Sync RGB controls allow the ROG Strix Z790-F to effortlessly flex between blending in and showing off.UNDENIABLY ROG STRIXWhen the lights are out, the ROG Strix Z790-F blends into the shadows with its dark pcb and black metal heatinks. Activate the customizable RGB logo on the shroud, and the board makes a bold statment. Transparent layers and subtle brand-centric details add aesthetic depth and texture. Pair the Strix Z790-F with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.OUTSHINE THE COMPETITIONROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.COOLER COMPATIBILITYThe ROG Strix Z790-F bears the same LGA 1700 socket as the Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG.THE ROG STRIX ECOSYSTEM AWAITSLevel up your game with ROG Strix. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.AI COOLING IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.AI NETWORKINGGameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for GeForce NOW to ensure the lowest latency possible during intense game streaming sessions.The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.MEMTEST86For diagnostic convenience, MemTest86 has been pre-installed into the ROG UEFI. Run the test to pinpoint memory issues without the need to start up the OS or attach a USB drive. Memory test results are stored in the BIOS archives for later reference.Intuitive Graphical Fan ControlsFine-tune individual fans simply by dragging a curve with the mouse.Storage InformationView SATA port details for easy device recognition.Clock AdjustmentClick on the settings icon to quickly change time and date settings.The AI Suite 3 dashboard contains a set of intuitive controls that boost CPU performance while maintaining system stability.The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency, and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.Modern processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.APP-SPECIFIC PROFILESApply customized audio settings to different applications, so everything you do is perfectly tuned to the way you want to listen.ROG Strix Z790 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location of every gunshot, footstep, and other sounds.** DTS Sound Unbound requires in-game support. Check with game publishers for supported titles.STEREO SOUNDDiscrete left and right audio channels enable headphone or two-speaker setups.SURROUND SOUNDAudio is split and served over multiple speaker channels – e.g., 5.1 or 7.1 – to create an enveloping experience on a single, logical plane.SPATIAL SOUNDA virtual 360-degree soundscape immerses you in a realistic sonic experience.The ROG Strix Z790-F includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.* Support available for ROG Ryujin II and later models.Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community.* Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
LongProductName - ROG STRIX Z790-F GAMING WIFI
LongSummaryDescription - ASUS ROG STRIX Z790-F GAMING WIFI. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 4
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB1CP0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB1CP0-M0EAY0
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory slots - 4
Memory type - DDR5
Model - ROG STRIX Z790-F GAMING WIFI
MPN - 90MB1CP0-M0EAY0
Name - 1700 ASUS ROG STRIX Z790-F GAMING WIFI
name - ASUS ROG Strix Z790-F Gaming WiFi, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - ASUS ROG STRIX Z790-F GAMING WIFI, Motherboard - Socket 1700
Name - Asus | ROG STRIX Z790-F GAMING WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel Z790 | ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Optical S/PDIF Input/Output connectors - 1
Other features - Back-to-BIOS button - Yes
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 300.00 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 300.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 120 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 30.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes

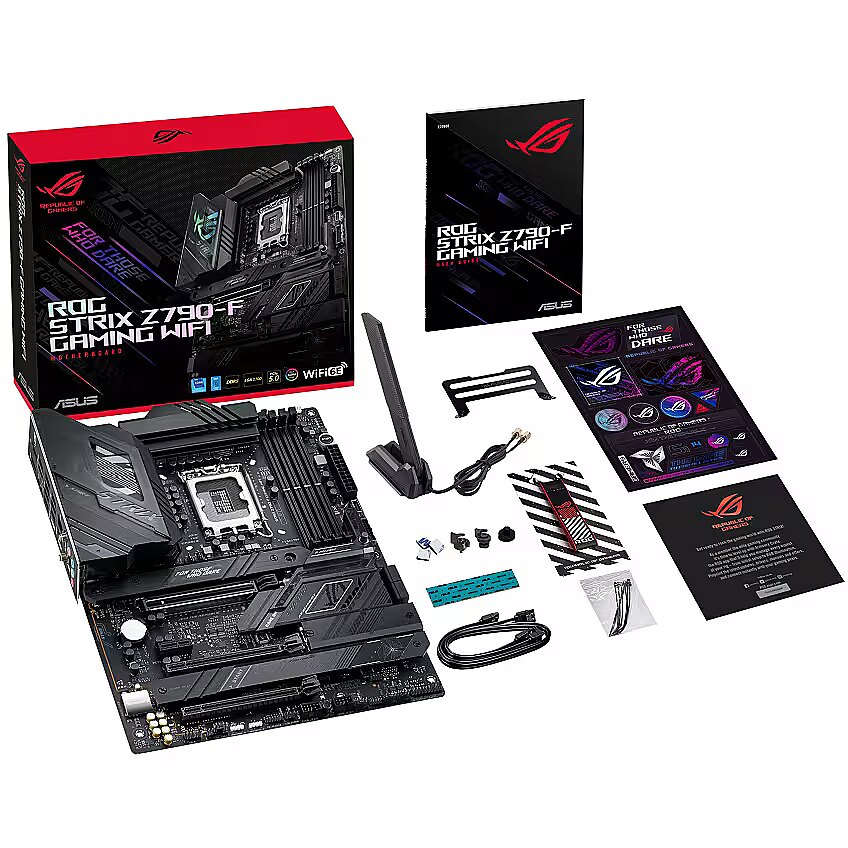

Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 293 mm
Packaging data - Package height - 290 mm
Packaging data - Package weight - 2.25 kg
Packaging data - Package width - 368 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel Z790
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Processor manufacturer - AMD
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer product name - ROG STRIX Z790-F GAMING WIFI
ProductName - ROG STRIX Z790-F GAMING WIFI
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10

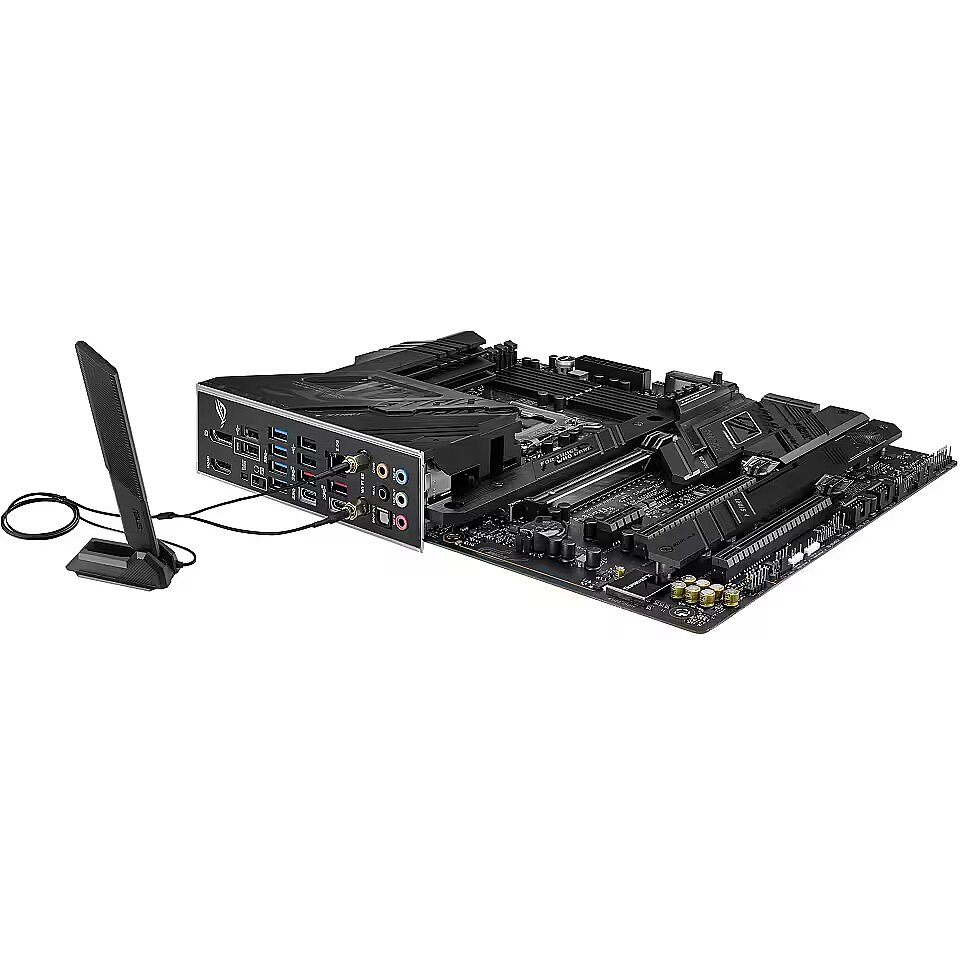

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 27.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.197 kg
Shipping Box Width Shipping/Package Box Dimensions - 7 cm
Short description - ASUS ROG STRIX Z790-F GAMING WIFI S1700/DDR5/ATX
ShortSummaryDescription - ASUS ROG STRIX Z790-F GAMING WIFI, AMD, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192 GB
Socket - LGA1700
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.82 kg
Technical details > Producer - Asus
Title - ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 LGA 1700 ATX
Unit Box Height - 0.275
Unit Box Length - 0.34
Unit Box Width - 0.07
Unit Brutto Volume - 0.006545 cubm
Unit Gross Weight - 2.2 kg
Unit Net Weight - 1.7 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-model/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-model/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 2,22
Weight - 2.2
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
