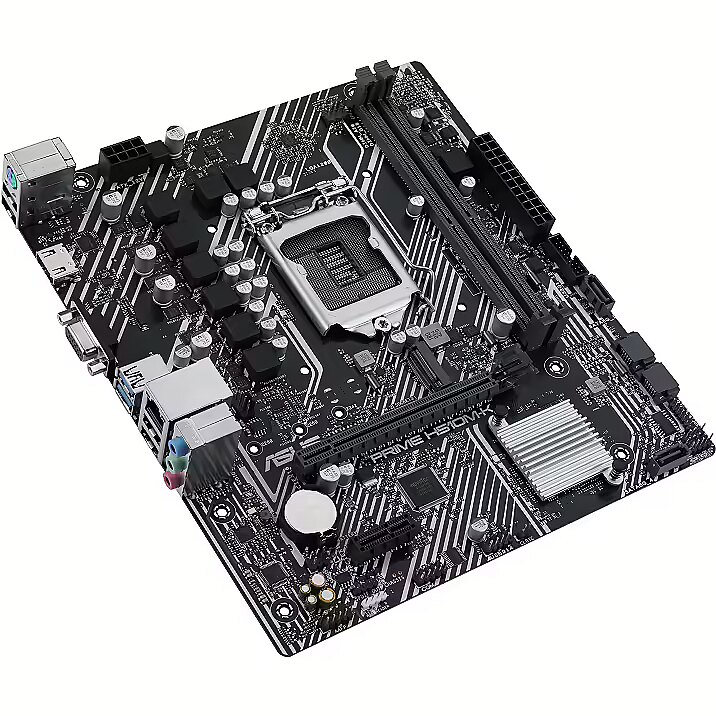

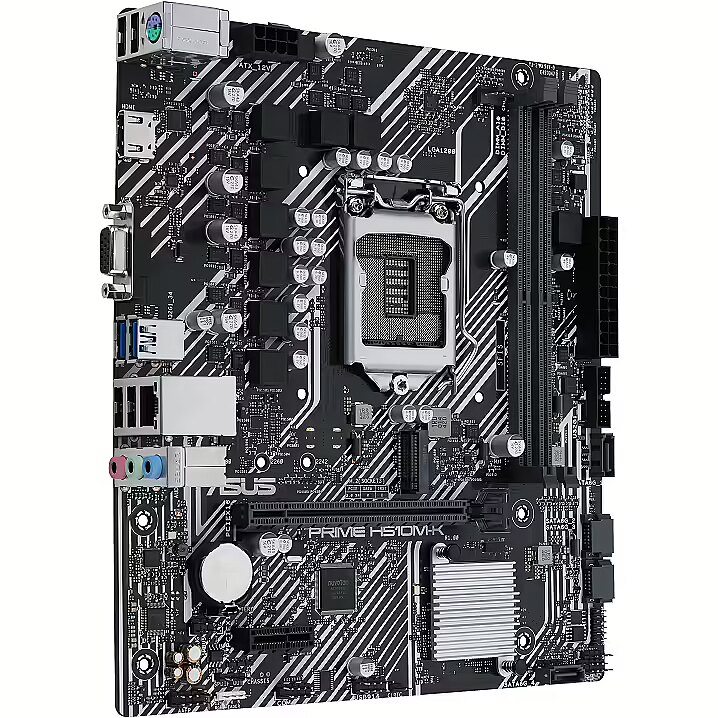

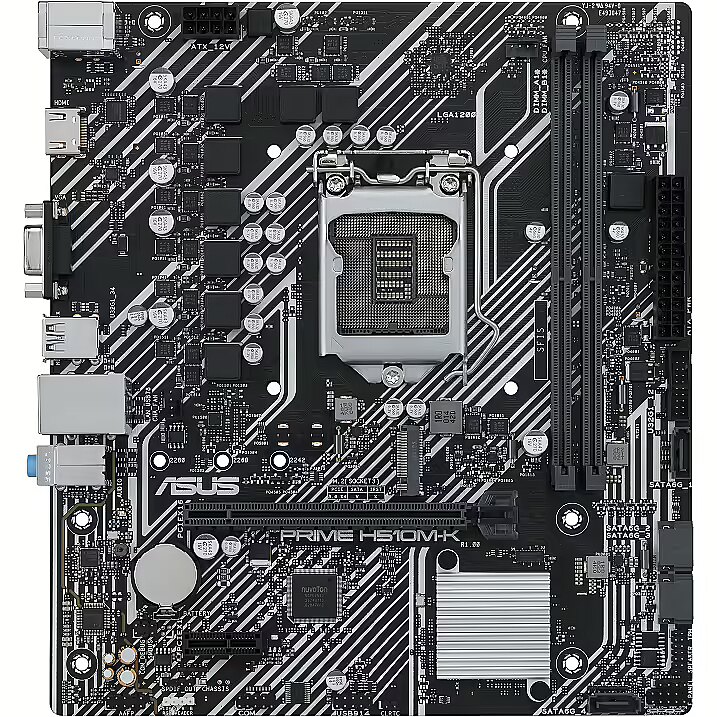

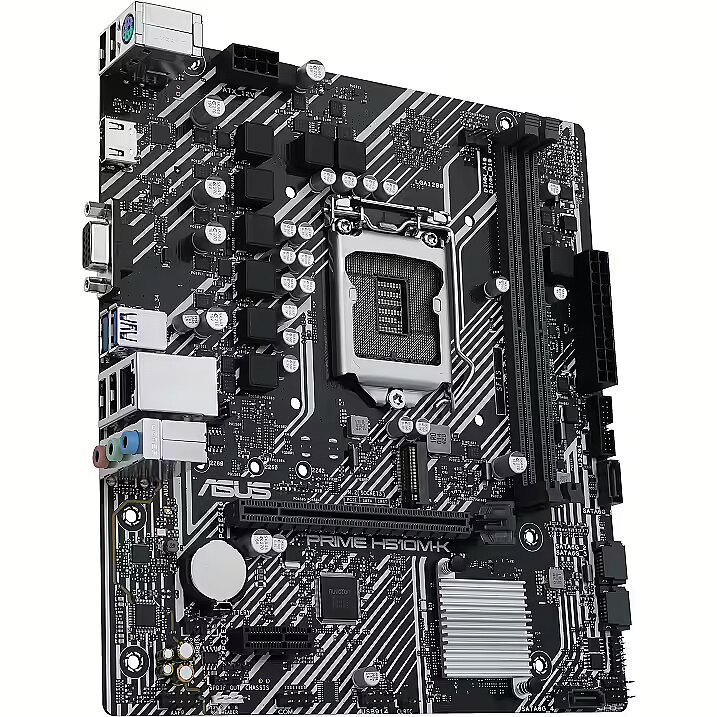

Asus PRIME H510M-K

15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
Brand - ASUS
BrandPartCode - 90MB17N0-M0EAY0
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1200
Chipset - Intel H510
Code - PRIME H510M-K
Desc - Mikroshēmu tips | chipset: Intel H510, Plates formfaktors: Micro ATX, Procesora ražotājs: Intel, Ligzda: LGA 1200, DDR tips: DDR4, Atmiņas sloti: 2, Max atmiņas apjoms: 64 GB, Integrēta audio karte: Realtek ALC897 Audio Codec, LAN: Intel I219-V, WiFi: Nav, M.2 Pieslēgumi: 1, Garantija: 2 gadi
Description - PRIME H510M-K Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM header, and RGB header Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1 Comprehensive cooling: PCH heatsink and Fan Xpert 5X Protection III: Multiple hardware safeguards for all-round protection
EAN - 195553152136
EAN_code - 4711081152132
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC887 / Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H510
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/2933/3200 MHz
Full Description Line - Intel H510|LGA1200|Micro-ATX|DDR4|3200/2933/2800/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|SATA|Video|LAN Gigabit|Audio Realtek ALC897|TPM Header
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4711081152132
HDMI Input/Output connectors - 1
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_72905_1.png
Integrated audio - Realtek ALC897
Integrated LAN - Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-K provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.Tune It Your WayComprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Advanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.Search FunctionQuickly and easily find the option or setting you need.ASUS User ProfilePort configuration settings between different BIOS versions or share them with friends.Cool to the CorePrime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.Cooler by DesignPrime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.Build on a Solid FoundationPrime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.M.2 (up to 32 Gbps)M.2 slot supports data-transfer speeds of up to 32 Gbps via x4 PCI Express® 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.PCIe 4.0ASUS H510 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.Small Details Make a Big DifferencePrime H510 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.Outstanding AudioCombined onboard features deliver elevated audioIntelligent design and premium hardware create audio quality unlike anything you've ever experienced.Audio ShieldingSeparates analog/digital signal domains, significantly reducing multi-lateral interference.Separate Layer for Left and Right TracksEnsures minimal crosstalk between audio paths.Armoury CrateArmoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.SafeSlot CoreSafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.Overvoltage ProtectionWorld-class circuit-protecting power designAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.DRAM Overcurrent ProtectionShort-circuit damage preventionOnboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.Stainless-Steel Back I/O3X corrosion-resistance for greater durabilityCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.LANGuardPumped-up throughput 2.5X higher surge toleranceASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.1000+Compatible devices and componentsThe Prime H510 series provides superior compatibility with thousands of components and our Qualified Vendor List (QVL) identifies memory compatibility, giving you more choices for worry-free PC-building experiences.8000+Validation hoursEvery ASUS motherboards is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.Temperature and humidity testsEnsures components withstand extreme conditions.Thermal measurement testsEnsures that the system remains cool and stable under the heaviest loads.Insertion testsEvery port and connector is put through repeated installation cycles.Aging testsUp to 48-hour aging test ensures reliability.Power-consumption testsChecked for world-class energy efficiency.Temperature and DC margin testsEnsures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.Thermal-shock testsEnsures ability to survive temperature changes during transportation.Non-operation shock testsBuilt to withstand jolts that may occur during shipping.Burn-in testsEvery component is checked to ensure flawless operation.Installation testsConnector placement is double-checked to ensure hassle-free installation.Drop testsDrop tests from various heights ensure durability.Salt and spray testsTested for I/O reliability, prolonged lifespan and rust-resistance.
LongProductName - microATX, Intel H510 chipset, Socket LGA 1200, 2xDDR4 DIMM slots, 7.1ch audio, Gigabit LAN
LongSummaryDescription - ASUS PRIME H510M-K. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. HDMI version: 1.4/2.0, USB connector type: USB Type-A
M.2 Expansion slots - 1
Manufacturer - Asus
Manufacturer_code - 90MB17N0-M0EAY0
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 2
Memory type - DDR4
Name - Asus PRIME H510M-K
Name - Asus PRIME H510M-K H510 - Socket 1200
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I219-V
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Other features - Weight - 803 g
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor - Supported processor sockets - LGA 1200 (Socket H5)
ProductName - PRIME H510M-K
PS/2 Input/Output connectors - 1

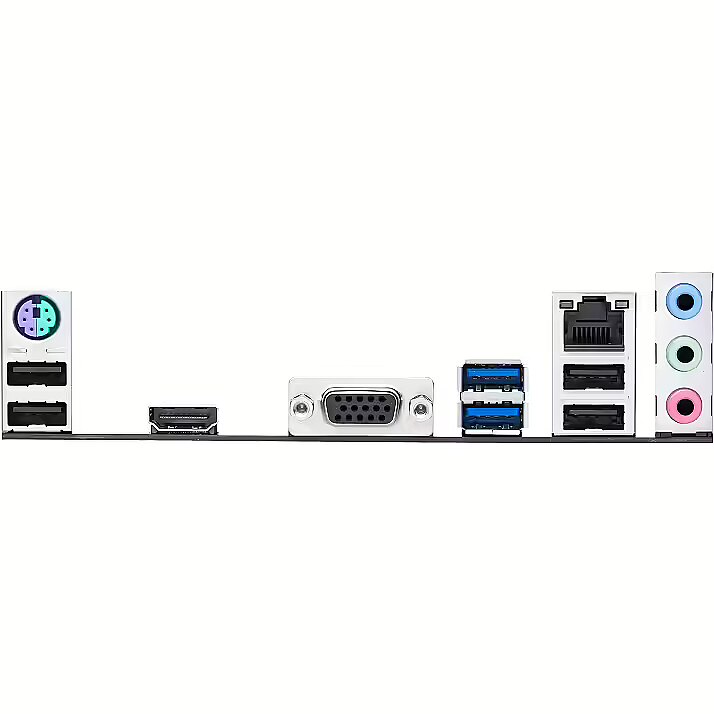

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4/2.0
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 26.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.82 kg
Shipping Box Width Shipping/Package Box Dimensions - 5.5 cm
ShortSummaryDescription - ASUS PRIME H510M-K, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, LGA 1200 (Socket H5), DDR4-SDRAM, 64 GB
Socket - LGA1200
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PRIME H510M-K Intel H510 LGA 1200 (Socket H5) micro ATX
TPM - Header
Unit Box Height - 0.265
Unit Box Length - 0.27
Unit Box Width - 0.055
Unit Brutto Volume - 0.003935 cubm
Unit Gross Weight - 0.82 kg
Unit Net Weight - 0.6 kg
URL - https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-H510M-K/
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-H510M-K/
Warranty - 36 months
WarrantyInfo -
Weight - 0,83
Weight & dimensions - Depth - 203 mm
Weight & dimensions - Height - 51 mm
Weight & dimensions - Width - 226 mm
