Gigabyte Z790 AORUS ELITE AX ICE

Accessories included -
Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - Z790 AORUS ELITE AX ICE
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790 Express Chipset
code - Z790 A ELITE AX ICE
Code - Z790 A ELITE AX ICE
COM connector / port - No
CPU socket - LGA1700
Description - Z790 AORUS ELITE AX ICE Intel Socket LGA 1700: Supports 13th and 12th generation processors Unrivaled performance: 16+1+2 phase digital VRM solution Dual-channel DDR5 memory: 4*SMD DIMMs with support for XMP 3.0 memory modules Next-generation storage: 4 PCIe 4.0 x4 M.2 Advanced M.2 III thermal design and thermal shield: to ensure VRM power stability and M.2 SSD performance EZ-Latch Plus: M.2 connectors with quick release and screwless design Fast networks: 2.5 GbE LAN and Wi-Fi 6E 802.11ax Enhanced connectivity: DP, HDMI, USB-C front 10Gbps, USB-C rear 20Gbps Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card
Description - Z790 AORUS ELITE AX ICE Key Features - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Twin 16+1+2 Phases Digital VRM Solution - Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support - Next Generation Storage:4*PCIe 4.0 x4 M.2 Connectors - Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design - Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax - Extended Connectivity:DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Detailed data on disk/drive interfaces - CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)      * If you are installing a single PCI Express graphics card, please ensure that the card is connected to the PCIEX16 connector for optimal performance. Chipset 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) Processor 1 x M.2 connector (Socket 3, M key, supports PCIe 4.0 x4/x2 type 22110/2280 SSDs) (M2A_CPU) Chipset 2 x M.2 connectors (Socket 3, M key, support for PCIe 4.0 x4/x2 SSDs type 22110/2280) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, support SATA 22110/2280 and PCIe 4.0 x4 SSD) (M2M_SB) 6 SATA 6 Gb/s connectors RAID 0, RAID 1, RAID 5 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA storage devices For information on installing M.2 and SATA connectors, see Internal Connectors 2-8.
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 x 24.4cm
dimension weight - 180 g
dimension width - 330 mm
DisplayPort Input/Output connectors - 1
EAN - 4719330000000
EAN - 4719331858896
ean - 4719331858896
Eans - 4719331858896
EAN_code - 4719331858896
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 4
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 slots - 3
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.1
External connectors - 3 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - White
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Integrated graphics processor - Intel HD graphics support 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.0 and HDCP 2.3 versions. 1 x DisplayPort supporting a maximum resolution of 4096x2304 at 60 Hz * Support for DisplayPort 1.2 and HDCP 2.3. (Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,32
GTIN - 0889523039922
GTIN - 889523039922
GTIN - 4719331858896
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - Total number of SATA connectors - 6
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - ATX, LGA 1700 socket, Intel Z790 Express chipset, 4x DDR5 DIMM, Wi-Fi 6E, Bluetooth 5.3, AMI UEFI BIOS
LongSummaryDescription - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - Z790 AORUS ELITE AX ICE
Manufacturer Name - Gigabyte
Manufacturer_code - Z790 A ELITE AX ICE
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4000 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z790 AORUS ELITE AX ICE
Model - Z790 AORUS ELITE AX ICE
MPN - Z790 AORUS ELITE AX ICE
Name - 1700 Gigabyte Z790 AORUS ELITE AX ICE
Name - Gigabyte Z790 A ELITE AX ICE
Name - GIGABYTE Z790 A ELITE AX ICE 1.0 M/B | Gigabyte
name - GIGABYTE Z790 Aorus Elite AX ICE, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - GIGABYTE Z790 AORUS ELITE AX ICE - Socket 1700 - motherboard
name - Motherboard Z790 AORUS ELITE AX ICE S1700 4DDR5 USB/DP ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) Intel Wi-Fi 6E AX211 (for PCB version 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports 11ax 160 MHz wireless standard and data rates up to 2.4 Gbps Realtek Wi-Fi 6E RTL8852CE (for PCB version 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports 11ax 160 MHz wireless standard and data rates up to 2.4 Gbps * Actual data transfer rate may vary depending on environment and hardware.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 4 x M.2
Onboard connectors - 6 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other information - Voltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) installed.
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.18 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.3 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Gigabyte
Producer - Gigabyte
ProducerCode - Z790 A ELITE AX ICE
ProductName - Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes

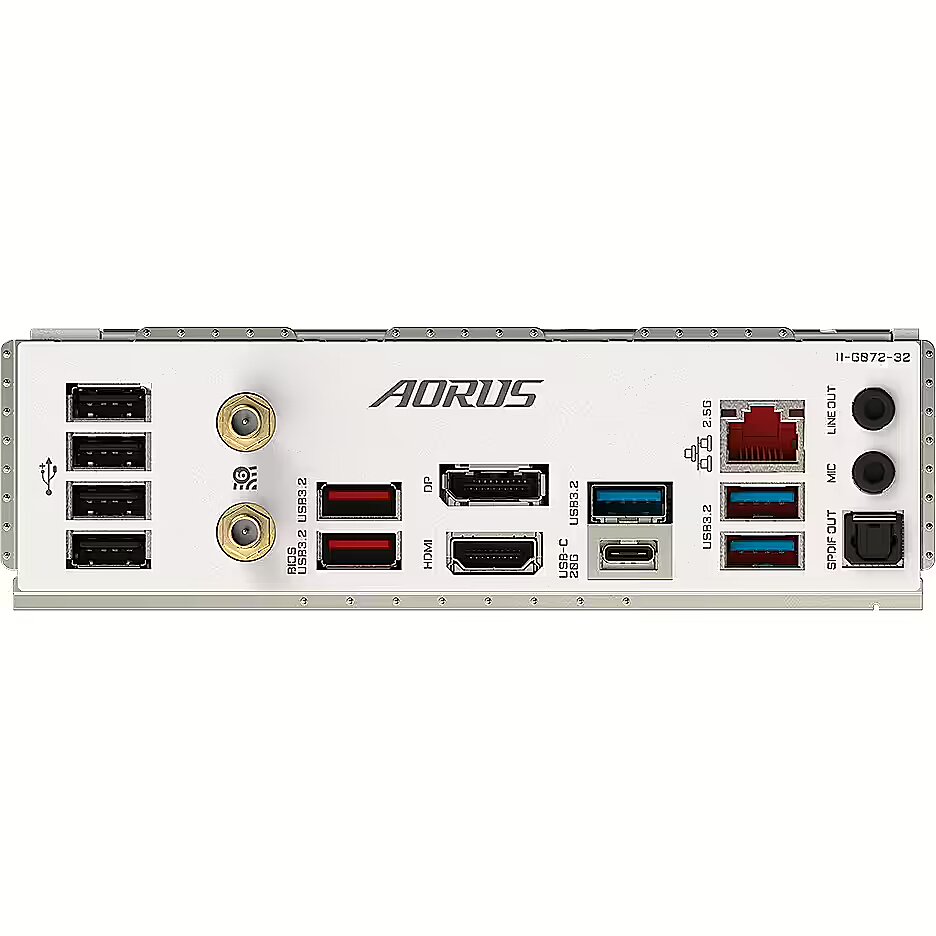

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 2
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 15.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
Short description - GIGA Z790 AORUS ELITE AX ICE S1700/DDR5/ATX
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 192 GB, DDR5-SDRAM
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High Definition Audio support Number of audio channels 2/4/5.1/7.1 * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Special functions - GIGABYTE Control Center (GCC) Support *Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Q-Flash support Support for Q-Flash Plus Smart backup support
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.13 kg
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte

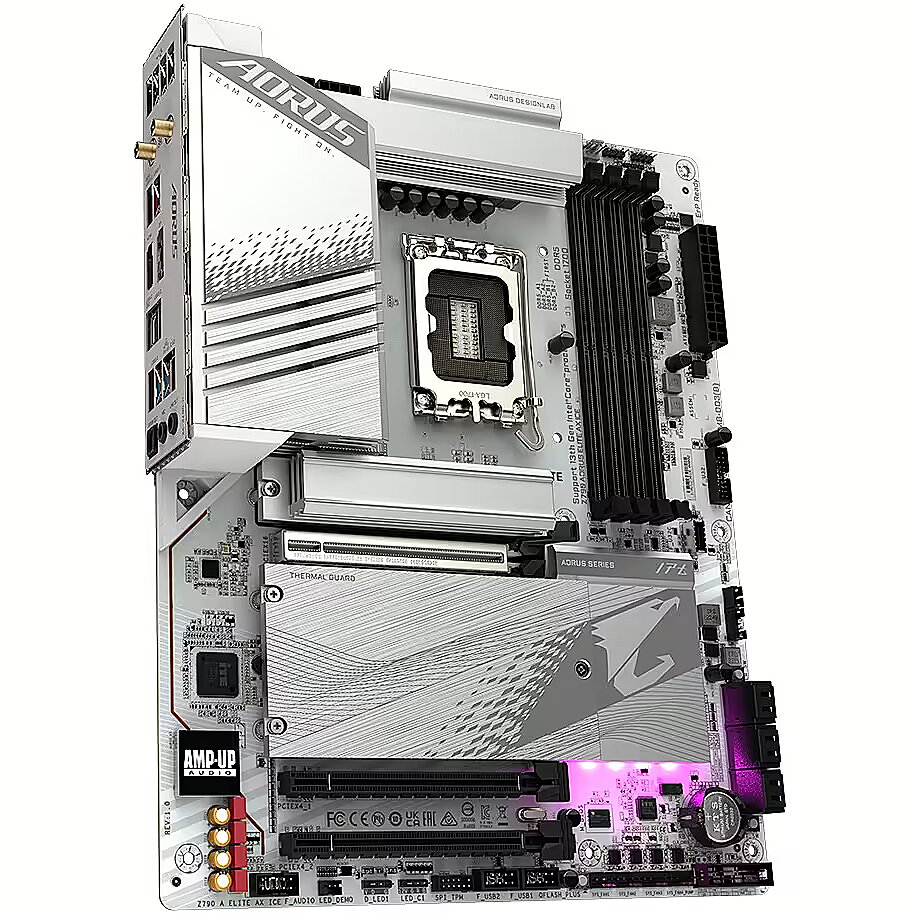

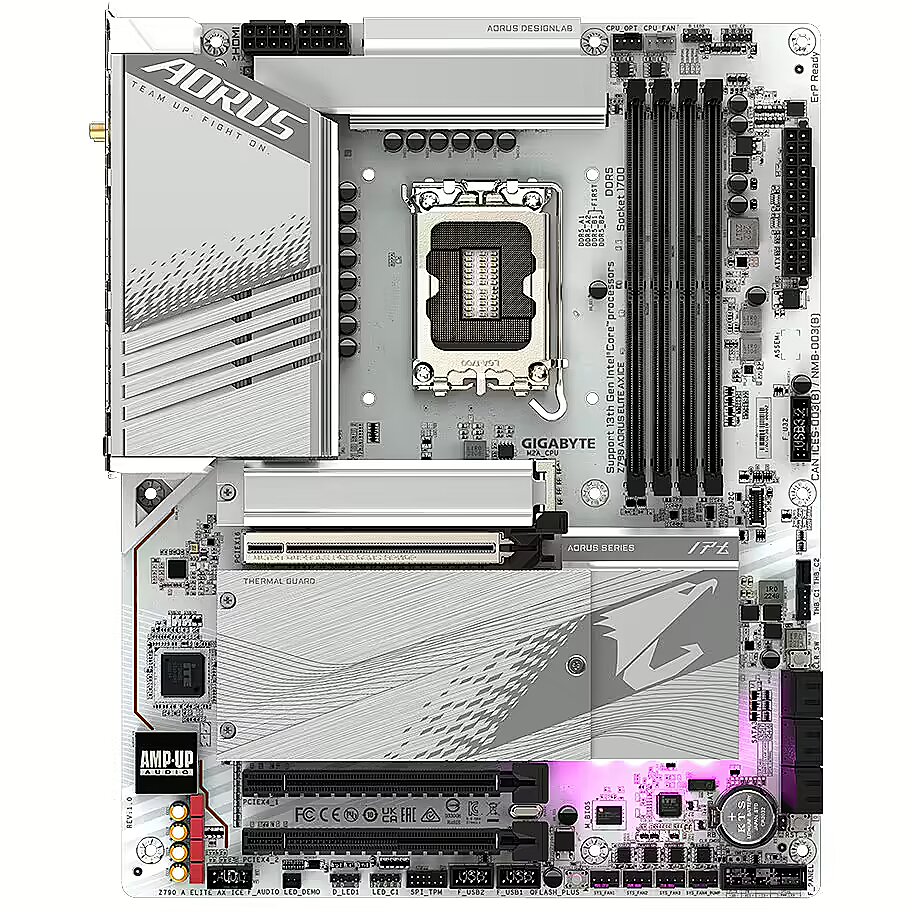

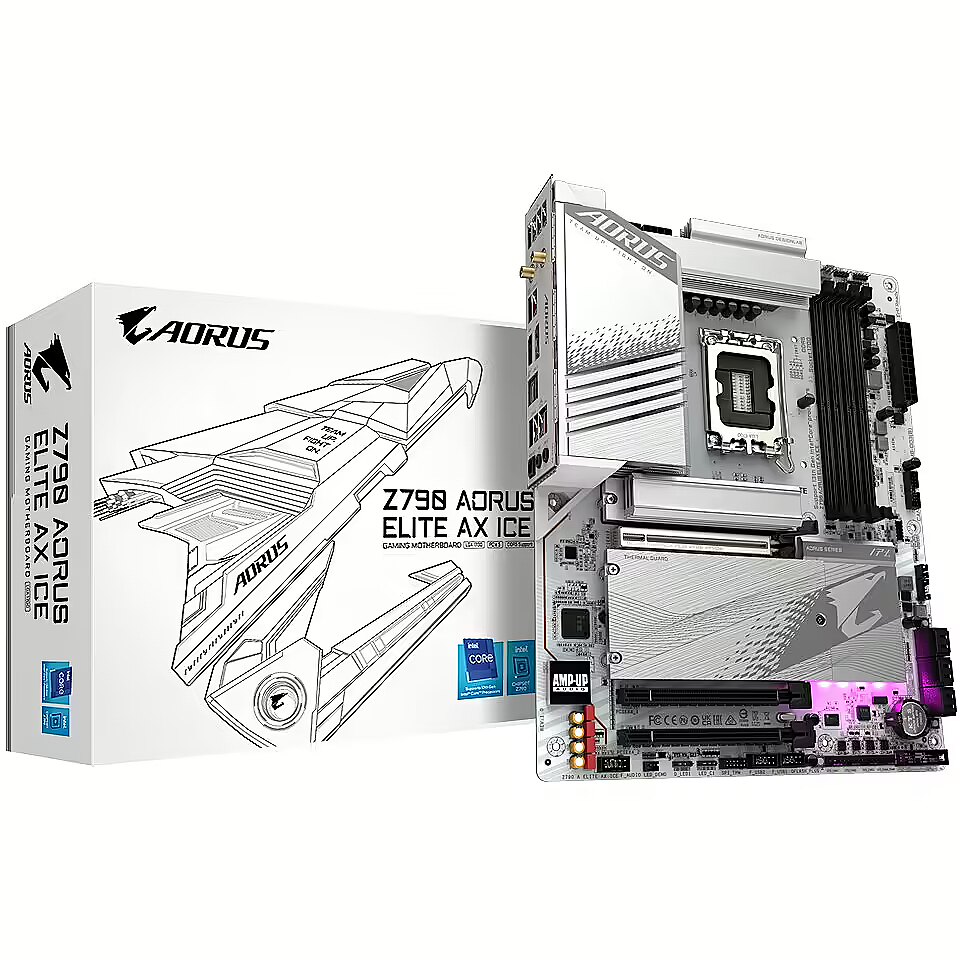

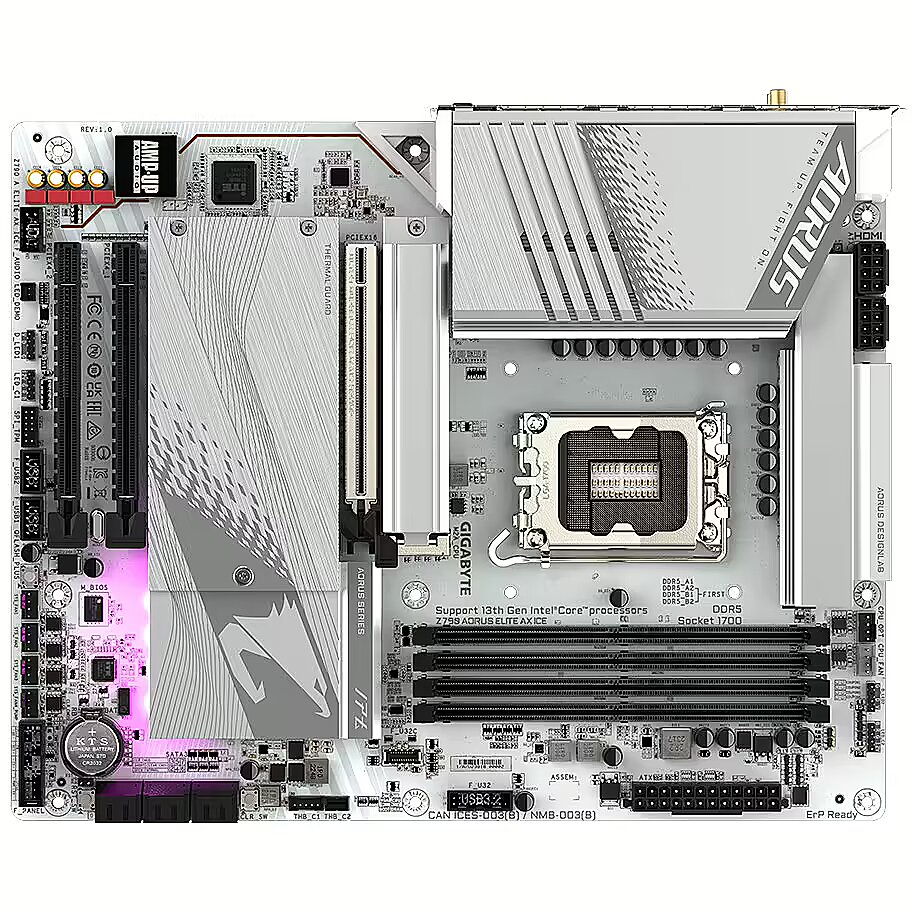

Title - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.08
Unit Box Width - 0.34
Unit Brutto Volume - 0.01027 cubm
Unit Gross Weight - 2.55 kg
Unit Net Weight - 2.2 kg
URL - https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-ICE
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 6
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-ICE#kf
vendpn - Z790 A ELITE AX ICE
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 2,06
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
