15pin D-sub Input/Output connectors - 1
Accessories included -
Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support DRAM Voltage multi-adjustment
BIOS - BIOS type - UEFI AMI
BIOS - Plug and Play - Yes
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chipset - AMD B450
Chipset manufacturer - AMD
Chipset type - AMD Promontory B450
CnCode CnCode - 84733020
Code - B450 PRO4 R2.0
COM connector / port - Yes
CPU socket - Socket AM4
Description - 10-FAZOWY UKŁAD ZASILANIA Komponenty nie do zdarcia i płynny przesył mocy do procesora. Do tego niezrównane możliwości overclockingu i zwiększona wydajność przy niskich temperaturach pracy dla profesjonalnych gamerów. STWÓRZ SWÓJ WŁASNY STYL PODŚWIETLENIA - POLYCHROME RGB Ta płyta główna posiada zintegrowane headery RGB oraz adresowalny header RGB, które umożliwiają na montaż kompatybilnych urządzeń LED, takich jak: wentylatory obudowy, procesora itd. Użytkownicy mają również możliwość synchronizacji certyfikowanych urządzeń Polychrome Sync RGB dla stworzenia unikatowych efektów podświetlenia.
Description - B450 Pro4 R2.0 - Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors - Supports DDR4 3200+ (OC) - 2 PCIe 3.0 x16, 4 PCIe 2.0 x1 - AMD Quad CrossFireX™ - Graphics Output: HDMI, Display Port, D-Sub - 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec) - 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3) - 2 USB 3.2 Gen2 (Rear Type A+C) - 6 USB 3.2 Gen1 (2 Front, 4 Rear) - Realtek Gigabit LAN
Detailed data on disk/drive interfaces - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
dimensionalWeight - 1065
dimension depth - 343 mm
dimension height - 60 mm
Dimensions - 30.5 cm x 22.4 cm
dimension weight - 1320 g
dimension width - 265 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483932786
ean - 4710483932786
Eans - 4710483932786
Expansion slots - 2 x PCIe 3.0 x 16
Expansion slots - 4 x PCIe 2.0 x 1
Expansion slots - PCI Express x1 (Gen 2.x) slots - 4
Expansion slots - PCI Express x16 (Gen 3.x) slots - 2
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC892 / Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B450
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Form Factor - ATX
Form factor - ATX
Frequency speed - 2133/2400/2666/2933/3200 MHz
Full Description Line - AMD B450|SAM4|ATX|DDR4|3200/2933/2666/2400/2133 MHz|Memory slots 4|4xPCI-Express 2.0 1x|2xPCI-Express 3.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio Realtek ALC897|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10|TPM Header
Graphics -
Graphics - DirectX version - 12.0
Graphics - Graphics card family - AMD
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Number of displays supported - 3
Gross weight - 2.30 kg
guarantee - 24
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - Realtek (Gigabit)
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 6
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asrock.com/mb/AMD/B450%20Pro4%20R2.0/index.asp
M.2 Expansion slots - 2
Max. number of SATA devices - 6
Max memory size - 128 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory types - DDR4-SDRAM
Memory > Supported memory types - DDR4
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B450 PRO4 R2.0

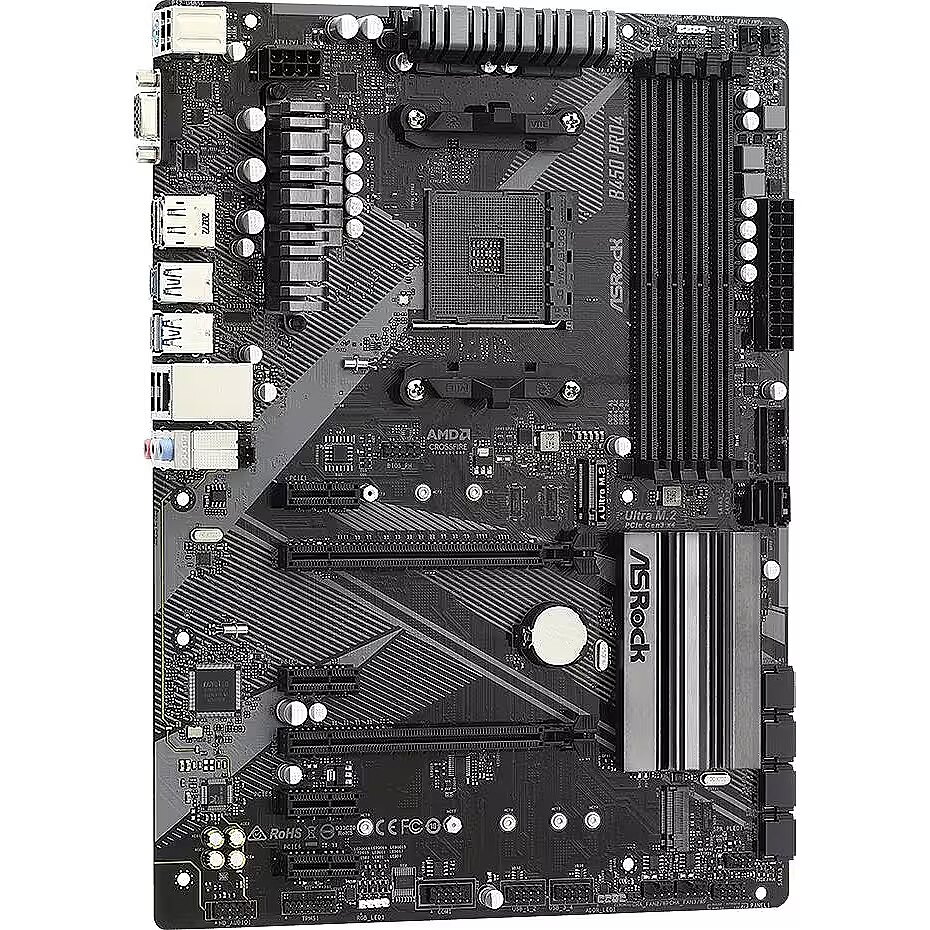

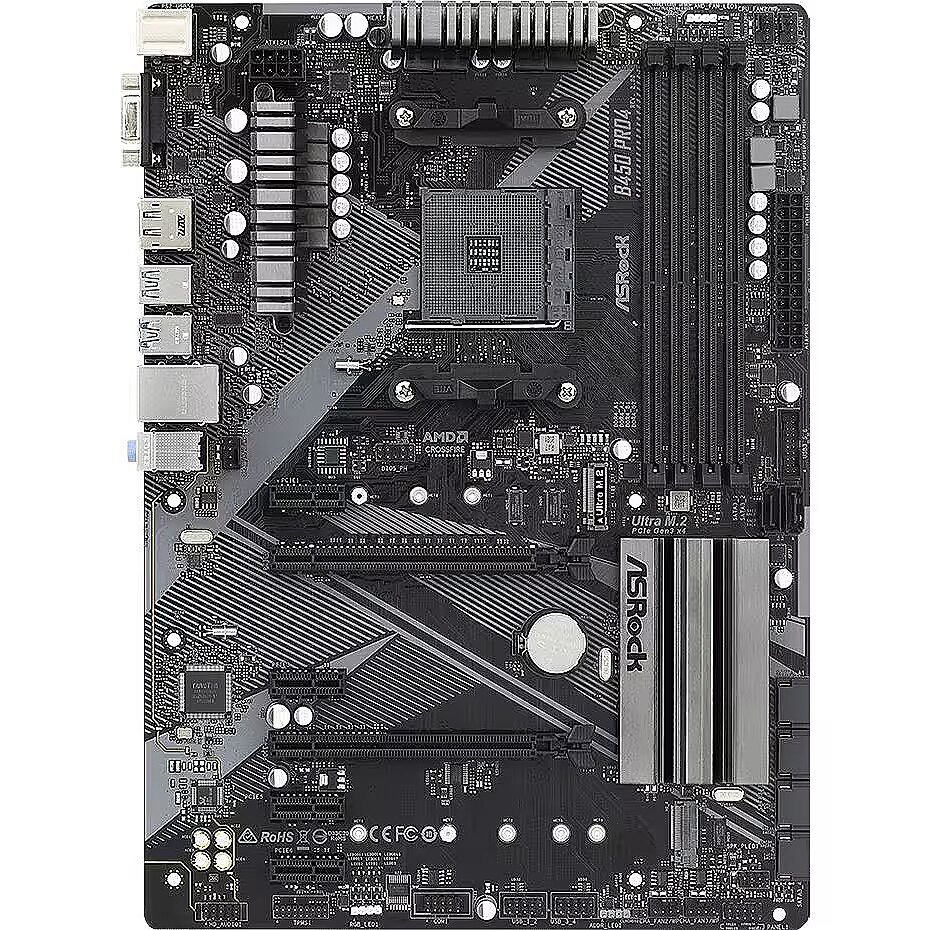

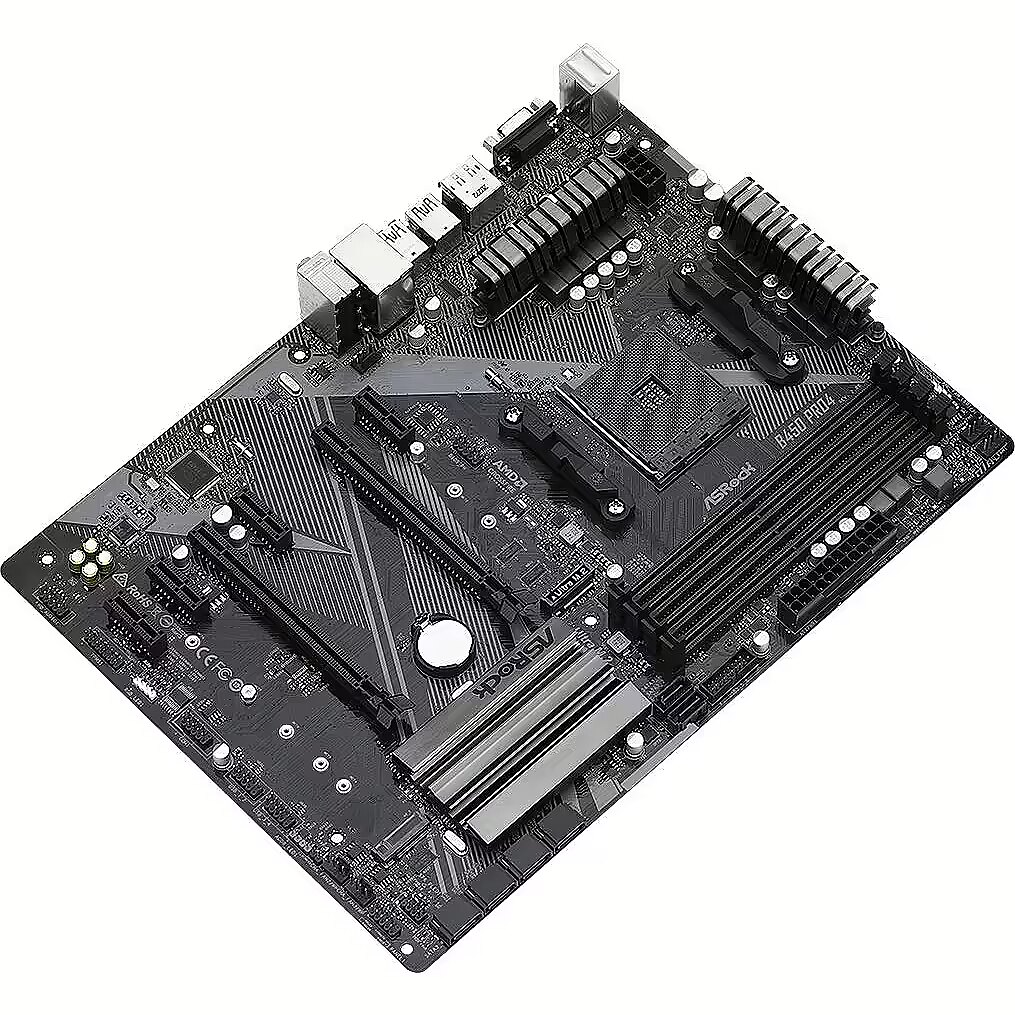

Name - ASRock B450 Pro4 R2.0
Name - ASRock | B450 PRO4 R2.0 | Processor family AMD | Processor socket AM4 | DDR4 | Supported hard disk drive interfaces SATA, M.2
name - B450 PRO4 R2.0 AM4 4DDR 4 DP/HDMI M.2 USB3.2 AT
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wake-on-LAN ready - Yes
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Other features - Quick installation guide - Yes
Other information -
Package features > Embeeded battery - No, No
Package features > Gross depth (mm) - 70.00, 70.00 mm
Package features > Gross height (mm) - 295.00, 295.00 mm
Package features > Gross width (mm) - 360.00, 360.00 mm
Package features > Packing quantity - 1.00, 1.00 pc(s)
Package features > Palette Qty - 232, 232 pc(s)
Package features > Paper/Pasteboard - 490.00, 490.00 g
Package features > Plastic (No PET) - 10.00, 10.00 g
Package features > Tare weight (kg) - 0.50, 0.50 kg
Package features > Volume (m3) - 0.01, 0.01 m³
Package features > WEEE tax - No, No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 2.0 1x Expansion slots - 4
PCI-Express 3.0 16x Expansion slots - 2
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 5
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Athlon
Processor - Compatible processor series - AMD Ryzen™ 3
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Processor thermal power (max) - 105 W
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - Non-CPU
producer - ASRock
Producer - ASRock
producerCode - B450 PRO4 R2.0
ProducerCode - B450 PRO4 R2.0
productName - Asrock B450 Pro4 R2.0 Socket AM4 ATX AMD B450
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
RAID - Yes

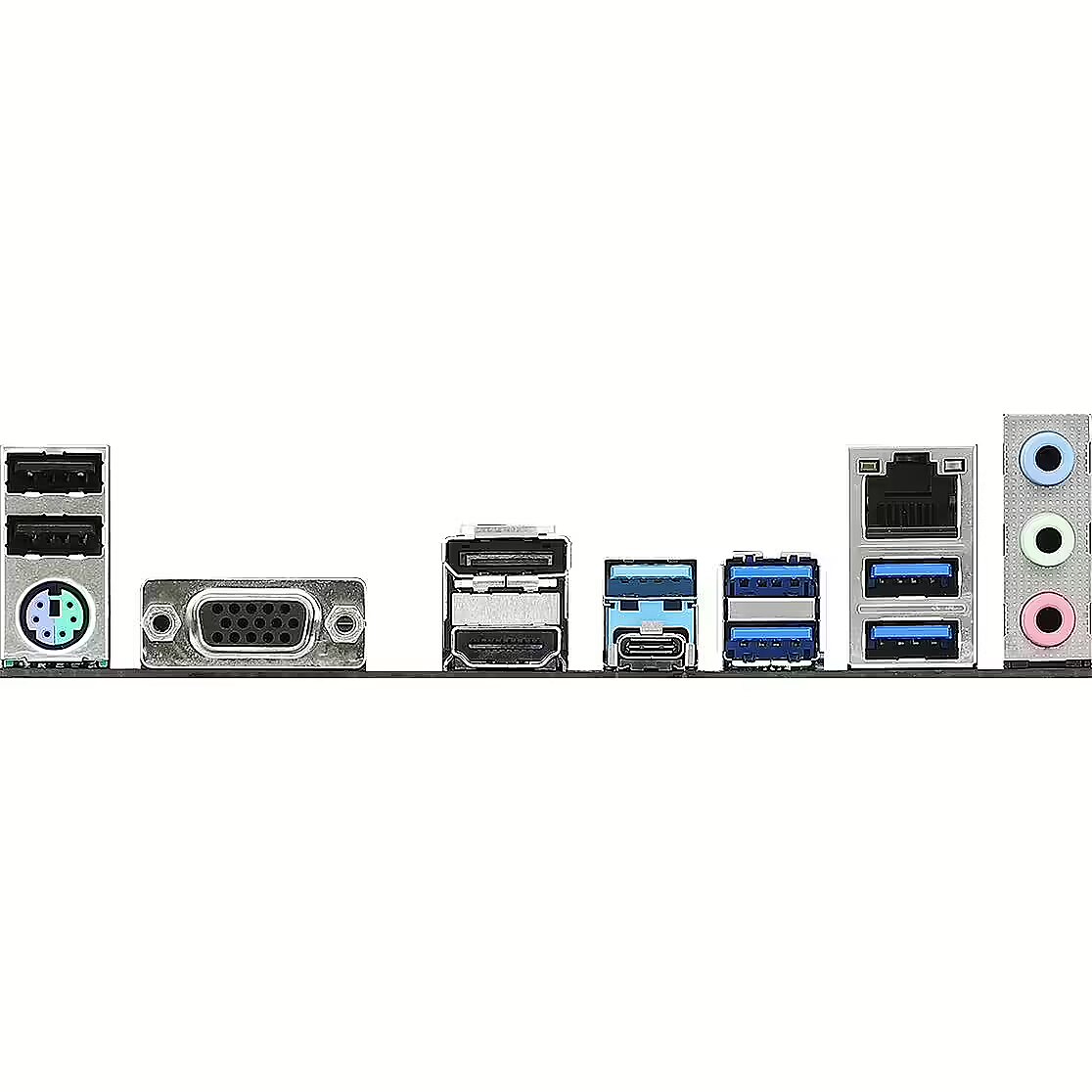

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 33.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 27 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.33 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
ShortDescription - Socket AM4 | Chipset AMD B450
sizeX - 335
sizeY - 60
sizeZ - 265
Socket - SAM4
Software -
Sound card - 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec) Supports Surge Protection
Special functions -
Supported operating systems - Windows 10
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock, ASRock
Technical details > Producer product name - B450 PRO4 R2.0
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.335
Unit Box Width - 0.06
Unit Brutto Volume - 0.005427 cubm
Unit Gross Weight - 1.33 kg
Unit Net Weight - 1.1 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 3.2 Input/Output connectors - 5
USB ports at back panel - 8
USB ports on motherboard - 6
Vendor Homepage - www.asrock.com/MB/AMD/B450%20Pro4%20R2.0/index.asp
vendpn - B450 PRO4 R2.0
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 24
warrantyType - G
weight - 1325
Weight & dimensions - Depth - 224 mm
Weight & dimensions - Width - 305 mm
