Accessories included -
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B450 AORUS ELITE V2
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
Chipset manufacturer - AMD
Chipset type - AMD B450
code - B450 AORUS ELITE V2
Code - B450 AORUS ELITE V2
COM connector / port - Yes
CPU socket - Socket AM4
Description - Płyta główna Gigabyte B450 AORUS ELITE V2
Płyty główne GIGABYTE są gotowe do obsługi najnowszych procesorów AMD Ryzen serii 5000 i są wstecznie kompatybilne z procesorami AMD Ryzen 4000, 3000, 2000 i 1000. Dzięki bogatej liście funkcji płyt głównych GIGABYTE, takich jak Ultra Durable Armor dla gniazd PCIe / pamięci, interfejsy USB Type-C na wybranych płytach, udoskonalona jakość dźwięku, szybki Ethernet i najnowszy standardowy projekt WIFI w wybranych modelach, GIGABYTE Płyty główne są idealne dla użytkowników, którzy chcą zbudować najlepsze systemy platform AMD. Cechy: Dwukanałowa niebuforowana pamięć DDR4 bez ECC, 4 moduły DIMM 8 + 2-fazowy cyfrowy podwójny układ zasilania z tranzystorami MOSFET o niskim współczynniku RDS (on) Porty HDMI, DVI-D dla wielu wyświetlaczy Zintegrowana osłona we / wy o ultra trwałej konstrukcji Podwójny ultraszybki NVMe PCIe Gen3 M.2 (x4, x2) z jedną osłoną termiczną Wysokiej jakości kondensatory audio i ochrona akustyczna dzięki LED Trace Path Lighting GIGABYTE Exclusive 8118 Gaming LAN z zarządzaniem pasmem RGB FUSION 2.0 obsługuje adresowalne paski LED i RGB LED Smart Fan 5 zawiera 6 czujników temperatury i 4 hybrydowe głowice wentylatorów z funkcją FAN STOP APP Center, w tym narzędzia EasyTune i Cloud Station Gotowy na CEC 2019, oszczędzaj energię jednym kliknięciem
Detailed data on disk/drive interfaces -
dimensionalWeight - 1447
dimension depth - 80 mm
dimension height - 270 mm
Dimensions - 30.5 x 23.5 cm
dimension weight - 1420 g
dimension width - 340 mm
EAN - 4719331810726
ean - 4719331810726
Eans - 4719331810726
Expansion slots - 1 x PCIe 2.0 x 4
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 2 x M.2
Expansion slots - 2 x PCIe 2.0 x 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 2.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1

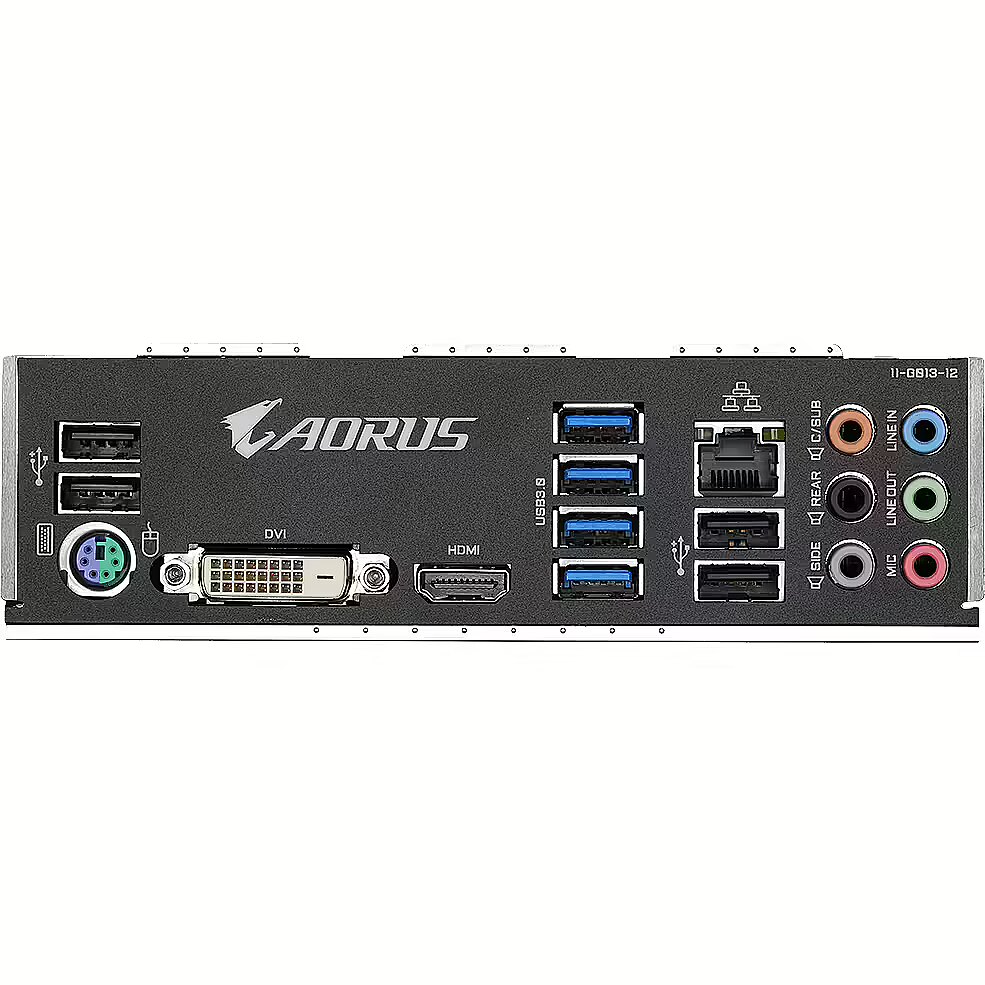

External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x Side Speaker
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC892
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B450
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Form factor - ATX
Graphics - Wyjścia graficzne: 1 x port DVI-D, obsługujący maksymalną rozdzielczość 1920x1200 @ 60 Hz 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160 @ 60 Hz Maksymalna pamięć współdzielona 16 GB
Graphics - DirectX version - 12.0
Graphics - Parallel processing technology support - 2-Way CrossFireX
Graphics - Parallel processing technology support - Not supported
Graphics - Parallel processing technology support - Quad-GPU CrossFireX
Gross weight - 2.04 kg
GTIN - 0889523024379
GTIN - 889523024379
GTIN - 4719331810726
guarantee - 36
guarantee_type - normal
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 6
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 6 x SATA 6Gb/s connectors
Link - https://www.gigabyte.com/Motherboard/B450-AORUS-Elite-V2-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Socket AM4, AMD B450 Chipset, 4 x DDR4-SDRAM up to 128GB, LAN, 1 x RJ-45, 6 x SATA III, 2 x M.2(M), UEFI AMI, ATX
LongSummaryDescription - GIGABYTE B450 AORUS Elite V2 Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 2xPCIe 3.0 x4 M.2, WIFI, GbE LAN, USB 3.1 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
Max. number of SATA devices - 6
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 3600 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200,3466,3600 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory types - DDR4-SDRAM
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory type - DDR4
Model - B450 AORUS ELITE V2
Name - Gigabyte B450 AORUS ELITE V2
name - GIGABYTE B450 AORUS Elite V2, AMD B450 Mainboard - Sockel AM4
Name - Gigabyte | B450 AORUS ELITE V2 1.0 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Number of SATA connectors 6 x SATA 6Gb/s connectors | Chipset AMD B | ATX
name - Motherboard B450 AORUS ELITE V2 AM4 4DDR4 DVI/HDMI/M.2 ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Chip Realtek GbE LAN
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x CPU mode switch
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 380.00 mm
Package features > Gross height (mm) - 130.00 mm
Package features > Gross width (mm) - 310.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 113 pc(s)
Package features > Paper/Pasteboard - 320.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.02 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging data - Package depth - 575 mm
Packaging data - Package height - 375 mm
Packaging data - Package weight - 1.39 kg
Packaging data - Package width - 365 mm
Performance > Chipset - AMD B
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 5
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Ryzen™ 3
Processor - Compatible processor series - AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, AMD Ryzen™ 7, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - AMD 3rd Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen/2nd Gen Ryzen with Radeon Vega Graphics/1st Gen Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Athlon
Processor family - AMD Ryzen
Processor family - AMD Ryzen 3
producer - Gigabyte
Producer - Gigabyte
producerCode - B450 AORUS ELITE V2
ProducerCode - B450 AORUS ELITE V2
Producer product name - B450 AORUS ELITE V2 1.0
ProductName - B450 AORUS Elite V2 Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 2xPCIe 3.0 x4 M.2, WIFI, GbE LAN, USB 3.1 Gen 1
productName - Gigabyte B450 AORUS Elite V2 Socket AM4 ATX AMD B450
productSize - Normal
RAID - Yes
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
ShortDescription - Socket AM4 | Chipset AMD B450
ShortSummaryDescription - GIGABYTE B450 AORUS Elite V2 Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 2xPCIe 3.0 x4 M.2, WIFI, GbE LAN, USB 3.1 Gen 1, AMD, Socket AM4, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd..., Socket AM4, 128 GB, DDR4-SDRAM
sizeX - 335
sizeY - 270
sizeZ - 80
Software - Norton Internet Security (wersja OEM) Realtek 8118 Gaming LAN Bandwidth Control Utility
Sound card - Wbudowany układ Realtek ALC892 Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 Wsparcie dla wyjścia S/PDIF
Special functions - Wsparcie dla APP Center: Obsługa @ BIOS EasyTune Fast Boot Game Boost Obsługa On/Off Charge RGB Fusion Smart Backup System Information Viewer Obsługa Q-Flash Wsparcie dla Xpress Install
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive interfaces - M.2, Serial ATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 1.64 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE B450 AORUS Elite V2 Motherboard - Supports AMD Series 5000 CPUs, up to 3600MHz DDR4 (OC), 2xPCIe 3.0 x4 M.2, WIFI, GbE LAN, USB 3.1 Gen 1
URL - https://www.gigabyte.com/Motherboard/B450-AORUS-Elite-V2-rev-10#kf
USB ports at back panel - 8
USB ports on motherboard - 6
vendpn - B450 AORUS ELITE V2
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
weight - 1330
Weight & dimensions - Depth - 235 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
