Accessories included -
Audio port Input/Output connectors - 5
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Korzysta z licencjonowanego AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B550 AORUS ELITE V2
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD B550
Chipset manufacturer - AMD
Chipset type - AMD B550
code - B550 AORUS ELITE V2
Code - B550 AORUS ELITE V2
COM connector / port - No
CPU socket - Socket AM4
Description -
Description - B550 AORUS ELITE V2 1.5 Key Features Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12+2 Phases Digital Twin Power Design with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable™ PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality Blazing Fast 2.5GbE LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Pre-installed IO Shield for Easy and Quick Installation
Detailed data on disk/drive interfaces - 1 x złącze M.2 (M2A_CPU), zintegrowane z procesorem, obsługujące gniazdo 3, klucz M, dyski SSD typu 2242/2260/2280/22110: Procesory AMD Ryzen trzeciej generacji obsługują dyski SSD SATA i PCIe 4.0 x4 / x2 AMD Ryzen trzeciej generacji z procesorami Radeon Graphics obsługuje dyski SSD SATA i PCIe 3.0 x4 / x2 1 x złącze M.2 (M2B_SB), zintegrowane z chipsetem, obsługujące gniazdo 3, klucz M, dyski SSD typu 2242/2260/2280/22110: Obsługa dysków SSD SATA i PCIe 3.0 x4 / x2 4 x złącza SATA 6 Gb/s zintegrowane z chipsetem: Obsługa macierzy RAID 0, RAID 1 i RAID 10
dimensionalWeight - 1523
dimension depth - 270 mm
dimension height - 80 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1620 g
dimension width - 340 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331809898
ean - 4719331809898
Eans - 4719331809898
EAN_code - 4719331809898
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 2 x PCIe 3.0 x 16
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 2.x) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 slots - 2

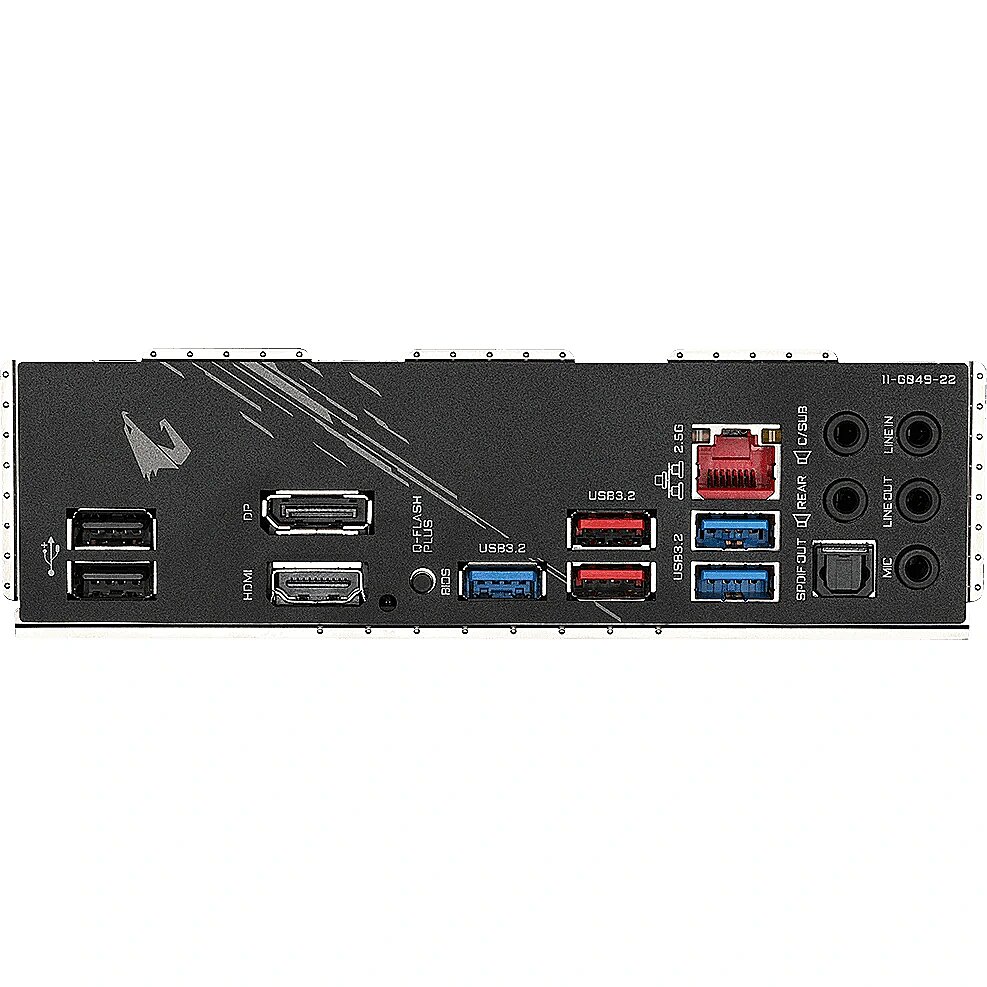

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Side Speaker
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.1
External connectors - 3 x USB 3.0
Features - Audio chip - Realtek ALC1200
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 2133/2400/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Full Description Line - AMD B550|SAM4|ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2400/2133 MHz|Memory slots 4|1xPCI-Express 16x|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC1220|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics -
Graphics - DirectX version - 12.0
Graphics - Graphics card family - AMD
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.64 kg
Gross Weight Kg - 1,24
GTIN - 0889523023945
GTIN - 889523023945
GTIN - 4719331809898
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Link - https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-V2-rev-10/sp#sp
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Socket AM4, AMD B550 Chipset, 4 x DDR4-SDRAM up to 128GB, LAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, ATX
LongSummaryDescription - GIGABYTE B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8125
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - B550 AORUS ELITE V2
Manufacturer Name - Gigabyte
Manufacturer_code - B550 AORUS ELITE V2
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 4733 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3333 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4400 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B550 AORUS ELITE V2
Model - B550 AORUS ELITE V2 1.5
MPN - B550 AORUS ELITE V2
Name - AM4 Gigabyte B550 Aorus Elite V2
name - B550 AORUS ELITE V2 AM4 4DDR4 HDMI/DP M.2 ATX
Name - Gigabyte B550 AORUS ELITE V2
Name - GigaByte B550 AORUS ELITE V2 B550 - Socket AM4 - Mainboard
name - GIGABYTE B550 AORUS Elite V2, AMD B550 Mainboard - Sockel AM4
Name - Gigabyte | B550 AORUS ELITE V2 1.0 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Chipset AMD B | ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Gigabit Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 3pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 1.12 kg
Other information - Z uwagi na różne warunki obsługi Linuxa, prosimy o pozyskanie sterowników ze strony internetowej producenta danego układu. Większość producentów chipsetów nie wspiera obsługi starszych systemów operacyjnych takich jak Win9X/ME/2000/XP. Jeśli producent udostępni taki BIOS, znajdzie się on w sekcji "Do pobrania" odpowiednio dla każdego produktu z oferty.
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335 mm
Package features > Gross depth master carton - 565 mm
Package features > Gross height (mm) - 275 mm
Package features > Gross height master carton - 360 mm
Package features > Gross width (mm) - 80 mm
Package features > Gross width master carton - 365 mm
Package features > Net weight master carton - 13.12 kg
Package features > Packing quantity - 8 pc(s)
Package features > Palette Qty - 184 pc(s)
Package features > Paper/Pasteboard - 625 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.675 kg
Package features > Tare weight master carton - 1.262 kg
Package features > Volume (m3) - 0.00737 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.8 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 2x Expansion slots - 1
PCI-Express 16x Expansion slots - 1
Performance > Chipset - AMD B
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - Compatible with 3rd generation AMD Ryzen processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen
producer - Gigabyte
Producer - Gigabyte
producerCode - B550 AORUS ELITE V2
ProducerCode - B550 AORUS ELITE V2
Producer product name - B550 AORUS ELITE V2 1.0
ProductName - B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1
productName - Gigabyte B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1
productSize - Normal
RAID - SATA 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.57 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
Short description - GIGA B550 AORUS ELITE V2 AM4 B550/DDR4/ATX
ShortDescription - Socket AM4 | Chipset AMD B550
ShortSummaryDescription - GIGABYTE B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., Socket AM4, 128 GB, DDR4-SDRAM
sizeX - 340
sizeY - 280
sizeZ - 80
Socket - SAM4
Software - Norton Internet Security (wersja OEM) Realtek 8125 Gaming LAN Bandwidth Control Utility
Sound card - Realtek ALC1200 codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 Wsparcie dla S/PDIF Out
Special functions - Wsparcie dla APP Center Dostępne aplikacje w APP Center mogą się różnić w zależności od modelu płyty głównej. Obsługiwane funkcje każdej aplikacji mogą się również różnić w zależności od specyfikacji płyty głównej. Obsługa @ BIOS EasyTune Fast Boot Game Boost Obsługa ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Obsługa Q-Flash wsparcie dla Xpress Install
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.965 kg
Technical details > Producer - Gigabyte

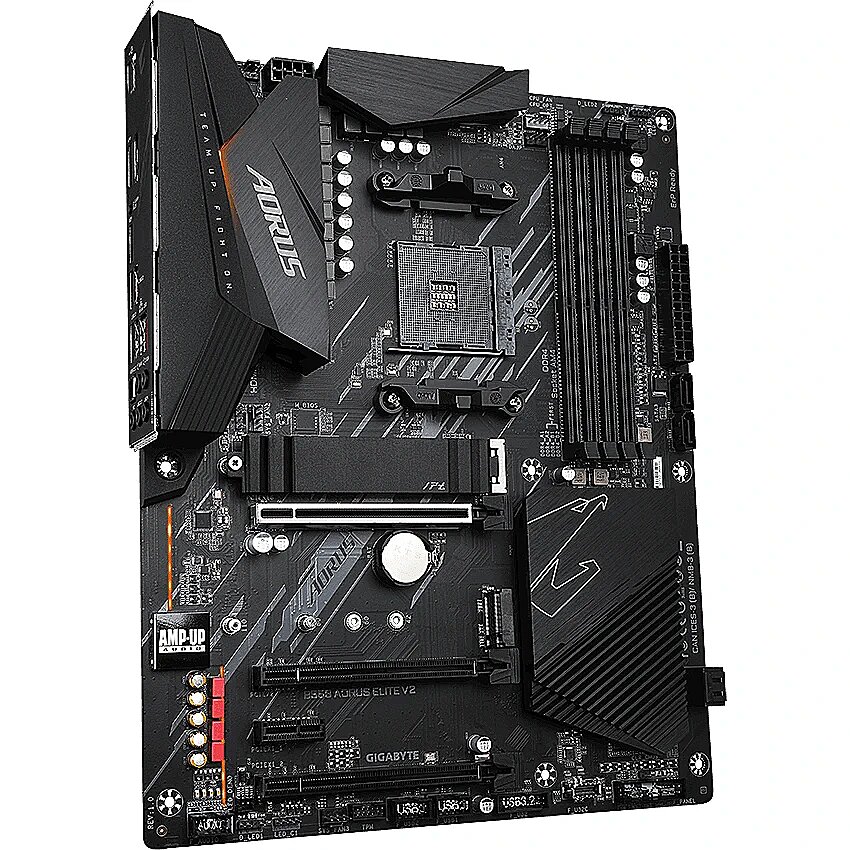

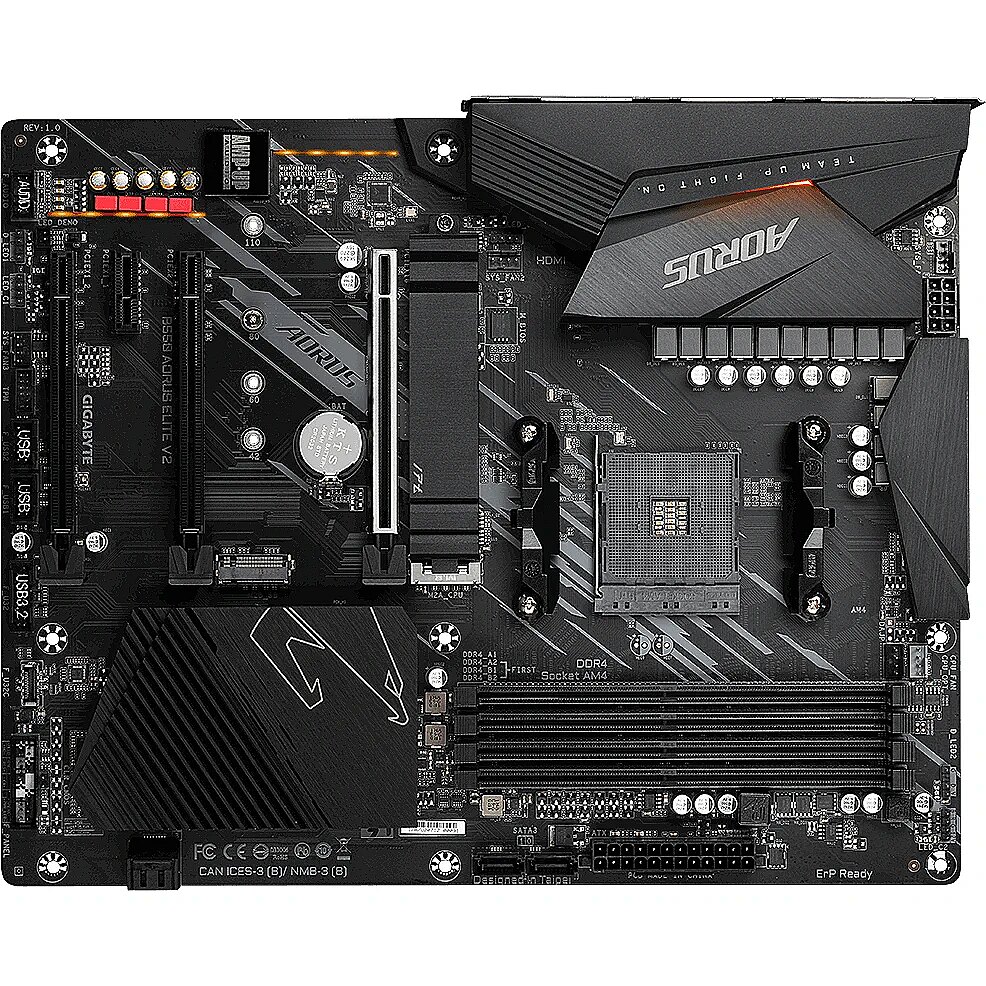

Title - GIGABYTE B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1
TPM - Header
Unit Brutto Volume - 0.00748 cubm
Unit Gross Weight - 1.57 kg
Unit Net Weight - 1.2 kg
URL - https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-V2-rev-10#kf
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 7
USB ports on motherboard - 8
Vendor Homepage - www.gigabyte.com/Motherboard/B550-AORUS-ELITE-V2-rev-15#kf
vendpn - B550 AORUS ELITE V2
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 1,62
Weight - 1.56
weight - 1585
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
