Accessories included - Quick installation guide CD: drivers, tools, anti-virus software (trial version), Google Chrome browser and toolbar 2 x SATA cable 3 x M.2 socket screws
ARTIKEL1 - B550 PHANTOM GAMING 4 ATX 4
ARTIKEL2 - DDR4
Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
Breite - 0.27
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD B550
Chipset manufacturer - AMD
Chipset type - AMD B550
Code - B550 PHANTOM GAMING 4
Code - B550PHANTOMGAMING4
COM connector / port - No
CPU socket - Socket AM4
Desc - Mikroshēmu tips | chipset: AMD B550, Plates formfaktors: ATX, Procesora ražotājs: AMD, Ligzda: AM4, DDR tips: DDR4, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, Integrēta audio karte: Realtek ALC1200, LAN: Realtek RTL8111H Gigabit LAN Controller, WiFi: Nav, M.2 Pieslēgumi: 2, Garantija: 2 gadi
Description - B550 Phantom Gaming 4 Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors 8 Power Phase Design, Digi Power Supports DDR4 4733+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI AMD CrossFireX™ 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3) 8 USB 3.2 Gen1 (2 Front, 6 Rear) Gigabit LAN
Description - Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. Its all about bringing a new gaming experience to gamers! Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors 8 Power Phase Design, Digi Power Supports DDR4 4733+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI AMD CrossFireX 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3) 8 USB 3.2 Gen1 (2 Front, 6 Rear) Gigabit LAN
Detailed data on disk/drive interfaces - CPU: Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors* Digi Power design 8 Power Phase design 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
dimension depth - 265 mm
dimension height - 60 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1300 g
dimension width - 340 mm
EAN -
EAN - 4710483931499
ean - 4710483931499
EANCode - 4710483931499
Eans - 4710483931499
EAN_code - 4710483931499
Expansion slots - 1 x M.2
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - 2 x PCIe x 16

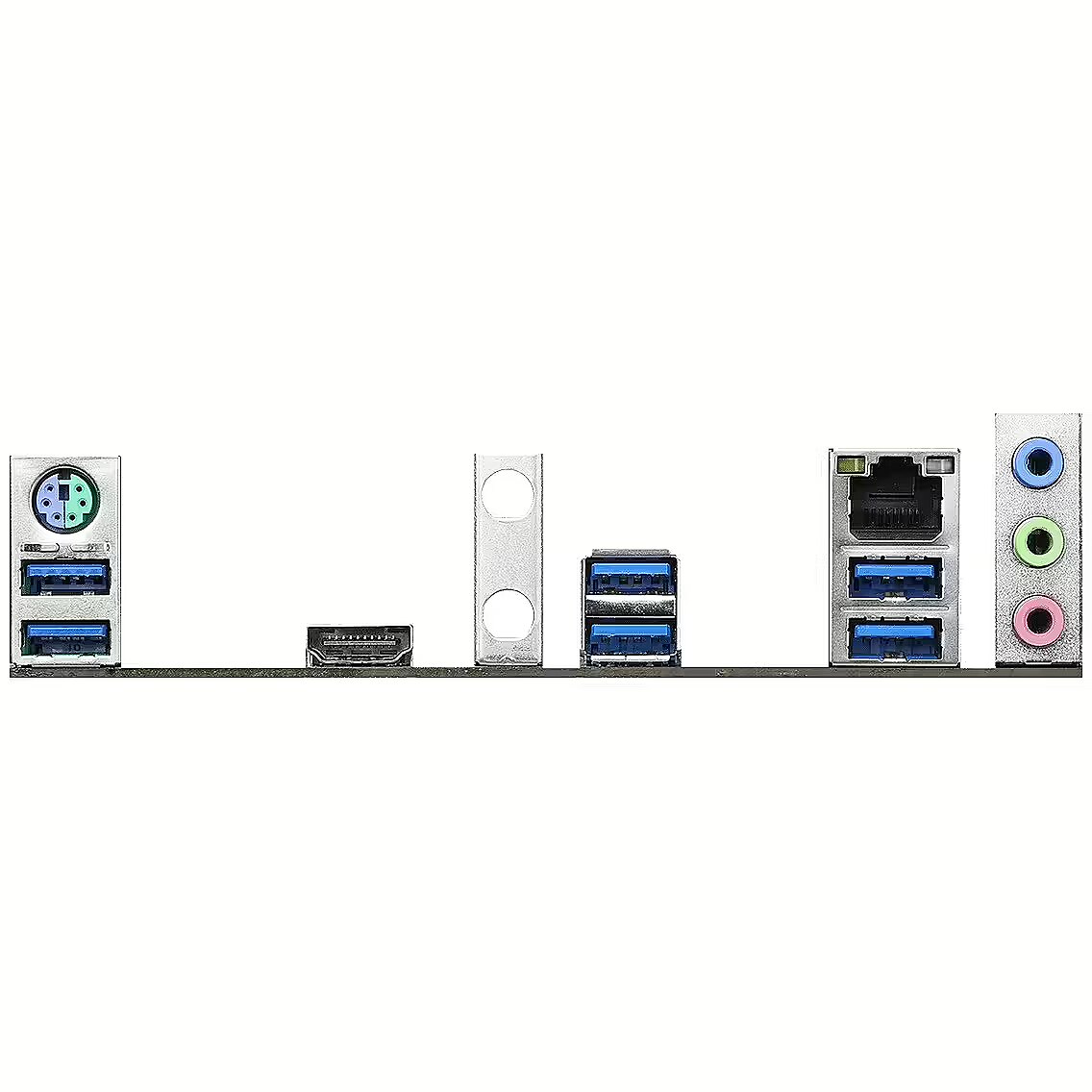

External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 6 x USB 3.0
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
Full Description Line - AMD B550|SAM4|ATX|DDR4|4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xAudio-In|1xAudio-Out|6xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio Realtek ALC1200|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10|TPM Header
Gewicht - 1.35
Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with HDMI 2.1 Port Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port Supports Microsoft PlayReady
Gross weight - 1.52 kg
GRUPPE1 - Memory & Processors
GRUPPE2 - Mainboard
guarantee - 24
guarantee_type - normal
HDMI Input/Output connectors - 1
HERSTELLER - ASROCK
Hoehe - 0.07
HSTNUMMER - 90-MXBCY0-A0UAYZ
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_63965_1.png
Integrated audio - Realtek ALC1200
Integrated CPU - No
Integrated LAN - Realtek (Gigabit)
Integrated video - Depending on CPU
Internal I/O > Number of SATA connectors - 6
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Laenge - 0.34
LargeDescHTML -
Link - https://pg.asrock.com/mb/AMD/B550%20Phantom%20Gaming%204/index.asp
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - Asrock
Manufacturer_code - 90-MXBCY0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 128 GB
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3800 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4200 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4333 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4533 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B550 Phantom Gaming 4
Name - Asrock B550 Phantom Gaming 4
Name - ASRock B550 PHANTOM GAMING 4
Name - Asrock B550 Phantom Gaming 4 - Socket AM4 - mainboard
Name - ASRock | B550 PHANTOM GAMING 4 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 6
name - Motherboard B550 Phantom Gaming 4 AM4 4DDR4 HDMI M.2 ATX
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Network interface - WiFi 802.11b/g/n
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.39 mm
Package features > Gross height (mm) - 63.49 mm
Package features > Gross width (mm) - 271.79 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 200 pc(s)
Package features > Paper/Pasteboard - 100 g
Package features > Plastic (No PET) - 38 g
Package features > Tare weight (kg) - 0.14 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen
producer - ASRock
Producer - ASRock
ProducerCode - B550 PHANTOM GAMING 4
Producer product name - B550 PHANTOM GAMING 4
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
RAID - Yes
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 64 cm
Shipping Box Height Shipping/Package Box Dimensions - 28 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 14.06 kg
Shipping Box Width Shipping/Package Box Dimensions - 35 cm
ShortDescription - Socket AM4 | Chipset AMD B550
Socket - SAM4
Software - Software: ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Polychrome SYNC ASRock Key Master ASRock XFast LAN UEFI: ASRock Full HD UEFI ASRock Instant Flash
Sound card - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection PCB Isolate Shielding Individual PCB Layers for R/L Audio Channel Nahimic Audio
Special functions -
Stck_Kart - 10
Stck_Pal - 0
Storno - N
Supported operating systems - Windows 10
Technical details > Net weight - 1.38 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.06
Unit Box Width - 0.34
Unit Brutto Volume - 0.006272 cubm
Unit Gross Weight - 1.41 kg
Unit Net Weight - 1 kg
USB 3.2 Input/Output connectors - 6
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.asrock.com/mb/AMD/B550%20Phantom%20Gaming%204/index.asp
vendpn - B550 PHANTOM GAMING 4
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
Weight - 1,33
